Page 161 of 166

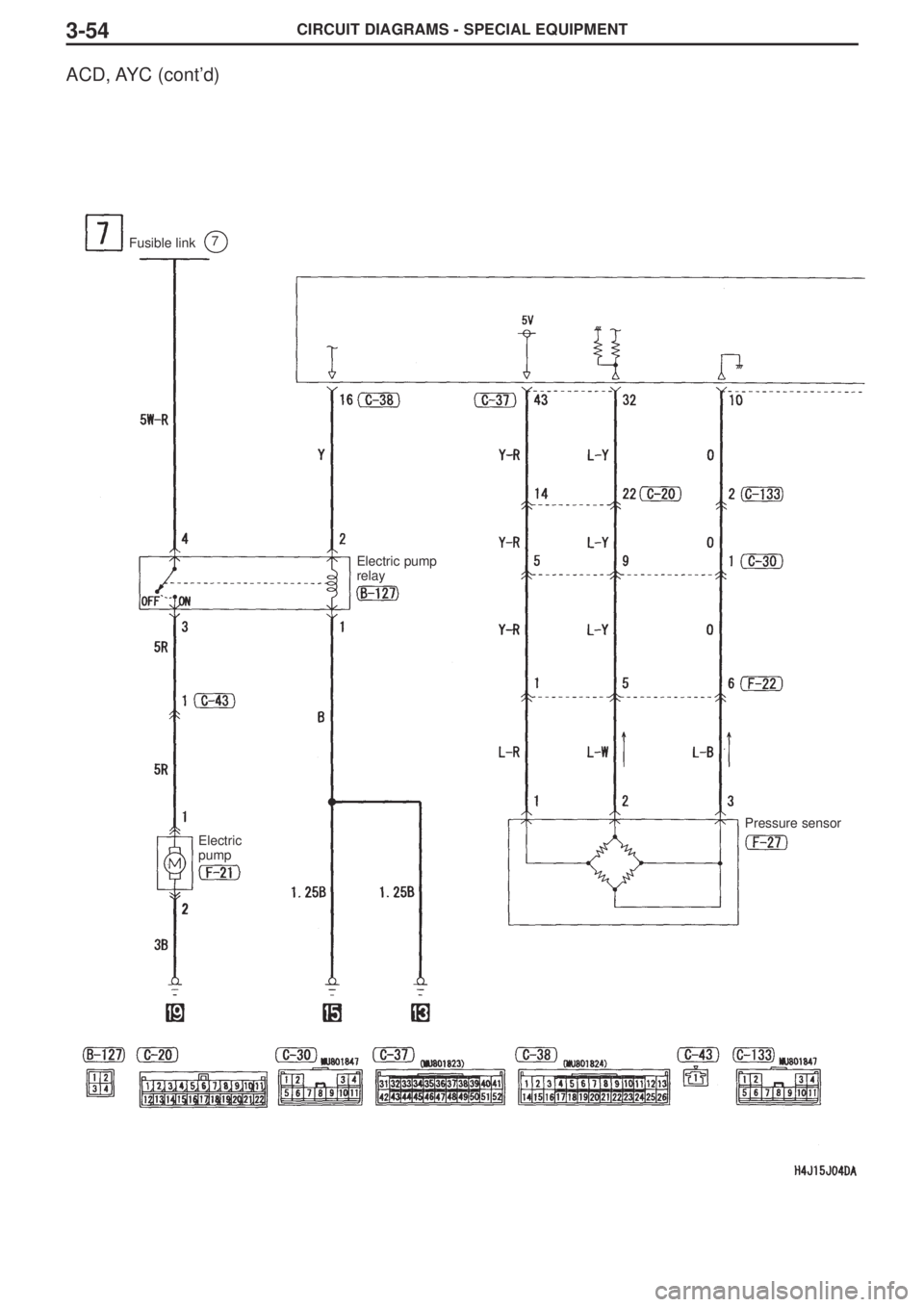

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-54 ACD, AYC (cont’d) Fusible link7 Electric pump Electric pump relay Pressure sensor

Page 162 of 166

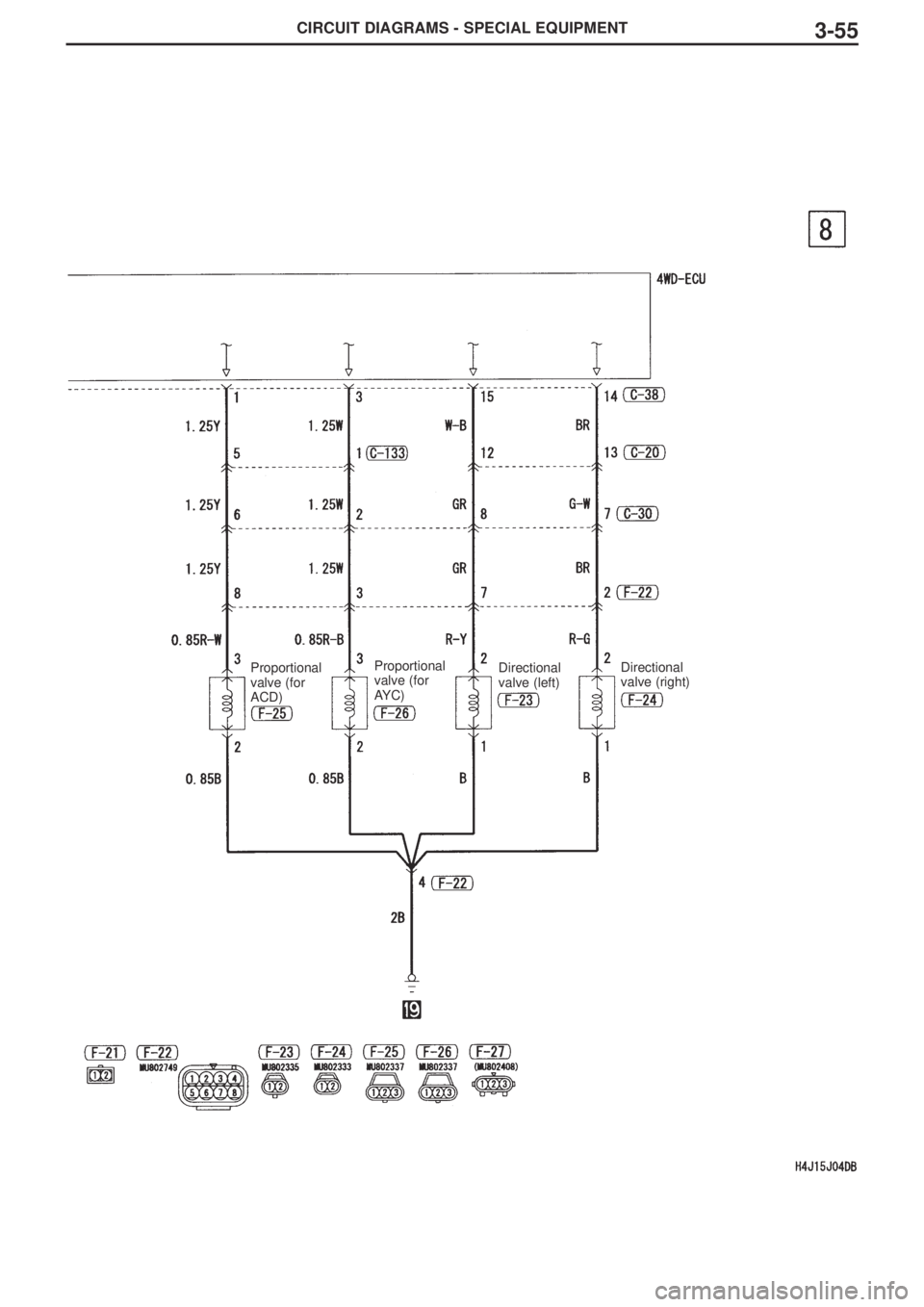

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-55 Proportional valve (for ACD)Proportional valve (for AYC)Directional valve (left)Directional valve (right)

Page 163 of 166

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-56 ACD, AYC (cont’d) Ignition switch (IG2) •Intercooler water spray •Heater •Full auto A/C •Manual A/C Steering sensor Front view

Page 164 of 166

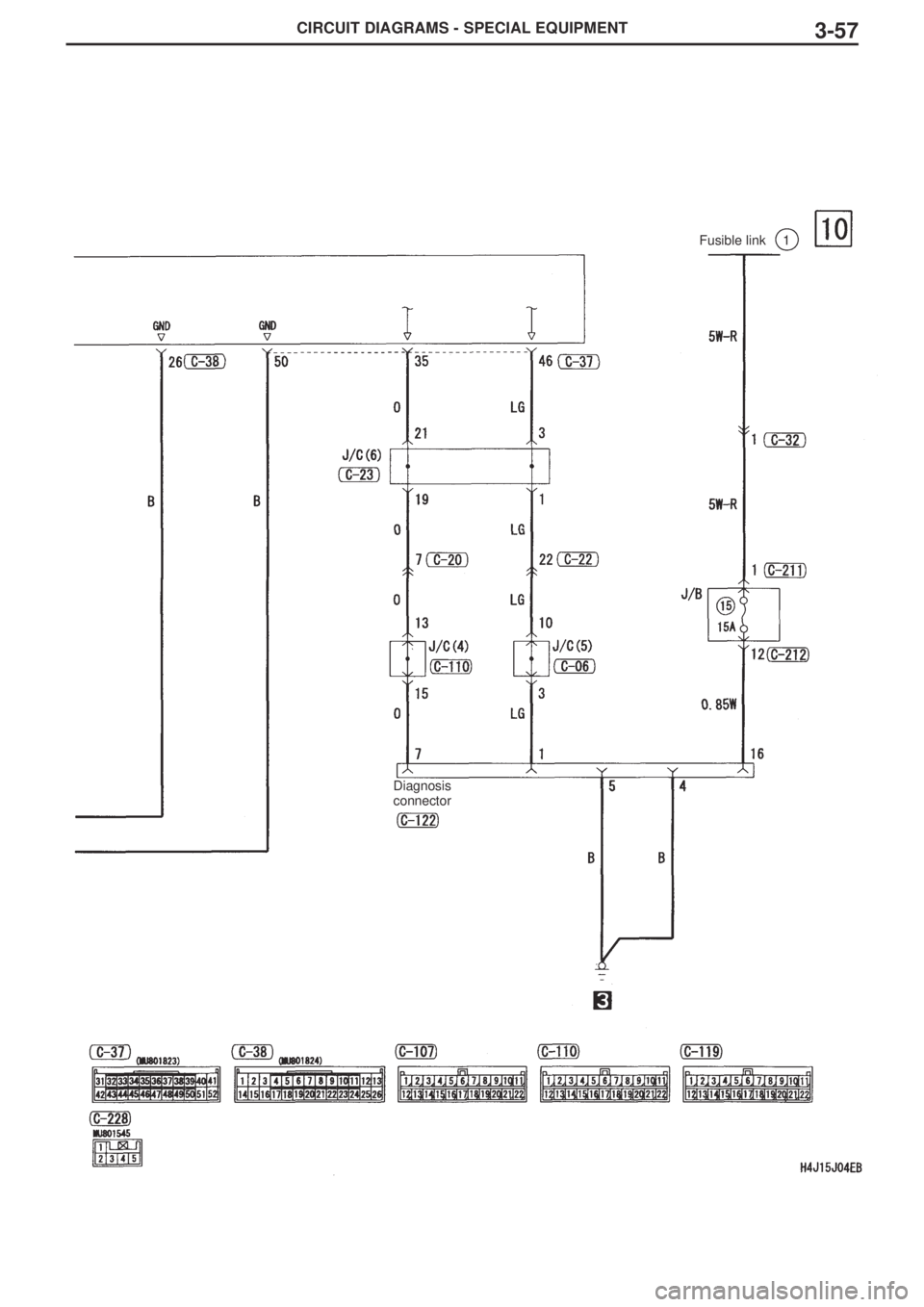

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-57 Fusible link1 Diagnosis connector

Page 165 of 166

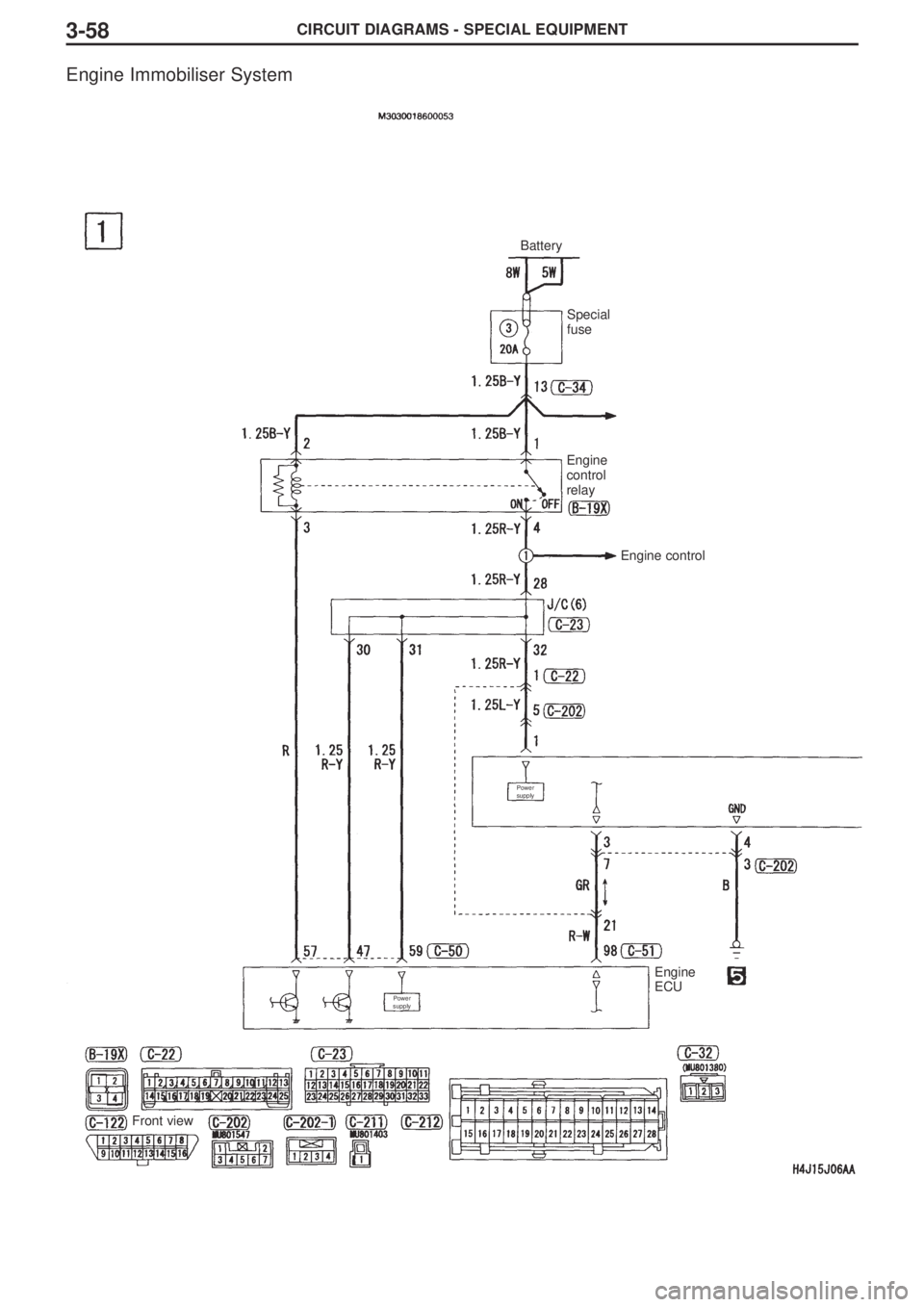

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-58 Engine Immobiliser System Front view Battery Special fuse Engine control relay Engine control Power supply Power supply Engine ECU

Page 166 of 166

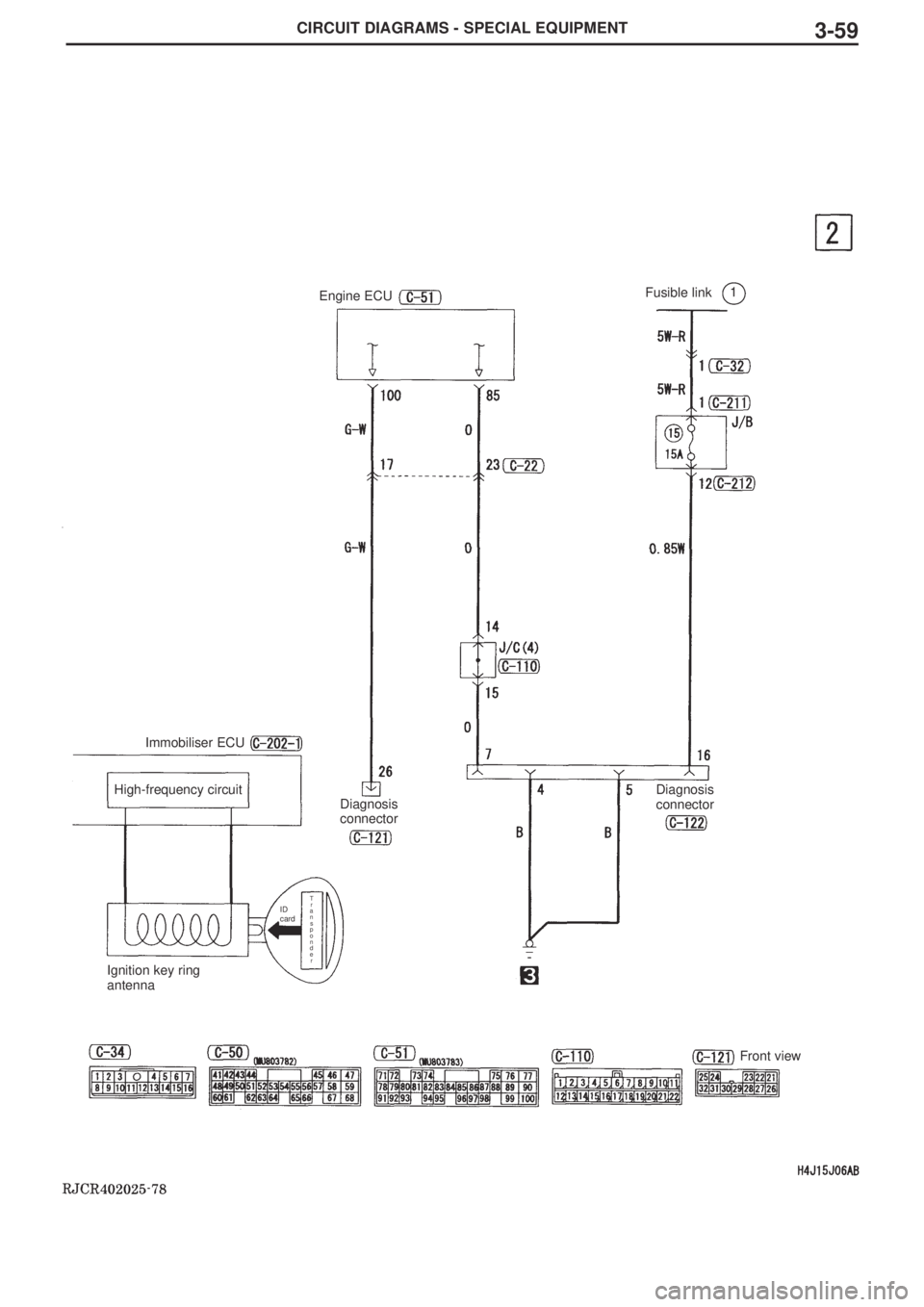

MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual CIRCUIT DIAGRAMS - SPECIAL EQUIPMENT3-59 Fusible link1Engine ECU Immobiliser ECU Ignition key ring antenna ID cardT r a n s p o n d e r Diagnosis connectorDiagnosis connector Front view High-frequency
