FRONT FOG LAMP

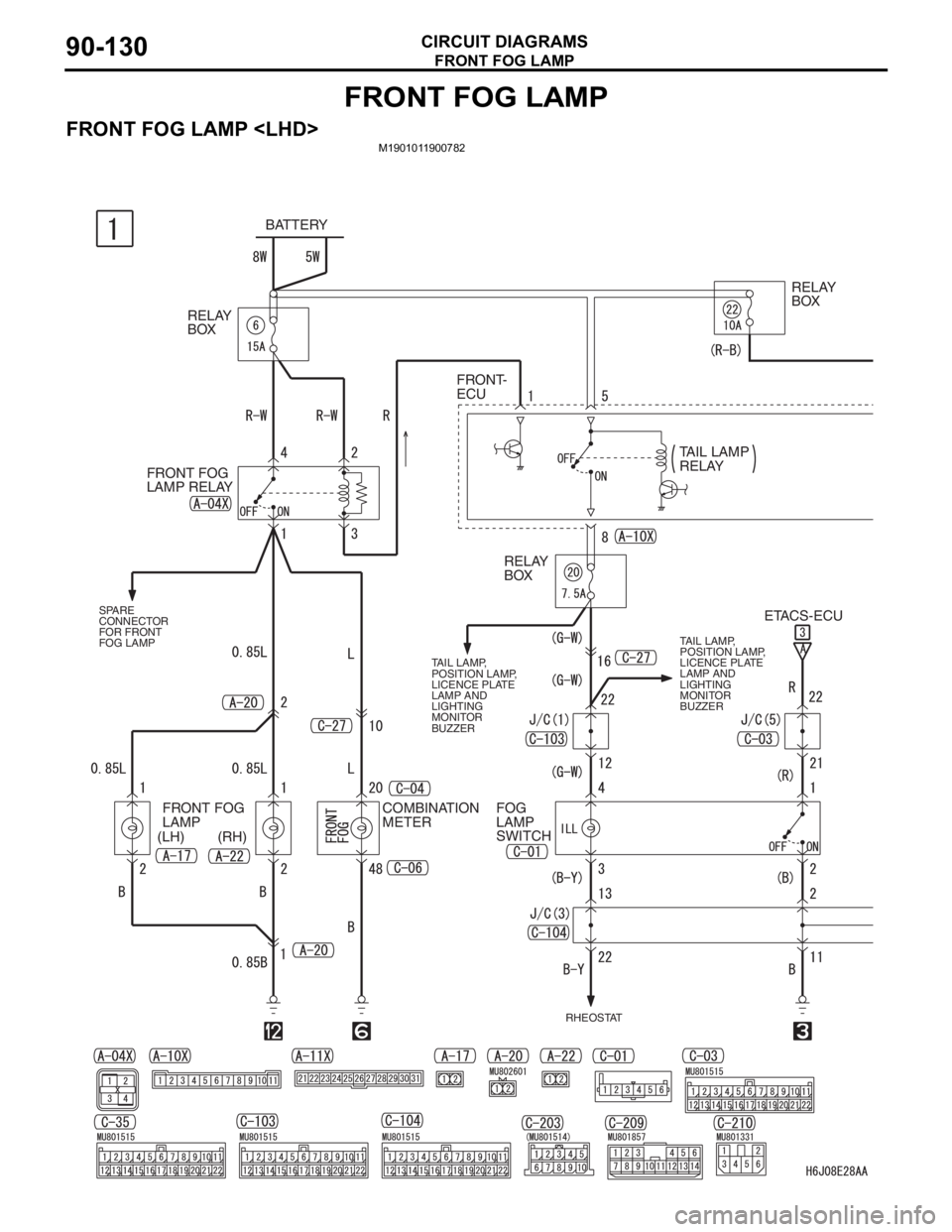

CIRCUIT DIAGRAMS90-130

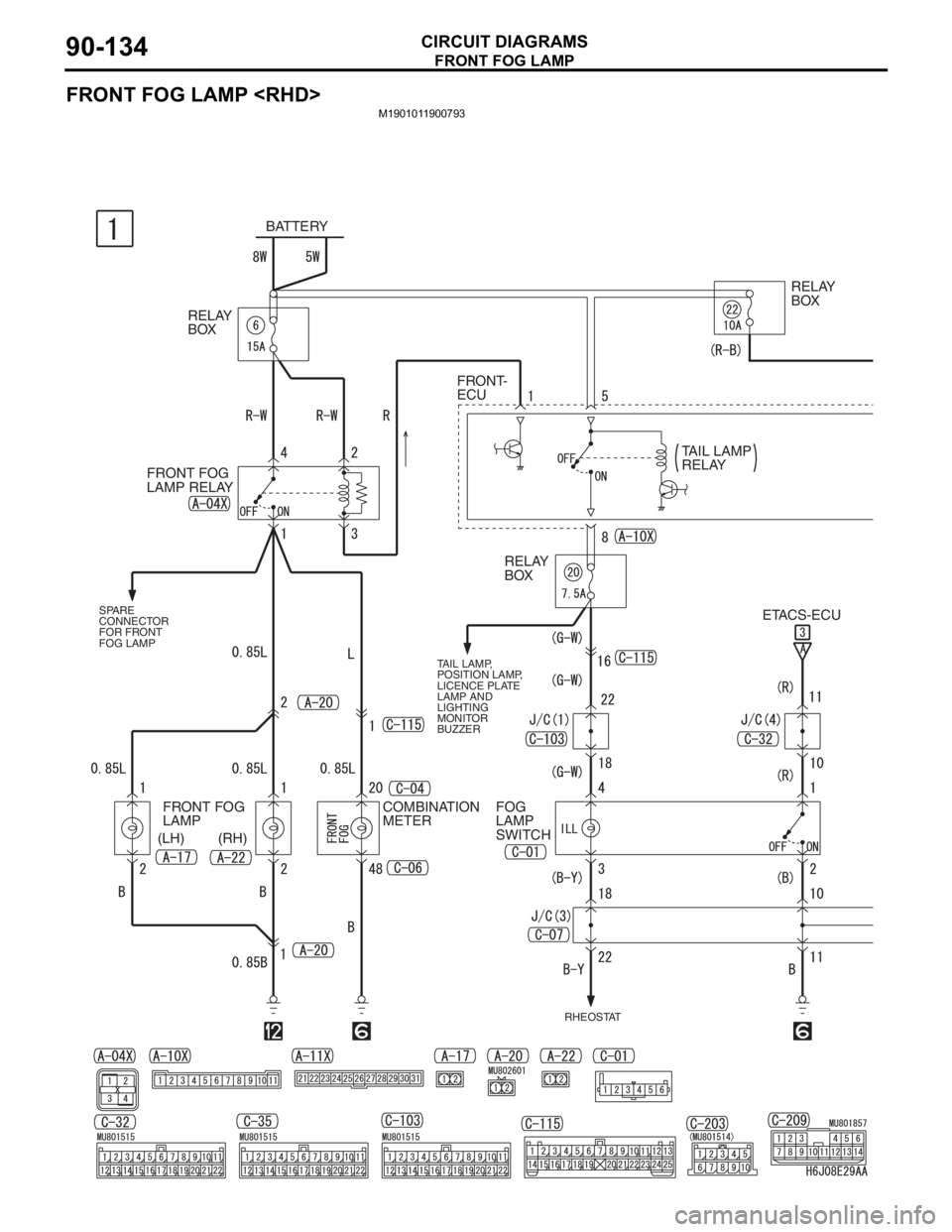

FRONT FOG LAMP
FRONT FOG LAMP M1901011900782
BATTERY
RELAY
BOX
FRONT FOG
LAMP RELAYRELAY
BOX
ETACS-ECU RELAY
BOX
FRONT FOG
LAMP
(LH) (RH)COMBINATION
METERFOG
LAMP
SWITCH FRONT-
ECU
TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND
LIGHTING
MONITOR
BUZZER
RHEOSTAT SPARE
CONNECTOR
FOR FRONT
FOG LAMPTAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND
LIGHTING
MONITOR
BUZZER
TAIL LAMP
RELAY

FRONT FOG LAMP
CIRCUIT DIAGRAMS90-134
FRONT FOG LAMP
M1901011900793
BATTERY
RELAY
BOX
FRONT FOG
LAMP RELAYRELAY
BOX
ETACS-ECU RELAY
BOX
FRONT FOG
LAMP
(LH) (RH)COMBINATION
METERFOG
LAMP
SWITCH FRONT-
ECU
SPARE
CONNECTOR
FOR FRONT
FOG LAMP
RHEOSTAT TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND
LIGHTING
MONITOR
BUZZER
TAIL LAMP
RELAY

ROOM LAMP AND LUGGAGE COMPARTMENT LAMP

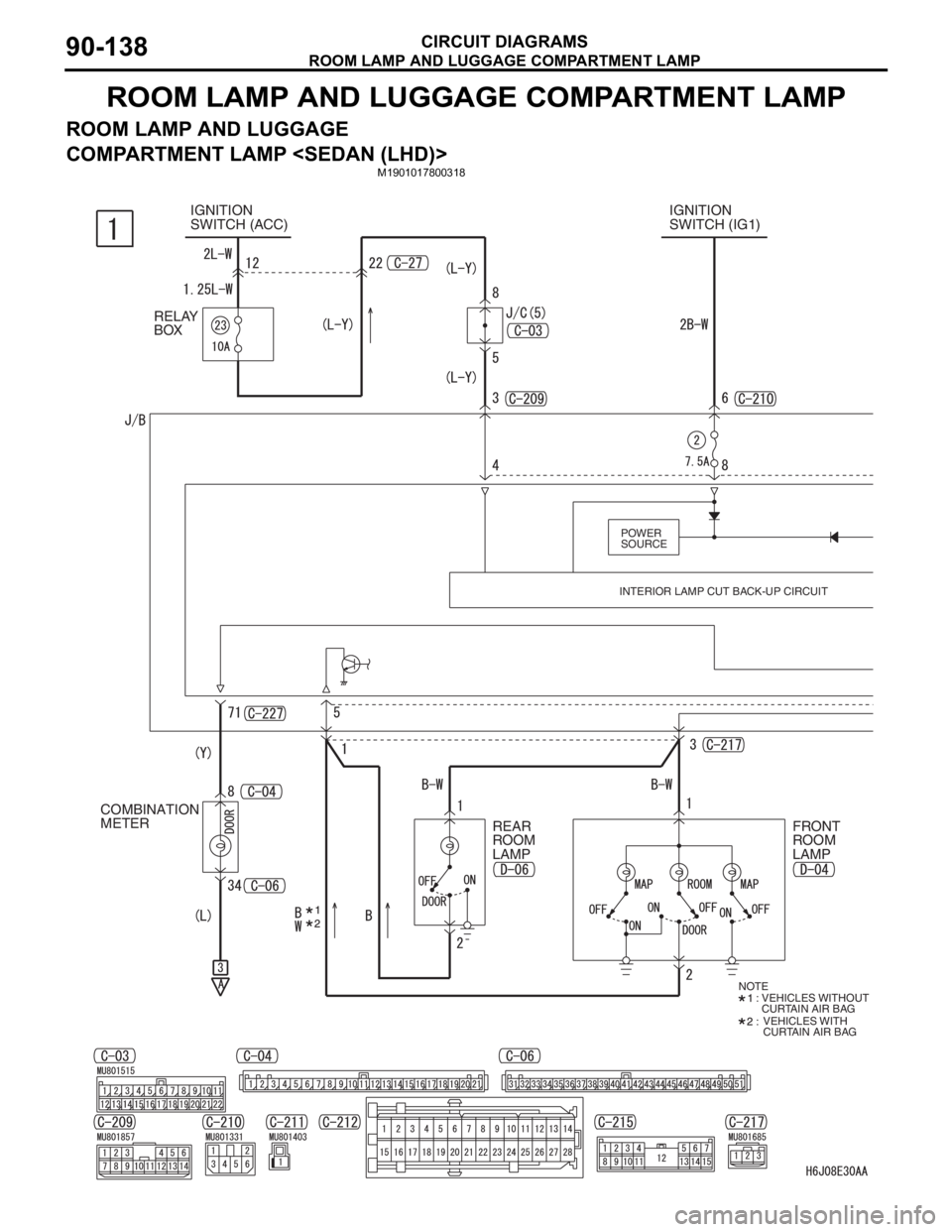

CIRCUIT DIAGRAMS90-138

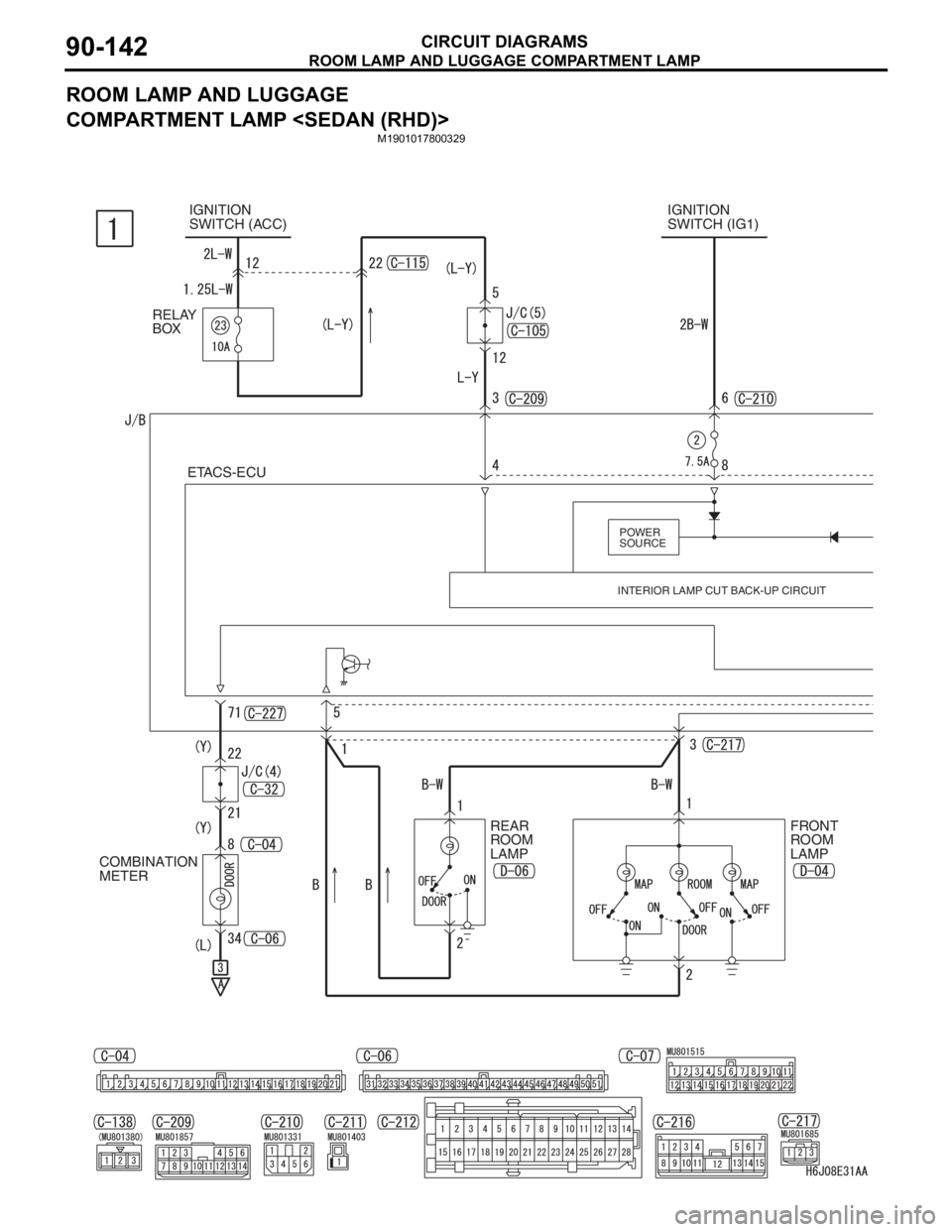

ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
ROOM LAMP AND LUGGAGE
COMPARTMENT LAMP
M1901017800318
IGNITION
SWITCH (ACC)IGNITION
SWITCH (IG1)
COMBINATION
METERRELAY
BOX
INTERIOR LAMP CUT BACK-UP CIRCUIT
REAR
ROOM
LAMPFRONT
ROOM
LAMP
POWER
SOURCE
NOTE
VEHICLES WITHOUT
CURTAIN AIR BAG
VEHICLES WITH
CURTAIN AIR BAG :
:

ROOM LAMP AND LUGGAGE COMPARTMENT LAMP

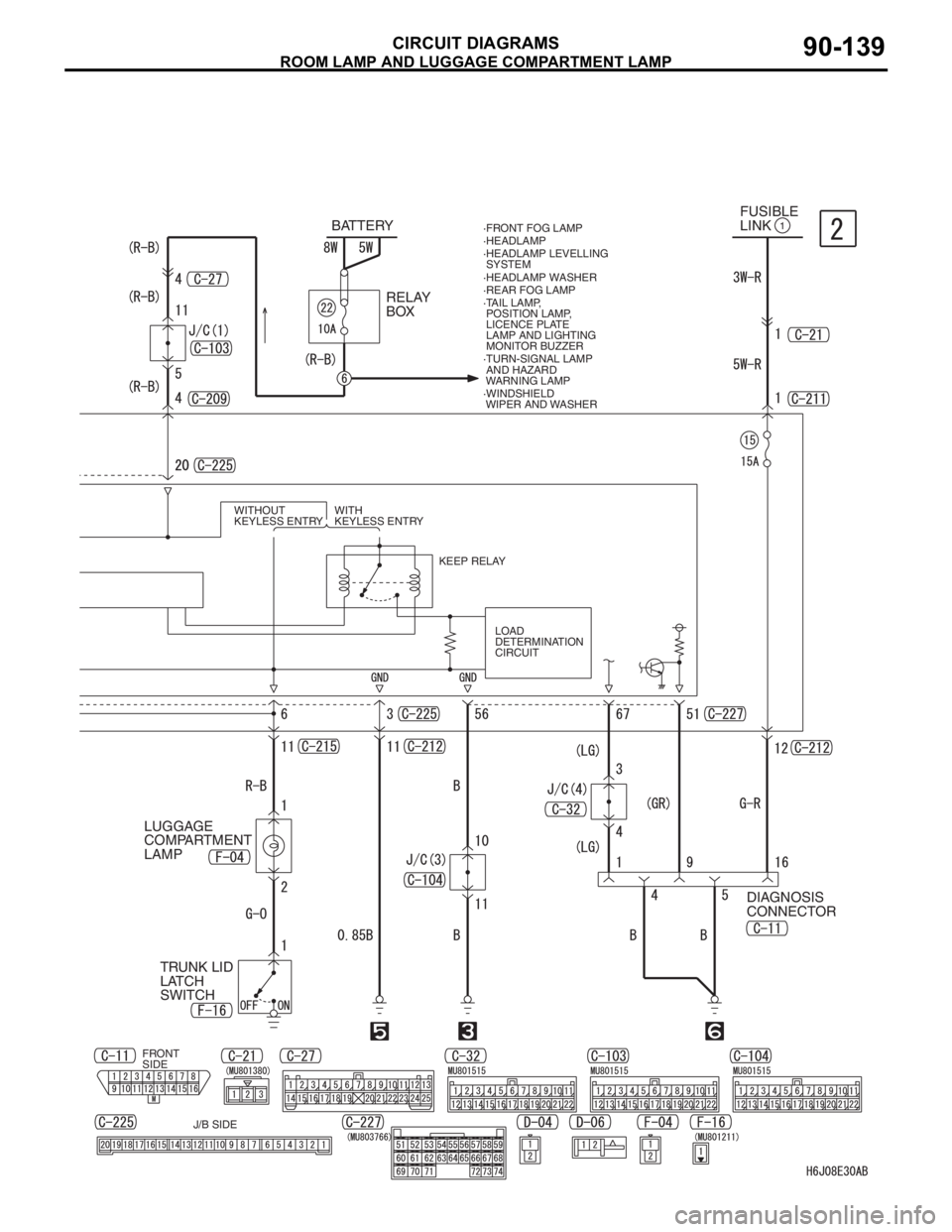

CIRCUIT DIAGRAMS90-139
RELAY
BOX BATTERY
1FUSIBLE
LINK
·FRONT FOG LAMP
·HEADLAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER
WITHOUT
KEYLESS ENTRYWITH
KEYLESS ENTRY
LOAD
DETERMINATION
CIRCUIT KEEP RELAY
TRUNK LID
LATCH
SWITCH LUGGAGE
COMPARTMENT
LAMP
DIAGNOSIS
CONNECTOR
·HEADLAMP WASHER ·HEADLAMP LEVELLING
SYSTEM
·REAR FOG LAMP
J/B SIDE FRONT
SIDE

ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
CIRCUIT DIAGRAMS90-142
ROOM LAMP AND LUGGAGE
COMPARTMENT LAMP
M1901017800329
IGNITION
SWITCH (ACC)IGNITION
SWITCH (IG1)
COMBINATION
METERRELAY
BOX
ETACS-ECU
INTERIOR LAMP CUT BACK-UP CIRCUIT
REAR
ROOM
LAMPFRONT
ROOM
LAMP
POWER
SOURCE

ROOM LAMP AND LUGGAGE COMPARTMENT LAMP

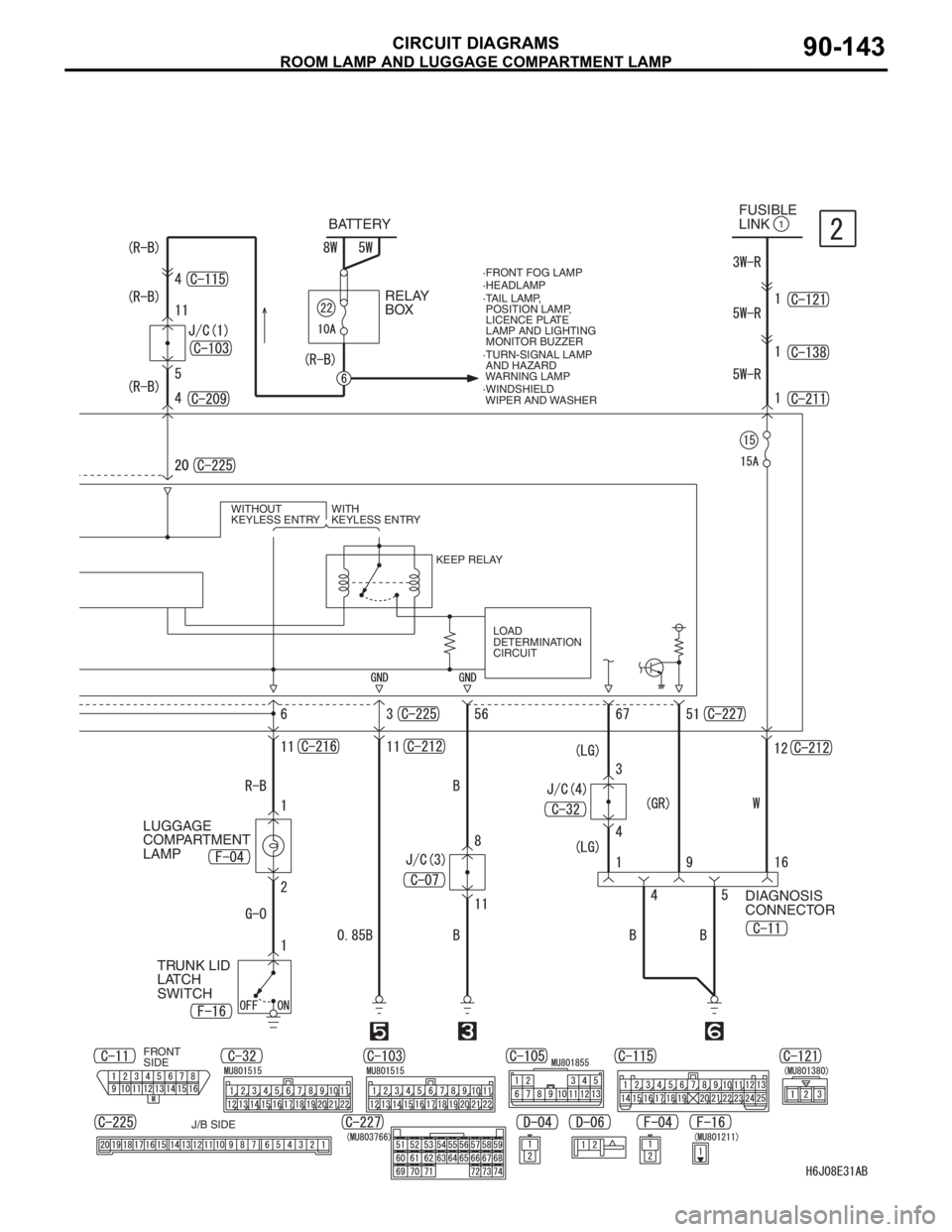

CIRCUIT DIAGRAMS90-143
RELAY
BOX BATTERY
1FUSIBLE
LINK
·FRONT FOG LAMP
·HEADLAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER
WITHOUT
KEYLESS ENTRYWITH
KEYLESS ENTRY
LOAD
DETERMINATION
CIRCUIT KEEP RELAY
TRUNK LID
LATCH
SWITCH LUGGAGE
COMPARTMENT
LAMP
DIAGNOSIS
CONNECTOR
J/B SIDE FRONT
SIDE

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-146

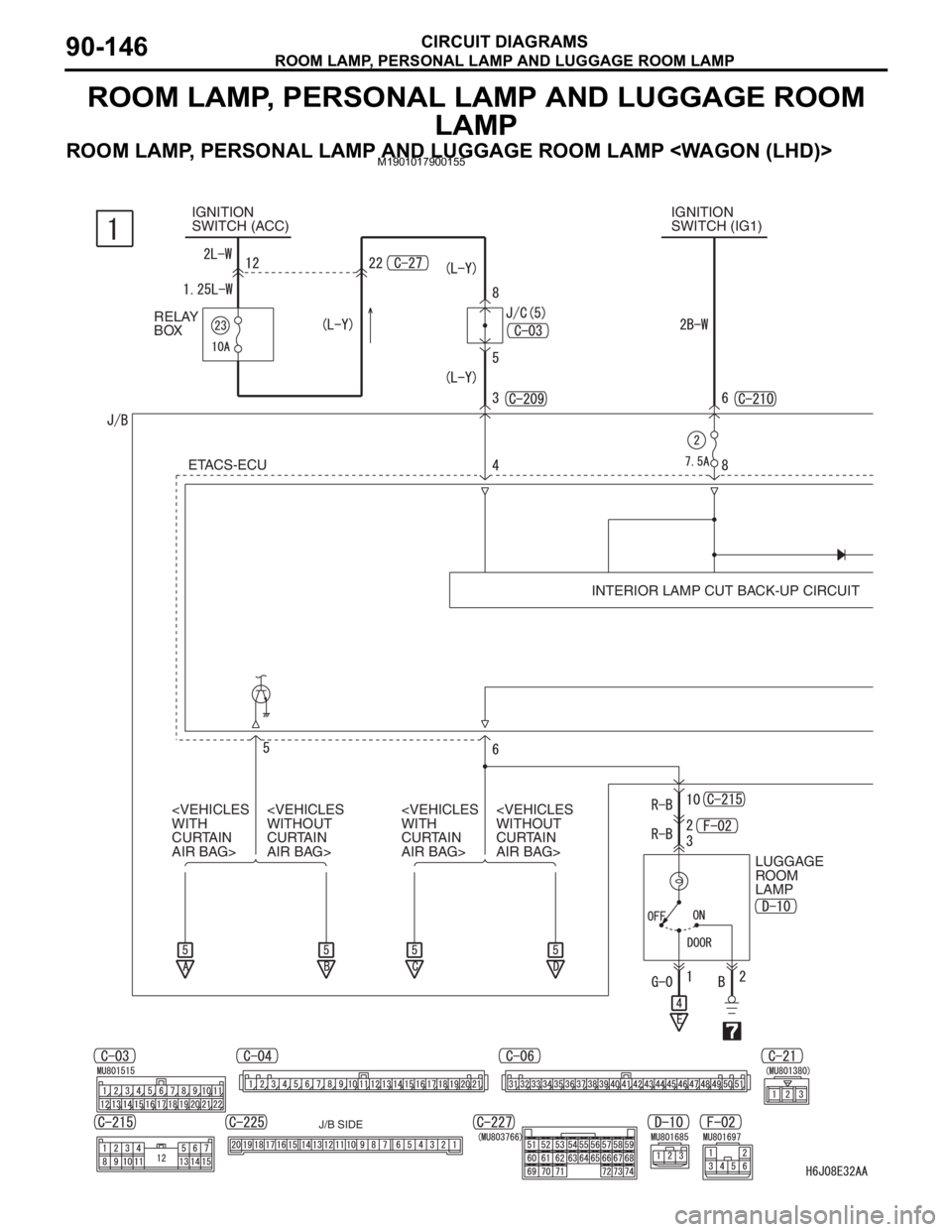

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM
LAMP
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP M1901017900155
IGNITION
SWITCH (ACC)IGNITION
SWITCH (IG1)
RELAY
BOX
ETACS-ECU
INTERIOR LAMP CUT BACK-UP CIRCUIT
J/B SIDE
WITH
CURTAIN
AIR BAG> WITHOUT
CURTAIN
AIR BAG> WITH
CURTAIN
AIR BAG> WITHOUT
CURTAIN
AIR BAG>
LUGGAGE
ROOM
LAMP

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP

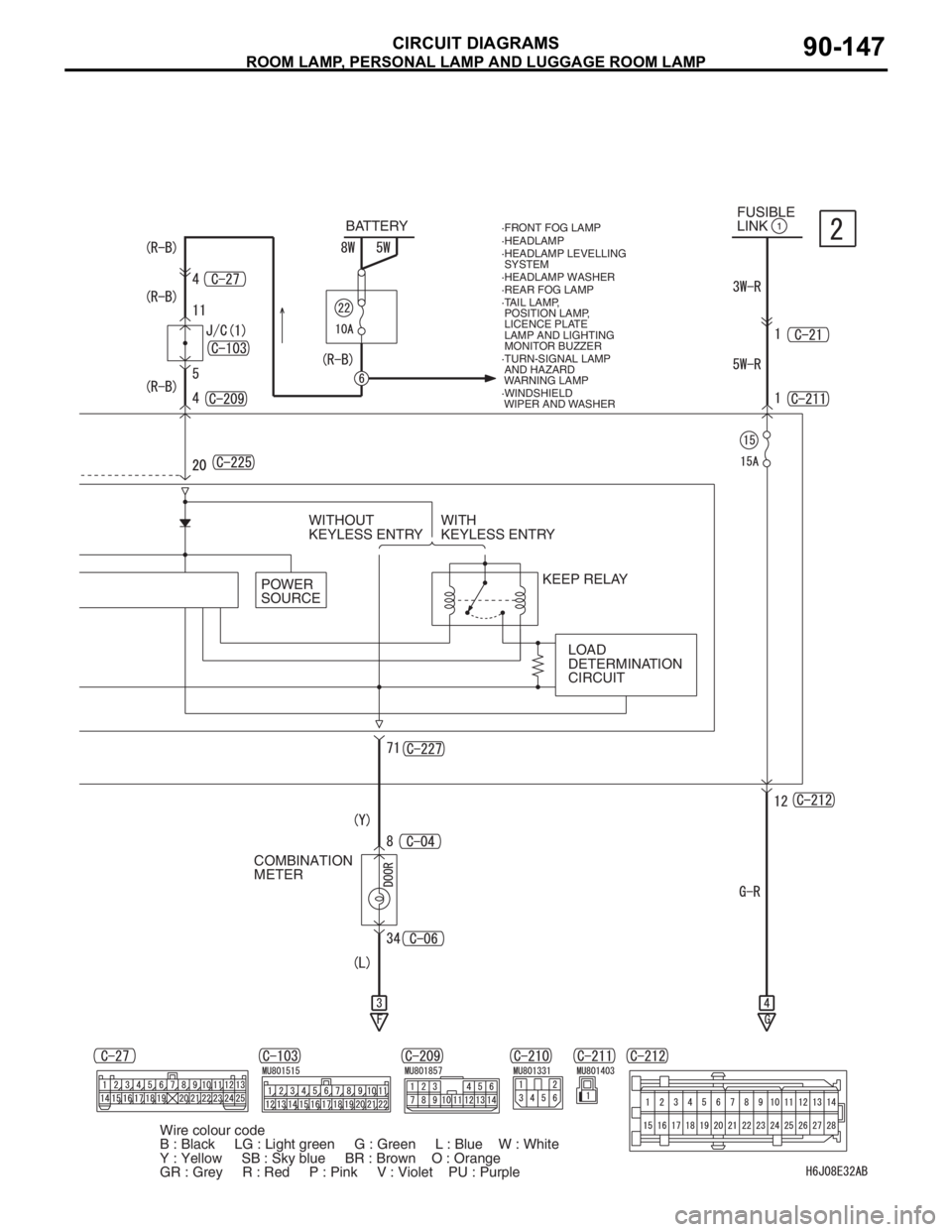

CIRCUIT DIAGRAMS90-147
BATTERY1FUSIBLE
LINK
POWER
SOURCEWITHOUT
KEYLESS ENTRYWITH
KEYLESS ENTRY
LOAD
DETERMINATION
CIRCUIT KEEP RELAY·FRONT FOG LAMP
·HEADLAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER ·HEADLAMP WASHER ·HEADLAMP LEVELLING
SYSTEM
·REAR FOG LAMP
COMBINATION
METER
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP

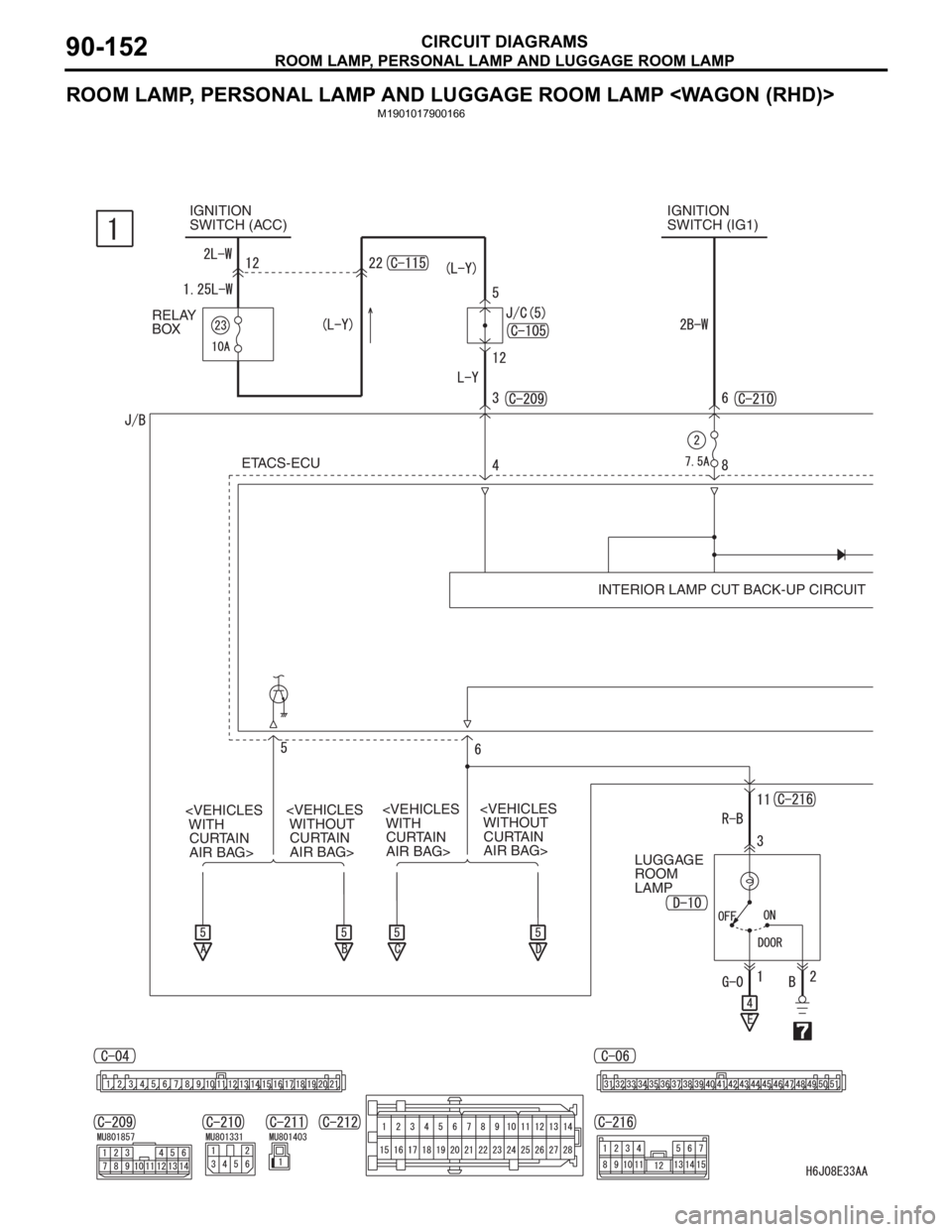

CIRCUIT DIAGRAMS90-152
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
M1901017900166
IGNITION
SWITCH (ACC)IGNITION
SWITCH (IG1)
RELAY
BOX
ETACS-ECU
INTERIOR LAMP CUT BACK-UP CIRCUIT
WITH
CURTAIN
AIR BAG> WITHOUT
CURTAIN
AIR BAG> WITH
CURTAIN
AIR BAG> WITHOUT
CURTAIN
AIR BAG>
LUGGAGE
ROOM
LAMP

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP

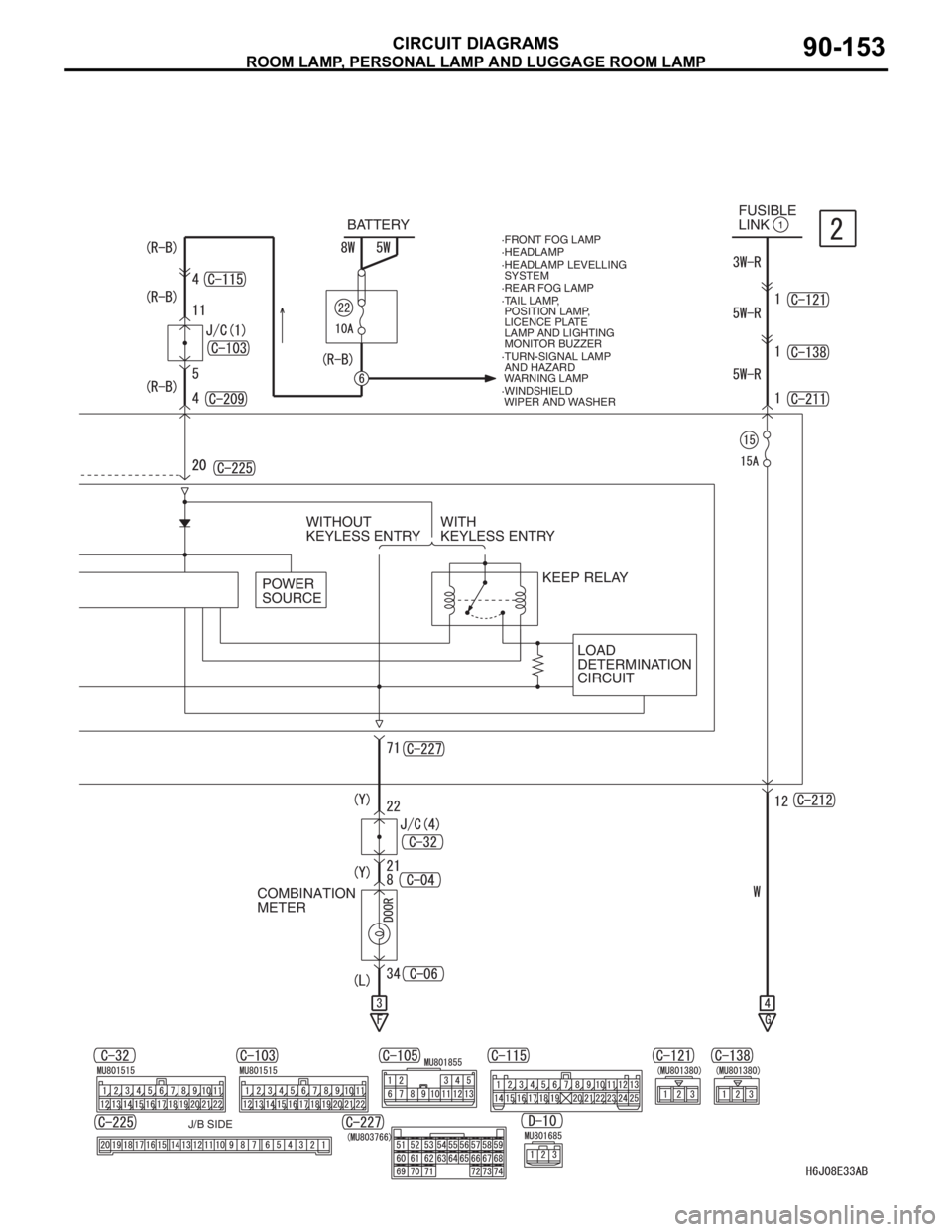

CIRCUIT DIAGRAMS90-153
BATTERY1FUSIBLE
LINK
·FRONT FOG LAMP
·HEADLAMP LEVELLING
SYSTEM ·HEADLAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER
POWER
SOURCEWITHOUT
KEYLESS ENTRYWITH
KEYLESS ENTRY
LOAD
DETERMINATION
CIRCUIT KEEP RELAY
J/B SIDE·REAR FOG LAMP
COMBINATION
METER
