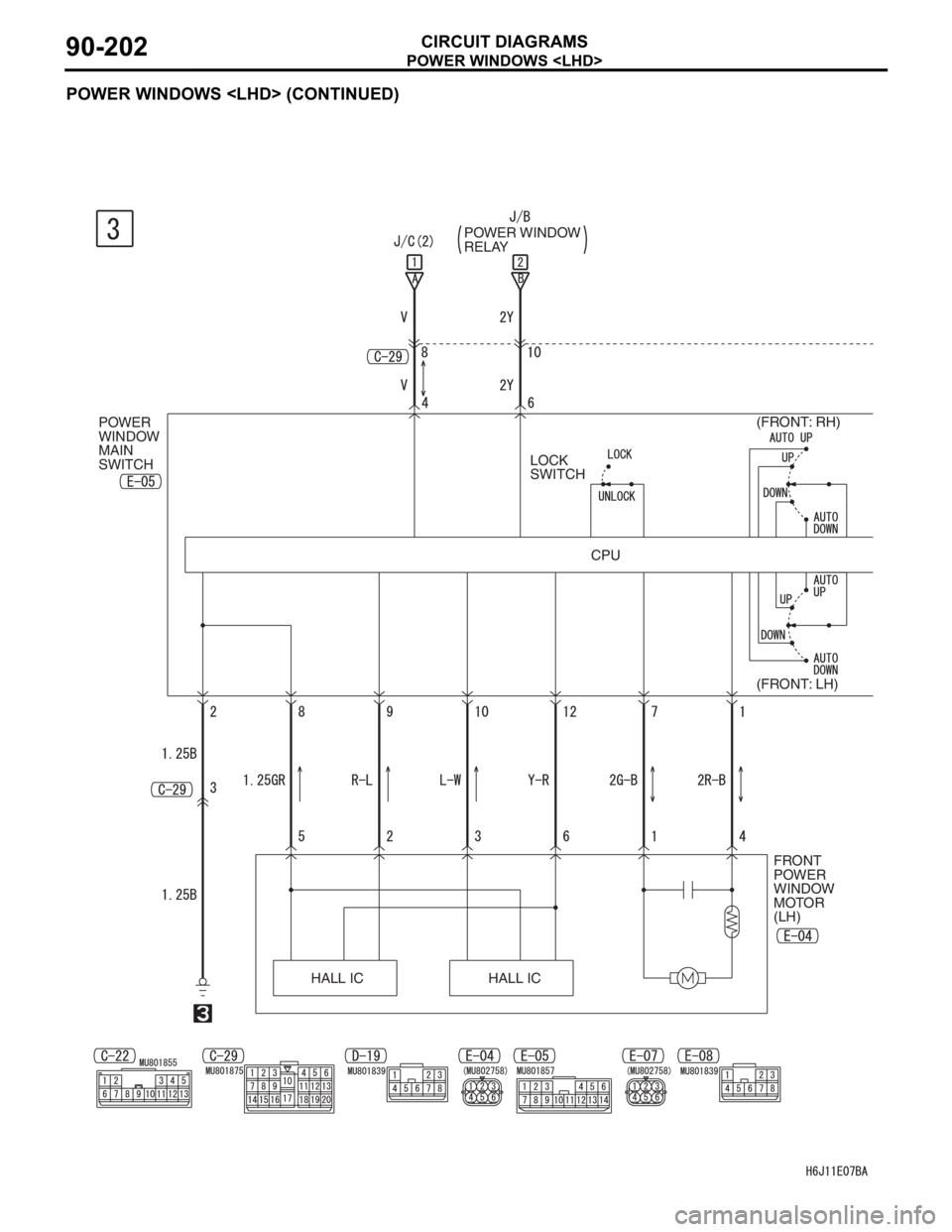

POWER WINDOWS
CIRCUIT DIAGRAMS90-202
POWER WINDOWS (CONTINUED)
POWER
WINDOW
MAIN
SWITCH(FRONT: RH)
(FRONT: LH) LOCK
SWITCH
HALL IC HALL ICFRONT
POWER
WINDOW
MOTOR
(LH) POWER WINDOW
RELAY
CPU

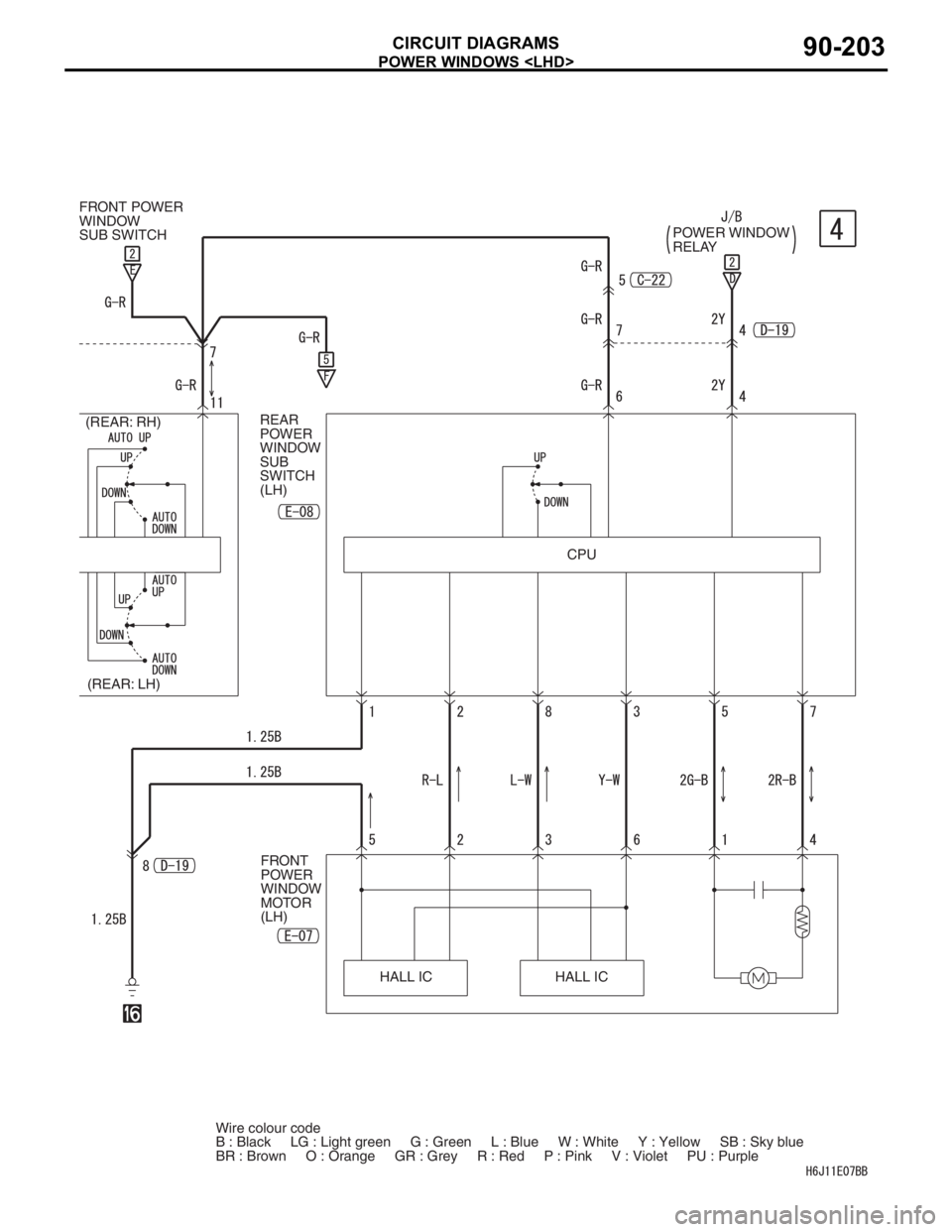

Page 667 of 800
POWER WINDOWS
CIRCUIT DIAGRAMS90-203
FRONT POWER
WINDOW
SUB SWITCH
REAR
POWER
WINDOW
SUB
SWITCH
(LH)
FRONT
POWER
WINDOW
MOTOR
(LH)
HALL IC HALL ICCPU (REAR: RH)
(REAR: LH)POWER WINDOW
RELAY
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

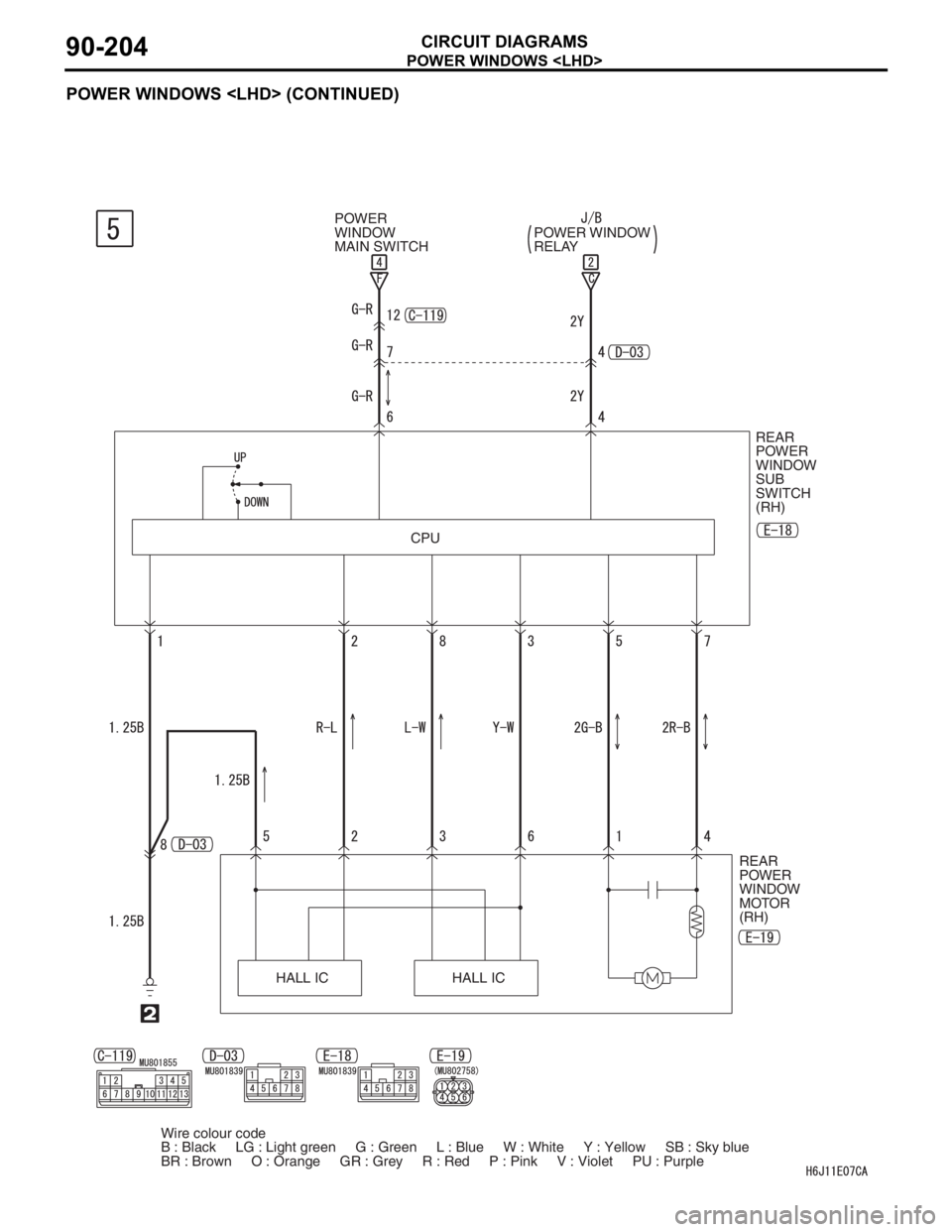

Page 668 of 800
POWER WINDOWS
CIRCUIT DIAGRAMS90-204
POWER WINDOWS (CONTINUED)
POWER
WINDOW
MAIN SWITCH
CPU
HALL IC HALL ICREAR
POWER
WINDOW
MOTOR
(RH) POWER WINDOW
RELAY
REAR
POWER
WINDOW
SUB
SWITCH
(RH)
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 670 of 800
POWER WINDOWS
CIRCUIT DIAGRAMS90-206
POWER WINDOWS
M1901004602138
ETACS-ECUIGNITION
SWITCH (IG1) BATTERY
POWER
SOURCE FUSIBLE
LINK
1
FRONT SIDE
DOOR
SWITCH
(FRONT: RH) DIAGNOSIS
CONNECTOR
·FRONT
FOG LAMP
·HEADLAMP
·HEADLAMP
LEVELLING
SYSTEM
·REAR FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER
J/B SIDE
RELAY
BOX

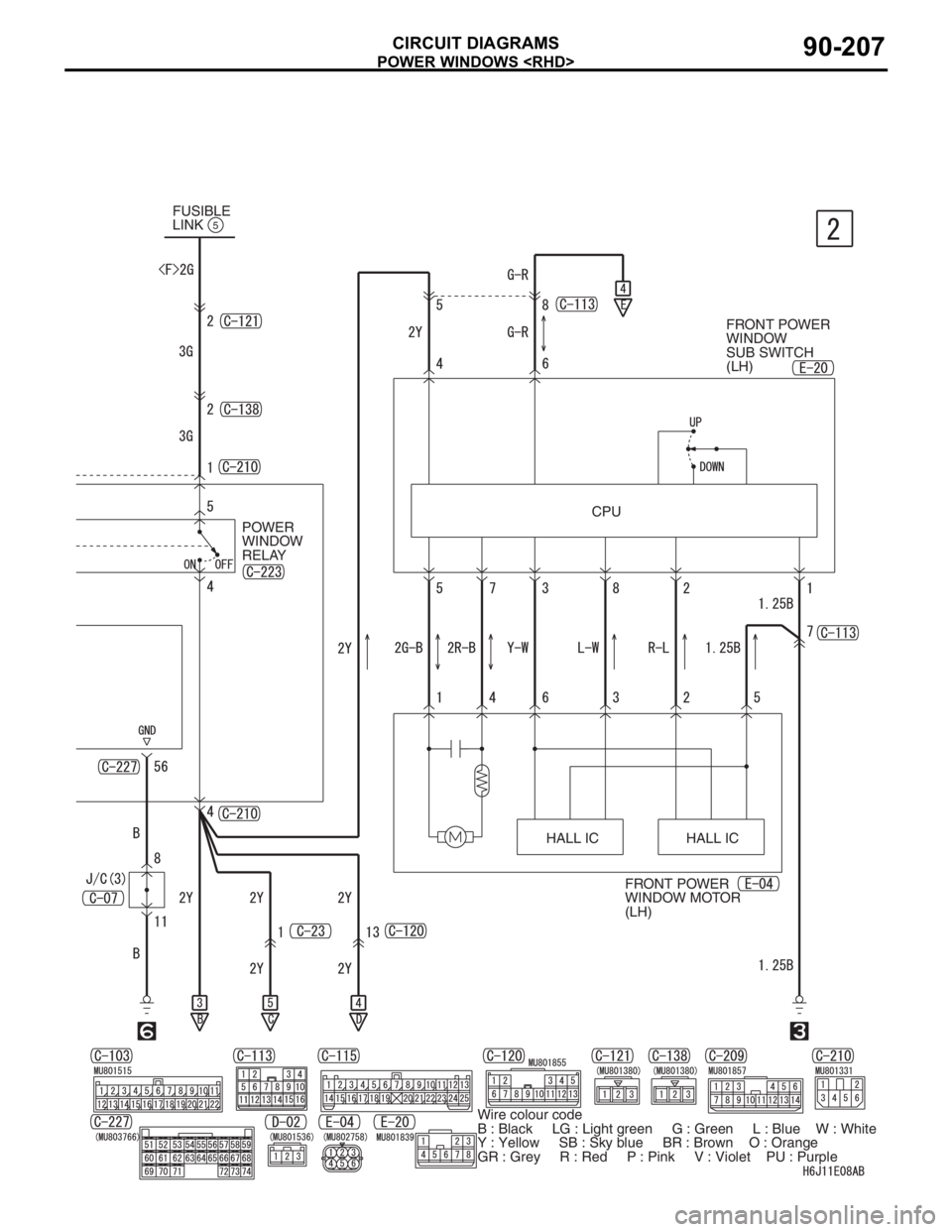

Page 671 of 800
POWER WINDOWS
CIRCUIT DIAGRAMS90-207
FUSIBLE
LINK5
FRONT POWER
WINDOW MOTOR
(LH) POWER
WINDOW
RELAYFRONT POWER
WINDOW
SUB SWITCH
(LH)
CPU
HALL IC HALL IC
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple

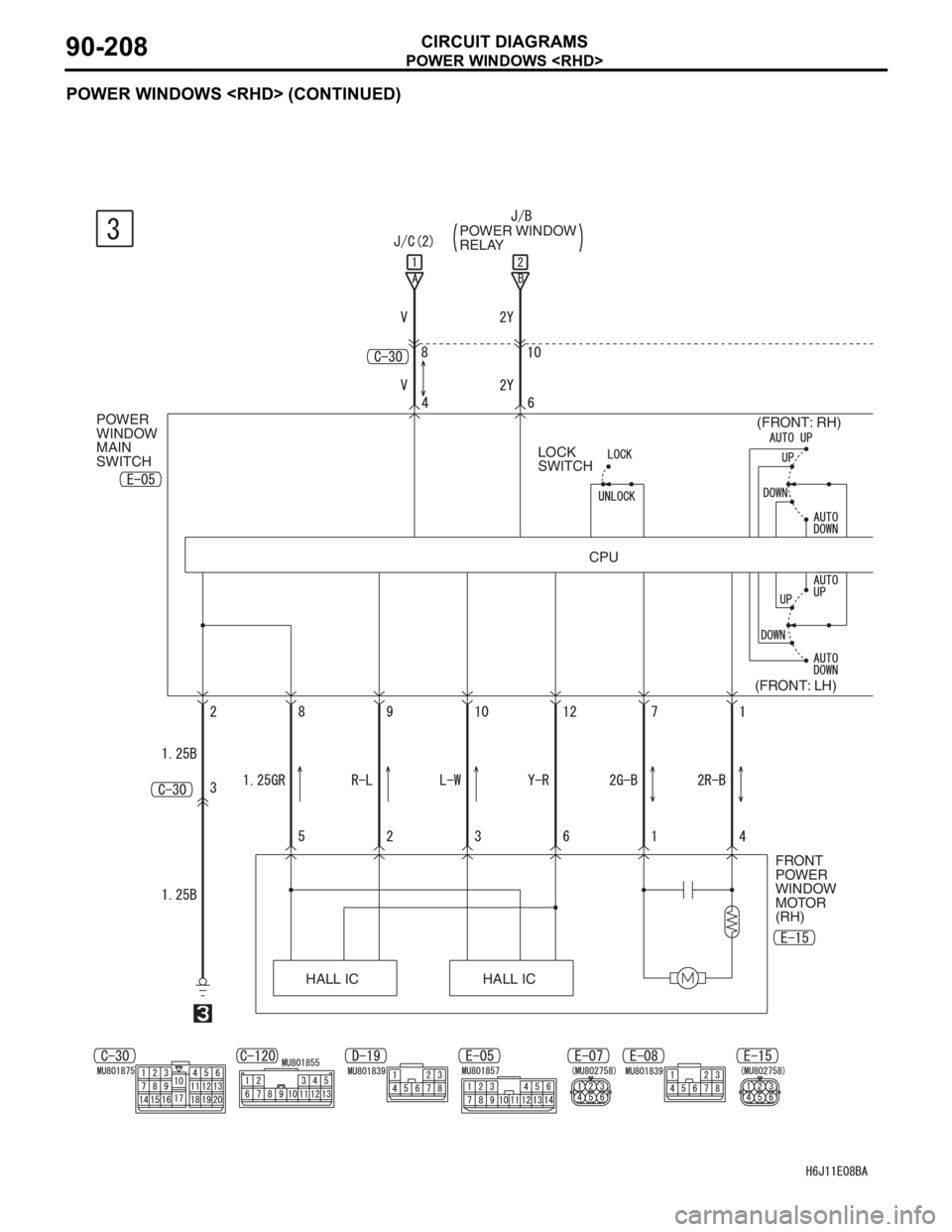

Page 672 of 800
POWER WINDOWS
CIRCUIT DIAGRAMS90-208
POWER WINDOWS (CONTINUED)
POWER
WINDOW
MAIN
SWITCH(FRONT: RH)
(FRONT: LH) LOCK
SWITCH
CPU
HALL IC HALL ICFRONT
POWER
WINDOW
MOTOR
(RH) POWER WINDOW
RELAY

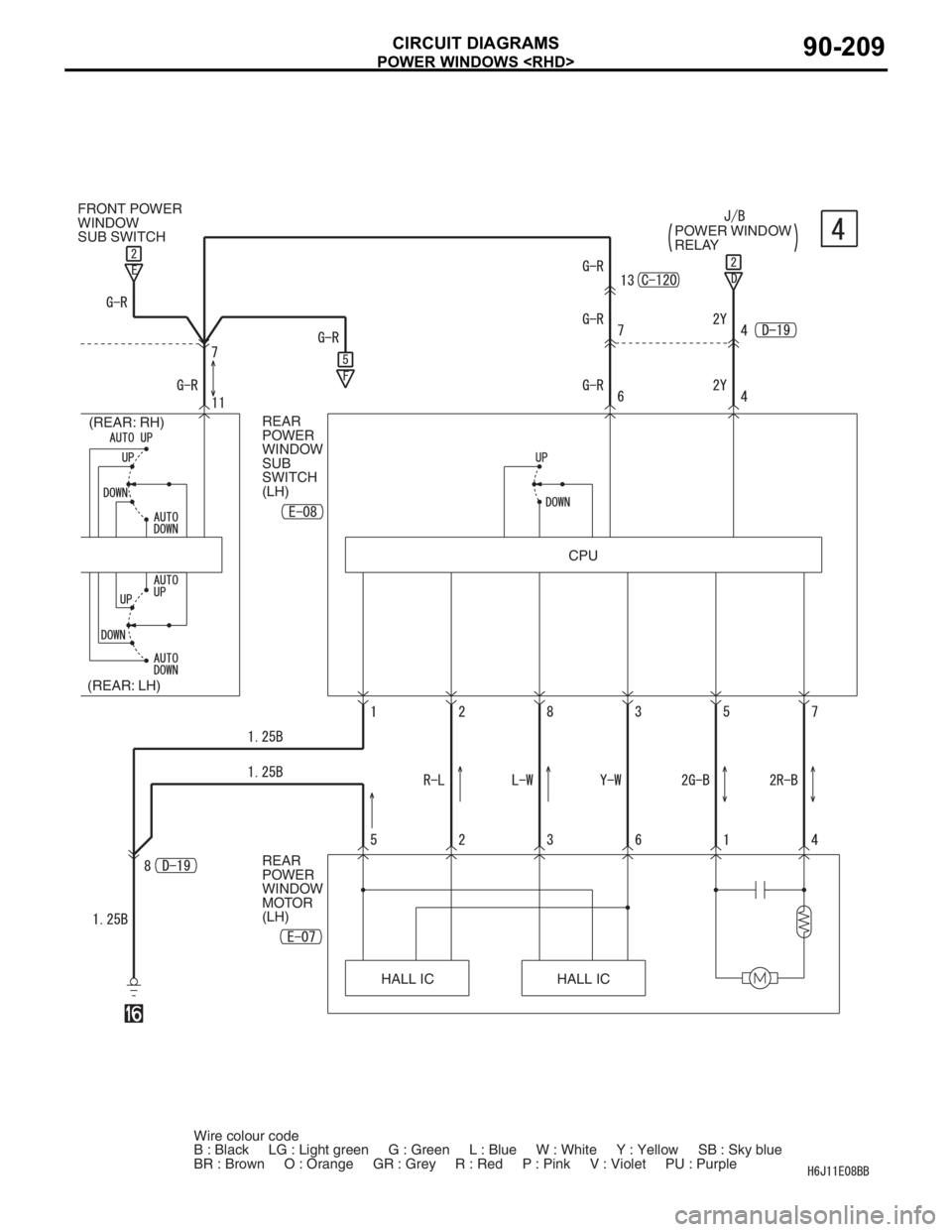

Page 673 of 800
POWER WINDOWS
CIRCUIT DIAGRAMS90-209
FRONT POWER
WINDOW
SUB SWITCH
REAR
POWER
WINDOW
SUB
SWITCH
(LH)
REAR
POWER
WINDOW
MOTOR
(LH)
HALL IC HALL ICCPU (REAR: RH)
(REAR: LH)POWER WINDOW
RELAY
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

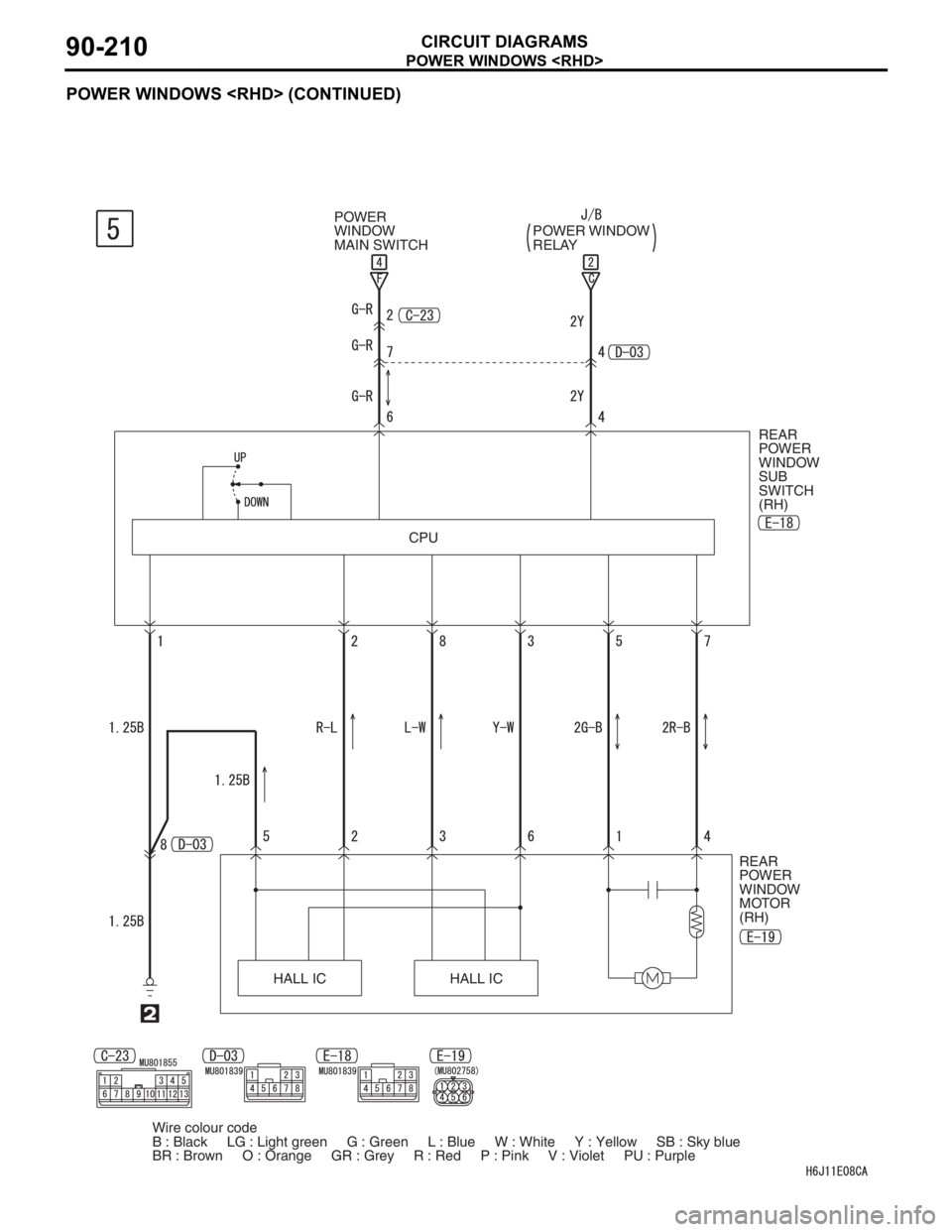

Page 674 of 800
POWER WINDOWS
CIRCUIT DIAGRAMS90-210
POWER WINDOWS (CONTINUED)
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : PurplePOWER
WINDOW
MAIN SWITCH
CPU
HALL IC HALL ICREAR
POWER
WINDOW
MOTOR
(RH)REAR
POWER
WINDOW
SUB
SWITCH
(RH) POWER WINDOW
RELAY

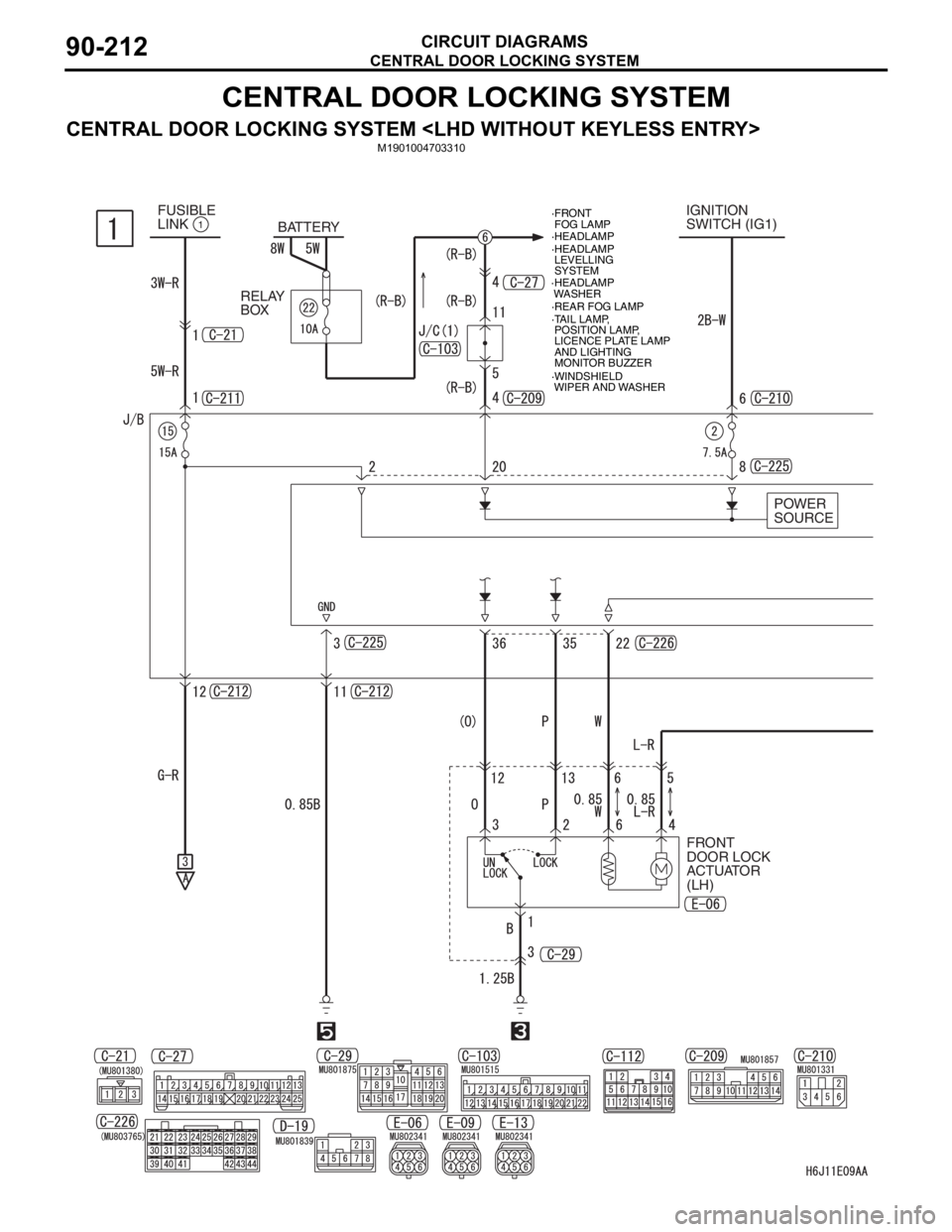

Page 676 of 800
CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-212
CENTRAL DOOR LOCKING SYSTEM
CENTRAL DOOR LOCKING SYSTEM M1901004703310
IGNITION
SWITCH (IG1)
BATTERY
POWER
SOURCE FUSIBLE
LINK1
FRONT
DOOR LOCK
ACTUATOR
(LH)
·FRONT
FOG LAMP
·HEADLAMP
·HEADLAMP
LEVELLING
SYSTEM
·REAR FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER ·HEADLAMP
WASHER
RELAY
BOX

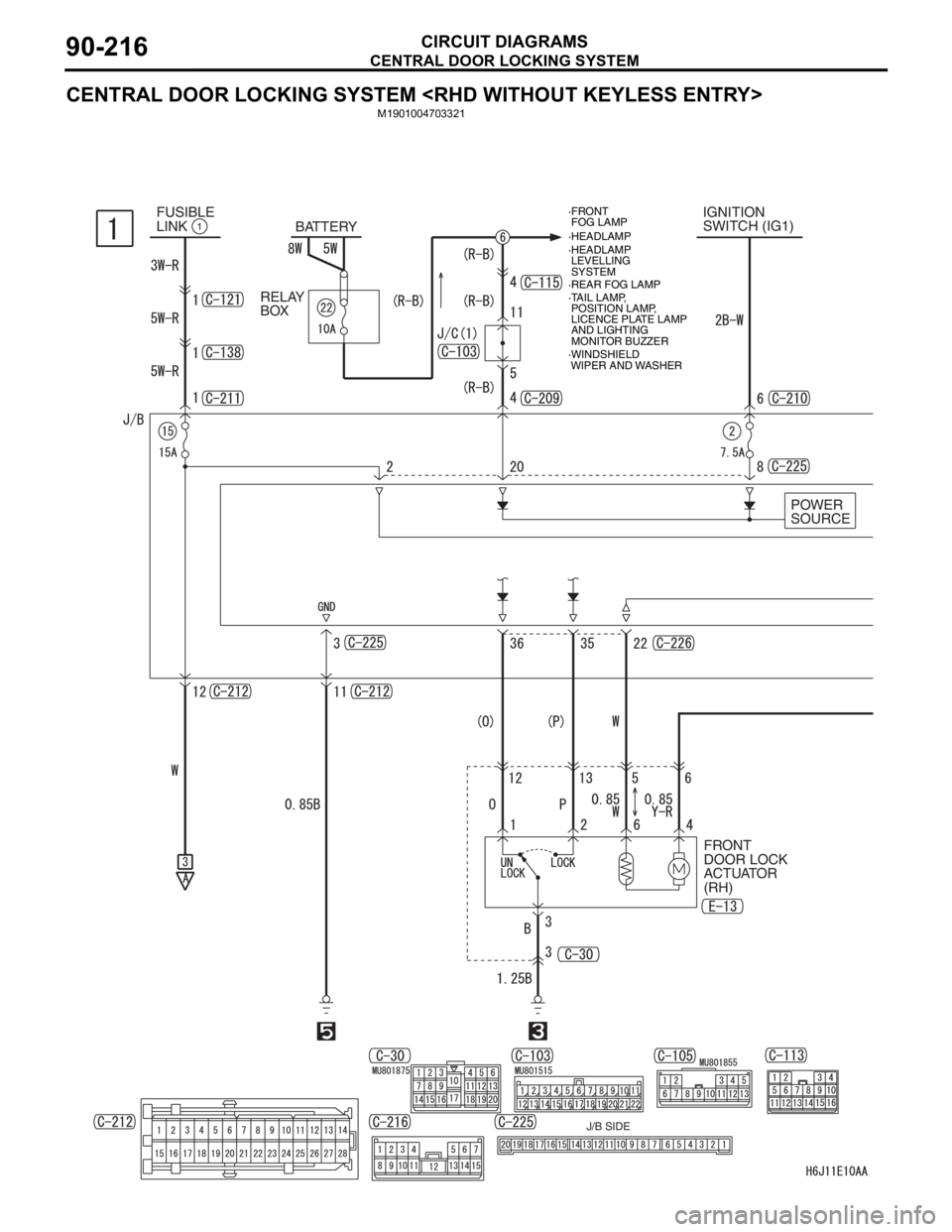

Page 680 of 800
CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-216
CENTRAL DOOR LOCKING SYSTEM
M1901004703321
IGNITION
SWITCH (IG1)
BATTERY
POWER
SOURCE FUSIBLE
LINK1
FRONT
DOOR LOCK
ACTUATOR
(RH)
·FRONT
FOG LAMP
·HEADLAMP
·HEADLAMP
LEVELLING
SYSTEM
·REAR FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER
RELAY
BOX
J/B SIDE
