sensor MITSUBISHI LANCER IX 2006 Service Manual

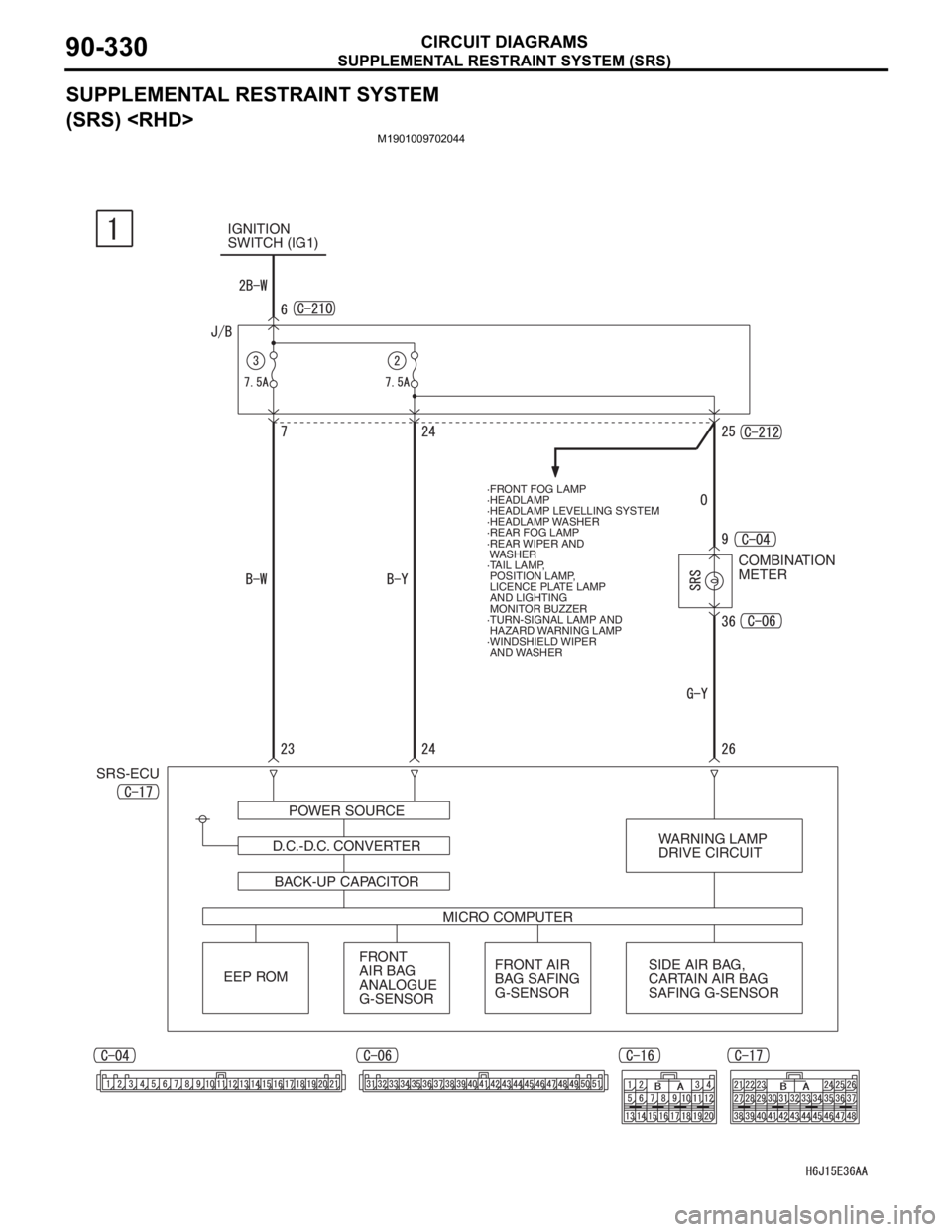

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
CIRCUIT DIAGRAMS90-330
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)
M1901009702044
IGNITION
SWITCH (IG1)
COMBINATION
METER
·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP LEVELLING SYSTEM
·HEADLAMP WASHER
·REAR FOG LAMP
·REAR WIPER AND
WASHER
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP AND
HAZARD WARNING LAMP
·WINDSHIELD WIPER
AND WASHER
POWER SOURCE
WARNING LAMP
DRIVE CIRCUIT D.C.-D.C. CONVERTER
BACK-UP CAPACITOR
MICRO COMPUTER
FRONT
AIR BAG
ANALOGUE
G-SENSOR EEP ROMFRONT AIR
BAG SAFING
G-SENSORSIDE AIR BAG,
CARTAIN AIR BAG
SAFING G-SENSOR SRS-ECU

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
CIRCUIT DIAGRAMS90-333
ANALOGUE
G-SENSORANALOGUE
G-SENSOR
CONSTANT
VOLTAGE
CIRCUITCONSTANT
VOLTAGE
CIRCUIT SIDE IMPACT
SENSOR
(REAR: LH)SIDE IMPACT
SENSOR
(REAR: RH)
SIDE IMPACT SENSOR INTERFACE CIRCUIT
MICRO
COMPUTER
SIDE IMPACT
SENSOR
(FRONT: LH)SIDE IMPACT
SENSOR
(FRONT: RH) SIDE IMPACT SENSOR INTERFACE CIRCUITSRS-ECU
CONSTANT
VOLTAGE
CIRCUITCONSTANT
VOLTAGE
CIRCUIT
ANALOGUE
G-SENSORANALOGUE
G-SENSOR
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
