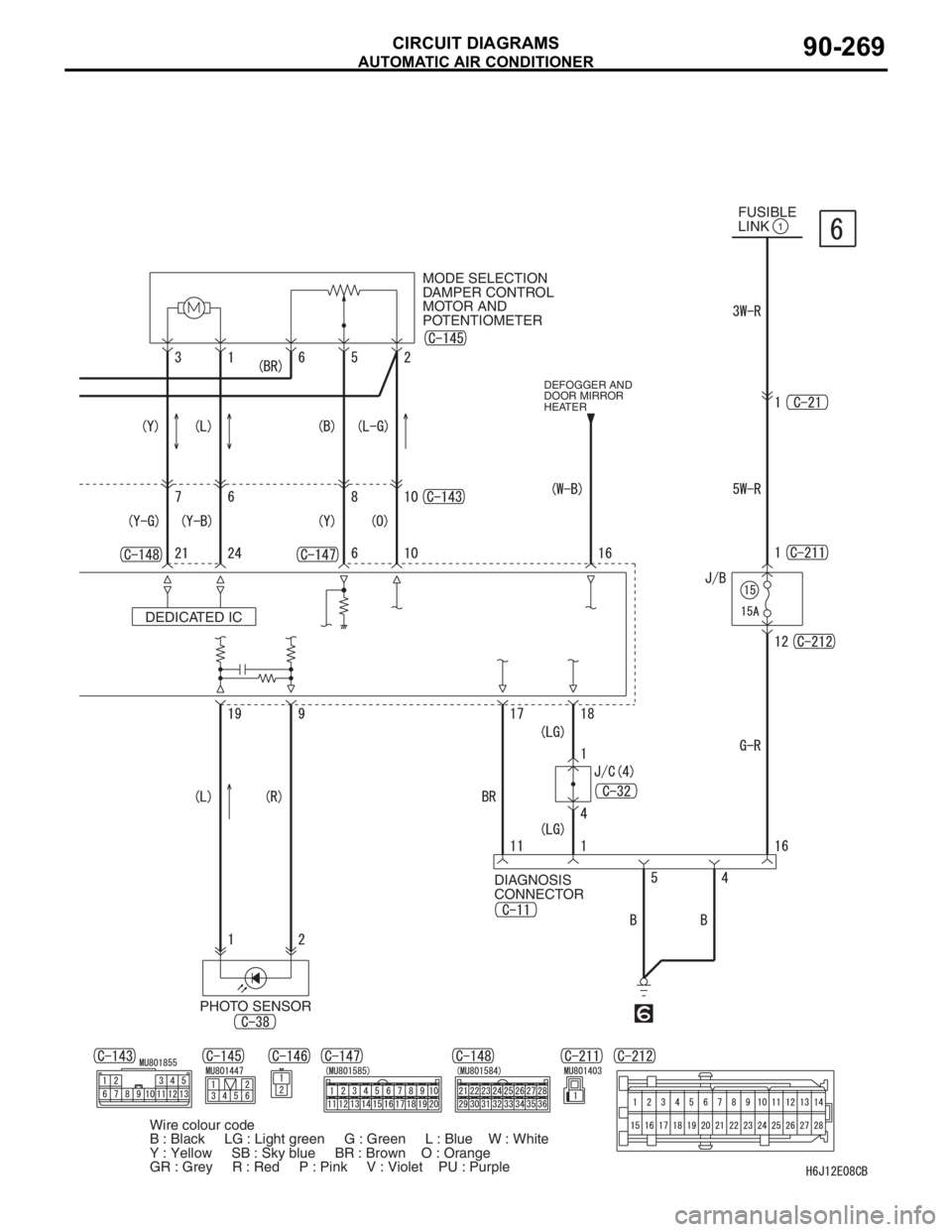

AUTOMATIC AIR CONDITIONER
CIRCUIT DIAGRAMS90-269
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : PurpleMODE SELECTION
DAMPER CONTROL
MOTOR AND
POTENTIOMETER
DEDICATED IC
1FUSIBLE
LINK
DIAGNOSIS
CONNECTOR
DEFOGGER AND
DOOR MIRROR
HEATER
PHOTO SENSOR
Page 735 of 800
AUTOMATIC AIR CONDITIONER
CIRCUIT DIAGRAMS90-271
TAIL LAMP
RELAY FRONT-ECU
RELAY
BOX
TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
A/C-ECU
OUTSIDE
THERMO
SENSOR INSIDE AIR
TEMPERATURE
SENSOR
RHEOSTAT
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 738 of 800
AUTOMATIC AIR CONDITIONER
CIRCUIT DIAGRAMS90-274
AUTOMATIC AIR CONDITIONER (CONTINUED)
AIR MIXING
DOOR
CONTROL
MOTOR AND
POTENTIOMETERHEATER
WATER
TEMPERATURE
SENSORAIR
THERMO
SENSOR
OUTSIDE
THERMO
SENSORINSIDE AIR
TEMPERATURE
SENSOR
DEDICATED IC
DEDICATED IC
OUTSIDE/INSIDE
AIR SELECTION
DAMPER CONTROL
MOTOR
FRONT
SIDE
A/C-ECU
(FUSE )
5
Page 739 of 800

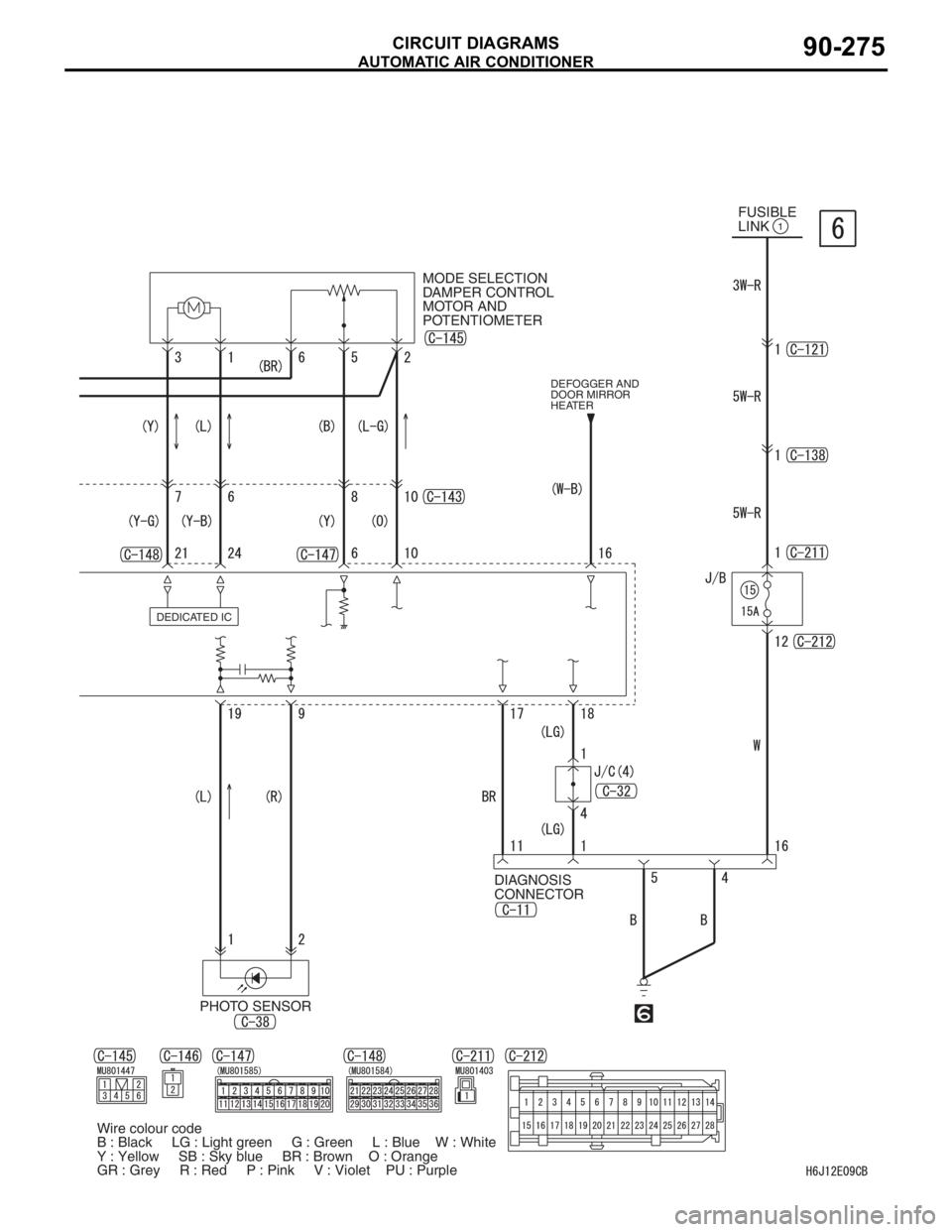

AUTOMATIC AIR CONDITIONER
CIRCUIT DIAGRAMS90-275
MODE SELECTION
DAMPER CONTROL
MOTOR AND
POTENTIOMETER
DEDICATED IC
1FUSIBLE
LINK
DIAGNOSIS
CONNECTOR
DEFOGGER AND
DOOR MIRROR
HEATER
PHOTO SENSOR
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple

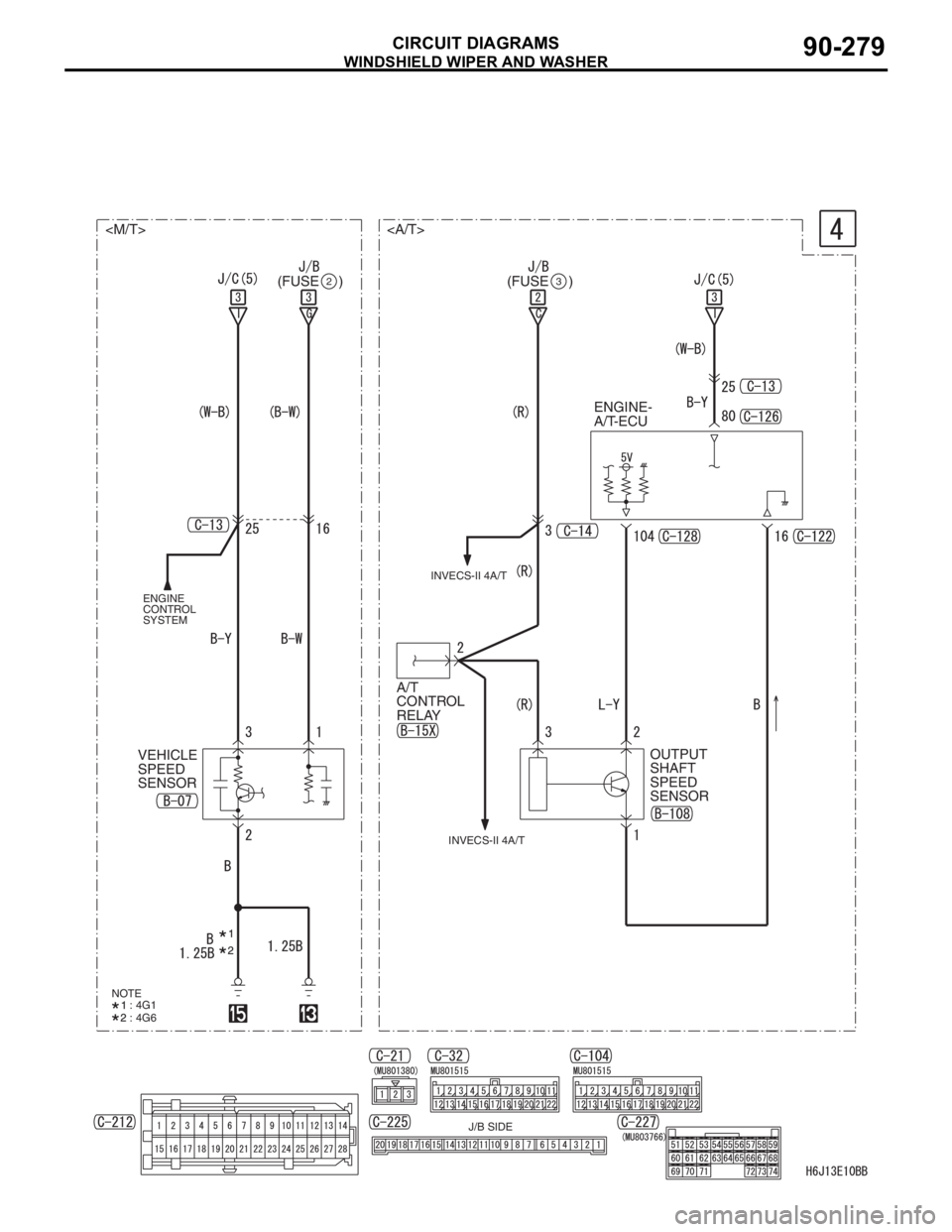

Page 743 of 800

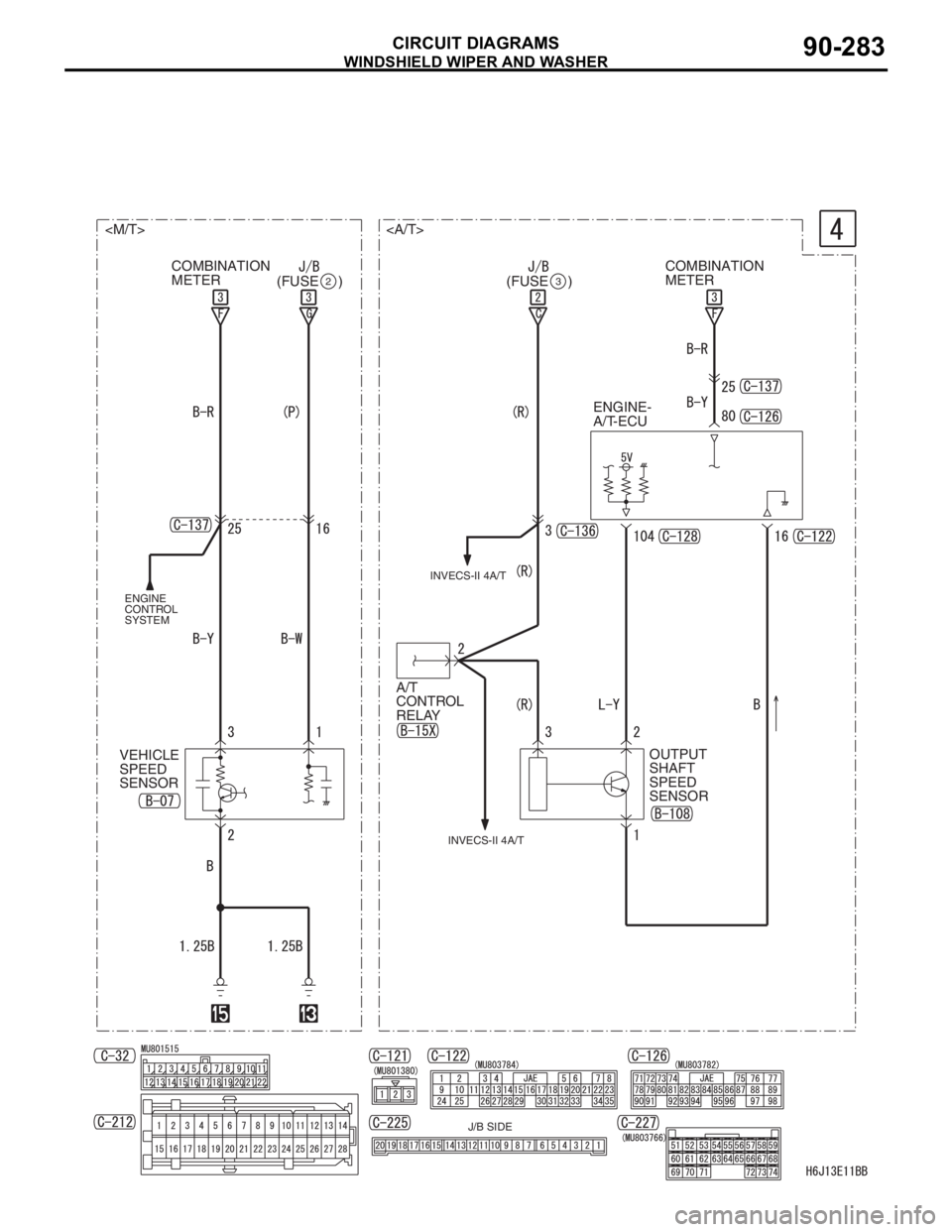

Page 747 of 800
Page 778 of 800
ABS
CIRCUIT DIAGRAMS90-314
ABS (CONTINUED)
WHEEL SPEED SENSOR
(FRONT: LH) (FRONT: RH) (REAR: LH) (REAR: RH)
ABS-ECU
Page 782 of 800

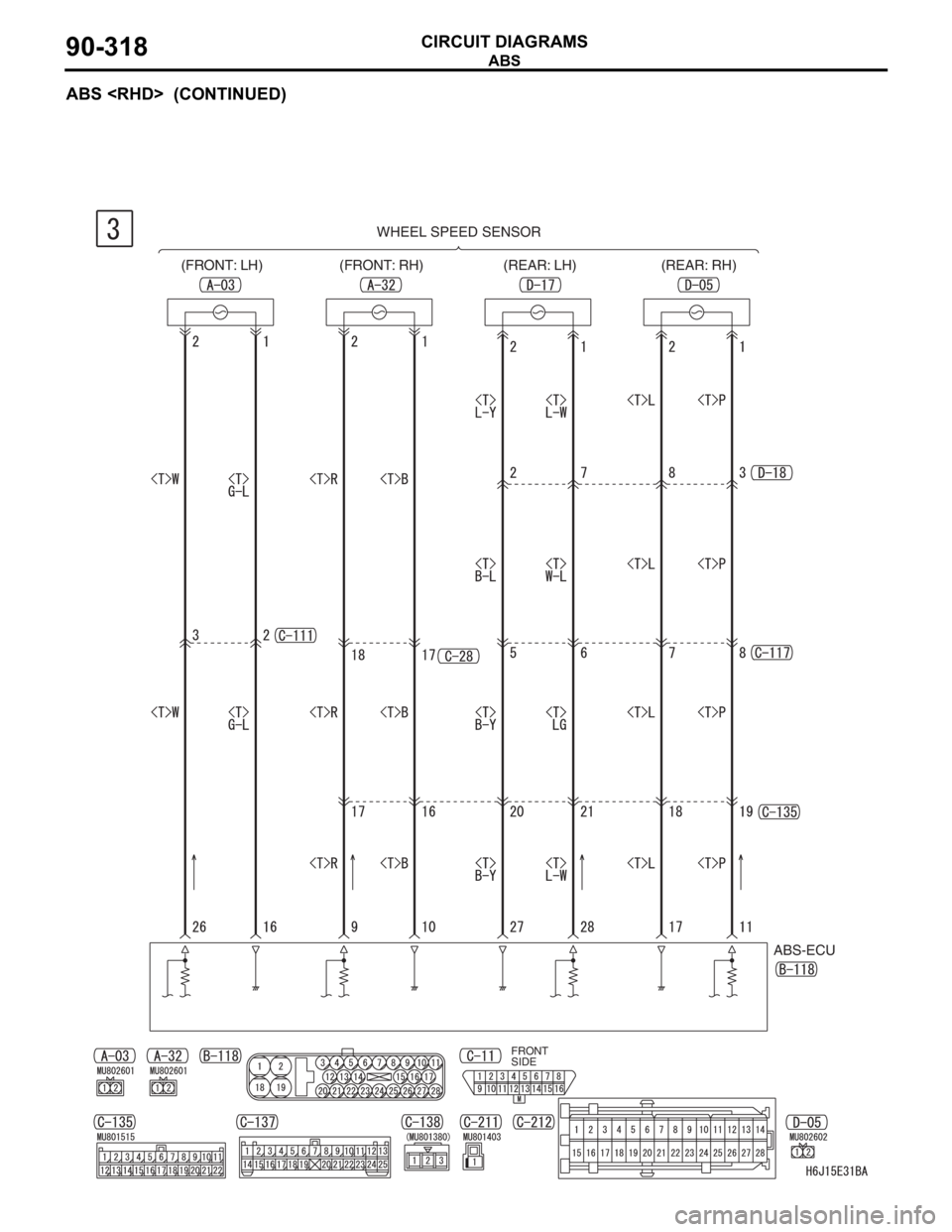

ABS
CIRCUIT DIAGRAMS90-318
ABS (CONTINUED)
WHEEL SPEED SENSOR
(FRONT: LH) (FRONT: RH) (REAR: LH) (REAR: RH)
ABS-ECU
FRONT
SIDE
Page 788 of 800

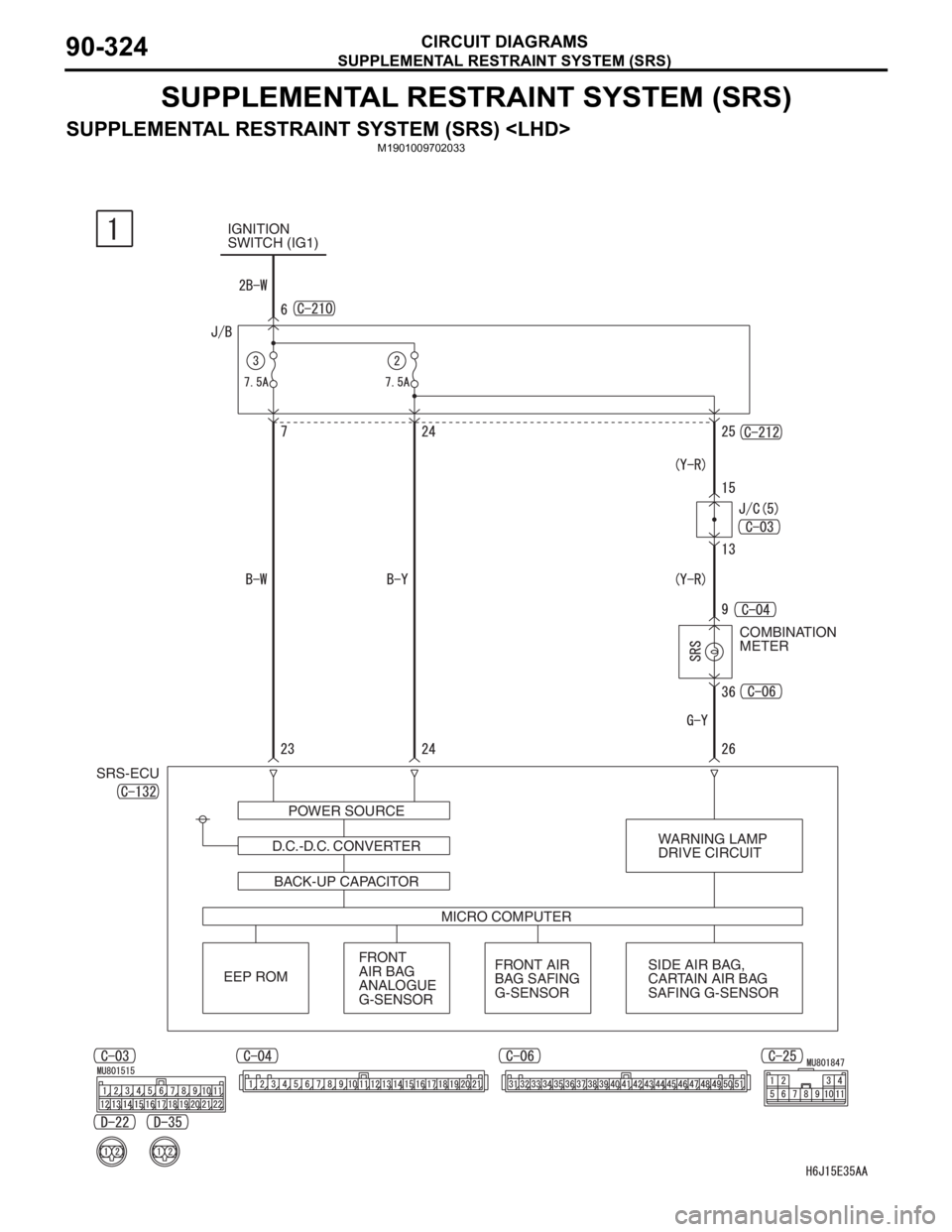

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
CIRCUIT DIAGRAMS90-324
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) M1901009702033
IGNITION
SWITCH (IG1)
COMBINATION
METER
POWER SOURCE
WARNING LAMP
DRIVE CIRCUIT D.C.-D.C. CONVERTER
BACK-UP CAPACITOR
MICRO COMPUTER
FRONT
AIR BAG
ANALOGUE
G-SENSOR EEP ROMFRONT AIR
BAG SAFING
G-SENSORSIDE AIR BAG,
CARTAIN AIR BAG
SAFING G-SENSOR SRS-ECU
Page 791 of 800

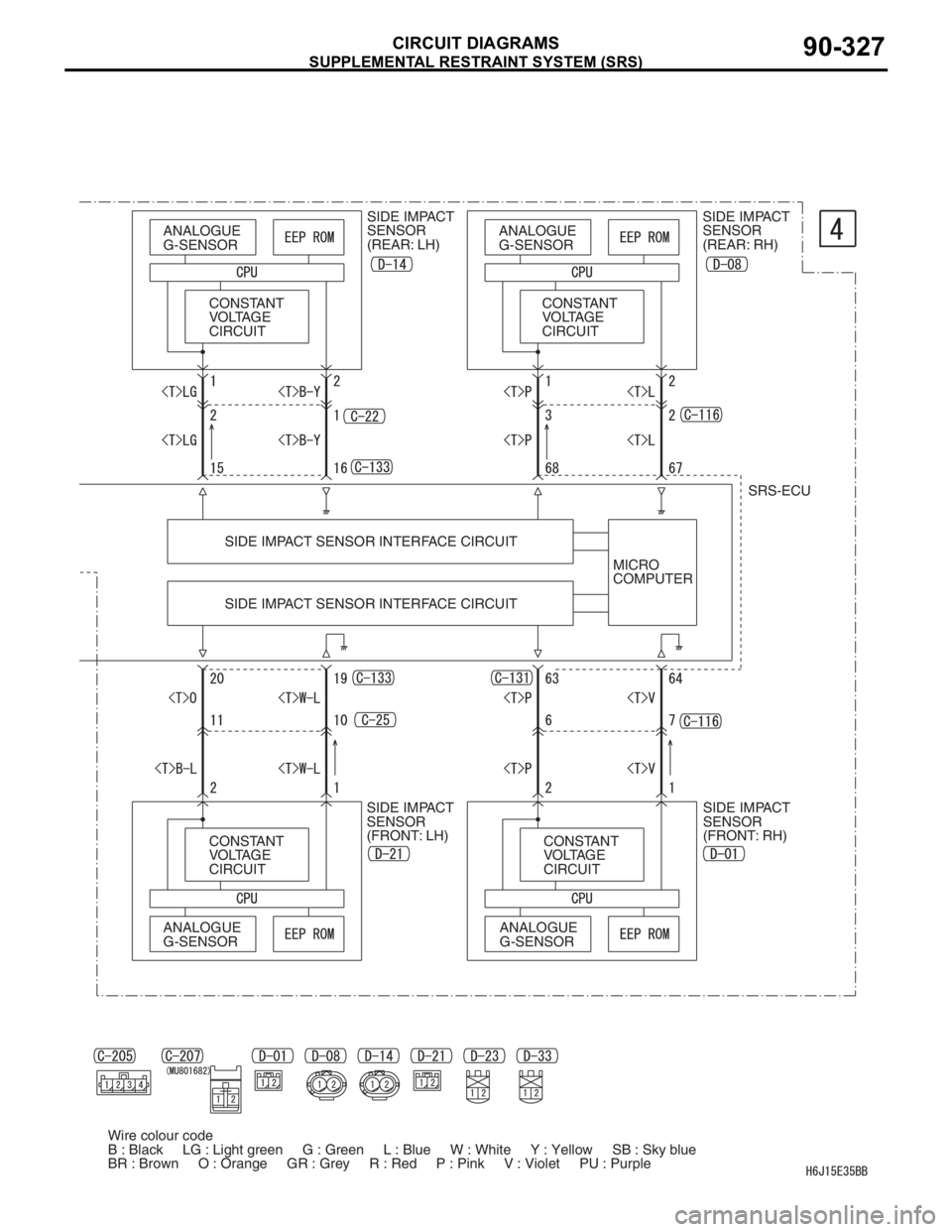

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
CIRCUIT DIAGRAMS90-327
ANALOGUE
G-SENSORANALOGUE
G-SENSOR
CONSTANT
VOLTAGE
CIRCUITCONSTANT
VOLTAGE
CIRCUIT SIDE IMPACT
SENSOR
(REAR: LH)SIDE IMPACT
SENSOR
(REAR: RH)
SIDE IMPACT SENSOR INTERFACE CIRCUIT
MICRO
COMPUTER
SIDE IMPACT
SENSOR
(FRONT: LH)SIDE IMPACT
SENSOR
(FRONT: RH) SIDE IMPACT SENSOR INTERFACE CIRCUITSRS-ECU
CONSTANT
VOLTAGE
CIRCUITCONSTANT
VOLTAGE
CIRCUIT
ANALOGUE
G-SENSORANALOGUE
G-SENSOR
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
