Page 446 of 800

DASH PANEL
CONFIGURATION DIAGRAMS80-36
DASH PANEL
AC206572
Connector
symbol
-201
thru
-227
C
AC
STEERING COLUMN
C-207
C-206
C-205
C-204
C-203C-203
C-202
C-201
Instrument panel
wiring harness
Clock spring
Y
C-201(6)Ignition switch
C-202(7)Key reminder switch
C-203(10)Column switch
C-204(6)Clock spring
C-205(4-Y)Clock spring
C-206(1)Horn switch
C-207(2)Air bag module (squib)
C-208(13)Instrument panel wiring harness and J/B
combination
C-209(14)Instrument panel wiring harness and J/B
combination
C-210(6)Instrument panel wiring harness and J/B
combination
C-211(1-B)Instrument panel wiring harness and J/B
combination
C-212(28)Instrument panel wiring harness and J/B
combination
Page 448 of 800

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-38
FLOOR AND ROOF
FLOOR AND ROOF

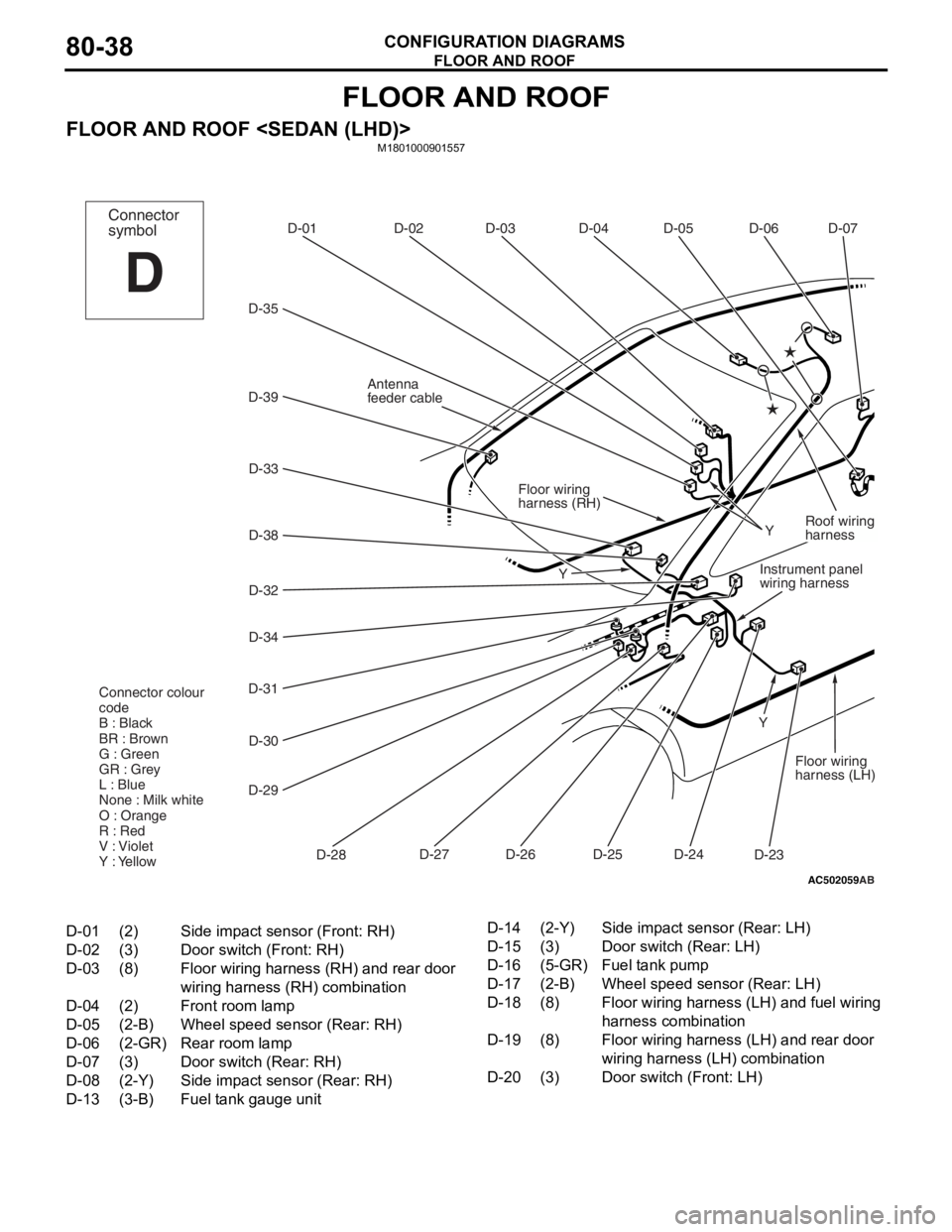

AC502059
D-06
D-07
D-05
D-04
D-03
D-02
D-01
D-35
D-39D-33
D-38D-32
D-34
D-31
D-30
D-29
D-25
D-28 D-27 D-24
D-23Y
Y Floor wiring
harness (LH)
Floor wiring
harness (RH)
Instrument panel
wiring harness
Connector
symbol
D
D-26
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Antenna
feeder cable
AB
Y
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
D-19(8)Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20(3)Door switch (Front: LH)
Page 450 of 800

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-40
FLOOR AND ROOF
M1801000901568
AC502060
D-06
D-07
D-05
D-04
D-03
D-02
D-01
D-35
D-34D-33
D-39
D-38
D-31 D-30
D-29 D-28D-27
D-23Y
Y
YFloor wiring
harness (LH)
Floor wiring
harness (RH)
Instrument panel
wiring harness
Connector
symbol
D
D-26
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
AB
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
D-19(8)Floor wiring harness (LH) and rear door
wiring harness (LH) combination
D-20(3)Door switch (Front: LH)
Page 452 of 800

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-42
FLOOR AND ROOF
M1801000901579
AC502061
D-07D-08
D-05
D-04
D-03
D-02
D-01
D-35
D-34
D-33
D-38
D-32
D-39
D-31
D-30
D-29
D-28 D-24 D-19
Y
Y Y
Connector
symbol
D
D-20
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
D-09
D-22D-21D-23D-25D-26
D-27
Y
YInstrument panel
wiring harness
Floor wiring
harness (RH)
Y
Antenna
feeder
cable
AB
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-09(3)Rear personal lamp (RH)
D-10(3)Luggage room lamp
D-11(2-B)Diode (for luggage room lamp circuit)
D-12(3)Rear personal lamp (LH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
Page 454 of 800

FLOOR AND ROOF
CONFIGURATION DIAGRAMS80-44
FLOOR AND ROOF
M1801000901580
AC502062
D-07
D-08
D-05
D-04
D-03
D-02
D-01
D-35
D-34
D-33
D-39
D-38
D-31
D-30
D-29 D-28 D-19
Y
Y Y
Connector
symbol
D
D-20
Roof wiring
harness
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
D-09
D-22D-21D-23D-26D-27 Y
Y
Instrument panel
wiring harness
Floor wiring
harness (RH)
Y
Antenna
feeder
cable
AB
D-01(2)Side impact sensor (Front: RH)
D-02(3)Door switch (Front: RH)
D-03(8)Floor wiring harness (RH) and rear door
wiring harness (RH) combination
D-04(2)Front room lamp
D-05(2-B)Wheel speed sensor (Rear: RH)
D-06(2-GR)Rear room lamp
D-07(3)Door switch (Rear: RH)
D-08(2-Y)Side impact sensor (Rear: RH)
D-09(3)Rear personal lamp (RH)
D-10(3)Luggage room lamp
D-11(2-B)Diode (for luggage room lamp circuit)
D-12(3)Rear personal lamp (LH)
D-13(3-B)Fuel tank gauge unit
D-14(2-Y)Side impact sensor (Rear: LH)
D-15(3)Door switch (Rear: LH)
D-16(5-GR)Fuel tank pump
D-17(2-B)Wheel speed sensor (Rear: LH)
D-18(8)Floor wiring harness (LH) and fuel wiring
harness combination
Page 456 of 800

DOOR
CONFIGURATION DIAGRAMS80-46
DOOR
DOOR

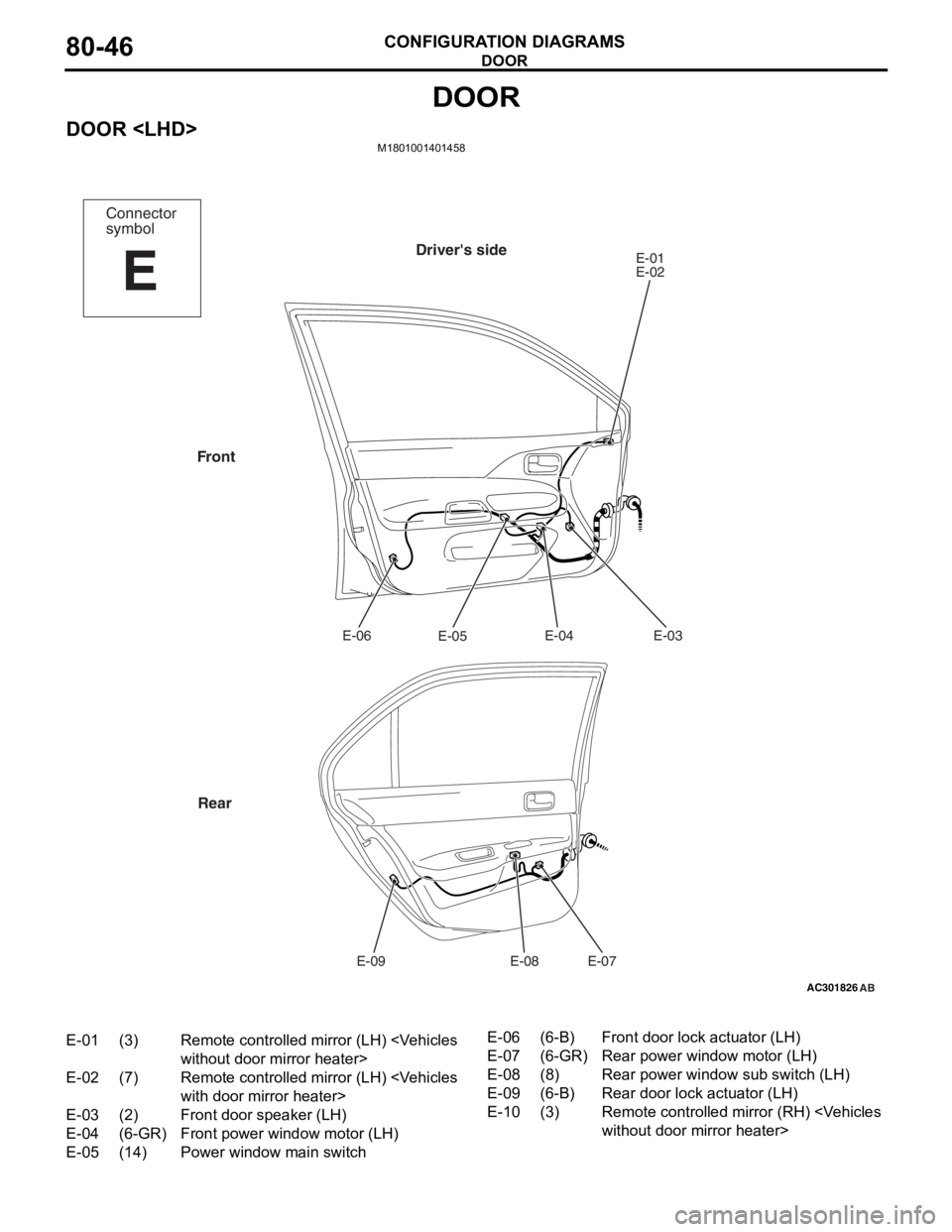

AC301826
Connector
symbol
E
Driver's sideE-01
E-02E-03
E-04
E-05
E-06
E-07
E-08
E-09
Front
Rear
AB
E-01(3)Remote controlled mirror (LH)
E-02(7)Remote controlled mirror (LH)
E-03(2)Front door speaker (LH)
E-04(6-GR)Front power window motor (LH)
E-05(14)Power window main switch
E-06(6-B)Front door lock actuator (LH)
E-07(6-GR)Rear power window motor (LH)
E-08(8)Rear power window sub switch (LH)
E-09(6-B)Rear door lock actuator (LH)
E-10(3)Remote controlled mirr or (RH)
Page 458 of 800

DOOR
CONFIGURATION DIAGRAMS80-48
DOOR
M1801001401469

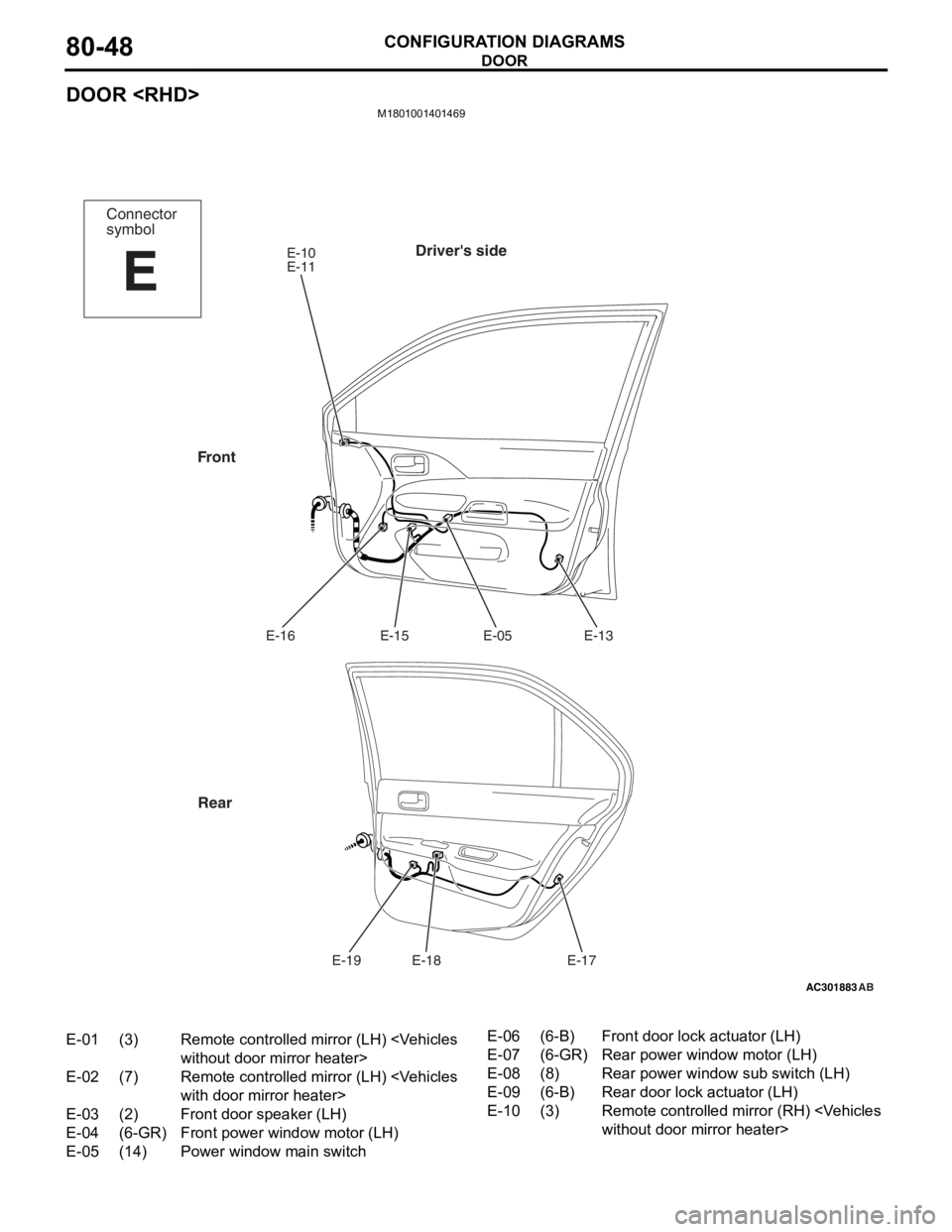

AC301883
Connector
symbol
E
Driver's sideE-10
E-11E-13
E-05
E-15
E-16
E-17
E-18
E-19
Front
Rear
AB
E-01(3)Remote controlled mirror (LH)
E-02(7)Remote controlled mirror (LH)
E-03(2)Front door speaker (LH)
E-04(6-GR)Front power window motor (LH)
E-05(14)Power window main switch
E-06(6-B)Front door lock actuator (LH)
E-07(6-GR)Rear power window motor (LH)
E-08(8)Rear power window sub switch (LH)
E-09(6-B)Rear door lock actuator (LH)
E-10(3)Remote controlled mirr or (RH)
Page 460 of 800

TRUNK (LUGGAGE COMPARTMENT)
CONFIGURATION DIAGRAMS80-50
TRUNK (LUGGAGE COMPARTMENT)
TRUNK (LUGGAGE COMPARTMENT)

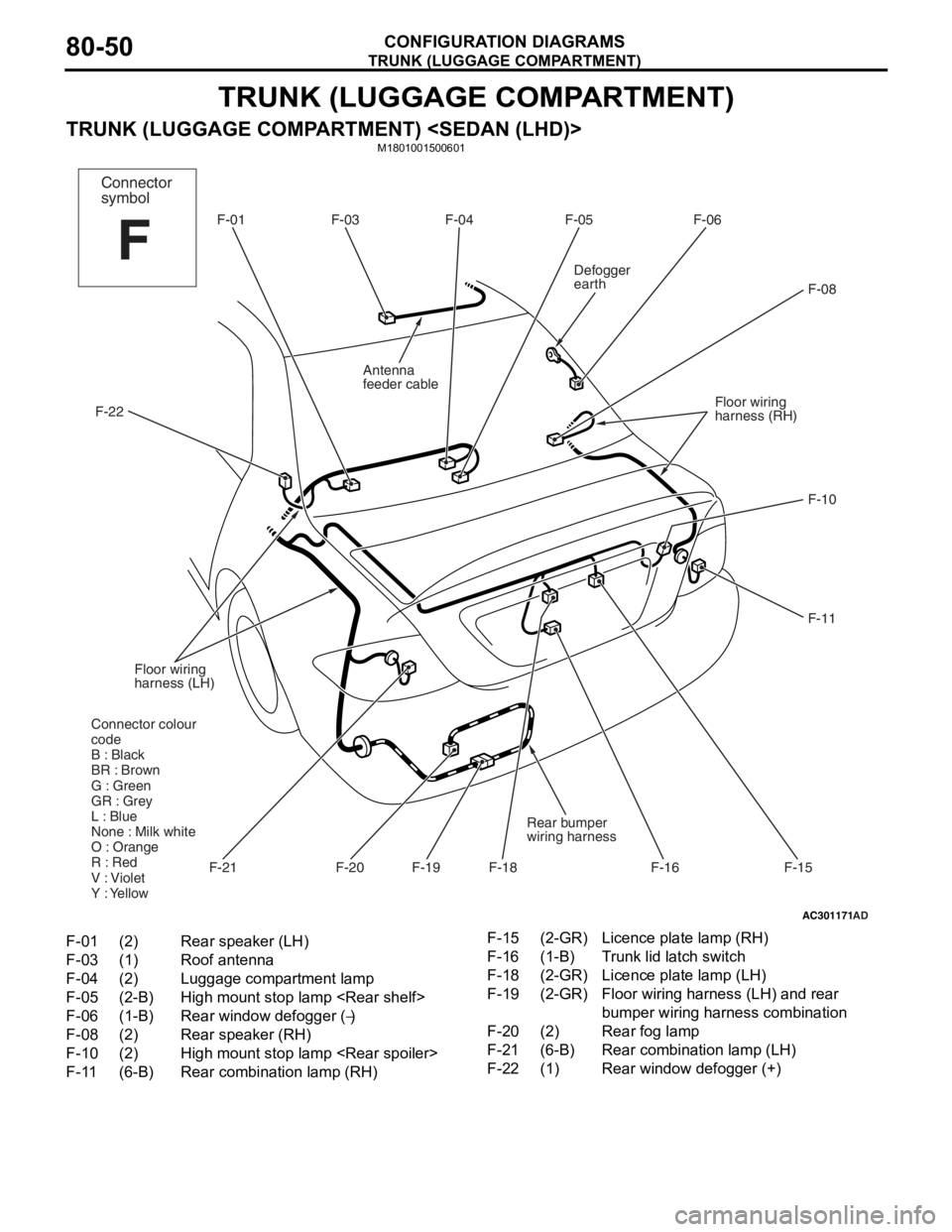

AC301171AD
F-01 F-04 F-05 F-06
F-08
F-10
F-11
F-18 F-16
F-19
Floor wiring
harness (LH)
F-22
Defogger
earth
Floor wiring
harness (RH)F-03
F-15F-21
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-20
Connector
symbol
F
F-01(2)Rear speaker (LH)
F-03(1)Roof antenna
F-04(2)Luggage compartment lamp
F-05(2-B)High mount stop lamp
F-06(1-B)Rear window defogger (−)
F-08(2)Rear speaker (RH)
F-10(2)High mount stop lamp
F-11(6-B)Rear combination lamp (RH)
F-15(2-GR)Licence plate lamp (RH)
F-16(1-B)Trunk lid latch switch
F-18(2-GR)Licence plate lamp (LH)
F-19(2-GR)Floor wiring harness (LH) and rear
bumper wiring harness combination
F-20(2)Rear fog lamp
F-21(6-B)Rear combination lamp (LH)
F-22(1)Rear window defogger (+)
Page 461 of 800

TRUNK (LUGGAGE COMPARTMENT)
CONFIGURATION DIAGRAMS80-51
TRUNK (LUGGAGE COMPARTMENT)
M1801001500612
AC301172AD
F-04 F-05 F-07 F-08 F-22
F-10
F-11
F-14
F-18 F-16
F-19
Floor wiring
harness (LH)
F-01 F-06
Defogger
earth
Floor wiring
harness (RH)
F-03
F-15F-21
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
F
F-01(2)Rear speaker (LH)
F-03(1)Roof antenna
F-04(2)Luggage compartment lamp
F-05(2-B)High mount stop lamp
F-06(1-B)Rear window defogger (−)
F-07(4)No connection
F-08(2)Rear speaker (RH)
F-10(2)High mount stop lamp
F-11(6-B)Rear combination lamp (RH)
F-14(2)Rear fog lamp
F-15(2-GR)Licence plate lamp (RH)
F-16(1-B)Trunk lid latch switch
F-18(2-GR)Licence plate lamp (LH)
F-19(2-GR)Floor wiring harness (LH) and rear
bumper wiring harness combination
F-21(6-B)Rear combination lamp (LH)
F-22(1)Rear window defogger (+)
Page 462 of 800

TAILGATE
CONFIGURATION DIAGRAMS80-52
TA I L G AT E
TAILGATE

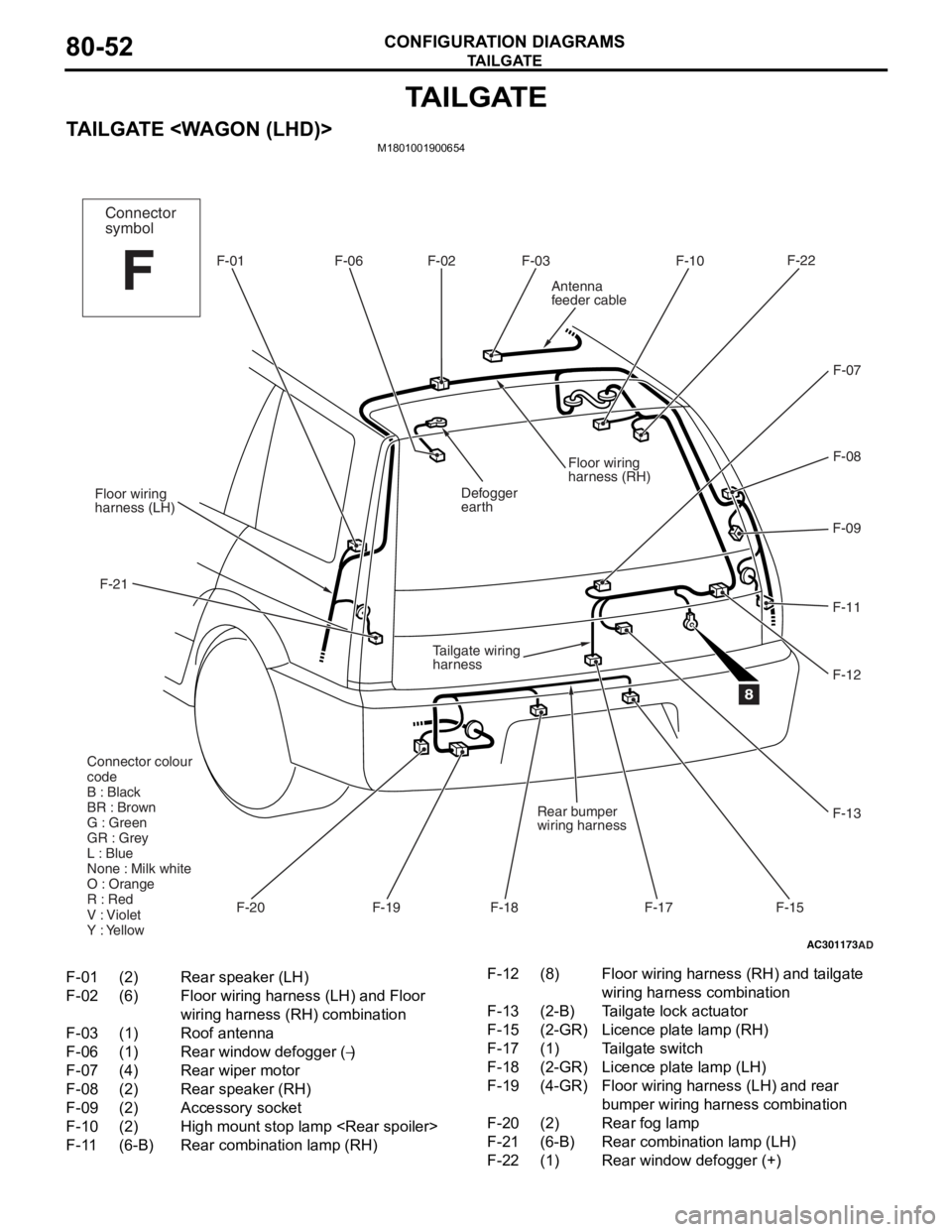

AC301173AD
F-01 F-02F-03
F-10F-22
F-09
F-11
F-17
F-19
Floor wiring
harness (LH)
F-21 Defogger
earth
Floor wiring
harness (RH)
F-06
F-15
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-20
F-07
F-08
F-12
F-18
F-13
8
Tailgate wiring
harness
Connector
symbol
F
F-01(2)Rear speaker (LH)
F-02(6)Floor wiring harness (LH) and Floor
wiring harness ( RH) combination
F-03(1)Roof antenna
F-06(1)Rear window defogger (−)
F-07(4)Rear wiper motor
F-08(2)Rear speaker (RH)
F-09(2)Accessory socket
F-10(2)High mount stop lamp
F-11(6-B)Rear combination lamp (RH)
F-12(8)Floor wiring harness (RH) and tailgate
wiring harness combination
F-13(2-B)Tailgate lock actuator
F-15(2-GR)Licence plate lamp (RH)
F-17(1)Tailgate switch
F-18(2-GR)Licence plate lamp (LH)
F-19(4-GR)Floor wiring harness (LH) and rear
bumper wiring harness combination
F-20(2)Rear fog lamp
F-21(6-B)Rear combination lamp (LH)
F-22(1)Rear window defogger (+)
