OVERALL CONFIGURATION DIAGRAM
CONFIGURATION DIAGRAMS80-4
OVERALL WIRING DIAGRAM
M1801000101283
AC301177AB
Front wiring
harness (RH)Control wiring
harness Instrument panel
wiring harness Roof wiring
harnessFloor wiring
harness (RH)
Battery wiring
harness Front wiring
harness (LH) Front door
wiring harness
Floor wiring
harness (LH) Fuel wiring
harnessRear door
wiring harness
Front bumper
wiring harness
Rear bumper
wiring harness
*
*
Tailgate wiring
harness
NO
TE: .
1.This illu stration shows o n ly major wirin g harne sses.
2.*: also eq uipp ed at t he rig h t side.

OVERALL CONFIGURATION DIAGRAM
CONFIGURATION DIAGRAMS80-5
OVERALL WIRING DIAGRAM
M1801000101294
AC301178AB
Front wiring
harness (RH)Control wiring
harness Instrument panel
wiring harness Roof wiring
harnessFloor wiring
harness (RH)
Battery wiring
harness Front wiring
harness (LH) Front door
wiring harness
Floor wiring
harness (LH) Fuel wiring
harnessRear door
wiring harness
Front bumper
wiring harness
Rear bumper
wiring harness
*
*
Tailgate wiring
harness
NO
TE: .
1.This illu stration shows o n ly major wirin g harne sses.
2.*: also eq uipp ed at t he rig h t side.

TAILGATE
CONFIGURATION DIAGRAMS80-52
TA I L G AT E
TAILGATE M1801001900654
AC301173AD
F-01 F-02F-03
F-10F-22
F-09
F-11
F-17
F-19
Floor wiring
harness (LH)
F-21 Defogger
earth
Floor wiring
harness (RH)
F-06
F-15
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-20
F-07
F-08
F-12
F-18
F-13
8
Tailgate wiring
harness
Connector
symbol
F
F-01(2)Rear speaker (LH)
F-02(6)Floor wiring harness (LH) and Floor
wiring harness ( RH) combination
F-03(1)Roof antenna
F-06(1)Rear window defogger (−)
F-07(4)Rear wiper motor
F-08(2)Rear speaker (RH)
F-09(2)Accessory socket
F-10(2)High mount stop lamp
F-11(6-B)Rear combination lamp (RH)
F-12(8)Floor wiring harness (RH) and tailgate
wiring harness combination
F-13(2-B)Tailgate lock actuator
F-15(2-GR)Licence plate lamp (RH)
F-17(1)Tailgate switch
F-18(2-GR)Licence plate lamp (LH)
F-19(4-GR)Floor wiring harness (LH) and rear
bumper wiring harness combination
F-20(2)Rear fog lamp
F-21(6-B)Rear combination lamp (LH)
F-22(1)Rear window defogger (+)

TAILGATE
CONFIGURATION DIAGRAMS80-53
TAILGATE
M1801001900665
AC301174AD
F-01F-03F-10 F-22
F-09F-11
F-17
F-19
Floor wiring
harness (LH)
F-21 Defogger
earthFloor wiring
harness (RH)
F-06
F-15
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-07
F-08
F-12
F-18
F-13
8
Tailgate wiring
harness
F-14
Rear bumper
wiring harness
Connector
symbol
F
F-01(2)Rear speaker (LH)
F-03(1)Roof antenna
F-06(1)Rear window defogger (−)
F-07(4)Rear wiper motor
F-08(2)Rear speaker (RH)
F-09(2)Accessory socket
F-10(2)High mount stop lamp
F-11(6-B)Rear combination lamp (RH)
F-12(8)Floor wiring harness (RH) and tailgate
wiring harness combination
F-13(2-B)Tailgate lock actuator
F-14(2)Rear fog lamp
F-15(2-GR)Licence plate lamp (RH)
F-17(1)Tailgate switch
F-18(2-GR)Licence plate lamp (LH)
F-19(4-GR)Floor wiring harness (LH) and rear
bumper wiring harness combination
F-21(6-B)Rear combination lamp (LH)
F-22(1)Rear window defogger (+)

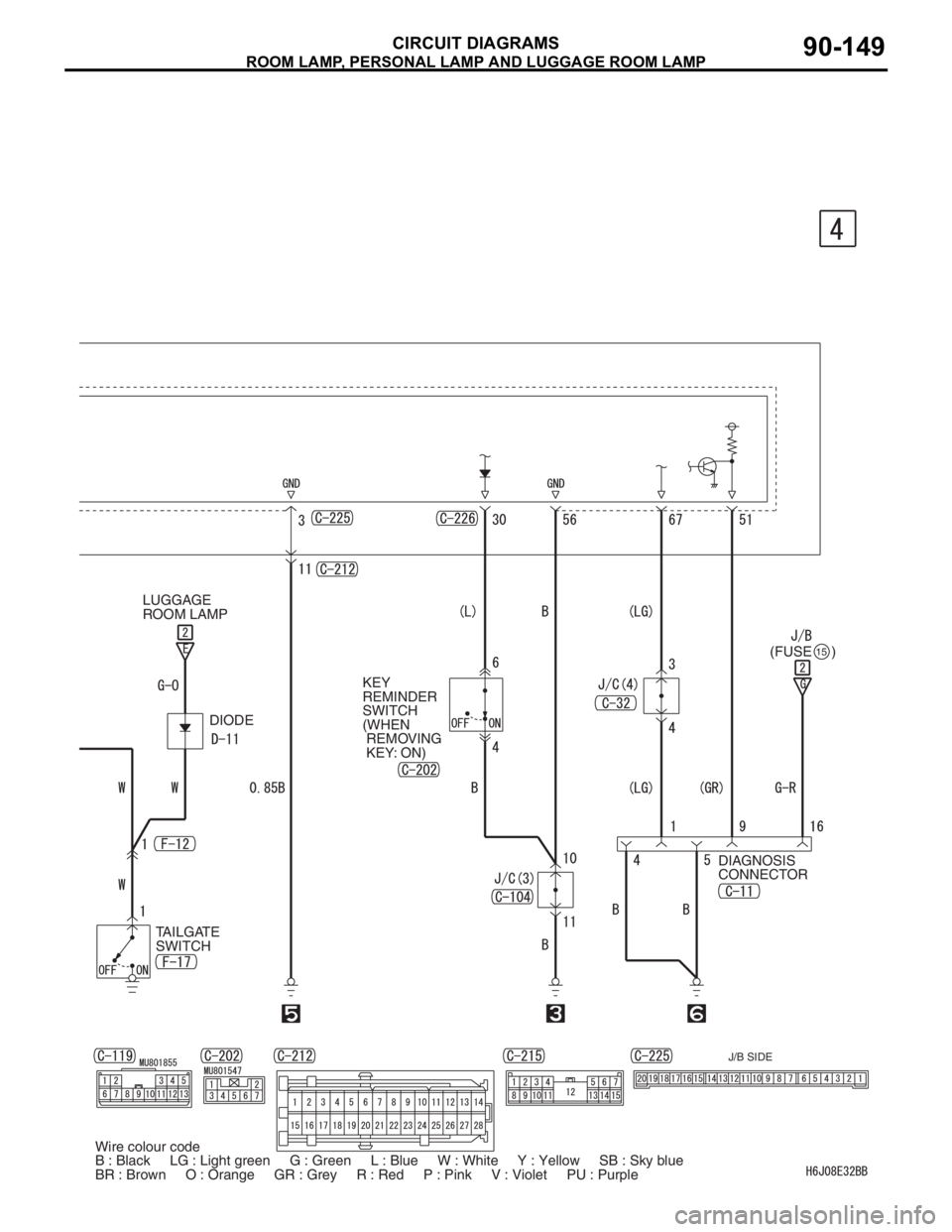

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-149
(FUSE )15
KEY
REMINDER
SWITCH
(WHEN
REMOVING
KEY: ON)
TAILGATE
SWITCH
J/B SIDE
LUGGAGE
ROOM LAMP
DIAGNOSIS
CONNECTOR DIODE
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

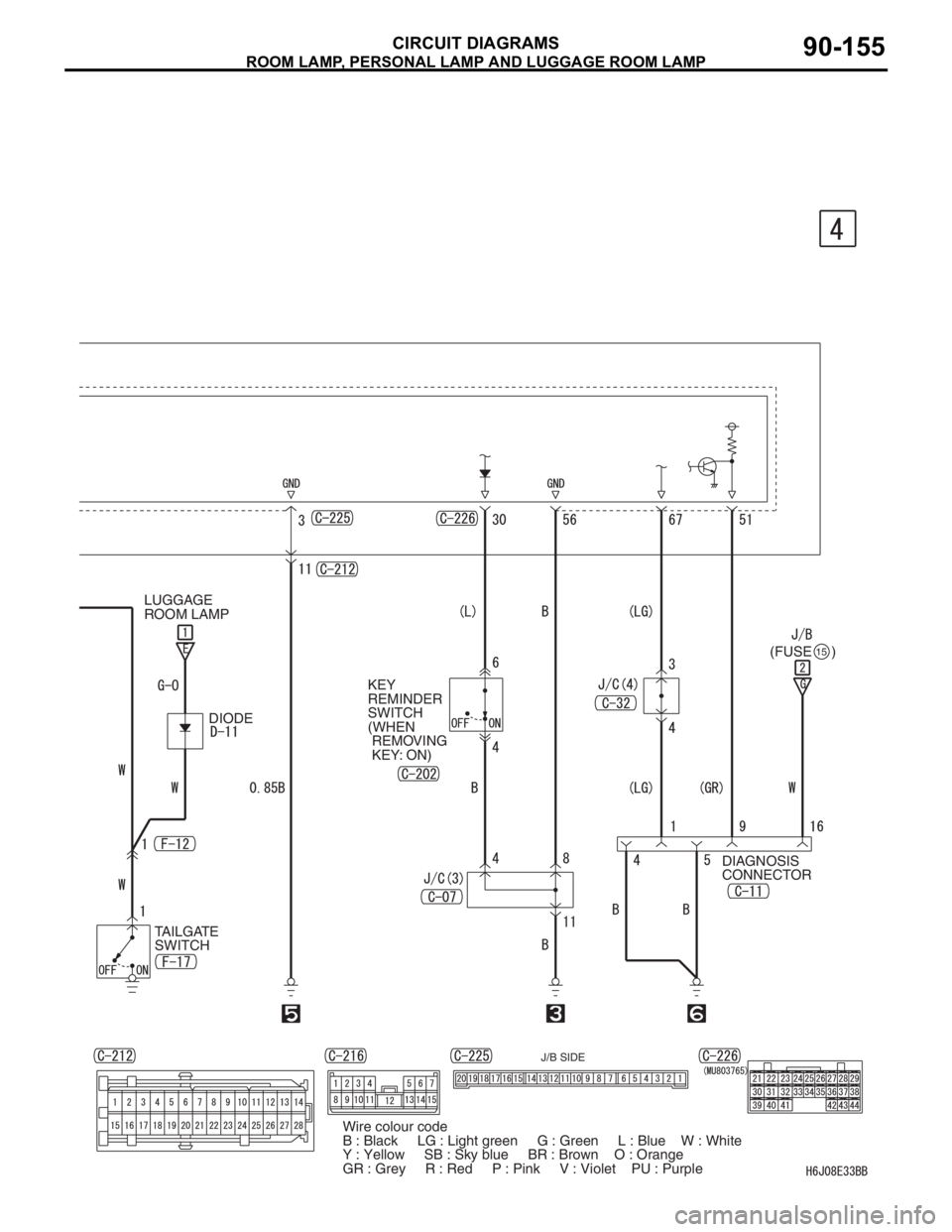

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-155
(FUSE )15
KEY
REMINDER
SWITCH
(WHEN
REMOVING
KEY: ON)
TAILGATE
SWITCH
J/B SIDE
DIODE LUGGAGE
ROOM LAMP
DIAGNOSIS
CONNECTOR
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-215

ETACS-ECU ETACS-ECU
REAR
DOOR LOCK
ACTUATOR
(RH)REAR
DOOR LOCK
ACTUATOR
(REAR: RH)TAILGATE
LOCK
ACTUATOR
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-219

ETACS-ECU ETACS-ECU
REAR DOOR
LOCK
ACTUATOR
(RH)REAR DOOR
LOCK
ACTUATOR
(RH)TAILGATE
LOCK
ACTUATOR
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-233
FRONT DOOR
LOCK ACTUATOR
(RH)REAR DOOR
LOCK ACTUATOR
(LH)ETACS-ECU
REAR DOOR
LOCK ACTUATOR
(RH) TAILGATE
LOCK
ACTUATOR

CENTRAL DOOR LOCKING SYSTEM
CIRCUIT DIAGRAMS90-235
ROOM LAMP
AND LUGGAGE
COMPARTMENT LAMP
TAILGATE
SWITCHKEY REMINDER
SWITCH
(WHEN REMOVING
KEY: ON)
J/B SIDE
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
