Features and controls
3-207
3

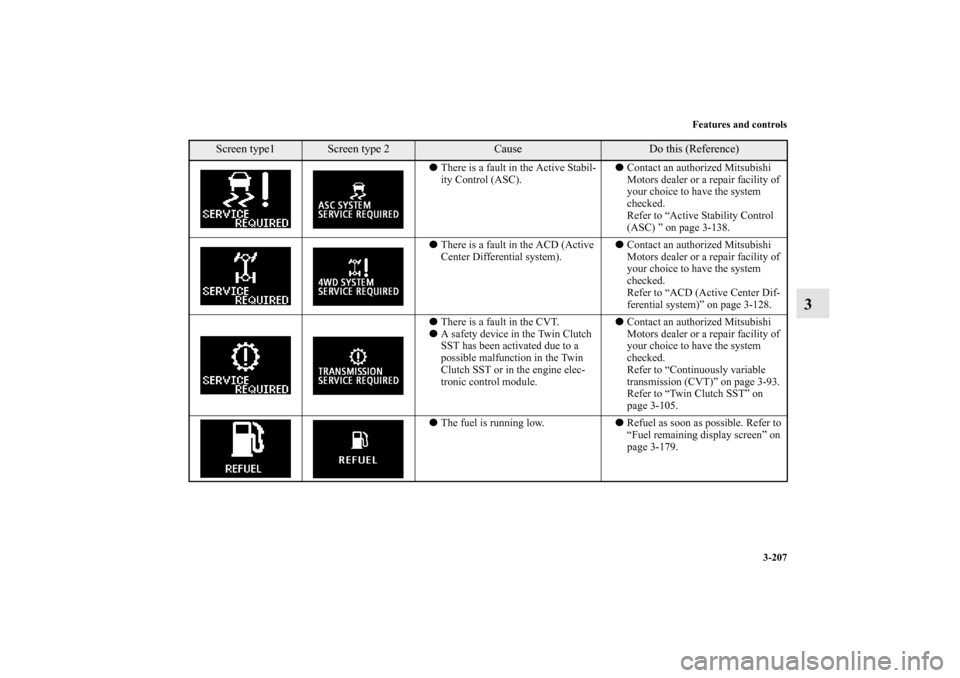

There is a fault in the Active Stabil-
ity Control (ASC).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Active Stability Control
(ASC) ” on page 3-138.

There is a fault in the ACD (Active
Center Differential system).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “ACD (Active Center Dif-
ferential system)” on page 3-128.

There is a fault in the CVT.

A safety device in the Twin Clutch
SST has been activated due to a
possible malfunction in the Twin
Clutch SST or in the engine elec-
tronic control module.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Continuously variable
transmission (CVT)” on page 3-93.
Refer to “Twin Clutch SST” on
page 3-105.

The fuel is running low.
Refuel as soon as possible. Refer to
“Fuel remaining display screen” on
page 3-179.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 207 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-208 Features and controls
3

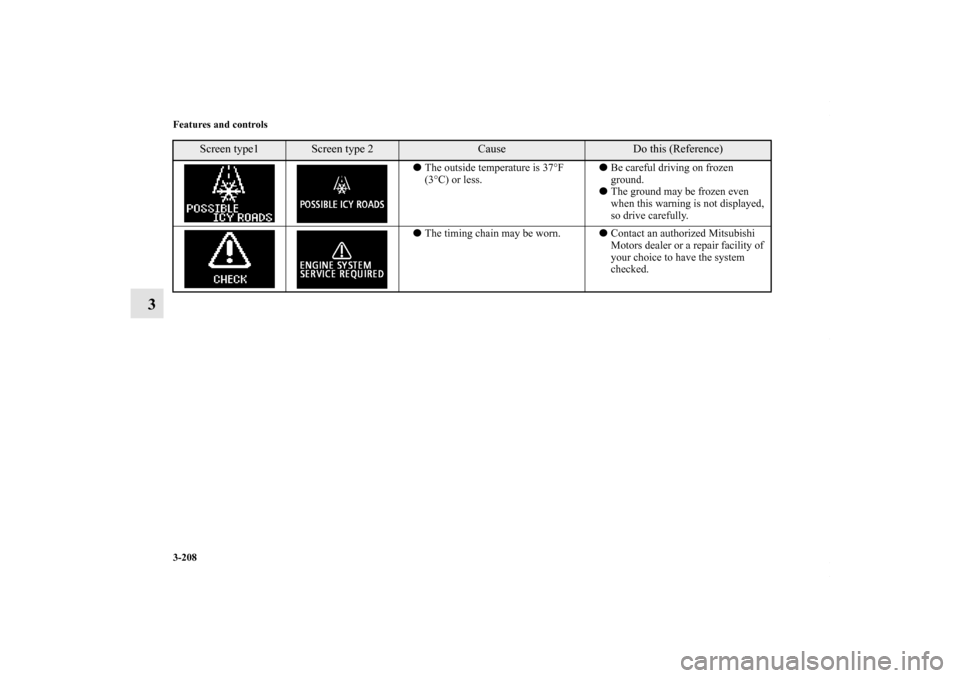

The outside temperature is 37°F
(3°C) or less.
Be careful driving on frozen
ground.

The ground may be frozen even
when this warning is not displayed,
so drive carefully.

The timing chain may be worn.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 208 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-209
3

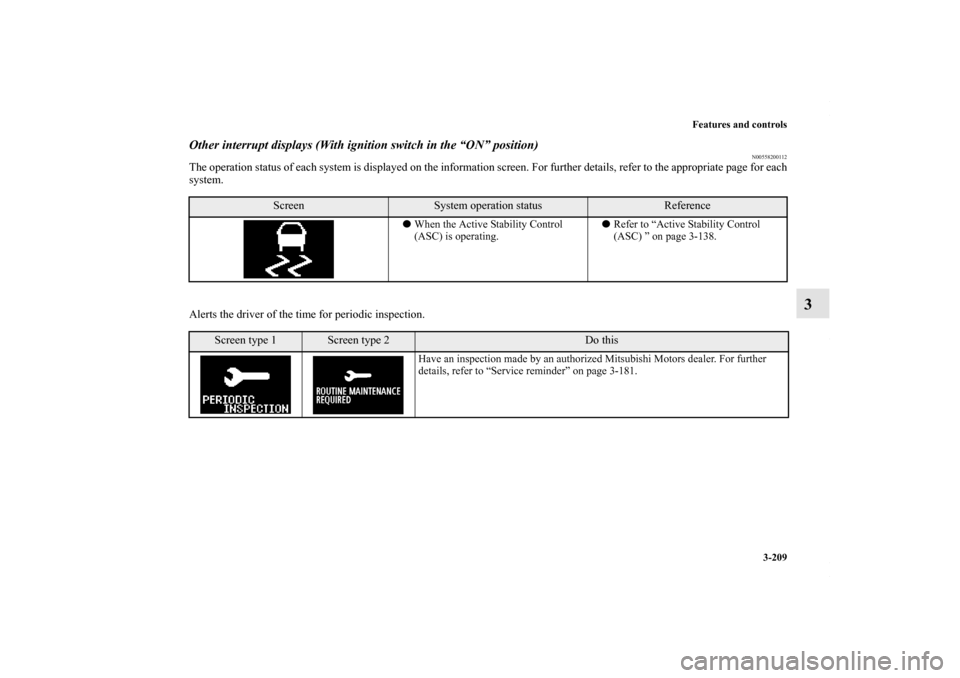

Other interrupt displays (With ignition switch in the “ON” position)
N00558200112
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each
system.
Alerts the driver of the time for periodic inspection.
Screen
System operation status
Reference

When the Active Stability Control
(ASC) is operating.
Refer to “Active Stability Control
(ASC) ” on page 3-138.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further
details, refer to “Service reminder” on page 3-181.
BK0102103US.book 209 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-210 Features and controls
3

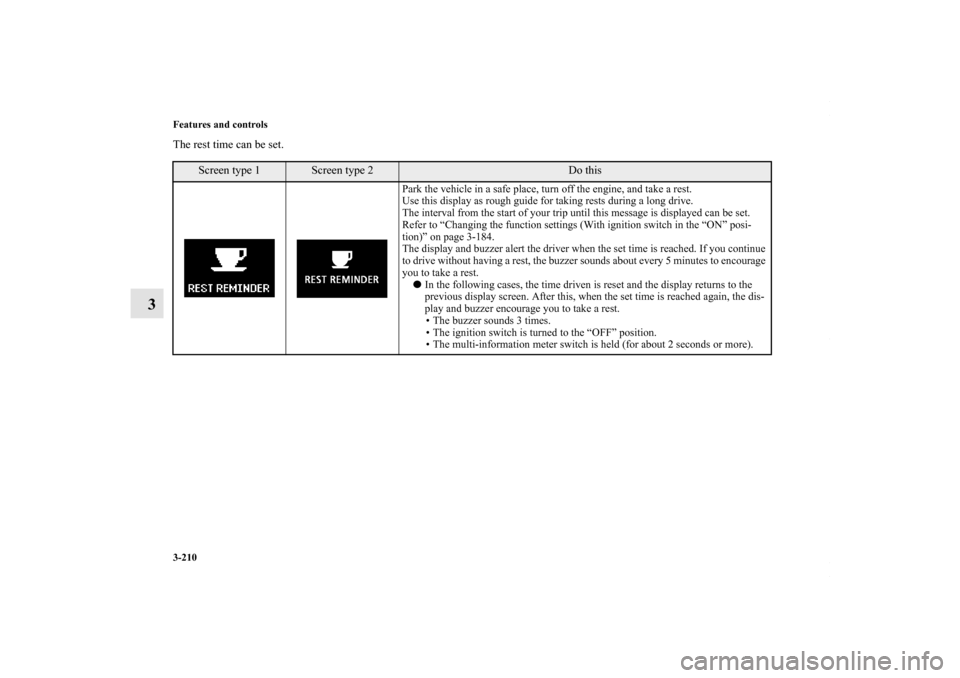

The rest time can be set.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (With ignition switch in the “ON” posi-
tion)” on page 3-184.
The display and buzzer alert the driver when the set time is reached. If you continue
to drive without having a rest, the buzzer sounds about every 5 minutes to encourage
you to take a rest.

In the following cases, the time driven is reset and the display returns to the
previous display screen. After this, when the set time is reached again, the dis-
play and buzzer encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “OFF” position.
• The multi-information meter switch is held (for about 2 seconds or more).
BK0102103US.book 210 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-211
3 Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200205
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.
Wa r n i n g l i g h t s
N00520300147
Brake warning light
N00520400438
When the ignition switch is turned to the “ON” position, this
indicator normally comes on and goes out a few seconds later.
A warning is also displayed in the multi-information display.
The warning light also illuminates after starting the engine
under the following conditions:

When the parking brake is still applied.

When the brake fluid level is low.

When the brake force distribution function is not operat-
ing correctly. (vehicles with anti-lock brake system)
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
BK0102103US.book 211 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-213
3
NOTE
Do not disconnect the battery cable when the engine mal-
function indicator (“SERVICE ENGINE SOON” or
“Check engine light”) is on.
The engine electronic control module stores critical OBD
information (especially exhaust emission data), which
may be lost if the battery cable is disconnected while the
engine malfunction indicator is on. This will make it diffi-
cult to diagnose the cause of future problems.
Charging system warning light
N00520600296
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition switch is turned to the “ON”
position (engine off). A warning is also displayed in the multi-
information display. When the engine is started, the light
should go out. Check to make sure that the light has gone out
before driving.

If the engine malfunction indicator comes on while
the engine is running, avoid driving at high speeds.
During vehicle operation with the indicator on, the
vehicle may not accelerate when you depress the
accelerator pedal.
When the vehicle is stationary with the indicator on,
you must depress the brake pedal more firmly than
usual since the engine idling speed is higher than
usual and a vehicle with a CVT or a Twin Clutch
SST has a stronger tendency to creep forward.
CAUTION
!
CAUTION
!
If the warning light stays on while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
BK0102103US.book 213 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-214 Features and controls

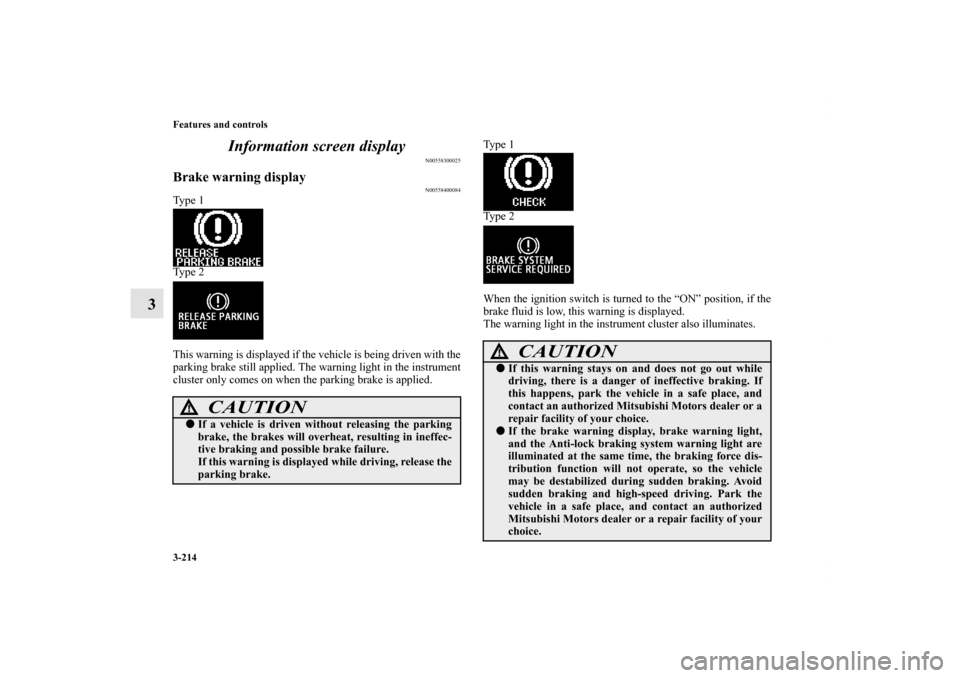

3Information screen display
N00558300025
Brake warning display
N00558400084
Type 1
Type 2
This warning is displayed if the vehicle is being driven with the
parking brake still applied. The warning light in the instrument
cluster only comes on when the parking brake is applied.Ty p e 1
Ty p e 2
When the ignition switch is turned to the “ON” position, if the
brake fluid is low, this warning is displayed.
The warning light in the instrument cluster also illuminates.
CAUTION
!
If a vehicle is driven without releasing the parking
brake, the brakes will overheat, resulting in ineffec-
tive braking and possible brake failure.
If this warning is displayed while driving, release the
parking brake.
CAUTION
!
If this warning stays on and does not go out while
driving, there is a danger of ineffective braking. If
this happens, park the vehicle in a safe place, and
contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
If the brake warning display, brake warning light,
and the Anti-lock braking system warning light are
illuminated at the same time, the braking force dis-
tribution function will not operate, so the vehicle
may be destabilized during sudden braking. Avoid
sudden braking and high-speed driving. Park the
vehicle in a safe place, and contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
BK0102103US.book 214 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-215
3

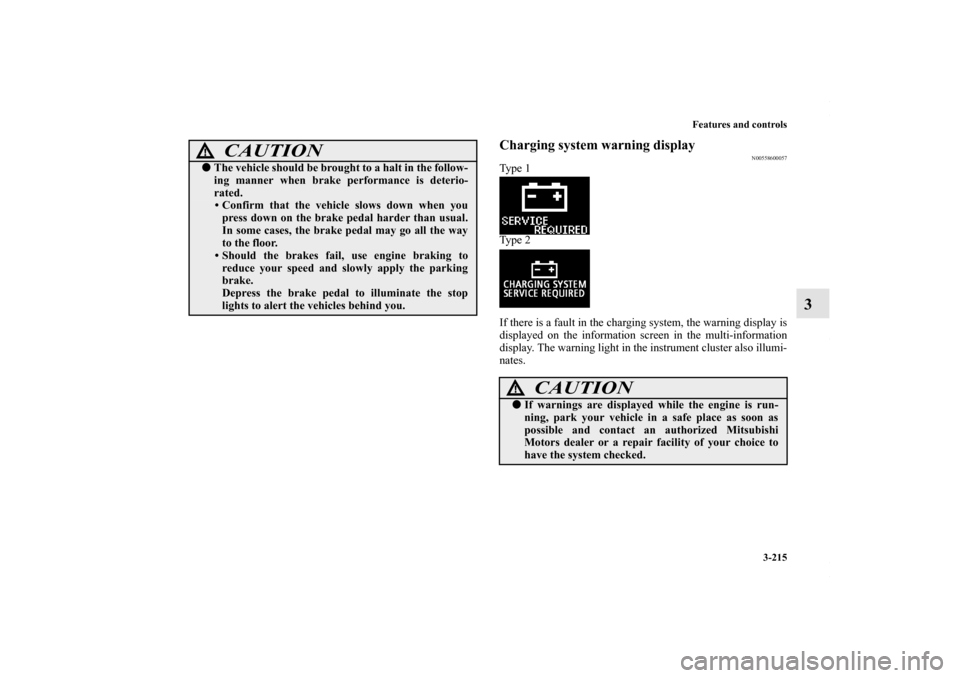

Charging system warning display
N00558600057
Ty p e 1
Ty p e 2
If there is a fault in the charging system, the warning display is
displayed on the information screen in the multi-information
display. The warning light in the instrument cluster also illumi-
nates.

The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to
reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.CAUTION
!
CAUTION
!
If warnings are displayed while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
BK0102103US.book 215 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-216 Features and controls
3

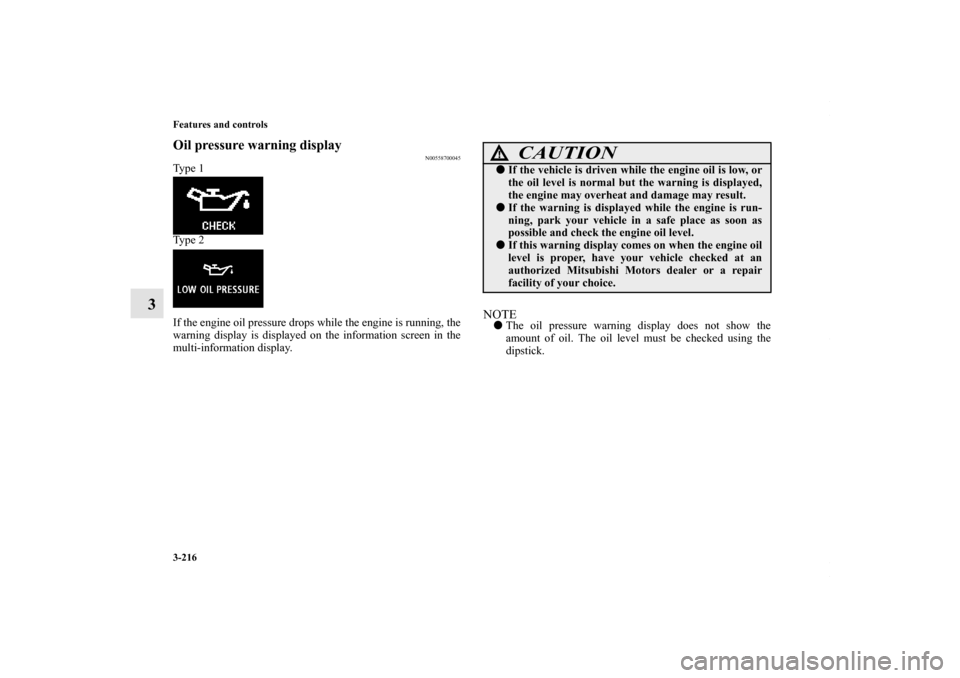

Oil pressure warning display
N00558700045
Type 1
Type 2
If the engine oil pressure drops while the engine is running, the
warning display is displayed on the information screen in the
multi-information display.
NOTE
The oil pressure warning display does not show the
amount of oil. The oil level must be checked using the
dipstick.
CAUTION
!
If the vehicle is driven while the engine oil is low, or
the oil level is normal but the warning is displayed,
the engine may overheat and damage may result.
If the warning is displayed while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and check the engine oil level.
If this warning display comes on when the engine oil
level is proper, have your vehicle checked at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0102103US.book 216 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-220 Features and controls
3
Light auto-cutout function (headlights and other
lights)
N00532600509

If the ignition key is turned to “LOCK” or “ACC” posi-
tion or removed from the ignition switch and the driver’s
door is opened with the combination headlights and dim-
mer switch in the “ ” or “ ” position, the lights auto-
matically turn off.
[When using a key to start the engine]
• If the driver’s door is opened after the key is removed
from the ignition switch, a high-pitched constant tone
will sound to remind you to turn off the lights.
• If the driver’s door is opened with the key in the ignition
switch, a low-pitched tone will sound to remind you to
remove the key.
[When using the F.A.S.T.-key to start the engine]
• If the ignition switch is turned to the “LOCK” position
and the driver’s door is opened, a high-pitched constant
buzzer will sound to remind you to turn off the lights.
• If the ignition switch is turned to any position other than
“LOCK” and the driver’s door is opened, a low-pitched
constant buzzer will sound to remind you to return the
ignition switch.

If the ignition switch is turned to “LOCK” or “ACC” posi-
tion with the driver’s door closed and the combination
headlights and dimmer switch in the “ ” or “ ” posi-
tion, the lights will stay on for about 3 minutes and then
turn off automatically.
NOTE
The light auto-cutout function can be deactivated.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.When you want to keep the lights on: If the combination headlights and dimmer switch is turned to
the “ ” or “ ” position again after the engine is turned off,
the about 3 minutes auto-cutout function described above will
not work. The lights (the parking lights, tail lights and license
plate lights) will stay on and will not turn off automatically. NOTE
When the engine is started using the key, if the driver’s
door is opened and the key is removed, the headlight
reminder buzzer intermittently emits a high-pitched
sound. If the key is still in the ignition the key reminder
buzzer intermittently emits a low-pitched sound.
The buzzer stops when the driver’s door is closed. (A
warning is also displayed in the multi-information display.)

When the engine is started using the keyless operation
function, if the driver’s door is opened and the ignition
switch is in the “LOCK” position, the headlight reminder
buzzer intermittently emits a high-pitched sound. If the
ignition switch is in any position other than “LOCK”, the
ignition switch on reminder buzzer intermittently emits a
low-pitched sound.
The buzzer stops when the driver’s door is closed. (A
warning is also displayed in the multi-information display.)
BK0102103US.book 220 ページ ２００９年１０月２６日　月曜日　午後１時３８分
