Features and controls
3-185
3

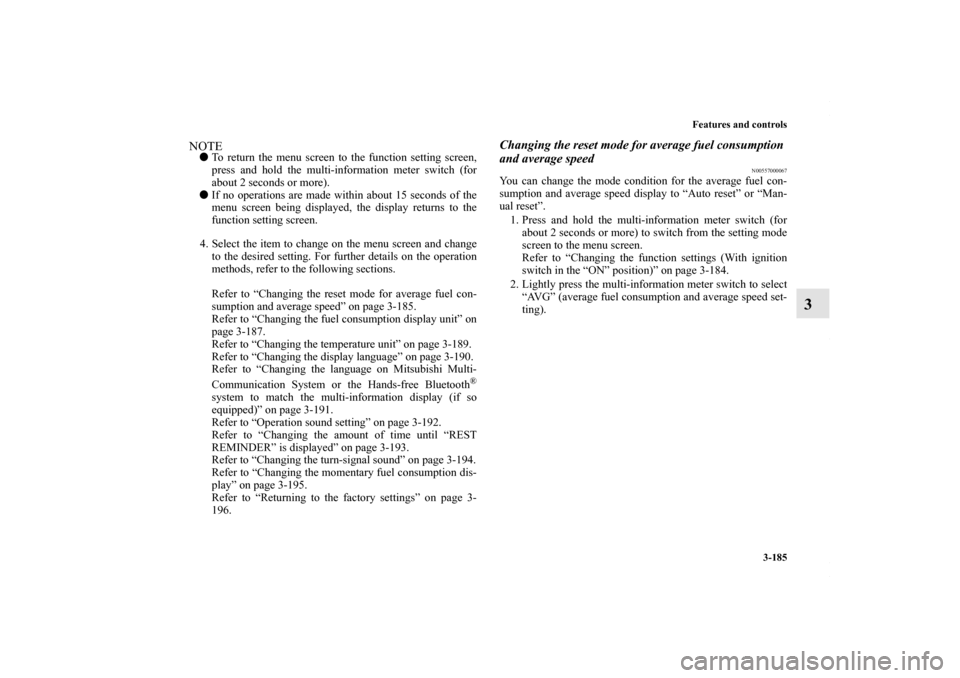

NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-185.
Refer to “Changing the fuel consumption display unit” on
page 3-187.
Refer to “Changing the temperature unit” on page 3-189.
Refer to “Changing the display language” on page 3-190.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or the Hands-free Bluetooth
®
system to match the multi-information display (if so
equipped)” on page 3-191.
Refer to “Operation sound setting” on page 3-192.
Refer to “Changing the amount of time until “REST
REMINDER” is displayed” on page 3-193.
Refer to “Changing the turn-signal sound” on page 3-194.
Refer to “Changing the momentary fuel consumption dis-
play” on page 3-195.
Refer to “Returning to the factory settings” on page 3-
196.
Changing the reset mode for average fuel consumption
and average speed
N00557000067
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset”.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0102103US.book 185 ページ ２００９年１０月２６日　月曜日　午後１時３８分

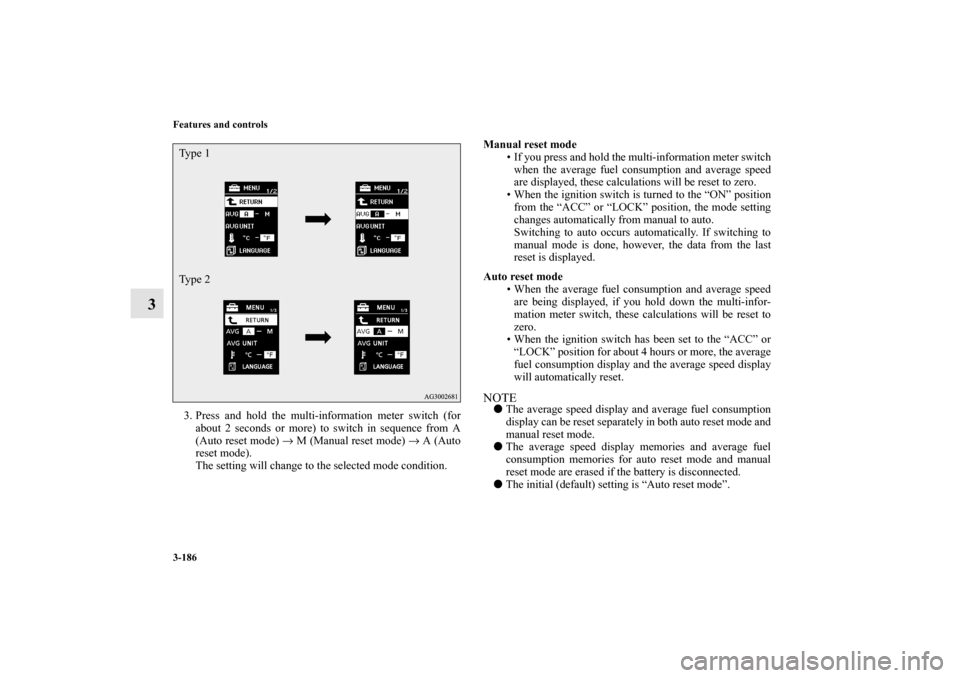

3-186 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A
(Auto reset mode) → M (Manual reset mode) → A (Auto
reset mode).
The setting will change to the selected mode condition.Manual reset mode
• If you press and hold the multi-information meter switch
when the average fuel consumption and average speed
are displayed, these calculations will be reset to zero.
• When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode
• When the average fuel consumption and average speed
are being displayed, if you hold down the multi-infor-
mation meter switch, these calculations will be reset to
zero.
• When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display and the average speed display
will automatically reset.
NOTE
The average speed display and average fuel consumption
display can be reset separately in both auto reset mode and
manual reset mode.

The average speed display memories and average fuel
consumption memories for auto reset mode and manual
reset mode are erased if the battery is disconnected.

The initial (default) setting is “Auto reset mode”.
Type 1
Type 2BK0102103US.book 186 ページ ２００９年１０月２６日　月曜日　午後１時３８分

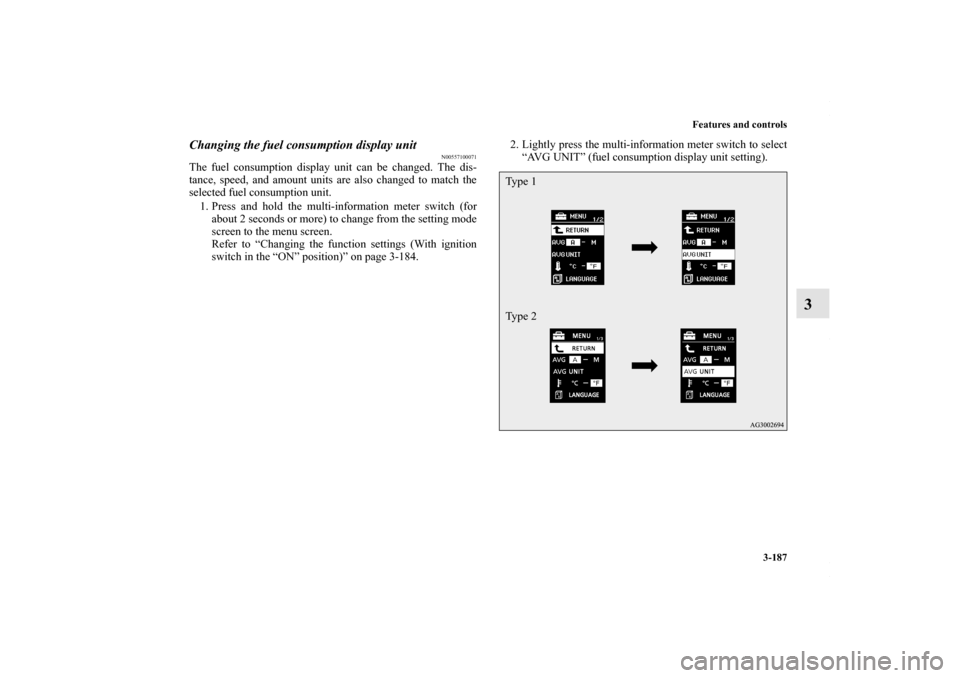

Features and controls
3-187
3
Changing the fuel consumption display unit
N00557100071
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.2. Lightly press the multi-information meter switch to select
“AVG UNIT” (fuel consumption display unit setting).
Type 1
Type 2
BK0102103US.book 187 ページ ２００９年１０月２６日　月曜日　午後１時３８分

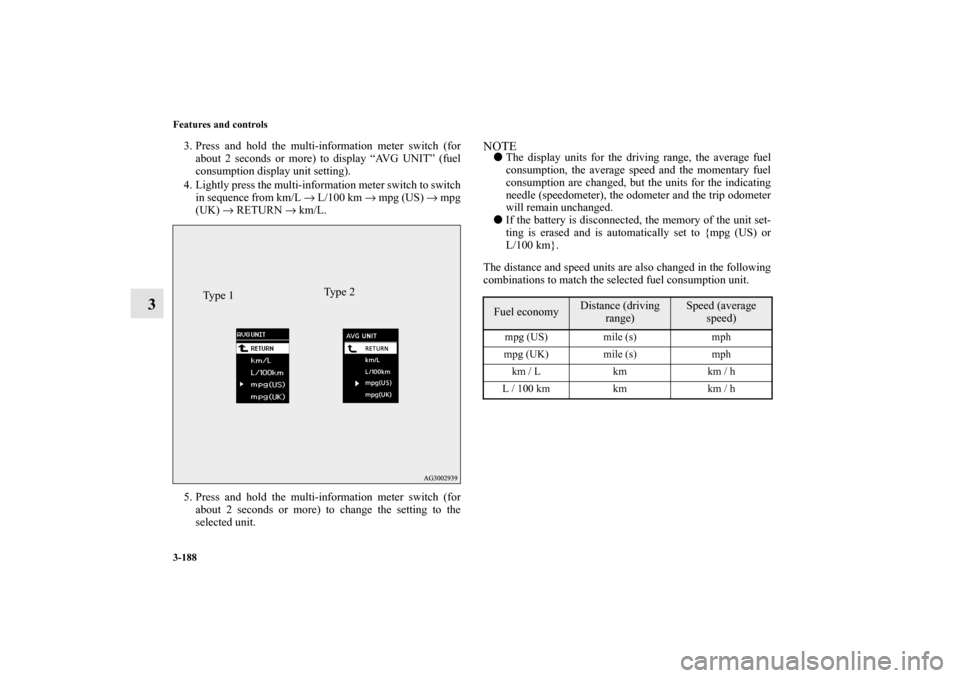

3-188 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).
4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.
NOTE
The display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.

If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Ty p e 1Ty p e 2
Fuel economy
Distance (driving
range)
Speed (average
speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L km km / h
L / 100 km km km / h
BK0102103US.book 188 ページ ２００９年１０月２６日　月曜日　午後１時３８分

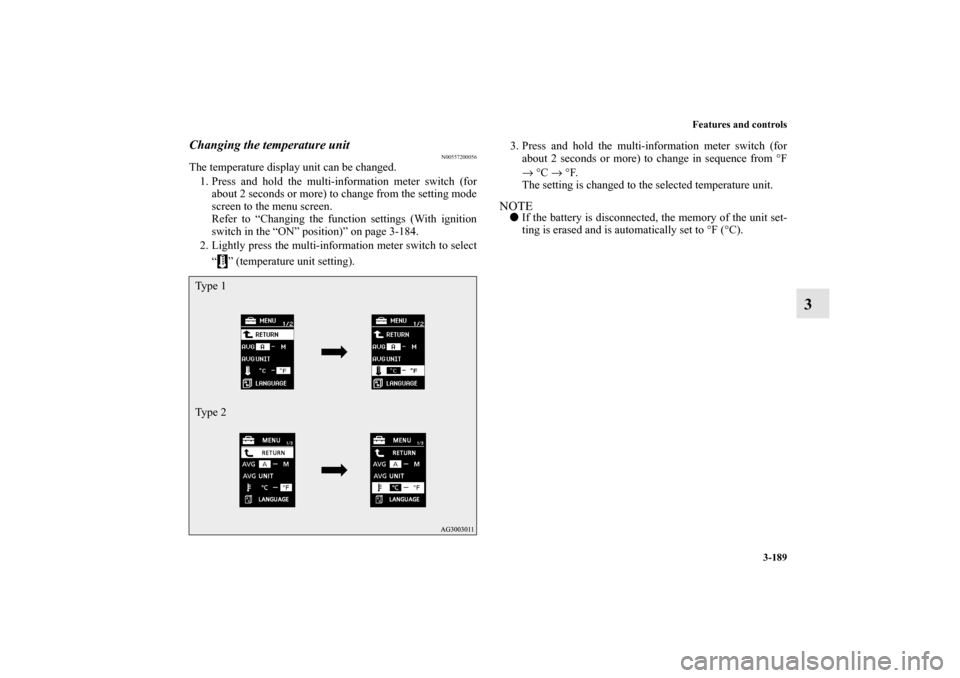

Features and controls
3-189
3
Changing the temperature unit
N00557200056
The temperature display unit can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change in sequence from °F
→ °C → °F.
The setting is changed to the selected temperature unit.
NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (°C).
Type 1
Type 2
BK0102103US.book 189 ページ ２００９年１０月２６日　月曜日　午後１時３８分

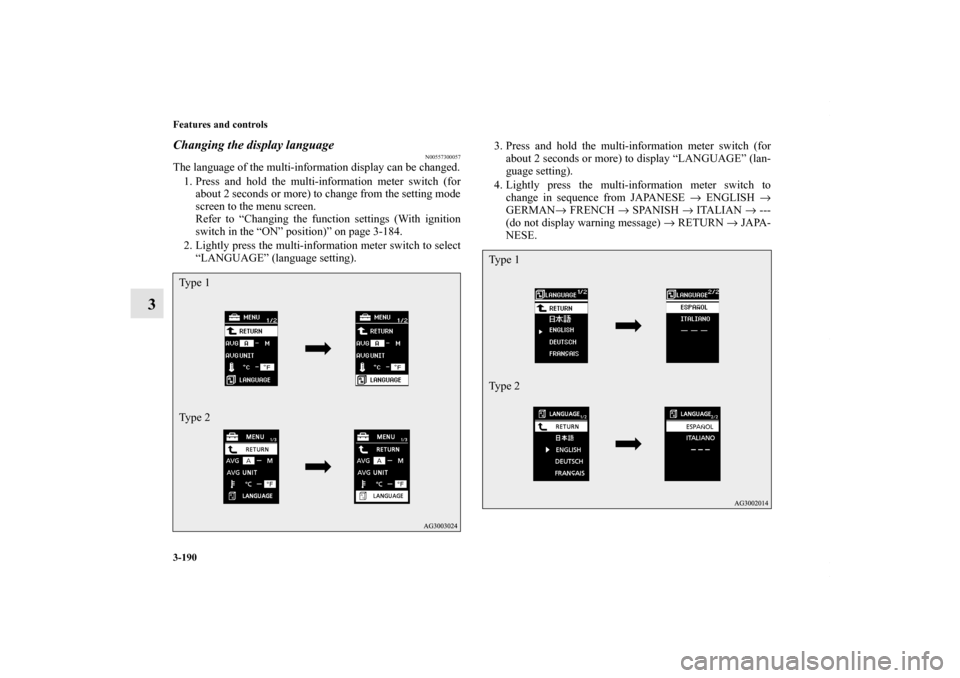

3-190 Features and controls
3
Changing the display language
N00557300057
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to
change in sequence from JAPANESE → ENGLISH →
GERMAN→ FRENCH → SPANISH → ITALIAN → ---
(do not display warning message) → RETURN → JAPA-
NESE.Type 1
Type 2
Type 1
Type 2
BK0102103US.book 190 ページ ２００９年１０月２６日　月曜日　午後１時３８分

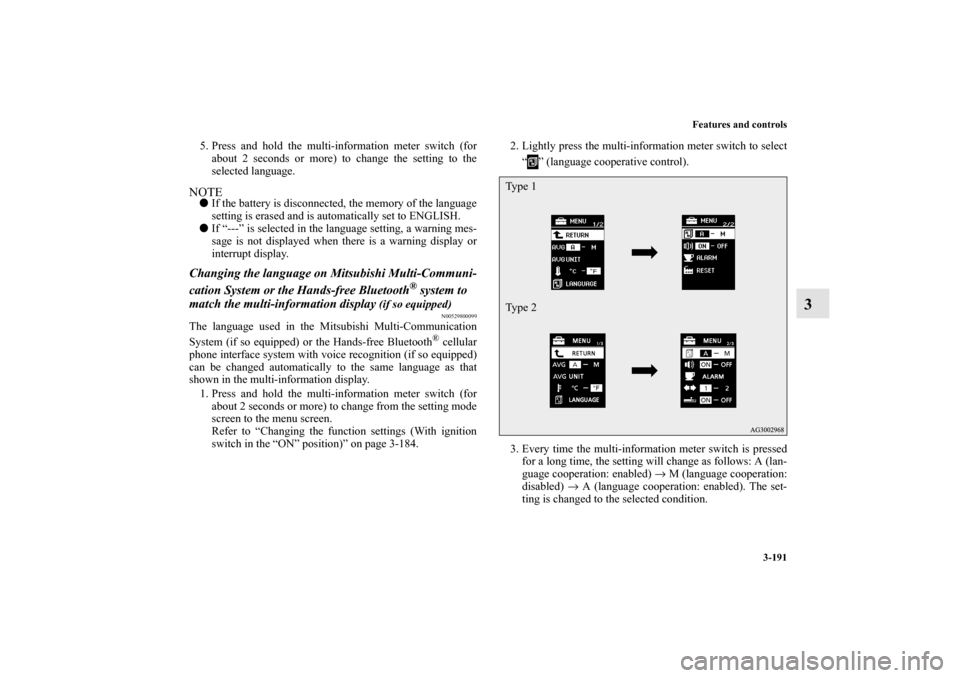

Features and controls
3-191
3
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.NOTE
If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.

If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or the Hands-free Bluetooth
® system to
match the multi-information display
(if so equipped)
N00529800099
The language used in the Mitsubishi Multi-Communication
System (if so equipped) or the Hands-free Bluetooth
® cellular
phone interface system with voice recognition (if so equipped)
can be changed automatically to the same language as that
shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for a long time, the setting will change as follows: A (lan-
guage cooperation: enabled) → M (language cooperation:
disabled) → A (language cooperation: enabled). The set-
ting is changed to the selected condition.
Type 1
Type 2
BK0102103US.book 191 ページ ２００９年１０月２６日　月曜日　午後１時３８分

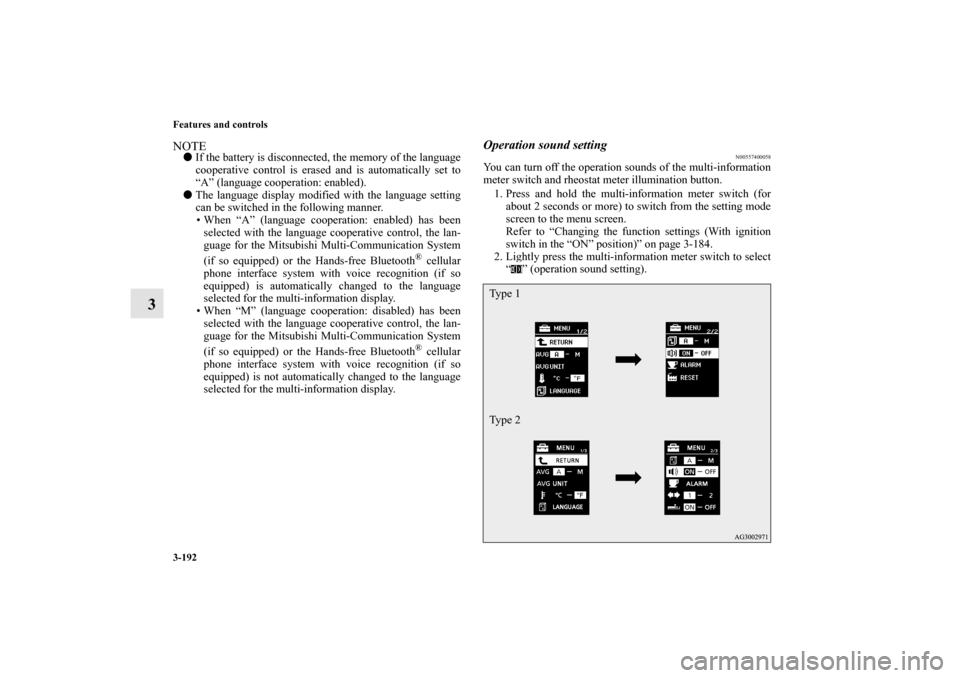

3-192 Features and controls
3
NOTE
If the battery is disconnected, the memory of the language
cooperative control is erased and is automatically set to
“A” (language cooperation: enabled).

The language display modified with the language setting
can be switched in the following manner.
• When “A” (language cooperation: enabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Hands-free Bluetooth
® cellular
phone interface system with voice recognition (if so
equipped) is automatically changed to the language
selected for the multi-information display.
• When “M” (language cooperation: disabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Hands-free Bluetooth® cellular
phone interface system with voice recognition (if so
equipped) is not automatically changed to the language
selected for the multi-information display.
Operation sound setting
N00557400058
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting). Type 1
Type 2
BK0102103US.book 192 ページ ２００９年１０月２６日　月曜日　午後１時３８分

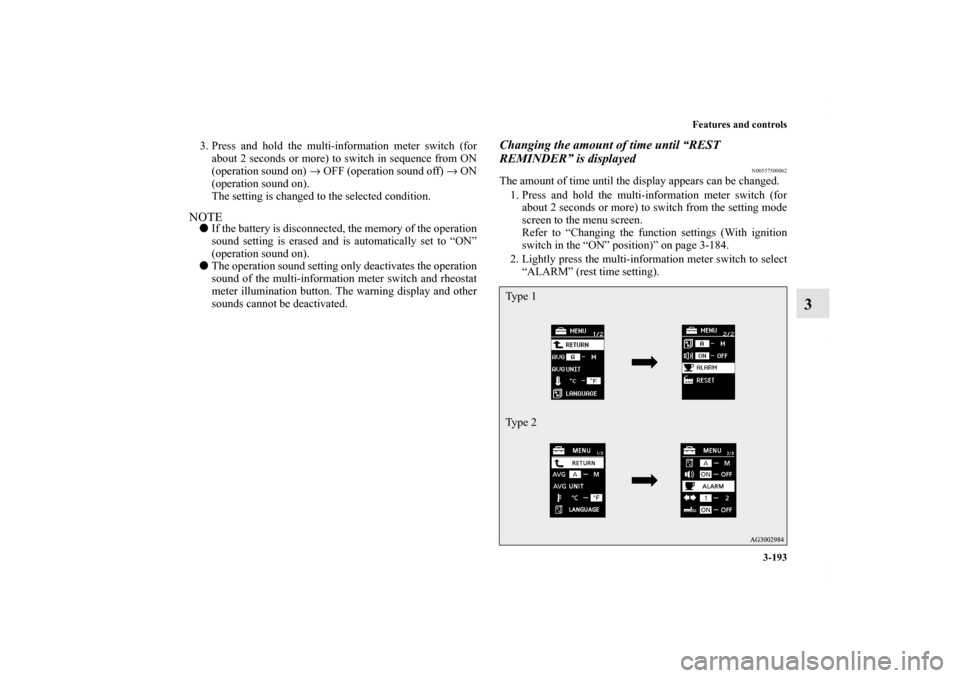

Features and controls
3-193
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.NOTE
If the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).

The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the amount of time until “REST
REMINDER” is displayed
N00557500062
The amount of time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).Type 1
Type 2
BK0102103US.book 193 ページ ２００９年１０月２６日　月曜日　午後１時３８分

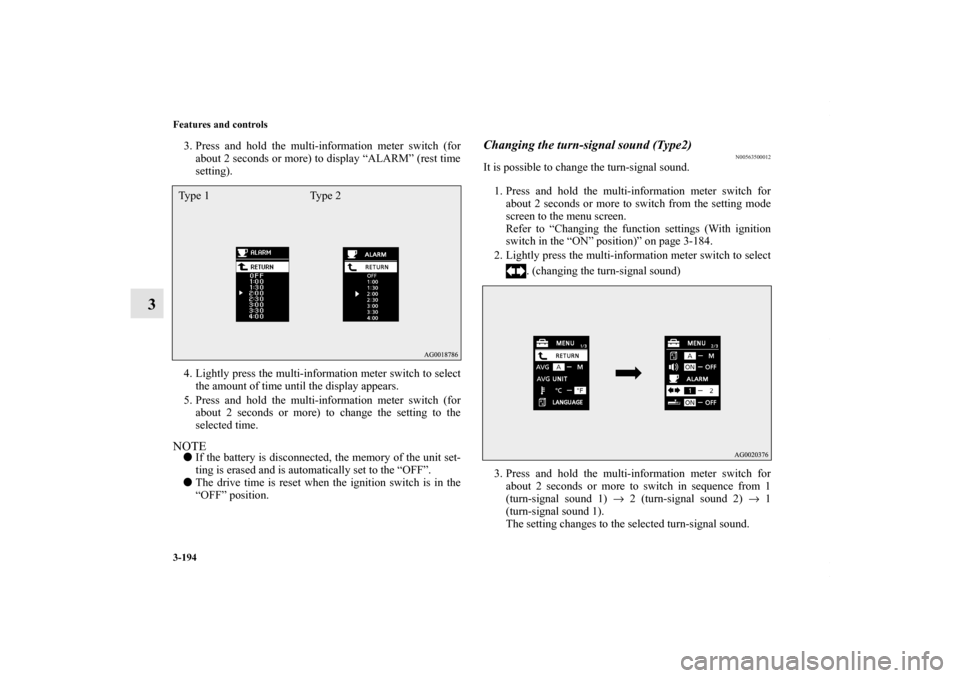

3-194 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the amount of time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.

The drive time is reset when the ignition switch is in the
“OFF” position.
Changing the turn-signal sound (Type2)
N00563500012
It is possible to change the turn-signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
. (changing the turn-signal sound)
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn-signal sound 1) → 2 (turn-signal sound 2) → 1
(turn-signal sound 1).
The setting changes to the selected turn-signal sound.
Type 1 Type 2BK0102103US.book 194 ページ ２００９年１０月２６日　月曜日　午後１時３８分
