9-6 Specifications

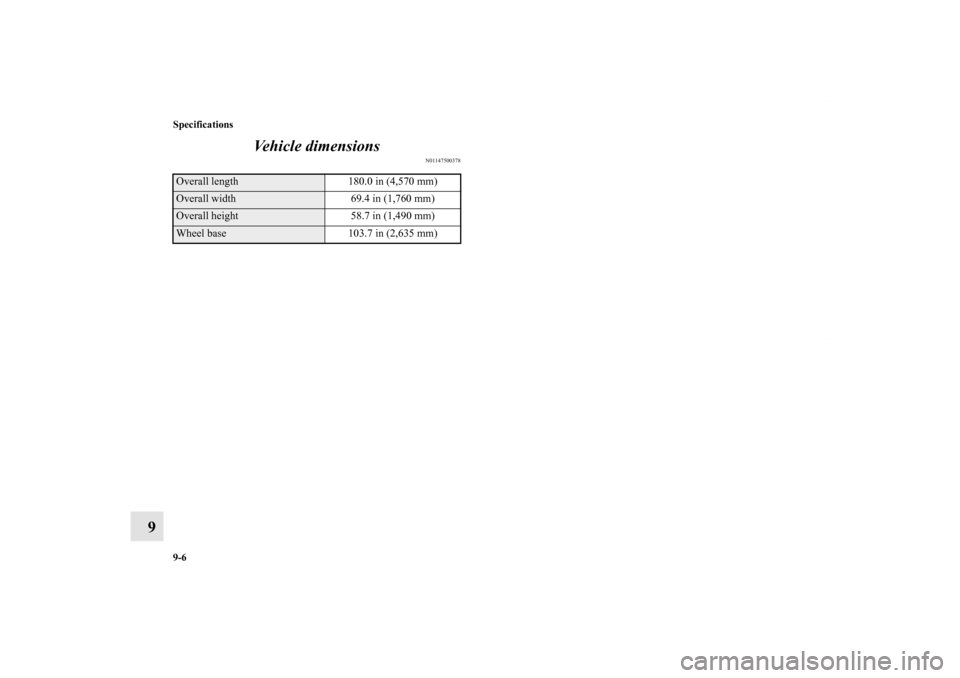

9Vehicle dimensions
N01147500378
Overall length 180.0 in (4,570 mm) Overall width 69.4 in (1,760 mm) Overall height 58.7 in (1,490 mm)Wheel base 103.7 in (2,635 mm) BK0102103US.book 6 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Specifications
9-7

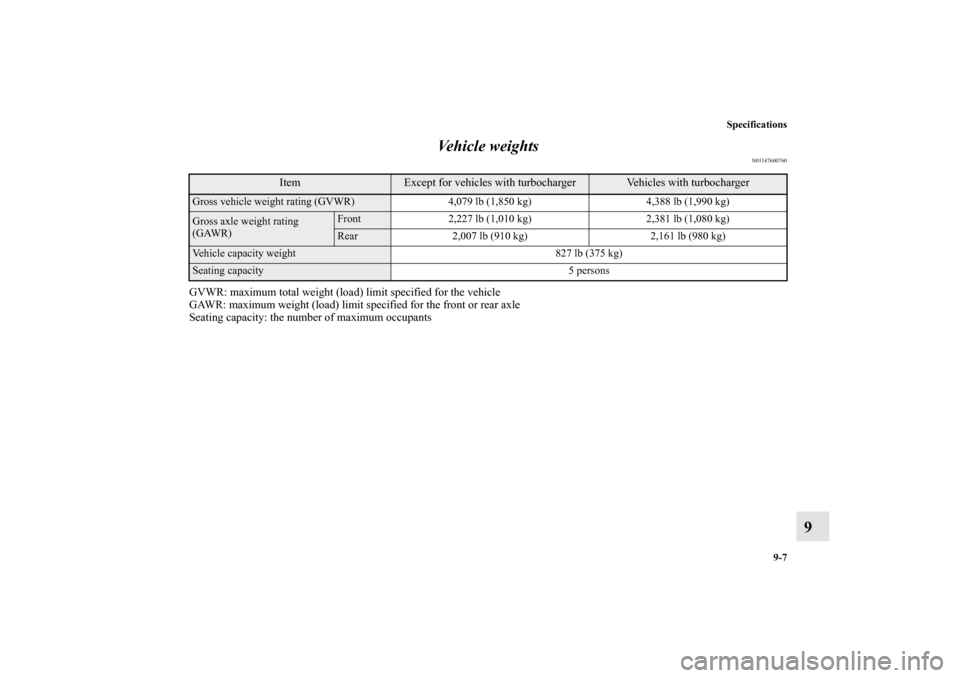

9 Vehicle weights
N01147600760
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
Except for vehicles with turbocharger
Vehicles with turbocharger
Gross vehicle weight rating (GVWR) 4,079 lb (1,850 kg) 4,388 lb (1,990 kg)Gross axle weight rating
(GAWR)
Front 2,227 lb (1,010 kg) 2,381 lb (1,080 kg)Rear 2,007 lb (910 kg) 2,161 lb (980 kg)
Vehicle capacity weight 827 lb (375 kg)Seating capacity 5 persons
BK0102103US.book 7 ページ ２００９年１０月２６日　月曜日　午後１時３８分

9-8 Specifications
9Engine specifications
N01147700367
NOTE
At high altitude locations, the idle speed may be higher than the idle speed described in the vehicle emission control informa-
tion label. This is done in order to stabilize the idle speed when the power steering system and other systems operate. It does
not indicate a malfunction.
Item
2.0 liter
2.4 liter
Vehicles without turbo-
charger
Vehicles with turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrange-
ment4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 180 °F (82 °C)170 °F (76.5 °C),
180 °F (82 °C)180 °F (82 °C)Spark plugs
NGK FR6EI ILKR7E6 FR5EIDENSO K20PSR-B8 - K16PSR-B8
Spark plug gap.028 to .031 in
(0.7 to 0.8 mm).020 to .023 in
(0.5 to 0.6 mm).028 to .031 in
(0.7 to 0.8 mm)Firing order 1-3-4-2Ignition timing, idle speed, mixture Refer to the “Vehicle emission control information label” inside panel of the engine hood.BK0102103US.book 8 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Specifications
9-9

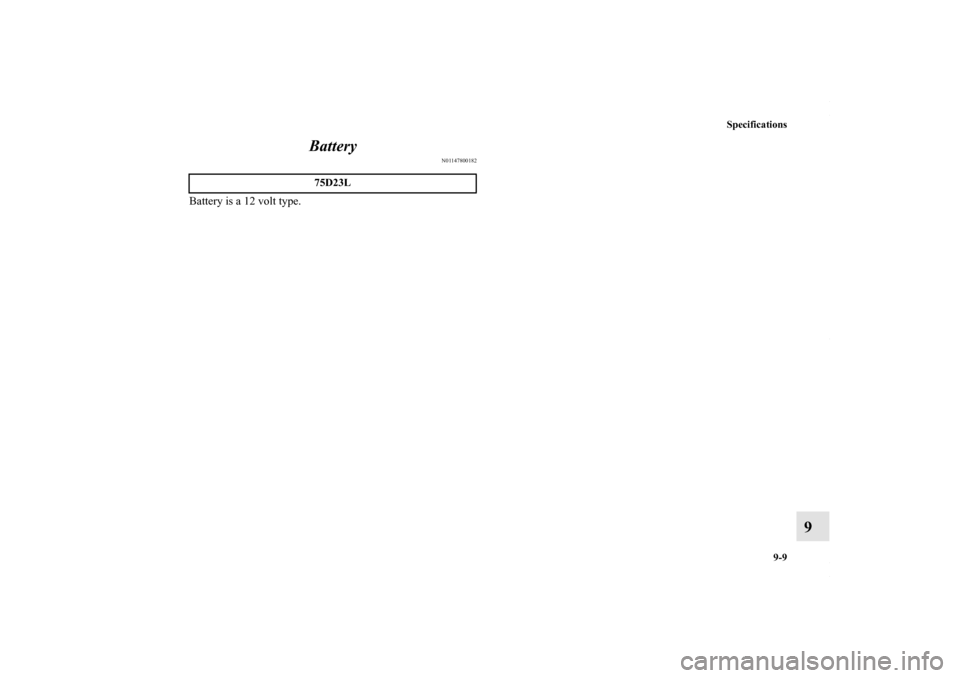

9 Battery
N01147800182
Battery is a 12 volt type.
75D23L
BK0102103US.book 9 ページ ２００９年１０月２６日　月曜日　午後１時３８分

9-10 Specifications

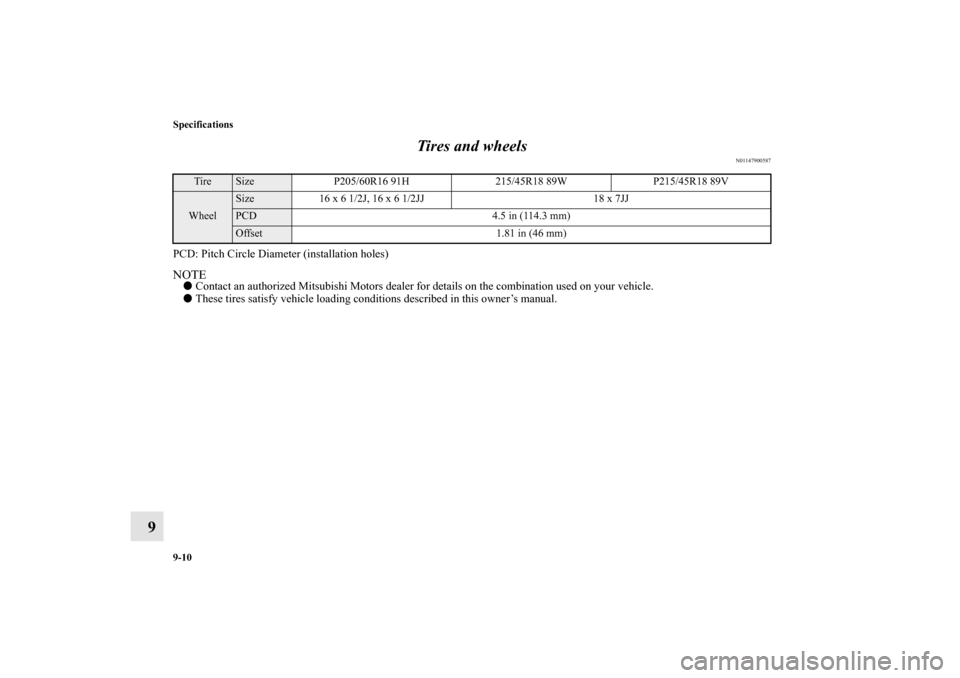

9Tires and wheels
N01147900587
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in this owner’s manual.Tire
Size P205/60R16 91H 215/45R18 89W P215/45R18 89V
Wheel
Size 16 x 6 1/2J, 16 x 6 1/2JJ 18 x 7JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0102103US.book 10 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Specifications
9-11
9 Refill capacities
N01148000817
Item
Capacity
Lubricants
Fuel (approxi-
mate)
Except for RALLIART 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 1-2.RALLIART 14.5 gal (55.0 L)
Engine oil
2.0 liter
Ve h i c l e s w i t h -
out turbocharger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification
SM can be used.Oil filter .32 qt (0.3 L)
Ve h i c l e s w i t h
turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classifica-
tion GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) DiaQueen CVTF-J1 Twin Clutch SST8.0 qt (7.6 L)
{includes .53 qt
(0.5 L) in oil
cooler}DiaQueen SSTF-ITransfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC control fluid.95 qt (0.9 L)
{Includes
hydraulic piping}DIAMOND ATF SP IIIRear differential oil .58 qt (0.55 L) DiaQueen LSD gear oilBrake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4
BK0102103US.book 11 ページ ２００９年１０月２６日　月曜日　午後１時３８分

9-12 Specifications
9

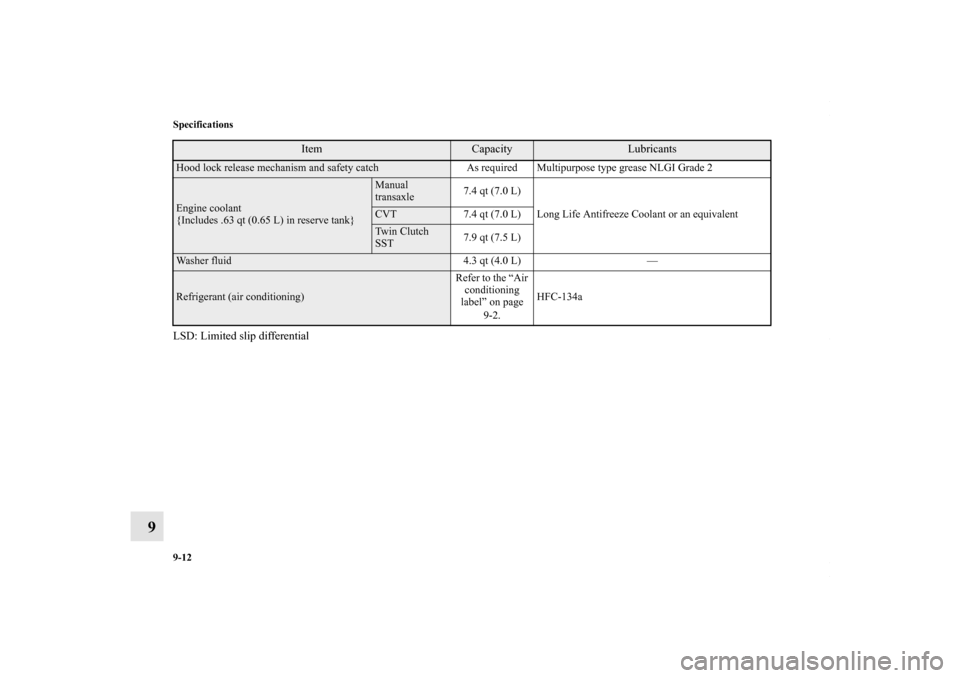

LSD: Limited slip differentialHood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{Includes .63 qt (0.65 L) in reserve tank}
Manual
transaxle7.4 qt (7.0 L)
Long Life Antifreeze Coolant or an equivalentCVT 7.4 qt (7.0 L)Twin Clutch
SST7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)Refer to the “Air
conditioning
label” on page
9-2.HFC-134a
Item
Capacity
Lubricants
BK0102103US.book 12 ページ ２００９年１０月２６日　月曜日　午後１時３８分
