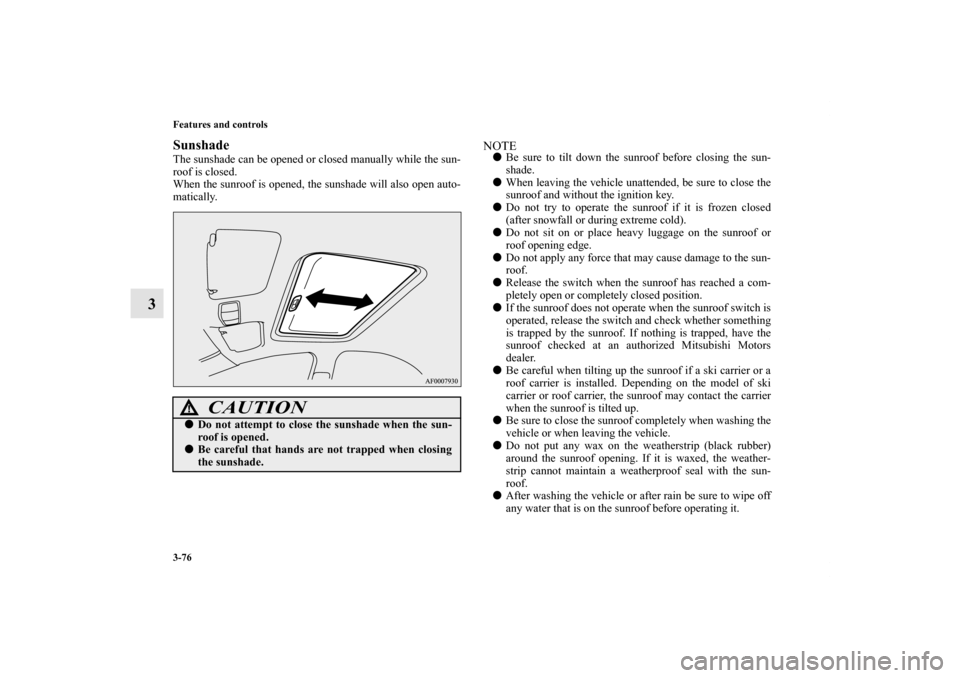

SunshadeThe sunshade can be opened or closed manually while the sun-
roof is closed.
When the sunroof is opened, the sunshade will also open auto-
matically.
NOTE
Be sure to tilt down the sunroof before closing the sun-
shade.

When leaving the vehicle unattended, be sure to close the
sunroof and without the ignition key.

Do not try to operate the sunroof if it is frozen closed
(after snowfall or during extreme cold).

Do not sit on or place heavy luggage on the sunroof or
roof opening edge.

Do not apply any force that may cause damage to the sun-
roof.

Release the switch when the sunroof has reached a com-
pletely open or completely closed position.

If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, have the
sunroof checked at an authorized Mitsubishi Motors
dealer.

Be careful when tilting up the sunroof if a ski carrier or a
roof carrier is installed. Depending on the model of ski
carrier or roof carrier, the sunroof may contact the carrier
when the sunroof is tilted up.

Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.

Do not put any wax on the weatherstrip (black rubber)
around the sunroof opening. If it is waxed, the weather-
strip cannot maintain a weatherproof seal with the sun-
roof.

After washing the vehicle or after rain be sure to wipe off
any water that is on the sunroof before operating it.
CAUTION
!
Do not attempt to close the sunshade when the sun-
roof is opened.
Be careful that hands are not trapped when closing
the sunshade.
BK0119300US.book 76 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-77
3

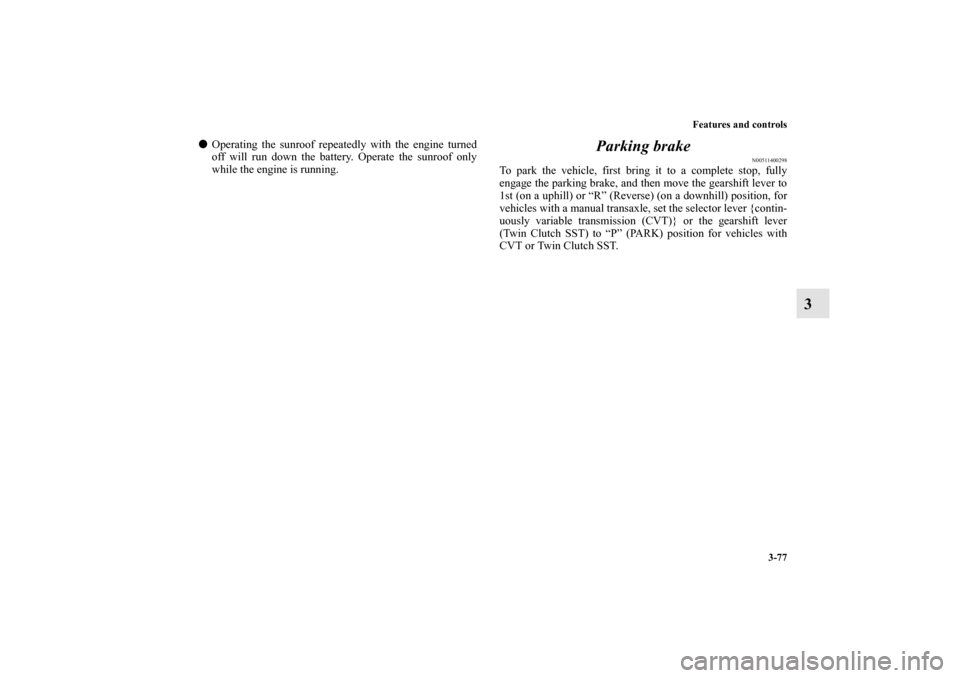

Operating the sunroof repeatedly with the engine turned
off will run down the battery. Operate the sunroof only
while the engine is running.
Parking brake
N00511400298
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
1st (on a uphill) or “R” (Reverse) (on a downhill) position, for
vehicles with a manual transaxle, set the selector lever {contin-
uously variable transmission (CVT)} or the gearshift lever
(Twin Clutch SST) to “P” (PARK) position for vehicles with
CVT or Twin Clutch SST.
BK0119300US.book 77 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-78 Features and controls
3
To apply To release
When parking on a hill, apply the parking brake and turn the
front wheels toward the curb on a downhill grade, away from
the curb on an uphill grade.
1- Pull the lever up without pushing the button at the end of
hand grip.
When the parking brake is set and the ignition switch is in
the “ON” position, the brake warning light in the instrument
cluster will come on.
Before driving, be sure to release the parking brake.
1- Pull the lever up slightly.
2- Push and hold the button at the end of the hand grip.
3- Push the lever downward.
BK0119300US.book 78 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-79
3 Steering wheel tilt lock lever
N00511500215
To adjust the steering wheel height, release the tilt lock lever
while holding the steering wheel by hand, and raise or lower
the steering wheel to the desired height.
After adjustment, securely lock the lever by pulling it upward.
CAUTION
!
Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning display will appear on the
information screen in the multi-information display.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
Warning light
Warning display type 1
Warning display type 2
1- Locked
2- ReleasedTy p e 1
Ty p e 2
BK0119300US.book 79 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-80 Features and controls

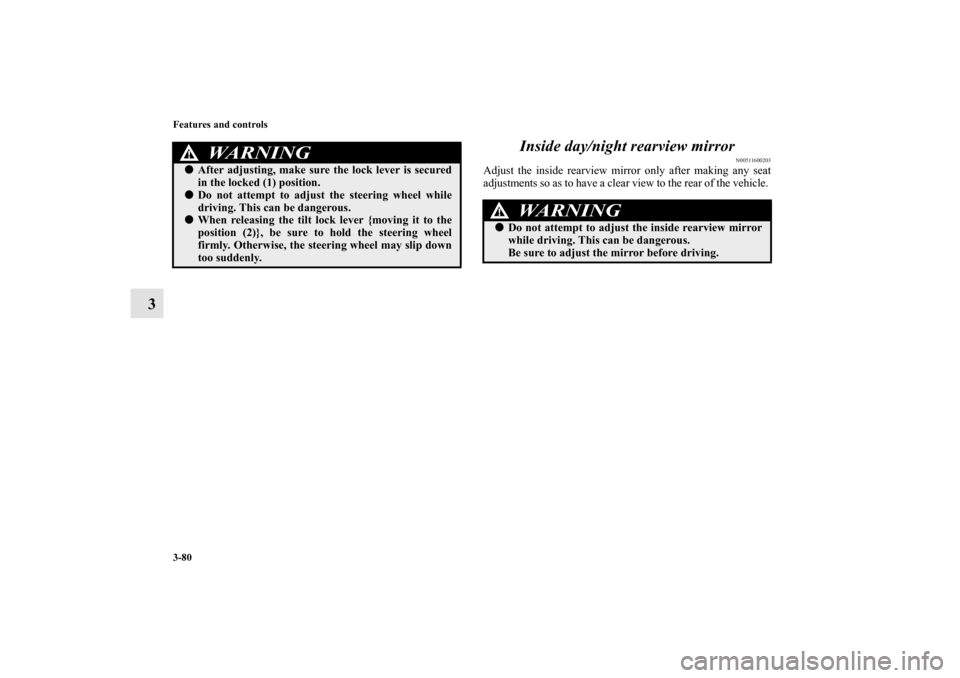

3Inside day/night rearview mirror
N00511600203
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
WA R N I N G
!
After adjusting, make sure the lock lever is secured
in the locked (1) position.
Do not attempt to adjust the steering wheel while
driving. This can be dangerous.
When releasing the tilt lock lever {moving it to the
position (2)}, be sure to hold the steering wheel
firmly. Otherwise, the steering wheel may slip down
too suddenly.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.
BK0119300US.book 80 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-81
3

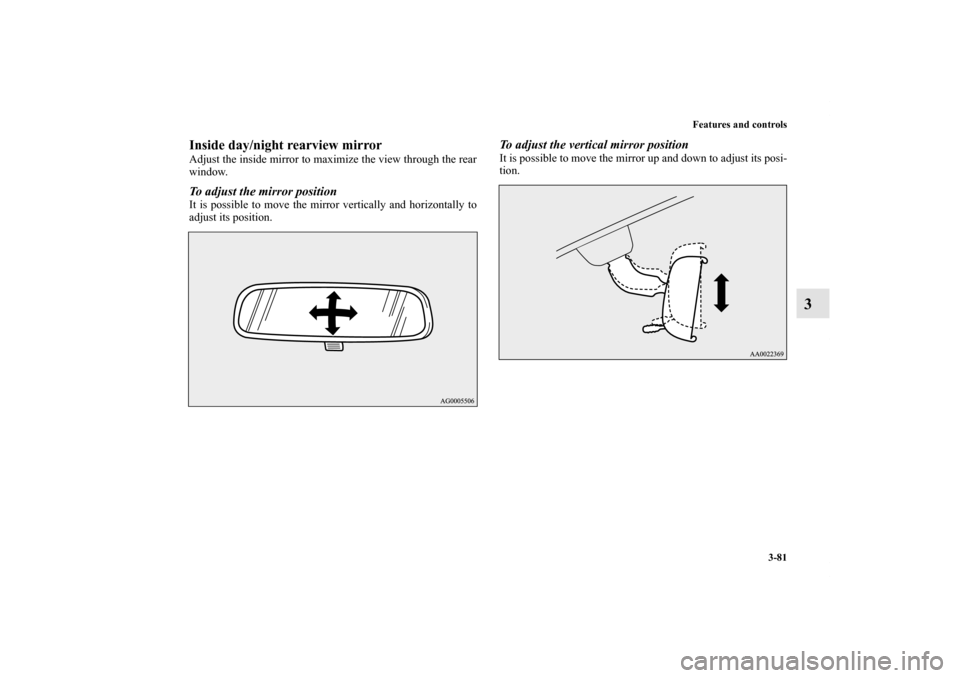

Inside day/night rearview mirrorAdjust the inside mirror to maximize the view through the rear
window.To adjust the mirror positionIt is possible to move the mirror vertically and horizontally to
adjust its position.
To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
BK0119300US.book 81 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-82 Features and controls
3

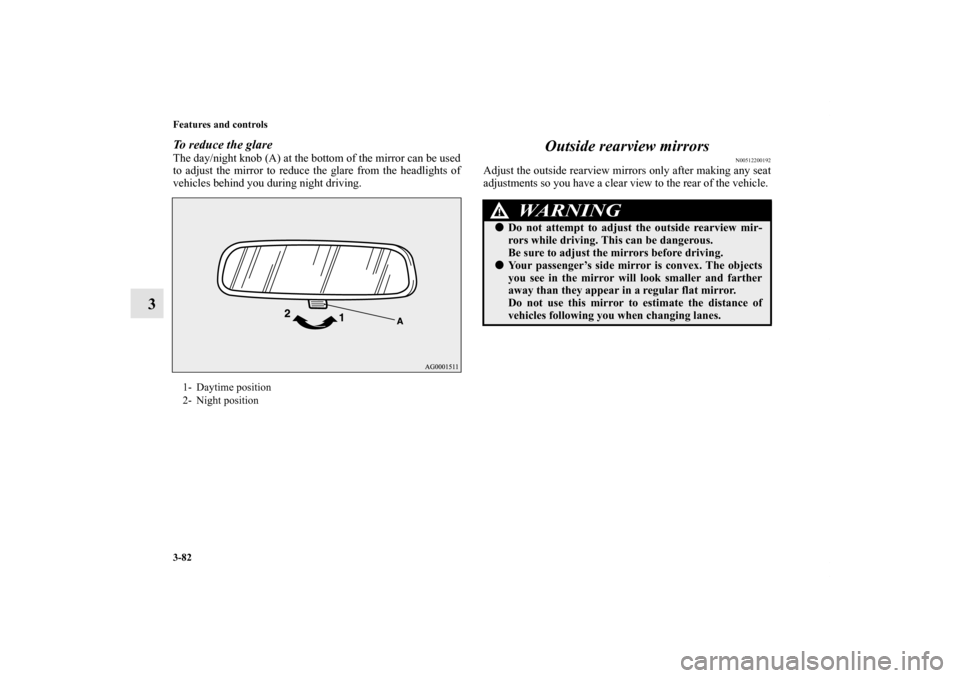

To reduce the glareThe day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.
Outside rearview mirrors
N00512200192
Adjust the outside rearview mirrors only after making any seat
adjustments so you have a clear view to the rear of the vehicle.
1- Daytime position
2- Night position
WA R N I N G
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your passenger’s side mirror is convex. The objects
you see in the mirror will look smaller and farther
away than they appear in a regular flat mirror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
BK0119300US.book 82 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-83
3

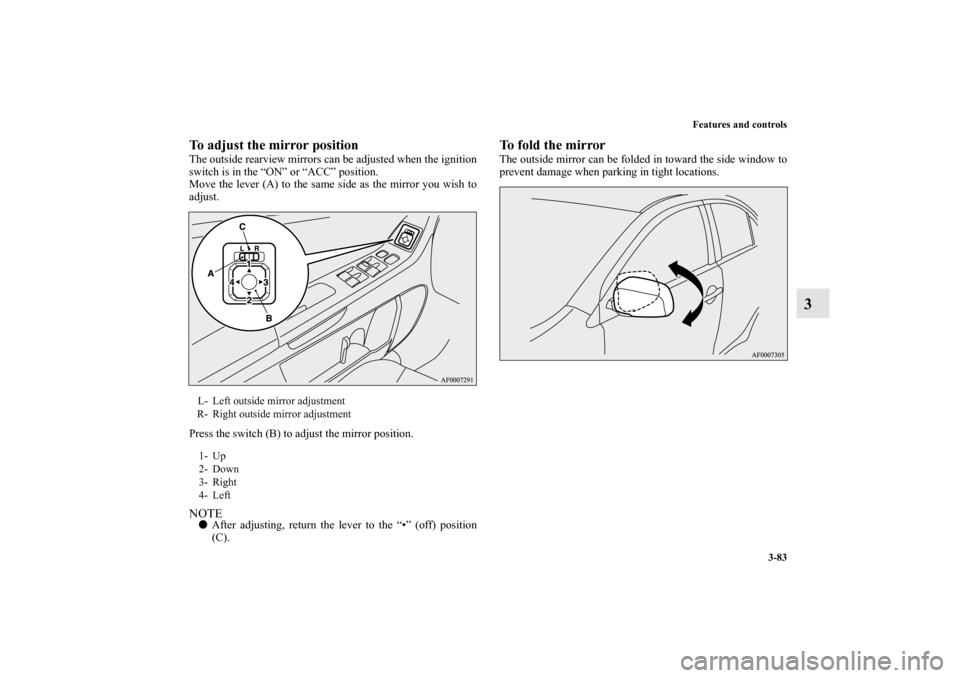

To adjust the mirror positionThe outside rearview mirrors can be adjusted when the ignition
switch is in the “ON” or “ACC” position.
Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position. NOTE
After adjusting, return the lever to the “•” (off) position
(C).
To fold the mirrorThe outside mirror can be folded in toward the side window to
prevent damage when parking in tight locations.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0119300US.book 83 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-84 Features and controls
3

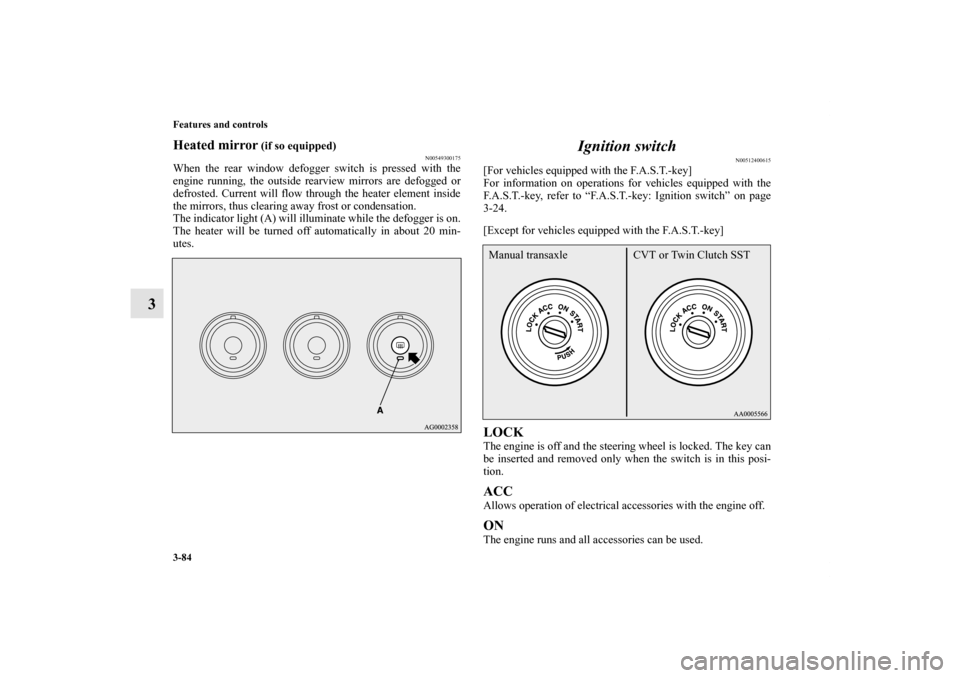

Heated mirror
(if so equipped)
N00549300175
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.
Ignition switch
N00512400615
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Ignition switch” on page
3-24.
[Except for vehicles equipped with the F.A.S.T.-key]LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. ON The engine runs and all accessories can be used. Manual transaxle CVT or Twin Clutch SST
BK0119300US.book 84 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-85
3

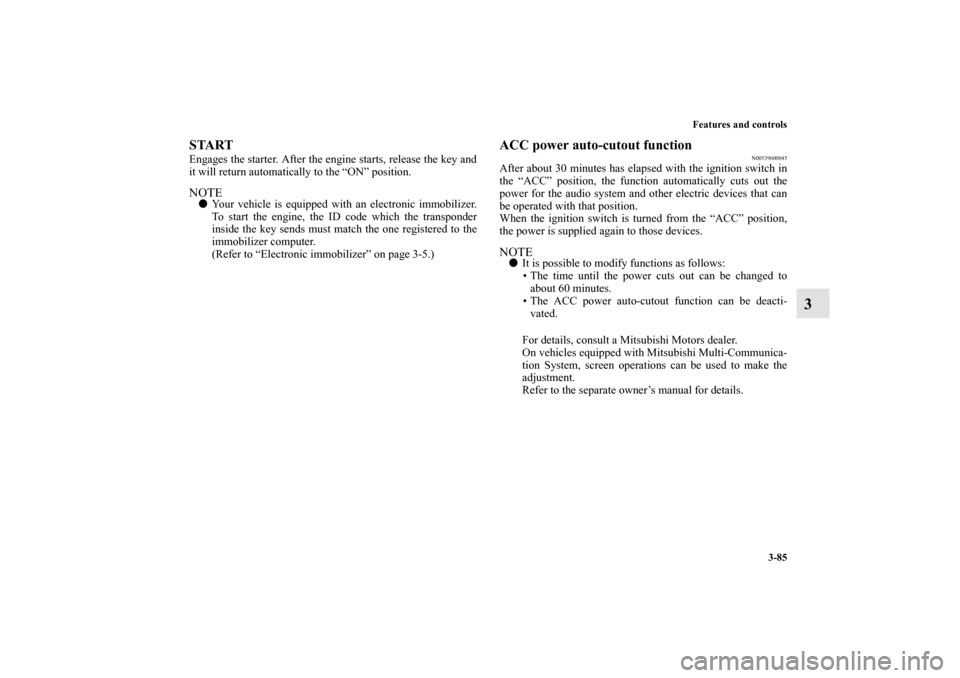

START Engages the starter. After the engine starts, release the key and
it will return automatically to the “ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer.
(Refer to “Electronic immobilizer” on page 3-5.)
ACC power auto-cutout function
N00539600045
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTE
It is possible to modify functions as follows:
• The time until the power cuts out can be changed to
about 60 minutes.
• The ACC power auto-cutout function can be deacti-
vated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
