warning MITSUBISHI LANCER RALLIART 2011 8.G User Guide

Seat and restraint systems
2-39
2
How the Supplemental Restraint System works
N00407800405
The SRS includes the following components:
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The airbags will operate only when the ignition switch is in the
“ON” or “START” position. 1- Driver’s airbag
2- SRS warning light
3- Passenger’s airbag off indicator
4- Passenger’s front airbag
5- Front impact sensors
6- Driver’s knee airbag
7- Driver’s seat position sensor
8- Passenger’s seat weight sensors
9- Airbag control unit
10- Side airbag modules (if so equipped)
11- Curtain airbag modules (if so equipped)
12- Side impact sensors (if so equipped)
BK0119300US.book 39 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Seat and restraint systems
2-41
2
Driver’s seat position sensor
N00417900164
The driver’s seat position sensor is attached to the seat rail and
provides the airbag control unit with information on the seat’s
fore-aft position. The airbag control unit controls deployment
of the driver’s front airbag in accordance with the information
it receives from this sensor.
If there is a problem involving the driver’s seat position sensor,
the SRS warning in the instrument panel will come on. Refer to
“SRS warning” on page 2-44.
Passenger’s seat weight sensors
N00418000247
The passenger’s seat weight sensors are attached to the seat
rails and provide the airbag control unit with information
regarding the weight on the front passenger seat. The airbag
control unit controls deployment of the passenger’s front air-
bag in accordance with the information it receives from this
sensor.
The passenger’s front airbag will not deploy in an impact when
the weight on the seat is sensed to be less than approximately
66 pounds (30 kg). In this case, the passenger’s airbag off indi-
cator will come on.
Refer to “Passenger’s airbag off indicator” on page 2-43.
If there is a problem involving the passenger’s seat weight sen-
sors, the SRS warning in the instrument panel will come on.
Refer to “SRS warning” page 2-44.
WA R N I N G
!
If the SRS warning comes on, have the vehicle
inspected by an authorized Mitsubishi Motors
dealer as soon as possible.
Please observe the following instructions to ensure
that the driver’s seat position sensor can operate
correctly.
• Adjust the seat to the correct position, and sit well
back against the seatback.
Refer to “Front seats” on page 2-3.
• Do not recline the seatback more than necessary
when driving.
• Do not place metallic objects or luggage under the
front seat.

If the vehicle is involved in a severe impact, have the
SRS sensor inspected by an authorized Mitsubishi
Motors dealer as soon as possible.
WA R N I N G
!
If any of the following conditions occur, you should
immediately have your vehicle inspected by an
authorized Mitsubishi Motors dealer as soon as pos-
sible:
• The SRS warning does not initially come on when
the ignition switch is turned to the “ON” or
“START” position.
• The SRS warning does not go out after several sec-
onds.
• The SRS warning comes on while you are driving.
BK0119300US.book 41 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

2-44 Seat and restraint systems
2
SRS warning light/display
N00408300494
Warning light
Warning display type 1
Warning display type 2
If there is an error in the system, the warning light will come on
and the warning display will appear on the information screen
in the multi-information display.
Under normal conditions, the warning light comes on when the
ignition switch is turned to the “ON” position and goes off a
few seconds later.
The warning light will also come on and remain on when the
SRS airbags and the seat belt pre-tensioner system have been
activated.
The warning light/display is used for both SRS airbag warn-
ings and seat belt pre-tensioner system warnings.
WA R N I N G
!
If any of the following conditions occur, you should
immediately have the airbag system in your vehicle
inspected by an authorized Mitsubishi Motors
dealer as soon as possible:
• The passenger’s airbag off indicator comes on
when an adult is sitting on the front passenger
seat.
• The passenger’s airbag off indicator does not come
on when the front passenger’s seat is not occupied.
• The passenger’s airbag off indicator does not come
on when the ignition switch is turned to the “ON”
position.
• The passenger’s airbag off indicator comes on and
goes out repeatedly.

Do not attach any accessory to your vehicle that
makes the passenger’s airbag off indicator difficult
or impossible to see.
You must be able to see the passenger’s airbag off
indicator and verify the status of the passenger’s air-
bag system.
BK0119300US.book 44 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Seat and restraint systems
2-45
2
Driver’s and passenger’s front airbag system
N00407900318
The driver’s airbag is located under the padded cover in the
middle of the steering wheel. The front passenger’s airbag is
contained in the instrument panel above the glove compart-
ment. The driver’s airbag and the front passenger’s airbag are
designed to deploy at the same time. However, the front pas-
senger’s airbag does not deploy when the front passenger seat
is not occupied or when the weight sensor in the front passen-
ger seat senses a weight on the seat of less than approximately
66 pounds (30 kg).
WA R N I N G
!
There may be a system error if the warning
light/display appears as indicated. In such cases, an
SRS airbag or a seat belt pre-tensioner system may
not function properly in a collision. Have your vehi-
cle checked by an authorized Mitsubishi Motors
dealer:
• Even when the ignition switch is in the “ON” posi-
tion, the warning light does not come on or it
remains on a few seconds later
• When warning light comes on while driving
• When warning display appears while driving
Driver
Front passenger
BK0119300US.book 45 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Seat and restraint systems
2-61
2

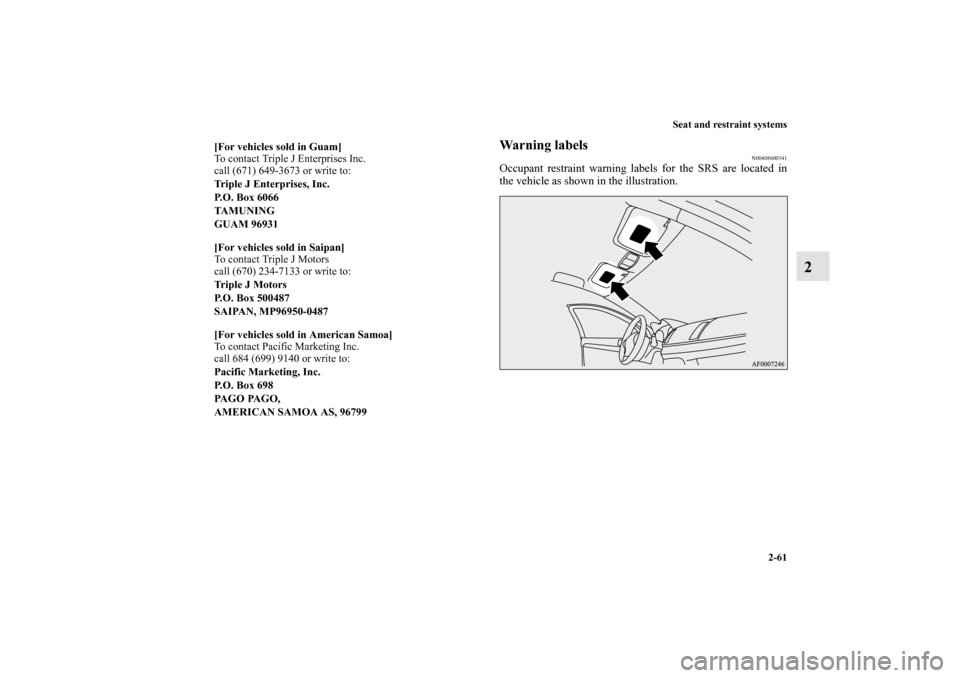

Warning labels
N00408600341
Occupant restraint warning labels for the SRS are located in
the vehicle as shown in the illustration.
[For vehicles sold in Guam]
To contact Triple J Enterprises Inc.
call (671) 649-3673 or write to:
Triple J Enterprises, Inc.
P.O. Box 6066
TAMUNING
GUAM 96931
[For vehicles sold in Saipan]
To contact Triple J Motors
call (670) 234-7133 or write to:
Tr i p l e J M o t o r s
P.O. Box 500487
SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]
To contact Pacific Marketing Inc.
call 684 (699) 9140 or write to:
Pacific Marketing, Inc.
P.O. Box 698
PA G O PA G O ,
AMERICAN SAMOA AS, 96799
BK0119300US.book 61 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 18
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 51
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 62
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 69
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 74
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 80
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 82
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 84
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 87
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 88
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . 3- 92
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 93
Continuously variable transmission (CVT)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 96
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 110
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . 3- 129
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 130
ACD (Active center differential system)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 132
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . 3- 135
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 137
Hill start assist (vehicles with Twin Clutch SST) . . . . . . . . . . . 3- 138Anti-lock braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Active Stability Control (ASC) (if so equipped) . . . . . . . . . . . . 3- 143
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 148
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 149
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 158
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 164
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 167
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . 3- 202
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 217
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 220
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . 3- 228
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 229
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 230
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 231
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 232
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 240
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 241
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 242
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . 3- 242
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 269
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 274
Ashtray (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
12 V power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 279
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 283
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 288
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
Coat hook (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
BK0119300US.book 1 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-26 Features and controls
3
Warning activation
N00503500160
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.
If the following warning displays, contact an authorized Mit-
subishi Motors dealer.
CAUTION
!
If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.
Do not leave the ignition switch in the “ON” position
for a long time when the engine is not running.
Doing so could lead to a dead battery.
Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
Ty p e 1
Ty p e 2There is a problem in the F.A.S.T.-key
BK0119300US.book 26 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-27
3
If the following warning display, the display goes off if correc-
tive action is taken.

The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified
A door cannot be locked even when the driver’s or front
passenger’s door lock/unlock switch is pressed.
Ty p e 1

Ty p e 2Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range
Ty p e 1
Ty p e 2Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-28.
Ty p e 1
Ty p e 2The battery of the F.A.S.T.-key is run down
Ty p e 1
Ty p e 2Refer to “Key lock-in prevention system” on page
3-28.
Ty p e 1
Ty p e 2Refer to “Door ajar prevention system” on page 3-
29.
Ty p e 1
Ty p e 2Refer to “Ignition switch turn-off reminder sys-
tem” on page 3-29.
BK0119300US.book 27 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-28 Features and controls
3

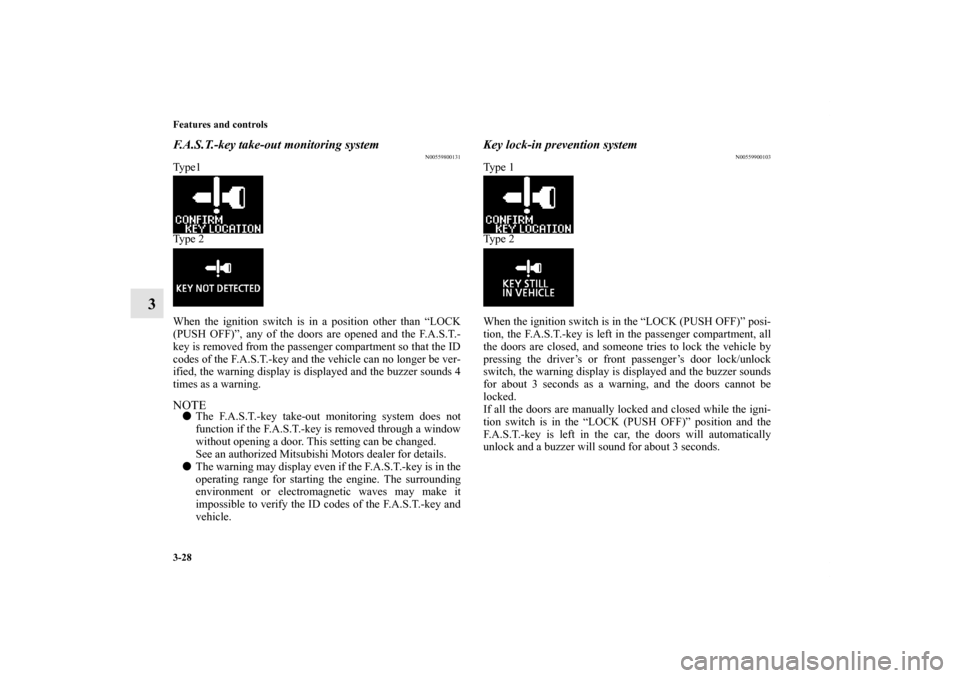

F.A.S.T.-key take-out monitoring system
N00559800131
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, any of the doors are opened and the F.A.S.T.-
key is removed from the passenger compartment so that the ID
codes of the F.A.S.T.-key and the vehicle can no longer be ver-
ified, the warning display is displayed and the buzzer sounds 4
times as a warning.NOTE
The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door. This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.

The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900103
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors are closed, and someone tries to lock the vehicle by
pressing the driver’s or front passenger’s door lock/unlock
switch, the warning display is displayed and the buzzer sounds
for about 3 seconds as a warning, and the doors cannot be
locked.
If all the doors are manually locked and closed while the igni-
tion switch is in the “LOCK (PUSH OFF)” position and the
F.A.S.T.-key is left in the car, the doors will automatically
unlock and a buzzer will sound for about 3 seconds.
BK0119300US.book 28 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-29
3

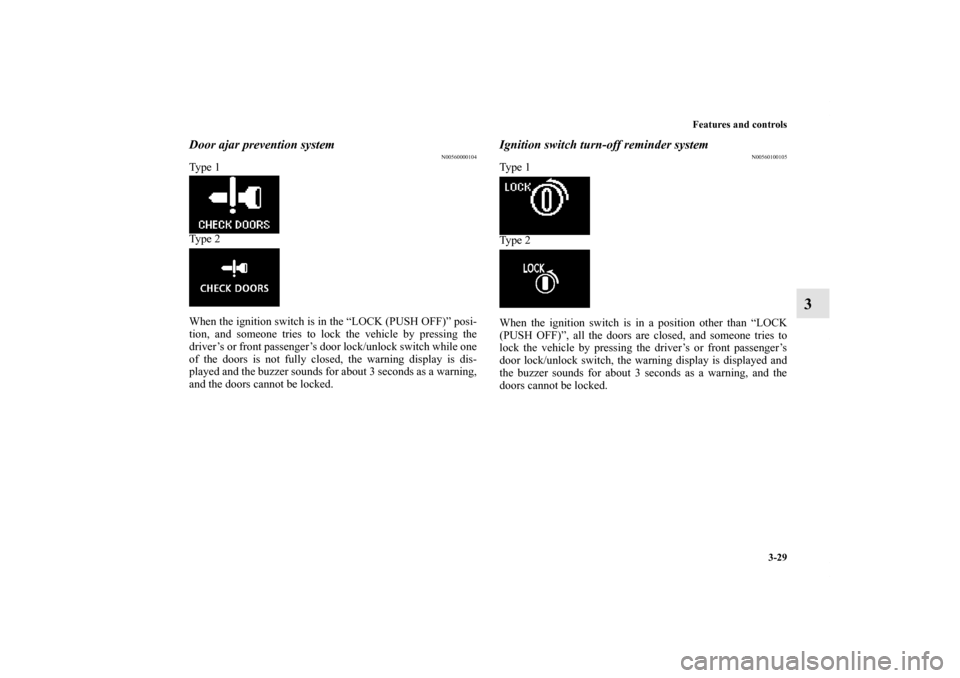

Door ajar prevention system
N00560000104
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, and someone tries to lock the vehicle by pressing the
driver’s or front passenger’s door lock/unlock switch while one
of the doors is not fully closed, the warning display is dis-
played and the buzzer sounds for about 3 seconds as a warning,
and the doors cannot be locked.
Ignition switch turn-off reminder system
N00560100105
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, all the doors are closed, and someone tries to
lock the vehicle by pressing the driver’s or front passenger’s
door lock/unlock switch, the warning display is displayed and
the buzzer sounds for about 3 seconds as a warning, and the
doors cannot be locked.
BK0119300US.book 29 ページ ２０１０年５月２１日　金曜日　午前１０時１３分
