Overview
Instruments and controls (Driver’s area)
N00100201286
Combination headlights and dimmer
switch P.3-220
Turn signal lever P.3-229
Front fog light switch (if so
equipped) P.3-231
Supplemental restraint sys-
tem - airbag (for driver’s
seat) P.2-35
Horn switch P.3-241 Instrument cluster P.3-164
Cruise control switches (if so
equipped) P.3-149 Wiper and washer switch
P. 3 - 2 3 2
Fuses P.7-47
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter (if so equipped) P.3-104
Ignition switch P.3-84
Steering wheel tilt lock
lever P.3-79
Supplemental restraint system - driver’s
knee airbag P.2-35
Bluetooth
® 2.0 interface (if so equipped) P.3-242 Steering wheel audio remote
control switches (if so
equipped) P.5-134 Multi-information meter switch P.3-168 Except for RALLIART
Headlight leveling switch
(if so equipped) P.3-228
Active stability control
(ASC) OFF switch (if so
equipped) P.3-143
BK0119300US.book 1 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Overview
Sportronic steering wheel paddle
shifter P.3-122
Wiper and washer switch
P.3-232
Cruise control switches
P.3-149
Ignition switch P.3-84
Supplemental restraint
system - airbag (for
driver’s seat) P.2-35
Horn switch P.3-241
Steering wheel tilt lock lever
P. 3 - 7 9
Supplemental restraint system - driver’s
knee airbag P.2-35
Bluetooth
® 2.0 interface (if so equipped) P.3-242 Steering wheel audio remote
control switches P.5-134
Engine hood release lever
P. 7 - 4Fuses P.7-47 Combination headlights and dimmer
switch P.3-220
Turn signal lever P.3-229
Front fog light switch P.3-231Multi-information meter switch P.3-168Instrument cluster P.3-164 RALLIART
Headlight leveling switch
(if so equipped)
P. 3 - 2 2 8
Active stability control
(ASC) OFF switch P.3-143
BK0119300US.book 2 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Overview
Center panel
N00100700154
Ty p e 1 Ty p e 2
Hazard warning flasher
switch P.3-230
Heater (if so equipped)
P. 5 - 6
Air conditioning (if so equipped)
P.5-31, 5-41
Ashtray P.3-276Front console box
P.3-286 Hazard warning flasher
switch P.3-230
Air conditioning
P.5-31, 5-41
Auxiliary Audio connecter
(RCA) (if so equipped)
P. 5 - 1 3 2
Auxiliary Video connecter
(RCA) (if so equipped)
P. 5 - 1 3 2 Auxiliary Audio connecter (RCA)
(if so equipped) P.5-132
Auxiliary Video connecter (RCA)
(if so equipped) P.5-13212 V power outlet P.3-277 Audio (if so equipped) P.5-52, 5-80
Digital clock (if so equipped) P.5-149
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”Audio (if so equipped) P.5-52, 5-80
Digital clock (if so equipped) P.5-149
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”
Electric rear win-
dow defogger
switch P.3-240Electric rear
window defog-
ger switch
P. 3 - 2 4 0 Front passenger seat belt
warning light P.2-19 Front passenger seat belt
warning light P.2-19
12 V power outlet
P.3-277 Passenger’s airbag
off indicator P.2-43Passenger’s airbag
off indicator
P.2-43BK0119300US.book 5 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

General information
1-9
1
Modification/alterations to the electrical or fuel
systems
N00301800040
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important to consult an authorized
Mitsubishi Motors dealer before installation of any accessory
which may involve modification of the electrical or fuel sys-
tems.
Mitsubishi Motors genuine parts
N00301400105
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi vehicle has a
selection of Mitsubishi Motors authorized accessories to
choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
CAUTION
!
Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire, vehicle dam-
age, or other accident.
BK0119300US.book 9 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

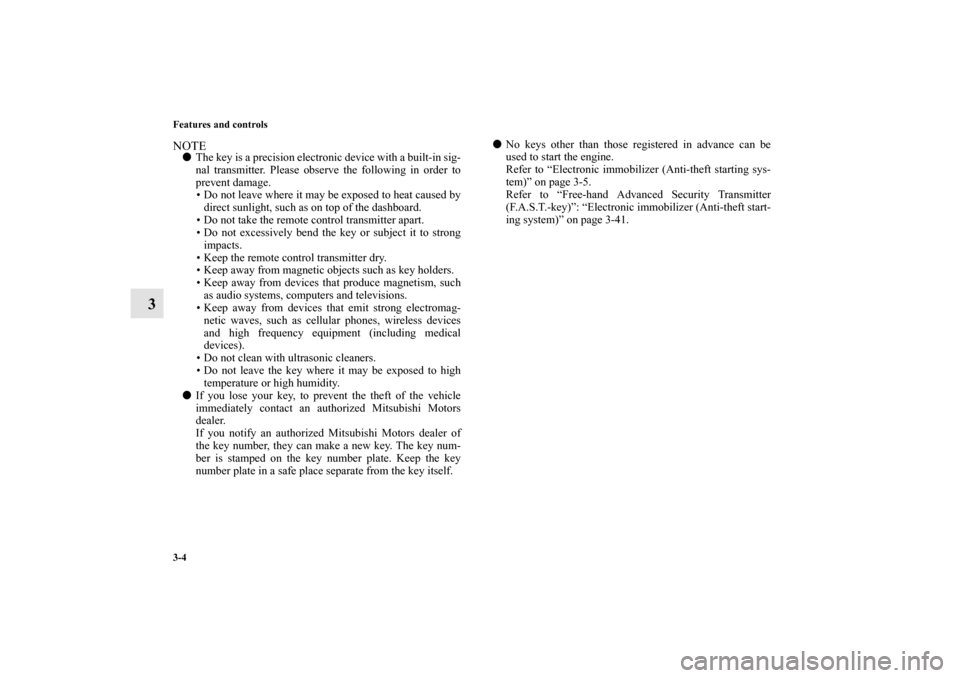

3-4 Features and controls
3
NOTE
The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key holders.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Keep away from devices that emit strong electromag-
netic waves, such as cellular phones, wireless devices
and high frequency equipment (including medical
devices).
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.

If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-5.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key)”: “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-41.
BK0119300US.book 4 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-64 Features and controls
3
3. Lock all doors by either the remote control transmitter or
the F.A.S.T.-key.At this time, the theft-alarm indicator (A) on the audio
panel flashes for confirmation.
4. The system has entered the armed stage after about 20
seconds, when the theft-alarm indicator (A) flashing
becomes slower.
The theft-alarm indicator (A) continues to flash while the
system is in the armed stage.Arm the system and leaveBK0119300US.book 64 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-85
3
START Engages the starter. After the engine starts, release the key and
it will return automatically to the “ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer.
(Refer to “Electronic immobilizer” on page 3-5.)
ACC power auto-cutout function
N00539600045
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTE
It is possible to modify functions as follows:
• The time until the power cuts out can be changed to
about 60 minutes.
• The ACC power auto-cutout function can be deacti-
vated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
BK0119300US.book 85 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-242 Features and controls
3Link System
(if so equipped)
N00563700027
The Link System takes overall control of the devices connected
via the USB input terminal or the Bluetooth
® 2.0 interface
allowing the connected devices to be operated by using the
switches in the vehicle or voice commands.
See the following section for details on how to operate.
Refer to “Bluetooth
® 2.0 interface” on page 3-242.
Refer to “USB input terminal” on page 3-269.
Refer to “To play tracks from USB device” on page 5-111.
Refer to “To play tracks from a Bluetooth
® device” on page 5-
128.
Refer to “To use the external audio input function” on page 5-
132.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
Link System End User License Agreement
N00563800015
You have acquired a device that includes software licensed by
Mitsubishi Motors Corporation from JOHNSON CONTROLS
Inc (the automotive experience business unit), and their subse-
quent 3rd party suppliers. For a complete list of these 3rd party
products and their end user license agreements, please go to the
following website.
http://www.jciblueconnect.com/faq/fulldisclosure.pdf
Bluetooth
® 2.0 interface
(if so equipped)
N00563900032
The Bluetooth
® 2.0 interface allows for making/receiving
hands-free calls in the vehicle using a Bluetooth
® compatible
cellular phone based on the wireless communication technol-
ogy commonly known as Bluetooth
®. It also allows the user to
play music, saved in a Bluetooth
® music player, from the vehi-
cle’s speakers.
The system is equipped with a voice recognition function,
which allows you to make hands-free calls by simple switch
operations and voice command operations using a defined
voice tree.
The Bluetooth
® 2.0 interface can be used when the ignition
switch is in the “ON” or “ACC” position.
Before you can use the Bluetooth
® 2.0 interface, you must pair
the Bluetooth
® device and Bluetooth
® 2.0 interface. Refer to
“Connecting the Bluetooth
® 2.0 interface and Bluetooth
®
device” on page 3-250.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
BK0119300US.book 242 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-245
3
Volume up buttonPress this button to increase the volume. Volume down buttonPress this button to decrease the volume.SPEECH button
Press this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.

If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.

Pressing this button briefly during a call will enable voice
recognition and allow voice command input.PICK-UP button
Press this button when an incoming call is received to
answer the telephone.

When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
• In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
• To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join calls.”
HANG-UP button
Press this button when an incoming call is received to
refuse the call.

Press this button during a call to end the current call.
When another call is on hold, you will switch to that call.

If this button is pressed in the voice recognition mode, the
voice recognition mode will be deactivated.NOTE
When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.*
*: Some cellular phones will not send this information to
the Bluetooth
® 2.0 interface.

Call waiting and three-way calls can be used by the Blue-
tooth
® 2.0 interface, only if it is possible to use those ser-
vices with your cellular phone.
BK0119300US.book 245 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-258 Features and controls
3
6. The voice guide will say “Calling ”
and then the system will dial the telephone number.NOTE
When the confirmation function is on, the system will
check if the name and location of the receiver are correct.
If the name is correct, answer “Yes.”
To change the name or location to call, answer “No.” The
system will return to Step 3.
Redialing
You can redial the last number called, based on the history of
dialed calls in the paired cellular phone.
Use the following procedure to redial.
1. Press the SPEECH button.
2. Say “Redial.”Send function
N00565700018
During a call, press the SPEECH button to enter voice recogni-
tion mode, then say “ SEND” to generate DTMF
tones.
For example, if during a call you need to simulate the pressing
of a phone button as a response to an automated system, press
the SPEECH button and speak “1 2 3 4 pound send” and the
1234# will be sent via your cellular phone.
Receiving calls
N00565800019
If an incoming phone call is received while the ignition switch
is in the “ACC” or “ON” position, the audio system will be
automatically turned on and switched to the incoming call,
even when the audio system was originally off.
The voice guide announcement for the incoming call will be
output from the front passenger’s seat speaker.
If the CD player or radio was playing when the incoming call
was received, the audio system will mute the sound from the
CD player or radio and output only the incoming call.
To receive the call, press the PICK-UP button on the steering
wheel control switch.
When the call is over, the audio system will return to its previ-
ous state.
BK0119300US.book 258 ページ ２０１０年５月２１日　金曜日　午前１０時１３分
