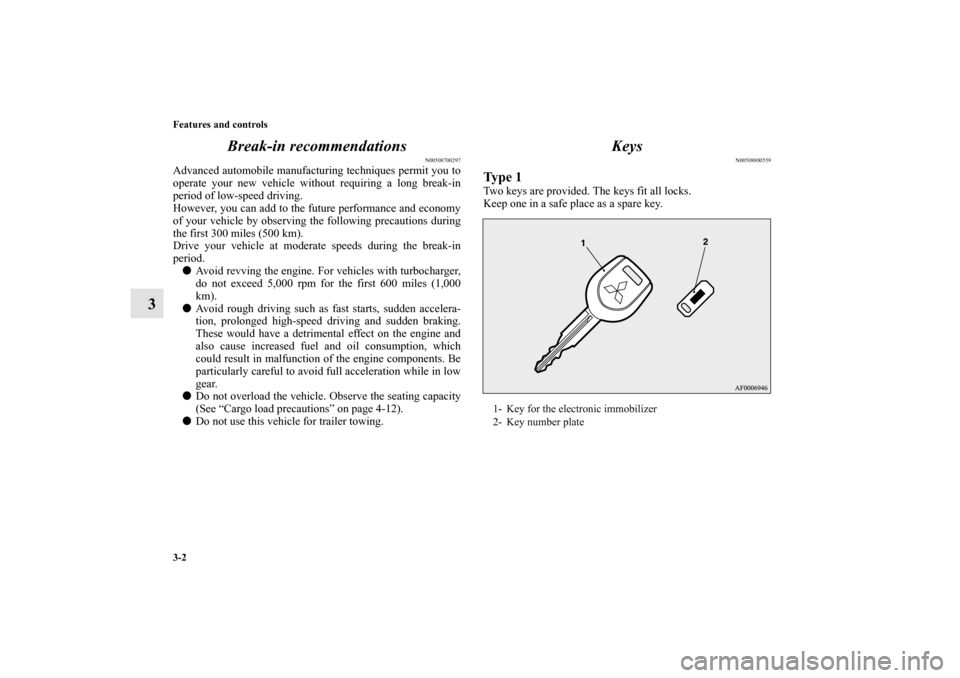

3-2 Features and controls
3Break-in recommendations
N00508700297
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine. For vehicles with turbocharger,
do not exceed 5,000 rpm for the first 600 miles (1,000
km).

Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.

Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-12).

Do not use this vehicle for trailer towing.
Keys
N00508800559
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer
2- Key number plate
BK0119300US.book 2 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

4-8 Driving safety

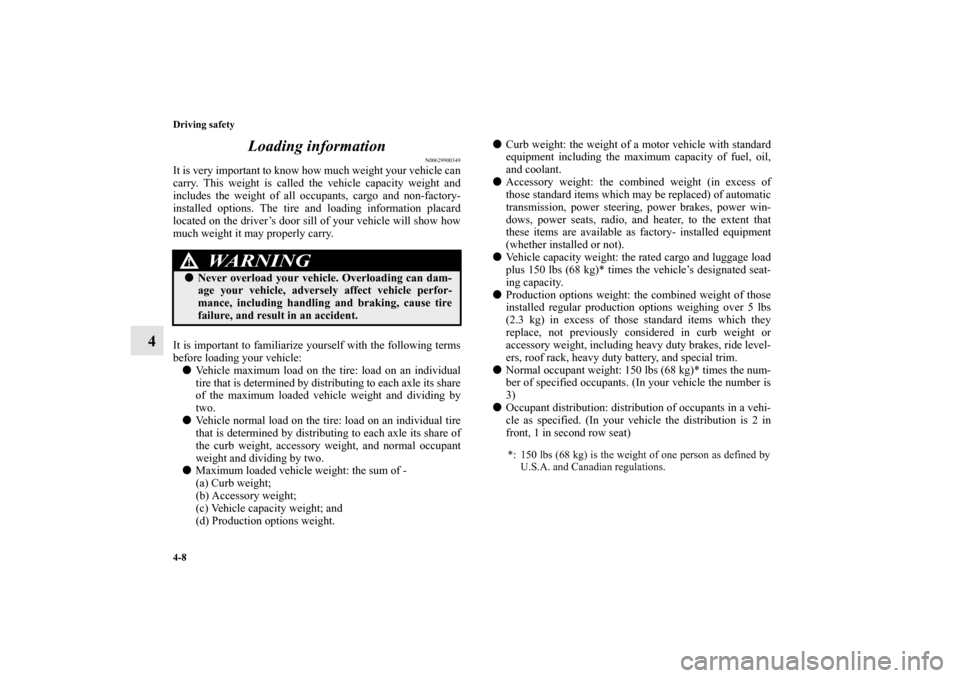

4Loading information
N00629900349
It is very important to know how much weight your vehicle can
carry. This weight is called the vehicle capacity weight and
includes the weight of all occupants, cargo and non-factory-
installed options. The tire and loading information placard
located on the driver’s door sill of your vehicle will show how
much weight it may properly carry.
It is important to familiarize yourself with the following terms
before loading your vehicle:

Vehicle maximum load on the tire: load on an individual
tire that is determined by distributing to each axle its share
of the maximum loaded vehicle weight and dividing by
two.

Vehicle normal load on the tire: load on an individual tire
that is determined by distributing to each axle its share of
the curb weight, accessory weight, and normal occupant
weight and dividing by two.

Maximum loaded vehicle weight: the sum of -
(a) Curb weight;
(b) Accessory weight;
(c) Vehicle capacity weight; and
(d) Production options weight.
Curb weight: the weight of a motor vehicle with standard
equipment including the maximum capacity of fuel, oil,
and coolant.

Accessory weight: the combined weight (in excess of
those standard items which may be replaced) of automatic
transmission, power steering, power brakes, power win-
dows, power seats, radio, and heater, to the extent that
these items are available as factory- installed equipment
(whether installed or not).

Vehicle capacity weight: the rated cargo and luggage load
plus 150 lbs (68 kg)* times the vehicle’s designated seat-
ing capacity.

Production options weight: the combined weight of those
installed regular production options weighing over 5 lbs
(2.3 kg) in excess of those standard items which they
replace, not previously considered in curb weight or
accessory weight, including heavy duty brakes, ride level-
ers, roof rack, heavy duty battery, and special trim.

Normal occupant weight: 150 lbs (68 kg)* times the num-
ber of specified occupants. (In your vehicle the number is
3)

Occupant distribution: distribution of occupants in a vehi-
cle as specified. (In your vehicle the distribution is 2 in
front, 1 in second row seat)
WA R N I N G
!
Never overload your vehicle. Overloading can dam-
age your vehicle, adversely affect vehicle perfor-
mance, including handling and braking, cause tire
failure, and result in an accident.
*: 150 lbs (68 kg) is the weight of one person as defined by
U.S.A. and Canadian regulations.
BK0119300US.book 8 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

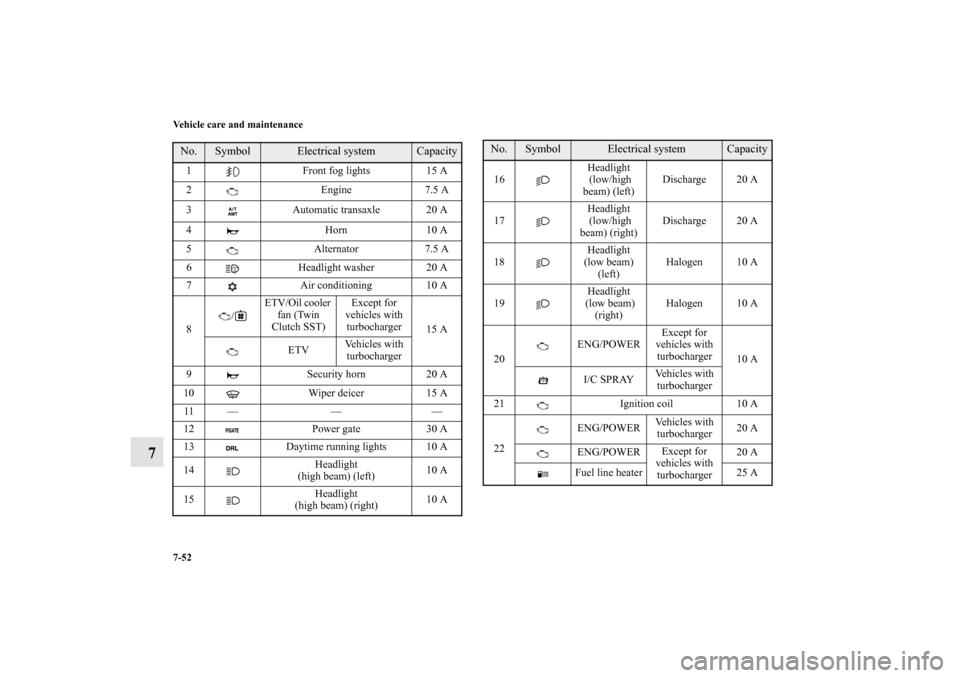

7-52 Vehicle care and maintenance
7
No.
Symbol
Electrical system
Capacity
1 Front fog lights 15 A
2 Engine 7.5 A
3 Automatic transaxle 20 A
4 Horn 10 A
5 Alternator 7.5 A
6 Headlight washer 20 A
7 Air conditioning 10 A
8/ETV/Oil cooler
fan (Twin
Clutch SST)Except for
vehicles with
turbocharger
15 A
ETVVehicles with
turbocharger
9 Security horn 20 A
10 Wiper deicer 15 A
11 — — —
12 Power gate 30 A
13 Daytime running lights 10 A
14Headlight
(high beam) (left)10 A
15Headlight
(high beam) (right)10 A
16Headlight
(low/high
beam) (left)Discharge 20 A
17Headlight
(low/high
beam) (right)Discharge 20 A
18Headlight
(low beam)
(left)Halogen 10 A
19Headlight
(low beam)
(right)Halogen 10 A
20ENG/POWERExcept for
vehicles with
turbocharger
10 A
I/C SPRAYVe h i c l e s w i t h
turbocharger
21 Ignition coil 10 A
22ENG/POWERVe h i c l e s w i t h
turbocharger20 A
ENG/POWERExcept for
vehicles with
turbocharger20 A
Fuel line heater 25 ANo.
Symbol
Electrical system
Capacity
BK0119300US.book 52 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-55
7

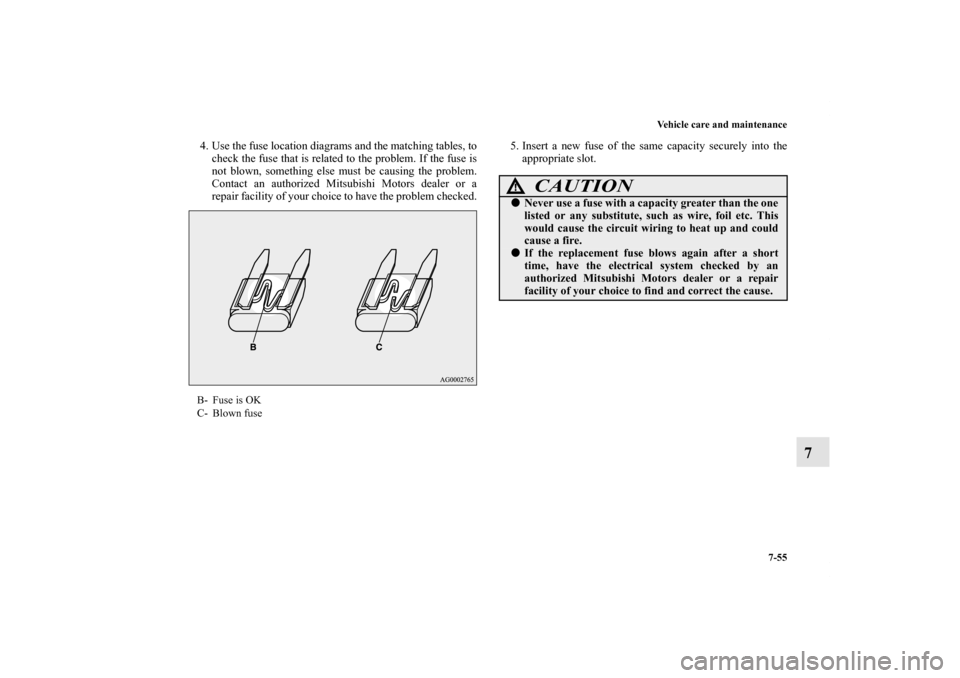

4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice to have the problem checked.5. Insert a new fuse of the same capacity securely into the
appropriate slot. B- Fuse is OK
C- Blown fuse
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
BK0119300US.book 55 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

7-56 Vehicle care and maintenance
7Replacement of light bulbs
N00942900219
Before replacing a bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
Bulb capacity
N00943000099
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300704
[Except for vehicles with high intensity discharge headlights]
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing a bulb, wait for it to cool sufficiently
before touching it. You could otherwise be burned.
Description
Wattage
ANSI Trade
No. or Bulb
type
1-Front turn signal
light 21 W WY21W
2-Head light, high
beam60 W9005
HB3Front
BK0119300US.book 56 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Specifications
9-11

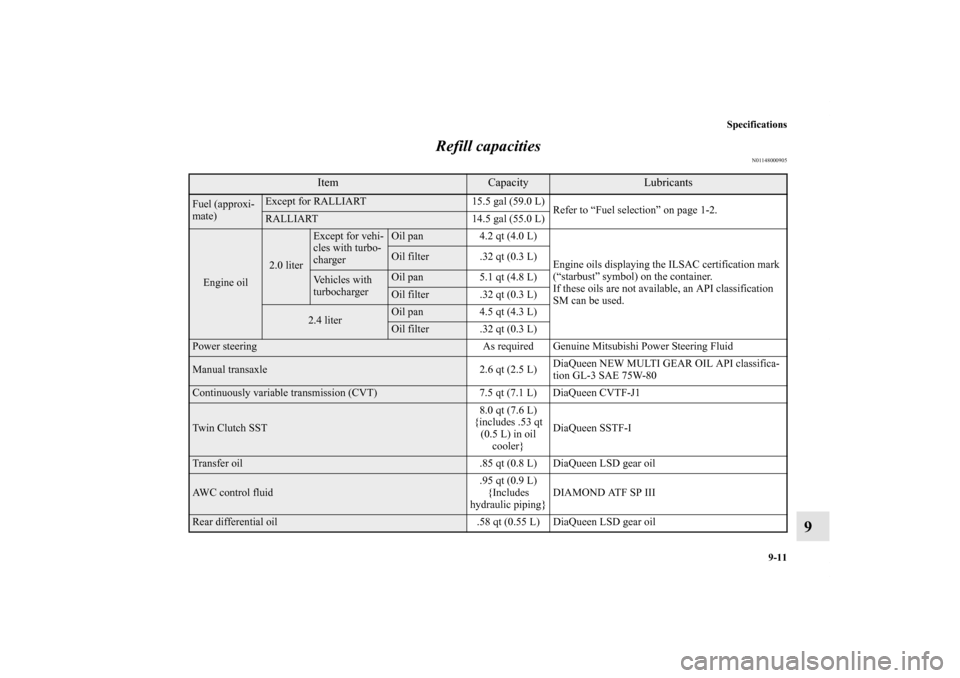

9 Refill capacities
N01148000905
Item
Capacity
Lubricants
Fuel (approxi-
mate)
Except for RALLIART 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 1-2.RALLIART 14.5 gal (55.0 L)
Engine oil
2.0 liter
Except for vehi-
cles with turbo-
charger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification
SM can be used.Oil filter .32 qt (0.3 L)
Vehicles with
turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classifica-
tion GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) DiaQueen CVTF-J1 Twin Clutch SST8.0 qt (7.6 L)
{includes .53 qt
(0.5 L) in oil
cooler}DiaQueen SSTF-ITransfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC control fluid.95 qt (0.9 L)
{Includes
hydraulic piping}DIAMOND ATF SP IIIRear differential oil .58 qt (0.55 L) DiaQueen LSD gear oil
BK0119300US.book 11 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

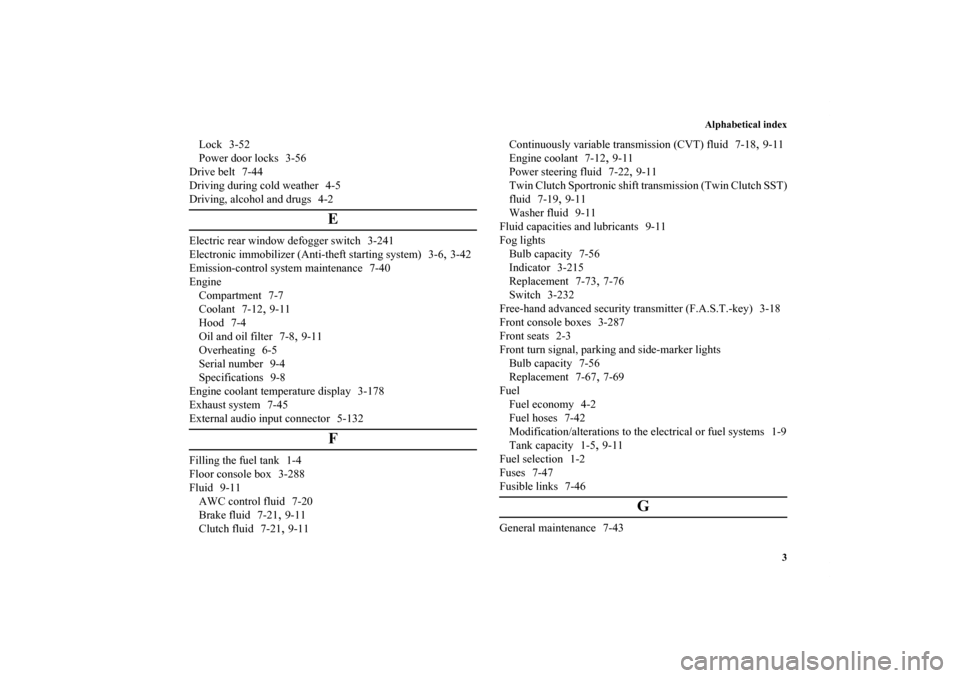

Alphabetical index
3
Lock 3-52
Power door locks 3-56
Drive belt 7-44
Driving during cold weather 4-5
Driving, alcohol and drugs 4-2
E
Electric rear window defogger switch 3-241
Electronic immobilizer (Anti-theft starting system) 3-6
,3-42
Emission-control system maintenance 7-40
Engine
Compartment 7-7
Coolant 7-12
,9-11
Hood 7-4
Oil and oil filter 7-8
,9-11
Overheating 6-5
Serial number 9-4
Specifications 9-8
Engine coolant temperature display 3-178
Exhaust system 7-45
External audio input connector 5-132
F
Filling the fuel tank 1-4
Floor console box 3-288
Fluid 9-11
AWC control fluid 7-20
Brake fluid 7-21
,9-11
Clutch fluid 7-21,9-11Continuously variable transmission (CVT) fluid 7-18
,9-11
Engine coolant 7-12
,9-11
Power steering fluid 7-22
,9-11
Twin Clutch Sportronic shift transmission (Twin Clutch SST)
fluid 7-19
,9-11
Washer fluid 9-11
Fluid capacities and lubricants 9-11
Fog lights
Bulb capacity 7-56
Indicator 3-215
Replacement 7-73
,7-76
Switch 3-232
Free-hand advanced security transmitter (F.A.S.T.-key) 3-18
Front console boxes 3-287
Front seats 2-3
Front turn signal, parking and side-marker lights
Bulb capacity 7-56
Replacement 7-67,7-69
Fuel
Fuel economy 4-2
Fuel hoses 7-42
Modification/alterations to the electrical or fuel systems 1-9
Tank capacity 1-5,9-11
Fuel selection 1-2
Fuses 7-47
Fusible links 7-46
G
General maintenance 7-43
BK0119300US.book 3 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

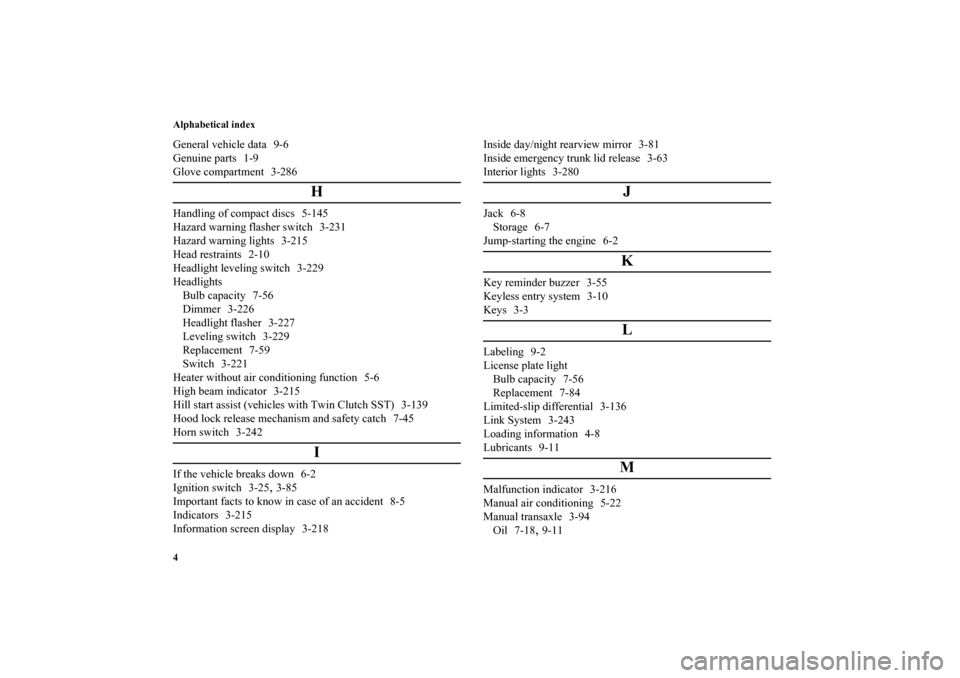

Alphabetical index
4General vehicle data 9-6
Genuine parts 1-9
Glove compartment 3-286
H
Handling of compact discs 5-145
Hazard warning flasher switch 3-231
Hazard warning lights 3-215
Head restraints 2-10
Headlight leveling switch 3-229
Headlights
Bulb capacity 7-56
Dimmer 3-226
Headlight flasher 3-227
Leveling switch 3-229
Replacement 7-59
Switch 3-221
Heater without air conditioning function 5-6
High beam indicator 3-215
Hill start assist (vehicles with Twin Clutch SST) 3-139
Hood lock release mechanism and safety catch 7-45
Horn switch 3-242
I
If the vehicle breaks down 6-2
Ignition switch 3-25
,3-85
Important facts to know in case of an accident 8-5
Indicators 3-215
Information screen display 3-218Inside day/night rearview mirror 3-81
Inside emergency trunk lid release 3-63
Interior lights 3-280
J
Jack 6-8
Storage 6-7
Jump-starting the engine 6-2
K
Key reminder buzzer 3-55
Keyless entry system 3-10
Keys 3-3
L
Labeling 9-2
License plate light
Bulb capacity 7-56
Replacement 7-84
Limited-slip differential 3-136
Link System 3-243
Loading information 4-8
Lubricants 9-11
M
Malfunction indicator 3-216
Manual air conditioning 5-22
Manual transaxle 3-94
Oil 7-18
,9-11
BK0119300US.book 4 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

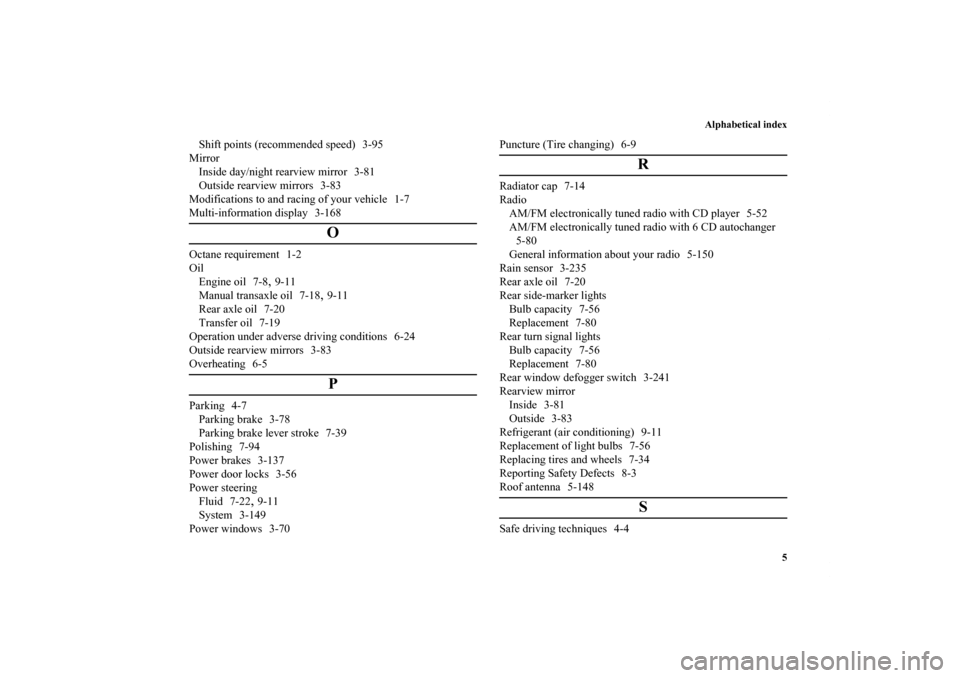

Alphabetical index
5
Shift points (recommended speed) 3-95
Mirror
Inside day/night rearview mirror 3-81
Outside rearview mirrors 3-83
Modifications to and racing of your vehicle 1-7
Multi-information display 3-168
O
Octane requirement 1-2
Oil
Engine oil 7-8
,9-11
Manual transaxle oil 7-18
,9-11
Rear axle oil 7-20
Transfer oil 7-19
Operation under adverse driving conditions 6-24
Outside rearview mirrors 3-83
Overheating 6-5P
Parking 4-7
Parking brake 3-78
Parking brake lever stroke 7-39
Polishing 7-94
Power brakes 3-137
Power door locks 3-56
Power steering
Fluid 7-22
,9-11
System 3-149
Power windows 3-70Puncture (Tire changing) 6-9
R
Radiator cap 7-14
Radio
AM/FM electronically tuned radio with CD player 5-52
AM/FM electronically tuned radio with 6 CD autochanger
5-80
General information about your radio 5-150
Rain sensor 3-235
Rear axle oil 7-20
Rear side-marker lights
Bulb capacity 7-56
Replacement 7-80
Rear turn signal lights
Bulb capacity 7-56
Replacement 7-80
Rear window defogger switch 3-241
Rearview mirror
Inside 3-81
Outside 3-83
Refrigerant (air conditioning) 9-11
Replacement of light bulbs 7-56
Replacing tires and wheels 7-34
Reporting Safety Defects 8-3
Roof antenna 5-148
S
Safe driving techniques 4-4
BK0119300US.book 5 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

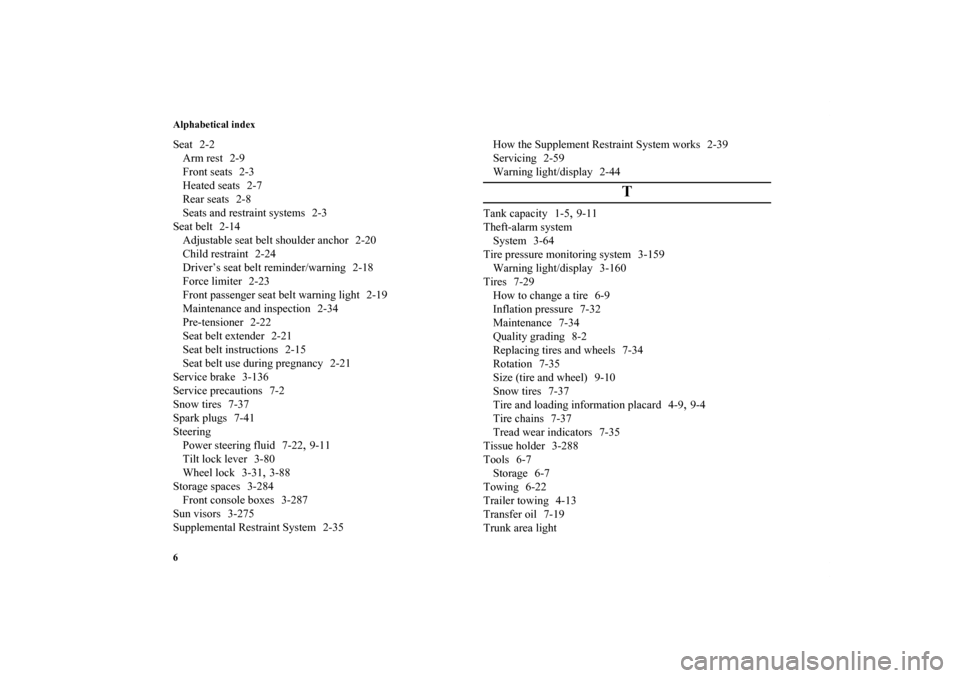

Alphabetical index
6Seat 2-2
Arm rest 2-9
Front seats 2-3
Heated seats 2-7
Rear seats 2-8
Seats and restraint systems 2-3
Seat belt 2-14
Adjustable seat belt shoulder anchor 2-20
Child restraint 2-24
Driver’s seat belt reminder/warning 2-18
Force limiter 2-23
Front passenger seat belt warning light 2-19
Maintenance and inspection 2-34
Pre-tensioner 2-22
Seat belt extender 2-21
Seat belt instructions 2-15
Seat belt use during pregnancy 2-21
Service brake 3-136
Service precautions 7-2
Snow tires 7-37
Spark plugs 7-41
Steering
Power steering fluid 7-22
,9-11
Tilt lock lever 3-80
Wheel lock 3-31
,3-88
Storage spaces 3-284
Front console boxes 3-287
Sun visors 3-275
Supplemental Restraint System 2-35How the Supplement Restraint System works 2-39
Servicing 2-59
Warning light/display 2-44
T
Tank capacity 1-5
,9-11
Theft-alarm system
System 3-64
Tire pressure monitoring system 3-159
Warning light/display 3-160
Tires 7-29
How to change a tire 6-9
Inflation pressure 7-32
Maintenance 7-34
Quality grading 8-2
Replacing tires and wheels 7-34
Rotation 7-35
Size (tire and wheel) 9-10
Snow tires 7-37
Tire and loading information placard 4-9
,9-4
Tire chains 7-37
Tread wear indicators 7-35
Tissue holder 3-288
Tools 6-7
Storage 6-7
Towing 6-22
Trailer towing 4-13
Transfer oil 7-19
Trunk area light
BK0119300US.book 6 ページ ２０１０年５月２１日　金曜日　午前１０時１３分
