3-216 Features and controls
3

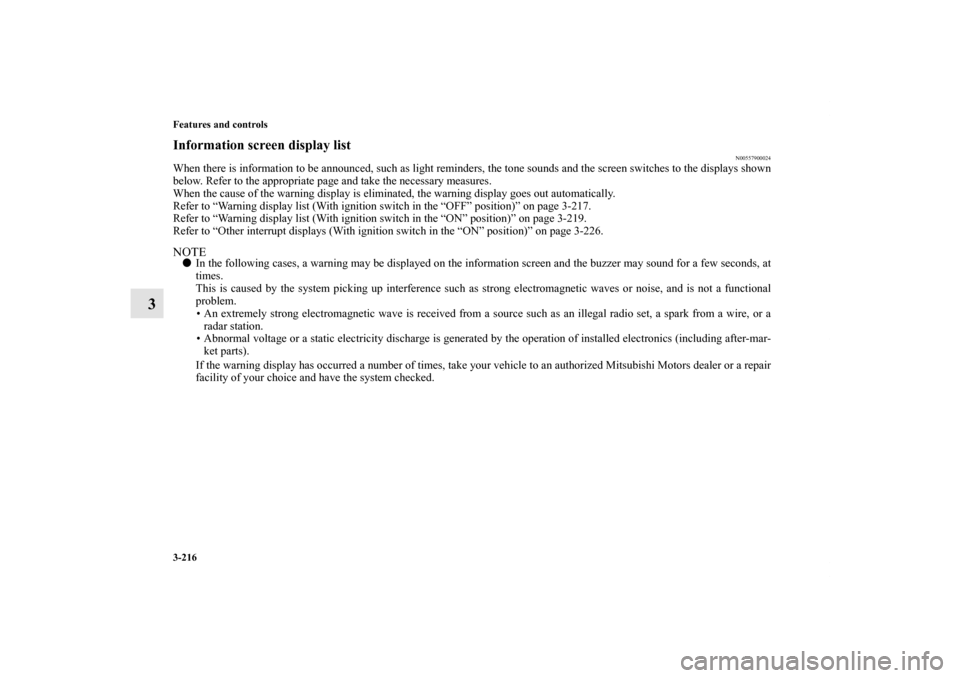

Information screen display list
N00557900024
When there is information to be announced, such as light reminders, the tone sounds and the screen switches to the displays shown
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (With ignition switch in the “OFF” position)” on page 3-217.
Refer to “Warning display list (With ignition switch in the “ON” position)” on page 3-219.
Refer to “Other interrupt displays (With ignition switch in the “ON” position)” on page 3-226.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of installed electronics (including after-mar-
ket parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
BK0138600US.book 216 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-217
3

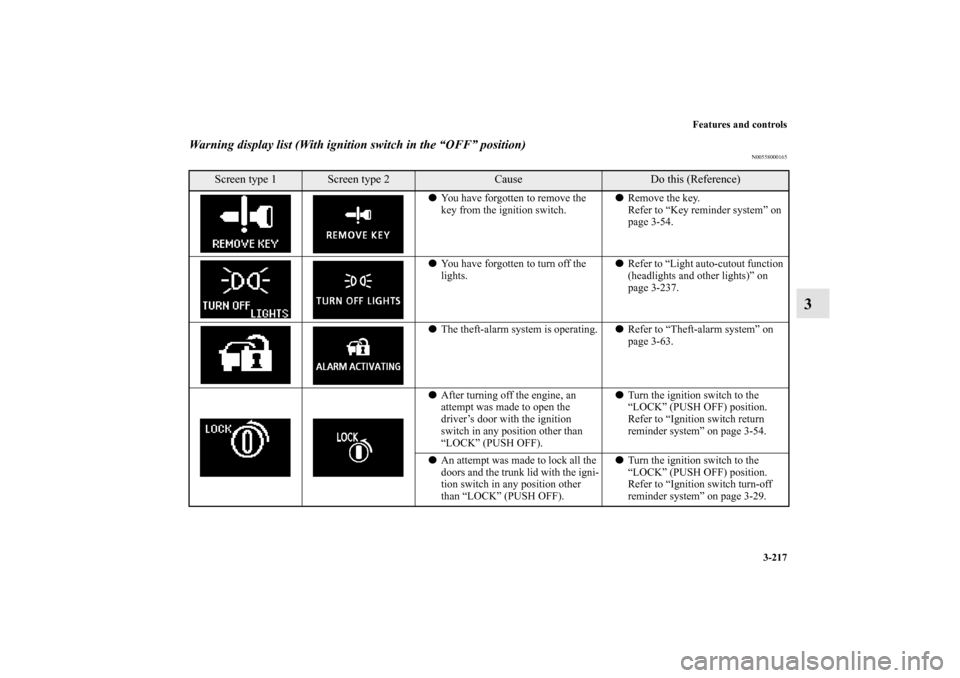

Warning display list (With ignition switch in the “OFF” position)
N00558000165
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the
key from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-54.

You have forgotten to turn off the
lights.
Refer to “Light auto-cutout function
(headlights and other lights)” on
page 3-237.

The theft-alarm system is operating.
Refer to “Theft-alarm system” on
page 3-63.

After turning off the engine, an
attempt was made to open the
driver’s door with the ignition
switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch return
reminder system” on page 3-54.

An attempt was made to lock all the
doors and the trunk lid with the igni-
tion switch in any position other
than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-29.
BK0138600US.book 217 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-218 Features and controls
3

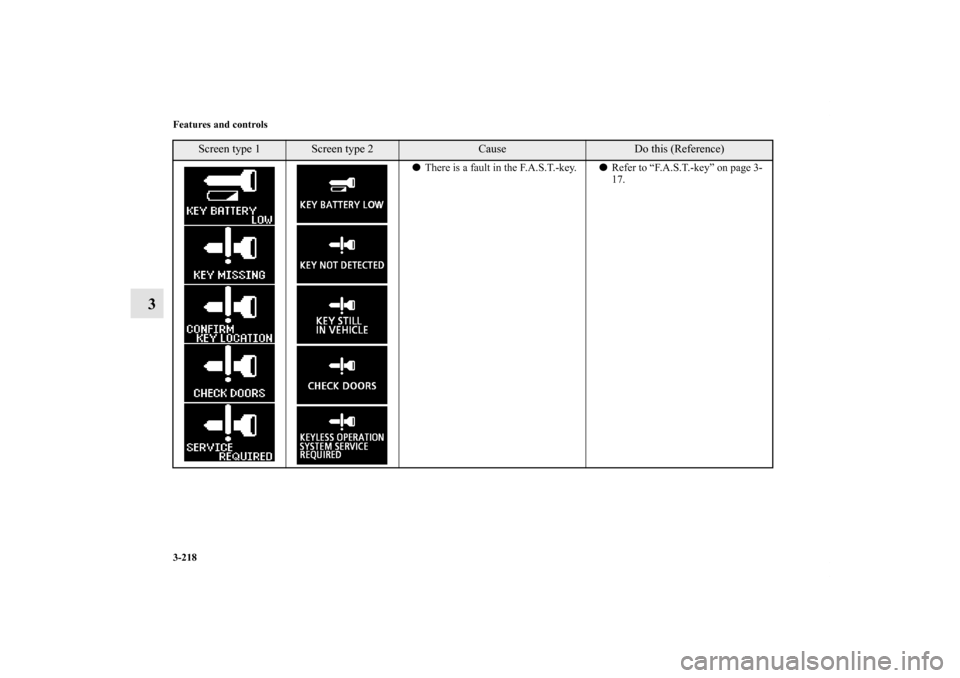

There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 3-
17.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0138600US.book 218 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-219
3
Warning display list (With ignition switch in the “ON” position)
N00558100238
Screen type1
Screen type 2
Cause
Do this (Reference)

There is a fault in the electric power
steering system (EPS).
Refer to “Electric power steering
system (EPS)” on page 3-156.
BK0138600US.book 219 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-220 Features and controls
3

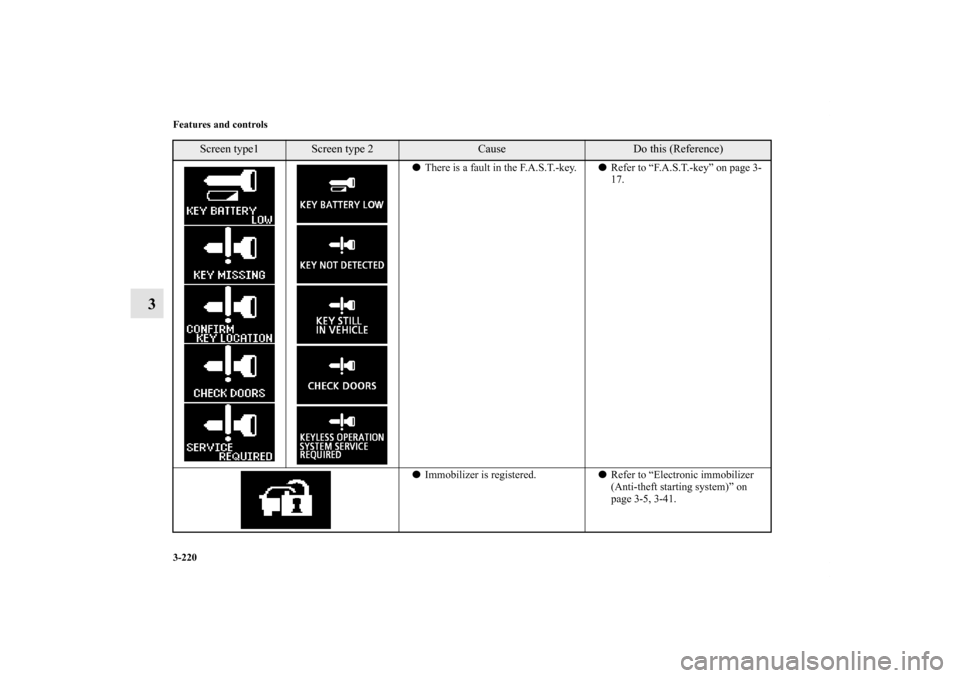

There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 3-
17.

Immobilizer is registered.
Refer to “Electronic immobilizer
(Anti-theft starting system)” on
page 3-5, 3-41.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0138600US.book 220 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-221
3

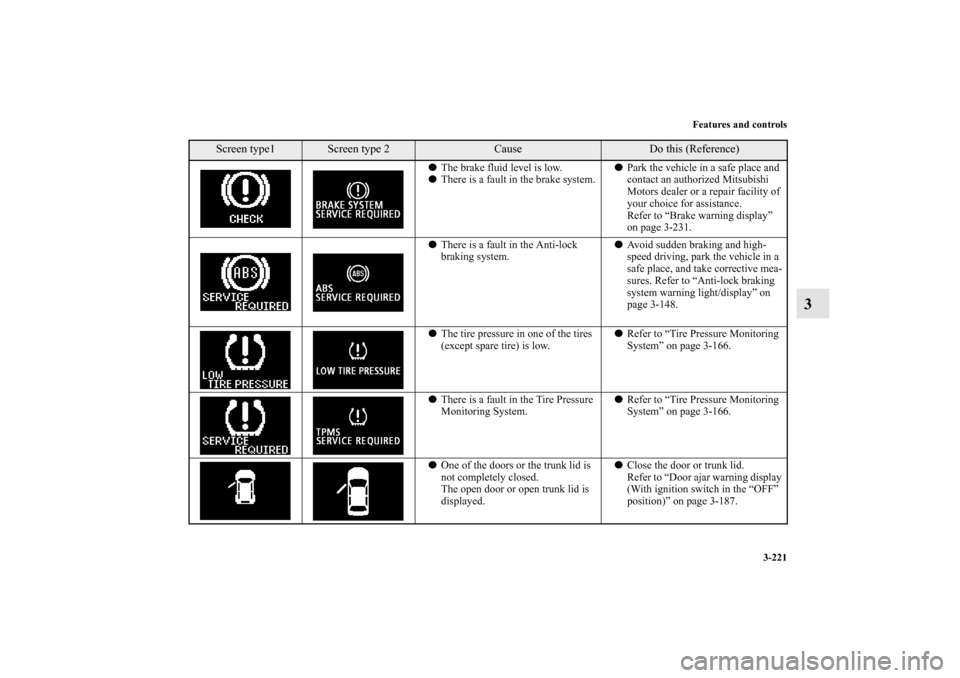

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice for assistance.
Refer to “Brake warning display”
on page 3-231.

There is a fault in the Anti-lock
braking system.
Avoid sudden braking and high-
speed driving, park the vehicle in a
safe place, and take corrective mea-
sures. Refer to “Anti-lock braking
system warning light/display” on
page 3-148.

The tire pressure in one of the tires
(except spare tire) is low.
Refer to “Tire Pressure Monitoring
System” on page 3-166.

There is a fault in the Tire Pressure
Monitoring System.
Refer to “Tire Pressure Monitoring
System” on page 3-166.

One of the doors or the trunk lid is
not completely closed.
The open door or open trunk lid is
displayed.
Close the door or trunk lid.
Refer to “Door ajar warning display
(With ignition switch in the “OFF”
position)” on page 3-187.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0138600US.book 221 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-222 Features and controls
3

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-
4.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on
page 6-5.

The continuously variable transmis-
sion (CVT) fluid or the Twin Clutch
SST fluid temperature is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable
transmission (CVT)” on page 3-98.
Refer to “Twin Clutch SST” on
page 3-112.

The seat belt is not fastened when
the ignition switch is in the “ON”
position.
Fasten your seat belt properly. Refer
to “Driver’s seat belt
reminder/warning light and display”
on page 2-18.

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0138600US.book 222 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-223
3

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page 3-
231.

There is a fault in the engine oil cir-
culation system.
Park your vehicle in a safe place as
soon as possible and contact an
authorized Mitsubishi Motors dealer
or a repair facility of your choice to
have the system checked.
Refer to “Oil pressure warning dis-
play” on page 3-233.

There is a fault in the charging sys-
tem.
Park your vehicle in a safe place as
soon as possible and contact an
authorized Mitsubishi Motors dealer
or a repair facility of your choice for
assistance.
Refer to “Charging system warning
display” on page 3-232.

There is a fault in the SRS airbag or
the seat belt pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS warning light/dis-
play” on page 2-43.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0138600US.book 223 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-224 Features and controls
3

There is a fault in the Active Stabil-
ity Control (ASC).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Active Stability Control
(ASC)” on page 3-151.

There is a fault in the ACD (Active
Center Differential system).

There is a fault in the electronically
controlled 4WD system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “ACD (Active Center Dif-
ferential system)” on page 3-132.

Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Electronically controlled
4WD system” on page 3-135.

There is a fault in the CVT.

A safety device in the Twin Clutch
SST has been activated due to a
possible malfunction in the Twin
Clutch SST or in the engine elec-
tronic control module.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Continuously variable
transmission (CVT)” on page 3-98.
Refer to “Twin Clutch SST” on
page 3-112.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0138600US.book 224 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-225
3

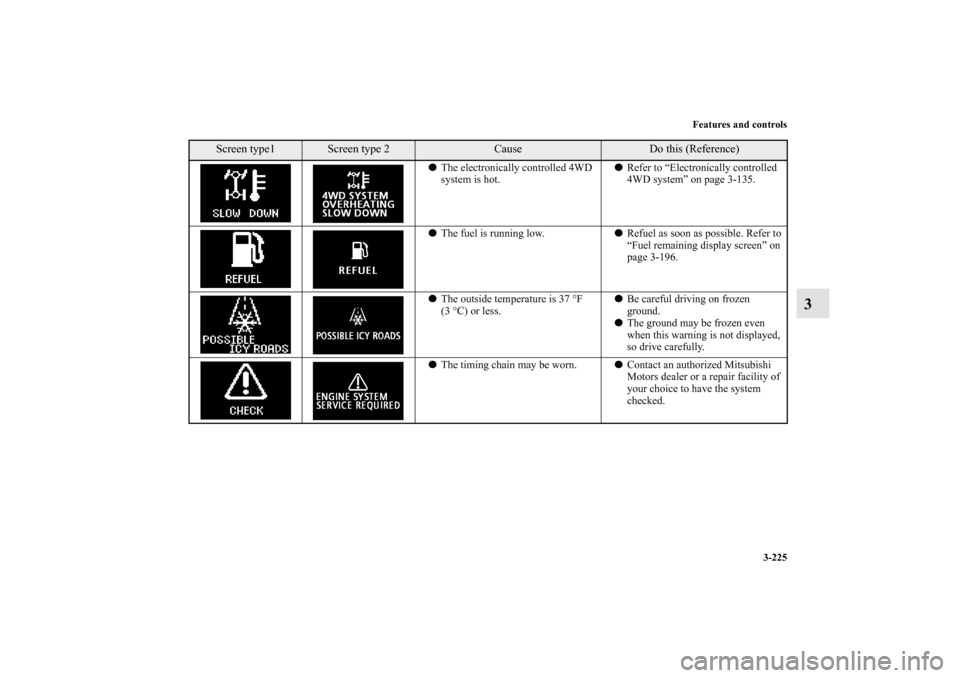

The electronically controlled 4WD
system is hot.
Refer to “Electronically controlled
4WD system” on page 3-135.

The fuel is running low.
Refuel as soon as possible. Refer to
“Fuel remaining display screen” on
page 3-196.

The outside temperature is 37°F
(3°C) or less.
Be careful driving on frozen
ground.

The ground may be frozen even
when this warning is not displayed,
so drive carefully.

The timing chain may be worn.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type1
Screen type 2
Cause
Do this (Reference)
