7-14 Vehicle care and maintenance
7
Radiator capThe radiator cap must be tight sealed to prevent losing coolant
which may result in engine damage. Only use a Genuine
Mitsubishi Parts radiator cap, or an approved equivalent.Points to remember
Do not overfill the reserve tank.

Your vehicle uses a special radiator cap that stays sealed
and lets the coolant flow from the reserve tank back to the
radiator when the engine cools down. If you need to
change the cap, use the exact same kind.

Check the coolant freeze point in the radiator with the
proper gauge, and only when it is safe. If you add anti-
freeze, the contents of the reserve tank must be protected
against freezing.

Keep the front of the radiator and condenser clean.
If the temperature of the engine coolant does not rise after
the engine is warmed-up, take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice to have the thermostat checked, and replaced if
necessary.
Do not use water to adjust the concentration of cool-
ant.
Do not top off the tank with plain water only. Water
by itself boils at a lower temperature and does not
stop rust or freezing. If the water freezes, it will
damage your cooling system. Do not use tapwater. It
can cause corrosion and rust.
WA R N I N G
!
Wait for the engine to cool down before opening the
radiator cap. Otherwise hot steam or boiling coolant
could spray up from the radiator and scald you.
CAUTION
!
BK0138600US.book 14 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-15
7 Air cleaner filter
N00937900396

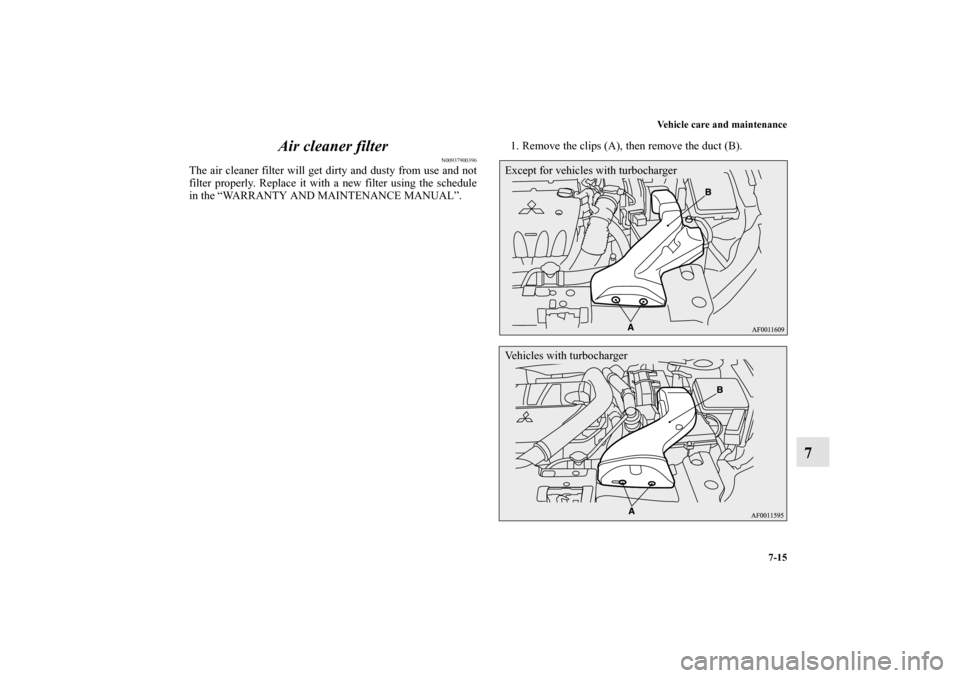

The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule
in the “WARRANTY AND MAINTENANCE MANUAL”. 1. Remove the clips (A), then remove the duct (B).
Except for vehicles with turbochargerVehicles with turbocharger
BK0138600US.book 15 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-16 Vehicle care and maintenance
7

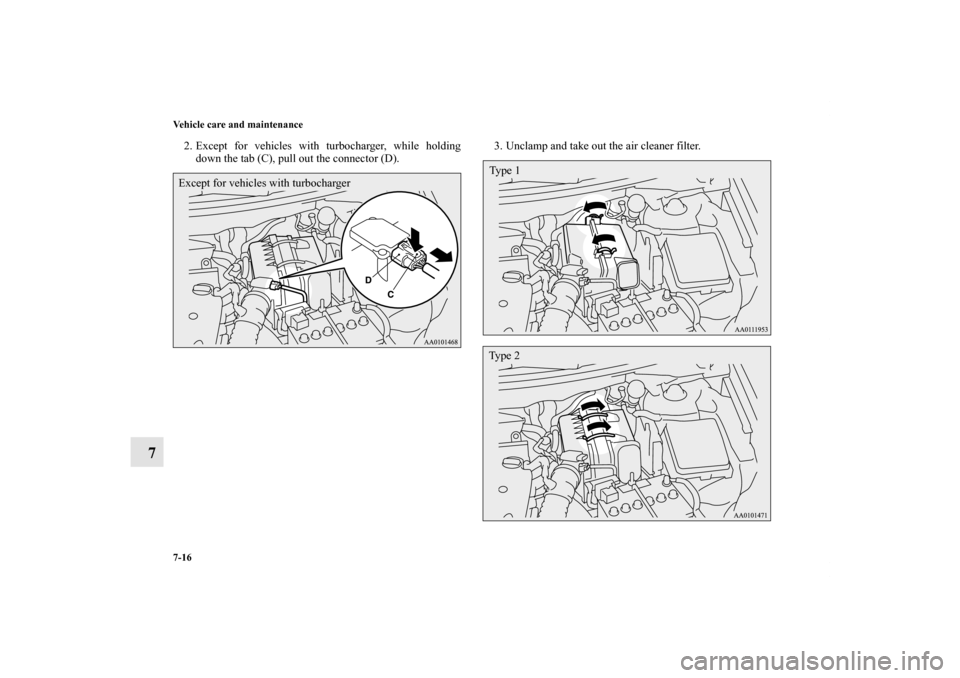

2. Except for vehicles with turbocharger, while holding
down the tab (C), pull out the connector (D).3. Unclamp and take out the air cleaner filter.Except for vehicles with turbocharger
Ty p e 1Ty p e 2
GR00001001-7.tmp 16 ページ ２０１２年１月１８日　水曜日　午前９時３１分

Vehicle care and maintenance
7-17
7

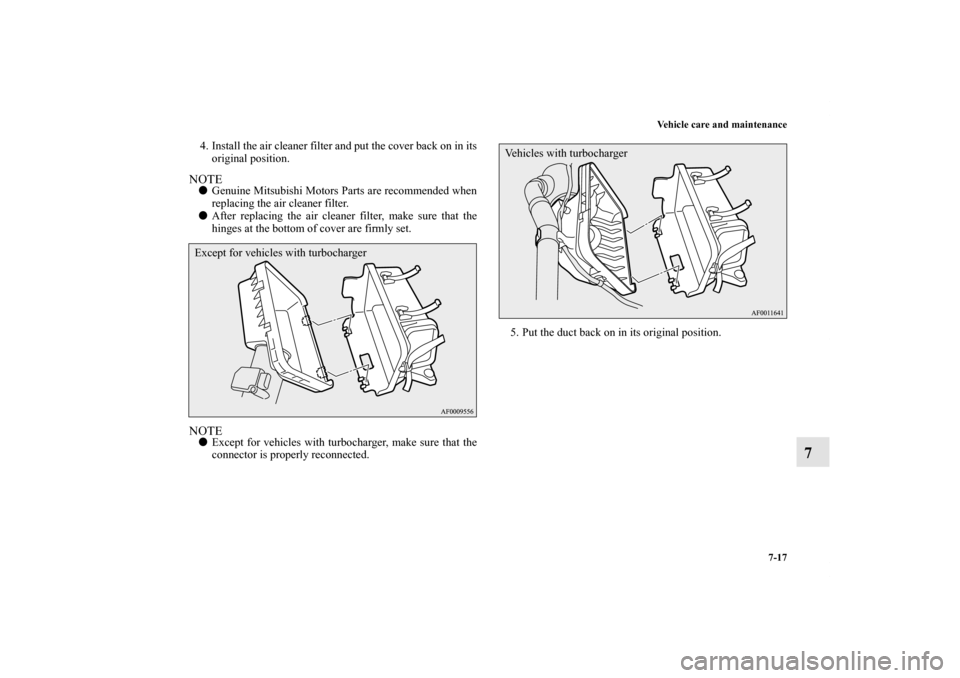

4. Install the air cleaner filter and put the cover back on in its
original position. NOTE
Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.

After replacing the air cleaner filter, make sure that the
hinges at the bottom of cover are firmly set. NOTE
Except for vehicles with turbocharger, make sure that the
connector is properly reconnected.5. Put the duct back on in its original position.Except for vehicles with turbocharger
Vehicles with turbocharger
BK0138600US.book 17 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-18 Vehicle care and maintenance
7Manual transaxle oil
(if so equipped)
N00938200136
Whenever the manual transaxle oil level is checked, add oil to
maintain the proper level, if necessary.
Refill or change the oil according to the table.Oil type
Continuously variable transmission (CVT)
fluid
(if so equipped)
N00938100047
The continuously variable transmission (CVT) should be main-
tained and serviced by an authorized Mitsubishi Motors dealer
or a repair facility of your choice to obtain the best perfor-
mance and longest life. It is important that the transmission
fluid is kept at the correct level. Fluid typeUse only “DiaQueen CVTF-J4” transmission fluid to ensure
optimum transmission performance. Special additives Mitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transmission.
LubricantDiaQueen NEW MULTI GEAR OIL
API Classification GL-3
Viscosity range SAE 75W-80
BK0138600US.book 18 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-19

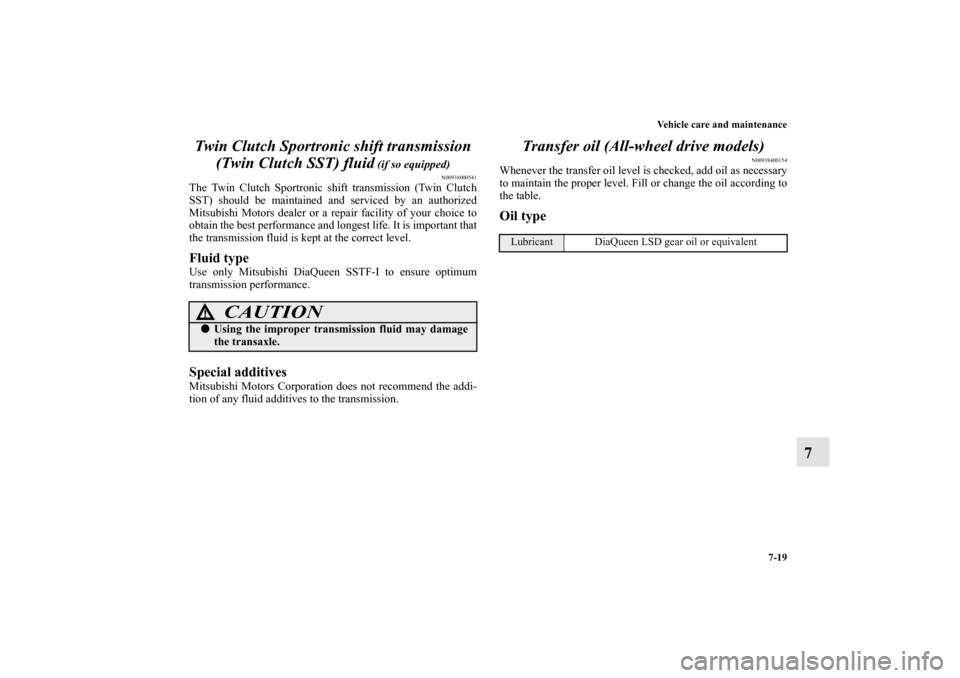

7 Twin Clutch Sportronic shift transmission
