MITSUBISHI LANCER RALLIART 2012 8.G Owners Manual

7-54 Vehicle care and maintenance
7

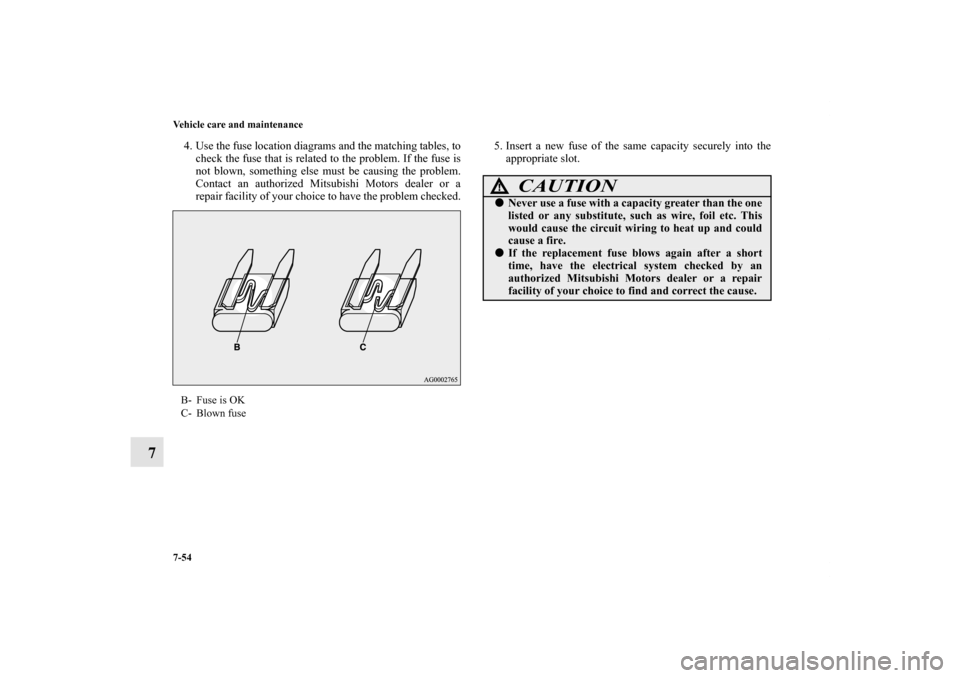

4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice to have the problem checked.5. Insert a new fuse of the same capacity securely into the
appropriate slot. B- Fuse is OK
C- Blown fuse
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
BK0138600US.book 54 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-55

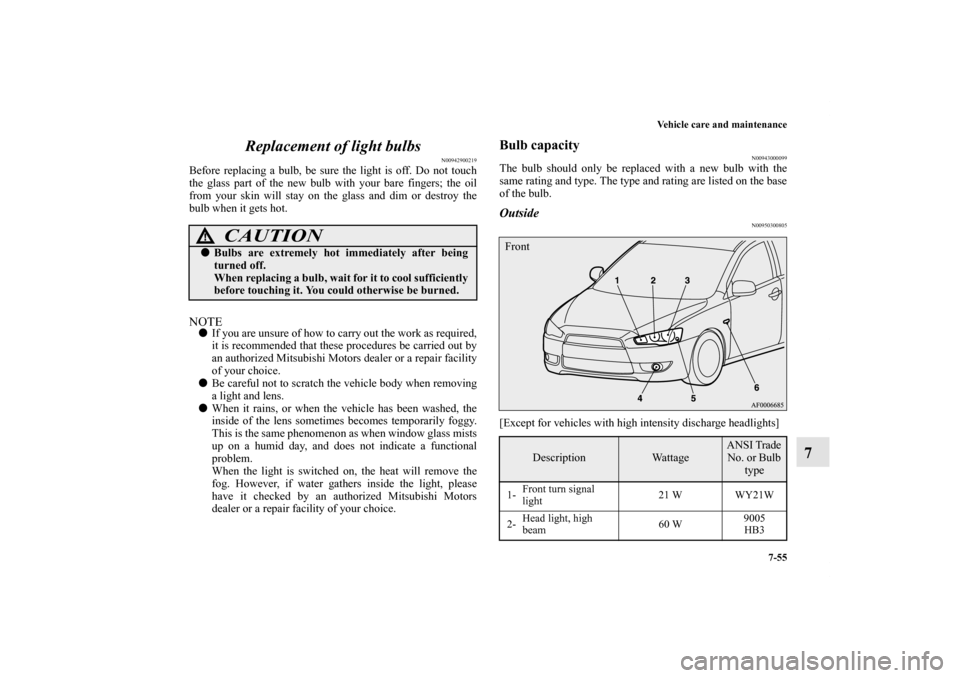

7 Replacement of light bulbs
N00942900219
Before replacing a bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
Bulb capacity
N00943000099
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300805
[Except for vehicles with high intensity discharge headlights]
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing a bulb, wait for it to cool sufficiently
before touching it. You could otherwise be burned.
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
1-Front turn signal
light 21 W WY21W
2-Head light, high
beam60 W9005
HB3Front
BK0138600US.book 55 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-56 Vehicle care and maintenance
7

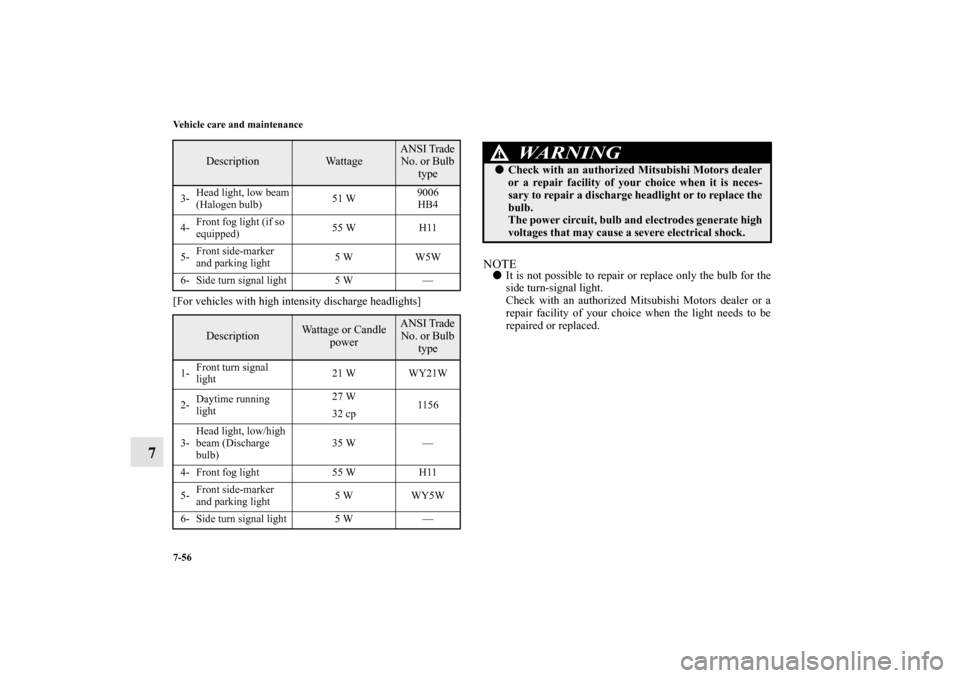

[For vehicles with high intensity discharge headlights]
NOTE
It is not possible to repair or replace only the bulb for the
side turn-signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
3-Head light, low beam
(Halogen bulb)51 W9006
HB4
4-Front fog light (if so
equipped)55 W H11
5-Front side-marker
and parking light5 W W5W
6- Side turn signal light 5 W —
Description
Wattage or Candle
power
ANSI Trade
No. or Bulb
type
1-Front turn signal
light 21 W WY21W
2-Daytime running
light27 W
1156
32 cp
3-Head light, low/high
beam (Discharge
bulb)35 W —
4- Front fog light 55 W H11
5-Front side-marker
and parking light5 W WY5W
6- Side turn signal light 5 W —
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
WA R N I N G
!
Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a discharge headlight or to replace the
bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe electrical shock.
BK0138600US.book 56 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-57
7
NOTE

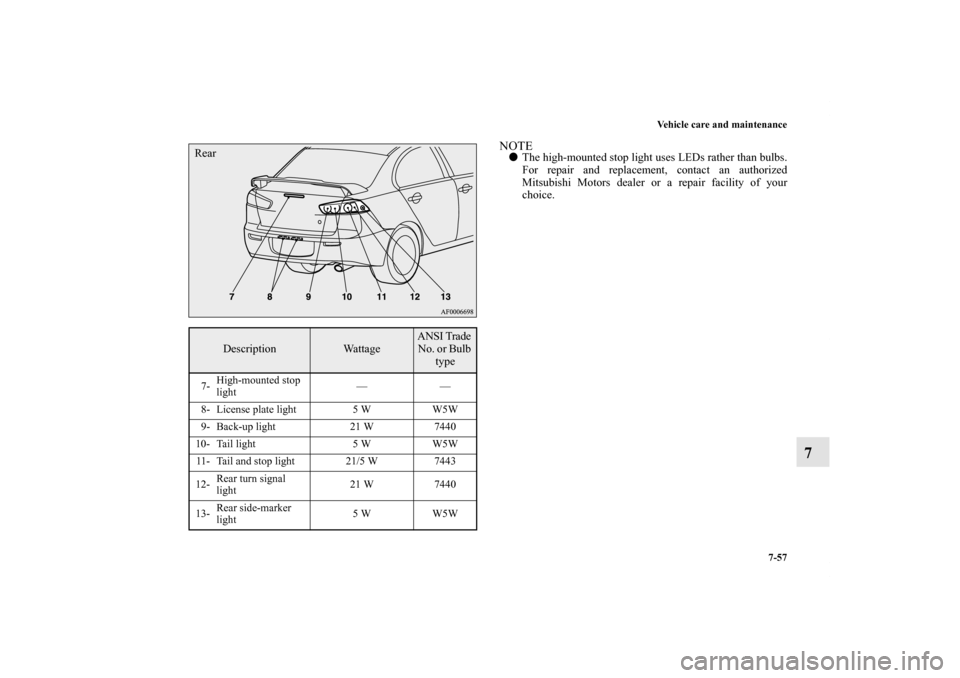

The high-mounted stop light uses LEDs rather than bulbs.
For repair and replacement, contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
Description
Wattage
ANSI Trade
No. or Bulb
type
7-High-mounted stop
light——
8- License plate light 5 W W5W
9- Back-up light 21 W 7440
10- Tail light 5 W W5W
11- Tail and stop light 21/5 W 7443
12-Rear turn signal
light21 W 7440
13-Rear side-marker
light5 W W5WRear
BK0138600US.book 57 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-58 Vehicle care and maintenance
7
Inside
N00950400460
Headlights (low beam, except for vehicles with
high intensity discharge headlights)
N00943100872
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.
Description
Wa t t a g e
1- Trunk area light 5 W
2- Dome light (rear) (if so equipped) 8 W
3-Dome light (front)/
Reading light (if so equipped)8 W
*- Front of the vehicle
BK0138600US.book 58 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-59
7

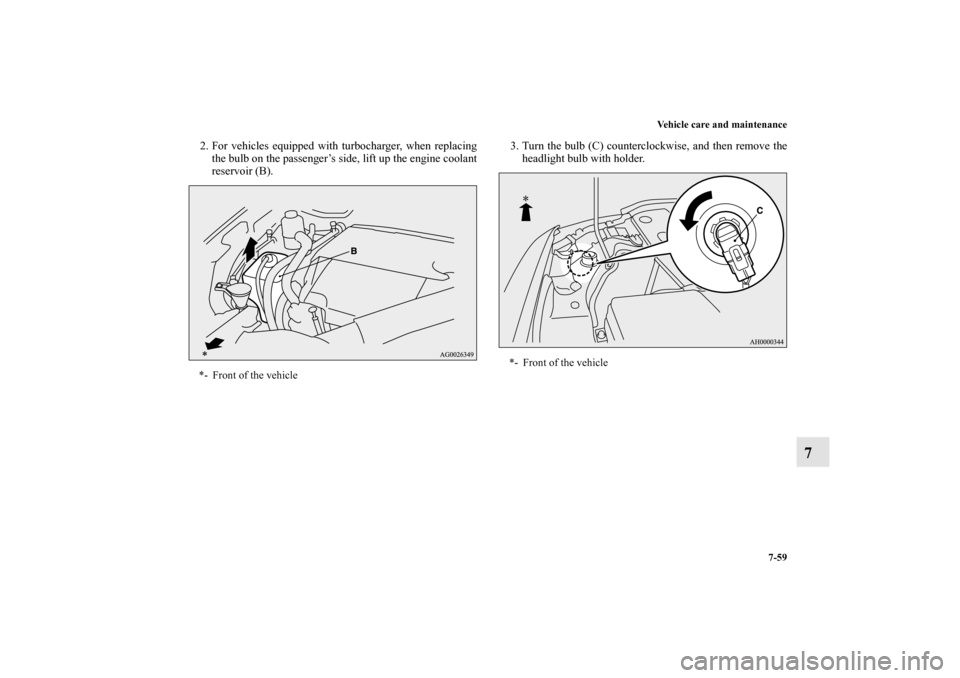

2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).3. Turn the bulb (C) counterclockwise, and then remove the
headlight bulb with holder.*- Front of the vehicle
*- Front of the vehicle
BK0138600US.book 59 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-60 Vehicle care and maintenance
7

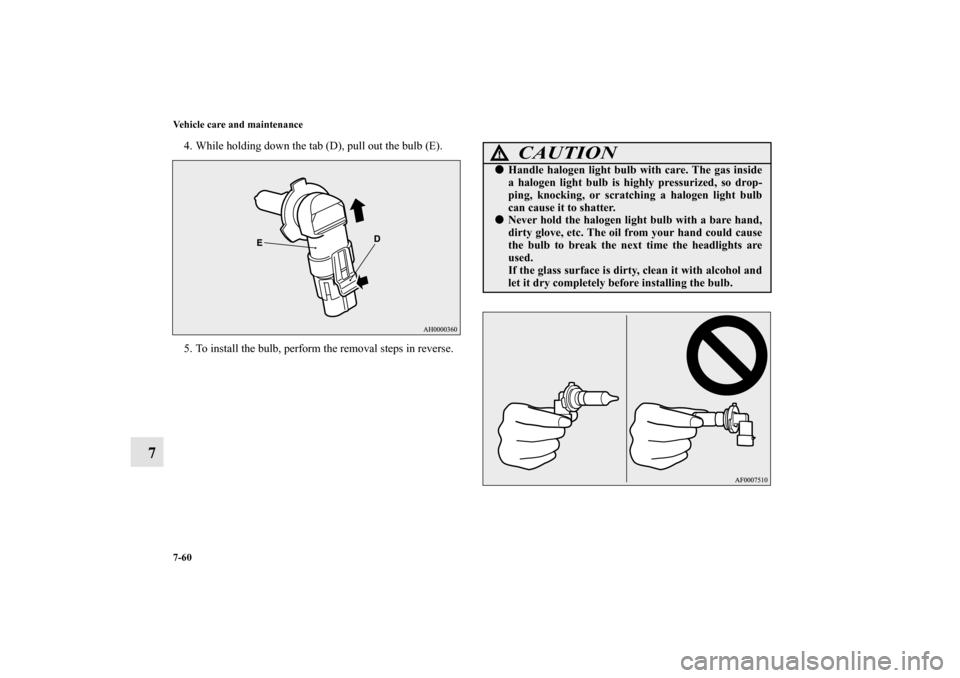

4. While holding down the tab (D), pull out the bulb (E).
5. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the headlights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0138600US.book 60 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-61
7

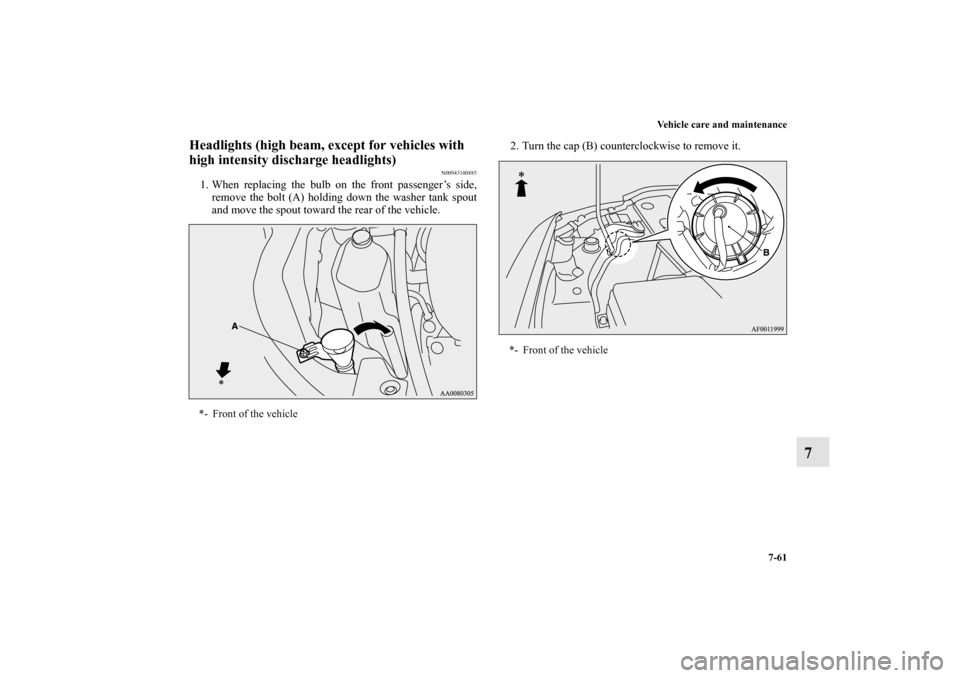

Headlights (high beam, except for vehicles with
high intensity discharge headlights)
N00943100885
1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer tank spout
and move the spout toward the rear of the vehicle.2. Turn the cap (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0138600US.book 61 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-62 Vehicle care and maintenance
7

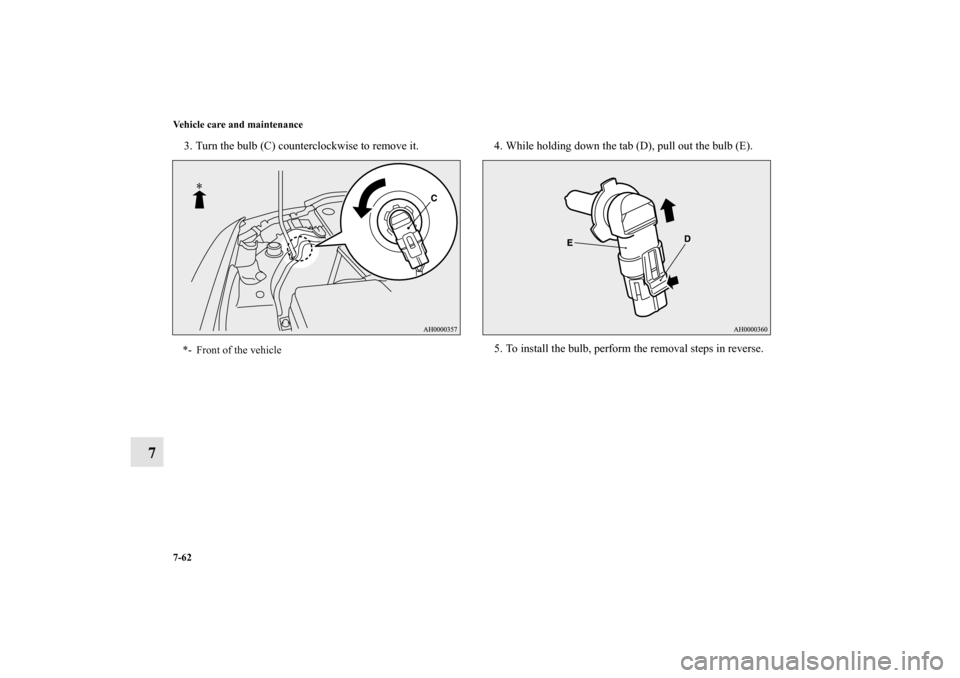

3. Turn the bulb (C) counterclockwise to remove it. 4. While holding down the tab (D), pull out the bulb (E).
5. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0138600US.book 62 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-63
7
Daytime running lights (for vehicles with high
intensity discharge headlights)
N00900300103
1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer tank spout
and move the spout toward the rear of the vehicle.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
