Page 5 of 722
Overview
Instruments and controls
N00100201387
Gearshift or selector lever P.3-96, 3-99
Parking brake lever
P. 3 - 7 8
Cup holder (for front seats) P.3-303
Heated seat switch (if so equipped) P.2-7
12 V power outlet (if so
equipped) P.3-291Floor console box (if so equipped) P.3-301
Tissue holder (if so equipped) P.3-301 Fuel tank filler
door release lever
P. 1 - 4 Trunk lid release
lever P.3-60 Except for RALLIART
Supplemental restraint system - airbag
(for front passenger’s seat) P.2-35
Glove com-
partment
P. 3 - 2 9 9
USB input
terminal
(if so
equipped)
P. 3 - 2 8 4 Vents P.5-2
Drive mode-selector (if so equipped) P.3-137
BK0150800US.book 3 ページ 2012年3月29日 木曜日 午後2時38分
Page 6 of 722
Overview
Gearshift lever P.3-113 RALLIART
Cup holder (for front
seats) P.3-303
Heated seat switch
(if so equipped)
P. 2 - 7
12 V power outlet P.3-291 Fuel tank filler
door release lever
P. 1 - 4Parking brake lever
P.3-78
Trunk lid release
lever P.3-60Vents P.5-2
ACD control mode
switch P.3-134
Floor console box P.3-301
Tissue holder P.3-301Supplemental restraint system - airbag
(for front passenger’s seat) P.2-35
Glove com-
partment
P. 3 - 2 9 9
USB input ter-
minal (if so
equipped)
P. 3 - 2 8 4
Twin Clutch SST control mode switch
P.3-122
BK0150800US.book 4 ページ 2012年3月29日 木曜日 午後2時38分

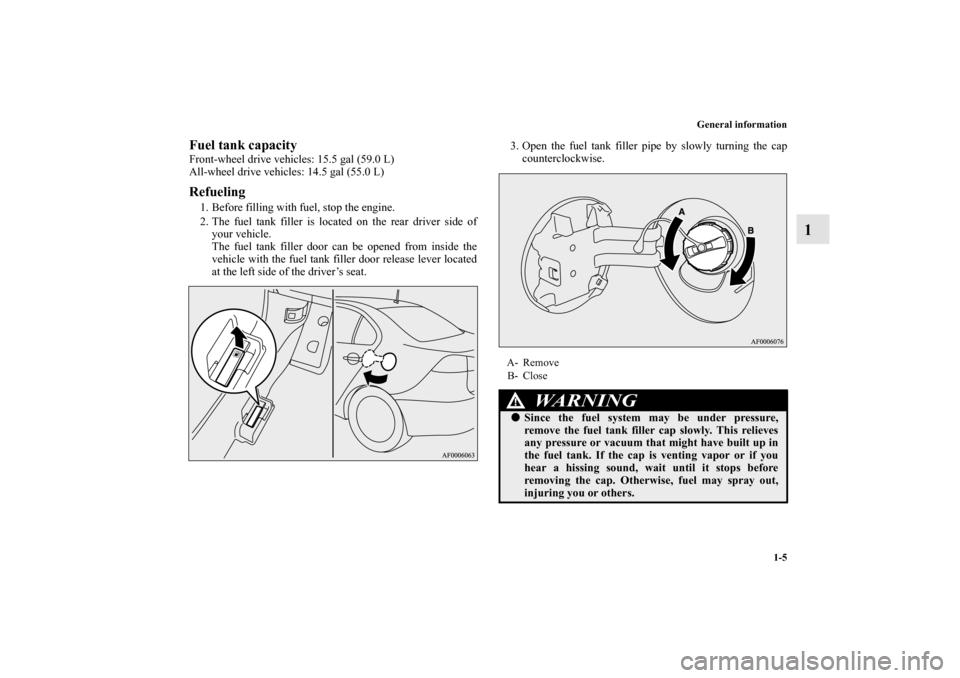

Page 28 of 722
General information
1-5
1
Fuel tank capacityFront-wheel drive vehicles: 15.5 gal (59.0 L)
All-wheel drive vehicles: 14.5 gal (55.0 L)Refueling1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear driver side of
your vehicle.
The fuel tank filler door can be opened from inside the
vehicle with the fuel tank filler door release lever located
at the left side of the driver’s seat.3. Open the fuel tank filler pipe by slowly turning the cap
counterclockwise.
A- Remove
B- Close
WA R N I N G
!Since the fuel system may be under pressure,
remove the fuel tank filler cap slowly. This relieves
any pressure or vacuum that might have built up in
the fuel tank. If the cap is venting vapor or if you
hear a hissing sound, wait until it stops before
removing the cap. Otherwise, fuel may spray out,
injuring you or others.
