MITSUBISHI LANCER SPORTBACK 2010 8.G MMCS Manual

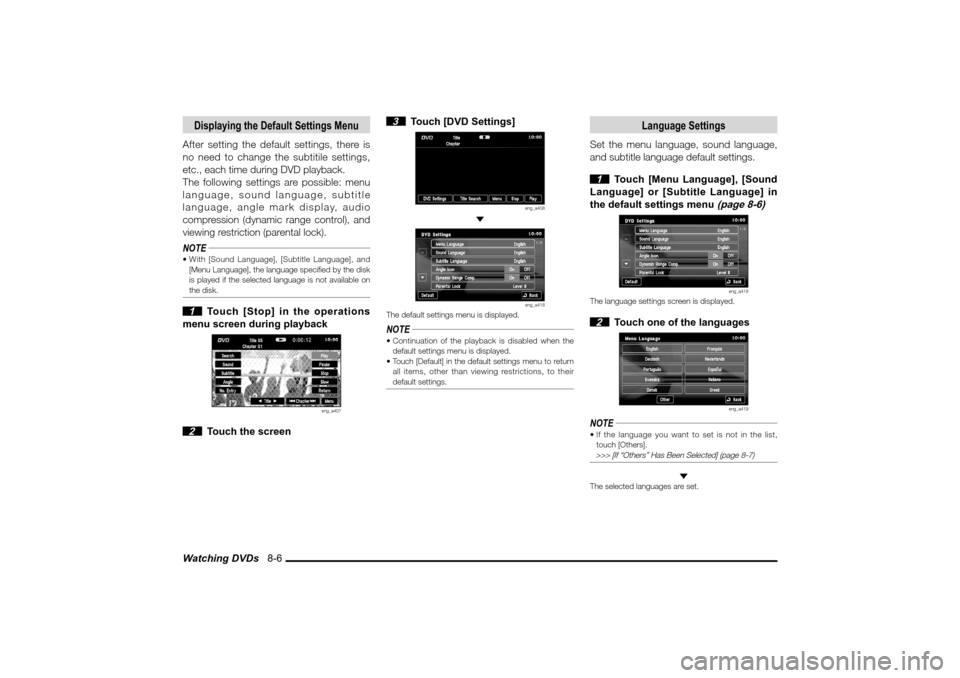

Watching DVDs 8-6Displaying the Default Settings MenuAfter setting the default settings, there is
no need to change the subtitile settings,
etc., each time during DVD playback.
The following settings are possible: menu
language, sound language, subtitle
language, angle mark display, audio
compression (dynamic range control), and
viewing restriction (parental lock).NOTE With [Sound Language], [Subtitle Language], and
[Menu Language], the language speci ed by the disk
is played if the selected language is not available on
the disk. 1 Touch [Stop] in the operations
menu screen during playback
eng_a407
2 Touch the screen
3 Touch [DVD Settings]
eng_a408

eng_a418
The default settings menu is displayed.NOTE Continuation of the playback is disabled when the
default settings menu is displayed.
 Touch [Default] in the default settings menu to return
all items, other than viewing restrictions, to their
default settings.
Language Settings
Set the menu language, sound language,
and subtitle language default settings. 1 Touch [Menu Language], [Sound
Language] or [Subtitle Language] in
the default settings menu
(page 8-6)
eng_a418
The language settings screen is displayed. 2 Touch one of the languages
eng_a419
NOTE If the language you want to set is not in the list,
touch [Others]. >>> [If “Others” Has Been Selected] (page 8-7)
The selected languages are set.

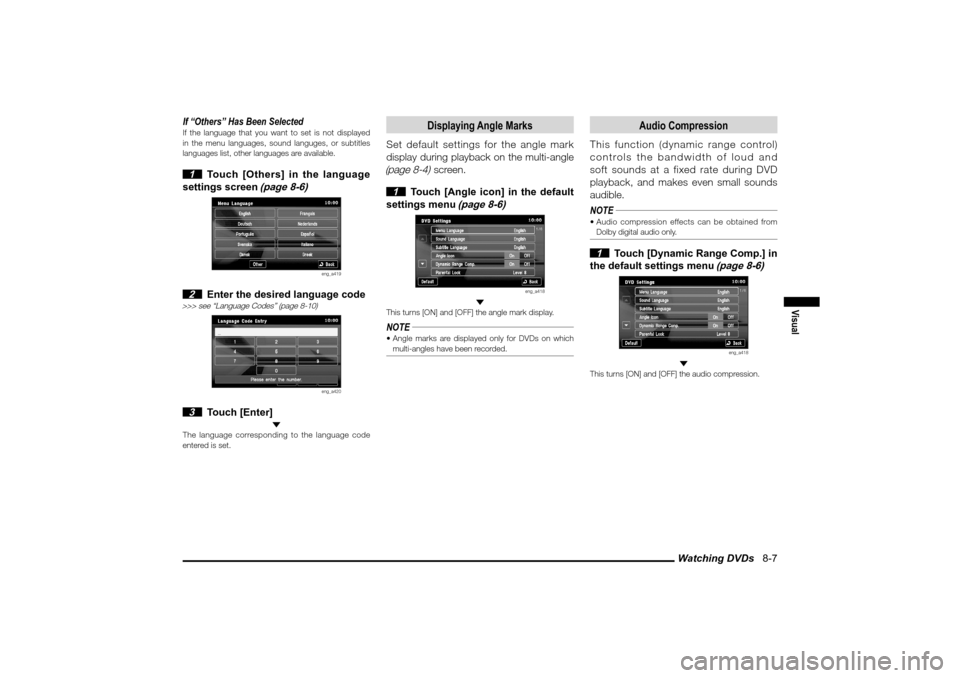

Watching DVDs 8-7
Visual
If “Others” Has Been SelectedIf the language that you want to set is not displayed
in the menu languages, sound languges, or subtitles
languages list, other languages are available. 1 Touch [Others] in the language
settings screen
(page 8-6)
eng_a419
2 Enter the desired language code
>>> see “Language Codes” (page 8-10)
eng_a420
3 Touch [Enter]
The language corresponding to the language code
entered is set.
Displaying Angle Marks
Set default settings for the angle mark
display during playback on the multi-angle (page 8-4)
screen.

1 Touch [Angle icon] in the default
settings menu
(page 8-6)
eng_a418

This turns [ON] and [OFF] the angle mark display.NOTE Angle marks are displayed only for DVDs on which
multi-angles have been recorded.
Audio Compression
This function (dynamic range control)
controls the bandwidth of loud and
soft sounds at a fixed rate during DVD
playback, and makes even small sounds
audible.
NOTE Audio compression effects can be obtained from
Dolby digital audio only. 1 Touch [Dynamic Range Comp.] in
the default settings menu
(page 8-6)
eng_a418

This turns [ON] and [OFF] the audio compression.

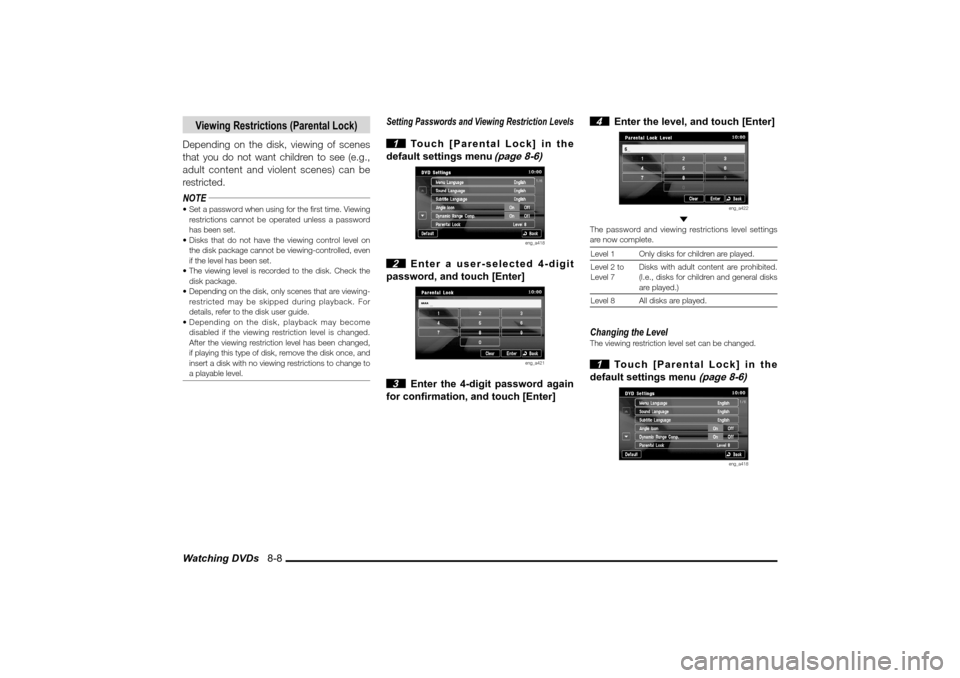

Watching DVDs 8-8
Viewing Restrictions (Parental Lock)
Depending on the disk, viewing of scenes
that you do not want children to see (e.g.,
adult content and violent scenes) can be
restricted.NOTE Set a password when using for the rst time. Viewing
restrictions cannot be operated unless a password
has been set.
 Disks that do not have the viewing control level on
the disk package cannot be viewing-controlled, even
if the level has been set.
 The viewing level is recorded to the disk. Check the
disk package.
 Depending on the disk, only scenes that are viewing-
restricted may be skipped during playback. For
details, refer to the disk user guide.
 Depending on the disk, playback may become
disabled if the viewing restriction level is changed.
After the viewing restriction level has been changed,
if playing this type of disk, remove the disk once, and
insert a disk with no viewing restrictions to change to
a playable level.
Setting Passwords and Viewing Restriction Levels 1 Touch [Parental Lock] in the
default settings menu
(page 8-6)
eng_a418
2 Enter a user-selected 4-digit
password, and touch [Enter]
eng_a421
3 Enter the 4-digit password again
for confi rmation, and touch [Enter]
4 Enter the level, and touch [Enter]
eng_a422

The password and viewing restrictions level settings
are now complete.
Level 1 Only disks for children are played.
Level 2 to
Level 7Disks with adult content are prohibited.
(I.e., disks for children and general disks
are played.)
Level 8 All disks are played.Changing the LevelThe viewing restriction level set can be changed. 1 Touch [Parental Lock] in the
default settings menu
(page 8-6)
eng_a418

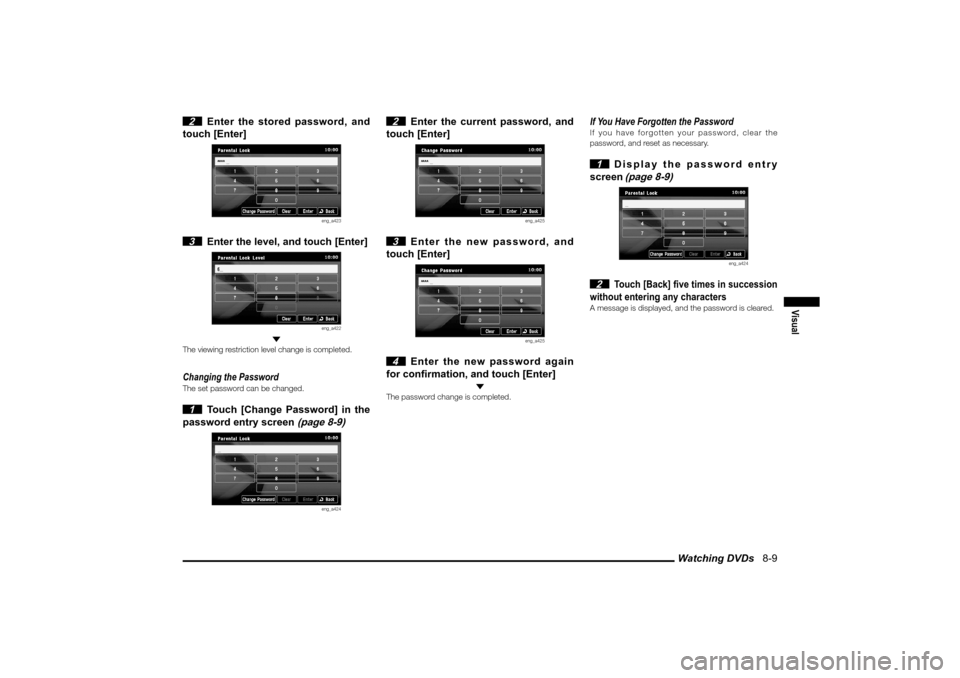

Watching DVDs 8-9
Visual
2 Enter the stored password, and
touch [Enter]
eng_a423
3 Enter the level, and touch [Enter]
eng_a422

The viewing restriction level change is completed.Changing the PasswordThe set password can be changed. 1 Touch [Change Password] in the
password entry screen
(page 8-9)
eng_a424
2 Enter the current password, and
touch [Enter]
eng_a425
3 Enter the new password, and
touch [Enter]
eng_a425
4 Enter the new password again
for confi rmation, and touch [Enter]
The password change is completed.
If You Have Forgotten the PasswordIf you have forgotten your password, clear the
password, and reset as necessary. 1 Display the password entry
screen
(page 8-9)
eng_a424
2
Touch [Back] fi ve times in succession
without entering any characters
A message is displayed, and the password is cleared.

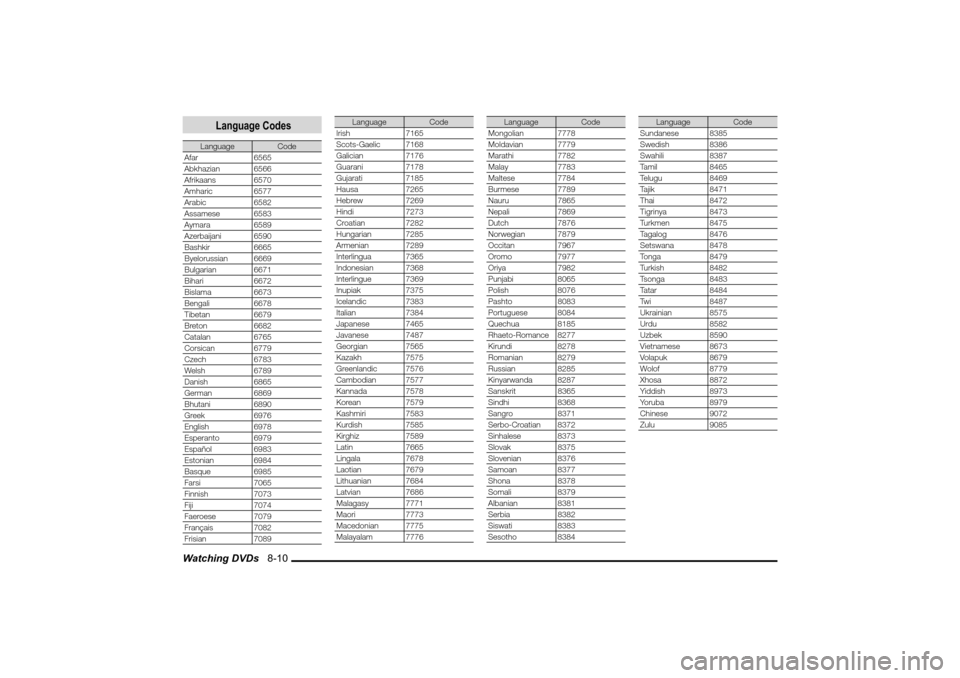

Watching DVDs 8-10
Language Codes
Language Code
Afar 6565
Abkhazian 6566
Afrikaans 6570
Amharic 6577
Arabic 6582
Assamese 6583
Aymara 6589
Azerbaijani 6590
Bashkir 6665
Byelorussian 6669
Bulgarian 6671
Bihari 6672
Bislama 6673
Bengali 6678
Tibetan 6679
Breton 6682
Catalan 6765
Corsican 6779
Czech 6783
Welsh 6789
Danish 6865
German 6869
Bhutani 6890
Greek 6976
English 6978
Esperanto 6979
Español 6983
Estonian 6984
Basque 6985
Farsi 7065
Finnish 7073
Fiji 7074
Faeroese 7079
Français 7082
Frisian 7089
Language Code
Irish 7165
Scots-Gaelic 7168
Galician 7176
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7269
Hindi 7273
Croatian 7282
Hungarian 7285
Armenian 7289
Interlingua 7365
Indonesian 7368
Interlingue 7369
Inupiak 7375
Icelandic 7383
Italian 7384
Japanese 7465
Javanese 7487
Georgian 7565
Kazakh 7575
Greenlandic 7576
Cambodian 7577
Kannada 7578
Korean 7579
Kashmiri 7583
Kurdish 7585
Kirghiz 7589
Latin 7665
Lingala 7678
Laotian 7679
Lithuanian 7684
Latvian 7686
Malagasy 7771
Maori 7773
Macedonian 7775
Malayalam 7776
Language Code
Mongolian 7778
Moldavian 7779
Marathi 7782
Malay 7783
Maltese 7784
Burmese 7789
Nauru 7865
Nepali 7869
Dutch 7876
Norwegian 7879
Occitan 7967
Oromo 7977
Oriya 7982
Punjabi 8065
Polish 8076
Pashto 8083
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Kirundi 8278
Romanian 8279
Russian 8285
Kinyarwanda 8287
Sanskrit 8365
Sindhi 8368
Sangro 8371
Serbo-Croatian 8372
Sinhalese 8373
Slovak 8375
Slovenian 8376
Samoan 8377
Shona 8378
Somali 8379
Albanian 8381
Serbia 8382
Siswati 8383
Sesotho 8384
Language Code
Sundanese 8385
Swedish 8386
Swahili 8387
Tamil 8465
Telugu 8469
Tajik 8471
Thai 8472
Tigrinya 8473
Turkmen 8475
Tagalog 8476
Setswana 8478
Tonga 8479
Turkish 8482
Tsonga 8483
Tatar 8484
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Wolof 8779
Xhosa 8872
Yiddish 8973
Yoruba 8979
Chinese 9072
Zulu 9085

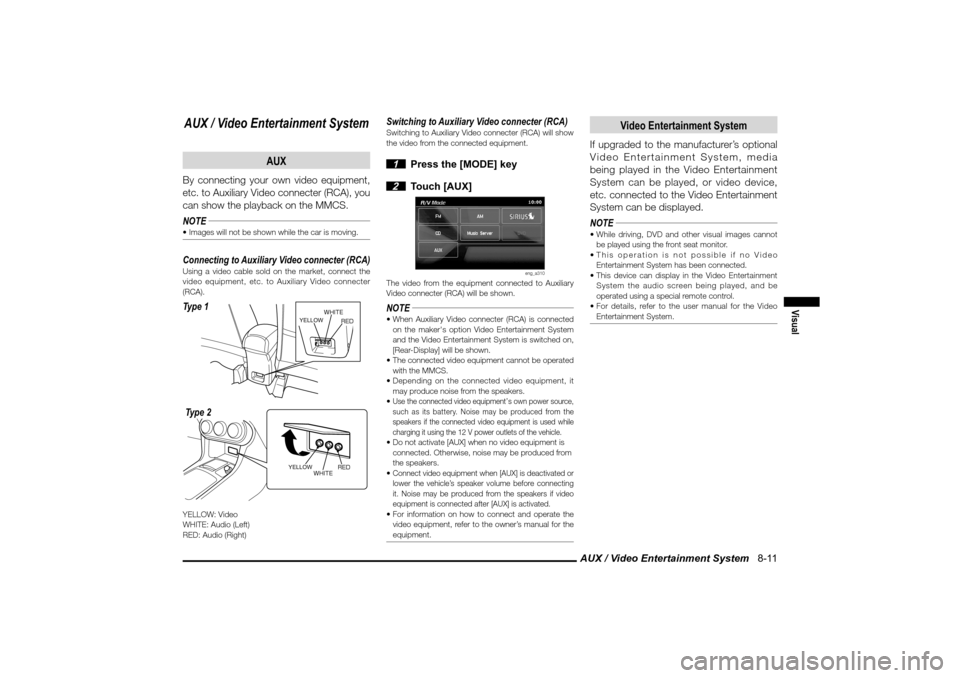

AUX / Video Entertainment System 8-11
Visual
AUX / Video Entertainment System
AUX
By connecting your own video equipment,
etc. to Auxiliary Video connecter (RCA), you
can show the playback on the MMCS.NOTE Images will not be shown while the car is moving.Connecting to Auxiliary Video connecter (RCA)Using a video cable sold on the market, connect the
video equipment, etc. to Auxiliary Video connecter
(RCA).
YELLOW
3&% 8)*5&
Type 1Type 2
YELLOW
3&%
8)*5&
YELLOW: Video
WHITE: Audio (Left)
RED: Audio (Right)
Switching to Auxiliary Video connecter (RCA)Switching to Auxiliary Video connecter (RCA) will show
the video from the connected equipment. 1 Press the [MODE] key
2 Touch [AUX]
eng_a310
The video from the equipment connected to Auxiliary
Video connecter (RCA) will be shown.NOTE When Auxiliary Video connecter (RCA) is connected
on the maker's option Video Entertainment System
and the Video Entertainment System is switched on,
[Rear-Display] will be shown.
 The connected video equipment cannot be operated
with the MMCS.
 Depending on the connected video equipment, it
may produce noise from the speakers.
 Use the connected video equipment
’s own power source,
such as its battery. Noise may be produced from the
speakers if the connected video equipment is used while
charging it using the 12 V power outlets of the vehicle.
 Do not activate [AUX] when no video equipment is
connected. Otherwise, noise may be produced from
the speakers.
 Connect video equipment when [AUX] is deactivated or
lower the vehicle’s speaker volume before connecting
it. Noise may be produced from the speakers if video
equipment is connected after [AUX] is activated. For information on how to connect and operate the
video equipment, refer to the owner’s manual for the
equipment.
Video Entertainment System
If upgraded to the manufacturer’s optional
Video Entertainment System, media
being played in the Video Entertainment
System can be played, or video device,
etc. connected to the Video Entertainment
System can be displayed.
NOTE While driving, DVD and other visual images cannot
be played using the front seat monitor.
 This operation is not possible if no Video
Entertainment System has been connected.
 This device can display in the Video Entertainment
System the audio screen being played, and be
operated using a special remote control.
 For details, refer to the user manual for the Video
Entertainment System.

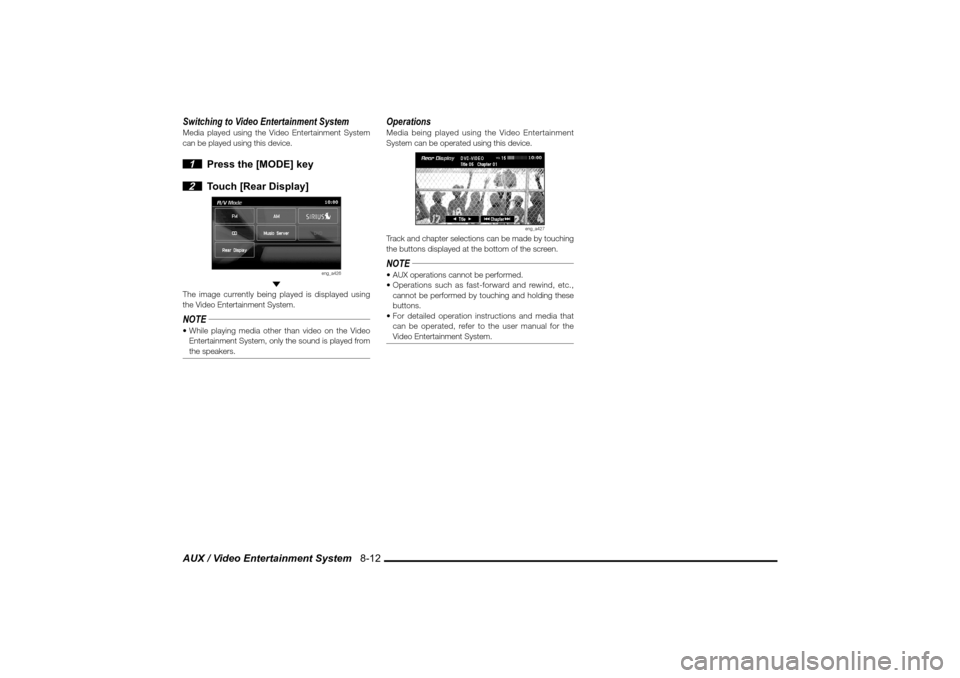

AUX / Video Entertainment System 8-12Switching to Video Entertainment SystemMedia played using the Video Entertainment System
can be played using this device. 1 Press the [MODE] key
2 Touch [Rear Display]
eng_a426

The image currently being played is displayed using
the Video Entertainment System.NOTE While playing media other than video on the Video
Entertainment System, only the sound is played from
the speakers.
OperationsMedia being played using the Video Entertainment
System can be operated using this device.
eng_a427
Track and chapter selections can be made by touching
the buttons displayed at the bottom of the screen.NOTE AUX operations cannot be performed.
 Operations such as fast-forward and rewind, etc.,
cannot be performed by touching and holding these
buttons.
 For detailed operation instructions and media that
can be operated, refer to the user manual for the
Video Entertainment System.

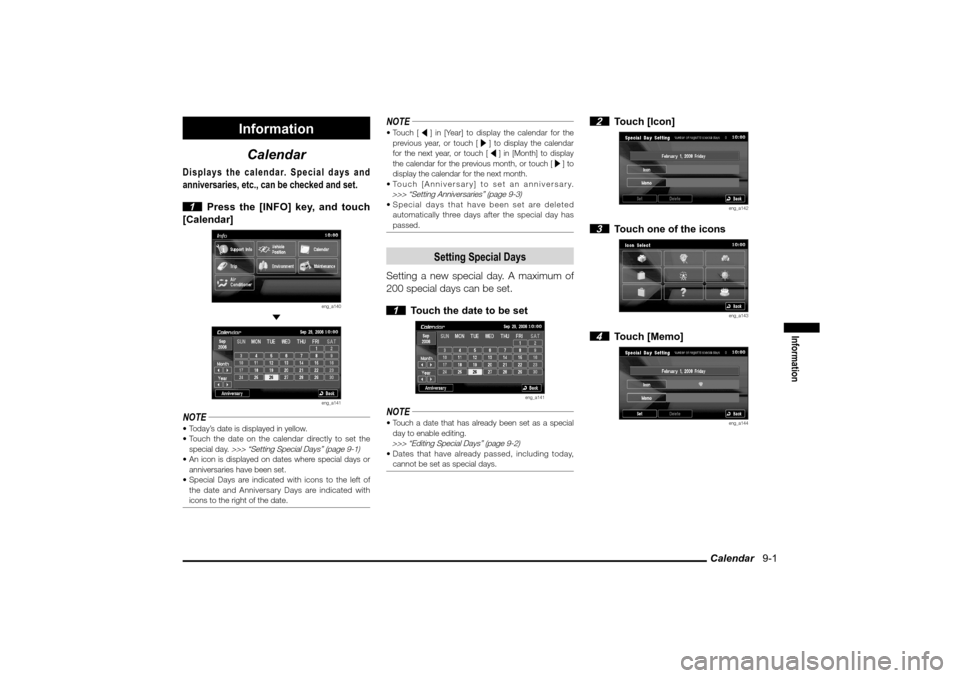

Calendar 9-1
Information
Information
Calendar
Displays the calendar. Special days and
anniversaries, etc., can be checked and set.
1 Press the [INFO] key, and touch
[Calendar]
eng_a140

eng_a141
NOTE Today’s date is displayed in yellow.
 Touch the date on the calendar directly to set the
special day.
>>> “Setting Special Days” (page 9-1)
 An icon is displayed on dates where special days or
anniversaries have been set.
 Special Days are indicated with icons to the left of
the date and Anniversary Days are indicated with
icons to the right of the date.
NOTE Touch [ ] in [Year] to display the calendar for the
previous year, or touch [ ] to display the calendar
for the next year, or touch [ ] in [Month] to display
the calendar for the previous month, or touch [ ] to
display the calendar for the next month. Touch [Anniversary] to set an anniversary. >>> “Setting Anniversaries” (page 9-3) Special days that have been set are deleted
automatically three days after the special day has
passed.
Setting Special Days
Setting a new special day. A maximum of
200 special days can be set.
1 Touch the date to be set
eng_a141
NOTE Touch a date that has already been set as a special
day to enable editing.
>>> “Editing Special Days” (page 9-2) Dates that have already passed, including today,
cannot be set as special days.
2 Touch [Icon]
eng_a142
3 Touch one of the icons
eng_a143
4 Touch [Memo]
eng_a144

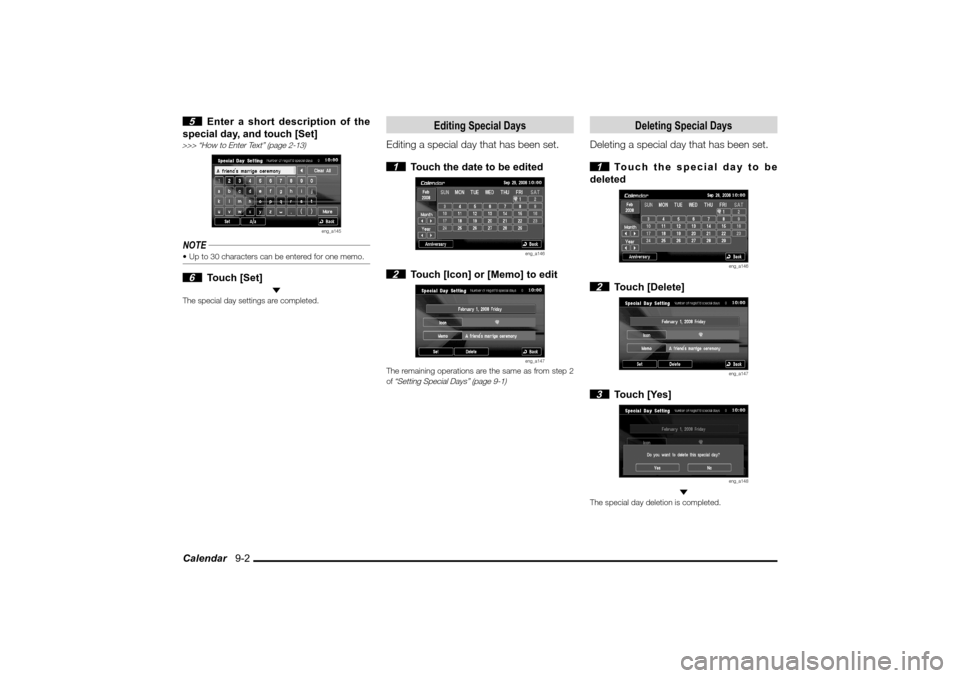

Calendar 9-2 5 Enter a short description of the
special day, and touch [Set]
>>> “How to Enter Text” (page 2-13)
eng_a145
NOTE Up to 30 characters can be entered for one memo. 6 Touch [Set]
The special day settings are completed.
Editing Special Days
Editing a special day that has been set.
1 Touch the date to be edited
eng_a146
2 Touch [Icon] or [Memo] to edit
eng_a147
The remaining operations are the same as from step 2
of “Setting Special Days” (page 9-1)
Deleting Special Days
Deleting a special day that has been set.
1 Touch the special day to be
deleted
eng_a146
2 Touch [Delete]
eng_a147
3 Touch [Yes]
eng_a148

The special day deletion is completed.









Calendar 9-3
Information
Setting Anniversaries
Setting a new anniversary (birthday. etc.).
A maximum of 20 anniversaries can be set. 1 Touch [Anniversary]
eng_a141
2 Touch [New Event]
eng_a149
NOTE Multiple anniversaries can be set for the same day.
 When several anniversaries are set for the same
date, the rst anniversary that was set will be given
priority and the icon will be displayed. 3 Touch [Icon]
eng_a150
4 Touch one of the icons
eng_a143
5 Touch [Date]
eng_a151
6 Touch [
] or [ ] to set the
month or day
eng_a152
7 Touch [Memo]
eng_a153
8 Enter a short description of the
anniversary, and touch [Set]
>>> “How to Enter Text” (page 2-13)
eng_a154
NOTE Up to 30 characters can be entered for one memo. 9 Touch [Set]
eng_a155

The anniversary settings are completed.
