MITSUBISHI LANCER SPORTBACK 2010 8.G MMCS Manual

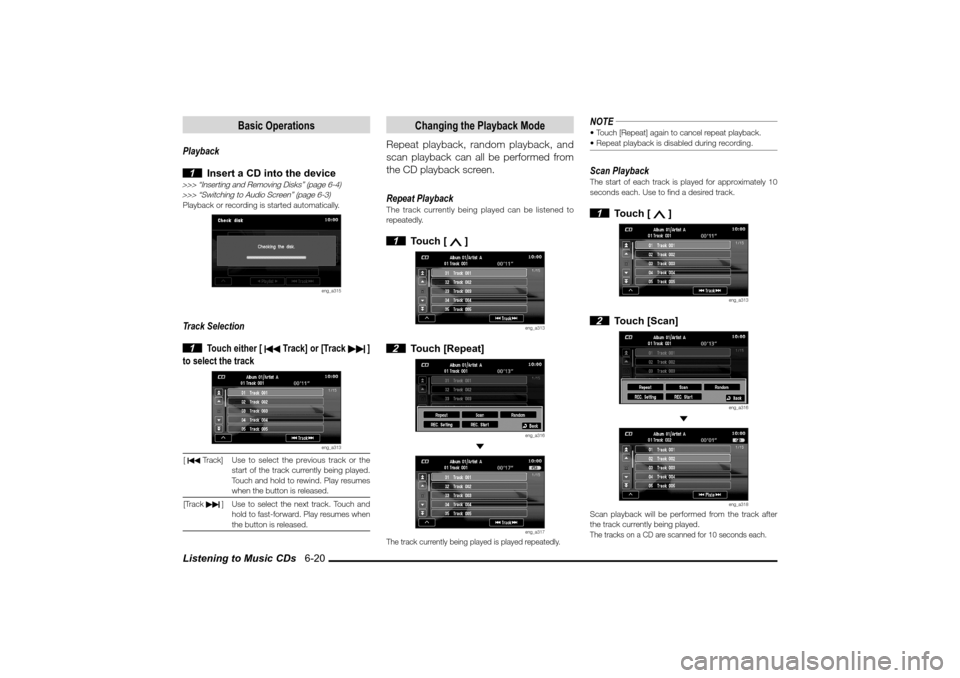

Listening to Music CDs 6-20
Basic Operations
Playback
1 Insert a CD into the device
>>> “Inserting and Removing Disks” (page 6-4)
>>> “Switching to Audio Screen” (page 6-3)Playback or recording is started automatically.
eng_a315
Track Selection
1
Touch either [
Track] or [Track
]
to select the track
eng_a313
[
Track]Use to select the previous track or the
start of the track currently being played.
Touch and hold to rewind. Play resumes
when the button is released.
[Track
] Use to select the next track. Touch and
hold to fast-forward. Play resumes when
the button is released.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the CD playback screen.
Repeat PlaybackThe track currently being played can be listened to
repeatedly. 1 Touch [
]
eng_a313
2 Touch [Repeat]
eng_a316

eng_a317
The track currently being played is played repeatedly.
NOTE Touch [Repeat] again to cancel repeat playback.
 Repeat playback is disabled during recording.Scan PlaybackThe start of each track is played for approximately 10
seconds each. Use to nd a desired track. 1 Touch [
]
eng_a313
2 Touch [Scan]
eng_a316

eng_a318
Scan playback will be performed from the track after
the track currently being played. The tracks on a CD are scanned for 10 seconds each.

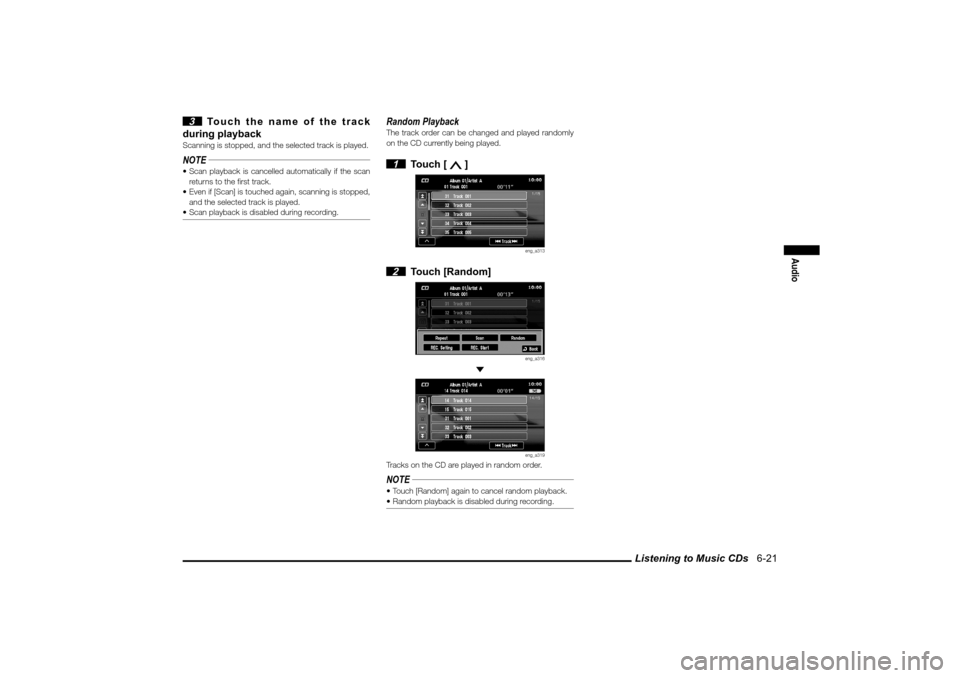

Listening to Music CDs 6-21
Audio
3 Touch the name of the track
during playback
Scanning is stopped, and the selected track is played.NOTE Scan playback is cancelled automatically if the scan
returns to the rst track.
 Even if [Scan] is touched again, scanning is stopped,
and the selected track is played.
 Scan playback is disabled during recording.
Random PlaybackThe track order can be changed and played randomly
on the CD currently being played. 1 Touch [
]
eng_a313
2 Touch [Random]
eng_a316

eng_a319
Tracks on the CD are played in random order.NOTE Touch [Random] again to cancel random playback.
 Random playback is disabled during recording.

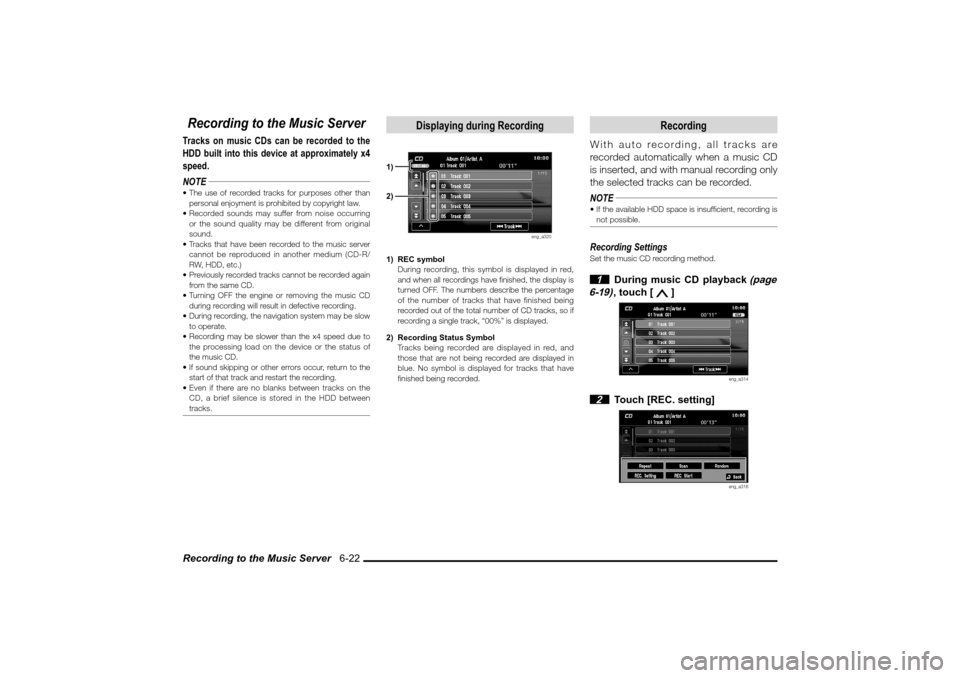

Recording to the Music Server 6-22Recording to the Music ServerTracks on music CDs can be recorded to the
HDD built into this device at approximately x4
speed.
NOTE The use of recorded tracks for purposes other than
personal enjoyment is prohibited by copyright law.
 Recorded sounds may suffer from noise occurring
or the sound quality may be different from original
sound.
 Tracks that have been recorded to the music server
cannot be reproduced in another medium (CD-R/
RW, HDD, etc.)
 Previously recorded tracks cannot be recorded again
from the same CD.
 Turning OFF the engine or removing the music CD
during recording will result in defective recording.
 During recording, the navigation system may be slow
to operate.
 Recording may be slower than the x4 speed due to
the processing load on the device or the status of
the music CD.
 If sound skipping or other errors occur, return to the
start of that track and restart the recording.
 Even if there are no blanks between tracks on the
CD, a brief silence is stored in the HDD between
tracks.
Displaying during Recording
eng_a320
1) REC symbol
During recording, this symbol is displayed in red,
and when all recordings have nished, the display is
turned OFF. The numbers describe the percentage
of the number of tracks that have finished being
recorded out of the total number of CD tracks, so if
recording a single track, “00%” is displayed.
2) Recording Status Symbol
Tracks being recorded are displayed in red, and
those that are not being recorded are displayed in
blue. No symbol is displayed for tracks that have
nished being recorded.
Recording
With auto recording, all tracks are
recorded automatically when a music CD
is inserted, and with manual recording only
the selected tracks can be recorded.
NOTE If the available HDD space is insuf cient, recording is
not possible.Recording SettingsSet the music CD recording method. 1 During music CD playback
(page
6-19)
, touch [
]
eng_a314
2 Touch [REC. setting]
eng_a316
1)2)

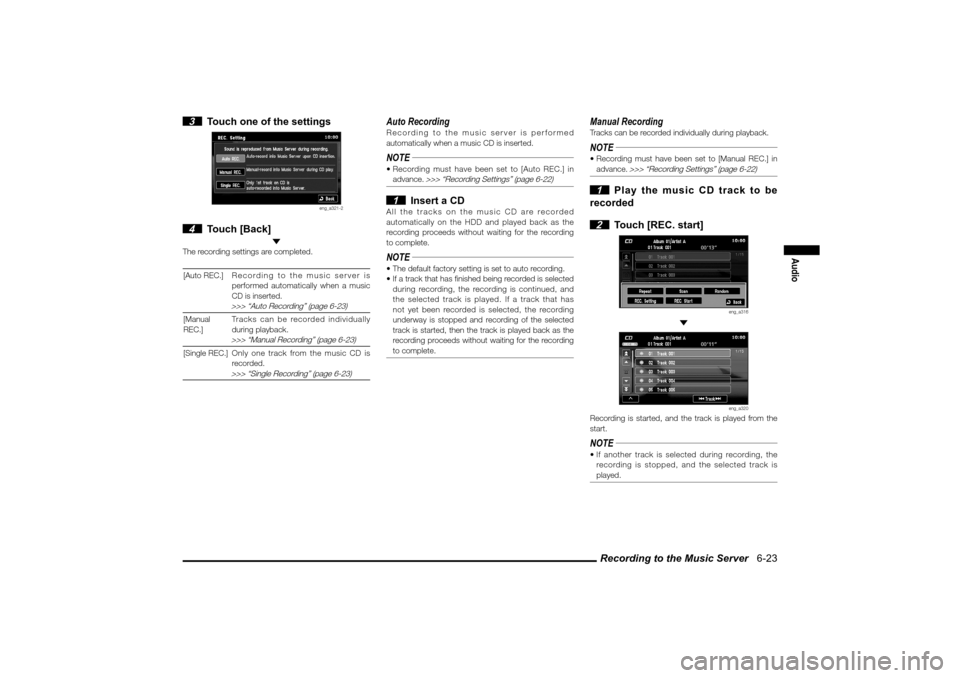

Recording to the Music Server 6-23
Audio
3 Touch one of the settings
eng_a321-2
4 Touch [Back]
The recording settings are completed.
[Auto REC.]Recording to the music server is
performed automatically when a music
CD is inserted.
>>> “Auto Recording” (page 6-23)
[Manual
REC.]Tracks can be recorded individually
during playback.
>>> “Manual Recording” (page 6-23)
[Single REC.]Only one track from the music CD is
recorded.
>>> “Single Recording” (page 6-23)
Auto RecordingRecording to the music server is performed
automatically when a music CD is inserted.NOTE Recording must have been set to [Auto REC.] in
advance.
>>> “Recording Settings” (page 6-22)
1 Insert a CD
All the tracks on the music CD are recorded
automatically on the HDD and played back as the
recording proceeds without waiting for the recording
to complete.NOTE The default factory setting is set to auto recording.
 If a track that has nished being recorded is selected
during recording, the recording is continued, and
the selected track is played. If a track that has
not yet been recorded is selected, the recording
underway is stopped and recording of the selected
track is started, then the track is played back as the
recording proceeds without waiting for the recording
to complete.
Manual RecordingTracks can be recorded individually during playback.NOTE Recording must have been set to [Manual REC.] in
advance.
>>> “Recording Settings” (page 6-22)
1 Play the music CD track to be
recorded
2 Touch [REC. start]
eng_a316

eng_a320
Recording is started, and the track is played from the
start.NOTE If another track is selected during recording, the
recording is stopped, and the selected track is
played.

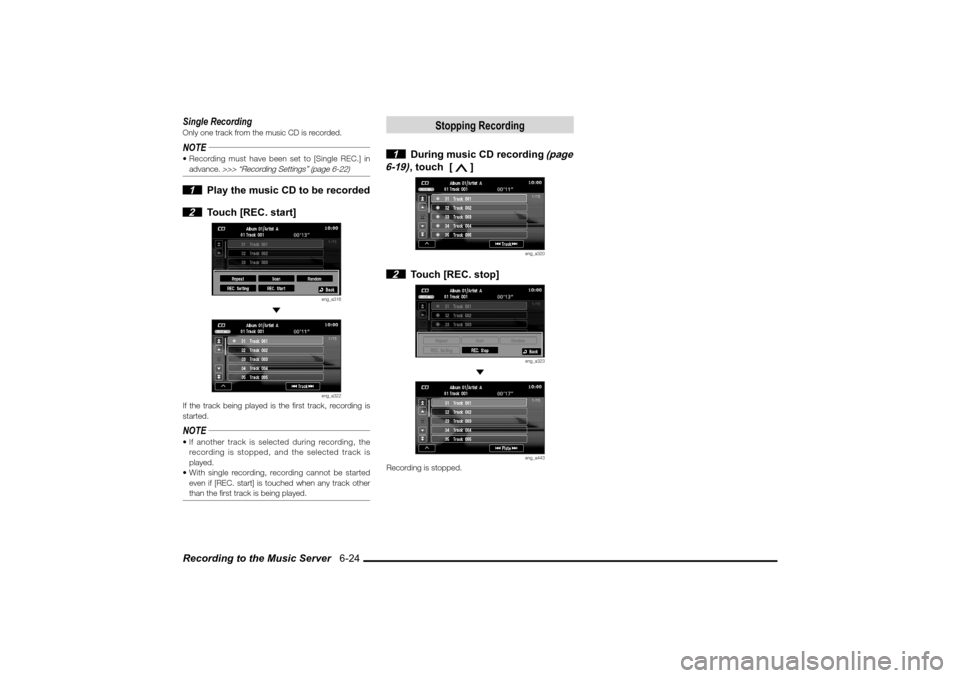

Recording to the Music Server 6-24Single RecordingOnly one track from the music CD is recorded.NOTE Recording must have been set to [Single REC.] in
advance.
>>> “Recording Settings” (page 6-22)
1 Play the music CD to be recorded
2 Touch [REC. start]
eng_a316

eng_a322
If the track being played is the rst track, recording is
started.NOTE If another track is selected during recording, the
recording is stopped, and the selected track is
played.
 With single recording, recording cannot be started
even if [REC. start] is touched when any track other
than the rst track is being played.
Stopping Recording
1 During music CD recording
(page
6-19)
, touch [
]
eng_a320
2 Touch [REC. stop]
eng_a323

eng_a443
Recording is stopped.

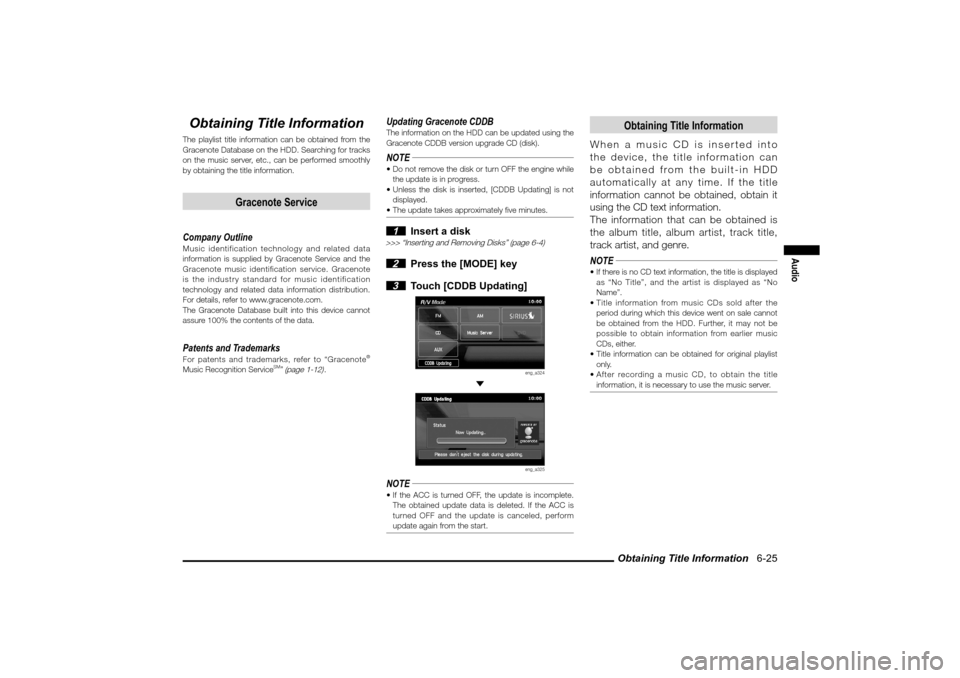

Obtaining Title Information 6-25
Audio
Obtaining Title InformationThe playlist title information can be obtained from the
Gracenote Database on the HDD. Searching for tracks
on the music server, etc., can be performed smoothly
by obtaining the title information.
Gracenote Service
Company OutlineMusic identification technology and related data
information is supplied by Gracenote Service and the
Gracenote music identification service. Gracenote
is the industry standard for music identification
technology and related data information distribution.
For details, refer to www.gracenote.com.
The Gracenote Database built into this device cannot
assure 100% the contents of the data.Patents and TrademarksFor patents and trademarks, refer to “Gracenote
®
Music Recognition Service
SM” (page 1-12)
.
Updating Gracenote CDDBThe information on the HDD can be updated using the
Gracenote CDDB version upgrade CD (disk).NOTE Do not remove the disk or turn OFF the engine while
the update is in progress.
 Unless the disk is inserted, [CDDB Updating] is not
displayed.
 The update takes approximately ve minutes. 1 Insert a disk
>>> “Inserting and Removing Disks” (page 6-4) 2 Press the [MODE] key
3 Touch [CDDB Updating]
eng_a324

eng_a325
NOTE If the ACC is turned OFF, the update is incomplete.
The obtained update data is deleted. If the ACC is
turned OFF and the update is canceled, perform
update again from the start.
Obtaining Title Information
When a music CD is inserted into
the device, the title information can
be obtained from the built-in HDD
automatically at any time. If the title
information cannot be obtained, obtain it
using the CD text information.
The information that can be obtained is
the album title, album artist, track title,
track artist, and genre.
NOTE If there is no CD text information, the title is displayed
as “No Title”, and the artist is displayed as “No
Name”.
 Title information from music CDs sold after the
period during which this device went on sale cannot
be obtained from the HDD. Further, it may not be
possible to obtain information from earlier music
CDs, either.
 Title information can be obtained for original playlist
only.
 After recording a music CD, to obtain the title
information, it is necessary to use the music server.

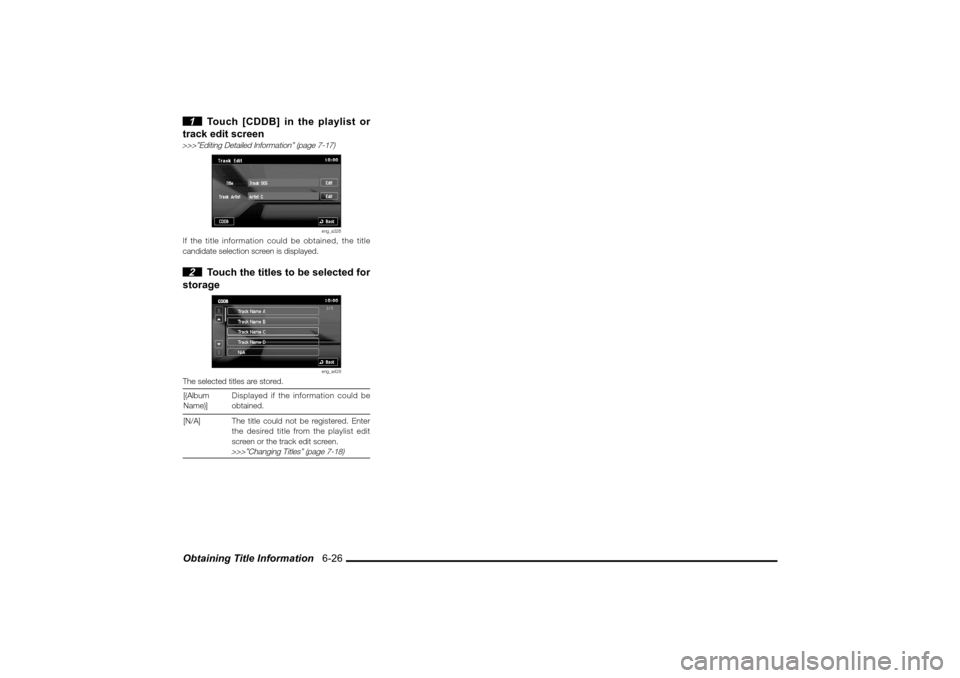

Obtaining Title Information 6-26 1 Touch [CDDB] in the playlist or
track edit screen
>>>”Editing Detailed Information” (page 7-17)
eng_a326
If the title information could be obtained, the title
candidate selection screen is displayed. 2 Touch the titles to be selected for
storage
eng_a428
The selected titles are stored.
[(Album
Name)]Displayed if the information could be
obtained.
[N/A]The title could not be registered. Enter
the desired title from the playlist edit
screen or the track edit screen.
>>>”Changing Titles” (page 7-18)

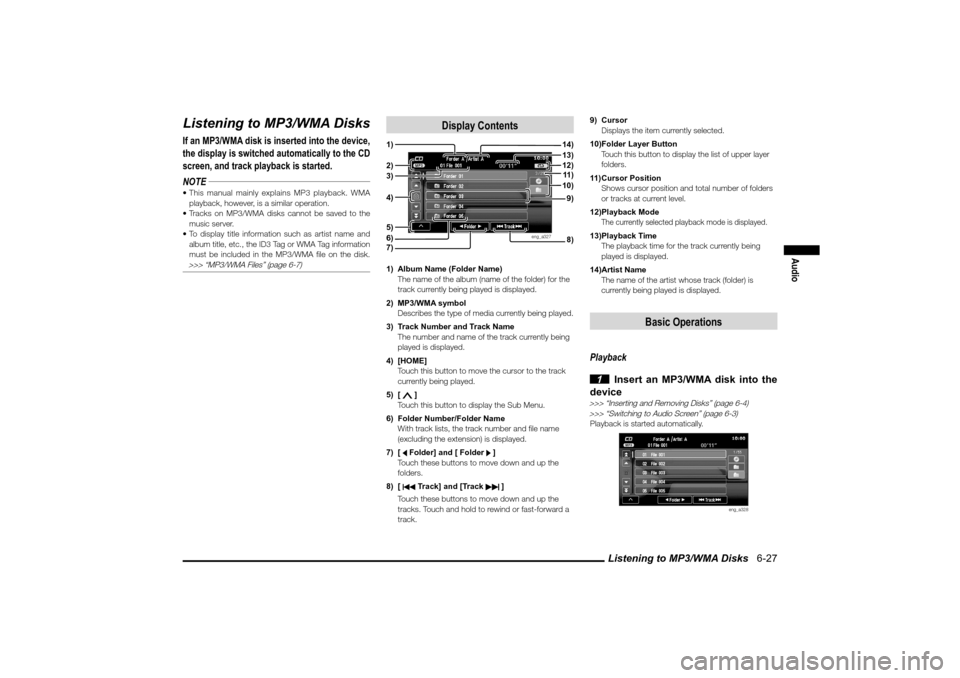

Listening to MP3/WMA Disks 6-27
Audio
Listening to MP3/WMA DisksIf an MP3/WMA disk is inserted into the device,
the display is switched automatically to the CD
screen, and track playback is started.
NOTE This manual mainly explains MP3 playback. WMA
playback, however, is a similar operation.
 Tracks on MP3/WMA disks cannot be saved to the
music server.
 To display title information such as artist name and
album title, etc., the ID3 Tag or WMA Tag information
must be included in the MP3/WMA le on the disk. >>> “MP3/WMA Files” (page 6-7)
Display Contents
eng_a327
1) Album Name (Folder Name)
The name of the album (name of the folder) for the
track currently being played is displayed.
2) MP3/WMA symbol
Describes the type of media currently being played.
3) Track Number and Track Name
The number and name of the track currently being
played is displayed.
4) [HOME]
Touch this button to move the cursor to the track
currently being played.
5) [ ]
Touch this button to display the Sub Menu.
6) Folder Number/Folder Name
With track lists, the track number and le name
(excluding the extension) is displayed.
7) [
Folder] and [ Folder
]
Touch these buttons to move down and up the
folders.
8) [
Track] and [Track
]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
9) Cursor
Displays the item currently selected.
10) Folder Layer Button
Touch this button to display the list of upper layer
folders.
11) Cursor Position
Shows cursor position and total number of folders
or tracks at current level.
12) Playback Mode
The currently selected playback mode is displayed.13) Playback Time
The playback time for the track currently being
played is displayed.
14) Artist Name
The name of the artist whose track (folder) is
currently being played is displayed.
Basic Operations
Playback
1 Insert an MP3/WMA disk into the
device
>>> “Inserting and Removing Disks” (page 6-4)
>>> “Switching to Audio Screen” (page 6-3)Playback is started automatically.
eng_a328
1)4)5) 3)6)
8)9)12)13)14)
2)7)
10)11 )

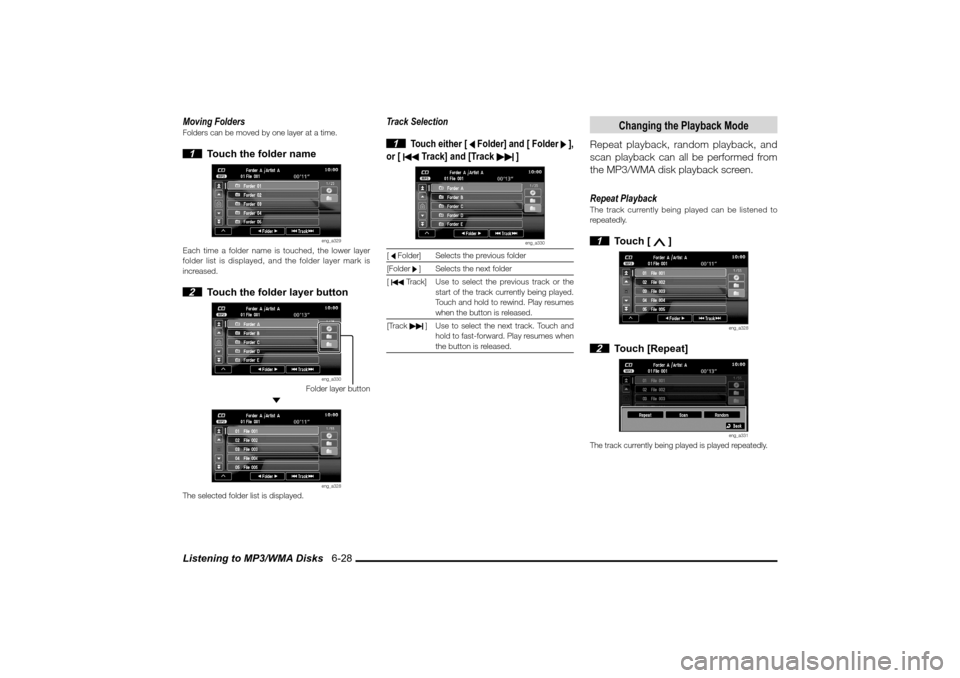

Listening to MP3/WMA Disks 6-28Moving FoldersFolders can be moved by one layer at a time. 1 Touch the folder name
eng_a329
Each time a folder name is touched, the lower layer
folder list is displayed, and the folder layer mark is
increased. 2 Touch the folder layer button
eng_a330
Folder layer button

eng_a328
The selected folder list is displayed.
Track Selection
1
Touch either [
Folder] and [ Folder ],
or [
Track] and [Track
]
eng_a330
[ Folder] Selects the previous folder
[Folder ] Selects the next folder
[
Track] Use to select the previous track or the
start of the track currently being played.
Touch and hold to rewind. Play resumes
when the button is released.
[Track
] Use to select the next track. Touch and
hold to fast-forward. Play resumes when
the button is released.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the MP3/WMA disk playback screen.
Repeat PlaybackThe track currently being played can be listened to
repeatedly. 1 Touch [
]
eng_a328
2 Touch [Repeat]
eng_a331
The track currently being played is played repeatedly.

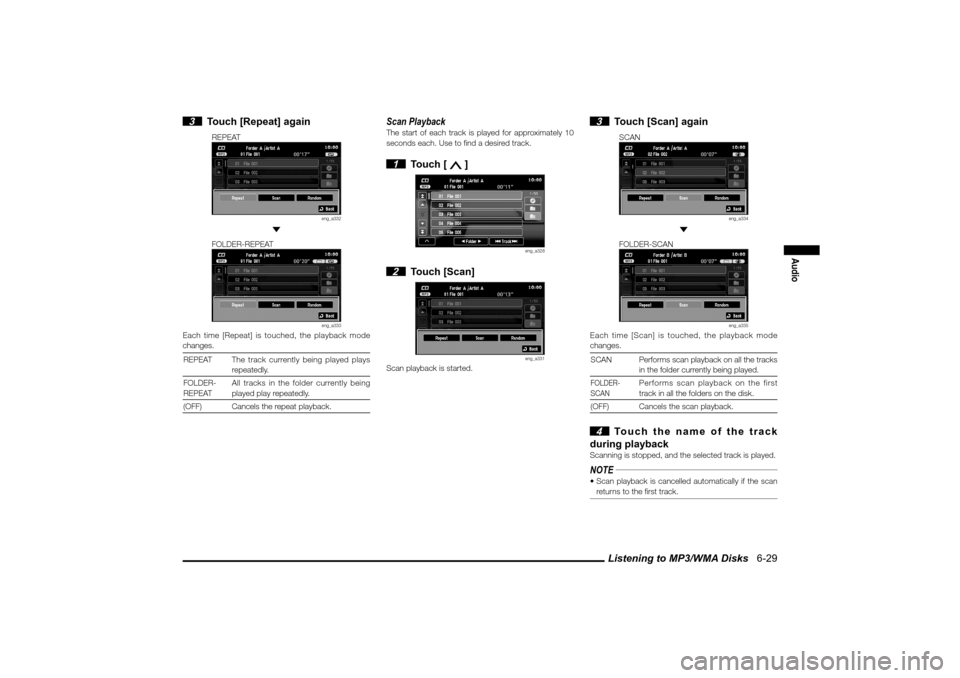

Listening to MP3/WMA Disks 6-29
Audio
3 Touch [Repeat] again
REPEAT
eng_a332

FOLDER-REPEAT
eng_a333
Each time [Repeat] is touched, the playback mode
changes.
REPEAT The track currently being played plays
repeatedly.
FOLDER-
REPEATAll tracks in the folder currently being
played play repeatedly.
(OFF) Cancels the repeat playback.
Scan PlaybackThe start of each track is played for approximately 10
seconds each. Use to nd a desired track. 1 Touch [
]
eng_a328
2 Touch [Scan]
eng_a331
Scan playback is started.
3 Touch [Scan] again
SCAN
eng_a334

FOLDER-SCAN
eng_a335
Each time [Scan] is touched, the playback mode
changes.
SCAN Performs scan playback on all the tracks
in the folder currently being played.FOLDER-
SCAN
Performs scan playback on the first
track in all the folders on the disk.
(OFF) Cancels the scan playback.
4 Touch the name of the track
during playback
Scanning is stopped, and the selected track is played.NOTE Scan playback is cancelled automatically if the scan
returns to the rst track.
