MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual

3-16 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100081
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the rear hatch to be locked and unlocked
and the engine to be started simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-45.
CAUTION
!

When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the rear hatch, and starting the
engine. When leaving the vehicle, make sure you are carrying
the F.A.S.T.-key and then lock the vehicle.
WA R N I N G
!

Individuals who use implantable pacemakers or
implantable cardioverter-defibrillators should keep
away from the external and internal transmitters.
The electromagnetic waves used in the F.A.S.T.-key
may affect the operation of implantable pacemakers
and implantable cardioverter-defibrillators.
BK0103001US.book 16 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-17
3

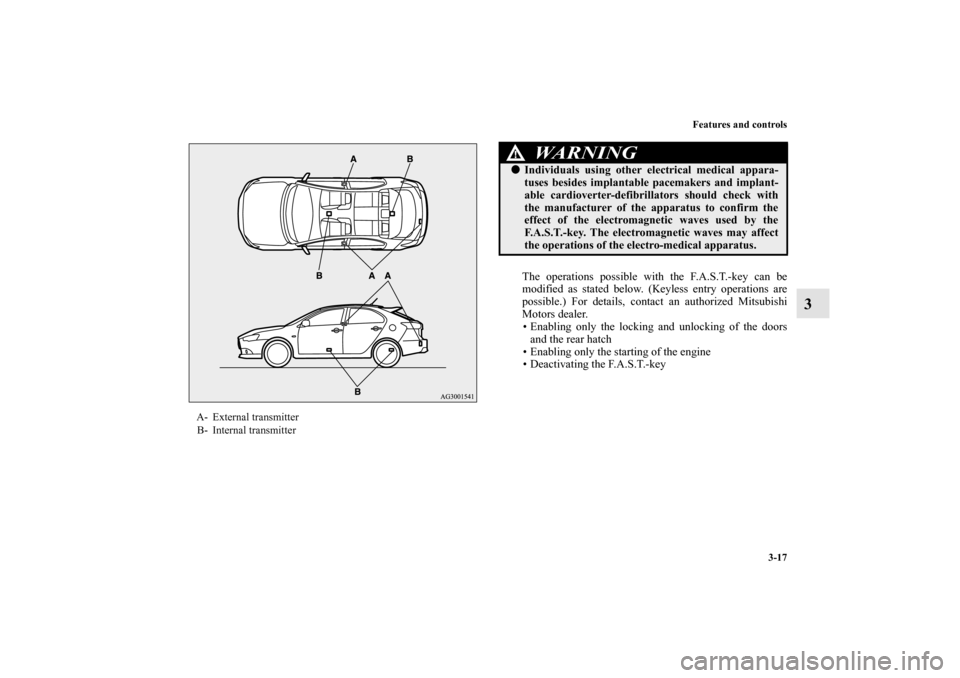

The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors dealer.
 Enabling only the locking and unlocking of the doors
and the rear hatch
 Enabling only the starting of the engine
 Deactivating the F.A.S.T.-key
A- External transmitter
B- Internal transmitter
WA R N I N G
!

Individuals using other electrical medical appara-
tuses besides implantable pacemakers and implant-
able cardioverter-defibrillators should check with
the manufacturer of the apparatus to confirm the
effect of the electromagnetic waves used by the
F.A.S.T.-key. The electromagnetic waves may affect
the operations of the electro-medical apparatus.
BK0103001US.book 17 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-18 Features and controls
3

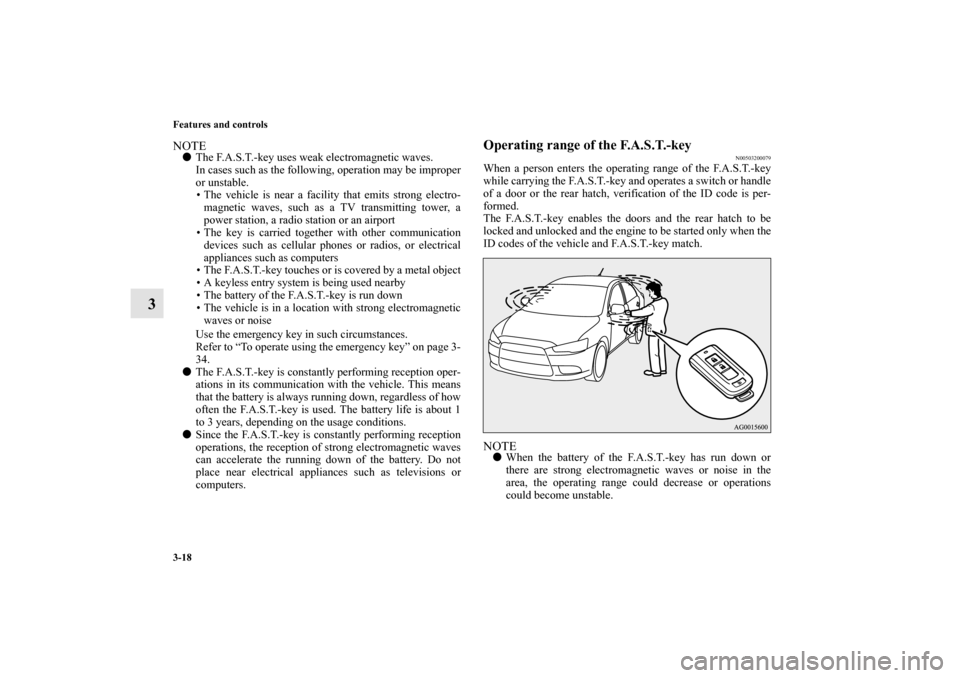

NOTE

The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
 The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
 The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
 The F.A.S.T.-key touches or is covered by a metal object
 A keyless entry system is being used nearby
 The battery of the F.A.S.T.-key is run down
 The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate using the emergency key” on page 3-
34.


The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.


Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near electrical appliances such as televisions or
computers.
Operating range of the F.A.S.T.-key
N00503200079
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and operates a switch or handle
of a door or the rear hatch, verification of the ID code is per-
formed.
The F.A.S.T.-key enables the doors and the rear hatch to be
locked and unlocked and the engine to be started only when the
ID codes of the vehicle and F.A.S.T.-key match.NOTE

When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0103001US.book 18 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-19
3

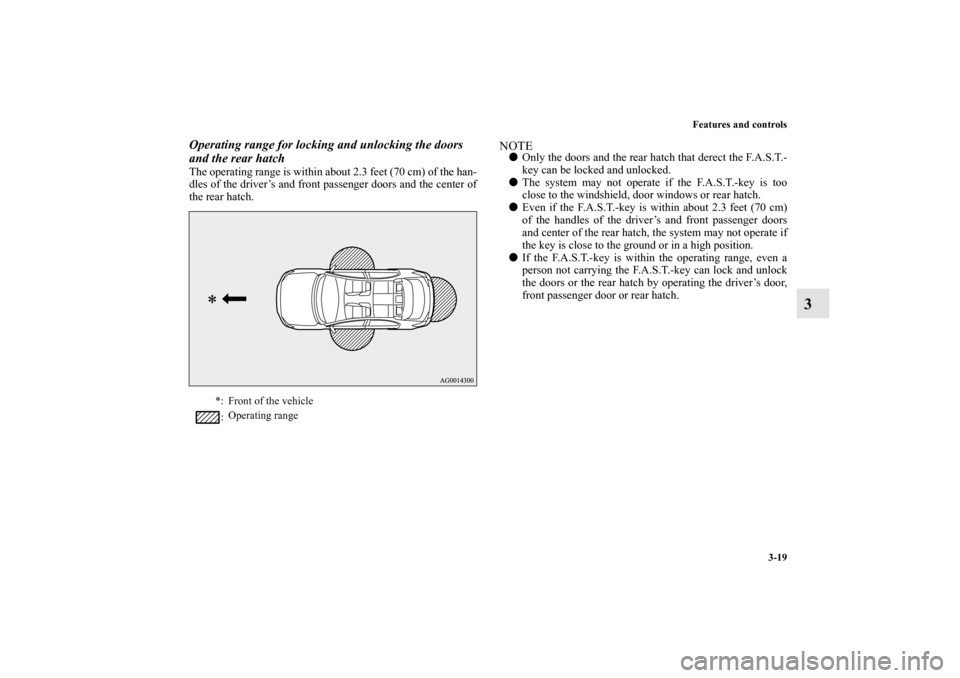

Operating range for locking and unlocking the doors
and the rear hatchThe operating range is within about 2.3 feet (70 cm) of the han-
dles of the driver’s and front passenger doors and the center of
the rear hatch.
NOTE

Only the doors and the rear hatch that derect the F.A.S.T.-
key can be locked and unlocked.


The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or rear hatch.


Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the handles of the driver’s and front passenger doors
and center of the rear hatch, the system may not operate if
the key is close to the ground or in a high position.


If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or the rear hatch by operating the driver’s door,
front passenger door or rear hatch.
*: Front of the vehicle
:Operating range
BK0103001US.book 19 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-20 Features and controls
3

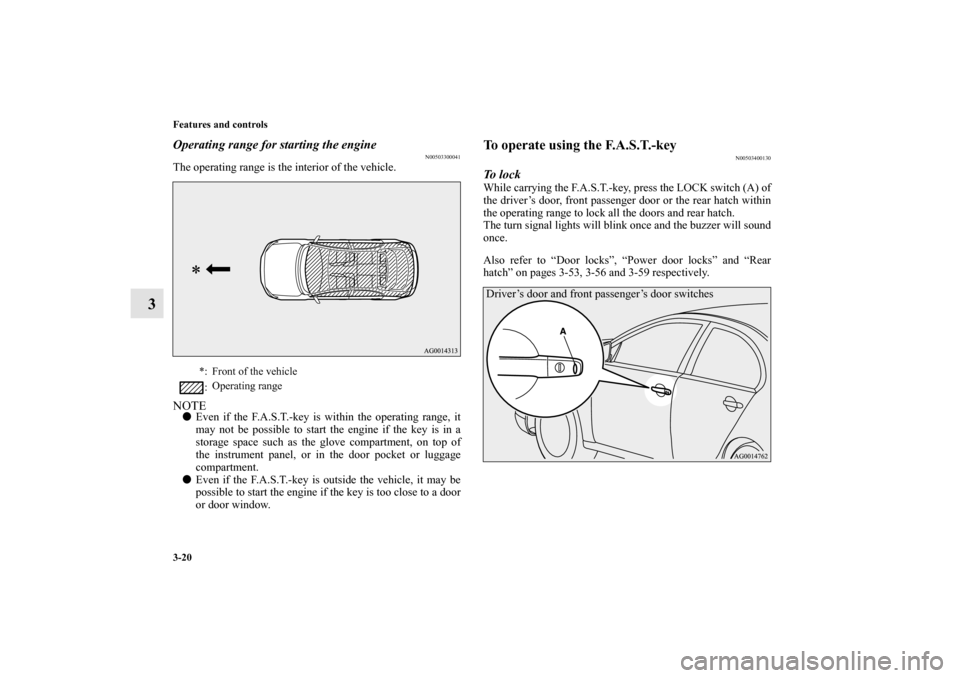

Operating range for starting the engine
N00503300041
The operating range is the interior of the vehicle.NOTE

Even if the F.A.S.T.-key is within the operating range, it
may not be possible to start the engine if the key is in a
storage space such as the glove compartment, on top of
the instrument panel, or in the door pocket or luggage
compartment.


Even if the F.A.S.T.-key is outside the vehicle, it may be
possible to start the engine if the key is too close to a door
or door window.
To operate using the F.A.S.T.-key
N00503400130
To l o c kWhile carrying the F.A.S.T.-key, press the LOCK switch (A) of
the driver’s door, front passenger door or the rear hatch within
the operating range to lock all the doors and rear hatch.
The turn signal lights will blink once and the buzzer will sound
once.
Also refer to “Door locks”, “Power door locks” and “Rear
hatch” on pages 3-53, 3-56 and 3-59 respectively.
*: Front of the vehicle
:Operating range
Driver’s door and front passenger’s door switches
BK0103001US.book 20 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-21
3

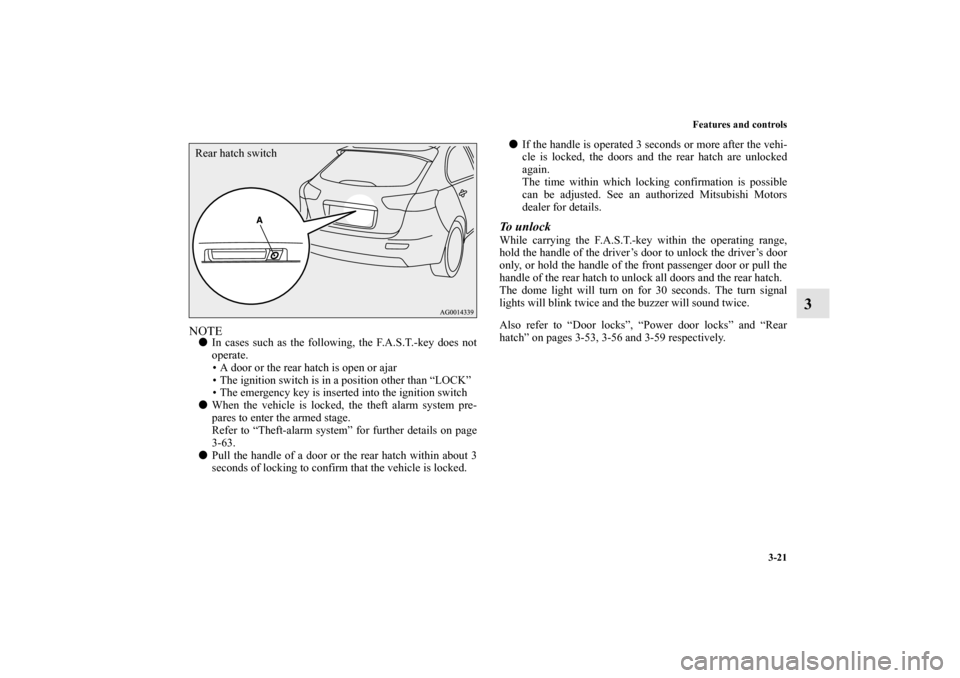

NOTE

In cases such as the following, the F.A.S.T.-key does not
operate.
 A door or the rear hatch is open or ajar
 The ignition switch is in a position other than “LOCK”
 The emergency key is inserted into the ignition switch


When the vehicle is locked, the theft alarm system pre-
pares to enter the armed stage.
Refer to “Theft-alarm system” for further details on page
3-63.


Pull the handle of a door or the rear hatch within about 3
seconds of locking to confirm that the vehicle is locked.


If the handle is operated 3 seconds or more after the vehi-
cle is locked, the doors and the rear hatch are unlocked
again.
The time within which locking confirmation is possible
can be adjusted. See an authorized Mitsubishi Motors
dealer for details.
To unlockWhile carrying the F.A.S.T.-key within the operating range,
hold the handle of the driver’s door to unlock the driver’s door
only, or hold the handle of the front passenger door or pull the
handle of the rear hatch to unlock all doors and the rear hatch.
The dome light will turn on for 30 seconds. The turn signal
lights will blink twice and the buzzer will sound twice.
Also refer to “Door locks”, “Power door locks” and “Rear
hatch” on pages 3-53, 3-56 and 3-59 respectively.
Rear hatch switch
BK0103001US.book 21 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-22 Features and controls
3

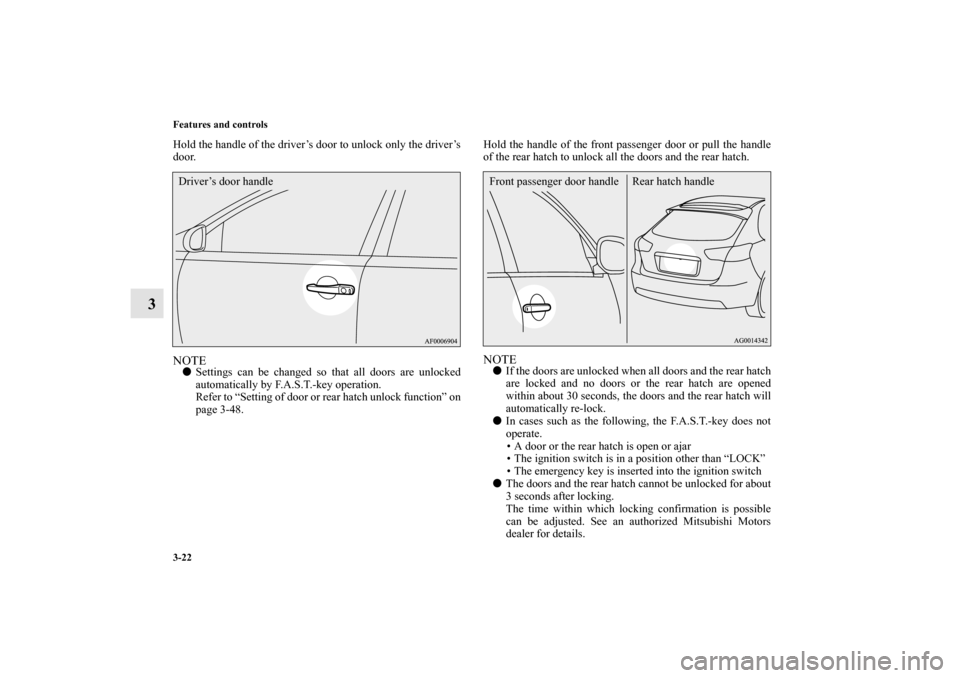

Hold the handle of the driver’s door to unlock only the driver’s
door.NOTE

Settings can be changed so that all doors are unlocked
automatically by F.A.S.T.-key operation.
Refer to “Setting of door or rear hatch unlock function” on
page 3-48.Hold the handle of the front passenger door or pull the handle
of the rear hatch to unlock all the doors and the rear hatch.
NOTE

If the doors are unlocked when all doors and the rear hatch
are locked and no doors or the rear hatch are opened
within about 30 seconds, the doors and the rear hatch will
automatically re-lock.


In cases such as the following, the F.A.S.T.-key does not
operate.
 A door or the rear hatch is open or ajar
 The ignition switch is in a position other than “LOCK”
 The emergency key is inserted into the ignition switch


The doors and the rear hatch cannot be unlocked for about
3 seconds after locking.
The time within which locking confirmation is possible
can be adjusted. See an authorized Mitsubishi Motors
dealer for details.
Driver’s door handle
Front passenger door handle Rear hatch handle
BK0103001US.book 22 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-23
3

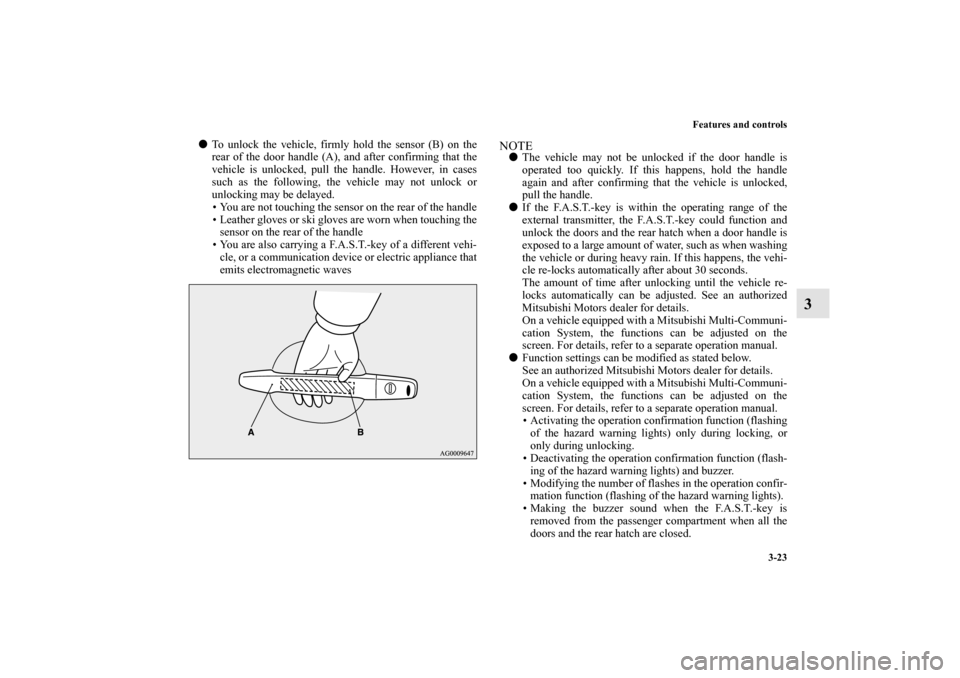

To unlock the vehicle, firmly hold the sensor (B) on the
rear of the door handle (A), and after confirming that the
vehicle is unlocked, pull the handle. However, in cases
such as the following, the vehicle may not unlock or
unlocking may be delayed.
 You are not touching the sensor on the rear of the handle
 Leather gloves or ski gloves are worn when touching the
sensor on the rear of the handle
 You are also carrying a F.A.S.T.-key of a different vehi-
cle, or a communication device or electric appliance that
emits electromagnetic waves
NOTE

The vehicle may not be unlocked if the door handle is
operated too quickly. If this happens, hold the handle
again and after confirming that the vehicle is unlocked,
pull the handle.


If the F.A.S.T.-key is within the operating range of the
external transmitter, the F.A.S.T.-key could function and
unlock the doors and the rear hatch when a door handle is
exposed to a large amount of water, such as when washing
the vehicle or during heavy rain. If this happens, the vehi-
cle re-locks automatically after about 30 seconds.
The amount of time after unlocking until the vehicle re-
locks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.


Function settings can be modified as stated below.
See an authorized Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
 Activating the operation confirmation function (flashing
of the hazard warning lights) only during locking, or
only during unlocking.
 Deactivating the operation confirmation function (flash-
ing of the hazard warning lights) and buzzer.
 Modifying the number of flashes in the operation confir-
mation function (flashing of the hazard warning lights).
 Making the buzzer sound when the F.A.S.T.-key is
removed from the passenger compartment when all the
doors and the rear hatch are closed.
BK0103001US.book 23 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-24 Features and controls
3

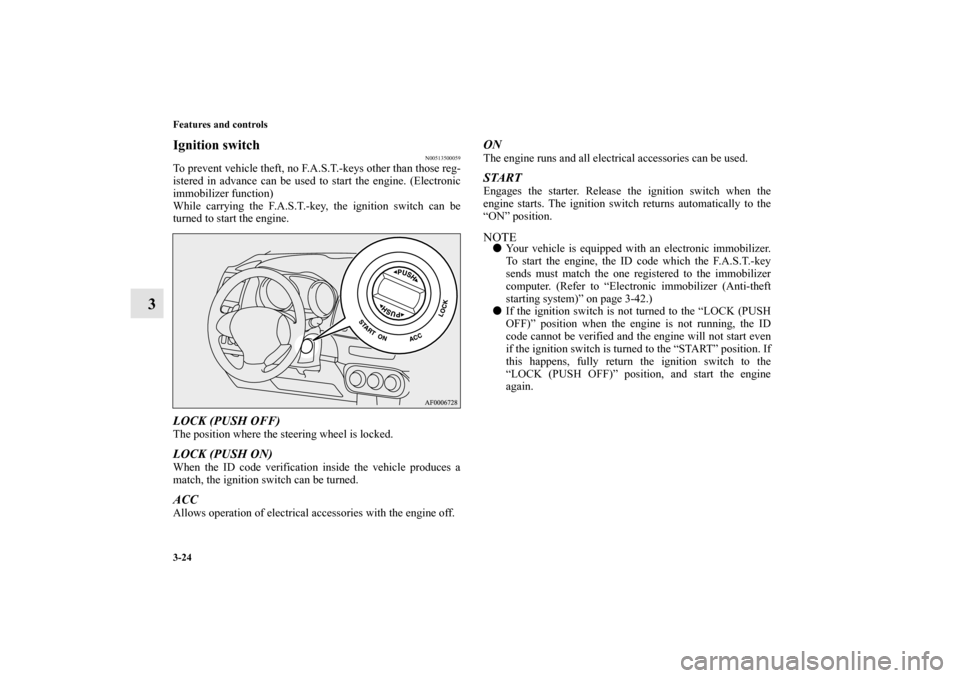

Ignition switch
N00513500059
To prevent vehicle theft, no F.A.S.T.-keys other than those reg-
istered in advance can be used to start the engine. (Electronic
immobilizer function)
While carrying the F.A.S.T.-key, the ignition switch can be
turned to start the engine.LOCK (PUSH OFF)The position where the steering wheel is locked.LOCK (PUSH ON)When the ID code verification inside the vehicle produces a
match, the ignition switch can be turned.ACCAllows operation of electrical accessories with the engine off.
ONThe engine runs and all electrical accessories can be used.STARTEngages the starter. Release the ignition switch when the
engine starts. The ignition switch returns automatically to the
“ON” position.NOTE

Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the F.A.S.T.-key
sends must match the one registered to the immobilizer
computer. (Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-42.)


If the ignition switch is not turned to the “LOCK (PUSH
OFF)” position when the engine is not running, the ID
code cannot be verified and the engine will not start even
if the ignition switch is turned to the “START” position. If
this happens, fully return the ignition switch to the
“LOCK (PUSH OFF)” position, and start the engine
again.
BK0103001US.book 24 ページ ２００９年８月２０日　木曜日　午前１０時４５分

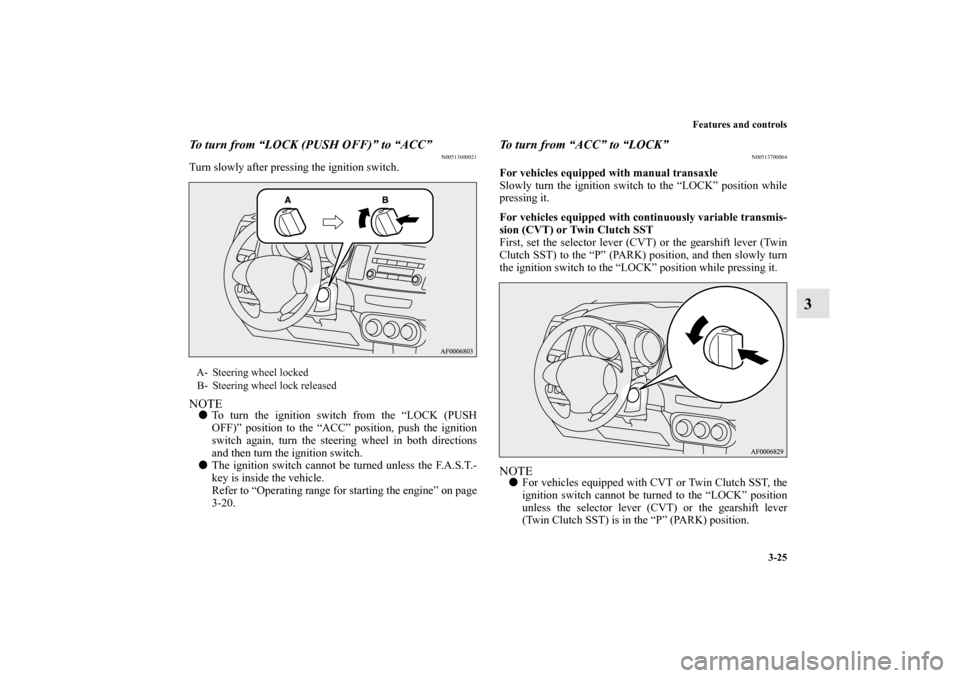

Features and controls
3-25
3
To turn from “LOCK (PUSH OFF)” to “ACC”
N00513600021
Turn slowly after pressing the ignition switch.NOTE

To turn the ignition switch from the “LOCK (PUSH
OFF)” position to the “ACC” position, push the ignition
switch again, turn the steering wheel in both directions
and then turn the ignition switch.


The ignition switch cannot be turned unless the F.A.S.T.-
key is inside the vehicle.
Refer to “Operating range for starting the engine” on page
3-20.
To turn from “ACC” to “LOCK”
N00513700064
For vehicles equipped with manual transaxle
Slowly turn the ignition switch to the “LOCK” position while
pressing it.
For vehicles equipped with continuously variable transmis-
sion (CVT) or Twin Clutch SST
First, set the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) to the “P” (PARK) position, and then slowly turn
the ignition switch to the “LOCK” position while pressing it.NOTE

For vehicles equipped with CVT or Twin Clutch SST, the
ignition switch cannot be turned to the “LOCK” position
unless the selector lever (CVT) or the gearshift lever
(Twin Clutch SST) is in the “P” (PARK) position.
A- Steering wheel locked
B- Steering wheel lock released
BK0103001US.book 25 ページ ２００９年８月２０日　木曜日　午前１０時４５分
