2-8 Seat and restraint systems

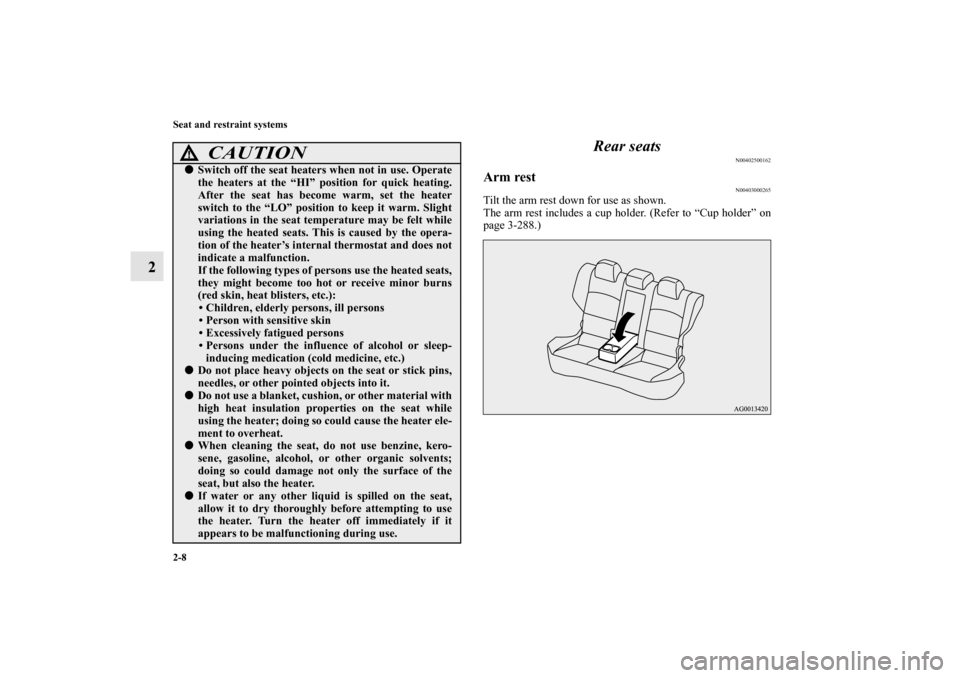

2Rear seats
N00402500162
Arm rest
N00403000265
Tilt the arm rest down for use as shown.
The arm rest includes a cup holder. (Refer to “Cup holder” on
page 3-288.)
CAUTION
!
Switch off the seat heaters when not in use. Operate
the heaters at the “HI” position for quick heating.
After the seat has become warm, set the heater
switch to the “LO” position to keep it warm. Slight
variations in the seat temperature may be felt while
using the heated seats. This is caused by the opera-
tion of the heater’s internal thermostat and does not
indicate a malfunction.
If the following types of persons use the heated seats,
they might become too hot or receive minor burns
(red skin, heat blisters, etc.): Children, elderly persons, ill persons
Person with sensitive skin
Excessively fatigued persons
Persons under the influence of alcohol or sleep-
inducing medication (cold medicine, etc.)
Do not place heavy objects on the seat or stick pins,
needles, or other pointed objects into it.
Do not use a blanket, cushion, or other material with
high heat insulation properties on the seat while
using the heater; doing so could cause the heater ele-
ment to overheat.
When cleaning the seat, do not use benzine, kero-
sene, gasoline, alcohol, or other organic solvents;
doing so could damage not only the surface of the
seat, but also the heater.
If water or any other liquid is spilled on the seat,
allow it to dry thoroughly before attempting to use
the heater. Turn the heater off immediately if it
appears to be malfunctioning during use.
BK0103001US.book 8 ページ 2009年8月20日 木曜日 午前10時45分
Page 42 of 658
Seat and restraint systems
2-9

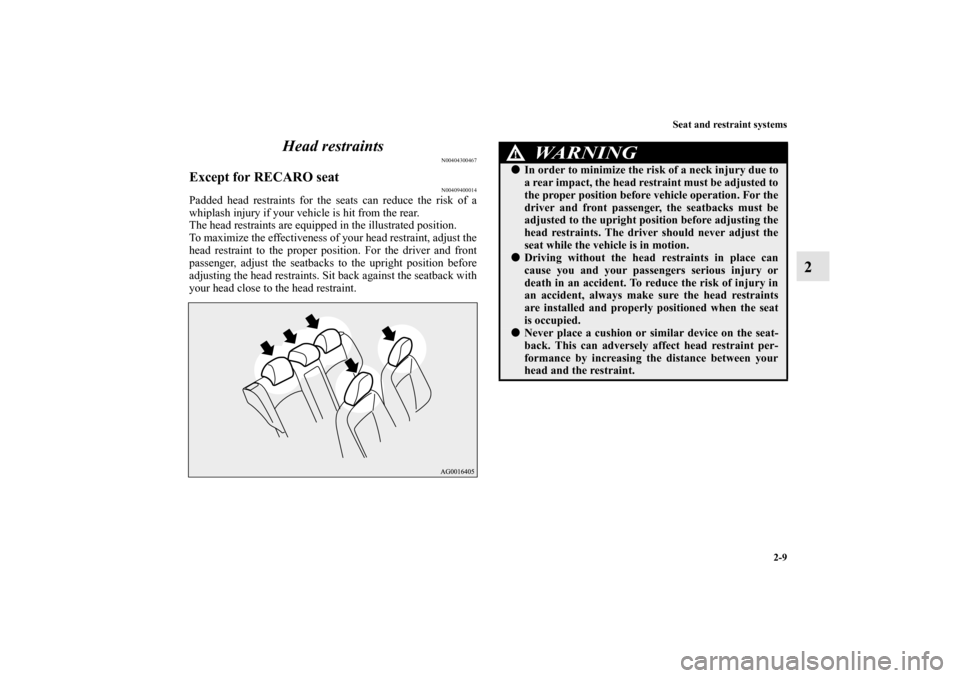

2 Head restraints
N00404300467
Except for RECARO seat
N00409400014
Padded head restraints for the seats can reduce the risk of a
whiplash injury if your vehicle is hit from the rear.
The head restraints are equipped in the illustrated position.
To maximize the effectiveness of your head restraint, adjust the
head restraint to the proper position. For the driver and front
passenger, adjust the seatbacks to the upright position before
adjusting the head restraints. Sit back against the seatback with
your head close to the head restraint.
WA R N I N G
!
In order to minimize the risk of a neck injury due to
a rear impact, the head restraint must be adjusted to
the proper position before vehicle operation. For the
driver and front passenger, the seatbacks must be
adjusted to the upright position before adjusting the
head restraints. The driver should never adjust the
seat while the vehicle is in motion.
Driving without the head restraints in place can
cause you and your passengers serious injury or
death in an accident. To reduce the risk of injury in
an accident, always make sure the head restraints
are installed and properly positioned when the seat
is occupied.
Never place a cushion or similar device on the seat-
back. This can adversely affect head restraint per-
formance by increasing the distance between your
head and the restraint.
BK0103001US.book 9 ページ 2009年8月20日 木曜日 午前10時45分
Page 43 of 658
2-10 Seat and restraint systems
2
Adjustment of the head restraint heightTo reduce the risk of injury in an accident, adjust the head
restraint height so that the center of the restraint is at your eye
level when seated. Any person too tall for the restraint to reach
their eye level when seated should raise the restraint to the
highest locked position.
To raise the restraint, pull it straight up.
To lower the restraint, push down on it while pressing the
lock knob (A) in the direction shown by the arrow.
After adjusting the height, push down on the restraint to
make sure it is locked in position.
To r e m o v ePress the lock knob (A) in the direction shown by the arrows.
Then pull the head restraint up and out of the seatback.To i n s t a l lFirst check that the head restraint is facing in the right direction
as shown in the previous illustration, and then insert it into the
seatback. Push the head restraint down while pressing the lock
knob (A) until the restraint locks into place.
WA R N I N G
!
To help minimize the risk of neck injury in the event
of an accident, the head restraints must be properly
installed and positioned to proper height before
vehicle operation.
BK0103001US.book 10 ページ 2009年8月20日 木曜日 午前10時45分
Page 44 of 658
Seat and restraint systems
2-11
2

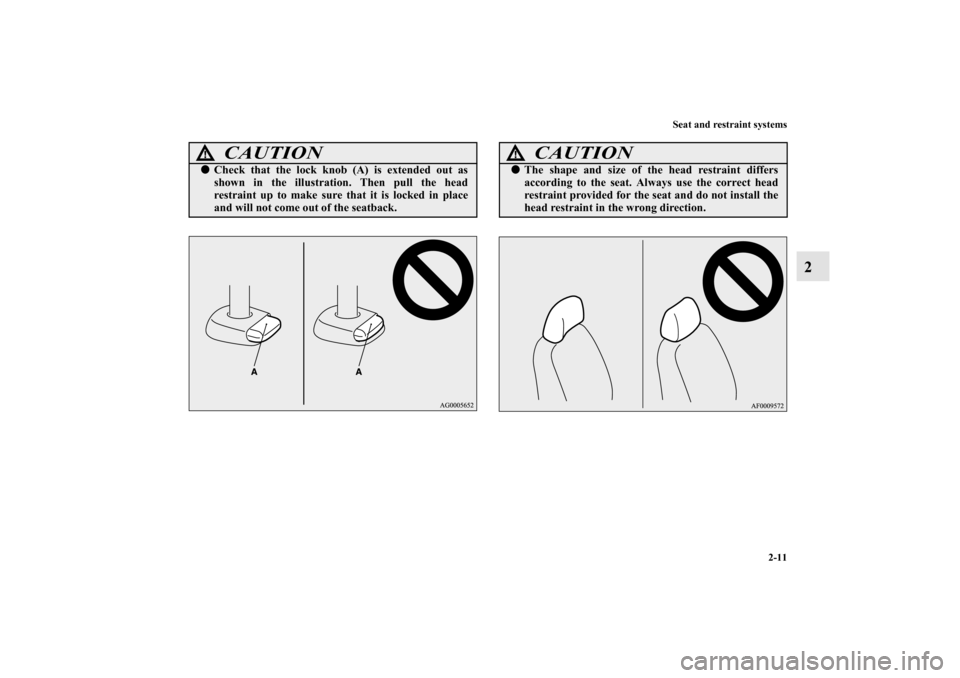

CAUTION
!
Check that the lock knob (A) is extended out as
shown in the illustration. Then pull the head
restraint up to make sure that it is locked in place
and will not come out of the seatback.
CAUTION
!
The shape and size of the head restraint differs
according to the seat. Always use the correct head
restraint provided for the seat and do not install the
head restraint in the wrong direction.
BK0103001US.book 11 ページ 2009年8月20日 木曜日 午前10時45分
Page 45 of 658
2-12 Seat and restraint systems
2

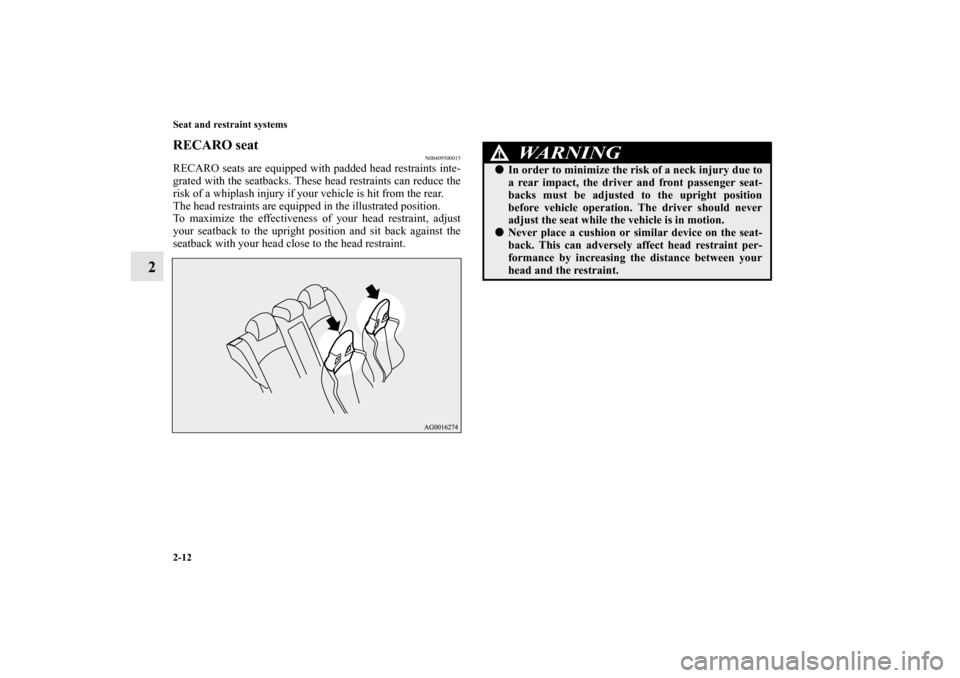

RECARO seat
N00409500015
RECARO seats are equipped with padded head restraints inte-
grated with the seatbacks. These head restraints can reduce the
risk of a whiplash injury if your vehicle is hit from the rear.
The head restraints are equipped in the illustrated position.
To maximize the effectiveness of your head restraint, adjust
your seatback to the upright position and sit back against the
seatback with your head close to the head restraint.
WA R N I N G
!
In order to minimize the risk of a neck injury due to
a rear impact, the driver and front passenger seat-
backs must be adjusted to the upright position
before vehicle operation. The driver should never
adjust the seat while the vehicle is in motion.
Never place a cushion or similar device on the seat-
back. This can adversely affect head restraint per-
formance by increasing the distance between your
head and the restraint.
BK0103001US.book 12 ページ 2009年8月20日 木曜日 午前10時45分
Page 46 of 658
Seat and restraint systems
2-13

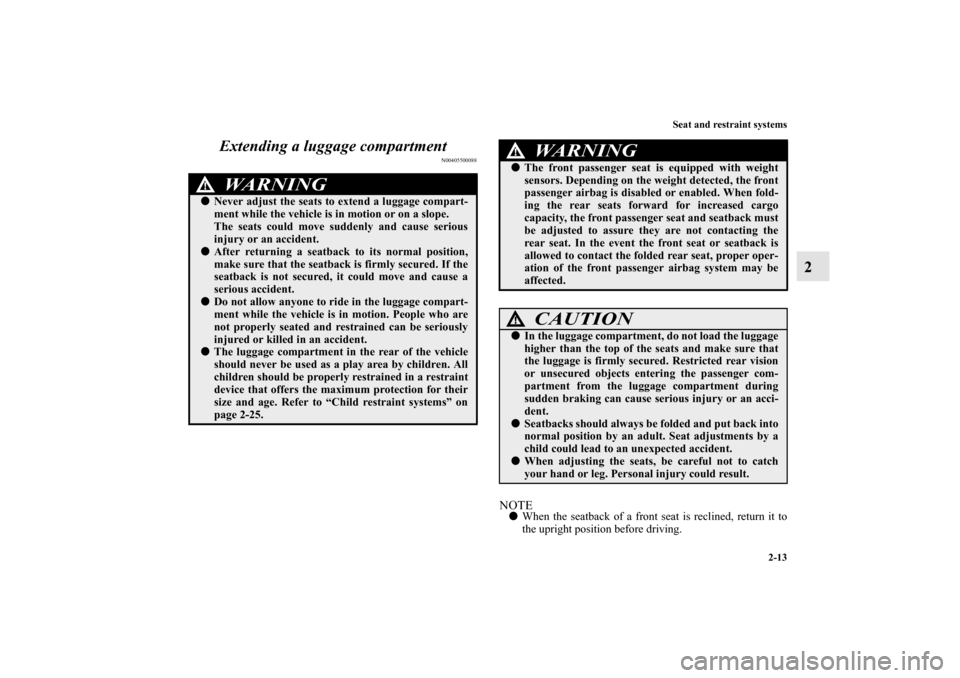

2 Extending a luggage compartment
N00405500088
NOTE
When the seatback of a front seat is reclined, return it to
the upright position before driving.
WA R N I N G
!
Never adjust the seats to extend a luggage compart-
ment while the vehicle is in motion or on a slope.
The seats could move suddenly and cause serious
injury or an accident.
After returning a seatback to its normal position,
make sure that the seatback is firmly secured. If the
seatback is not secured, it could move and cause a
serious accident.
Do not allow anyone to ride in the luggage compart-
ment while the vehicle is in motion. People who are
not properly seated and restrained can be seriously
injured or killed in an accident.
The luggage compartment in the rear of the vehicle
should never be used as a play area by children. All
children should be properly restrained in a restraint
device that offers the maximum protection for their
size and age. Refer to “Child restraint systems” on
page 2-25.
The front passenger seat is equipped with weight
sensors. Depending on the weight detected, the front
passenger airbag is disabled or enabled. When fold-
ing the rear seats forward for increased cargo
capacity, the front passenger seat and seatback must
be adjusted to assure they are not contacting the
rear seat. In the event the front seat or seatback is
allowed to contact the folded rear seat, proper oper-
ation of the front passenger airbag system may be
affected.CAUTION
!
In the luggage compartment, do not load the luggage
higher than the top of the seats and make sure that
the luggage is firmly secured. Restricted rear vision
or unsecured objects entering the passenger com-
partment from the luggage compartment during
sudden braking can cause serious injury or an acci-
dent.
Seatbacks should always be folded and put back into
normal position by an adult. Seat adjustments by a
child could lead to an unexpected accident.
When adjusting the seats, be careful not to catch
your hand or leg. Personal injury could result.WA R N I N G
!
BK0103001US.book 13 ページ 2009年8月20日 木曜日 午前10時45分
Page 47 of 658
2-14 Seat and restraint systems
2

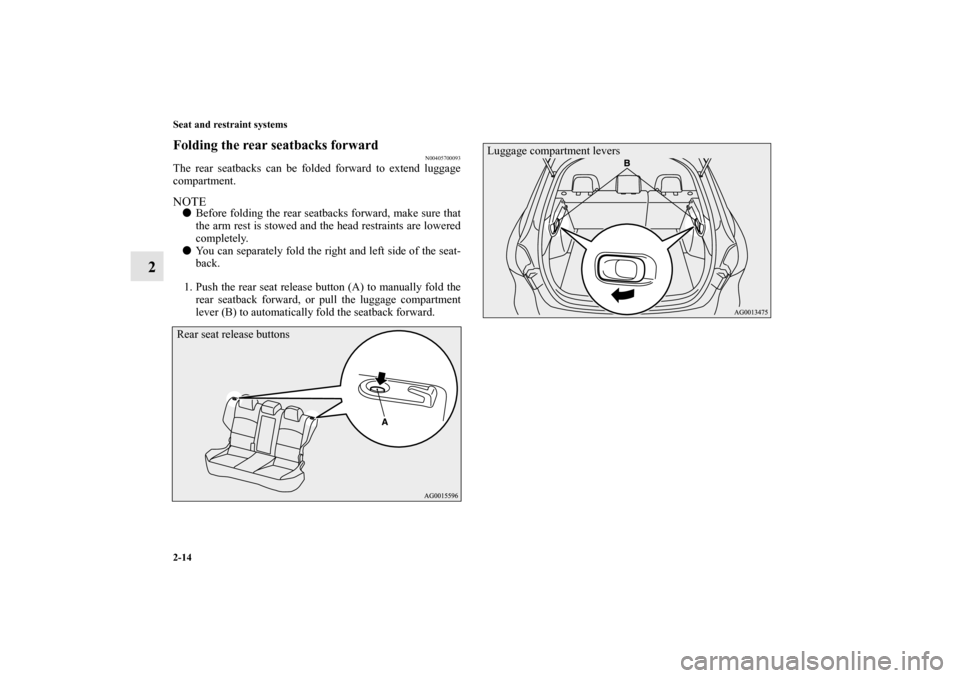

Folding the rear seatbacks forward
N00405700093
The rear seatbacks can be folded forward to extend luggage
compartment.NOTE
Before folding the rear seatbacks forward, make sure that
the arm rest is stowed and the head restraints are lowered
completely.
You can separately fold the right and left side of the seat-
back.
1. Push the rear seat release button (A) to manually fold the
rear seatback forward, or pull the luggage compartment
lever (B) to automatically fold the seatback forward.
Rear seat release buttons
Luggage compartment levers
BK0103001US.book 14 ページ 2009年8月20日 木曜日 午前10時45分
Page 48 of 658
Seat and restraint systems
2-15
2

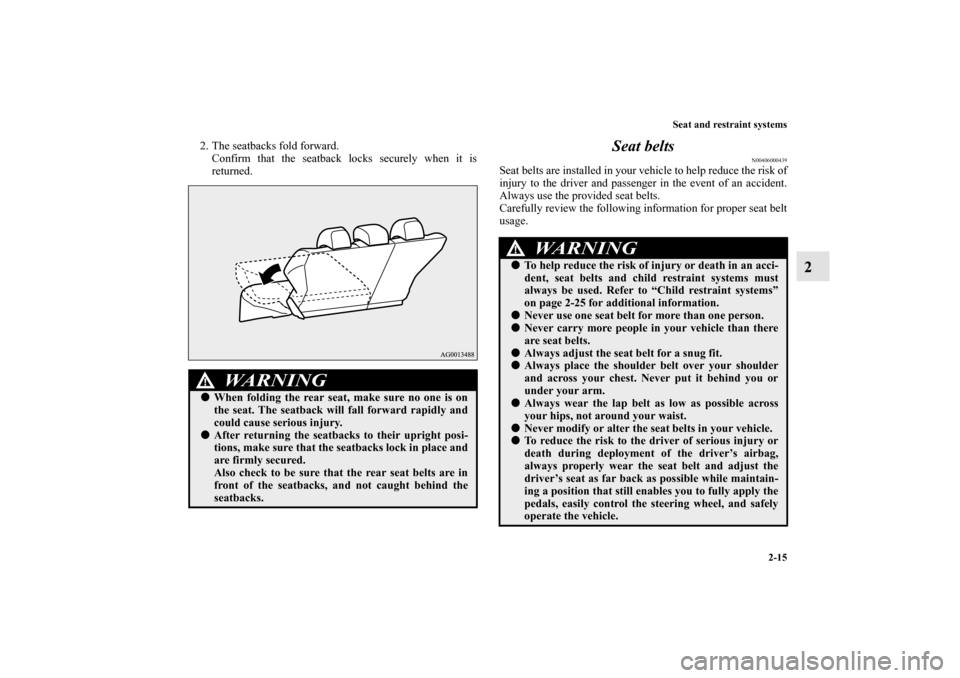

2. The seatbacks fold forward.
Confirm that the seatback locks securely when it is
returned.
Seat belts
N00406000439
Seat belts are installed in your vehicle to help reduce the risk of
injury to the driver and passenger in the event of an accident.
Always use the provided seat belts.
Carefully review the following information for proper seat belt
usage.
WA R N I N G
!
When folding the rear seat, make sure no one is on
the seat. The seatback will fall forward rapidly and
could cause serious injury.
After returning the seatbacks to their upright posi-
tions, make sure that the seatbacks lock in place and
are firmly secured.
Also check to be sure that the rear seat belts are in
front of the seatbacks, and not caught behind the
seatbacks.
WA R N I N G
!
To help reduce the risk of injury or death in an acci-
dent, seat belts and child restraint systems must
always be used. Refer to “Child restraint systems”
on page 2-25 for additional information.
Never use one seat belt for more than one person.
Never carry more people in your vehicle than there
are seat belts.
Always adjust the seat belt for a snug fit.
Always place the shoulder belt over your shoulder
and across your chest. Never put it behind you or
under your arm.
Always wear the lap belt as low as possible across
your hips, not around your waist.
Never modify or alter the seat belts in your vehicle.
To reduce the risk to the driver of serious injury or
death during deployment of the driver’s airbag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.
BK0103001US.book 15 ページ 2009年8月20日 木曜日 午前10時45分
Page 49 of 658

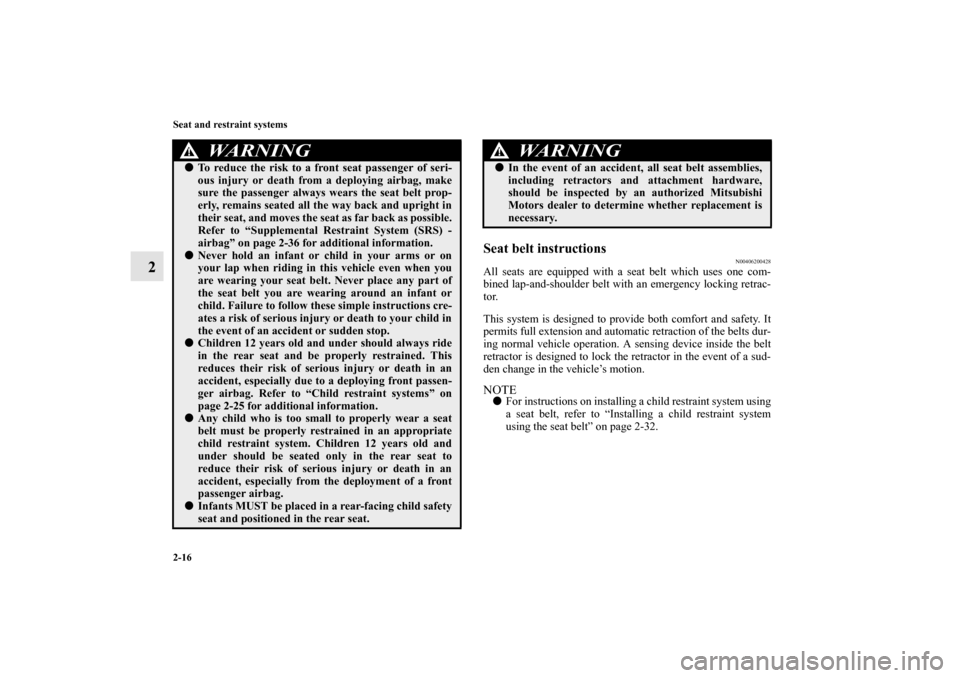

2-16 Seat and restraint systems
2
Seat belt instructions
N00406200428
All seats are equipped with a seat belt which uses one com-
bined lap-and-shoulder belt with an emergency locking retrac-
tor.
This system is designed to provide both comfort and safety. It
permits full extension and automatic retraction of the belts dur-
ing normal vehicle operation. A sensing device inside the belt
retractor is designed to lock the retractor in the event of a sud-
den change in the vehicle’s motion.NOTE
For instructions on installing a child restraint system using
a seat belt, refer to “Installing a child restraint system
using the seat belt” on page 2-32.
To reduce the risk to a front seat passenger of seri-
ous injury or death from a deploying airbag, make
sure the passenger always wears the seat belt prop-
erly, remains seated all the way back and upright in
their seat, and moves the seat as far back as possible.
Refer to “Supplemental Restraint System (SRS) -
airbag” on page 2-36 for additional information.
Never hold an infant or child in your arms or on
your lap when riding in this vehicle even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
Children 12 years old and under should always ride
in the rear seat and be properly restrained. This
reduces their risk of serious injury or death in an
accident, especially due to a deploying front passen-
ger airbag. Refer to “Child restraint systems” on
page 2-25 for additional information.
Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system. Children 12 years old and
under should be seated only in the rear seat to
reduce their risk of serious injury or death in an
accident, especially from the deployment of a front
passenger airbag.
Infants MUST be placed in a rear-facing child safety
seat and positioned in the rear seat.WA R N I N G
!
In the event of an accident, all seat belt assemblies,
including retractors and attachment hardware,
should be inspected by an authorized Mitsubishi
Motors dealer to determine whether replacement is
necessary.WA R N I N G
!
BK0103001US.book 16 ページ 2009年8月20日 木曜日 午前10時45分
Page 50 of 658

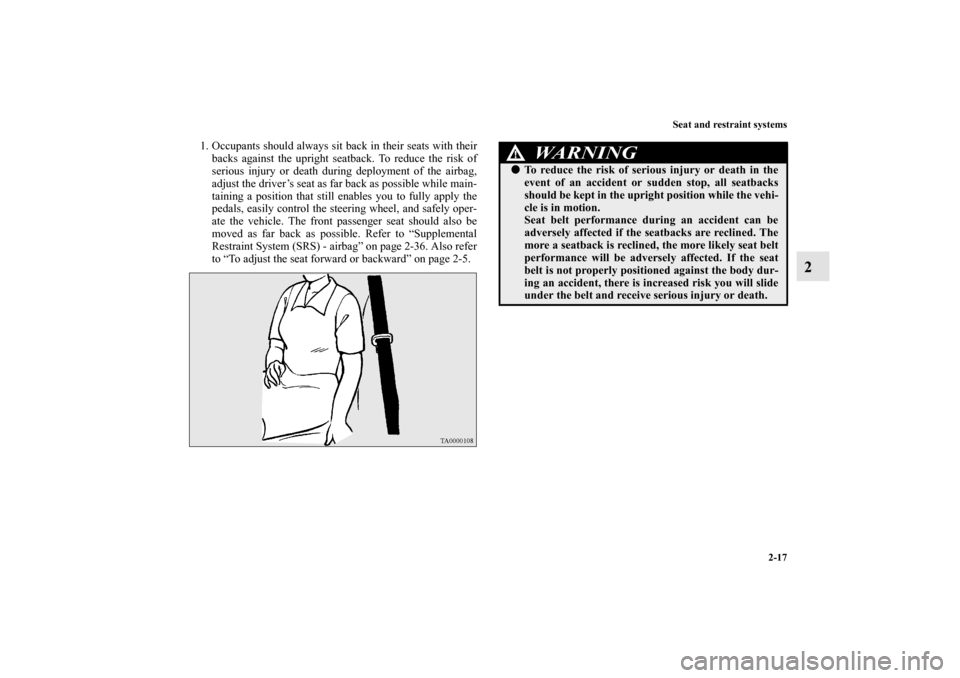

Seat and restraint systems
2-17
2
1. Occupants should always sit back in their seats with their
backs against the upright seatback. To reduce the risk of
serious injury or death during deployment of the airbag,
adjust the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely oper-
ate the vehicle. The front passenger seat should also be
moved as far back as possible. Refer to “Supplemental
Restraint System (SRS) - airbag” on page 2-36. Also refer
to “To adjust the seat forward or backward” on page 2-5.
WA R N I N G
!
To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
BK0103001US.book 17 ページ 2009年8月20日 木曜日 午前10時45分
