MITSUBISHI LANCER SPORTBACK 2010 8.G Owner's Guide

1-8 General information
1

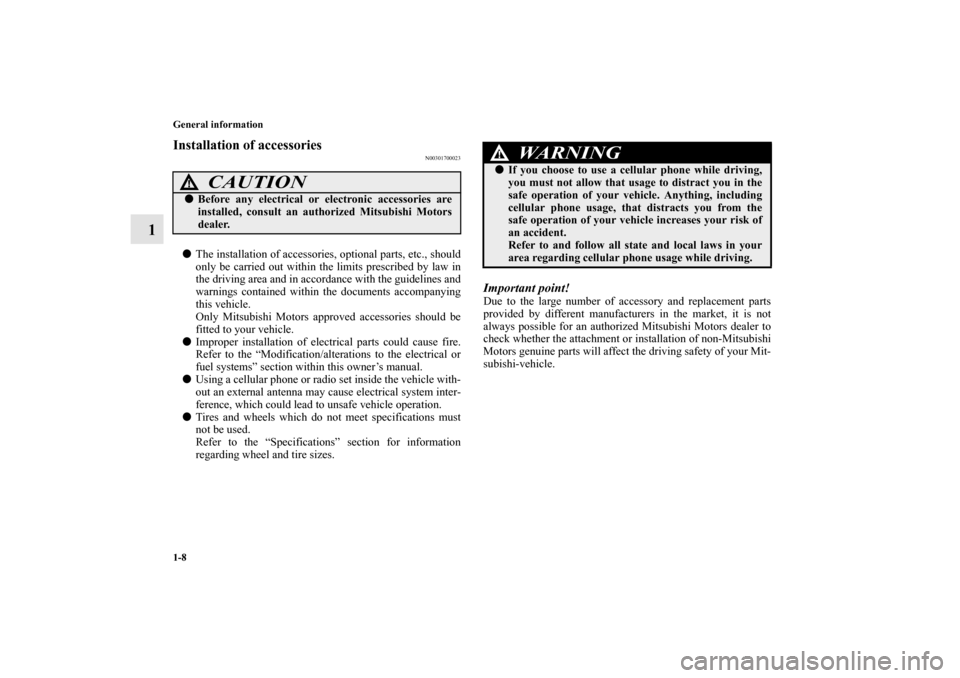

Installation of accessories
N00301700023


The installation of accessories, optional parts, etc., should
only be carried out within the limits prescribed by law in
the driving area and in accordance with the guidelines and
warnings contained within the documents accompanying
this vehicle.
Only Mitsubishi Motors approved accessories should be
fitted to your vehicle.


Improper installation of electrical parts could cause fire.
Refer to the “Modification/alterations to the electrical or
fuel systems” section within this owner’s manual.


Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.


Tires and wheels which do not meet specifications must
not be used.
Refer to the “Specifications” section for information
regarding wheel and tire sizes.
Important point!Due to the large number of accessory and replacement parts
provided by different manufacturers in the market, it is not
always possible for an authorized Mitsubishi Motors dealer to
check whether the attachment or installation of non-Mitsubishi
Motors genuine parts will affect the driving safety of your Mit-
subishi-vehicle.
CAUTION
!

Before any electrical or electronic accessories are
installed, consult an authorized Mitsubishi Motors
dealer.
WA R N I N G
!

If you choose to use a cellular phone while driving,
you must not allow that usage to distract you in the
safe operation of your vehicle. Anything, including
cellular phone usage, that distracts you from the
safe operation of your vehicle increases your risk of
an accident.
Refer to and follow all state and local laws in your
area regarding cellular phone usage while driving.
BK0103001US.book 8 ページ ２００９年８月２０日　木曜日　午前１０時４５分

General information
1-9
1

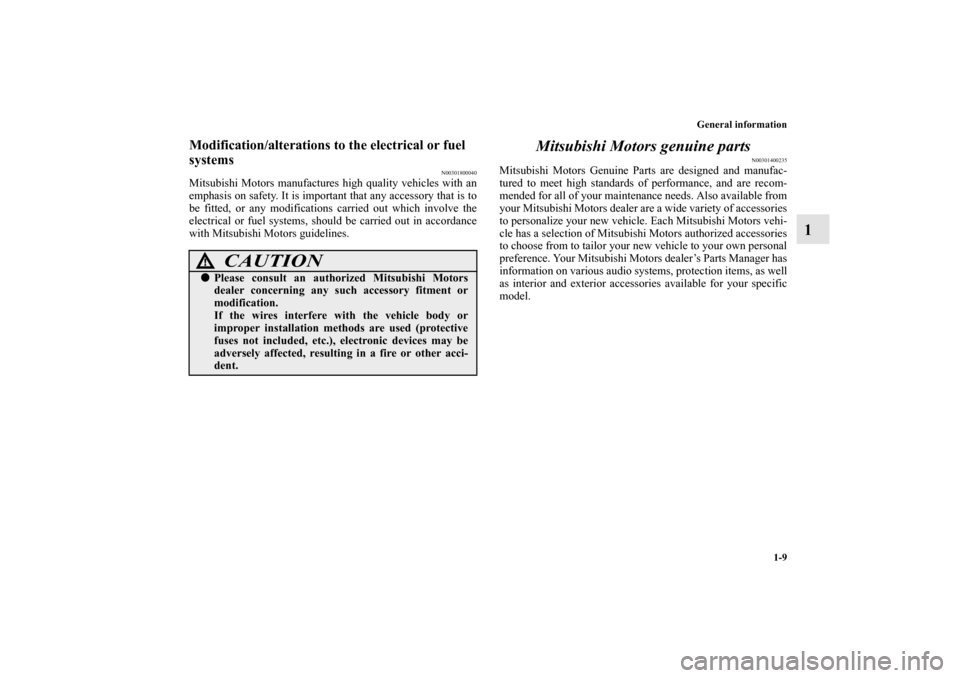

Modification/alterations to the electrical or fuel
systems
N00301800040
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important that any accessory that is to
be fitted, or any modifications carried out which involve the
electrical or fuel systems, should be carried out in accordance
with Mitsubishi Motors guidelines.
Mitsubishi Motors genuine parts
N00301400235
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi Motors vehi-
cle has a selection of Mitsubishi Motors authorized accessories
to choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
CAUTION
!

Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire or other acci-
dent.
BK0103001US.book 9 ページ ２００９年８月２０日　木曜日　午前１０時４５分

1-10 General information

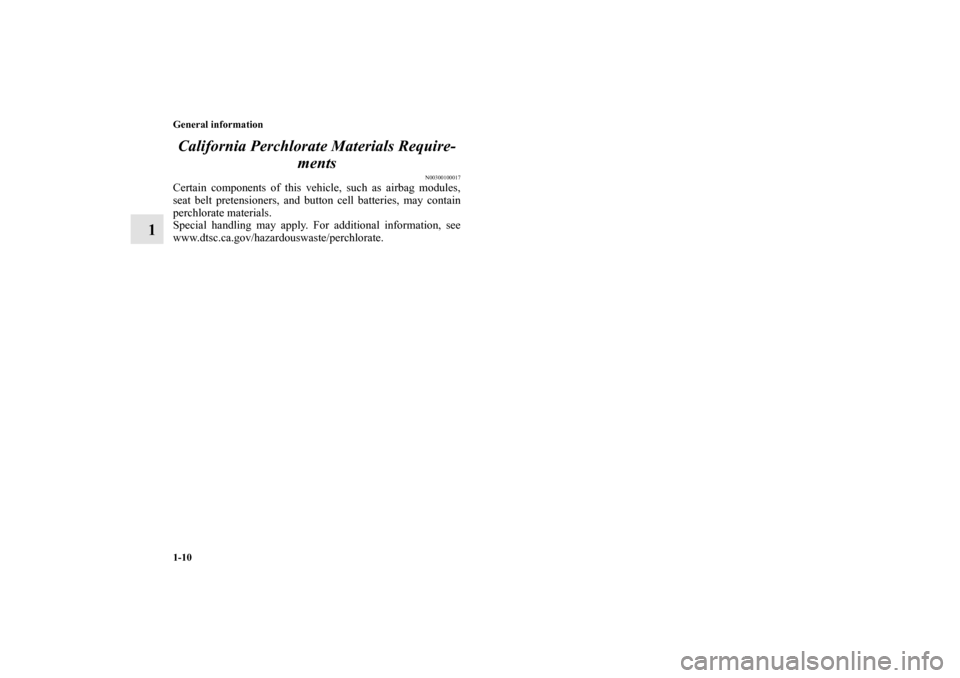

1California Perchlorate Materials Require-
ments
N00300100017
Certain components of this vehicle, such as airbag modules,
seat belt pretensioners, and button cell batteries, may contain
perchlorate materials.
Special handling may apply. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.BK0103001US.book 10 ページ ２００９年８月２０日　木曜日　午前１０時４５分

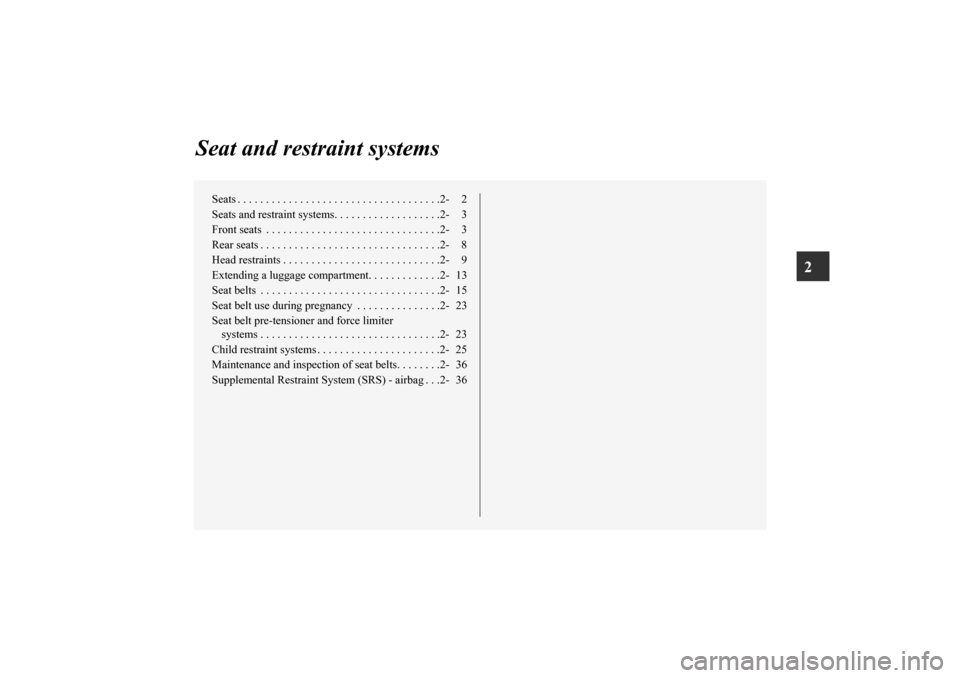

2
Seat and restraint systems
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2
Seats and restraint systems. . . . . . . . . . . . . . . . . . .2- 3
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 3
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 8
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 9
Extending a luggage compartment. . . . . . . . . . . . .2- 13
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 15
Seat belt use during pregnancy . . . . . . . . . . . . . . .2- 23
Seat belt pre-tensioner and force limiter
systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 23
Child restraint systems . . . . . . . . . . . . . . . . . . . . . .2- 25
Maintenance and inspection of seat belts. . . . . . . .2- 36
Supplemental Restraint System (SRS) - airbag . . .2- 36
BK0103001US.book 1 ページ ２００９年８月２０日　木曜日　午前１０時４５分

2-2 Seat and restraint systems

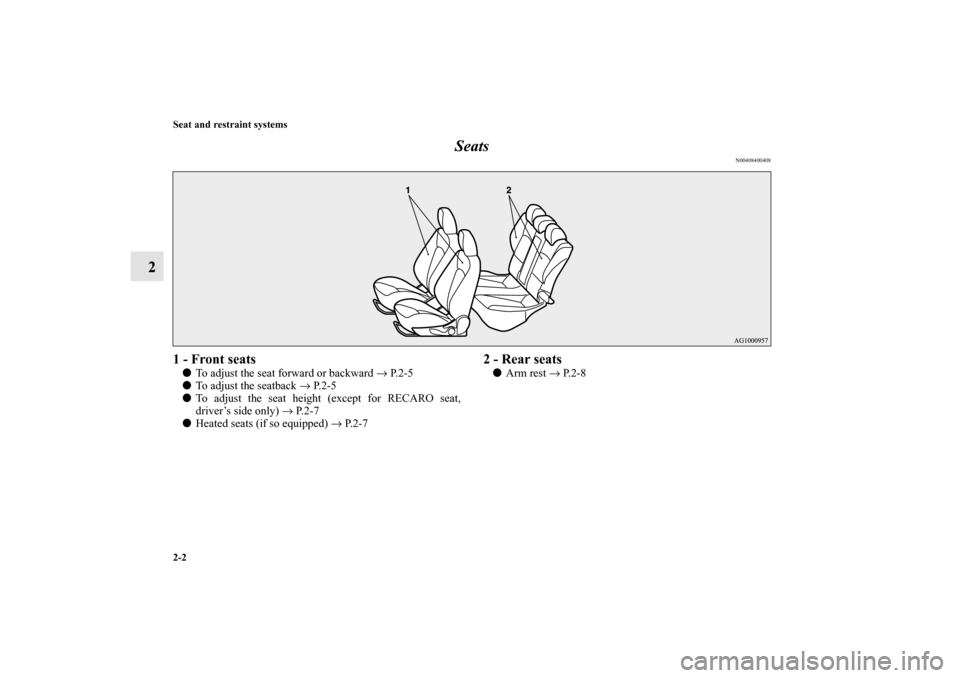

2Seats
N00408400408
1 - Front seats

To adjust the seat forward or backward → P. 2 - 5


To adjust the seatback → P. 2 - 5


To adjust the seat height (except for RECARO seat,
driver’s side only) → P. 2 - 7


Heated seats (if so equipped) → P. 2 - 7
2 - Rear seats

Arm rest → P. 2 - 8
BK0103001US.book 2 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Seat and restraint systems
2-3

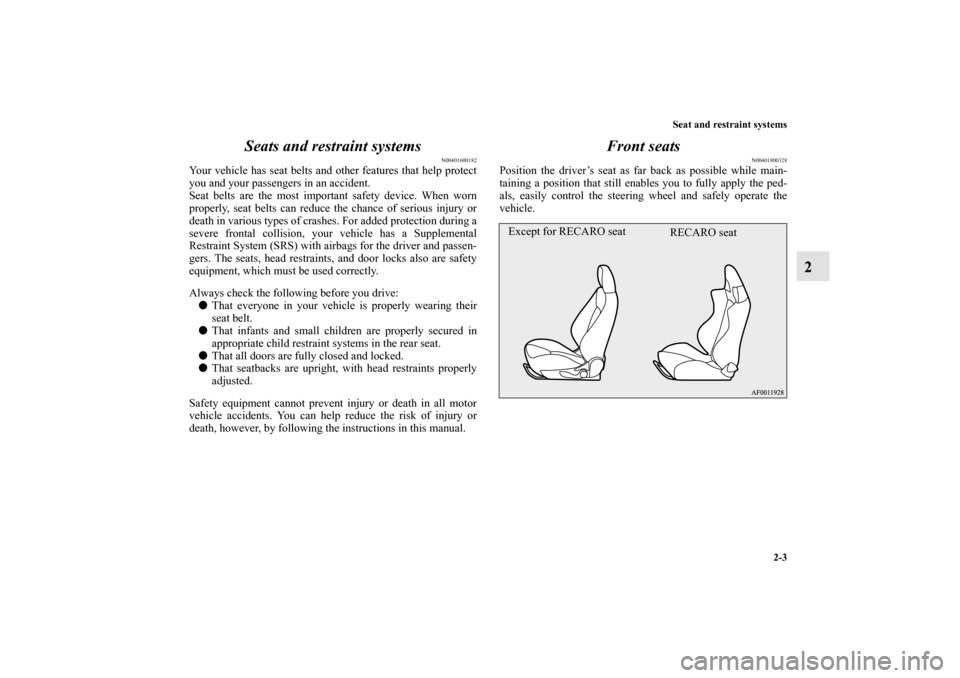

2 Seats and restraint systems
N00401600182
Your vehicle has seat belts and other features that help protect
you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with airbags for the driver and passen-
gers. The seats, head restraints, and door locks also are safety
equipment, which must be used correctly.
Always check the following before you drive:

That everyone in your vehicle is properly wearing their
seat belt.


That infants and small children are properly secured in
appropriate child restraint systems in the rear seat.


That all doors are fully closed and locked.


That seatbacks are upright, with head restraints properly
adjusted.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. You can help reduce the risk of injury or
death, however, by following the instructions in this manual.
Front seats
N00401800328
Position the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the ped-
als, easily control the steering wheel and safely operate the
vehicle.Except for RECARO seat
RECARO seat
BK0103001US.book 3 ページ ２００９年８月２０日　木曜日　午前１０時４５分

2-4 Seat and restraint systems
2

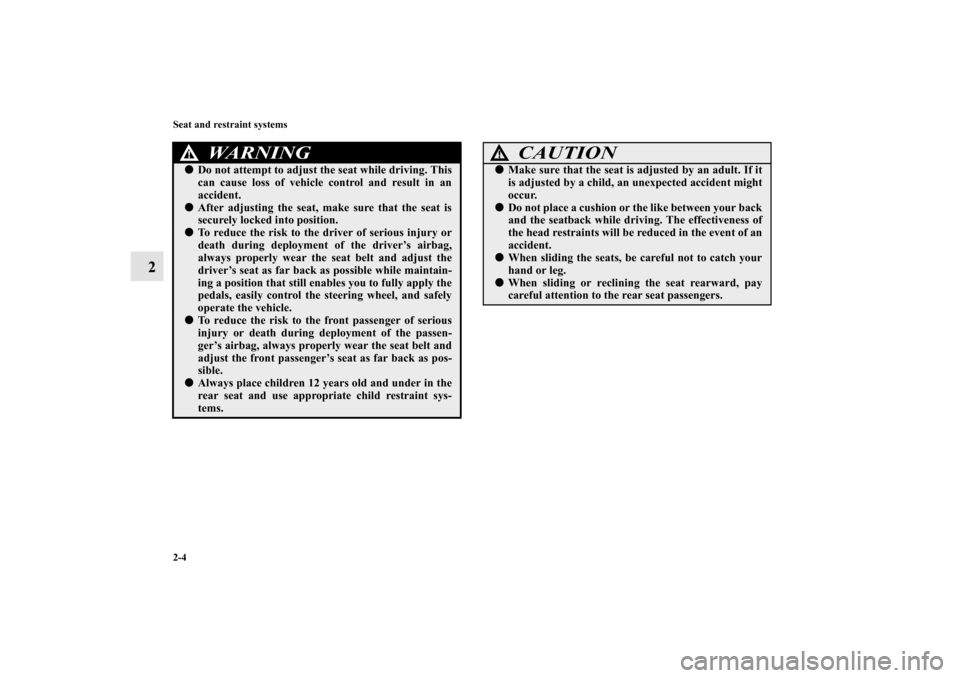

WA R N I N G
!

Do not attempt to adjust the seat while driving. This
can cause loss of vehicle control and result in an
accident.


After adjusting the seat, make sure that the seat is
securely locked into position.


To reduce the risk to the driver of serious injury or
death during deployment of the driver’s airbag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.


To reduce the risk to the front passenger of serious
injury or death during deployment of the passen-
ger’s airbag, always properly wear the seat belt and
adjust the front passenger’s seat as far back as pos-
sible.


Always place children 12 years old and under in the
rear seat and use appropriate child restraint sys-
tems.
CAUTION
!

Make sure that the seat is adjusted by an adult. If it
is adjusted by a child, an unexpected accident might
occur.


Do not place a cushion or the like between your back
and the seatback while driving. The effectiveness of
the head restraints will be reduced in the event of an
accident.


When sliding the seats, be careful not to catch your
hand or leg.


When sliding or reclining the seat rearward, pay
careful attention to the rear seat passengers.
BK0103001US.book 4 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Seat and restraint systems
2-5
2

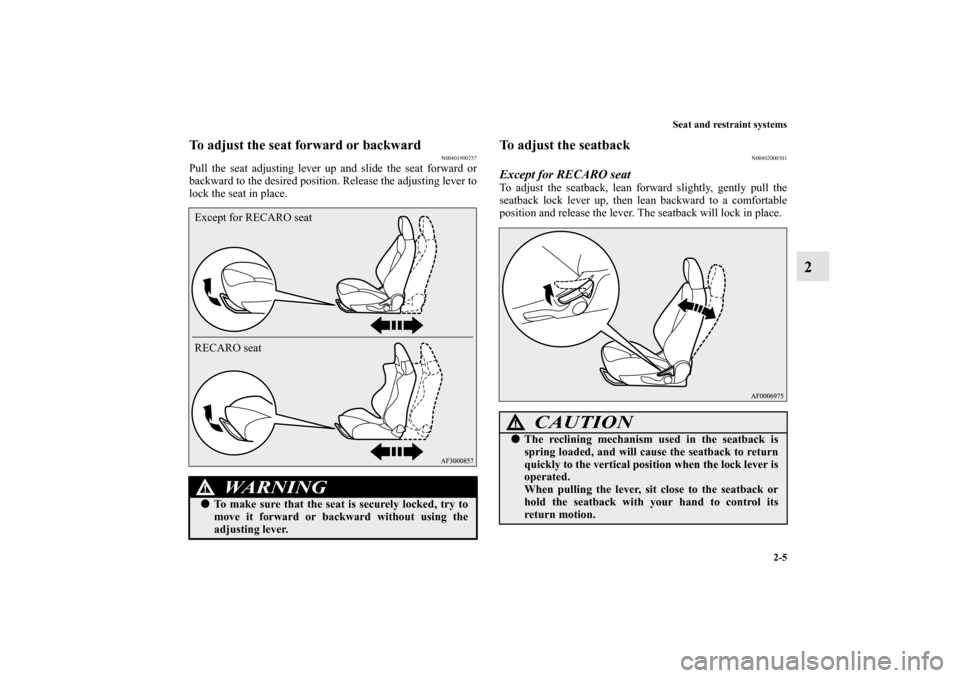

To adjust the seat forward or backward
N00401900257
Pull the seat adjusting lever up and slide the seat forward or
backward to the desired position. Release the adjusting lever to
lock the seat in place.
To adjust the seatback
N00402000301
Except for RECARO seatTo adjust the seatback, lean forward slightly, gently pull the
seatback lock lever up, then lean backward to a comfortable
position and release the lever. The seatback will lock in place.
WA R N I N G
!

To make sure that the seat is securely locked, try to
move it forward or backward without using the
adjusting lever.
Except for RECARO seat
RECARO seat
CAUTION
!

The reclining mechanism used in the seatback is
spring loaded, and will cause the seatback to return
quickly to the vertical position when the lock lever is
operated.
When pulling the lever, sit close to the seatback or
hold the seatback with your hand to control its
return motion.
BK0103001US.book 5 ページ ２００９年８月２０日　木曜日　午前１０時４５分

2-6 Seat and restraint systems
2

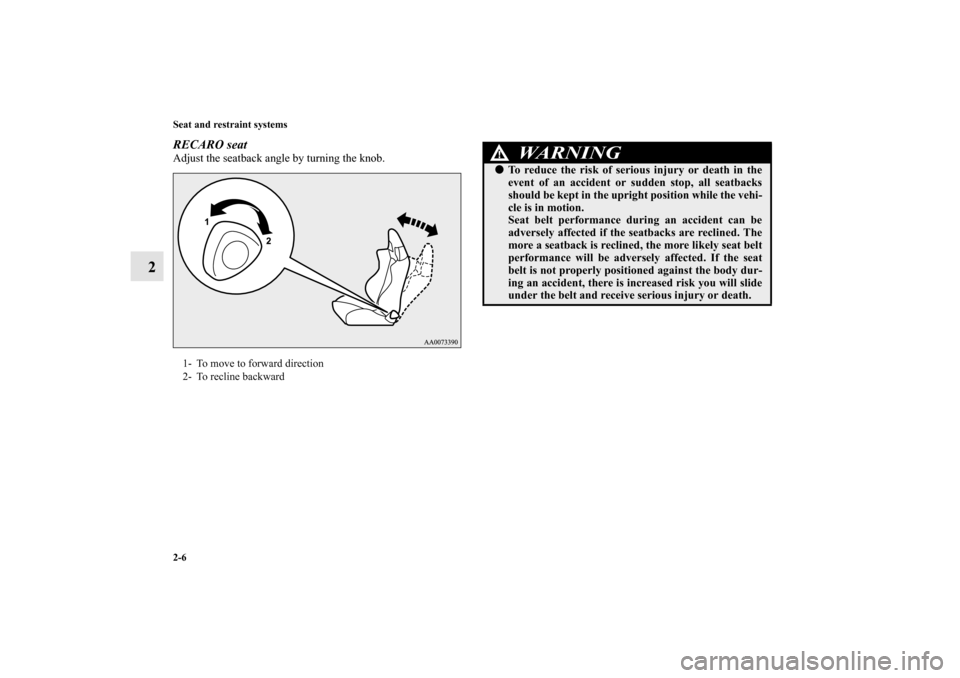

RECARO seatAdjust the seatback angle by turning the knob.1- To move to forward direction
2- To recline backward
WA R N I N G
!

To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
BK0103001US.book 6 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Seat and restraint systems
2-7
2

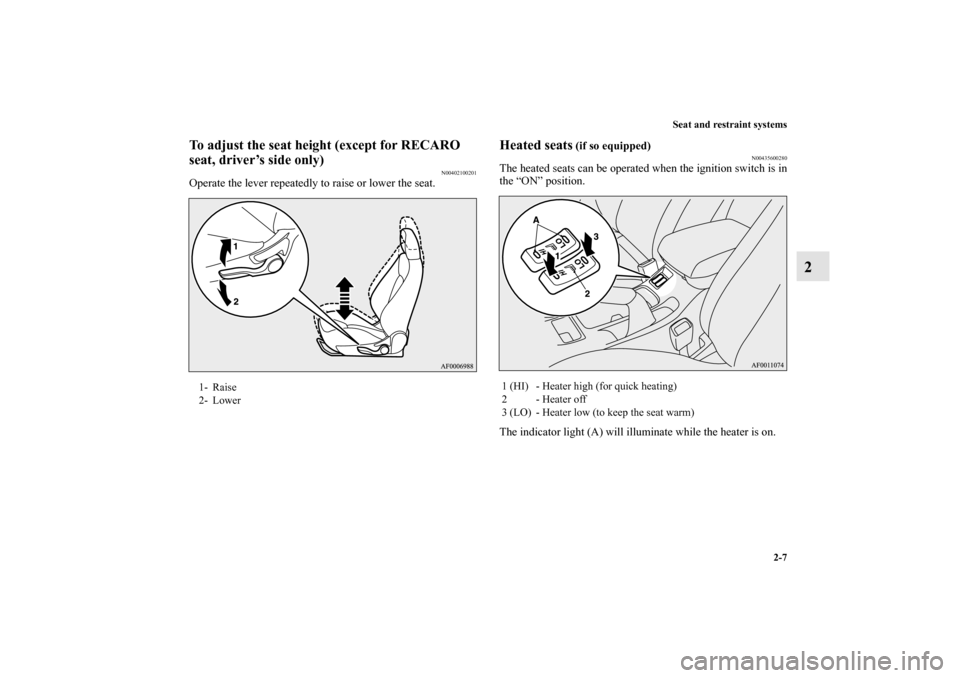

To adjust the seat height (except for RECARO
seat, driver’s side only)
N00402100201
Operate the lever repeatedly to raise or lower the seat.
Heated seats
(if so equipped)
N00435600280
The heated seats can be operated when the ignition switch is in
the “ON” position.
The indicator light (A) will illuminate while the heater is on.
1- Raise
2- Lower
1 (HI) - Heater high (for quick heating)
2 - Heater off
3 (LO) - Heater low (to keep the seat warm)
BK0103001US.book 7 ページ ２００９年８月２０日　木曜日　午前１０時４５分
