MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual

7-10 Vehicle care and maintenance
7

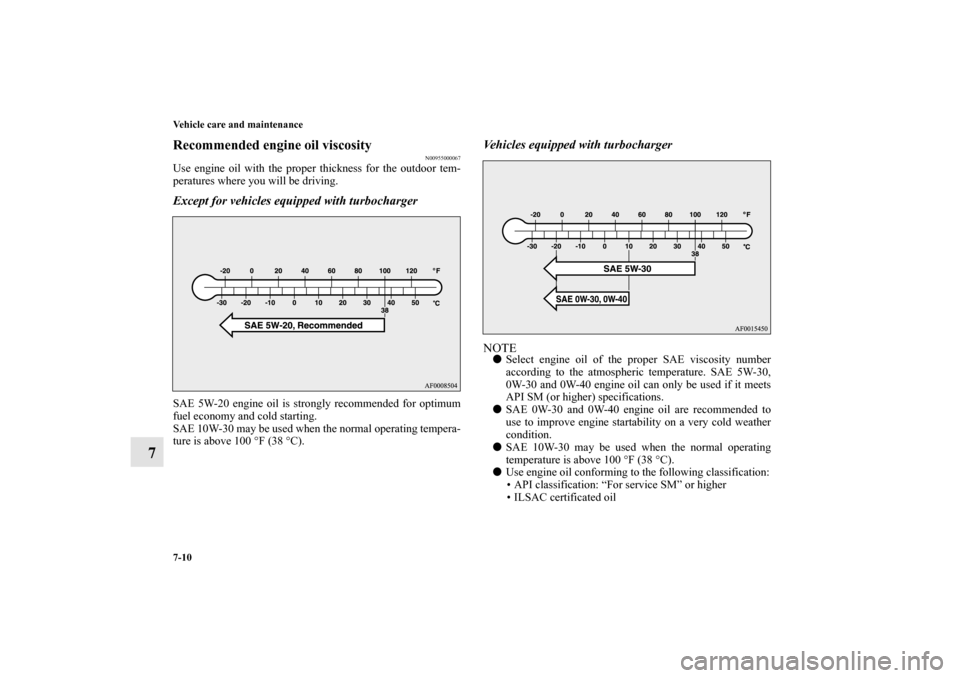

Recommended engine oil viscosity
N00955000067
Use engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.Except for vehicles equipped with turbochargerSAE 5W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
SAE 10W-30 may be used when the normal operating tempera-
ture is above 100 °F (38 °C).
Vehicles equipped with turbochargerNOTE

Select engine oil of the proper SAE viscosity number
according to the atmospheric temperature. SAE 5W-30,
0W-30 and 0W-40 engine oil can only be used if it meets
API SM (or higher) specifications.


SAE 0W-30 and 0W-40 engine oil are recommended to
use to improve engine startability on a very cold weather
condition.


SAE 10W-30 may be used when the normal operating
temperature is above 100 °F (38 °C).


Use engine oil conforming to the following classification:
 API classification: “For service SM” or higher
 ILSAC certificated oil
BK0103001US.book 10 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-11
7

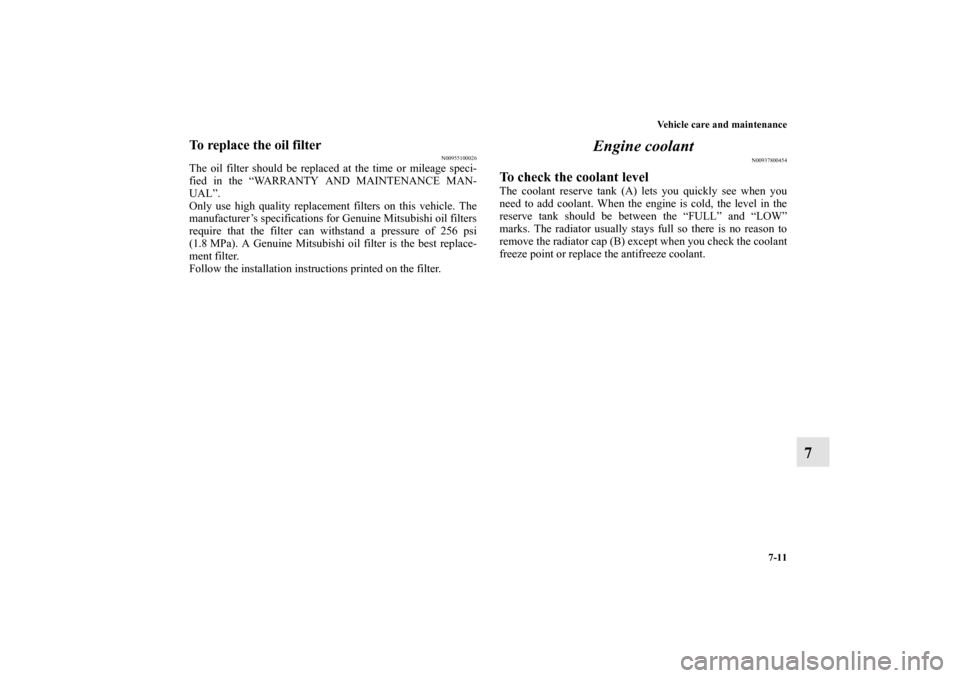

To replace the oil filter
N00955100026
The oil filter should be replaced at the time or mileage speci-
fied in the “WARRANTY AND MAINTENANCE MAN-
UAL”.
Only use high quality replacement filters on this vehicle. The
manufacturer’s specifications for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi
(1.8 MPa). A Genuine Mitsubishi oil filter is the best replace-
ment filter.
Follow the installation instructions printed on the filter.
Engine coolant
N00937800454
To check the coolant level The coolant reserve tank (A) lets you quickly see when you
need to add coolant. When the engine is cold, the level in the
reserve tank should be between the “FULL” and “LOW”
marks. The radiator usually stays full so there is no reason to
remove the radiator cap (B) except when you check the coolant
freeze point or replace the antifreeze coolant.
BK0103001US.book 11 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-12 Vehicle care and maintenance
7

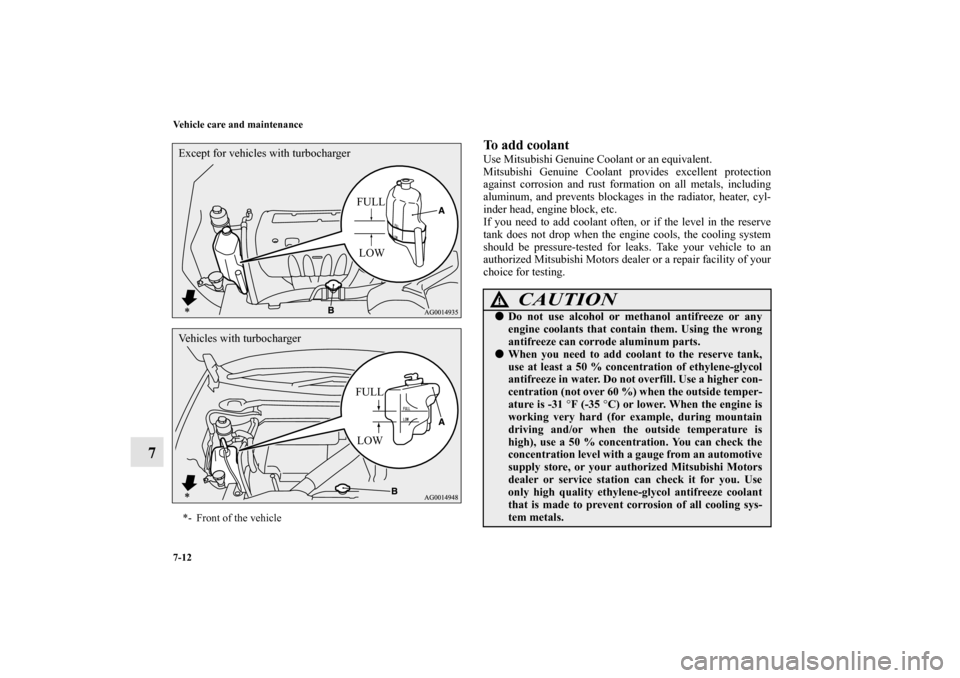

To add coolant Use Mitsubishi Genuine Coolant or an equivalent.
Mitsubishi Genuine Coolant provides excellent protection
against corrosion and rust formation on all metals, including
aluminum, and prevents blockages in the radiator, heater, cyl-
inder head, engine block, etc.
If you need to add coolant often, or if the level in the reserve
tank does not drop when the engine cools, the cooling system
should be pressure-tested for leaks. Take your vehicle to an
authorized Mitsubishi Motors dealer or a repair facility of your
choice for testing.
*- Front of the vehicle
FULL
LOW Except for vehicles with turbocharger
Vehicles with turbocharger
FULL
LOW
CAUTION
!

Do not use alcohol or methanol antifreeze or any
engine coolants that contain them. Using the wrong
antifreeze can corrode aluminum parts.


When you need to add coolant to the reserve tank,
use at least a 50 % concentration of ethylene-glycol
antifreeze in water. Do not overfill. Use a higher con-
centration (not over 60 %) when the outside temper-
ature is -31 °F (-35 °C) or lower. When the engine is
working very hard (for example, during mountain
driving and/or when the outside temperature is
high), use a 50 % concentration. You can check the
concentration level with a gauge from an automotive
supply store, or your authorized Mitsubishi Motors
dealer or service station can check it for you. Use
only high quality ethylene-glycol antifreeze coolant
that is made to prevent corrosion of all cooling sys-
tem metals.
BK0103001US.book 12 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-13
7

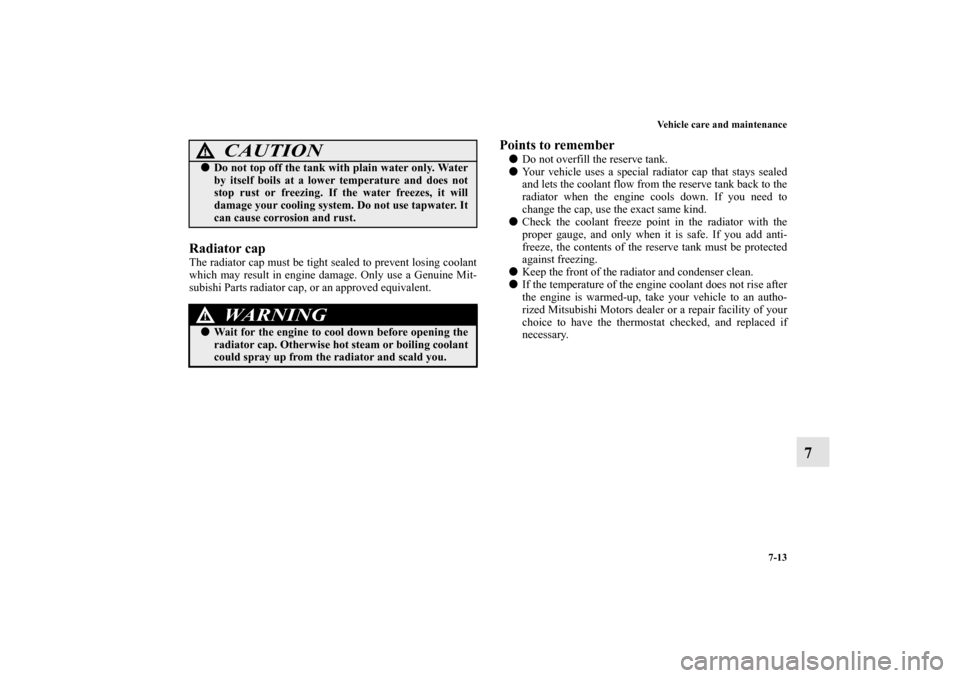

Radiator capThe radiator cap must be tight sealed to prevent losing coolant
which may result in engine damage. Only use a Genuine Mit-
subishi Parts radiator cap, or an approved equivalent.
Points to remember

Do not overfill the reserve tank.


Your vehicle uses a special radiator cap that stays sealed
and lets the coolant flow from the reserve tank back to the
radiator when the engine cools down. If you need to
change the cap, use the exact same kind.


Check the coolant freeze point in the radiator with the
proper gauge, and only when it is safe. If you add anti-
freeze, the contents of the reserve tank must be protected
against freezing.


Keep the front of the radiator and condenser clean.


If the temperature of the engine coolant does not rise after
the engine is warmed-up, take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice to have the thermostat checked, and replaced if
necessary.


Do not top off the tank with plain water only. Water
by itself boils at a lower temperature and does not
stop rust or freezing. If the water freezes, it will
damage your cooling system. Do not use tapwater. It
can cause corrosion and rust. WA R N I N G
!

Wait for the engine to cool down before opening the
radiator cap. Otherwise hot steam or boiling coolant
could spray up from the radiator and scald you. CAUTION
!
BK0103001US.book 13 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-14 Vehicle care and maintenance

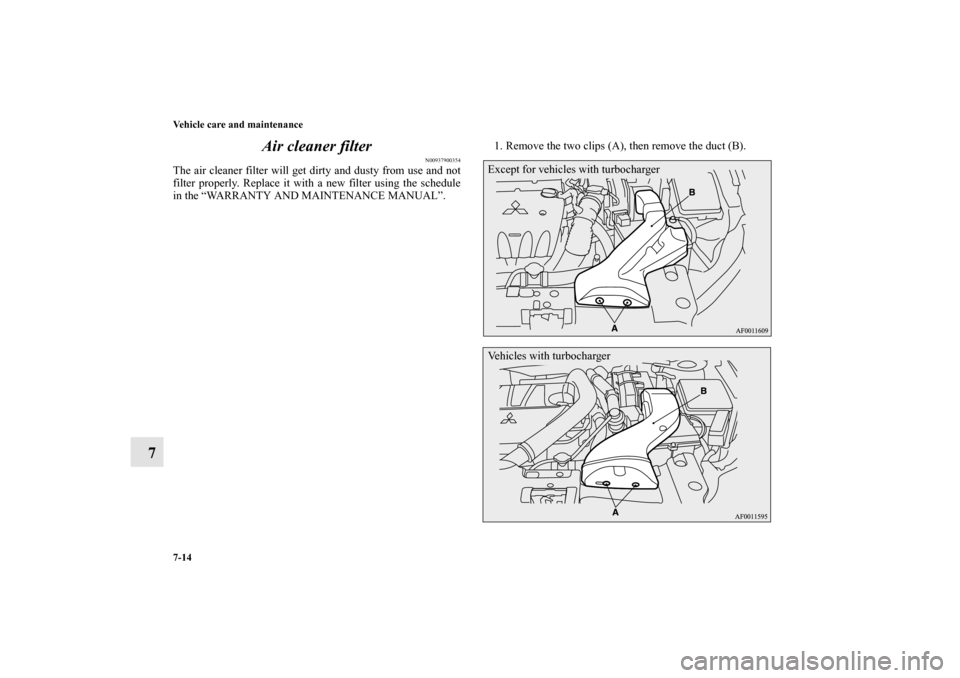

7Air cleaner filter
N00937900354
The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule
in the “WARRANTY AND MAINTENANCE MANUAL”. 1. Remove the two clips (A), then remove the duct (B).
Except for vehicles with turbochargerVehicles with turbocharger
BK0103001US.book 14 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-15
7

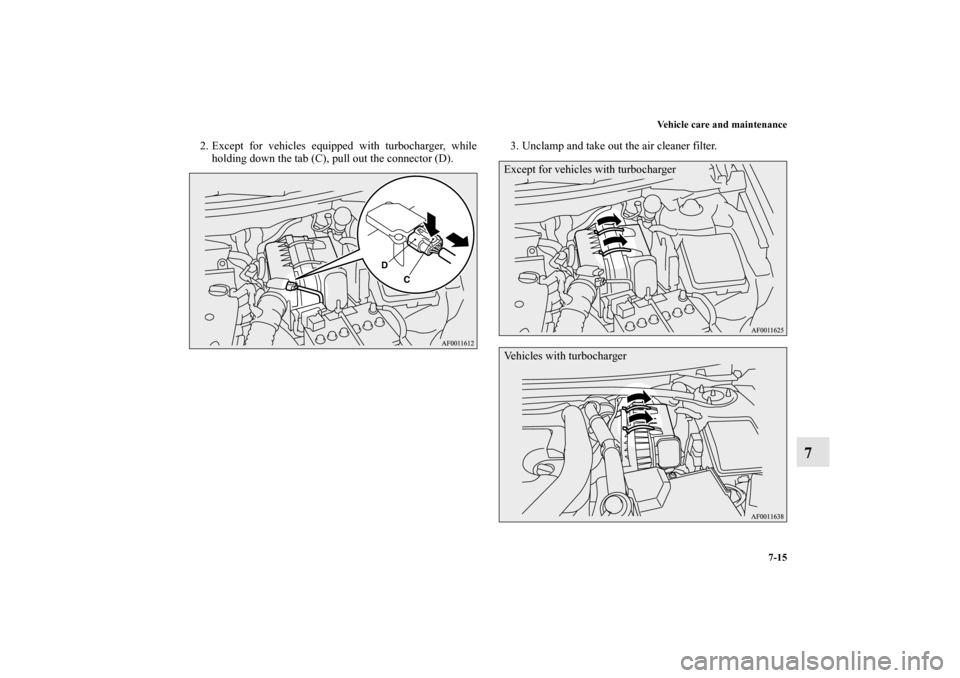

2. Except for vehicles equipped with turbocharger, while
holding down the tab (C), pull out the connector (D).3. Unclamp and take out the air cleaner filter.
Except for vehicles with turbochargerVehicles with turbocharger
BK0103001US.book 15 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-16 Vehicle care and maintenance
7

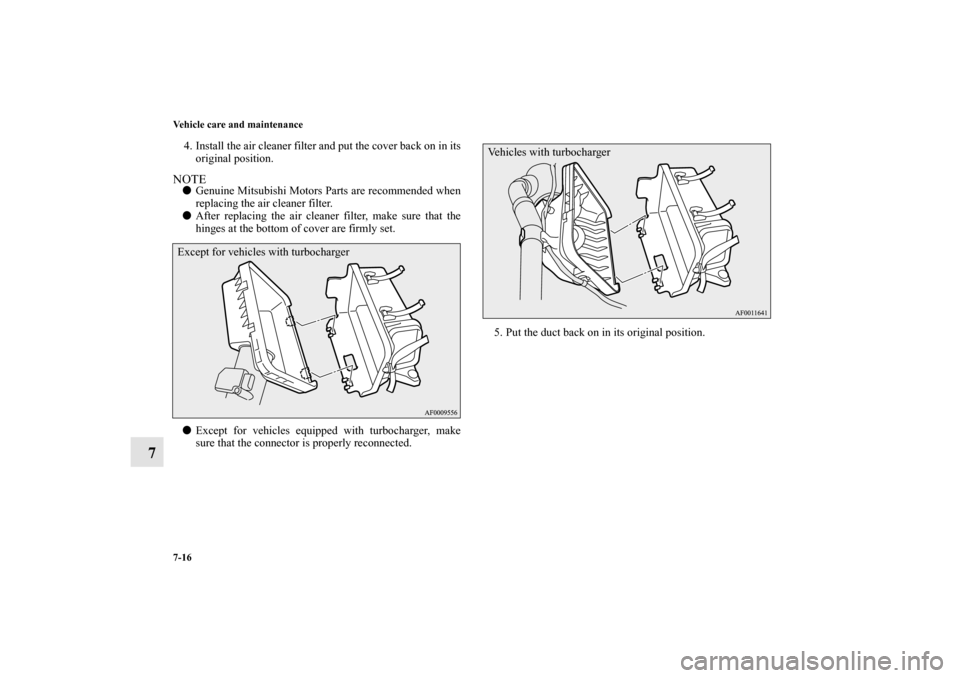

4. Install the air cleaner filter and put the cover back on in its
original position.NOTE

Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.


After replacing the air cleaner filter, make sure that the
hinges at the bottom of cover are firmly set.


Except for vehicles equipped with turbocharger, make
sure that the connector is properly reconnected.5. Put the duct back on in its original position.
Except for vehicles with turbocharger
Vehicles with turbocharger
BK0103001US.book 16 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-17

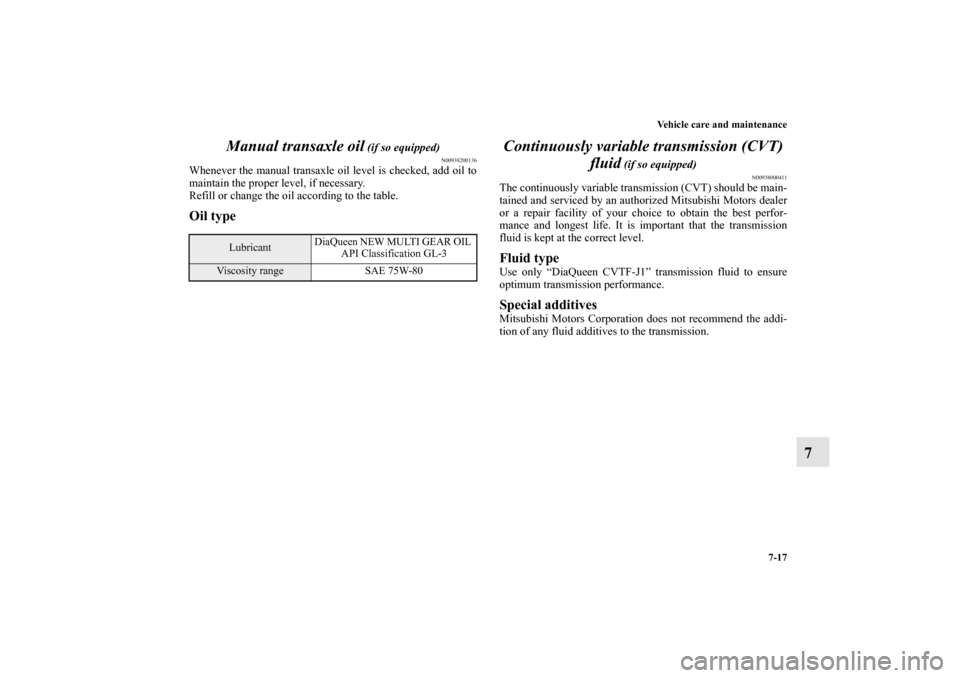

7 Manual transaxle oil
(if so equipped)
N00938200136
Whenever the manual transaxle oil level is checked, add oil to
maintain the proper level, if necessary.
Refill or change the oil according to the table.Oil type
Continuously variable transmission (CVT)
fluid
(if so equipped)
N00938000411
The continuously variable transmission (CVT) should be main-
tained and serviced by an authorized Mitsubishi Motors dealer
or a repair facility of your choice to obtain the best perfor-
mance and longest life. It is important that the transmission
fluid is kept at the correct level. Fluid typeUse only “DiaQueen CVTF-J1” transmission fluid to ensure
optimum transmission performance. Special additives Mitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transmission.
LubricantDiaQueen NEW MULTI GEAR OIL
API Classification GL-3
Viscosity range SAE 75W-80
BK0103001US.book 17 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-18 Vehicle care and maintenance

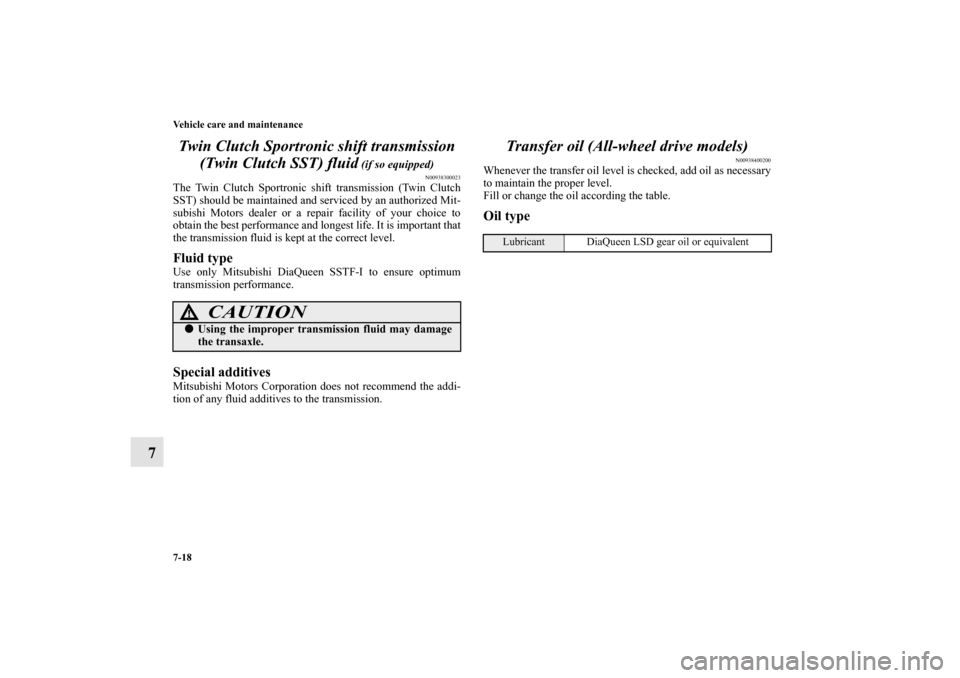

7Twin Clutch Sportronic shift transmission
(Twin Clutch SST) fluid
(if so equipped)
N00938300023
The Twin Clutch Sportronic shift transmission (Twin Clutch
SST) should be maintained and serviced by an authorized Mit-
subishi Motors dealer or a repair facility of your choice to
obtain the best performance and longest life. It is important that
the transmission fluid is kept at the correct level.Fluid typeUse only Mitsubishi DiaQueen SSTF-I to ensure optimum
transmission performance.Special additivesMitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transmission.
Transfer oil (All-wheel drive models)
N00938400200
Whenever the transfer oil level is checked, add oil as necessary
to maintain the proper level.
Fill or change the oil according the table.Oil type
CAUTION
!

Using the improper transmission fluid may damage
the transaxle.
Lubricant DiaQueen LSD gear oil or equivalent
BK0103001US.book 18 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-19

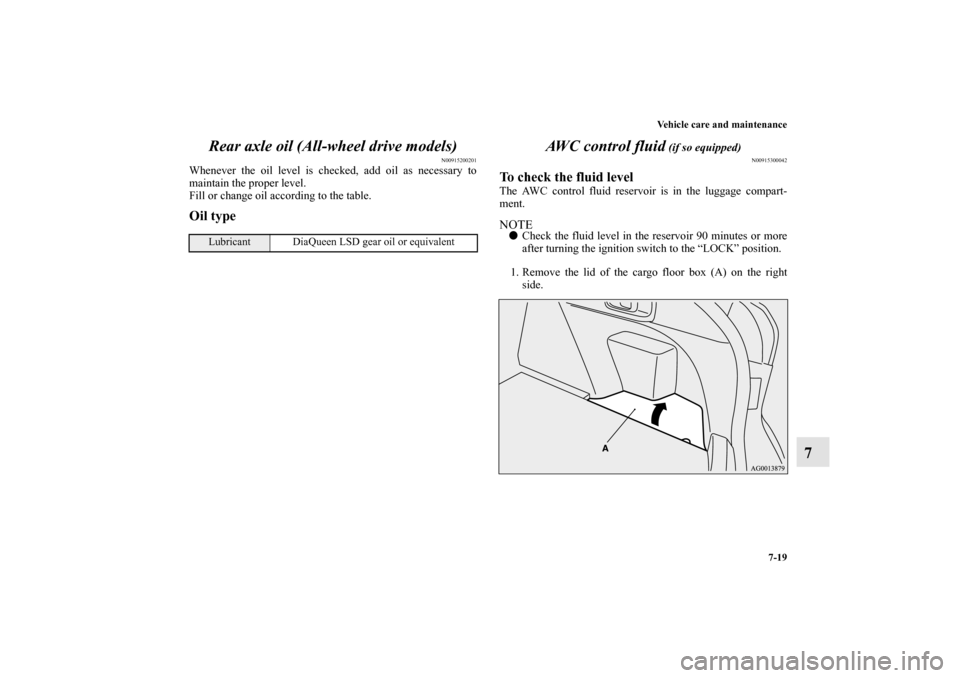

7 Rear axle oil (All-wheel drive models)
N00915200201
Whenever the oil level is checked, add oil as necessary to
maintain the proper level.
Fill or change oil according to the table.Oil type
AW C c o n t r o l f l u i d
(if so equipped)
N00915300042
To check the fluid levelThe AWC control fluid reservoir is in the luggage compart-
ment.NOTE

Check the fluid level in the reservoir 90 minutes or more
after turning the ignition switch to the “LOCK” position.
1. Remove the lid of the cargo floor box (A) on the right
side.
Lubricant DiaQueen LSD gear oil or equivalent
