MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual

3-206 Features and controls
3

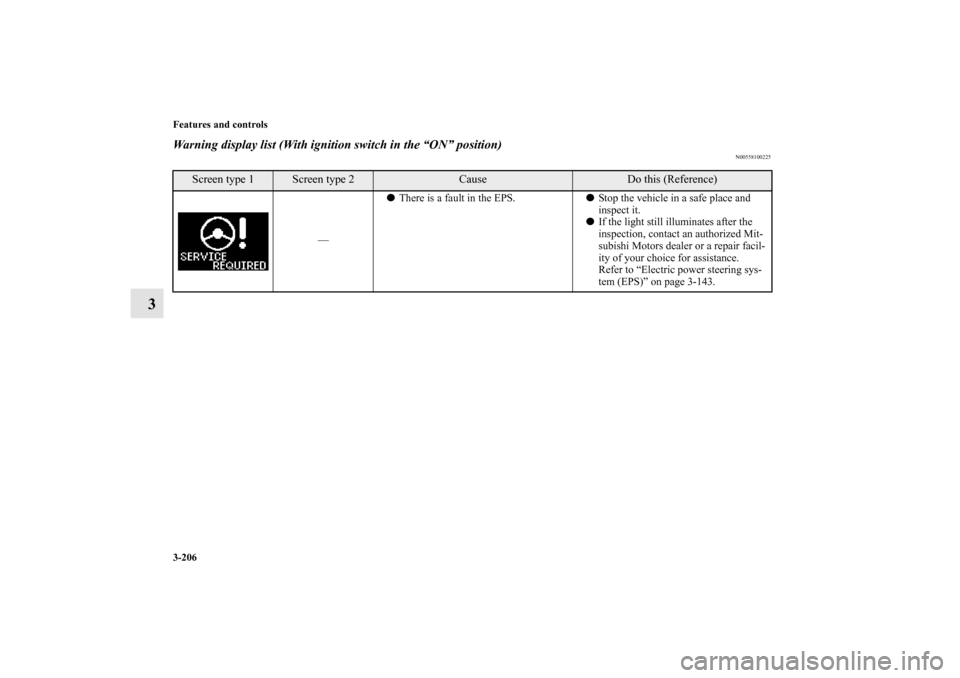

Warning display list (With ignition switch in the “ON” position)
N00558100225
Screen type 1
Screen type 2
Cause
Do this (Reference)
—
There is a fault in the EPS.
Stop the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Electric power steering sys-
tem (EPS)” on page 3-143.
BK0125300US.book 206 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-207
3

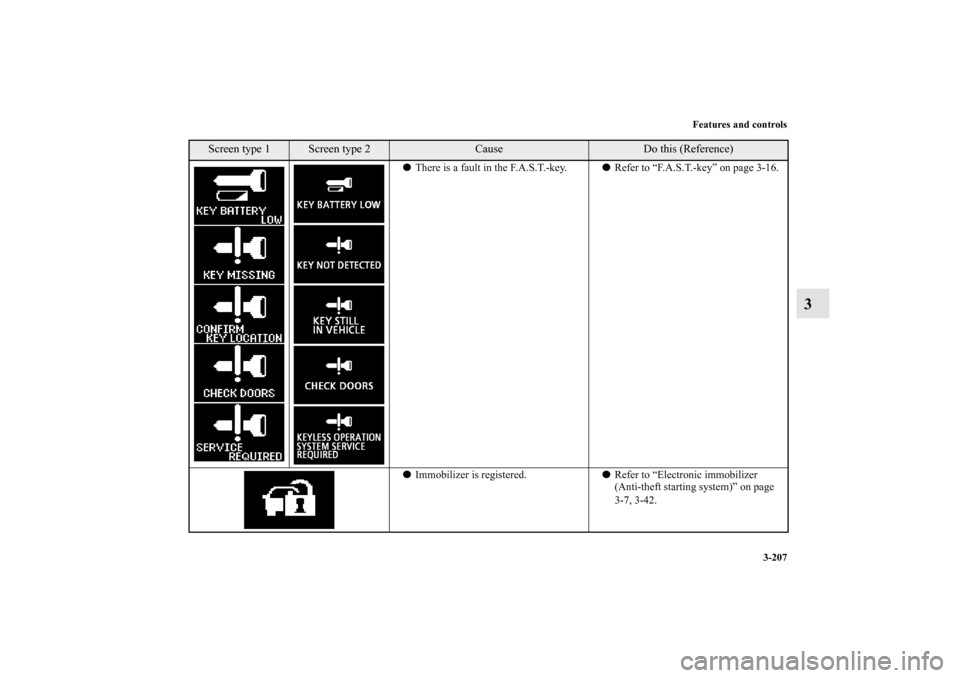

There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 3-16.

Immobilizer is registered.
Refer to “Electronic immobilizer
(Anti-theft starting system)” on page
3-7, 3-42.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0125300US.book 207 ページ ２０１０年５月１８日　火曜日　午後１時５３分

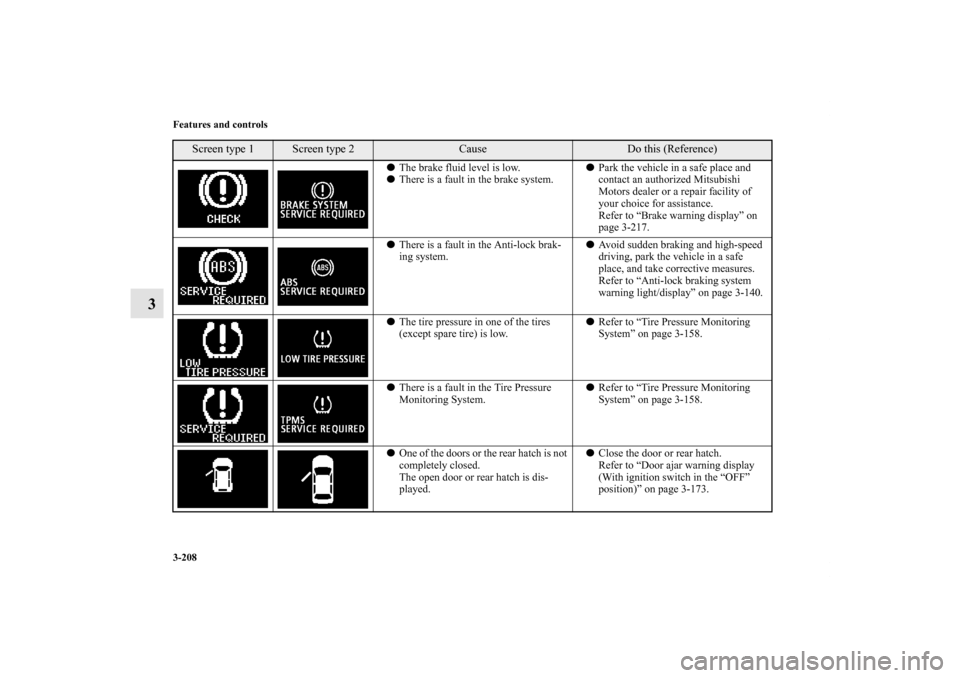

3-208 Features and controls
3

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice for assistance.
Refer to “Brake warning display” on
page 3-217.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning light/display” on page 3-140.

The tire pressure in one of the tires
(except spare tire) is low.
Refer to “Tire Pressure Monitoring
System” on page 3-158.

There is a fault in the Tire Pressure
Monitoring System.
Refer to “Tire Pressure Monitoring
System” on page 3-158.

One of the doors or the rear hatch is not
completely closed.
The open door or rear hatch is dis-
played.
Close the door or rear hatch.
Refer to “Door ajar warning display
(With ignition switch in the “OFF”
position)” on page 3-173.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0125300US.book 208 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-209
3

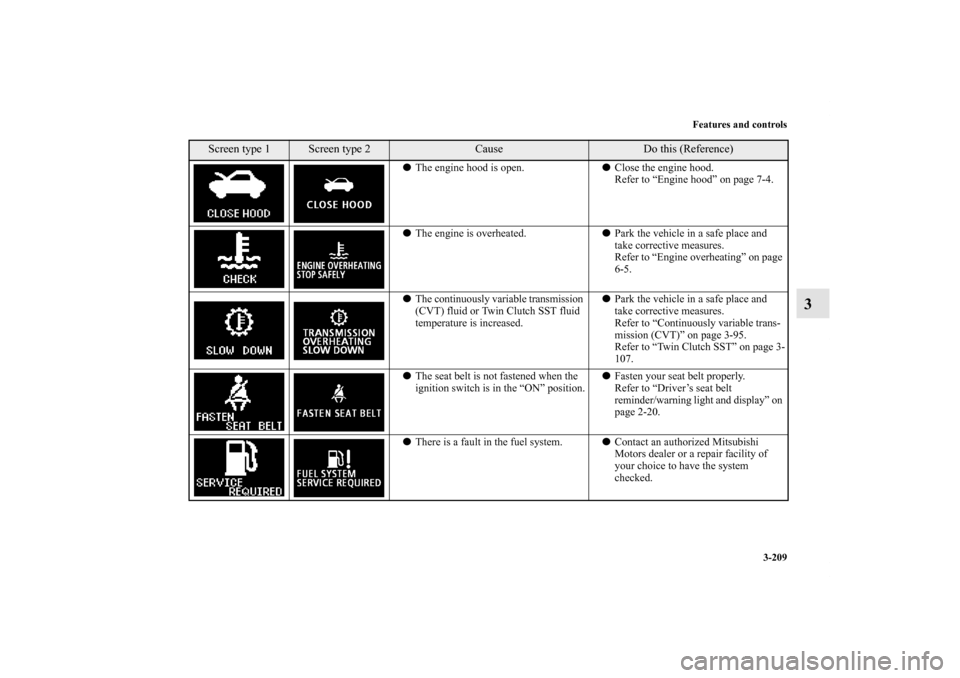

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-5.

The continuously variable transmission
(CVT) fluid or Twin Clutch SST fluid
temperature is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-95.
Refer to “Twin Clutch SST” on page 3-
107.

The seat belt is not fastened when the
ignition switch is in the “ON” position.
Fasten your seat belt properly.
Refer to “Driver’s seat belt
reminder/warning light and display” on
page 2-20.

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0125300US.book 209 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-210 Features and controls
3

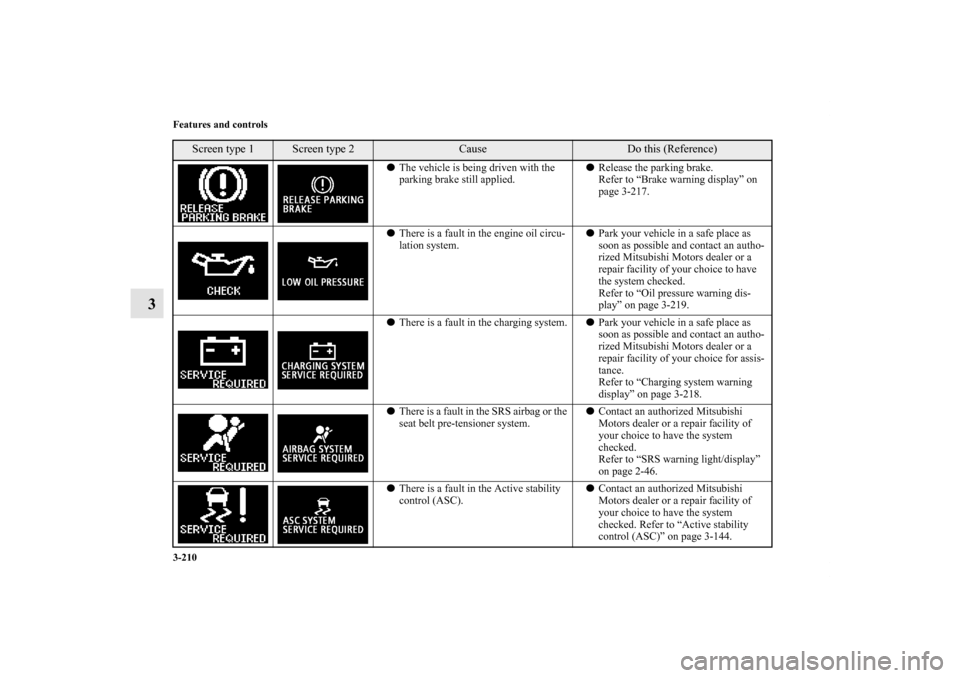

The vehicle is being driven with the
parking brake still applied.
Release the parking brake.
Refer to “Brake warning display” on
page 3-217.

There is a fault in the engine oil circu-
lation system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning dis-
play” on page 3-219.

There is a fault in the charging system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
display” on page 3-218.

There is a fault in the SRS airbag or the
seat belt pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS warning light/display”
on page 2-46.

There is a fault in the Active stability
control (ASC).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked. Refer to “Active stability
control (ASC)” on page 3-144.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0125300US.book 210 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-211
3

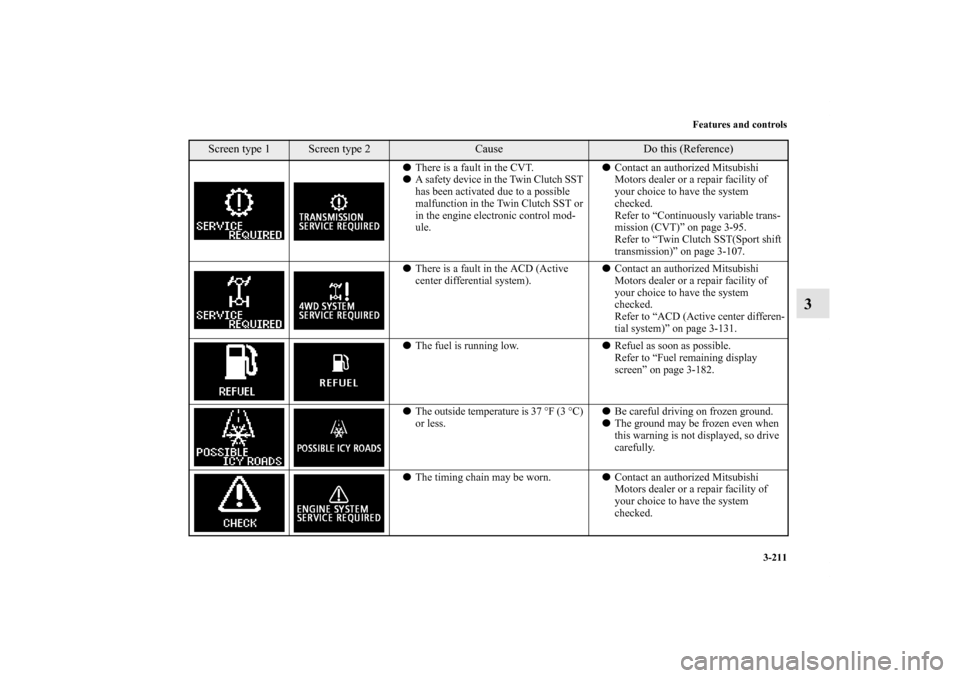

There is a fault in the CVT.

A safety device in the Twin Clutch SST
has been activated due to a possible
malfunction in the Twin Clutch SST or
in the engine electronic control mod-
ule.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-95.
Refer to “Twin Clutch SST(Sport shift
transmission)” on page 3-107.

There is a fault in the ACD (Active
center differential system).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “ACD (Active center differen-
tial system)” on page 3-131.

The fuel is running low.
Refuel as soon as possible.
Refer to “Fuel remaining display
screen” on page 3-182.

The outside temperature is 37 °F (3 °C)
or less.
Be careful driving on frozen ground.

The ground may be frozen even when
this warning is not displayed, so drive
carefully.

The timing chain may be worn.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0125300US.book 211 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-212
Features and controls
3

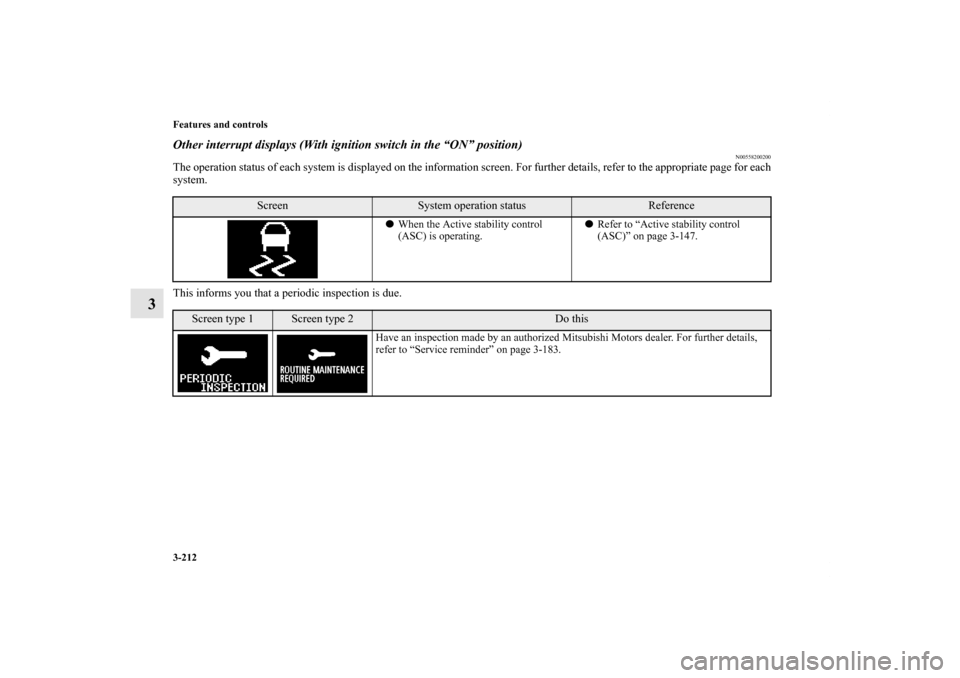

Other interrupt displays (With ignition switch in the “ON” position)
N00558200200
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page
for each
system.
This informs you that a periodic inspection is due.
Screen
System operation status
Reference

When the Active stability control
(ASC) is operating.

Refer to “Active stability control
(ASC)” on page 3-147.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-183.
BK0125300US.book 214 \bM\bo\b+ ２０１０年５月１８日　火曜日　午後１時５３\f

Features and controls3-213
3

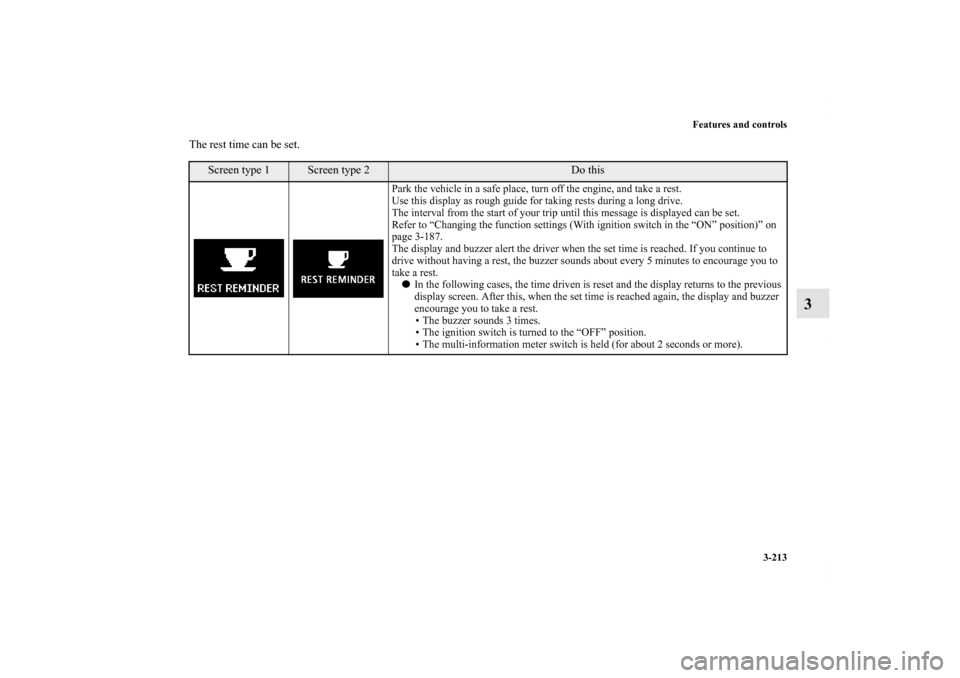

The rest time can be set.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (With ignition switch in the “ON” position)” on
page 3-187.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you to
take a rest.
In the following cases, the time driven is reset and the display returns to the previous
display screen. After this, when the set time is reached again, the display and buzzer
encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “OFF” position.
• The multi-information meter switch is held (for about 2 seconds or more).
BK0125300US.book 214 \bM\bo\b+ ２０１０年５月１８日　火曜日　午後１時５３\f

3-214 Features and controls

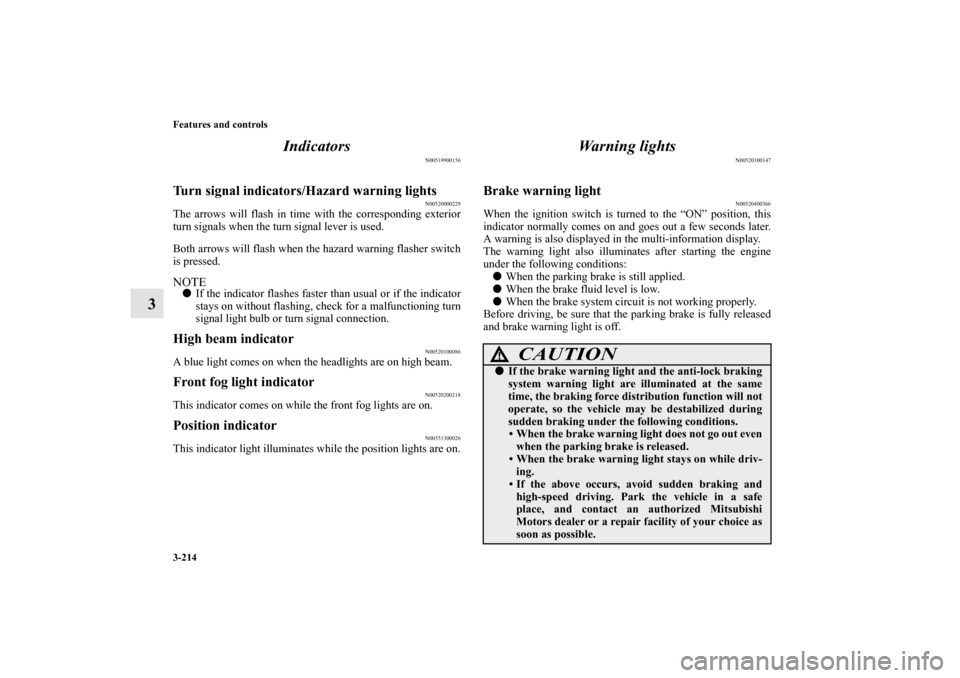

3Indicators
N00519900156
Turn signal indicators/Hazard warning lights
N00520000229
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
N00520200218
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.
Warning lights
N00520300147
Brake warning light
N00520400366
When the ignition switch is turned to the “ON” position, this
indicator normally comes on and goes out a few seconds later.
A warning is also displayed in the multi-information display.
The warning light also illuminates after starting the engine
under the following conditions:

When the parking brake is still applied.

When the brake fluid level is low.

When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
CAUTION
!
If the brake warning light and the anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, so the vehicle may be destabilized during
sudden braking under the following conditions.
• When the brake warning light does not go out even
when the parking brake is released.
• When the brake warning light stays on while driv-
ing.
• If the above occurs, avoid sudden braking and
high-speed driving. Park the vehicle in a safe
place, and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.
BK0125300US.book 214 ページ ２０１０年５月１８日　火曜日　午後１時５３分

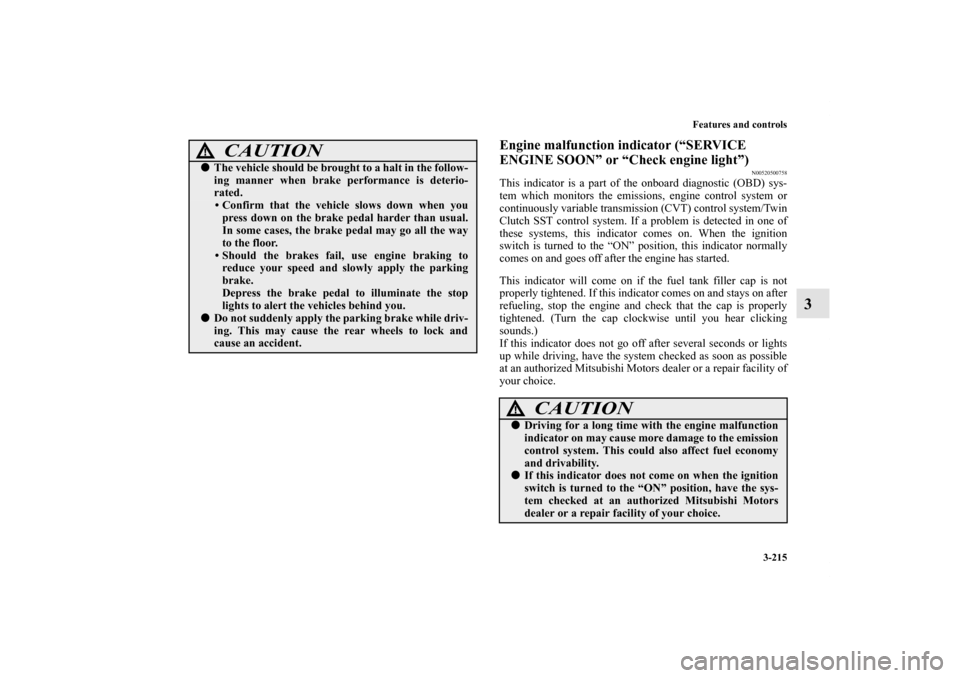

Features and controls
3-215
3
Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500758
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine control system or
continuously variable transmission (CVT) control system/Twin
Clutch SST control system. If a problem is detected in one of
these systems, this indicator comes on. When the ignition
switch is turned to the “ON” position, this indicator normally
comes on and goes off after the engine has started.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If this indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.

The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to
reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.

Do not suddenly apply the parking brake while driv-
ing. This may cause the rear wheels to lock and
cause an accident.
CAUTION
!
CAUTION
!
Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.
If this indicator does not come on when the ignition
switch is turned to the “ON” position, have the sys-
tem checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
BK0125300US.book 215 ページ ２０１０年５月１８日　火曜日　午後１時５３分
