Page 381 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 3-286 Features and controls
3

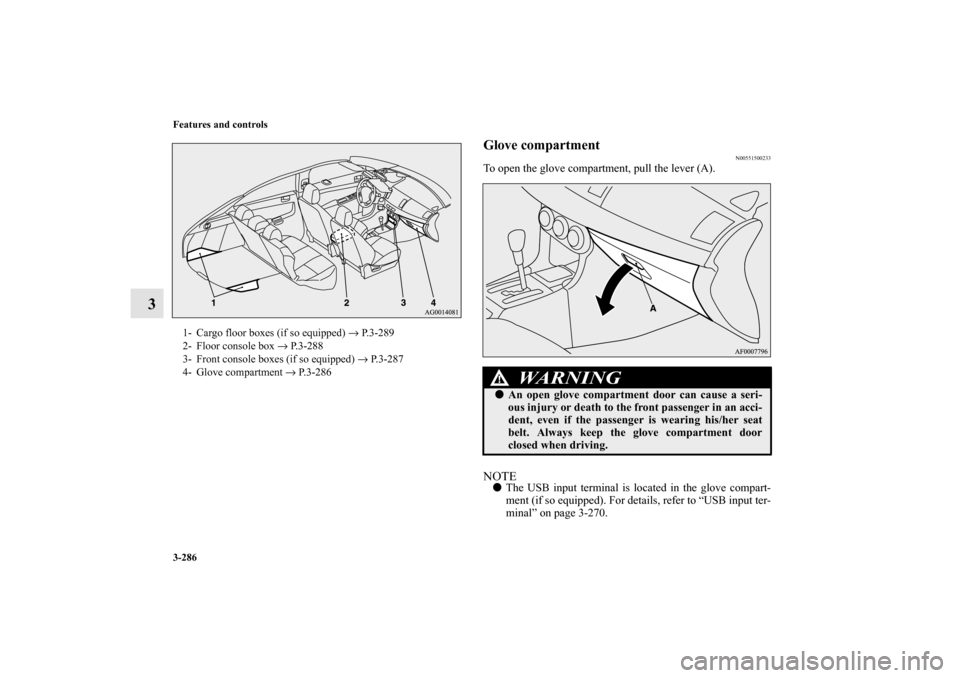

Glove compartment
N00551500233
To open the glove compartment, pull the lever (A).NOTEThe USB input terminal is located in the glove compart-
ment (if so equipped). For d

Page 382 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual Features and controls
3-287
3

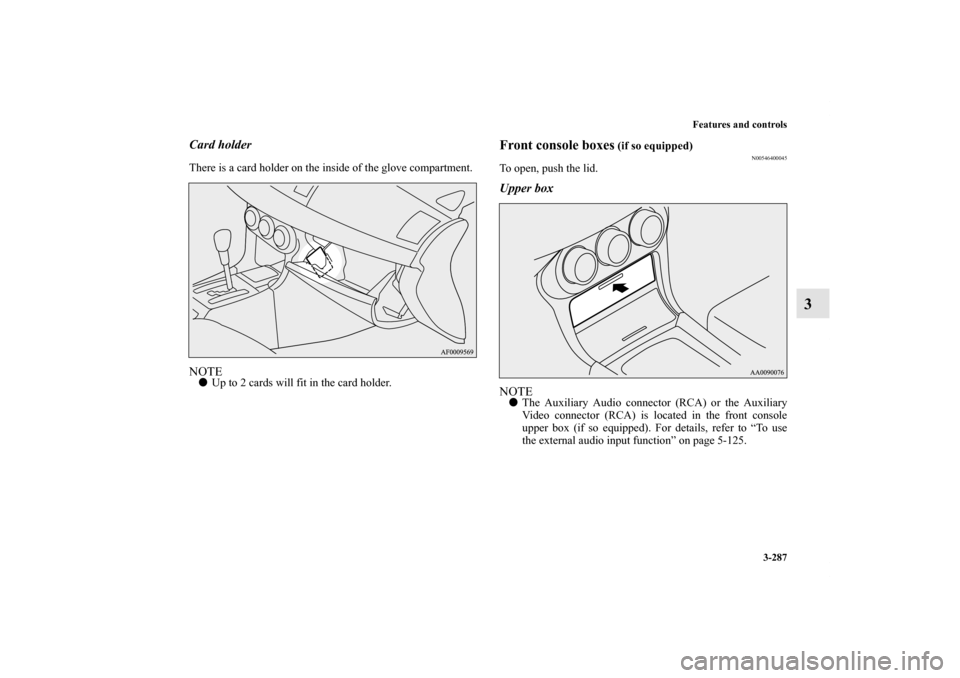

Card holderThere is a card holder on the inside of the glove compartment.NOTEUp to 2 cards will fit in the card holder.
Front console boxes
 (if so equipped)
N0054640004

Page 383 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 3-288 Features and controls
3

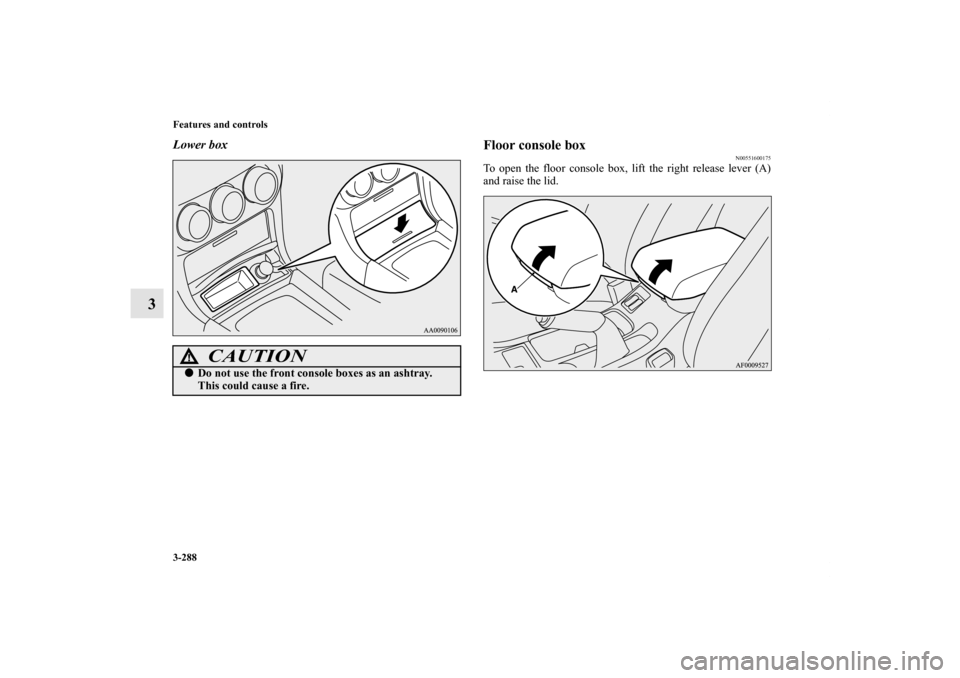

Lower box
Floor console box
N00551600175
To open the floor console box, lift the right release lever (A)
and raise the lid.
CAUTION
!Do not use the front console boxes a

Page 384 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual Features and controls
3-289
3

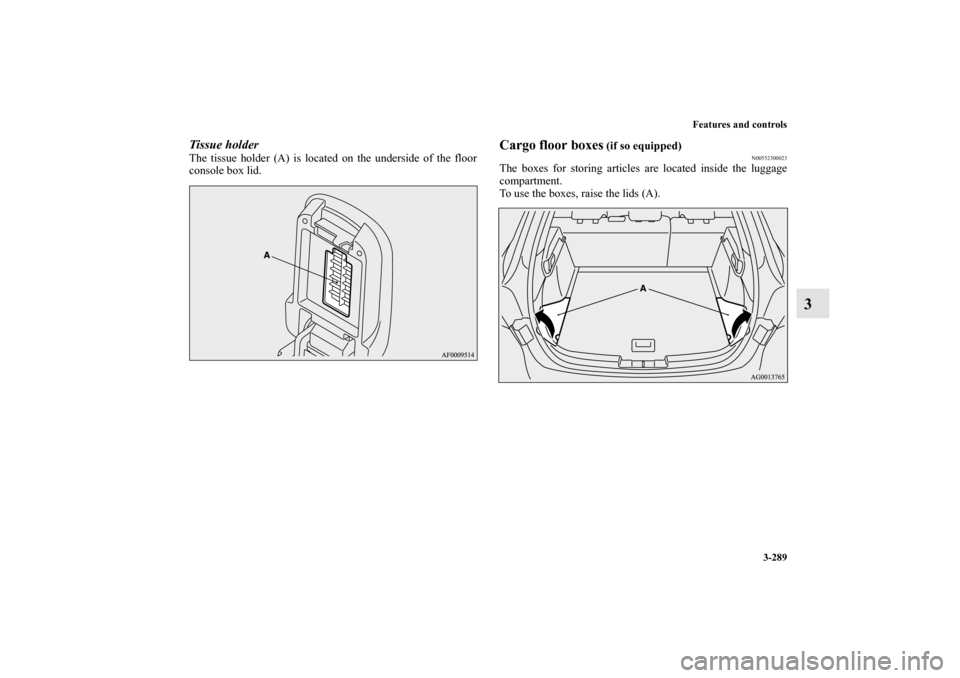

Tissue holderThe tissue holder (A) is located on the underside of the floor
console box lid.
Cargo floor boxes
 (if so equipped)
N00552300023
The boxes for storing articl

Page 385 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 3-290 Features and controls

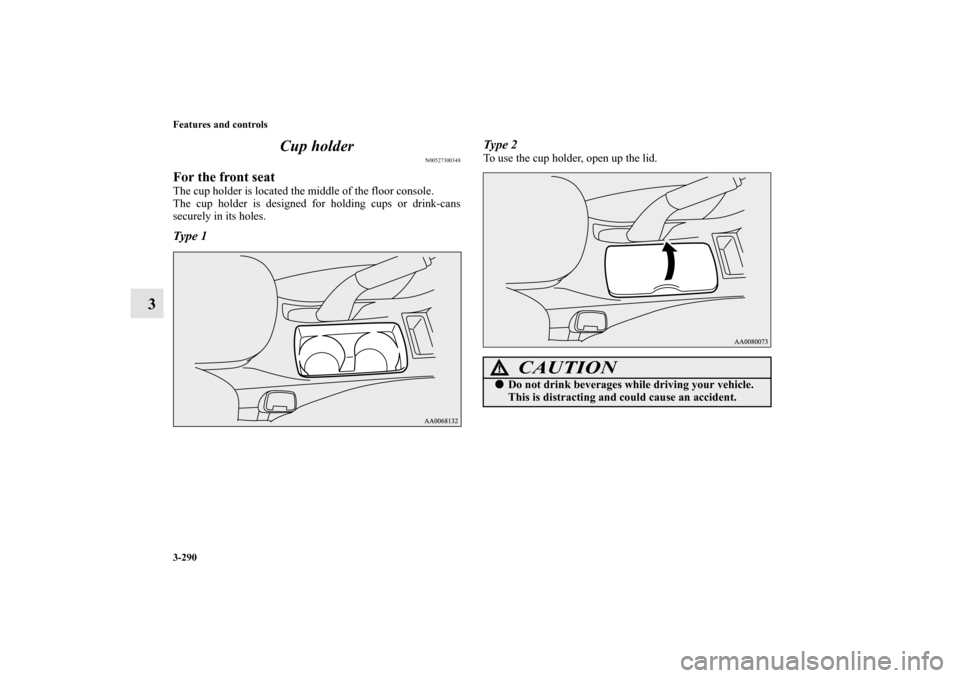

3Cup holder
N00527300348
For the front seatThe cup holder is located the middle of the floor console.
The cup holder is designed for holding cups or drink-cans
securely in

Page 386 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual Features and controls
3-291
3

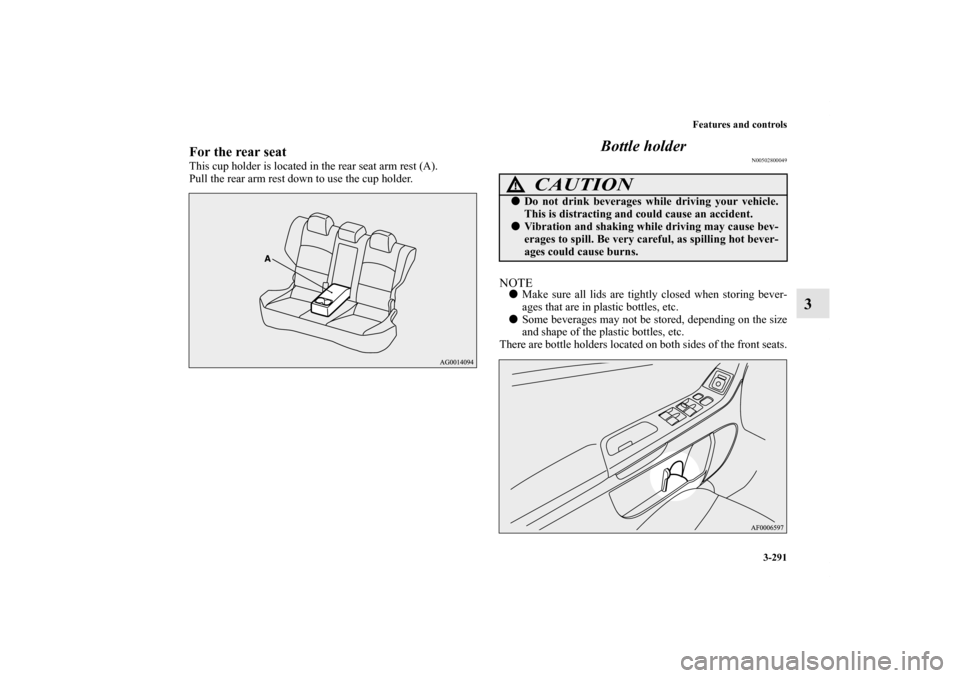

For the rear seatThis cup holder is located in the rear seat arm rest (A).
Pull the rear arm rest down to use the cup holder.
Bottle holder
N00502800049
NOTEMake sure al

Page 387 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 3-292 Features and controls

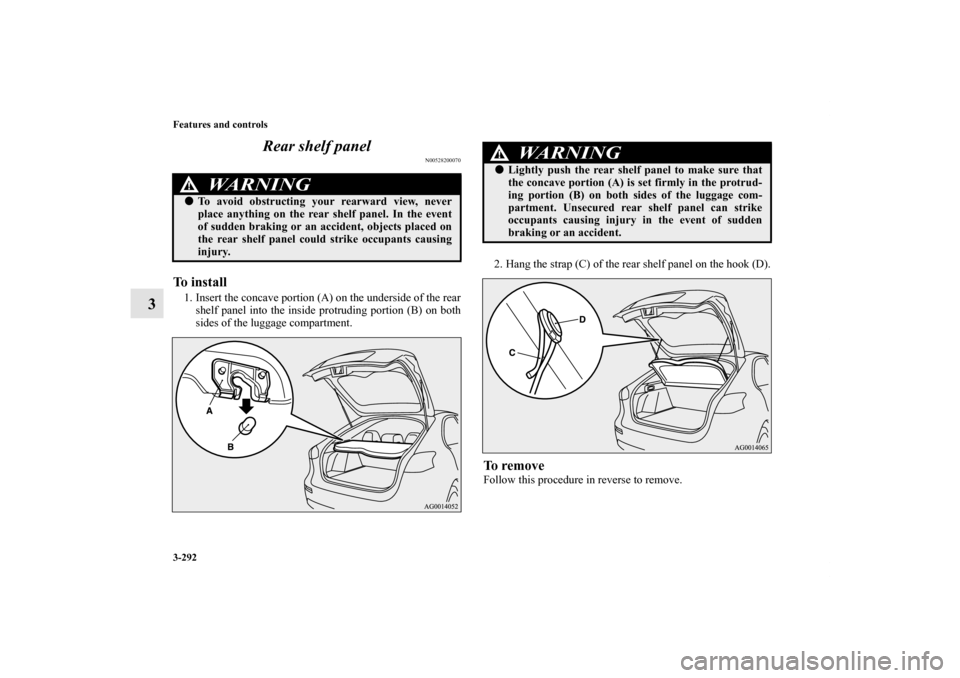

3Rear shelf panel
N00528200070
To install1. Insert the concave portion (A) on the underside of the rear
shelf panel into the inside protruding portion (B) on both
sides of

Page 388 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual Features and controls
3-293

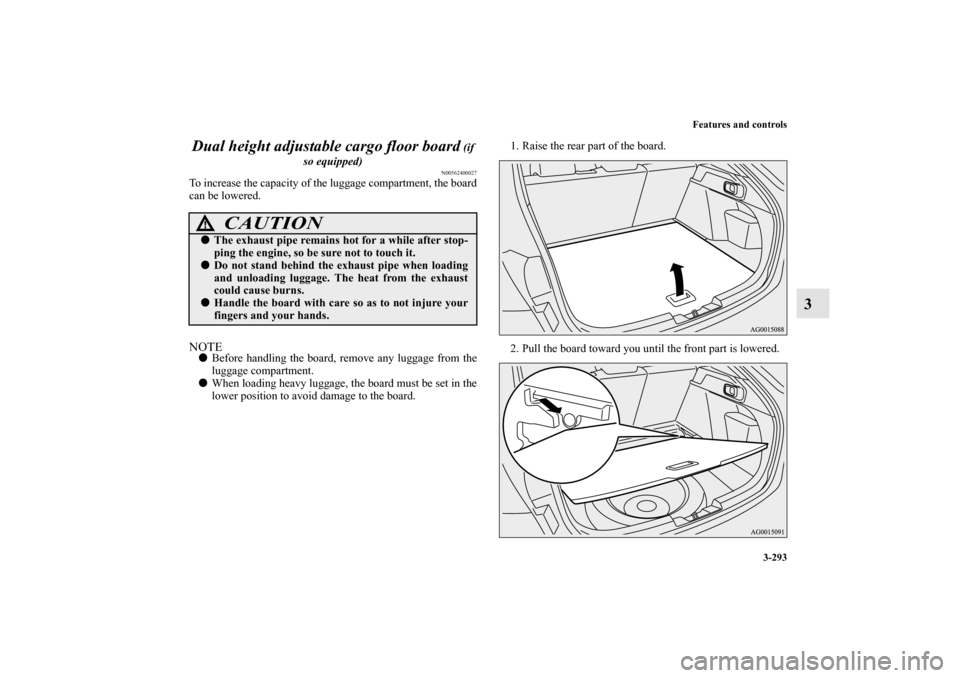

3 Dual height adjustable cargo floor board
 (if
so equipped)
N00562400027
To increase the capacity of the luggage compartment, the board
can be lowered.NOTEBefore handlin

Page 389 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual 3-294 Features and controls
3
3. Push the board in all the way with the front part lowered,
then set the board into place.
4. Make sure the board is set firmly in place.
5. Follow this procedure in re

Page 390 of 706

MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual Features and controls
3-295

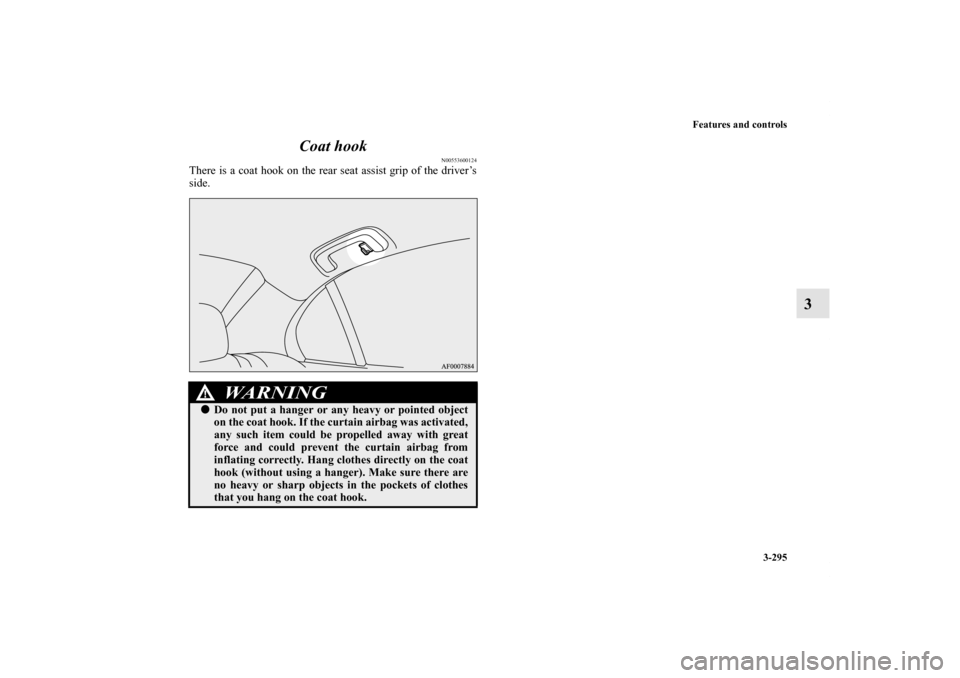

3 Coat hook
N00553600124
There is a coat hook on the rear seat assist grip of the driver’s
side.
WA R N I N G
!Do not put a hanger or any heavy or pointed object
on the
