MITSUBISHI LANCER SPORTBACK 2014 8.G User Guide

Outside (Rear) 1-9 Overview
1
N00100602375

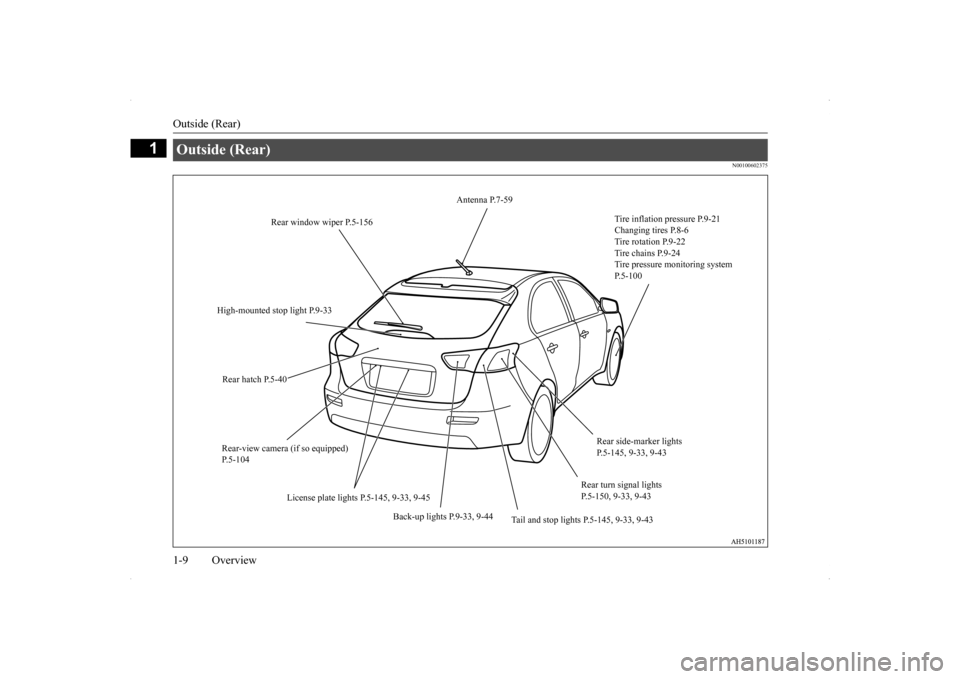

Outside (Rear)
Antenna P.7-59
Tire inflation pressure P.9-21 Changing tires P.8-6Tire rotation P.9-22 Tire chains P.9-24 Tire pressure monitoring system P.5-100
Rear window wiper P.5-156
High-mounted stop light P.9-33 Rear hatch P.5-40
Rear side-marker lights P.5-145, 9-33, 9-43
Rear-view camera (if so equipped) P.5-104
Rear turn signal lights P.5-150, 9-33, 9-43
License plate lights P.5-145, 9-33, 9-45
Back-up lights P.9-33, 9-44
Tail and stop lights
P.5-145, 9-33, 9-43
BK0200700US.bo
ok 9 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200701077
If this warning light comes on or flashes while you’re driving...
NOTE
For information regarding warning displays in the multi-informat
ion display, refer to “Multi-information display” on page 5-108
.
 These warning lights will come on for a few seconds for a bul
b check when the ignition switc
h is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
 Park your vehicle in a safe
place and stop the engine.
Contact an authorized Mitsubishi Motors
dealer or a repair facility of your
choice for assistance.
P.5-143
or
Brake warning light
 If this light comes on while driving, check to see that the parking brake is fully released. If this light stays on after releasing the parking brake, stop and check the brake fluid level.  If the brake fluid level is correct, th
ere may be a system malfunction. Avoid
hard braking and high speeds, and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.
P.5-142
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or “Check engine
light”)
 Although your vehicle will usually be drivable and not need towing, have the engine system checked at an aut
horized Mitsubishi Motors dealer or a
repair facility of your choice as soon
as possible. If the vehicle is not driv-
able, contact emergency roadside assistance at 1-888-648-7820 (for vehi- cles sold in U.S.A.) or 1-888-576-487
8 (for vehicles sold in Canada), an
authorized Mitsubishi Motors dealer
, or local towing company for assis-
tance.
P.5-142
BK0200700US.bo
ok 1 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

If this warning light comes on or
flashes while you’re driving...
2-2 Quick index
2
Anti-lock braking system warning light
 When this light comes on, the anti-lock braking system is not functioning and only the ordinary braking system is functioning.  Park your vehicle in a safe
place and stop the engine.
Test the system as described on page 5-89.  If the light does not go out after the test
, or if it comes on again, we recom-
mend that you have the system checked at
an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.
P.5-89, 5-89
SRS warning light
 It is not necessary to stop the vehicl
e immediately, but we recommend that
you have the airbag and the pre-tensione
r seat belt system checked at an
authorized Mitsubishi Motors dealer as soon as possible.
P.4-15, 4-29
Tire pressure monitoring system warning light
 If the warning light comes on, you should
stop and adjust the tires to the
proper inflation pressure as soon as possible. (See “Tire inflation pressures” on page 9-21.)Once adjustments have been made, the
warning light will go off after a few
minutes of driving.  If the warning light blinks for approximately 1 minute and then remains continuously illuminated, the system is not operating properly. If the sys- tem returns to normal, the warning light will go off. If the warning light does not go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.
P.5-101
Warning light
Do this
Ref. page
BK0200700US.bo
ok 2 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

If this problem occurs...
Quick index 2-3
2
N00200900740
If this problem occurs...
Problem
Do this
Ref. Page
Cannot turn the key. (When using a key to start the engine)
When using a key to start the engine Will not turn from “LOCK” to “ACC”. Turn the key while turning the steering wheel in either direction.
P.5-54, 5-55
Will not turn from “ACC” to “LOCK” . Vehicles equipped with continuously variab
le transmission (CVT) or Twin Clutch SST:
Check the position of the selector lever (CVT) or the gearshift lever (Twin Clutch SST). The key cannot be removed unless the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is set to the “P” (PARK) position.Vehicles equipped with manual transaxle:Place the key at the “ACC” position. Push the key in and turn it.
(When using the F.A.S.T.-key to start the engine)
When using the F.A.S.T.-key to start the engine Will not turn from “LOCK (PUSH OFF)” to “ACC”. Push the ignition switch again, turn the steering
wheel in both directions and then turn the
ignition switch. Will not turn from “ACC” to “LOCK” . Vehicles equipped with CVT or Twin Clutch SST: Check whether the selector lever (CVT) or the g
earshift lever (Twin Clutch SST) is set to the
“P” (PARK) position. Vehicles equipped with manual transaxle: Place the ignition switch at the “ACC” position.
Push the ignition switch in and turn it.
P. 5 - 1 1
The F.A.S.T.-key does not oper- ate.(for vehicles equipped with the F. A . S . T. - k e y )
Use the emergency key to lock and unlock the doors and start the engine. P.5-22
BK0200700US.bo
ok 3 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

If this problem occurs... 2-4 Quick index
2
Cannot shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) from the “P” (PARK) position. (for vehicles equipped with CVT or Twin Clutch SST)
Shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) while pressing the brake pedal. Check that the ignition key or ignition switch is in the “ON” position.
P.5-62, 5-70
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position. 2. Turn on the blower.
P.7-19, 7-24
The engine does not start. The lights do not come on. The lights are dim.The horn does not honk. The horn sound is weak.
Have the battery checked. Recharge or replace as needed.
P.8-2, 9-14
Problem
Do this
Ref. Page
BK0200700US.bo
ok 4 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

If this problem occurs...
Quick index 2-5
2
Problem
Do this
Ref. page

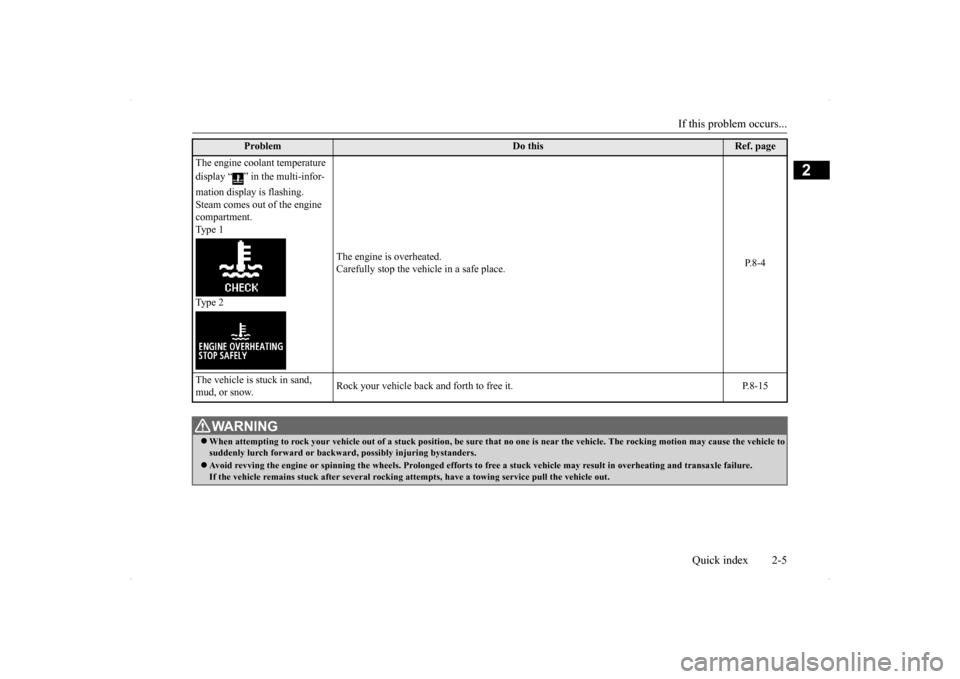

The engine coolant temperature display “ ” in the multi-infor- mation display is flashing. Steam comes out of the engine compartment. Type 1 Type 2
The engine is overheated. Carefully stop the vehicle in a safe place.
P.8-4
The vehicle is stuck in sand, mud, or snow.
Rock your vehicle back and forth to free it. P.8-15
WA R N I N G When attempting to rock your vehicle out of
a stuck position, be sure that no one is
near the vehicle. The rocking motion may c
ause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders. Avoid revving the engine or spinning the
wheels. Prolonged efforts to free a stuck ve
hicle may result in overheating and transa
xle failure.
If the vehicle remains stuck after several rocking at
tempts, have a towing service pull the vehicle out.
BK0200700US.bo
ok 5 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

If this problem occurs... 2-6 Quick index
2
Problem
Do this
Ref. page
The brakes are not functioning properly after driving through water.
Dry out the brakes by driving slowly whil
e lightly pressing the brake pedal. P.6-5
The CVT makes no engine speed to vehicle speed ratio change when accelerating. The initial movement of the vehicle is slow when the vehicle starts moving.(for vehicles equipped with CVT)
There may be a problem in the CVT. If the or warning lights on the multi-informat
ion display will not turn off, or if they are
coming on frequently, please have the vehicle
checked at your nearest Mitsubishi Motors
dealer.
P.5-70
Twin Clutch SST does not shift. Vehicle cannot move.Acceleration is slow. The vehicle does not creep. A large shock is felt when shift-ing. Shifting occurs at higher engine speed.Response is slow. (for vehicles equipped with Twin Clutch SST)
The temperature of the Twin Clutch SST fluid is
high, a safety device in the Twin Clutch SST
has been activated due to a possible malfunction in
the Twin Clutch SST, or there is a possible
malfunction in the engine electronic control module.
P.5-73, 5-81, 5-142
BK0200700US.bo
ok 6 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

If this problem occurs...
Quick index 2-7
2
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level. 2. Replace the flat tire with the spare tire.
P.8-6
Problem
Do this
Ref. page
BK0200700US.bo
ok 7 ページ ２０１３年２月１５日　金曜日　午後１２時１７分
