MITSUBISHI LANCER SPORTBACK 2014 8.G Owners Manual

Fuses 9-32 Vehicle care and maintenance
9
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of these capacities blows, replace it temporarily by borrowing one of the fuses indicated below.7.5 A: 10 A spare fuse 25 A: 20 A spare fuse 30 A: 30 A audio amplifier fuseReplace the borrowed fuse with a fuse that has the correct capacity as soon as possible.
N00954900085
1. Before replacing a fuse, always turn off the electrical item connected to the fuseand turn the ignition switch to the “LOCK” position.
2. There is a fuse puller (A) in the engine compartment fuse block. 3. Clamp it on the fuse you wish to remove, and pull the fuse straight out from the fuse block.
4. Use the fuse location diagrams and the matching tables, to check the fuse that is related to the problem. If the fuse is not blown, something else must be causingthe problem. Contact an authorized Mit- subishi Motors dealer or a repair facility of your choice to have the problemchecked. 5. Insert a new fuse of the same capacity securely into the appropriate slot.
Identification of fuse Capacity
Color
7.5 A Brown10 A Red15 A Blue20 A Yellow25 A Natural (White) 30 A
Green (fuse type)/Pink (fusible
link type)
40 A Green
Fuse replacement
B- Fuse is OK C- Blown fuseCAUTION Never use a fuse with a capacity greater than the one listed or any substitute, such as wire, foil etc. This would cause the circuit wiringto heat up and could cause a fire.
BK0200700US.bo
ok 32 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
N00942900219
Before replacing a bulb, be sure the light is off. Do not touch the glass part of the newbulb with your bare fingers; the oil from your skin will stay on the glass and dim or destroy the bulb when it gets hot.
N00943000158
The bulb should only be replaced with a newbulb with the same rating and type. The typeand rating are listed on the base of the bulb.
N00950300818
[For vehicles without high intensity dischargeheadlights]
 If the replacement fuse blows again after a short time, have the electrical system checked by an authorized Mitsubishi Motors dealer or a repair faci
lity of your choice to
find and correct the cause.

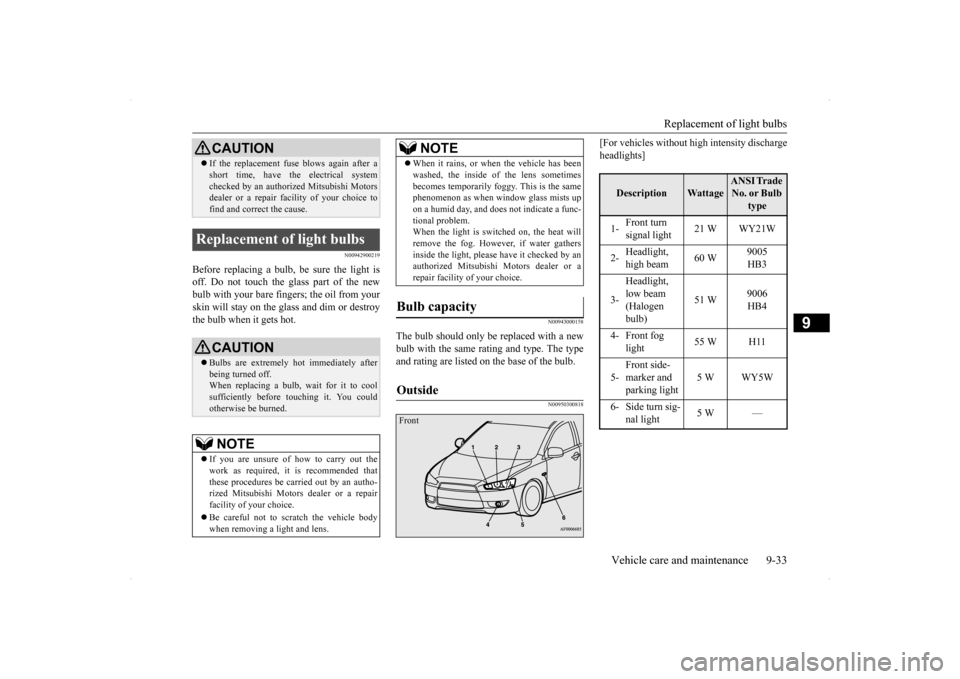

Replacement of light bulbs
CAUTION Bulbs are extremely hot immediately after being turned off. When replacing a bulb, wait for it to coolsufficiently before touching it. You could otherwise be burned.NOTE
 If you are unsure of how to carry out the work as required, it is recommended that these procedures be carried out by an autho-rized Mitsubishi Motors dealer or a repair facility of your choice.  Be careful not to scratch the vehicle body when removing a light and lens.CAUTION
 When it rains, or when the vehicle has been washed, the inside of the lens sometimes becomes temporarily foggy. This is the same phenomenon as when window glass mists up on a humid day, and does not indicate a func-tional problem. When the light is switched on, the heat will remove the fog. However, if water gathersinside the light, please have it checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice.
Bulb capacity Outside
NOTE
Front
Description
Wattage
ANSI Trade No. or Bulb
type
1-
Front turn signal light
21 W WY21W
2-
Headlight, high beam
60 W
9005 HB3
3-
Headlight, low beam (Halogen bulb)
51 W
9006 HB4
4- Front fog
light
55 W H11
5-
Front side- marker and parking light
5 W WY5W
6- Side turn sig-
nal light
5 W —
SC00001000-7.f
m 33 ページ ２０１３年２月１５日　金曜日　午後４時２０分

Replacement of light bulbs 9-34 Vehicle care and maintenance
9

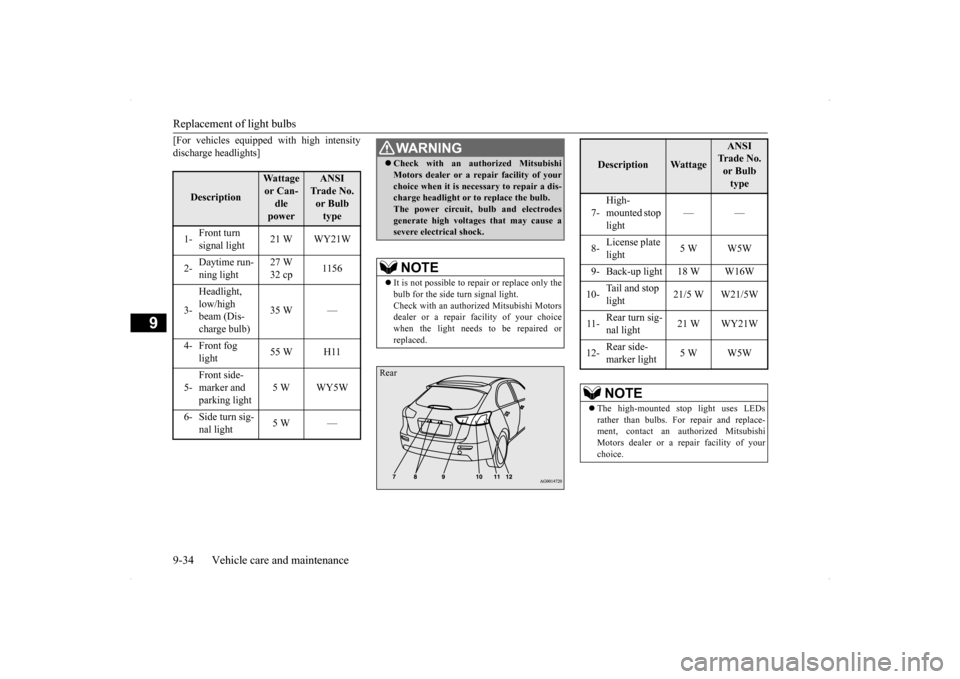

[For vehicles equipped with high intensity discharge headlights]
Description
Wattage or Can- dle power
ANSI Trade No. or Bulb type
1-
Front turn signal light
21 W WY21W
2-
Daytime run- ning light
27 W 32 cp
1156
3-
Headlight, low/high beam (Dis- charge bulb)
35 W —
4- Front fog
light
55 W H11
5-
Front side- marker and parking light
5 W WY5W
6- Side turn sig-
nal light
5 W —
WA R N I N G Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when it is necessary to repair a dis- charge headlight or to replace the bulb. The power circuit, bulb and electrodesgenerate high voltages that may cause a severe electrical shock.NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light. Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice
when the light needs to be repaired or replaced.
Rear
Description
Wattage
ANSI Trade No. or Bulb type
7-
High- mounted stop light
——
8-
License plate light
5 W W5W
9- Back-up light 18 W W16W 10-
Tail and stop light
21/5 W W21/5W
11-
Rear turn sig- nal light
21 W WY21W
12-
Rear side- marker light
5 W W5W
NOTE
 The high-mounted stop light uses LEDs rather than bulbs. For repair and replace- ment, contact an authorized Mitsubishi Motors dealer or a repair facility of yourchoice.
SC00001000-7.f
m 34 ページ ２０１３年２月１５日　金曜日　午後４時２０分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
N00950400545
N00901800091

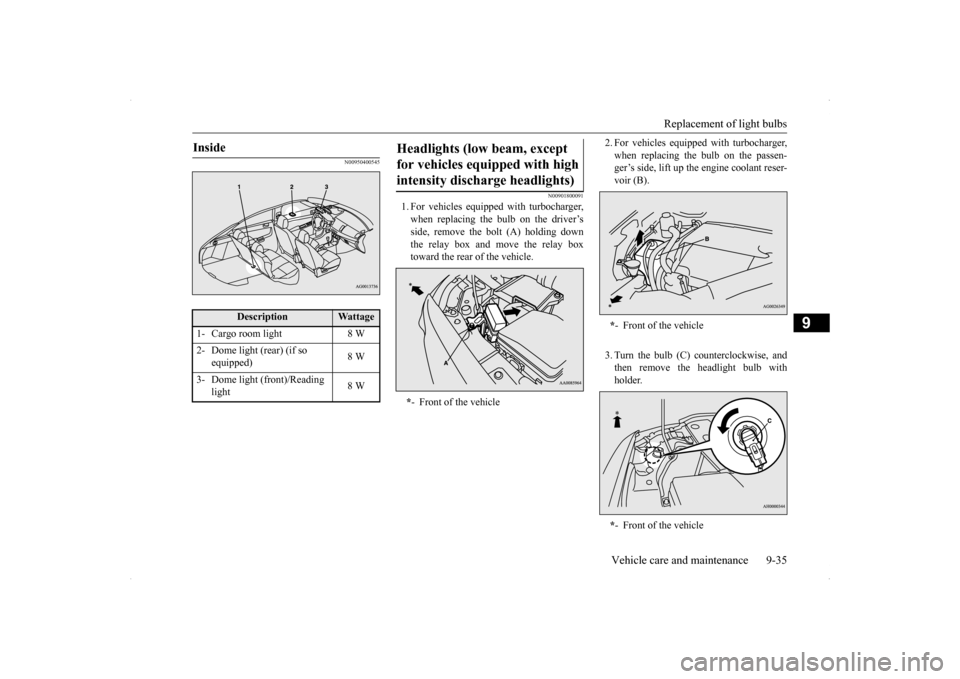

1. For vehicles equipped with turbocharger, when replacing the bulb on the driver’s side, remove the bolt (A) holding downthe relay box and move the relay box toward the rear of the vehicle.
2. For vehicles equipped with turbocharger, when replacing the bulb on the passen- ger’s side, lift up the engine coolant reser- voir (B). 3. Turn the bulb (C) counterclockwise, and then remove the headlight bulb with holder.
Inside
Description
Wattage
1- Cargo room light 8 W2- Dome light (rear) (if so
equipped)
8 W
3- Dome light (front)/Reading
light
8 W
Headlights (low beam, except for vehicles equipped with high intensity discharge headlights) * - Front of the vehicle
*- Front of the vehicle * - Front of the vehicle
BK0200700US.bo
ok 35 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Replacement of light bulbs 9-36 Vehicle care and maintenance
9

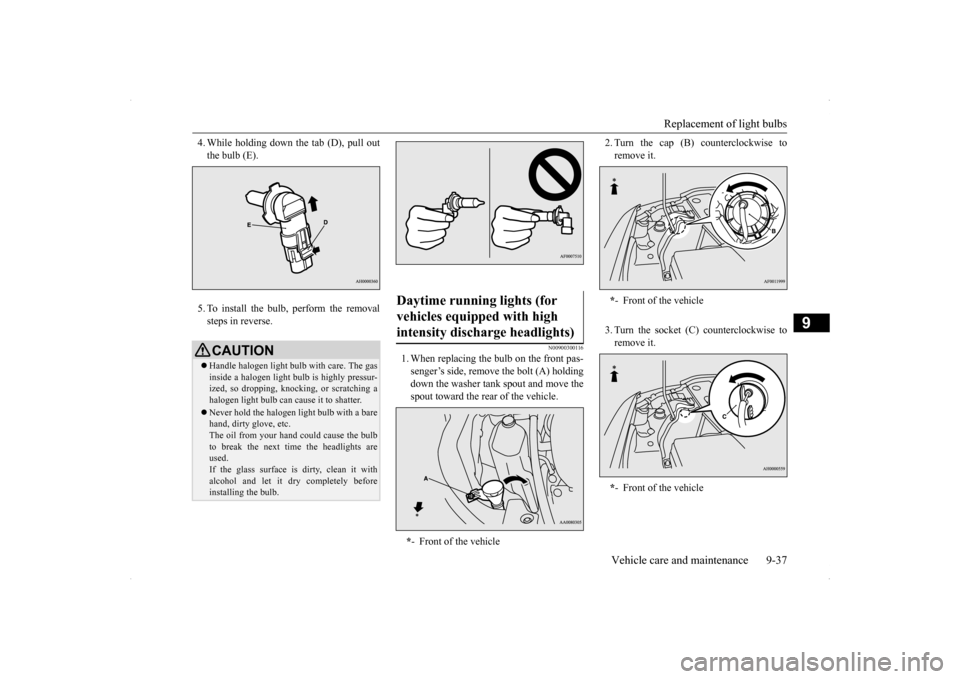

4. While holding down the tab (D), pull out the bulb (E). 5. To install the bulb, perform the removal steps in reverse.
N00901900063
1. When replacing the bulb on the front pas-senger’s side, remove the bolt (A) holdingdown the washer tank spout and move thespout toward the rear of the vehicle.
2. Turn the cap (B) counterclockwise to remove it. 3. Turn the bulb (C) counterclockwise to remove it.
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching ahalogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlights areused. If the glass surface is dirty, clean it with alcohol and let it dry completely beforeinstalling the bulb.
Headlights (high beam, except for vehicles equipped with high intensity discharge headlights) * - Front of the vehicle
*- Front of the vehicle * - Front of the vehicle
BK0200700US.bo
ok 36 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9

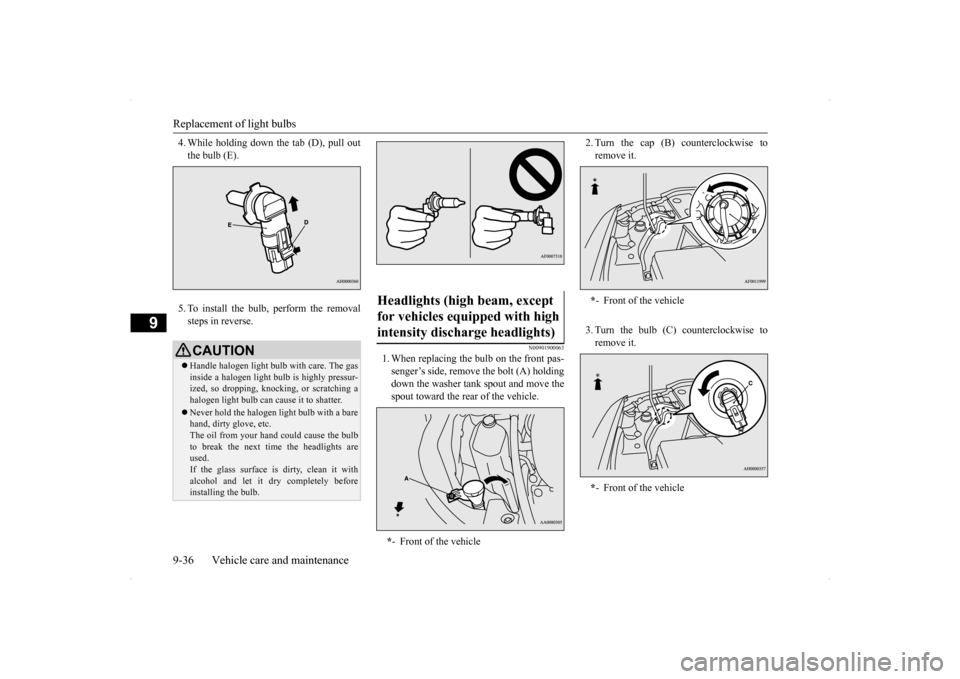

4. While holding down
the tab (D), pull out
the bulb (E). 5. To install the bulb, perform the removal steps in reverse.
N00900300116
1. When replacing the bulb on the front pas-senger’s side, remove the bolt (A) holdingdown the washer tank spout and move thespout toward the rear of the vehicle.
2. Turn the cap (B) counterclockwise to remove it. 3. Turn the socket (C) counterclockwise to remove it.
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching ahalogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlights areused. If the glass surface is dirty, clean it with alcohol and let it dry completely beforeinstalling the bulb.
Daytime running lights (for vehicles equipped with high intensity discharge headlights) * - Front of the vehicle
*- Front of the vehicle * - Front of the vehicle
BK0200700US.bo
ok 37 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Replacement of light bulbs 9-38 Vehicle care and maintenance
9

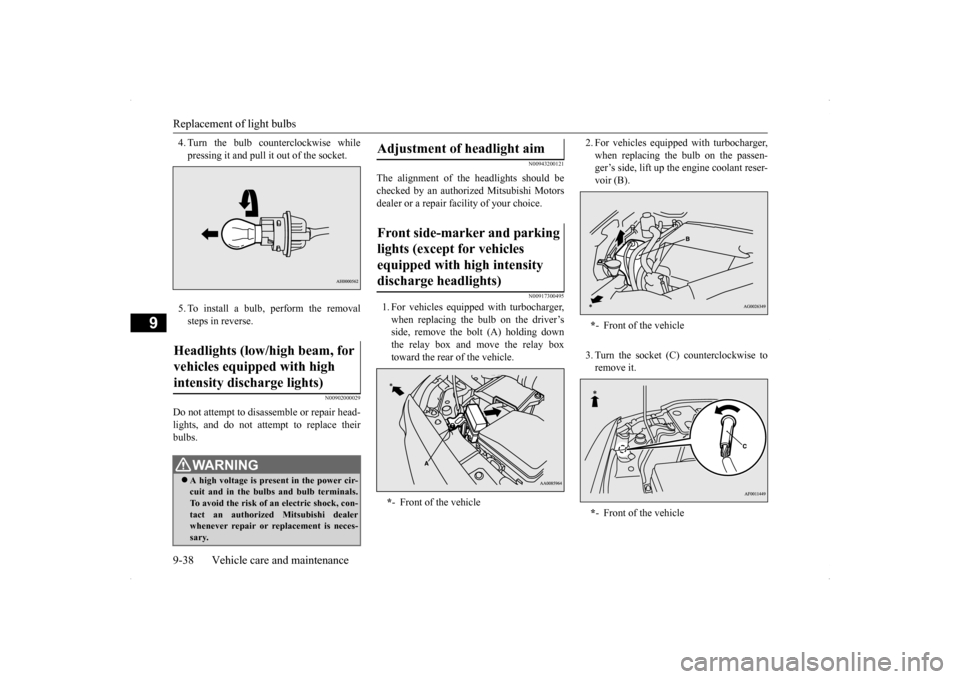

4. Turn the bulb counterclockwise while pressing it and pull it out of the socket. 5. To install a bulb, perform the removal steps in reverse.
N00902000029
Do not attempt to disassemble or repair head- lights, and do not attempt to replace their bulbs.
N00943200121
The alignment of the headlights should bechecked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917300495
1. For vehicles equipped with turbocharger,when replacing the bulb on the driver’sside, remove the bo
lt (A) holding down
the relay box and move the relay box toward the rear of the vehicle.
2. For vehicles equipped with turbocharger, when replacing the bulb on the passen- ger’s side, lift up the engine coolant reser- voir (B). 3. Turn the socket (C) counterclockwise to remove it.
Headlights (low/high beam, for vehicles equipped with high intensity discharge lights)
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con-tact an authorized Mitsubishi dealer whenever repair or replacement is neces- sary.
Adjustment of headlight aim Front side-marker and parking lights (except for vehicles equipped with high intensity discharge headlights) * - Front of the vehicle
*- Front of the vehicle * - Front of the vehicle
BK0200700US.bo
ok 38 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Replacement of light bulbs
Vehicle care and maintenance 9-39
9

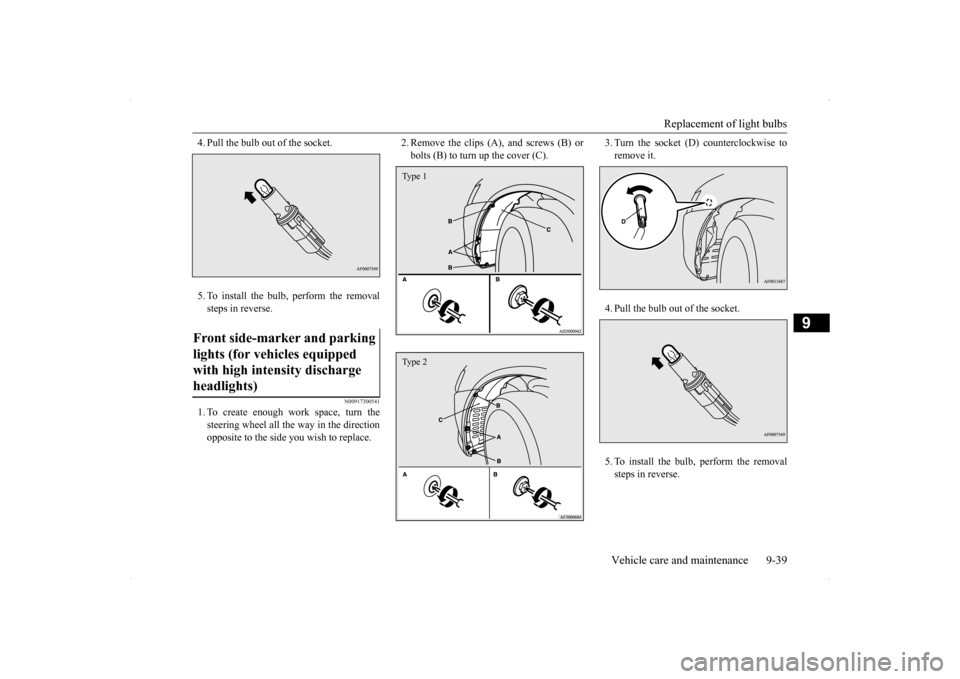

4. Pull the bulb out of the socket. 5. To install the bulb, perform the removal steps in reverse.
N00917300541
1. To create enough work space, turn thesteering wheel all the way in the directionopposite to the side you wish to replace.
2. Remove the clips (A), and screws (B) or bolts (B) to turn up the cover (C).
3. Turn the socket (D) counterclockwise to remove it. 4. Pull the bulb out of the socket.5. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (for vehicles equipped with high intensity discharge headlights)
Type 1Type 2
BK0200700US.bo
ok 39 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Replacement of light bulbs 9-40 Vehicle care and maintenance
9
N00943400325

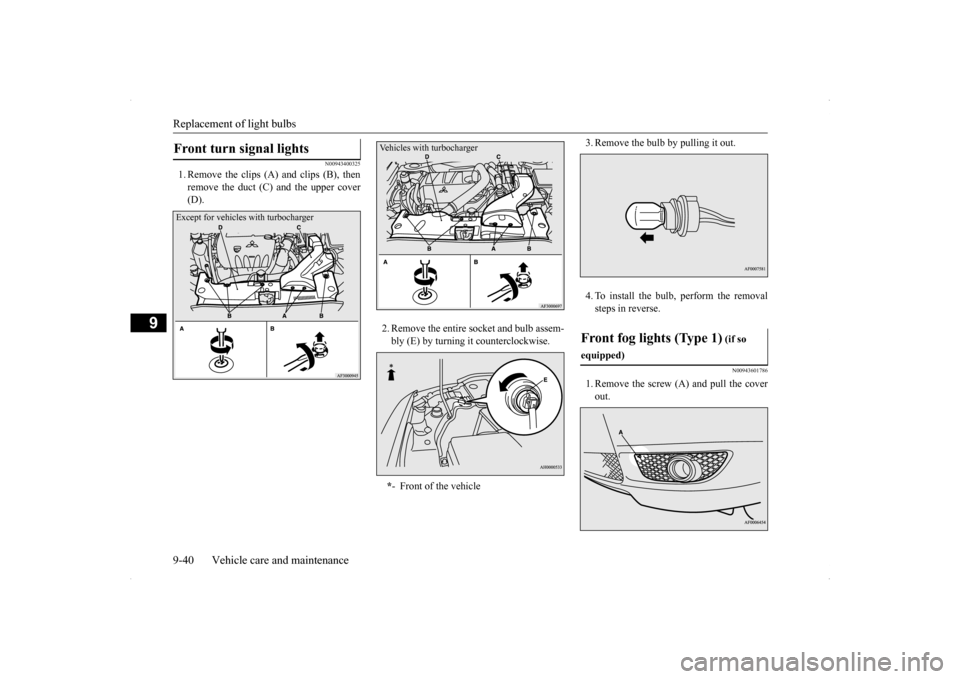

1. Remove the clips (A) and clips (B), then remove the duct (C) and the upper cover(D).
2. Remove the entire socket and bulb assem- bly (E) by turning it counterclockwise.
3. Remove the bulb by pulling it out. 4. To install the bulb, perform the removal steps in reverse.
N00943601786
1. Remove the screw (A) and pull the coverout.
Front turn signal lights Except for vehicles with turbocharger
* - Front of the vehicle
Vehicles with turbocharger
Front fog lights (Type 1)
(if so
equipped)
BK0200700US.bo
ok 40 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Replacement of light bulbs
Vehicle care and maintenance 9-41
9
2. Remove the screws (B) and pull the entire light unit out.
3. Push the connector (D) to disconnect and remove the fog light. 4. Remove the bulb assembly (E) by turning it counterclockwise. 5. To install the bulb, perform the removal steps in reverse.
NOTE
 When unfastening the screws, be careful not to mistakenly move the beam position adjustment screw (C).
NOTE
 When mounting the cover, align the hooks (F) on the cover with the hole in the body.CAUTION Handle halogen light bulbs with care. The gas inside a halogen light bulb is highly pres-surized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen lights bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulbto break the next time the fog lights are used. If the glass surface is dirty, clean it with alcohol and let it dry completely beforeinstalling the bulb.
