Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701136
NOTEThese warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the
operation mode is put in ON.
Warning lights
Do this
Ref. Page
Charging system warning lightPark your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 1 1 3
(Illuminates and intermittent sounds)Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 2 1
Oil pressure warning lightPark your vehicle in a safe place and stop the engine, then check the engine
oil level.
If the light comes on while the engine oil level is normal, have the system
checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.P. 3 - 1 1 3
BK0162600US.book 1 ページ 2013年3月22日 金曜日 午後2時41分
Page 25 of 460

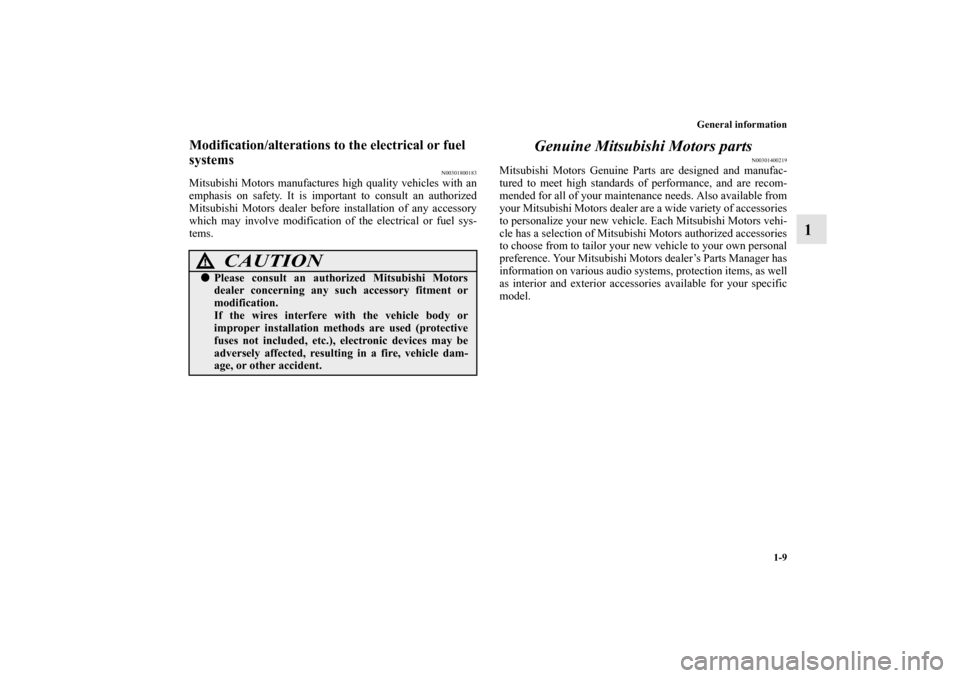

General information
1-9
1
Modification/alterations to the electrical or fuel
systems
N00301800183
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important to consult an authorized
Mitsubishi Motors dealer before installation of any accessory
which may involve modification of the electrical or fuel sys-
tems.
Genuine Mitsubishi Motors parts
N00301400219
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi Motors vehi-
cle has a selection of Mitsubishi Motors authorized accessories
to choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
CAUTION
!Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire, vehicle dam-
age, or other accident.
BK0162600US.book 9 ページ 2013年3月22日 金曜日 午後2時41分
Page 33 of 460
Seat and restraint systems
2-7
2
Heated seats
(if so equipped)
N00435600381
The heated seats can be operated by pushing the switch when
the ignition switch or the operation mode is in ON. The indica-
tor light (A) will illuminate while the heater is on.1 (HI) - Heater high (for quick heating)
2 - Heater off
3 (LO) - Heater low (to keep the seat warm)
WA R N I N G
!Persons who are unable to feel temperature change
or skin pain due to age, illness, injury, medication,
alcohol use, fatigue or other physical conditions or
who have sensitive skin may suffer burns when
using the heated seat even at low temperatures. To
reduce the risk of burns, people with such conditions
must use care when using the heated seat.
CAUTION
!Switch off the heated seats when not in use. Operate
the heaters at the “HI” position for quick heating.
After the seat has become warm, set the heater
switch to the “LO” position to keep it warm. Slight
variations in the seat temperature may be felt while
using the heated seats. This is caused by the opera-
tion of the heater’s internal thermostat and does not
indicate a malfunction.
BK0162600US.book 7 ページ 2013年3月22日 金曜日 午後2時41分
Page 44 of 460
2-18 Seat and restraint systems
2
NOTEWith the exception of the seat belt for the driver, the seat
belts in all other seating positions are equipped with an
Automatic Locking Retractor (ALR) function. If you pull
the seat belt fully out of the retractor, the retractor will
switch to its ALR child restraint installation function (see
page 2-31).
When the ALR function has been activated, the seat belt
will only retract. If this happens, let the belt fully retract,
then pull the seat belt back out, repeating steps 1 through
4.
5. To release the belt, press the button on the buckle and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists in the webbing. Then make sure it
remains untwisted as it retracts.
Driver’s seat belt reminder/warning light
N00418400384
A tone and warning light are used to remind the driver to fasten
the seat belt.
If the ignition switch is turned to the “ON” position or the
operation mode is put in ON without the driver’s seat belt
being fastened, a warning light will come on and a tone will
sound for approximately 6 seconds to remind you to fasten
your seat belt.
If the vehicle is driven with the seat belt still unfastened, the
warning light will blink and the tone will sound intermittently
until the seat belt is fastened.
WA R N I N G
!Be sure the lap belt portion fits snugly and is worn
as low as possible across the hips, not around the
waist. Failure to follow this instruction will increase
the risk of serious injury or death in the event of an
accident.Be sure the seat belt webbing is not twisted when
worn. Twisted webbing may adversely affect seat
belt performance.
BK0162600US.book 18 ページ 2013年3月22日 金曜日 午後2時41分
Page 45 of 460
Seat and restraint systems
2-19
2
NOTEIf the seat belt subsequently remains unfastened, the
warning light and the tone will issue further warnings
each time the vehicle starts moving from a stop.
Front passenger seat belt warning light
N00418300237
The front passenger seat belt warning light is located at shown
in the illustration.
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, this indicator normally comes on
and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
WA R N I N G
!In order to reduce the risk of serious injury or death
in an accident, always fasten your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and fastening a seat belt. Children
should additionally be restrained in a secure child
restraint system.
WA R N I N G
!When a child booster seat is used on the front pas-
senger seat, the front passenger seat belt warning
light will not come on, if the seat belt is not fastened
when the booster seat is used. Confirm that the child
is wearing the seat belt properly.
BK0162600US.book 19 ページ 2013年3月22日 金曜日 午後2時41分
Page 66 of 460
2-40 Seat and restraint systems
2
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch or the opera-
tion mode is under the following conditions. These include all
of the items listed above and all related wiring.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is in the “ON” or “START” position.
[Vehicles equipped with the F.A.S.T.-key]
The operation mode is in ON.
The airbags will operate under the same conditions as the
airbag control unit.
When the impact sensors detect a sufficient front or side impact
to deploy the airbag(s), the appropriate airbag(s) will be
deployed.
When airbags deploy, some smoke is released accompanied by
a loud noise. The smoke is not harmful, but do not intentionally
inhale the smoke as it may cause temporary irritation to people
with respiratory problems.
An inflated airbag will deflate quickly, so you may not even
notice that the airbag was inflated.
Airbag inflation does not prevent the driver from seeing or
being able to steer the vehicle, and does not prevent people
from leaving the vehicle.
Event Data Recording
N00418600256
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or
near crash-like situations, such as an airbag deployment or hit-
ting a road obstacle, data that will assist in understanding how
a vehicle’s systems performed.
The EDR is designed to record data related to vehicle dynam-
ics and safety systems for a short period of time, typically 30
seconds or less.
The EDR in this vehicle is designed to record such data as:
How various systems in your vehicle were operating;
Whether or not the driver and front passenger safety belts
were buckled/fastened;
How far (if at all) the driver was depressing the accelera-
tor and/or brake pedal; and,
How fast the vehicle was traveling.
These data can help provide a better understanding of the cir-
cumstances in which crashes and injuries occur.
CAUTION
!Airbags inflate very quickly and with great force. In
certain situations, contact with an inflating airbag
may cause small cuts, abrasions, and bruises.
BK0162600US.book 40 ページ 2013年3月22日 金曜日 午後2時41分
Page 68 of 460
2-42 Seat and restraint systems
2
Passenger’s seat occupant classification sensor
system
N00418000364
The passenger’s seat occupant classification sensor system is
attached to the front passenger seat cushion and provides the
airbag control unit with information regarding the occupant on
the front passenger seat. The airbag control unit controls
deployment of the passenger’s front airbag in accordance with
the information it receives from this system.
The passenger’s front airbag will not deploy in an impact when
the system senses no occupant on the front passenger seat or a
child in a child restraint system. In this case, the passenger’s
airbag off indicator will illuminate.
Refer to “Passenger’s airbag off indicator” on page 2-43.
If there is a problem involving the passenger’s seat occupant
classification sensor system, the SRS warning light in the
instrument panel will come on.
Refer to “SRS warning light” page 2-44.
WA R N I N G
!If any of the following conditions occur, you should
immediately have your vehicle inspected by an
authorized Mitsubishi Motors dealer as soon as pos-
sible:
• The SRS warning light does not initially come on
when the ignition switch or the operation mode is
under the following conditions.
• [Except for vehicles equipped with the F.A.S.T.-
key]
The ignition switch is in the “ON” or “START”
position.
[Vehicles equipped with the F.A.S.T.-key]
The operation mode is in ON.
• The SRS warning light does not go out after sev-
eral seconds.
• The SRS warning light comes on while you are
driving.
BK0162600US.book 42 ページ 2013年3月22日 金曜日 午後2時41分
Page 69 of 460
Seat and restraint systems
2-43
2
Passenger’s airbag off indicator
N00418100323
The passenger airbag off indicator is located at shown in the
illustration.
The indicator normally comes on when the ignition switch is
turned to the “ON” position or the operation mode is put in
ON, and goes out a few seconds later. In the following situa-
tions, the indicator will stay on to show that the passenger front
airbag is not operational.
The front passenger seat is not occupied.
The system senses that a child is using a child restraint
system on the front passenger seat.
When the passenger’s seat occupant classification sensor sys-
tem senses there is a person seated in the front passenger seat,
the indicator goes out to show that the passenger’s front airbag
is operational.
To ensure that the passenger’s seat occupant classifi-
cation sensor system can sense correctly, observe the
following instructions. Failure to follow these
instructions can adversely affect the performance of
the passenger’s airbag system.
• Adjust the seat to the correct position, and sit well
back against the seatback.
Refer to “Front seats” on page 2-3.
• Do not recline the seatback more than necessary.
• Never have more than one person (adult or child)
sitting on the seat.
• Do not place anything between the seat and the
floor console.
• When attaching a child restraint system, secure it
firmly.
• Do not place luggage or other objects on the seat.
• Do not use a seat cover or a cushion.
• Do not modify or replace the seat and seat belt.
• Do not place luggage or other objects under the
seat.
• Do not place and use an electronic device such as a
computer on the seat.
• Do not place heavy objects on the seat or stick
pins, needles, or other objects into it.
• Do not remove the seat cushion skin.
• If any liquid is spilled on the seat, wipe it and dry
the seat immediately.
If the vehicle is involved in a severe impact, have the
SRS sensors inspected by an authorized Mitsubishi
Motors dealer as soon as possible.
WA R N I N G
!
BK0162600US.book 43 ページ 2013年3月22日 金曜日 午後2時41分
Page 70 of 460
2-44 Seat and restraint systems
2
SRS warning light
N00408300579
There is a Supplemental Restraint System (SRS) warning light
on the instrument panel.
The system checks itself every time the ignition switch is
turned to the “ON” position or the operation mode is put in
ON. The SRS warning light will come on for several seconds
and then go out. This is normal and means the system is work-
ing properly.
If there is a problem involving one or more of the SRS compo-
nents, the warning light will come on and stay on.
The SRS warning light is shared by the SRS airbag and the seat
belt pre-tensioner system.
WA R N I N G
!If any of the following conditions occur, you should
immediately have the airbag system in your vehicle
inspected by an authorized Mitsubishi Motors
dealer as soon as possible:
• The passenger’s airbag off indicator comes on
when an adult is sitting on the front passenger
seat.
• The passenger’s airbag off indicator does not come
on when the front passenger seat is not occupied.
• The passenger’s airbag off indicator does not come
on when the ignition switch is turned to the “ON”
position or the operation mode is put in ON.
• The passenger’s airbag off indicator does not come
on when a child is in a child restraint system on the
front passenger seat.
• The passenger’s airbag off indicator comes on and
goes out repeatedly.
Do not attach any accessory to your vehicle that
makes the passenger’s airbag off indicator difficult
or impossible to see.
You must be able to see the passenger’s airbag off
indicator and verify the status of the passenger’s
airbag system.
BK0162600US.book 44 ページ 2013年3月22日 金曜日 午後2時41分
Page 90 of 460
3-2 Features and controls
3Break-in recommendations
N00508700330
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.
Avoid revving the engine.
Avoid rough driving such as sudden starts, sudden accel-
eration, prolonged high-speed driving and sudden brak-
ing. These would have a detrimental effect on the engine
and also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
shift position (low gears).
Do not overload the vehicle. Stay within the seating
capacity. (Refer to “Cargo load precautions” on page 4-
13.)
Do not use this vehicle for trailer towing.
Keys
N00508800621
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer
2- Key number plate
BK0162600US.book 2 ページ 2013年3月22日 金曜日 午後2時41分
