Overview
Instruments and controls
N00100201491
Hazard warning flasher switch
P. 3 - 1 1 9
Combination headlights and dimmer
switch P.3-114
Turn-signal lever P.3-118
Front fog light switch (if so
equipped) P.3-120
Ignition switch (if so equipped)
P. 3 - 5 4
Supplemental restraint system
(SRS)-airbag (for driver)
P.2-35, 2-45
Horn switch P.3-127 Electric remote-controlled outside
rearview mirror switch P.3-52Engine switch (if so equipped)
P. 3 - 2 0 Wiper and washer switch P.3-121
Rear window wiper and washer switch
P. 3 - 1 2 3Instrument cluster P.3-96
Cruise control switches
(if so equipped) P.3-80
Steering wheel remote control switches
(if so equipped) P.3-129, 5-59
Supplemental restraint system-driver’s
knee airbag P.2-46 Steering wheel height
adjustment P.3-49 Active stability control (ASC) OFF
switch P.3-77
BK0162600US.book 1 ページ 2013年3月22日 金曜日 午後2時41分
Page 3 of 460
Overview
Audio (if so equipped) P.5-30
Mitsubishi Multi Entertainment
System (if so equipped)
Refer to the separate “Mitsubishi
Multi Entertainment System
owner’s manual”
Clock (if so equipped) P.5-39Center vents P.5-2 Supplemental restraint system
(SRS)-airbag (for front passenger)
P.2-35, 2-45
Side vents P.5-2
Engine hood release lever
P. 7 - 5
Fuel tank filler door release
lever P.1-4Cup holder (for the
front seat) P.3-165
Gearshift lever (if so equipped)
P.3-59
Selector lever (if so equipped)
P.3-61
Cup holder (for the rear seat)
P. 3 - 1 6 5Parking brake lever P.3-48Key slot (if so
equipped) P.3-2912 V power outlets
P.3-161Compartment
P. 3 - 1 6 5
Electric rear window defogger
switch P.3-125 Automatic air conditioning (if so
equipped) P.5-17 Heater (if so equipped) P.5-6
Manual air conditioning (if so
equipped) P.5-11
Electric rear window defogger
switch P.3-125
BK0162600US.book 2 ページ 2013年3月22日 金曜日 午後2時41分
Page 4 of 460
Overview
Interior
N00100301245
Power window lock switch P.3-44
Power window switch P.3-43
Seat belts P.2-14
Supplemental restraint system
(SRS)-curtain airbags P.2-53
Manual window control
(if so equipped) P.3-43
Cargo room light
P.3-164, 7-45
Rear shelf panel (if so equipped)
P. 3 - 1 6 7
Rear seats P.2-8Jack (if so equipped) P.6-7Supplemental restraint system
(SRS)-side airbag (for front
seat) P.2-52Front seats P.2-2Heated seats (if so
equipped) P.2-7 USB input terminal
(if so equipped)
P. 3 - 1 5 3Head restraints
P. 2 - 1 1 Inside rearview mirror P.3-50 Dome light P.3-162, 7-45 Microphone P.3-129 Bottle holders P.3-166
Sun visors P.3-160
Vanity mirror P.3-160
Card holder P.3-160 Power door lock switch
(if so equipped) P.3-38
BK0162600US.book 3 ページ 2013年3月22日 金曜日 午後2時41分
Page 5 of 460
Overview

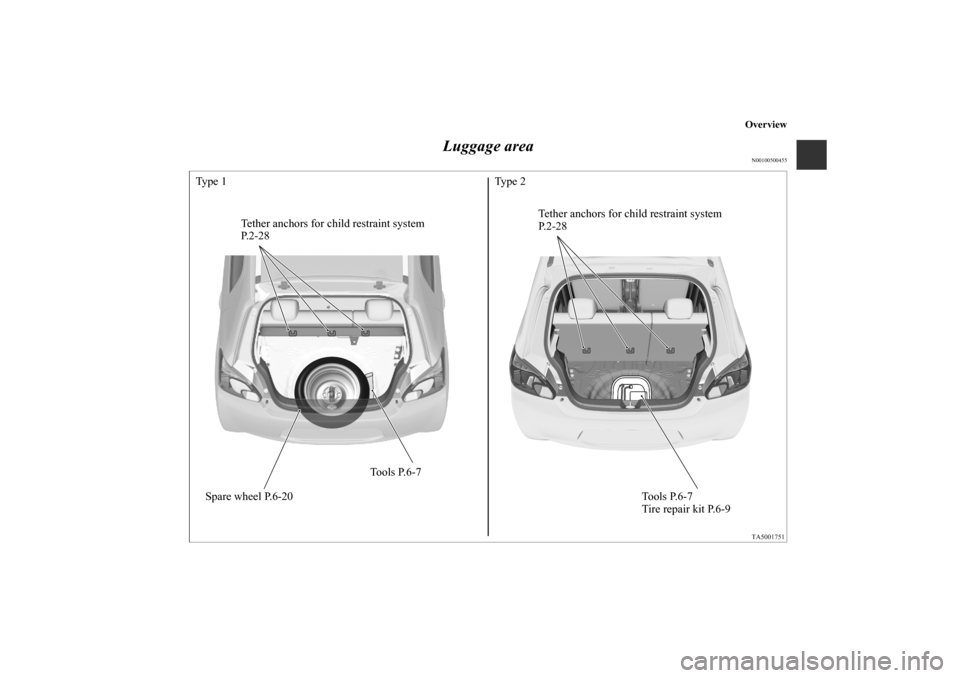

Luggage area
N00100500455
Tether anchors for child restraint system
P. 2 - 2 8
Spare wheel P.6-20Tools P.6-7 Ty p e 1 Ty p e 2
Tether anchors for child restraint system
P.2-28
Tools P.6-7
Tire repair kit P.6-9
BK0162600US.book 4 ページ 2013年3月22日 金曜日 午後2時41分
Page 6 of 460
Overview

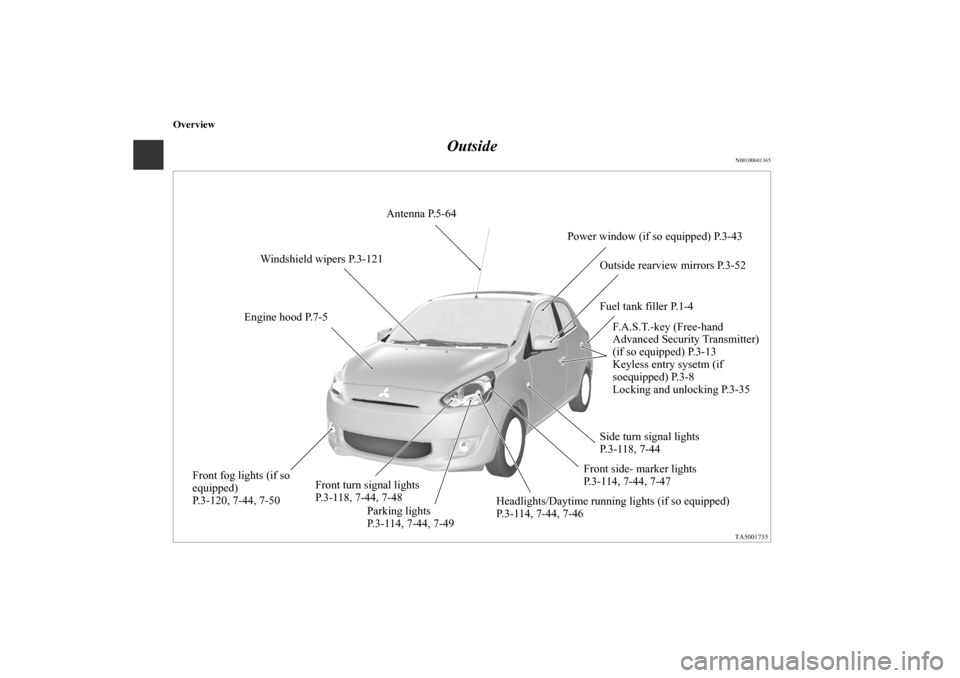

Outside
N00100601365
Antenna P.5-64Power window (if so equipped) P.3-43
Outside rearview mirrors P.3-52
Fuel ta nk filler P.1-4
F.A.S.T.-key (Free-hand
Advanced Security Transmitter)
( if so e q u ipp ed) P.3 -13
Keyless entry sysetm (if
soe qu ip ped) P.3- 8
Locking and unlocking P.3-35
Side turn signal lights
P.3-118, 7-44
Front side- marker lights
P.3-114, 7-44, 7-47
Headlights/Daytime running lights (if so equipped)
P.3-114, 7-44, 7-46
Parking lights
P.3-114, 7-44, 7-49
Front turn signal lights
P.3-118, 7-44, 7-48
Front fog lights (if so
equipped)
P.3-120, 7-44, 7-50 Engine hood P.7-5
Windshield wipers P.3-121
BK0162600US.book 5
\bM\bo\b+ 2013年3月22日 金曜日 午後2時41\f
Page 7 of 460
Overview
Rear spoilerHigh-mounted stop light
P. 7 - 4 4
Rear window wiper and washer
P.3-123
Liftgate P.3-41
Rear-view camera
(if so equipped) P.3-93
Licence plate lights
P.7-44, 7-54
Back-up light P.7-44, 7-51 Rear side- marker lights/Tail and stop lights
P.7-44, 7-51Tire pressure monitoring system (if so equipped)
P. 3 - 8 7
Changing tires P.6-18
Size of tires and wheels P.9-8
Tire inflation pressure
P. 7 - 2 3
Tire rotation P.7-26
Tire chains P.7-28
Rear turn signal lights
P.3-118, 7-44, 7-51
BK0162600US.book 6 ページ 2013年3月22日 金曜日 午後2時41分
Page 8 of 460
BK0162600US.book 7 ページ 2013年3月22日 金曜日 午後2時41分
Page 9 of 460
Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701136
NOTEThese warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the
operation mode is put in ON.
Warning lights
Do this
Ref. Page
Charging system warning lightPark your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 1 1 3
(Illuminates and intermittent sounds)Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 2 1
Oil pressure warning lightPark your vehicle in a safe place and stop the engine, then check the engine
oil level.
If the light comes on while the engine oil level is normal, have the system
checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.P. 3 - 1 1 3
BK0162600US.book 1 ページ 2013年3月22日 金曜日 午後2時41分
Page 10 of 460

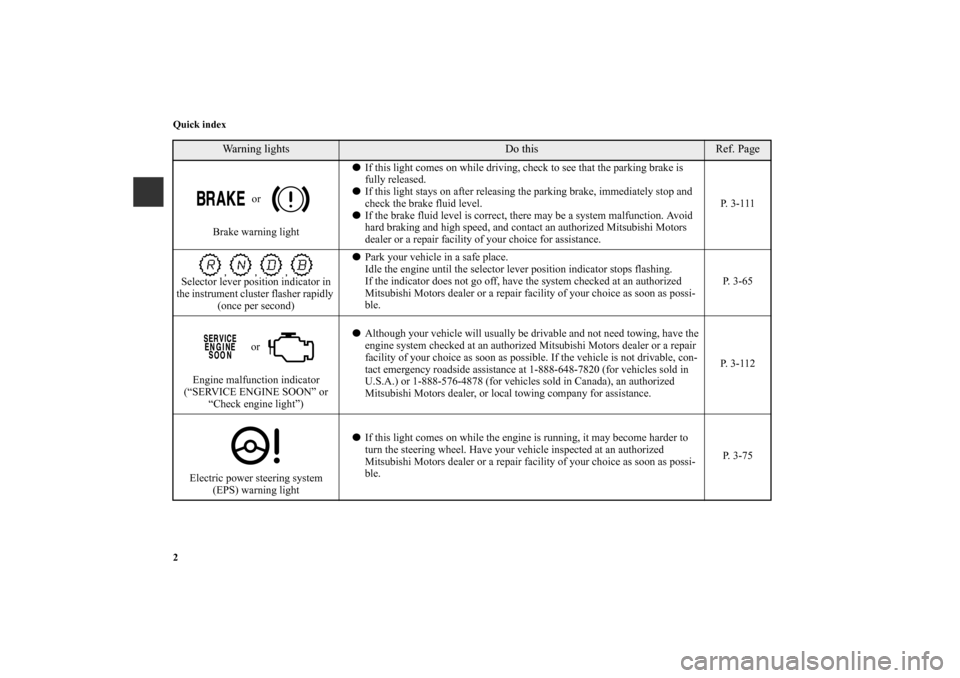

2 Quick index
or
Brake warning lightIf this light comes on while driving, check to see that the parking brake is
fully released.
If this light stays on after releasing the parking brake, immediately stop and
check the brake fluid level.
If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speed, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P. 3-111
Selector lever position indicator in
the instrument cluster flasher rapidly
(once per second)Park your vehicle in a safe place.
Idle the engine until the selector lever position indicator stops flashing.
If the indicator does not go off, have the system checked at an authorized
Mitsubishi Motors dealer or a repair facility of your choice as soon as possi-
ble.P. 3-65
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized
Mitsubishi Motors dealer, or local towing company for assistance.P. 3 - 1 1 2
Electric power steering system
(EPS) warning lightIf this light comes on while the engine is running, it may become harder to
turn the steering wheel. Have your vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair facility of your choice as soon as possi-
ble.P. 3-75
Warning lights
Do this
Ref. Page
BK0162600US.book 2 ページ 2013年3月22日 金曜日 午後2時41分
