Page 405 of 460
Vehicle care and maintenance
7-31
7 Emission-control system maintenance
N00940800328
Your vehicle is equipped with an emission-control system that
meets all the requirements of the U.S. Environmental Protec-
tion Agency and Environment Canada. The emission-control
system is made of:
a positive crankcase ventilation system
an evaporative emission-control system
an exhaust emission-control system
To be sure the emission-control system works properly, have
your vehicle inspected and maintained by an authorized
Mitsubishi Motors dealer or a repair facility of your choice.
This should be done at the time or mileage specified in the
“WARRANTY AND MAINTENANCE MANUAL”.
These, and all the other “general” maintenance services listed
in this manual, need to be performed to keep your vehicle run-
ning properly and reliably.
You should also have an inspection and service any time you
suspect a malfunction.NOTETo meet government regulations and promote cleaner air,
your vehicle is equipped with an onboard diagnostic sys-
tem (OBD). The engine electronic control module that
controls OBD functions stores various data (especially
about the exhaust emissions). This data will be erased if
the battery cable is disconnected, which could make a
rapid diagnosis difficult. Do not disconnect the battery
cable when the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) is ON.
Spark plugs
N00940900228
Spark plugs must fire properly for good engine performance
and emission-control.
Do not reuse them by cleaning or regapping. Change them at
the mileage listed in the “WARRANTY AND MAINTE-
NANCE MANUAL”. NOTEUse the spark plugs listed under “Engine specifications”
on page 9-7 or plugs that are exactly the same. Other
plugs could cause engine damage, performance problems
or radio noise.Fuel hoses
N00941000040
Check the hose surfaces for any heat and mechanical damage,
hard and brittle rubber, cracking, tears, cuts and abrasions. Pay
special attention to the hoses closest to high heat sources such
as the exhaust manifold. Check all the hose connections, such
as clamps and couplings, to make sure they are secure and that
there are no leaks. If you see any wear or damage, replace the
hoses immediately.Intake valve clearance
N00950100050
Have the valve clearance checked at an authorized Mitsubishi
Motors dealer at the mileage specified in the “WARRANTY
AND MAINTENANCE MANUAL”.
If the engine sounds abnormally loud, have adjustments made
by an authorized Mitsubishi Motors dealer.
BK0162600US.book 31 ページ 2013年3月22日 金曜日 午後2時41分

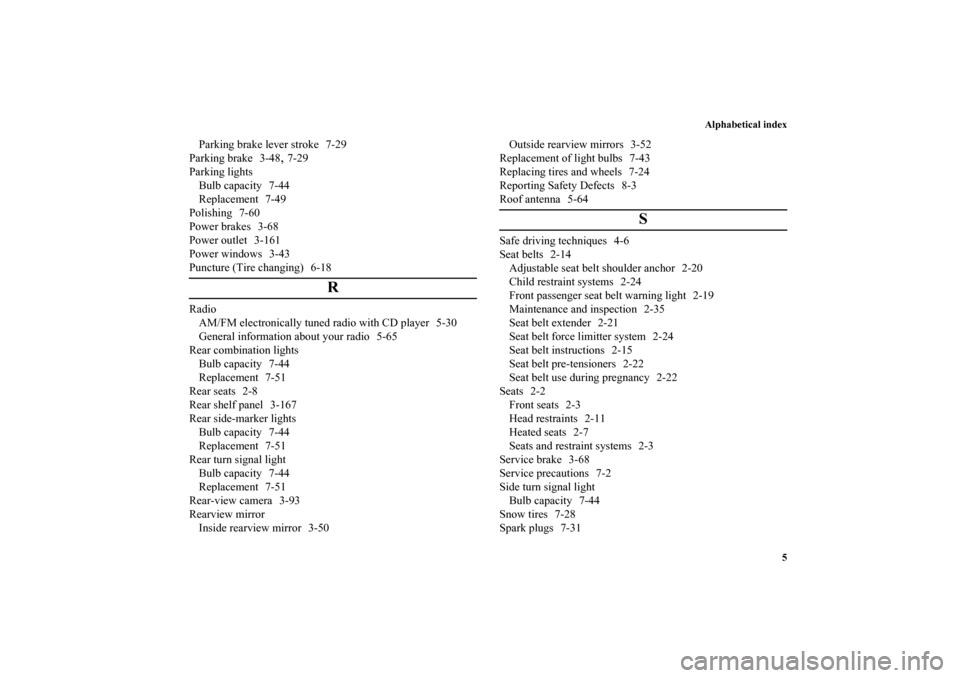

Page 457 of 460
Alphabetical index
5
Parking brake lever stroke 7-29
Parking brake 3-48
,7-29
Parking lights
Bulb capacity 7-44
Replacement 7-49
Polishing 7-60
Power brakes 3-68
Power outlet 3-161
Power windows 3-43
Puncture (Tire changing) 6-18
R
Radio
AM/FM electronically tuned radio with CD player 5-30
General information about your radio 5-65
Rear combination lights
Bulb capacity 7-44
Replacement 7-51
Rear seats 2-8
Rear shelf panel 3-167
Rear side-marker lights
Bulb capacity 7-44
Replacement 7-51
Rear turn signal light
Bulb capacity 7-44
Replacement 7-51
Rear-view camera 3-93
Rearview mirror
Inside rearview mirror 3-50Outside rearview mirrors 3-52
Replacement of light bulbs 7-43
Replacing tires and wheels 7-24
Reporting Safety Defects 8-3
Roof antenna 5-64
S
Safe driving techniques 4-6
Seat belts 2-14
Adjustable seat belt shoulder anchor 2-20
Child restraint systems 2-24
Front passenger seat belt warning light 2-19
Maintenance and inspection 2-35
Seat belt extender 2-21
Seat belt force limitter system 2-24
Seat belt instructions 2-15
Seat belt pre-tensioners 2-22
Seat belt use during pregnancy 2-22
Seats 2-2
Front seats 2-3
Head restraints 2-11
Heated seats 2-7
Seats and restraint systems 2-3
Service brake 3-68
Service precautions 7-2
Side turn signal light
Bulb capacity 7-44
Snow tires 7-28
Spark plugs 7-31
