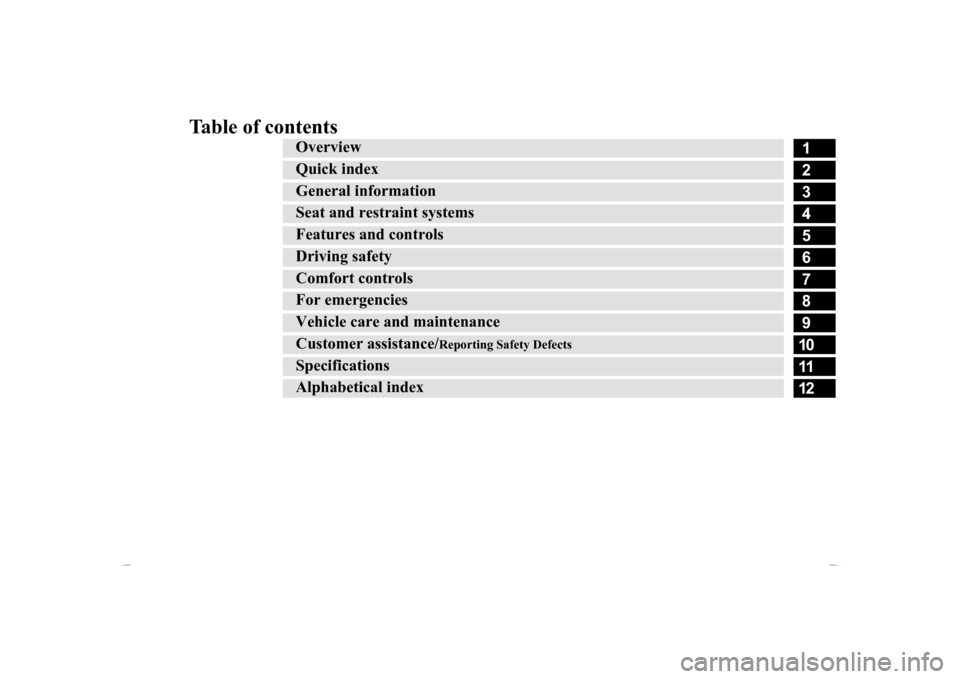

Table of contents
123456789101112
Overview Quick indexGeneral information Seat and restraint systems Features and controlsDriving safetyComfort controlsFor emergenciesVehicle care a
nd maintenance
Customer assistance/
Reporting Safety Defects
SpecificationsAlphabetical index
Page 3 of 305
Instruments and controls 1-1
1
Overview
N00100202717

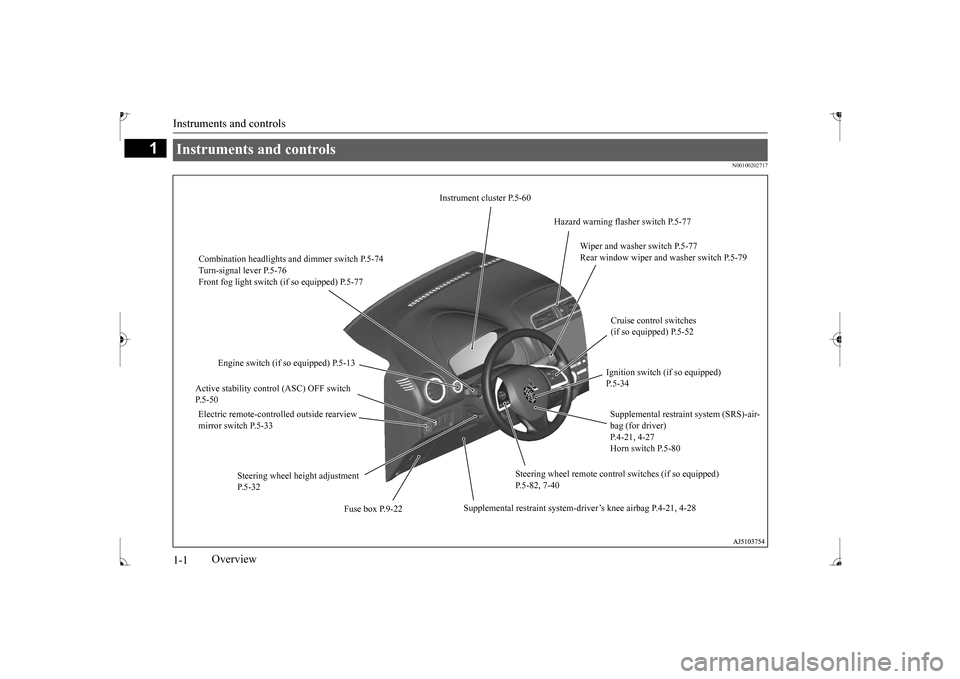

Instruments and controls
Instrument cluster P.5-60
Hazard warning flasher switch P.5-77
Combination headlights and dimmer switch P.5-74 Turn-signal lever P.5-76 Front fog light switch (if so equipped) P.5-77
Wiper and washer switch P.5-77Rear window wiper and washer switch P.5-79
Cruise control switches(if so equipped) P.5-52
Engine switch (if so equipped) P.5-13
Ignition switch (if so equipped)P.5-34
Active stability control (ASC) OFF switch P.5-50Electric remote-controlled outside rearview mirror switch P.5-33
Supplemental restraint system (SRS)-air-bag (for driver) P.4-21, 4-27Horn switch P.5-80
Steering wheel height adjustment P.5-32
Steering wheel remote control switches (if so equipped) P.5-82, 7-40
Supplemental restraint system-dri
ver’s knee airbag P.4-21, 4-28
Fuse box P.9-22
Page 4 of 305
Instruments and controls
Overview 1-2
1

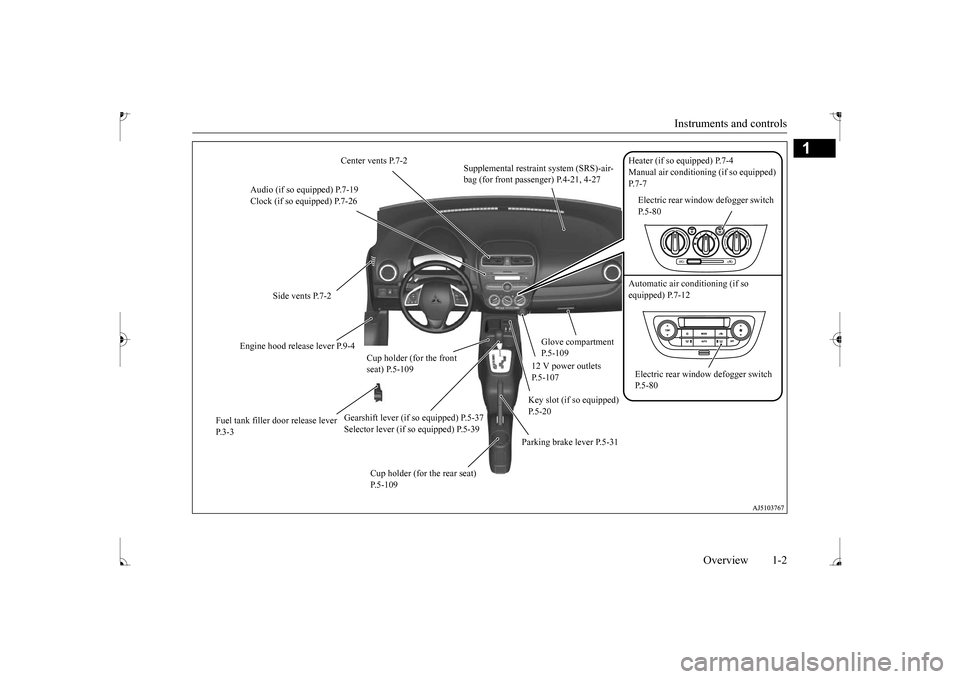

Center vents P.7-2
Supplemental restraint system (SRS)-air- bag (for front passenger) P.4-21, 4-27
Heater (if so equipped) P.7-4 Manual air conditioning
(if so equipped)
P. 7 - 7
Audio (if so equipped) P.7-19 Clock (if so equipped) P.7-26
Electric rear window defogger switch P.5-80 Automatic air conditioning (if so equipped) P.7-12
Side vents P.7-2
Glove compartment P.5-109
Engine hood release lever P.9-4
Cup holder (for the front seat) P.5-109
12 V power outlets P.5-107
Electric rear window defogger switch P.5-80
Key slot (if so equipped) P.5-20
Gearshift lever (if so equipped) P.5-37 Selector lever (if so equipped) P.5-39
Fuel tank filler do
or release lever
P. 3 - 3
Parking brake lever P.5-31
Cup holder (for the rear seat)
BK0235100US.book 2 ページ 2015年11月20日\b 5 Y
Page 5 of 305
Interior 1-3 Overview
1
N00100302431

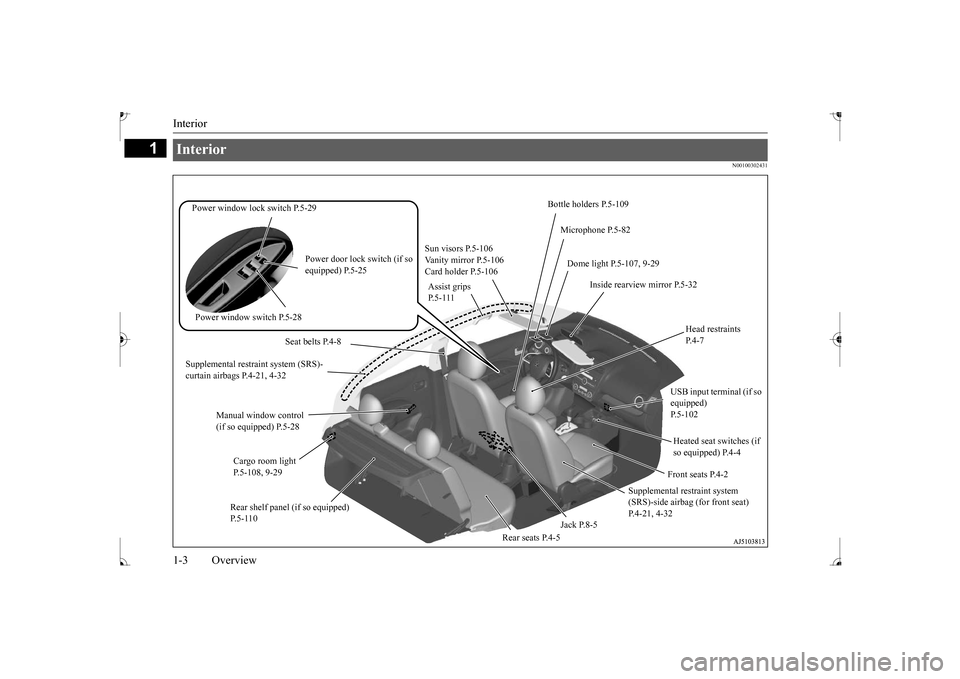

Interior
Bottle holders P.5-109
Power window lock switch P.5-29
Microphone P.5-82
Sun visors P.5-106 Vanity mirror P.5-106 Card holder P.5-106
Power door lock switch (if so equipped) P.5-25
Dome light P.5-107, 9-29
Inside rearview mirror P.5-32
Head restraints P. 4 - 7
Power window switch P.5-28
Seat belts P.4-8
Supplemental restraint system (SRS)- curtain airbags P.4-21, 4-32
USB input terminal (if so equipped)
Manual window control (if so equipped) P.5-28
Heated seat switches (if so equipped) P.4-4
Cargo room light P.5-108, 9-29
Front seats P.4-2
Supplemental restraint system (SRS)-side airbag (for front seat) P.4-21, 4-32
Rear shelf panel (if so equipped) P. 5 - 1 1 0
Jack P.8-5
Rear seats P.4-5
Assist grips P. 5 - 1 1 1
BK0235100US.book 3 ページ 2015年11月20日\b 5 Y
Page 6 of 305
Luggage area
Overview 1-4
1
N00100501566
Luggage area
Tether anchors for child restraint system P.4-17
Tools P.8-5
Spare wheel P.8-7
BK0235100US.book 4 ページ 2015年11月20日\b 5 Y
Page 7 of 305
Outside 1-5 Overview
1
N00100602652

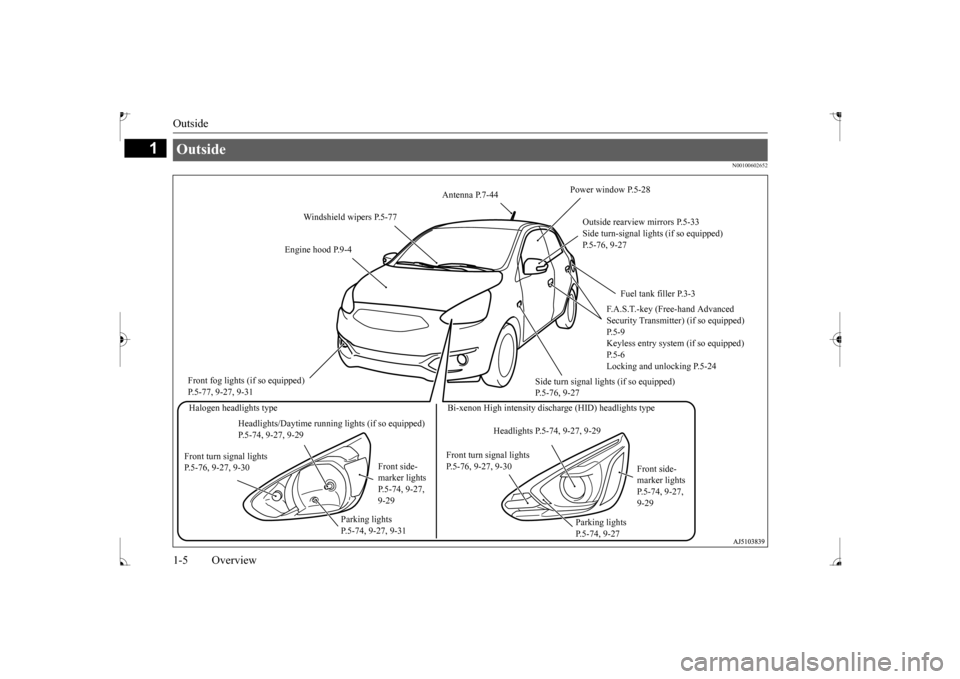

Outside
Antenna P.7-44
Power window P.5-28
Windshield wipers P.5-77
Outside rearview mirrors P.5-33 Side turn-signal lights (if so equipped)P.5-76, 9-27
Fuel tank filler P.3-3
Engine hood P.9-4
F.A.S.T.-key (Free-hand Advanced Security Transmitter)
(if so equipped)
P. 5 - 9 Keyless entry system (if so equipped) P. 5 - 6 Locking and unlocking P.5-24
Side turn signal lights (if so equipped) P.5-76, 9-27
Front side- marker lights P.5-74, 9-27, 9-29
Front fog lights (if so equipped) P.5-77, 9-27, 9-31 Front turn signal lights P.5-76, 9-27, 9-30
Headlights/Daytime running lights (if so equipped)
Parking lights P.5-74, 9-27, 9-31
Headlights P.5-74, 9-27, 9-29
Front side- marker lights P.5-74, 9-27, 9-29
Front turn signal lights P.5-76, 9-27, 9-30
Parking lights P.5-74, 9-27
Halogen headlights type Bi-xenon High in
tensity discharge (HID) headlights type
BK0235100US.book 5 ページ 2015年11月20日\b 5 Y
Page 8 of 305
Outside
Overview 1-6
1

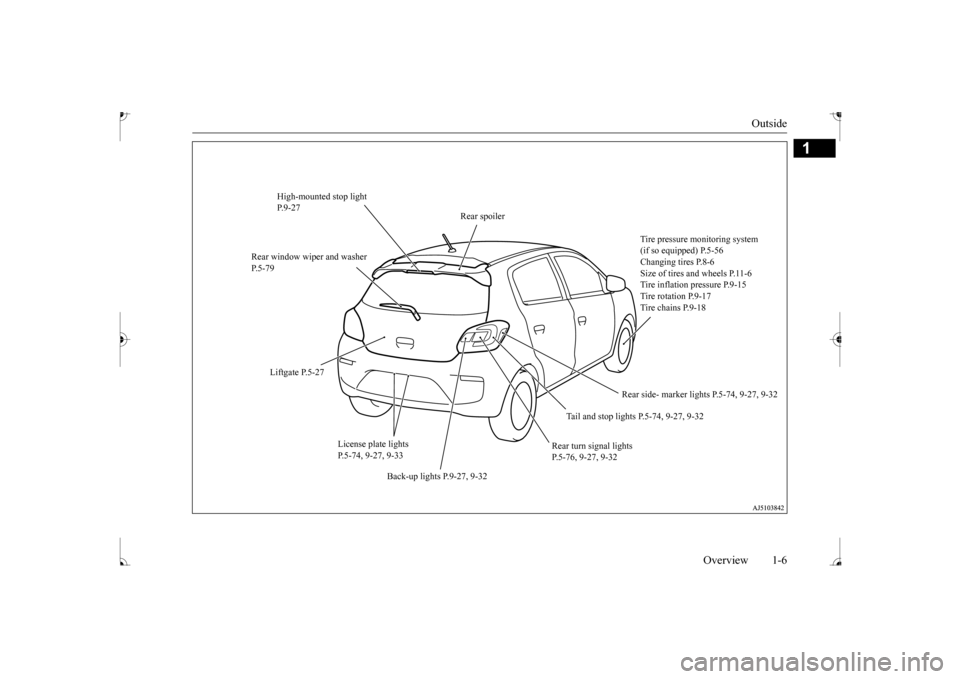

High-mounted stop light P.9-27
Rear spoiler
Tire pressure monitoring system (if so equipped) P.5-56 Changing tires P.8-6 Size of tires and wheels P.11-6Tire inflation pressure P.9-15 Tire rotation P.9-17 Tire chains P.9-18
Rear window wiper and washer P. 5 - 7 9
Liftgate P.5-27
Rear side- marker lights P.5-74, 9-27, 9-32
Rear turn signal lights P.5-76, 9-27, 9-32
License plate lights P.5-74, 9-27, 9-33
Back-up lights P.9-27, 9-32
Tail and stop lights P.5-74, 9-27, 9-32
BK0235100US.book 6 ページ 2015年11月20日\b 5 Y
Page 9 of 305
BK0235100US.book 7 ページ 2015年11月20日\b 5 Y
Page 10 of 305
2-1
2

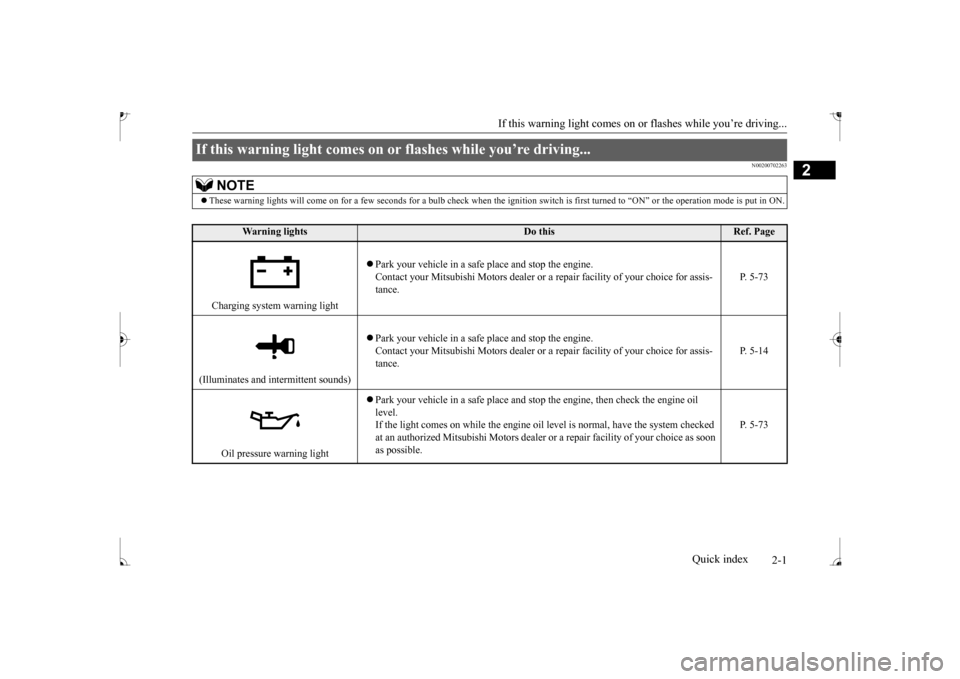

If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702263
If this warning light comes on
or flashes while you’re driving...
NOTE
These warning lights will co
me on for a few seconds for a bulb check when the i
gnition switch is
first turned to “ON” or the op
eration mode is put in ON.
Wa rn in g l ig h t s
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe
place and stop the engine.
Contact your Mitsubishi Motors dealer or a re
pair facility of your choice for assis-
tance.
P. 5-73
(Illuminates and intermittent sounds)
Park your vehicle in a safe
place and stop the engine.
Contact your Mitsubishi Motors dealer or a re
pair facility of your choice for assis-
tance.
P. 5-14
Oil pressure warning light
Park your vehicle in a safe
place and stop the engine, then check the engine oil
level.If the light comes on while the engine oil le
vel is normal, have the system checked
at an authorized Mitsubishi Motors dealer
or a repair facility of
your choice as soon
as possible.
P. 5-73
BK0235100US.book 1 ページ 2015年11月20日\b 5 Y
