MITSUBISHI MIRAGE 2017 6.G Owners Manual

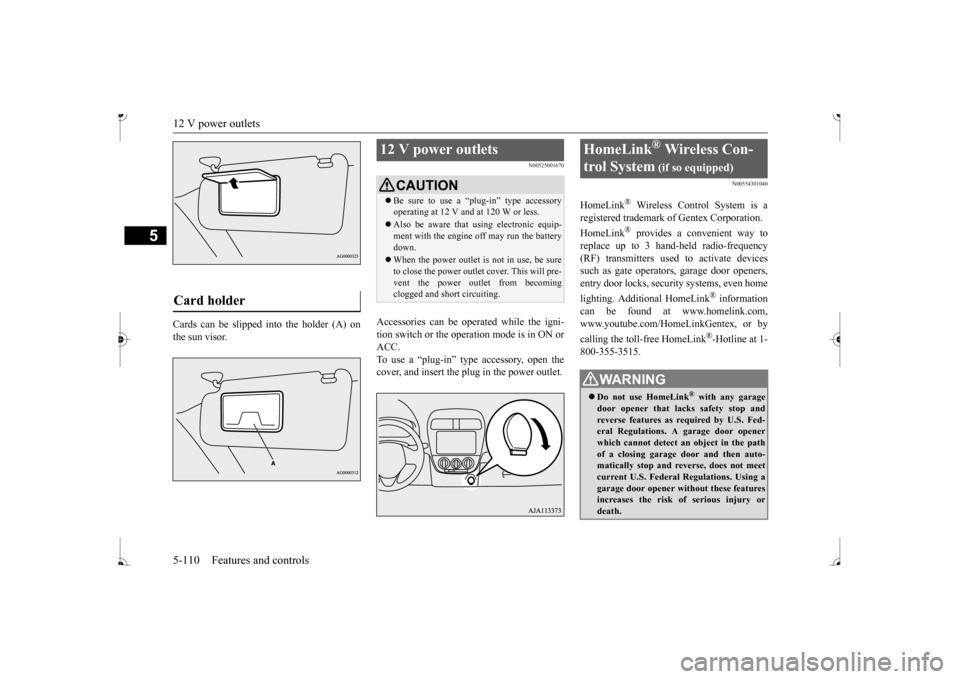

12 V power outlets 5-110 Features and controls
5
Cards can be slipped
into the holder (A) on
the sun visor.
N00525001670
Accessories can be operated while the igni-tion switch or the operation mode is in ON or ACC. To use a “plug-in” type accessory, open thecover, and insert the plug in the power outlet.
N00554301040
HomeLink
® Wireless Contro
l System is a
registered trademark of Gentex Corporation. HomeLink
® provides a convenient way to
replace up to 3 hand-held radio-frequency (RF) transmitters used to activate devicessuch as gate operators
, garage door openers,
entry door locks, security systems, even home lighting. Additional HomeLink
® information
can be found at www.homelink.com, www.youtube.com/HomeLinkGentex, or by calling the toll-free HomeLink
®-Hotline at 1-
800-355-3515.
Card holder
12 V power outlets
CAUTION Be sure to use a “plug-in” type accessory operating at 12 V and at 120 W or less. Also be aware that using electronic equip- ment with the engine
off may run the battery
down. When the power outlet is not in use, be sure to close the power outlet cover. This will pre- vent the power outlet from becoming clogged and short circuiting.
HomeLink
® Wireless Con-
trol System
(if so equipped)
WA R N I N G Do not use HomeLink
® with any garage
door opener that lacks safety stop and reverse features as required by U.S. Fed- eral Regulations.
A garage door opener
which cannot detect an object in the path of a closing garage d
oor and then auto-
matically stop and reverse, does not meetcurrent U.S. Federal Regulations. Using a garage door opener wi
thout these features
increases the risk of serious injury ordeath.
BK0236100US.book 110 ページ ２０１６年２月１日　月曜日　午前１０時１５分

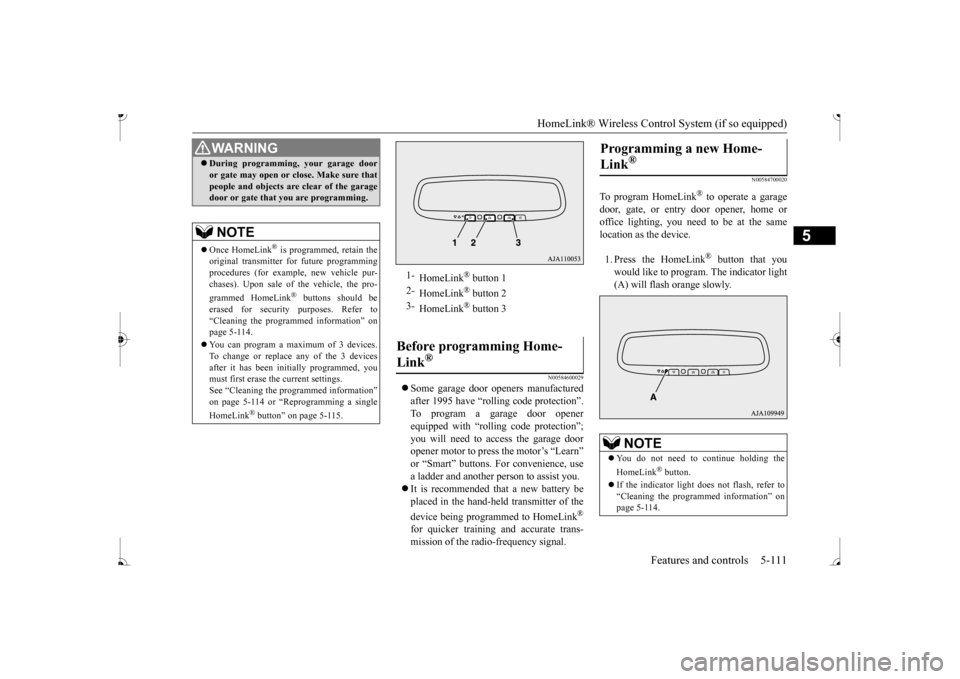

HomeLink® Wireless Control System (if so equipped)
Features and controls 5-111
5
N00584600029
 Some garage door openers manufactured after 1995 have “rolling code protection”. To program a garage door openerequipped with “rolli
ng code protection”;
you will need to ac
cess the garage door
opener motor to press the motor’s “Learn”
For convenience, use
a ladder and another pe
rson to assist you.
 It is recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLink
®
for quicker training and accurate trans- mission of the radio-frequency signal.
N00584700020
To program HomeLink
® to operate a garage
door, gate, or entry door opener, home oroffice lighting, you need to be at the same location as the device. 1. Press the HomeLink
® button that you
would like to program. The indicator light (A) will flash orange slowly.
 During programming
, your garage door
or gate may open or close. Make sure thatpeople and objects are clear of the garagedoor or gate that you are programming.NOTE
 Once HomeLink
® is programmed, retain the
original transmitter for future programming procedures (for example, new vehicle pur-chases). Upon sale of the vehicle, the pro- grammed HomeLink
® buttons should be
erased for security purposes. Refer to “Cleaning the programmed information” on page 5-114.  You can program a ma
ximum of 3 devices.
To change or replace any of the 3 devicesafter it has been in
itially programmed, you
must first erase the current settings. See “Cleaning the programmed information”on page 5-114 or “Reprogramming a single HomeLink
® button” on page 5-115.
WA R N I N G
1-
HomeLink
® button 1
2-
HomeLink
® button 2
3-
HomeLink
® button 3
Before programming Home- Link
®
Programming a new Home- Link
®
NOTE
 You do not need to continue holding the HomeLink
® button.
 If the indicator light does not flash, refer to “Cleaning the programmed information” on page 5-114.
BK0236100US.book 111 ページ ２０１６年２月１日　月曜日　午前１０時１５分

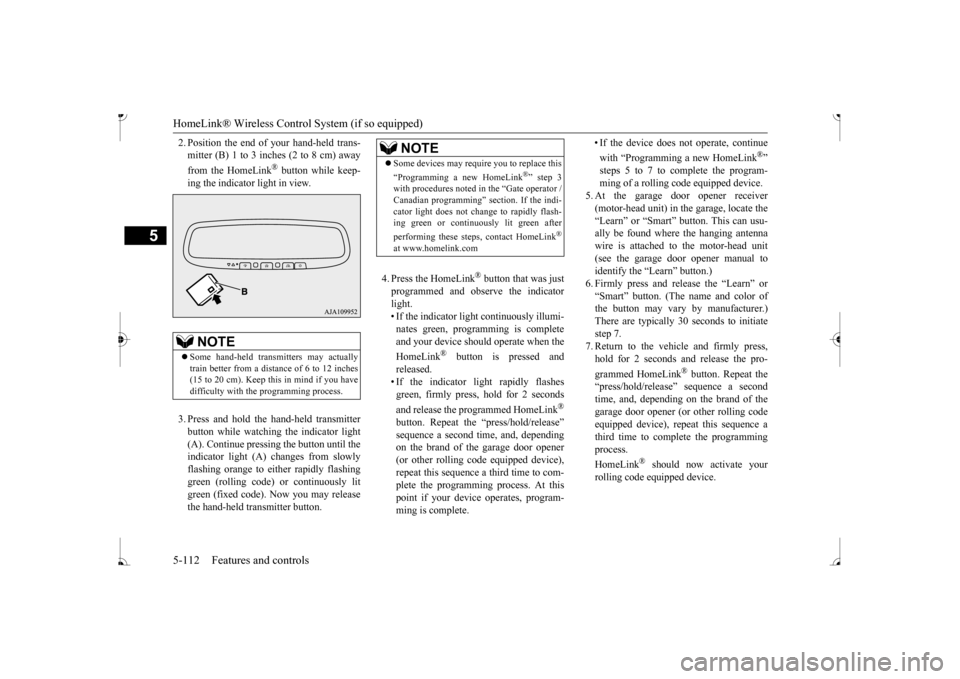

HomeLink® Wireless Control System (if so equipped) 5-112 Features and controls
5
2. Position the end of your hand-held trans- mitter (B) 1 to 3 inches (2 to 8 cm) away from the HomeLink
® button while keep-
ing the indicator light in view. 3. Press and hold the hand-held transmitter button while watching the indicator light (A). Continue pressi
ng the button until the
indicator light (A) changes from slowlyflashing orange to ei
ther rapidly flashing
green (rolling code)
or continuously lit
green (fixed code). Now you may releasethe hand-held transmitter button.
4. Press the HomeLink
® button that was just
programmed and observe the indicator light.• If the indicator light continuously illumi- nates green, progr
amming is complete
and your device should operate when the HomeLink
® button is pressed and
released. • If the indicator light rapidly flashes green, firmly press, hold for 2 seconds and release the programmed HomeLink
®
button. Repeat the
“press/hold/release”
sequence a second ti
me, and, depending
on the brand of the garage door opener(or other rolling code equipped device), repeat this sequence a third time to com- plete the programming
process. At this
point if your device
operates, program-
ming is complete.
• If the device does
not operate, continue
with “Programming a new HomeLink
®”
steps 5 to 7 to complete the program- ming of a rolling c
ode equipped device.
5. At the garage door opener receiver(motor-head unit) in the garage, locate the “Learn” or “Smart” button. This can usu- ally be found where the hanging antennawire is attached to the motor-head unit (see the garage door opener manual to identify the

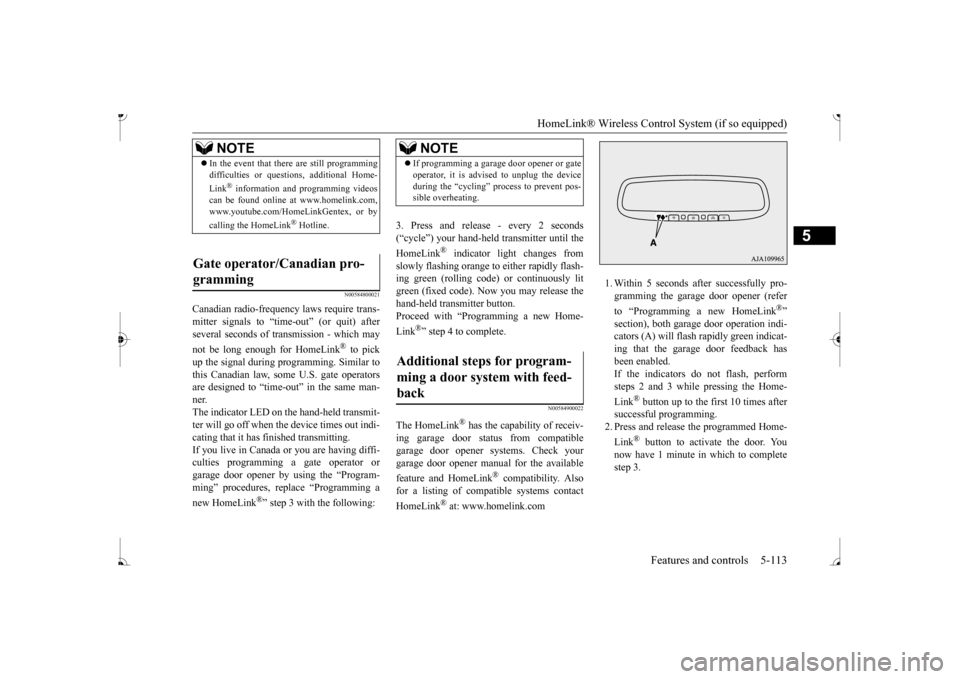

HomeLink® Wireless Control System (if so equipped)
Features and controls 5-113
5
N00584800021
Canadian radio-frequency laws require trans- mitter signals to “time-out” (or quit) afterseveral seconds of tr
ansmission - which may
not be long enough for HomeLink
® to pick
up the signal during pr
ogramming. Similar to
this Canadian law, some
U.S. gate operators
are designed to “time-out” in the same man-ner. The indicator LED on the hand-held transmit- ter will go off when the device times out indi-cating that it has finished transmitting. If you live in Canada or you are having diffi- culties programming a gate operator orgarage door opener by using the “Program- ming” procedures, replace “Programming a new HomeLink
®” step 3 with the following:
3. Press and release - every 2 seconds (“cycle”) your hand-held
transmitter until the
HomeLink
® indicator light changes from
slowly flashing orange to
either rapidly flash-
ing green (rolling code) or continuously litgreen (fixed code). Now you may release the hand-held transmitter button. Proceed with “Programming a new Home- Link
®” step 4 to complete.
N00584900022
The HomeLink
® has the capability of receiv-
ing garage door status from compatiblegarage door opener systems. Check your garage door opener manual for the available feature and HomeLink
® compatibility. Also
for a listing of compatible systems contact HomeLink
® at: www.homelink.com
1. Within 5 seconds after successfully pro- gramming the garage
door opener (refer
to “Programming a new HomeLink
®”
section), both garage door operation indi- cators (A) will flash
rapidly green indicat-
ing that the garage
door feedback has
been enabled. If the indicators do not flash, performsteps 2 and 3 while pressing the Home- Link
® button up to the first 10 times after
successful programming.2. Press and release
the programmed Home-
Link
® button to activate the door. You
now have 1 minute in which to completestep 3.
NOTE
 In the event that there are still programming difficulties or quest
ions, additional Home-
Link
® information and programming videos
can be found online at www.homelink.com,www.youtube.com/HomeLinkGentex, or by calling the HomeLink
® Hotline.
Gate operator/Canadian pro- gramming

NOTE
 If programming a garage
door opener or gate
operator, it is advised to unplug the deviceduring the “cycling” process to prevent pos-sible overheating.
Additional steps for program- ming a door system with feed- back

BK0236100US.book 113 ページ ２０１６年２月１日　月曜日　午前１０時１５分

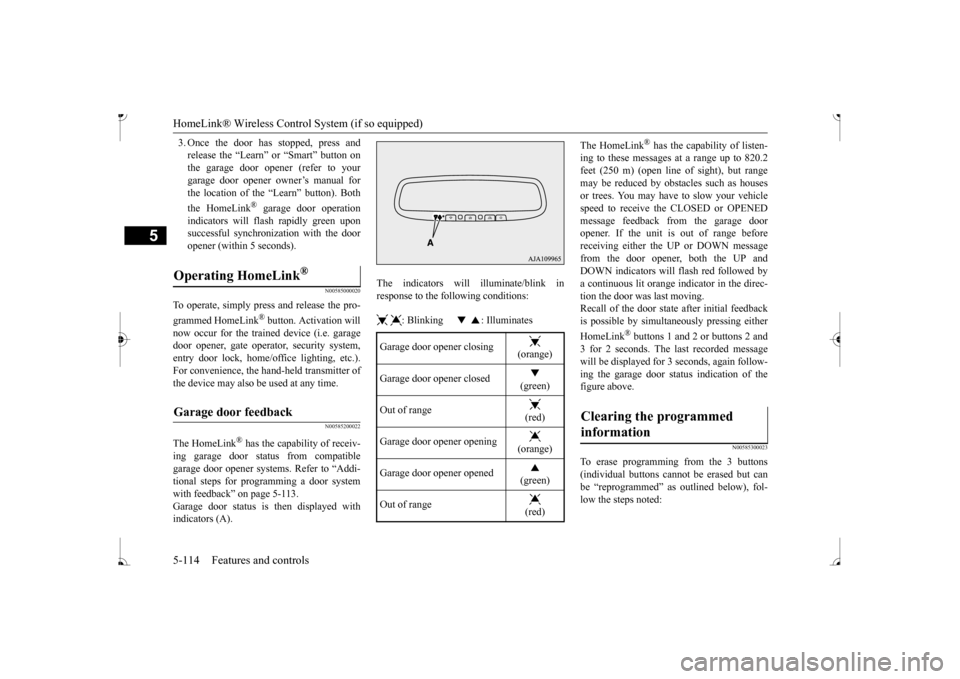

HomeLink® Wireless Control System (if so equipped) 5-114 Features and controls
5
3. Once the door has stopped, press and release the “Learn”
or “Smart” button on
the garage door opener (refer to your garage door opener owner’s manual for the location of the “Learn” button). Both the HomeLink
® garage door operation
indicators will fl
ash rapidly green upon
successful synchronization with the dooropener (within 5 seconds).
N00585000020
To operate, simply press and release the pro- grammed HomeLink
® button. Activation will
now occur for the trained device (i.e. garagedoor opener, gate operat
or, security system,
entry door lock, home/of
fice lighting, etc.).
For convenience, the hand-held transmitter ofthe device may also be
used at any time.
N00585200022
The HomeLink
® has the capability of receiv-
ing garage door status from compatible garage door opener systems. Refer to “Addi- tional steps for programming a door systemwith feedback” on page 5-113. Garage door status is then displayed with indicators (A).
The indicators will illuminate/blink in response to the following conditions: : Blinking : Illuminates
The HomeLink
® has the capability of listen-
ing to these messages at a range up to 820.2feet (250 m) (open line of sight), but range may be reduced by obst
acles such as houses
or trees. You may have to slow your vehiclespeed to receive the CLOSED or OPENED message feedback from the garage door opener. If the unit is out of range beforereceiving either the UP or DOWN message from the door opener, both the UP and DOWN indicators will
flash red followed by
a continuous lit orange indicator in the direc- tion the door was last moving.Recall of the door state after initial feedback is possible by simulta
neously pressing either
HomeLink
® buttons 1 and 2 or buttons 2 and
3 for 2 seconds. The la
st recorded message
will be displayed for 3 seconds, again follow- ing the garage door stat
us indication of the
figure above.
N00585300023
To erase programming from the 3 buttons (individual buttons cannot
be erased but can
be “reprogrammed” as
outlined below), fol-
low the steps noted:
Operating HomeLink
®
Garage door feedback

Garage door opener closing
(orange) (green)
Out of range
(red)
Garage door opener opening
(orange) (green)
Out of range
(red)
Clearing the programmed information

BK0236100US.book 114 ページ ２０１６年２月１日　月曜日　午前１０時１５分

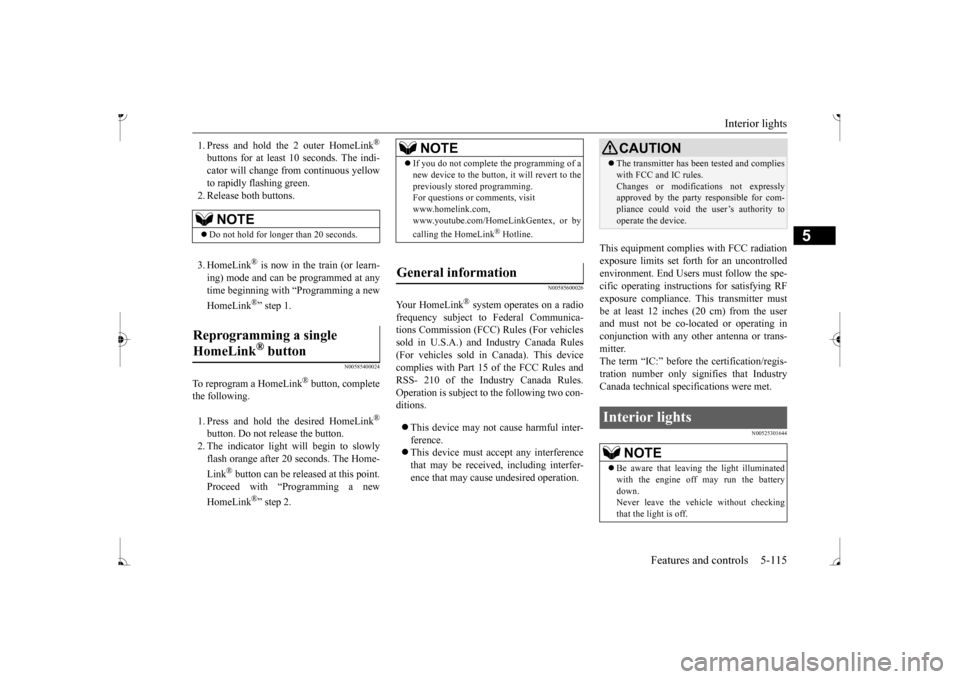

Interior lights
Features and controls 5-115
5
1. Press and hold the 2 outer HomeLink
®
buttons for at least
10 seconds. The indi-
cator will change from continuous yellow to rapidly flashing green. 2. Release both buttons. 3. HomeLink
® is now in the train (or learn-
ing) mode and can be programmed at anytime beginning with
“Programming a new
HomeLink
®” step 1.
N00585400024
To reprogram a HomeLink
® button, complete
the following. 1. Press and hold the desired HomeLink
®
button. Do not release the button. 2. The indicator light
will begin to slowly
flash orange after 20 seconds. The Home- Link
® button can be released at this point.
Proceed with “Programming a new HomeLink
®” step 2.
N00585600026
Your HomeLink
® system operates on a radio
frequency subject to
Federal Communica-
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules (For vehicles sold in
Canada). This device
complies with Part 15 of the FCC Rules and RSS- 210 of the Industry Canada Rules. Operation is subject to
the following two con-
ditions.  This device may not
cause harmful inter-
ference.  This device must ac
cept any interference
that may be received, including interfer- ence that may caus
e undesired operation.
This equipment complies with FCC radiation exposure limits set fo
rth for an uncontrolled
environment. End Users must follow the spe- cific operating instruct
ions for satisfying RF
exposure compliance. This transmitter must be at least 12 inches (20 cm) from the user and must not be co-loc
ated or operating in
conjunction with any other antenna or trans- mitter. The term “IC:” before
the certification/regis-
tration number only si
gnifies that Industry
Canada technical specifications were met.
N00525301644
NOTE
 Do not hold for longer than 20 seconds.
Reprogramming a single HomeLink
® button

NOTE
 If you do not complete the programming of a new device to the button, it will revert to thepreviously stored programming.For questions or comments, visit www.homelink.com, www.youtube.com/HomeLinkGentex, or by calling the HomeLink
® Hotline.
General information

CAUTION The transmitter has been tested and complies with FCC and IC rules.Changes or modifica
tions not expressly
approved by the party responsible for com- pliance could void the user’s authority to operate the device.
Interior lights
NOTE
 Be aware that leaving the light illuminated with the engine off may run the batterydown. Never leave the vehi
cle without checking
that the light is off.
BK0236100US.book 115 ページ ２０１６年２月１日　月曜日　午前１０時１５分

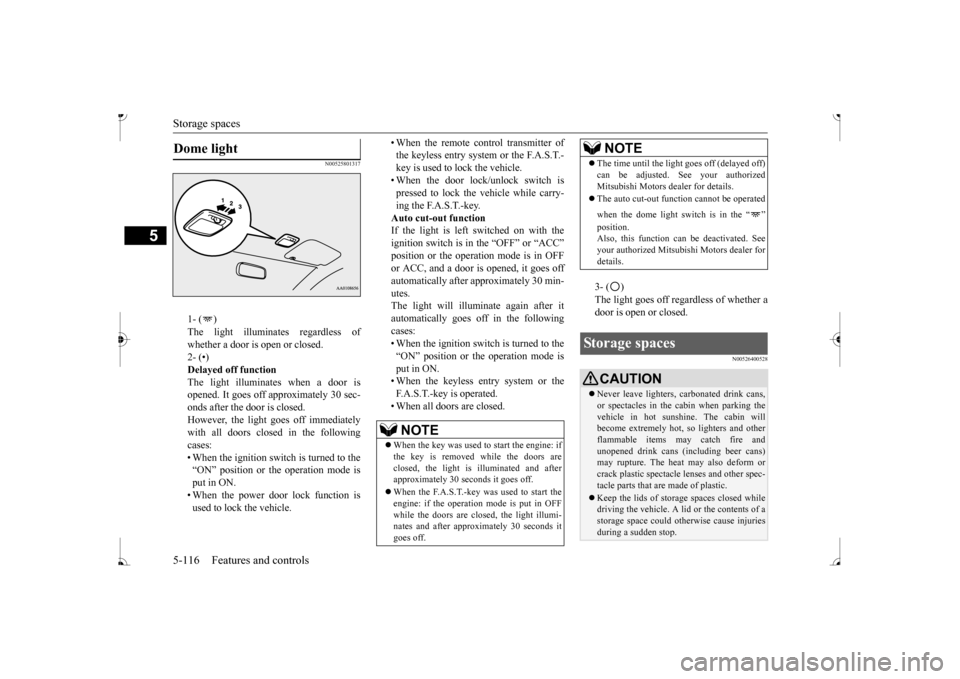

Storage spaces 5-116 Features and controls
5
N00525801317
1- ( ) whether a door is open or closed. 2- (•)Delayed off function The light illuminates when a door is opened. It goes off a
pproximately 30 sec-
onds after the door is closed. However, the light goes off immediately with all doors closed in the followingcases: • When the ignition switch is turned to the “ON” position or the operation mode isput in ON. • When the power door lock function is used to lock the vehicle.
• When the remote control transmitter of the keyless entry system or the F.A.S.T.-key is used to lock the vehicle. • When the door lock/unlock switch is pressed to lock the vehicle while carry-ing the F.A.S.T.-key. Auto cut-out function If the light is left switched on with theignition switch is in the “OFF” or “ACC” or ACC, and a door is opened, it goes off automatically after approximately 30 min- utes.The light will illuminate again after it automatically goes off in the following cases:• When the ignition switch is turned to the “ON” position or the operation mode is put in ON.• When the keyless entry system or the F.A.S.T.-key is operated. • When all doors are closed.
3- ( ) door is open or closed.
N00526400528
Dome light
NOTE
 When the key was used to start the engine: if the key is removed while the doors areclosed, the light is illuminated and after approximately 30 seconds it goes off.  When the F.A.S.T.-key was used to start the engine: if the operation mode is put in OFF while the doors are closed, the light illumi-nates and after approxi
mately 30 seconds it
goes off.
 The time until the light
goes off (delayed off)
Mitsubishi Motors dealer for details.  The auto cut-out func
tion cannot be
operated
when the dome light switch is in the “ ” Also, this function can
be deactivated. See
your authorized Mitsubish
i Motors dealer for
details.
Storage spaces
CAUTION Never leave lighters,
carbonated drink cans,
or spectacles in the cabin when parking the vehicle in hot sunshine. The cabin will become extremely hot,
so lighters and other
flammable items ma
y catch fire and
unopened drink cans (i
ncluding beer cans)
may rupture. The heat may also deform orcrack plastic spectacle
lenses and other spec-
tacle parts that ar
e made of plastic.
Keep the lids of storage spaces closed while driving the vehicle. A lid or the contents of a storage space could ot
herwise cause injuries
during a sudden stop.NOTE
BK0236100US.book 116 ページ ２０１６年２月１日　月曜日　午前１０時１５分

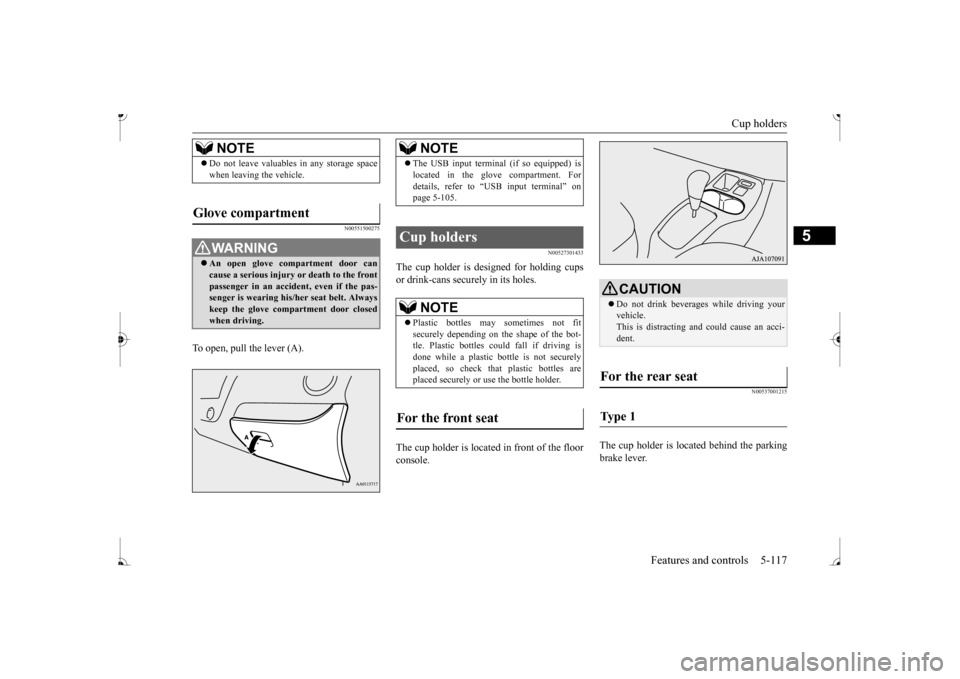

Cup holders
Features and controls 5-117
5
N00551500275
To open, pull the lever (A).
N00527301433
The cup holder is de
signed for holding cups
or drink-cans secu
rely in its holes.
The cup holder is located in front of the floor console.
N00537001215
The cup holder is located behind the parkingbrake lever.
NOTE
 Do not leave valuables
in any storage space
when leaving the vehicle.
Glove compartment
WA R N I N G An open glove compartment door can cause a serious injury or death to the frontpassenger in an accident, even if the pas- senger is wearing his/her seat belt. Always keep the glove comp
artment door closed
when driving.
NOTE
 The USB input terminal (if so equipped) is located in the glove compartment. Fordetails, refer to “USB input terminal” onpage 5-105.
Cup holders
NOTE
 Plastic bottles may
sometimes not fit
securely depending on the shape of the bot- tle. Plastic bottles c
ould fall if driving is
done while a plastic bottle is not securelyplaced, so check that plastic bottles are placed securely or
use the bottle holder.
For the front seat
CAUTIONDo not drink beverages while driving your vehicle.This is distracting a
nd could cause an acci-
dent.
For the rear seat Ty p e 1
BK0236100US.book 117 ページ ２０１６年２月１日　月曜日　午前１０時１５分

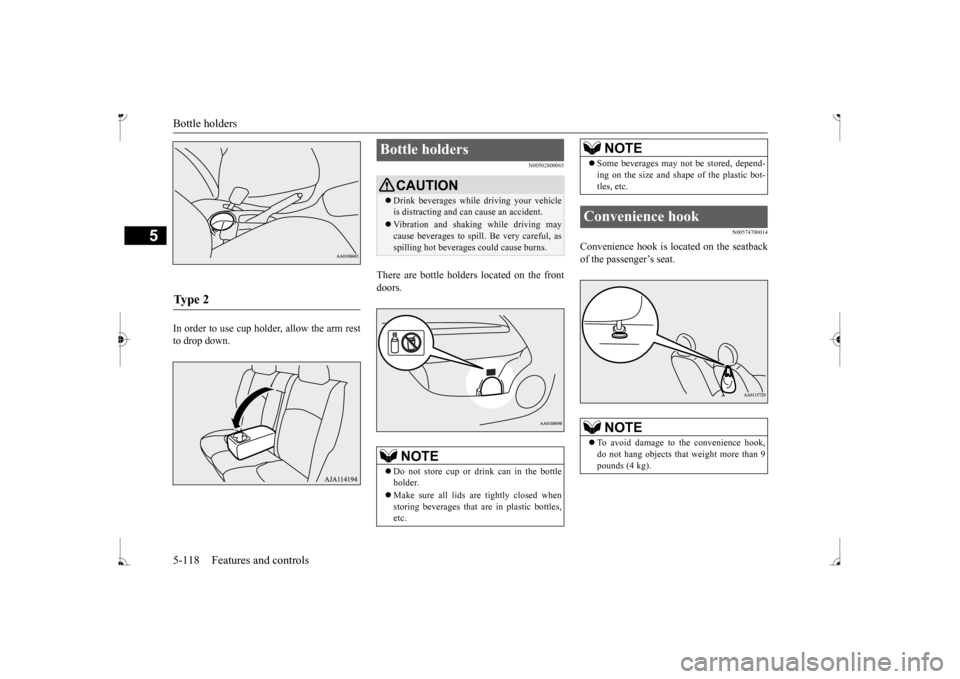

Bottle holders 5-118 Features and controls
5
In order to use cup holder, allow the arm rest to drop down.
N00502800065
There are bottle holders located on the frontdoors.
N00574700014
Convenience hook is lo
cated on the seatback
of the passenger’s seat.
Ty p e 2
Bottle holders
CAUTION Drink beverages while
driving your vehicle
is distracting and can cause an accident. Vibration and shaking while driving may cause beverages to spill.
Be very careful, as
spilling hot beverage
s could cause burns.
NOTE
Do not store cup or drink can in the bottle holder.  Make sure all lids are tightly closed when storing beverages that
are in plastic bottles,
etc.
 Some beverages may not
be stored, depend-
ing on the size and shape of the plastic bot-tles, etc.
Convenience hook
NOTE
 To avoid damage to the convenience hook, do not hang objects that
weight more than 9
pounds (4 kg).NOTE
BK0236100US.book 118 ページ ２０１６年２月１日　月曜日　午前１０時１５分

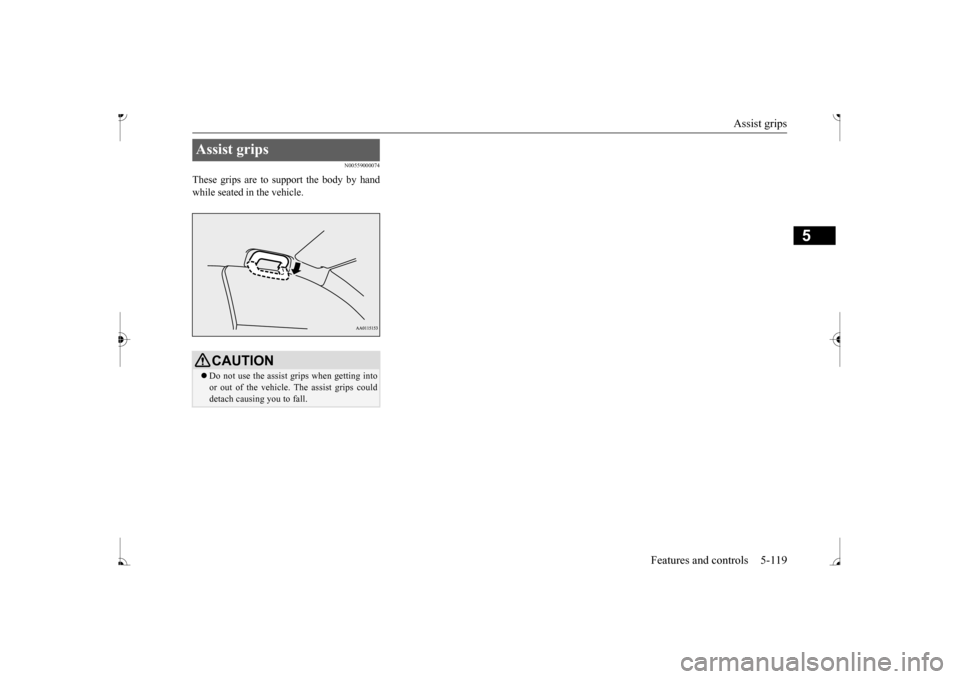

Assist grips
Features and controls 5-119
5
N00559000074
These grips are to support the body by hand while seated in the vehicle.Assist grips
CAUTION Do not use the assist grips when getting into or out of the vehicle.
The assist grips could
detach causing you to fall.
BK0236100US.book 119 ページ ２０１６年２月１日　月曜日　午前１０時１５分
