MITSUBISHI MIRAGE 2017 6.G Repair Manual

Supplemental Restraint System (SRS) - airbag 4-36 Seat and restraint systems
4
N00408600383
Occupant restraint warn
ing labels for the SRS
are located in the vehicle as shown in the illustration.
 Do not modify your front seats, center pil- lar or center console. Such modificationscan adversely affect SRS performance andmay lead to injury. Also, if you discove
r any tear or open
seam in the seat fabr
ic near the side air-
bag, have the seat in
spected by an autho-
rized Mitsubishi Motors dealer. If you have found an
y scratch, crack or
damage to the portion of the front and rear pillars and roof
side rail, you should
have the SRS inspecte
d by an authorized
Mitsubishi Motors dealer.NOTE
 When you transfer ownership of the vehicle to another person, we
urge you to alert the
new owner that it is
equipped with the SRS
and refer that owner to the applicable sec- tions in this owner’s manual.  If you decide to junk or
scrap your vehicle,
we urge you to first take it to an authorized Mitsubishi Motors dealer so that the SRS canbe made safe for disposal.  If any of the following parts needs to be modified for use by a handicapped person,the advanced airbag system will be greatly affected. Please consult an authorized Mitsubishi Motors dealer. • Driver’s seat • Front passenger seat • Front seat beltWA R N I N G
• Steering wheel • Instrument panel[For vehicles sold in U.S.A.] To contact Mitsubishi Motors North America, Inc.call 1-888-648-7820 or write to: Mitsubishi Motors North Amer- ica, Inc.Customer Relations Depart- ment P.O. Box 6400Cypress, CA 90630-0064 [For vehicles sold in Canada] To contact Mitsubishi Motor Sales of Canada, Inc.call 1-888-576-4878 or write to: Mitsubishi Motor Sales of Can- ada, Inc.Customer Relations Depart- ment P.O. Box 410094141 Dixie Road Mississauga, ON L4W 5C9NOTE
Wa r n i n g l a b e l * - Located in the passenger’s side as well.
BK0236100US.book 36 ページ ２０１６年２月１日　月曜日　午前１０時１５分

5
Features and controlsBreak-in recommendations ..............................................................5-2 Keys .................................................................................................5-2 Electronic immobilizer (Anti-theft starting system) ........................5-3Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ............................................................................5-9Door locks ......................................................................................5-24 Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-25
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-26
Trunk lid ................
............
...........
...........
...........
...........
...........
.....5-27
Inside emergency trunk lid release ................................................5-28 Manual window control (if so equipped)........................................5-29Power window control ...................................................................5-29 Parking brake .................................................................................5-32 Steering wheel height adjustment ..................................................5-33Inside rearview mirror ...................................................................5-34 Outside rearview mirrors ...............................................................5-36 Ignition switch ...............................................................................5-37Starting the engine .........................................................................5-38 Manual transaxle (if so equipped) ..................................................5-40 Continuously variable transmission
(CVT) (if so equipped)..........5-42
Service brake .................................................................................5-46 Hill start assist ................................................................................5-47 Brake assist system ........................................................................5-49Anti-lock braking system ...............................................................5-49 Electric power steering system (EPS) ............................................5-51 Active stability control (ASC) .......................................................5-52Cruise control (if so equipped) .......................................................5-54
Tire pressure monitoring system (if so equipped) .......................... 5-58 Rear-view camera (if so equipped)................................................. 5-62 Instrument cluster .......................................................................... 5-64Multi-information display ............................................................. 5-65 Indicator and warning light package ............................................. 5-75 Indicators ....................................................................................... 5-76Warning lights ................................................................................ 5-76 Combination headlights and dimmer switch ................................. 5-79 Turn signal lever ............................................................................ 5-81Hazard warning flasher switch ...................................................... 5-82 Front fog light switch (if so equipped) .......................................... 5-82 Wiper and washer switch ............................................................... 5-82Electric rear window defogger switch ....
...........
...........
...........
...... 5-84
Horn switch ................................................................................... 5-85 Link System (if so equipped) ......................................................... 5-85 Bluetooth
® 2.0 interface (if so equipped)....................................... 5-85
USB input terminal (if so
equipped) ....
...........
.........
........
........... 5-105
Sun visors .................................................................................... 5-10912 V power outlets ....................................................................... 5-110 HomeLink
® Wireless Control System (if so equipped) ............... 5-110
Interior lights ............................................................................... 5-115Storage spaces .............................................................................. 5-116 Cup holders .................................................................................. 5-117 Bottle holders ............................................................................... 5-118Convenience hook ............
...........
...........
...........
...........
...........
.... 5-118
Assist grips .................................................................................. 5-119
BK0236100US.book 1 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Break-in recommendations 5-2 Features and controls
5
N00508701382
Advanced automobile manufacturing tech- niques permit you to operate your new vehi- cle without requiring
a long break-in period
of low-speed driving. However, you can add to the future perfor- mance and economy of your vehicle byobserving the followi
ng precautions during
the first 300 miles (500 km). Drive your vehicle at moderate speeds during the break-in period.  Avoid revving the engine.  Avoid rough driving such as sudden starts, sudden acceleration, prolonged high- speed driving and sudden braking. These would have a detrimen
tal effect on the
engine and also cause increased fuel and oil consumption, wh
ich could result in
malfunction of the engine components. Beparticularly careful to
avoid full accelera-
tion while in low shift position (low gears). Do not overload the ve
hicle. Stay within
the seating capacity. (Refer to “Cargo load precautions” on page 6-10.) Do not use this vehi
cle for trailer towing.
N00508801703
Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key. Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key.
Two F.A.S.T.-keys and two emergency keys are provided. Keep one F.A.S.T.-key and one emergency key in a safe place together as a set of sparekeys.
Break-in recommendations
Keys Type 1 1- Key for the electronic immobilizer2- Key number plateType 2
1- Key for the electr
onic immobi
lizer and
keyless entry system
2- Key number plateTy p e 3
BK0236100US.book 2 ページ ２０１６年２月１日　月曜日　午前１０時１５分

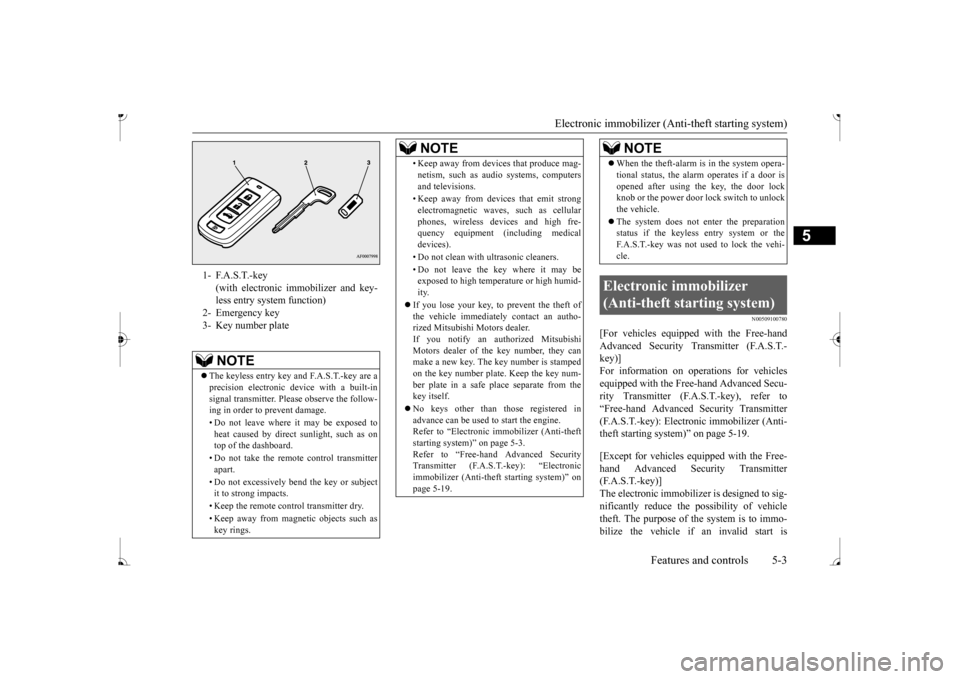

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-3
5
N00509100780
[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key)] For information on operations for vehicles equipped with the Free-hand Advanced Secu-rity Transmitter (F.A
.S.T.-key), refer to
“Free-hand Advanced
Security Transmitter
(F.A.S.T.-key): Electr
onic immobilizer (Anti-
theft starting system)” on page 5-19. [Except for vehicles e
quipped with the Free-
hand Advanced Secu
rity Transmitter
(F.A.S.T.-key)]The electronic immobilizer is designed to sig- nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo-bilize the vehicle if an invalid start is
1- F.A.S.T.-key
(with electronic immobilizer and key-less entry system function)
2- Emergency key 3- Key number plate
NOTE
 The keyless entry key and F.A.S.T.-key are a precision electr
onic device wi
th a built-in
signal transmitter. Please observe the follow- ing in order to prevent damage. • Do not leave where it may be exposed to heat caused by direct sunlight, such as on top of the dashboard. • Do not take the remote
control transmitter
apart. • Do not excessively bend the key or subject it to strong impacts. • Keep the remote control transmitter dry. • Keep away from magne
tic objects such as
key rings.
• Keep away from devi
ces that produce mag-
netism, such as audio systems, computersand televisions. • Keep away from device
s that emit strong
electromagnetic waves, such as cellularphones, wireless devices and high fre- quency equipment (i
ncluding medical
devices). • Do not clean with ultrasonic cleaners. • Do not leave the key where it may be exposed to high temperature or high humid- ity.
 If you lose your key, to prevent the theft of the vehicle immediatel
y contact an autho-
rized Mitsubishi Motors dealer. If you notify an authorized Mitsubishi Motors dealer of the key number, they canmake a new key. The key number is stamped on the key number plate. Keep the key num- ber plate in a safe pl
ace separate from the
key itself.  No keys other than those registered in advance can be used to start the engine. Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-3.Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key): “Electronic immobilizer (Anti-thef
t starting system)” on
page 5-19.NOTE
 When the theft-alarm is in the system opera- tional status, the alar
m operates if a door is
opened after using th
e key, the door lock
knob or the power door lock switch to unlock the vehicle.  The system does not enter the preparation status if the keyless entry system or the F.A.S.T.-key was not used to lock the vehi-cle.
Electronic immobilizer (Anti-theft starting system)
NOTE
BK0236100US.book 3 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Electronic immobilizer (Anti-theft starting system)
5
attempted. A valid st
art attempt can only be
achieved (subject to ce
rtain conditions) using
a key “registered” to the immobilizer system. All of the keys provided with your new vehi- cle have been program
med to the vehicle’s
electronics.
Only keys that have been programmed to the vehicle’s electronics can be used to start thevehicle. If you lose the key, you can order a key from your authorized Mitsubi
shi Motors dealer by
referring to the key number.To prevent vehicle theft, the ID code for the vehicle keys must be changed. Take your vehicle and all remaining keys toyour authorized Mitsubishi Motors dealer to have your ID code changed.
NOTE
 In the following cases, the vehicle may not be able to recognize
the registered ID code
from the key. This mean
s the engine will not
start even when the key is turned to the “START” position. • When the key contacts a key ring or other metallic or magnet
ic object (Type A)
• When the key grip contacts metal of another key (Type B) • When the key contacts
or is close to other
immobilizer keys (inc
luding keys of other
vehicles) (Type C)
 In cases like the above, move the offending object(s) away from the key and turn the key back to the “ACC” or
“OFF” position. Then
try to start the engine again. If the enginedoes not start, cont
act an authorized
Mitsubishi Motors dealer.
NOTE
 The key may not operate
properly when it is
near an object or facility that emits strong electromagnetic waves.  Electronic immobilizer is not compatible with commercially available remote startingsystems. Use of commercially available remote starting systems may result in vehicle starting problems and a loss of security pro-tection.
 A system failure is suspected when the igni- tion switch is turned to the “START” posi-tion, and the engine does
not start. In such a
case, contact an au
thorized Mitsubishi
Motors dealer.CAUTION Do not make any altera
tions or additions to
the immobilizer system.
Alterations or addi-
tions could cause failure of the immobilizer.
Replacement keys
NOTE
BK0236100US.book 4 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
To add a key, you must already have 2 regis- tered keys. You need to register the ID code to the vehicle.Registering the ID code can be done by your- self (except for vehicles
sold in Canada), or
by your authorized Mits
ubishi Motors dealer.
For you to register the ID code yourself, fol- low the “Customer key programming” proce- dure below. If you choose to have your authorized Mitsubishi Motors dealer register the IDcode, take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer.
N00562201178
You can program new keys to the system if you have two valid (already registered) keys and blank immobilizer ke
y (specially cut for
your vehicle at your Mitsubishi Motors dealer) by doing the following: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi- tion for 5 seconds. 2. Turn the key to the “OFF” position andremove the first key. 3. Within 30 seconds of removing the first key, insert the second valid key into theignition and turn it
to the “ON” position.
About 10 seconds late
r, the immobilizer
indicator will start to blink. 4. When the immobilizer indicator starts blinking, turn the second valid key to the“OFF” position and remove it. Within 30 seconds after doing so, insert a blank immobilizer key into the ignition switchand turn it to the “ON” position. Perform this operation no more than 30 seconds after the immobilizer indicator startsblinking. When registration of the ID code is complete, the immobilizer indica- tor will come on for 3 seconds then go off.If an error occurs, the immobilizer indica- tor will go off during the procedure.
5. If you wish to register another key, per- form the process again from step 1.
Additional keys
NOTE
 You are provided with 2 keys, but you may register up to 8 keys.
Customer key programming (Except for vehicles sold in Canada)
NOTE
 When the key registration is completed, the immobilizer indicator wi
ll come on within 3
seconds of turning the ignition switch to the“ON” position with th
e blank immobilizer
key (specially cut for your vehicle at your Mitsubishi Motors dealer). NOTE
 It is not possible to register a key if: • the immobilizer indicator goes off during the procedure • the immobilizer indi
cator does not come on
within 30 seconds after step 4.
 The procedure will be
terminated automati-
cally if: • a period of 30 seconds
or longer elapses
from the moment when the first key isturned to the “OFF” position to the moment when the second key is turned to the “ON” • a period of 30 seconds
or longer elapses
from the moment when the second key isturned to the “OFF” position to the momentwhen the blank immobilizer key is turned to the “ON” position • more than 20 seconds elapses after the immobilizer indicato
r starts blinking
BK0236100US.book 5 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Keyless entry system (if so equipped) 5-6 Features and controls
5
N00562300097
Your electronic imm
obilizer operates on a
radio frequency subject
to Federal Communi-
cations Commission (FCC) Rules (For vehi-cles sold in U.S.A.) and Industry Canada Rules (For vehicles so
ld in Canada). This
device complies with part 15 of FCC Rulesand Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference. This device must ac
cept any interference
received, including interference that may cause undesired operation of this device.
N00509002015
Press the remote control transmitter buttonsto lock or unlock the doors.It can also help you
signal for attention by
setting off the panic alarm. Press the LOCK button (1) to lock all the doors. The turn signal lights
will also blink once.
Press the UNLOCK button (2) to unlock the driver’s door only.Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors. The dome light will turn on for 30 seconds.The turn signal lights will also blink twice. The horn of the keyless entry system answer- back function can be changed as required. This is done with the key removed from the ignition switch. The answerback function can be set in the following three ways.
General information
WA R N I N G Changes or modifications not expressly approved by the part
y responsible for
compliance could void
the user’s authority
to operate the equipment.
Keyless entry system
(if so
equipped)1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Indicator lightTo l o c k

NOTE
 If you press the LOCK button (1) twice the horn will sound once.
To u n l o c k

Answerback function

NOTE
 The answerback functi
on will not operate if
any of the doors are open.
Horn deactivation/reactivation

BK0236100US.book 6 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Keyless entry system (if so equipped)
Features and controls 5-7
5
Each time the answerback function is set, a chime will sound to tell you the condition ofthe answerback function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
The turn signal lights answerback function can be changed. If you want to change the answerback func- tion, please contact an
authorized Mitsubishi
Motors dealer.
N00543700034
If you are near your vehicle and feel threat- ened, you may acti-vat
e the alarm to call
attention as follows: 1. Press the PANIC button (3) for more than 1 second. 2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes. 3. To turn off the alarm, press any button onthe remote control transmitter.
N00543801090
Only remote control transmitters pro- grammed with the vehicle’s electronics can lock or unlock all doors. If you lose the remote control transmitter, you can order a remote c
ontrol transmitter from
your authorized Mitsubi
shi Motors dealer by
referring to the key number.To prevent vehicle theft, the ID code for the remote control transmitter must be changed. Take your vehicle and all remote controltransmitters to your authorized Mitsubishi Motors dealer to have your ID code changed.
N00543900078
To add a remote control transmitter, you must already have 1 regist
ered remote control
transmitter. Registering the ID code can be done by your authorized Mitsubishi Motors dealer.Take your vehicle and any remaining keys to your authorized Mitsubishi Motors dealer.
N00546100114
Your keyless entry system operates on a radiofrequency subject to
Federal Communica-
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with Part 15 of FCC Rules andIndustry Canada licenc
e-exempt RSS stan-
dard(s). Operation is subject to the following two con-ditions.
One chime: The horn will not sound. Two chimes: The horn will sound. Four chimes: The horn will sound if the
LOCK button is pressed twicewithin 1 second.
Turn signal lights deactiva- tion/reactivation

Using the panic alarm

Replacement remote control transmitters

Additional remote control transmitters

NOTE
 You are provided with 2 remote control transmitters, but you may register up to 4 remote control transmitters.
General information

BK0236100US.book 7 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Keyless entry system (if so equipped) 5-8 Features and controls
5
 This device may not
cause harmful inter-
ference. This device must ac
cept any interference
received, including interference that may cause undesired operation of this device.
N00544101191
1. Before replacing the
battery, remove static
electricity from your body by touching a metal grounded object. 2. Remove the screw (A) from the remotecontrol transmitter.
3. With the Mitsubishi mark facing you, insert the cloth-cov-ered tip of a flat bladescrewdriver into the notch in the remote control transmitter case and use it to open the case.
4. Remove the old battery. 5. Install a new battery with the + side (B) up.
WA R N I N G Changes or modifications not expressly approved by the part
y responsible for
compliance could void
the user’s authority
to operate the equipment.
Procedure for replacing the remote control transmitter bat-tery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark fa
cing you. If the
Mitsubishi mark is not facing you when youopen the remote control
transmitter case, the
buttons may come out.  The Federal Communications Commission (FCC) ID number, the Industry Canada (IC) number and the model number (radio certifi-cation) are indicated in the illustrated posi- tion.
BK0236100US.book 8 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-9
5
6. Close the remote control transmitter firmly.7. Attach the screw (A) removed in step 2. 8. Check the keyless entry system to see that it works.
N00503101150
The Free-hand Advanced Security Transmit-ter (F.A.S.T.-key) enables the doors to belocked and unlocked, the trunk lid to be opened, and the engine to be started and the operation mode to be
changed simply by car-
rying it. The F.A.S.T.-key can also be used as theremote control transmitter of the keyless entry system. Refer to “Free-hand Advanced SecurityTransmitter (F.A.S.T.-
key): Keyless entry
system” on page 5-21.
CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-nents.NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubish
i Motors dealer can
replace the battery for you if you prefer.
+ side - side Coin type battery CR1620
Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key)
(if so equipped)
driver. The F.A.S.T.-key is required forvehicle operations su
ch as locking and
unlocking the doors,
starting the engine,
and changing the operation mode. When leaving the vehicle,
make sure you are
carrying the F.A.S.T.-key and then lockthe vehicle.
WA R N I N G Individuals who use
implantable pace-
makers or implanta
ble cardiovascular-
defibrillators
should keep away from the
external and internal
transmitters. The
electromagnetic waves used in the F.A.S.T.-key may affect the operation ofimplantable pacemakers and implantable cardiovascular-defibrillators.A- External transmitter B- Internal transmitter
