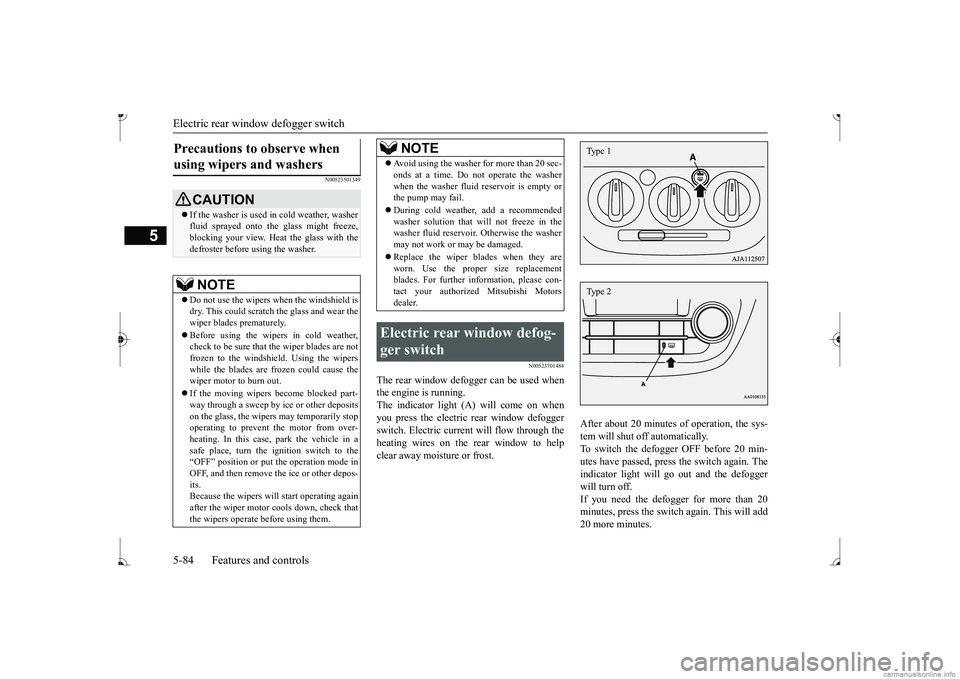

Electric rear window defogger switch 5-84 Features and controls
5
N00523501349
N00523701484
The rear window defogger can be used when the engine is running. The indicator light (A) will come on when you press the electric rear window defoggerswitch. Electric current will flow through the heating wires on the rear window to help clear away moisture or frost.
After about 20 minutes of operation, the sys- tem will shut off automatically. To switch the defogger OFF before 20 min-utes have passed, press the switch again. The indicator light will go
out and the defogger
will turn off. If you need the defogger for more than 20 minutes, press th
e switch again. This will add
20 more minutes.
Precautions to observe when using wipers and washers
CAUTION If the washer is used in cold weather, washer fluid sprayed onto the
glass might freeze,
blocking your view. Heat the glass with thedefroster before using the washer.NOTE
 Do not use the wipers when the windshield is dry. This could scratch the glass and wear the wiper blades prematurely.  Before using the wipers in cold weather, check to be sure that the wiper blades are notfrozen to the windshield. Using the wipers while the blades are frozen could cause the wiper motor to burn out.  If the moving wipers be
come blocked part-
way through a sweep by ic
e or other deposits
on the glass, the wipers may temporarily stop operating to prevent the motor from over- heating. In this case, park the vehicle in asafe place, turn the ignition switch to the“OFF” position or put the operation mode in OFF, and then remove
the ice or other depos-
its.Because the wipers will start operating again after the wiper motor cools down, check that the wipers operate
before using them.
Avoid using the washer for more than 20 sec- onds at a time. Do not operate the washerwhen the washer fluid reservoir is empty orthe pump may fail.  During cold weather, add a recommended washer solution that will not freeze in the washer fluid reservoir.
Otherwise the washer
may not work or may be damaged.  Replace the wiper blades when they are worn. Use the proper size replacementblades. For further information, please con- tact your authorized
Mitsubishi Motors
dealer.
Electric rear window defog- ger switch
NOTE
Type 1Type 2
BK0236100US.book 84 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Alphabetical index
12-5
12
Quality grading
...............................
10-2
Replacing tires and wheels
...............
9-16
Rotation
.........................................
9-17
Size (tire and wheel)
.......................
11-5
Snow tires
......................................
9-18
Tire and loading information placard 11-3 Tire chains
.....................................
9-18
To change a tire
................................
8-6
Tread wear indicator
.......................
9-16
Tools
...................................................
8-5
Storage
............................................
8-5
Towing
..............................................
8-12
Trailer towing
.....................................
6-11
Trunk lid
............................................
5-27
Turn signal light
Indicators
.......................................
5-76
Lever
.............................................
5-81
U
USB input terminal
...........................
5-105
How to connect a USB memory device
....
5-106 How to connect an iPod
.................
5-107
V
Vanity mirror
...................................
5-109
Vehicle care precautions
......................
9-32
Vehicle dimensions
.............................
11-3
Vehicle labeling
..................................
11-2
Vehicle preparation before driving
.........
6-3
Vehicle weights
..................................
11-4
Vents
..................................................
7-2
W
Warning lights
...................................
5-76
Washer
Fluid
.......................................
9-9
, 11-5
Switch
...................................
5-82
, 5-83
Washing
............................................
9-33
Waxing
.............................................
9-34
Weights
.............................................
11-4
Wheel
Covers
...........................................
8-11
Specification
..................................
11-5
Wiper
Switch
...........................................
5-82
Wiper blades
..................................
9-19
