Manual air conditioning (if so equipped) 7-8 Comfort controls
7
N00736601258
Turn the temperature control dial clockwise to make the air warmer
. Turn it counterclock-
wise to make the air cooler.
N00736701246
To change air flow di
rection, turn the mode
selection dial. Refer to “Changing the mode selection” on page 7-2.
N00736801423
Normally, use the outside air position to keep the windshield and side windows clear and to quickly remove fog or frost from the wind-shield. To change the air selection, use the air selec- tion lever.  “ ” Outside air  “ ” Recirculated air
If the outside air is dusty or contaminated in some way, use the
recirculat
ion position.
Switch to the outside
air position every now
and then to keep the windows from foggingup.
Temperature control dial

NOTE
 While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until
the engine warms up,
even if you have selected warm air with the dial.
Mode selection dial

Air selection lever

BK0267800US.book 8 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Manual air conditioning (if so equipped)
Comfort controls 7-9
7
N00731001488
Push the switch, and the air conditioning compressor will turn on. The air conditioningindicator light (A) will come on. Push the switch again and the air condition- ing compressor will stop and the indicator light (A) goes off.
N00731101304
Set the mode selection dial to the “ ” posi- tion and set the air sele
ction lever to the out-
side air position. Turn the temperature control dial clockwise or counterclockwise to
the desired tempera-
ture. Select the desire
d blower speed to fit
your needs.
N00731201406
1. Set the mode selection dial to the “ ”position. 2. Set the air selection le
ver to the outside air
position.3. Push the air conditioning switch. 4. Change the temperature by turning the control dial clockwise or counterclock-wise. 5. Set the desired blower speed.
CAUTION Using recirculated ai
r for a long time may
cause the windows to fog up.
Air conditioning switch

Operating the ai
r conditioning
system

Heating

NOTE
 For quick heating, set th
e blower speed at the
3rd position.
Cooling

NOTE
 If the outside air is dusty or contaminated in some way, set the air selection lever to therecirculation position. Let in some outside air from time to ti
me for good ventilation.
 To cool the leg areas,
set the mode selection
dial to the “ ” position.
BK0267800US.book 9 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Manual air conditioning (if so equipped) 7-10 Comfort controls
7
N00731301292
Set the mode selection dial to the positions shown in the illustrati
on and set the air selec-
tion lever to the out
side air position.
The air flow will be directed to the leg area and the upper part of the passenger compart-ment. Set the desired blower speed. Warm air flows to the leg area and unheated or slightly warm air (depending upon the position of the temperatur
e control dial) flows
to the upper part of the passenger compart-ment.
N00731401596
Set the mode selection dial (between “ ” and “ ”) to remove frost or mist from the windshield and door window. For ordinary defrosting Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep the leg area heated (when driving in rain or snow). 1. Set the mode selection dial to the “ ” position.
2. Set the air selection lever to the outside air position.3. Select your desired blower speed by turn- ing the blower speed selection dial. 4. Select your desired temperature by turn-ing the temperature control dial. 5. Push the air conditioning switch. For quick defrosting 1. Set the mode selection dial to the “ ” position.2. Set the air selection lever to the outside air position. 3. Set your blower to the maximum speed.4. Set the temperature to the highest posi- tion. 5. Push the air conditioning switch.
Combination of unheated air and heated air

Defrosting or defogging (wind-shield, door windows)

CAUTION For safety, make sure
you have a clear view
through all the windows.
NOTE
 To defog quickly, direct the air flow from the side vents toward the door windows.
BK0267800US.book 10 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Manual air conditioning (if so equipped)
Comfort controls 7-11
7
 When defrosting, do not set the temperature control dial near the
maximum cool position.
This would blow c
ool air on the window
glass and fog it up.NOTE
BK0267800US.book 11 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped) 7-12 Comfort controls
7
N00731501438
The air conditioning can only be used
while the engine is running.
N00711801624
Automatic air conditioning
(if so equipped)
CAUTIONThe engine speed may increase wh
en the air conditioning is operating.
With an increased engine speed, a CVT vehicle will creep to a gr
eater degree than with a lower
engine speed. Fully depress the
brake pedal to prevent the
vehicle from creeping.

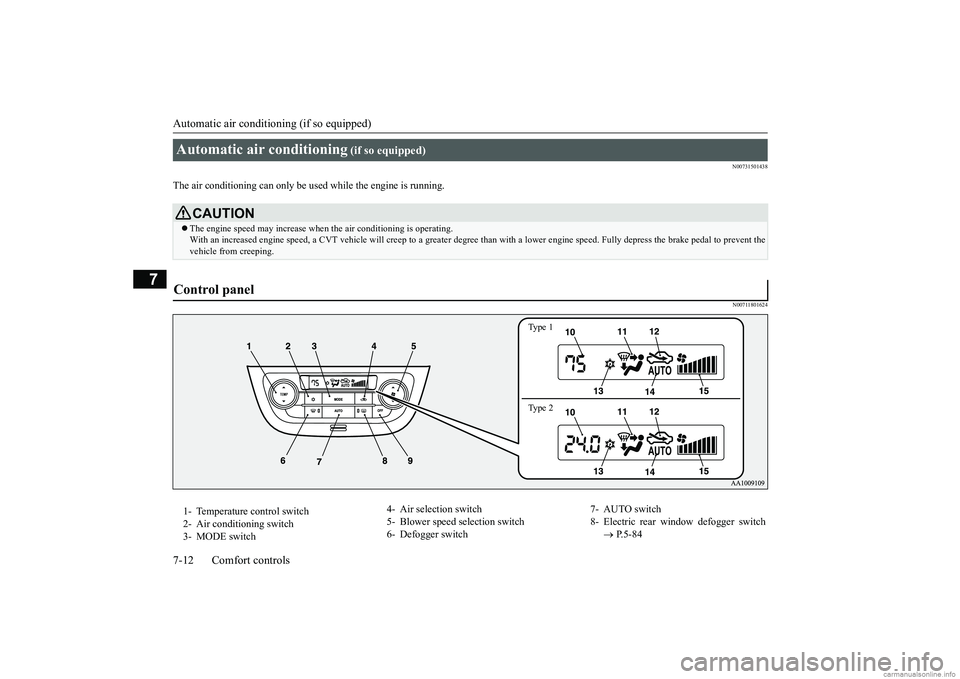

Control panel

Ty p e 1 Ty p e 2
1- Temperature control switch 2- Air conditioning switch 3- MODE switch
4- Air selection switch 5- Blower speed selection switch 6- Defogger switch
7- AUTO switch 8- Electric rear window defogger switch
 P.5-84
BK0267800US.book 12 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped)
Comfort controls 7-13
7
N00736900179
Press of the blower speed selection switch to increase the blower speed. Press of the blower speed selection switch to decrease the blower speed.
The selected blower sp
eed will be shown in
the display (A).
N00737001406
Press or of the temperature controlswitch to the desired temperature. The selected temperature will be shown in the display (A).
9- OFF switch 10- Temperature display 11- Mode selection display12- Air selecti
on indicator
13- Air conditioning indicator 14- AUTO indicator15- Blower speed display
NOTE
 There is an interior air temperature sensor (A) in the illustrated position.Never place anything ove
r the sensor, since
doing so will prevent it from functioning properly.  A sound will be made every time you push any of the switches.
Blower speed selection switch

1- Increase 2- Decrease
Temperature control switch

NOTE
 The temperature value
of air conditioning is
switched in conjunction
with outside temper-
ature display unit of the multi informationdisplay. Refer to “Changing the
temperature unit” on
page 5-74.
BK0267800US.book 13 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped) 7-14 Comfort controls
7
The above indicates the
factory settings. You
can personalize the air
selection switch and
air conditioning switch to match your per-sonal preferences. Contact your Mitsubishi
Motors dealer or a
repair facility of your choice for assistance.Refer to “Personalizi
ng the air conditioning
switch (Changing the function setting)” on
page7-16. Refer to “Personalizing the air selection(Changing the function setting)” on page7-15.
N00737101247
To change air flow direction, press theMODE switch. Each time the MODE switch is pressed, the mode ch
anges to the next one
in the following sequence: “ ”
 “”

“”
 “”
 “ ”. The selected mode
is shown in the displa
y (A). Refer to “Chang-
ing the mode selection” on page 7-2.
N00703400015
When this switch is pressed, the mode changes to the “ ” mode. The indicator
light (A) will come on. The selected mode is shown in the display (B). Refer to “Changingthe mode selection” on page 7-2.
N00737200368
Normally, use the outside air position to keepthe windshield and side windows clear and to quickly remove fog or frost from the wind- shield.
 While the engine coolant temperature is low, the temperature of the air from the heaterwill be cool/cold until
the engine warms up,
even if you have selected warm air with the switch. To prevent the windshield and windows fromfogging up, the vent mode
will be changed to
“ ” and the blower sp
eed will be reduced.
 When the temperature is set to the highest or the lowest setting under the AUTO opera- tion, the air selection
and the air conditioning
will be automatically changed as follows. • Quick Heating (When th
e temperature is set
to the highest setting) Outside air will be introduced and the air conditioning will stop.If the air selection
and the air conditioning
are operated ma
nually after an automatic
changeover, manual
operation will be
selected. • Quick Cooling (When th
e temperature is set
to the lowest setting) Inside air will be recirculated and the air conditioning wi
ll operate.
NOTE
MODE switch

Defogger switch

NOTE
When the defogger switch is pressed, the air conditioning system au
tomatically operates
and outside air (as oppos
ed to recirculated
air) is selected.Refer to “Defrosting or defogging (wind- shield, door windows)” on page 7-17.
Air selection switch

BK0267800US.book 14 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped)
Comfort controls 7-15
7
To change the air selection, simply press the air selection switch.The selected position will be shown in the display (A).  Outside air: “ ” indicator is ON Outside air is introduced into the passen- ger compartment.  Recirculated air: “ ” indicator is ON Air is recirculated
inside the passenger
compartment.
When the air conditioning turns on, the air selection is controlled automatically. Whenthe air conditioning turns off, the air selection automatically goes back to the outside air position.If high cooling performan
ce is desired, or if
the outside air is dusty or contaminated in some way, use the recirculation position.Switch to the outside
air position every now
and then to keep the windows from fogging up.
N00760000089
You can change the following functions tomatch your preference.  Enable automatic air control: When the AUTO switch is pressed, the air selection switch will also be automaticallycontrolled.  Disable automatic air control: Even when the AUTO switch is pressed, the air selection switch will not be auto-matically controlled.  Changing the settings
Press the air selecti
on switch for about 10
seconds or longer.When the setting has changed, the system will beep and the “ ” indicator will flash. • When the setting has changed fromenabled to disabled, the system will beep three times and the indicator will flash three times. • When the setting has changed from dis- abled to enabled,the system will beep two times and the indicator will flash three times.
CAUTION Using recirculated air for a long time may cause the windows to fog up.NOTE
 If you press the AUTO switch to select auto- matic control after ma
nual operation, the air
selection switch will also be automaticallycontrolled.
Personalizing the air selection (Changing the function setting)

NOTE
 The factory setting is
“Enable automatic air
control”.  When the defogger switch
is pressed, the air
selection will automatically change to theoutside air position, even if the system is set to “Disable automatic air control”, in order to prevent windows from fogging up.
BK0267800US.book 15 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped) 7-16 Comfort controls
7
N00737301409
Push the switch, and the air conditioning compressor will turn on. The “ ” indicator will be shown in the display (A). Push the switch again and the air condition- ing compressor will stop and the indicator goes off.
N00759800090
You can change the following functions tomatch your preference.  Enable automatic air conditioning control:
When the AUTO switch is pressed, or when the temperature control switch hasbeen set to the minimum temperature, the air conditioning switch
is automatically
controlled.  Disable automatic air conditioning con- trol: The air conditioning switch is not auto- matically controlled, unless the air condi-tioning switch is used.  Changing the settings Press the air conditi
oning switch for about
10 seconds or longer. When the setting has changed, the system will beep and the “ ” indicator will flash.• When the setting has changed from enabled to disabled, the system will beep three times and theindicator will flash three times. • When the setting has changed from dis- abled to enabled,the system will beep two times and the indicator will flash three times.
N00703500016
When the AUTO switch is pressed, the modeselection, blower spee
d adjustment, recircu-
lated/outside air sele
ction, temperature
adjustment, and air conditioner ON/OFF sta- tus are all controlled automatically. The “AUTO” indicator
will be shown in the
display (A).
Air conditioning switch

Personalizing the air conditioning switch (Changing the function set- ting)

NOTE
 The factory setting is
“Enable automatic air
conditioning control”.
 When the defogger switch is pressed, the air conditioning will run au
tomatically, even if
the system is set to “Disable automatic airconditioning control”, in order to prevent windows from fogging up.
AUTO switch

NOTE
BK0267800US.book 16 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Automatic air conditioning (if so equipped)
Comfort controls 7-17
7
N00703600017
Push the switch to turn off the air condition- ing system.
N00731701544
In normal conditions, use the system in the AUTO mode and follow these procedures: 1. Push the AUTO switch. 2. Set the temperature control switch to the desired temperature. The temperature can be set within a range of around 61 to 89(Type 1) or 17 to 31 (Type 2).
The vents, recirculati
on/outside air, blower
speed, temperature ad
justment and ON/OFF
of air conditioning will be controlled auto- matically.
N00731801167
Blower speed and vent mode may be con- trolled manually by setting the blower speedselection switch and the MODE switch to the desired positions. To return to automatic operation, press the AUTO switch.
N00732401522
To remove frost or mist from the windshieldand door windows, use the MODE switch or defogger switch (“ ” or “ ”). For ordinary defrosting Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep the leg area heated (when driving in rain or snow). 1. Set the MODE switch to the “ ” posi- tion.
OFF switch

Operating the air conditioning system (automatic mode)

NOTE
 Set the temperature at about 75 (Type 1) or 24 (Type 2) under normal conditions.
Operating the ai
r conditioning
system (manual mode)

Defrosting or defogging (wind- shield, door windows)

CAUTION For safety, make sure you have a clear view through all the windows.
BK0267800US.book 17 ページ ２０１８年５月３０日　水曜日　午後４時２４分
