Indicator and warning light package
Features and controls 5-75
5
N00519801947
Indicator and warning light package 1- High beam indicator
 P. 5 - 7 6
2- Electric power stee
ring system warning
light
 P. 5 - 5 1
3- Tire pressure moni
toring system warn-
ing light (if so equipped)
 P.5-59
4- Turn signal indicators/Hazard warning
lights
 P.5-76
5- Front fog light indicator (if so
equipped)
 P.5-76
6- Door-ajar warning light
 P.5-78
7- Supplemental Restraint System (SRS)
warning light
 P.4-28
8- High coolant temperature warning light
(red)
 P.5-78
9- Low coolant temperature indicator
(green)
 P.5-76
10- Oil pressure warning light
 P.5-78
11- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P. 5 - 7 7
12- Charging system warning light
 P.5-78
13- Brake warning light
 P. 5 - 7 6
14- Anti-lock braking system warning light
 P.5-50
15- Multi-information display
 P.5-65
16- Driver’s seat belt reminder/warning
light
 P. 4 - 1 1
17- Cruise control indicator (if so
equipped)
 P.5-55
18- Active stability control (ASC) indica-
tor/warning light
 P.5-54
19- Washer fluid level warning light (if so
equipped)
 P.5-79
20- Active stability control (ASC) OFF
indicator/wa
rning light
 P.5-54
21- Position indicato
r (if so equipped)
 P.5-76
22- ECO indicator
 P.5-76
23- For details, refer to “Warning activa-
tion” on page 5-15 (if so equipped)
BK0267800US.book 75 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Indicators 5-76 Features and controls
5
N00519900127 N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turn signal lever is used. Both arrows will flash
when the hazard warn-
ing flasher swit
ch is pressed.
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front fog lights are on.
N00551301049
This indicator light illuminates while theparking lights are on.
N00575600010
This indicator comes on in green while thecoolant temperature is low.
N00568800036
This indicator comes on while fuel-efficientdriving is achieved.
N00520300147 N00520400526
This light comes on when the ignition switch is turned to the “ON” position (engine off) or the operation mode is put in ON.When the engine is st
arted, the light should
go off a few seconds later. The warning light also illuminates after start- ing the engine under the following condi- tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
When the vehicle is moving at more than 5 mph (8 km/h) and the parking brake applied, a buzzer will sound to in
form the driver that
the parking brake is not properly release. Before driving, be sure that the parking brake is fully released and the brake warning light is off.
24- For details, refer
to “Warning activa-
tion” on page 5-15 (if so equipped)
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on wi
thout flashing, check
for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator
Front fog light indicator
(if so
equipped)Position indicator
(if so equipped)
Low coolant temperature indi- cator - green
NOTE
 When the indicator goes out, this should be used as a rough indication of when the heat- ing starts working.
ECO indicator
Warning lights Brake warning light and buzzer
BK0267800US.book 76 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Turn signal lever
Features and controls 5-81
5
the light switch to the “OFF” position to stop the tone.
N00549900142
To change the headlights from high beam tolow beam and vice vers
a, pull the turn signal
lever to (1). Switch the headlights to low beam as a courtesy whenever there are oncoming vehicles, or when there is traffic moving ahead of you. An illuminated bluelight in the instrument
cluster i
ndicates when
the headlights are on high beam.
N00550000185
You can flash the high beams by pulling the lever gently toward you (2). The lights will
go back to normal when you let go. While the high beam is on, you will
see a blue light on
the instrument panel.
N00522600519
When changing lanes, or
to making a gradual
turn, hold the lever in the “lane change” posi- tion (1). It will return
to the neutral position
when you let go. Use the full position (2) when making a normal turn. The lever will return to the neutral position when the turn iscomplete. There may be times when the lever does not return to the neutral position. This usually happens when the steering wheel isturned only slightly. You
can easily return the
lever by hand. Also, when you move the lever to (1) slightlythen release it, the turn signal lights and the indicator light in the instrument cluster will flash three times.
Dimmer (high/low beam change) Headlight flasher
NOTE
 You can flash the high beams by pulling the lever toward you, even if the light switch isoff.  If you turn the lights off with the head lights set to high-beam illumin
ation, the headlights
are automatically returned to their low-beam setting when the light
switch is next turned
to the “ ” position.
Turn signal lever
NOTE
 A light in the instrument panel flashes to show when the turn signal lights are workingproperly. If this light flashes fa
ster than usual, check
for a burned out turn signal light bulb or mal-functioning connection in the signal. If the panel light does not come on when the lever is moved, check for a blown fuse or aburned out bulb in the panel. Have the system inspected by your autho- rized Mitsubishi Motors dealer or a repairfacility of your choice.  It is possible to modi
fy functions as follows:
• Deactivate the turn signal light 3-flash function for lane changes. • Adjust the time required to operate the lever for the 3-flash function. • Changing of the tone of a sounding buzzer as the turn signal lights flash.
BK0267800US.book 81 ページ ２０１８年５月３０日　水曜日　午後４時２４分

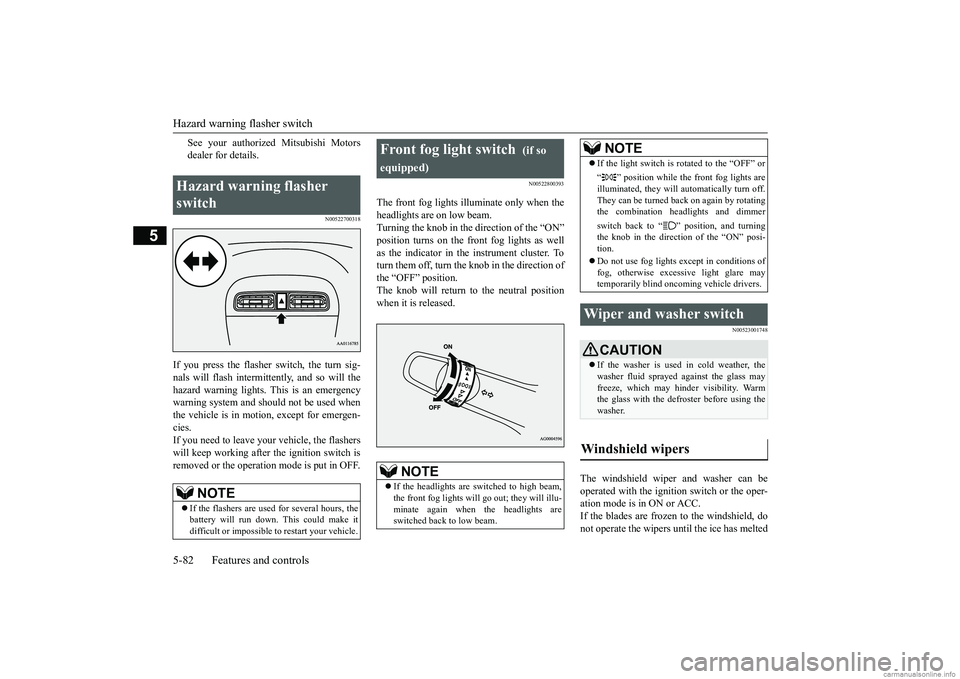

Hazard warning flasher switch 5-82 Features and controls
5
See your authorized Mitsubishi Motors dealer for details.
N00522700318
If you press the flasher switch, the turn sig- nals will flash intermittently, and so will the hazard warning lights.
This is an emergency
warning system and should not be used when the vehicle is in motion, except for emergen- cies.If you need to leave your vehicle, the flashers will keep working afte
r the ignition switch is
removed or the operation mode is put in OFF.
N00522800393
The front fog lights illuminate only when theheadlights are on low beam.Turning the knob in the direction of the “ON” position turns on the front fog lights as well as the indicator in the instrument cluster. Toturn them off, turn the knob in the direction of the “OFF” position. The knob will return to the neutral position when it is released.
N00523001748
The windshield wiper and washer can beoperated with the ignition switch or the oper- ation mode is in ON or ACC.If the blades are frozen to the windshield, do not operate the wipers
until the ice has melted
Hazard warning flasher switch
NOTE
 If the flashers are used for several hours, the battery will run down.
This could make it
difficult or impossible
to restart your vehicle.
Front fog light switch
(if so
equipped)
NOTE
 If the headlights are switched to high beam, the front fog lights will go out; they will illu- minate again when the headlights are switched back to low beam.
 If the light switch is rotated to the “OFF” or “ ” position while the front fog lights are illuminated, they will automatically turn off.They can be turned back on again by rotating the combination headlights and dimmer switch back to “ ”
position, and turning
the knob in the direction of the “ON” posi-tion.  Do not use fog lights except in conditions of fog, otherwise excessi
ve light glare may
temporarily blind oncom
ing vehicle drivers.
Wiper and washer switch
CAUTIONIf the washer is used in cold weather, the washer fluid sprayed against the glass mayfreeze, which may hi
nder visibility. Warm
the glass with the defro
ster before using the
washer.
Windshield wipers
NOTE
BK0267800US.book 82 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Fuses 9-24 Vehicle care and maintenance
9
 Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
 The table above show
s the main equip-
ment corresponding to each fuse.
11 Rear fog light 10 A 12 Door lock 15 A 13
Interior light (Dome light)
15 A
14 Rear window wiper 15 A 15 Gauges 7.5 A16 Relay 7.5 A 17 Heated seats 20 A 18 Option 10 A 19
Heated outside rear- view mirrors
7.5 A
20 Windshield wiper 20 A 21 Back-up light 7.5 A22 Defogger 30 A 23 Heater 30 A 24 — — — 25 Radio 10 A 26
Electronic con- trolled unit
15 A
No.
Sym- bol
Electrical system
Capac-ity
Engine compartment fuse location table No.
Sym- bol
Electrical system
Capac-ity
SBF1 Radiator fan motor 40 A
*
SBF2
Anti-lock braking
system
30 A
*
SBF3 Ignition switch 40 A
*
SBF4
Power window
control
40 A
*
Type A
BF1 DC-DC (P/T) 30 A BF2 DC-DC (AUDIO) 30 A F1
Headlight (low beam) (left)
10 A
F2
Headlight (low beam) (right)
10 A
F3
Headlight (high beam) (left)
10 A
F4
Headlight (high beam) (right)
10 A
F5 Horn 10 A F6 Front fog lights 15 A F7
Daytime running
lights
10 A
F8 — — — F9 — — — F10
Battery current
sensor
7.5 A
F11 — — —F12
Stop lights (Brake
lights)
15 A
F13 Ignition coil 7.5 A F14 Engine control 7.5 ANo.
Sym- bol
Electrical system
Capac-ity
BK0267800US.book 24 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Alphabetical index 12-2
12
Dimensions
........................................
11-3
Dimmer (high/lo
w beam change)
.........
5-81
Disc brake pads
..................................
9-21
Dome light
Bulb capacity
.................................
9-28
Door-ajar warning buzzer
....................
5-78
Door-ajar warning light
.......................
5-78
Doors
Lock
..............................................
5-25
Power door locks
............................
5-26
Driving during cold weather
..................
6-4
Driving, alcohol and drugs
.....................
6-2
E
Electric power steering system (EPS)
...
5-51
Electric rear win
dow defogger switch
...
5-84
Electronic immobilizer (Anti-theft starting system)
.....................................
5-3
, 5-20
Emission-control sy
stem maintenance
..9-20
Engine
Compartment
...................................
9-5
Coolant
...................................
9-7
, 11-6
High coolant temperature warning light
....
5-78Hood
...............................................
9-4
Model
............................................
11-3
Oil and oil filter
.......................
9-5
, 11-6
Overheating
.....................................
8-4
Serial number
.................................
11-3
Specification
...................................
11-5
Engine hood
........................................
9-4
Engine switch
.....................................
5-13
Exhaust system
...................................
9-21
F
Floor mat
.............................................
6-2
Fluid
Brake fluid
.....................................
11-6
Continuously variable
transmission (CVT)
fluid
......................................
9-9
, 11-6
Engine coolant
.........................
9-7
, 11-6
Manual transaxle
.............................
11-6
Washer fluid
............................
9-9
, 11-6
Fluid capacities and lubricants
..............
11-6
Free-hand advanced security transmitter (F.A.S.T.-key)
...................................
5-9
Front fog lights
Bulb capacity
..................................
9-27
Indicators
.......................................
5-76
Replacement
...................................
9-30
Switch
............................................
5-82
Front seat adjustment
............................
4-2
Front side-marker lights
Bulb capacity
..................................
9-27
Replacement
...................................
9-29
Front turn signal lights
Bulb capacity
..................................
9-27
Replacement
..................................
9-29
Fuel
Filling the fuel tank
...........................
3-3
Fuel economy
...................................
6-2
Fuel hoses
......................................
9-20
Fuel remaining warning display
.......
5-70
Fuel selection
...................................
3-2
Tank capacity
.................................
11-6
Fuel Pump Shut-off System
.................
8-15
Fuel remaining display
........................
5-70
Fuses
.................................................
9-22
Fusible links
.......................................
9-22
G
General maintenance
Maintenance
...................................
9-21
General vehicle data
............................
11-3
Genuine Mitsubishi Motors parts
............
3-6
Glove compartment
.............................
5-94
H
Hazard warning flasher switch
.............
5-82
Hazard warning lights
.........................
5-76
Head restraints
......................................
4-5
Headlights
Bulb capacity
.................................
9-27
Dimmer
.........................................
5-81
Headlight flasher
............................
5-81
