oil temperature MITSUBISHI MIRAGE G4 2019 Owner's Manual (in English)

Indicator and warning light package
Features and controls 5-75
5
N00519801947
Indicator and warning light package 1- High beam indicator
 P. 5 - 7 6
2- Electric power stee
ring system warning
light
 P. 5 - 5 1
3- Tire pressure moni
toring system warn-
ing light (if so equipped)
 P.5-59
4- Turn signal indicators/Hazard warning
lights
 P.5-76
5- Front fog light indicator (if so
equipped)
 P.5-76
6- Door-ajar warning light
 P.5-78
7- Supplemental Restraint System (SRS)
warning light
 P.4-28
8- High coolant temperature warning light
(red)
 P.5-78
9- Low coolant temperature indicator
(green)
 P.5-76
10- Oil pressure warning light
 P.5-78
11- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P. 5 - 7 7
12- Charging system warning light
 P.5-78
13- Brake warning light
 P. 5 - 7 6
14- Anti-lock braking system warning light
 P.5-50
15- Multi-information display
 P.5-65
16- Driver’s seat belt reminder/warning
light
 P. 4 - 1 1
17- Cruise control indicator (if so
equipped)
 P.5-55
18- Active stability control (ASC) indica-
tor/warning light
 P.5-54
19- Washer fluid level warning light (if so
equipped)
 P.5-79
20- Active stability control (ASC) OFF
indicator/wa
rning light
 P.5-54
21- Position indicato
r (if so equipped)
 P.5-76
22- ECO indicator
 P.5-76
23- For details, refer to “Warning activa-
tion” on page 5-15 (if so equipped)
BK0267800US.book 75 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Warning lights 5-78 Features and controls
5
N00520600313
This light comes on in the event of a malfunc- tion in the charging system or when the igni-tion switch is turned to the “ON” position (engine off) or the operation mode is put in ON. When the engine
is started, the light
should go out. Check to make sure that the light has gone out before driving.
N00520700170
This light comes on when the engine oil pres-sure is below normal. If the light stays on while driving, stop the
engine as soon as pos-
sible. Do not run the e
ngine until the cause of
the low oil pressure is corrected.
N00575700011
This light comes on in red if the coolant tem- perature becomes excessively high.
N00520901342
This light comes on when any door is open ornot completely closed. When the vehicle is moving at more than 5 mph (8 km/h) and any door is open or ajar, atone will sound 4 times to inform the driver that any door is not properly shut.
NOTE
 Do not disconnect the ba
ttery cable when the
engine malfunction i
ndicator (“SERVICE
ENGINE SOON” or “Che
ck engine light”) is
on. The engine electronic
control module stores
critical OBD information (especially exhaustemission data), which ma
y be lost if the bat-
tery cable is disconne
cted while the engine
malfunction indicator is
on. This will make it
difficult to diagnose th
e cause of future prob-
lems.
Charging system warning light
CAUTION If the warning light stays on while the engine is running, park your ve
hicle in a safe place
as soon as possible and
contact an authorized
Mitsubishi Motors dealer
or a repair facility
of your choice to have the system checked.
Oil pressure warning light
CAUTION If this light comes on when the engine oil level is not low, have
your vehicle checked at
an authorized Mitsubish
i Motors dealer or a
repair facility of your choice. This warning light does not show the amount of oil in the crankcase. This can only be determined by checking the oil level with the dipstick with the engine turned off.
High coolant temperature warning light - red
CAUTION If the light comes on
during vehicle opera-
tion, it indicates that
the engine is possibly
overheating. Continued driving could makethe engine fail. Immedi
ately stop the vehicle
in a safe place and ta
ke appropriate action.
(Refer to “Engine overh
eating” on page 8-4.)
NOTE
The high coolant temp
erature warning light
may illuminate when
the vehicle has been
driven at high speeds or on hilly roads. This illuminating does not ne
cessarily indicate a
problem. It should stop if you keep the engine running for a wh
ile or continue driv-
ing the vehicle.
Door-ajar warning light and buzzer
CAUTION Before driving, make sure that the door-ajar warning light is off.
BK0267800US.book 78 ページ ２０１８年５月３０日　水曜日　午後４時２４分

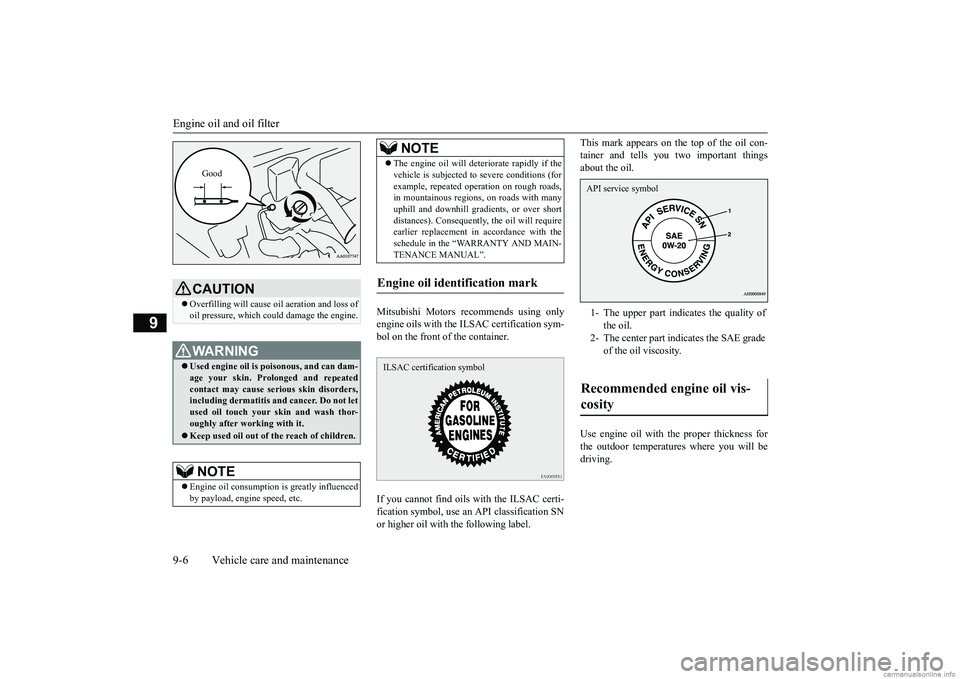

Engine oil and oil filter 9-6 Vehicle care and maintenance
9
Mitsubishi Motors recommends using only engine oils with the ILSAC certification sym- bol on the front of the container. If you cannot find oils
with the ILSAC certi-
fication symbol, use an API classification SN or higher oil with the following label.
This mark appears on the top of the oil con- tainer and tells you two important thingsabout the oil. Use engine oil with the proper thickness for the outdoor temperatures where you will bedriving.
CAUTION Overfilling will cause oil aeration and loss of oil pressure, which coul
d damage the engine.
WA R N I N GUsed engine oil is po
isonous, and can dam-
age your skin. Prolonged and repeatedcontact may cause serious skin disorders, including dermatitis and cancer. Do not let used oil touch your sk
in and wash thor-
oughly after working with it. Keep used oil out of
the reach of children.
NOTE
Engine oil consumption
is greatly influenced
by payload, engine speed, etc.
Good
 The engine oil wi
ll deteriorate rapidly if the
vehicle is subj
ected to severe conditions (for
example, repeated operation on rough roads,in mountainous regions, on roads with many uphill and downhill gradients, or over short distances). Consequently
, the oil will require
earlier replacement in accordance with the schedule in the “WARRANTY AND MAIN- TENANCE MANUAL”.
Engine oil identification mark
NOTE
ILSAC certification symbol
1- The upper part indicates the quality of
the oil.
2- The center part i
ndicates the SAE grade
of the oil viscosity.
Recommended engine oil vis- cosity API service symbol
BK0267800US.book 6 ページ ２０１８年５月３０日　水曜日　午後４時２４分

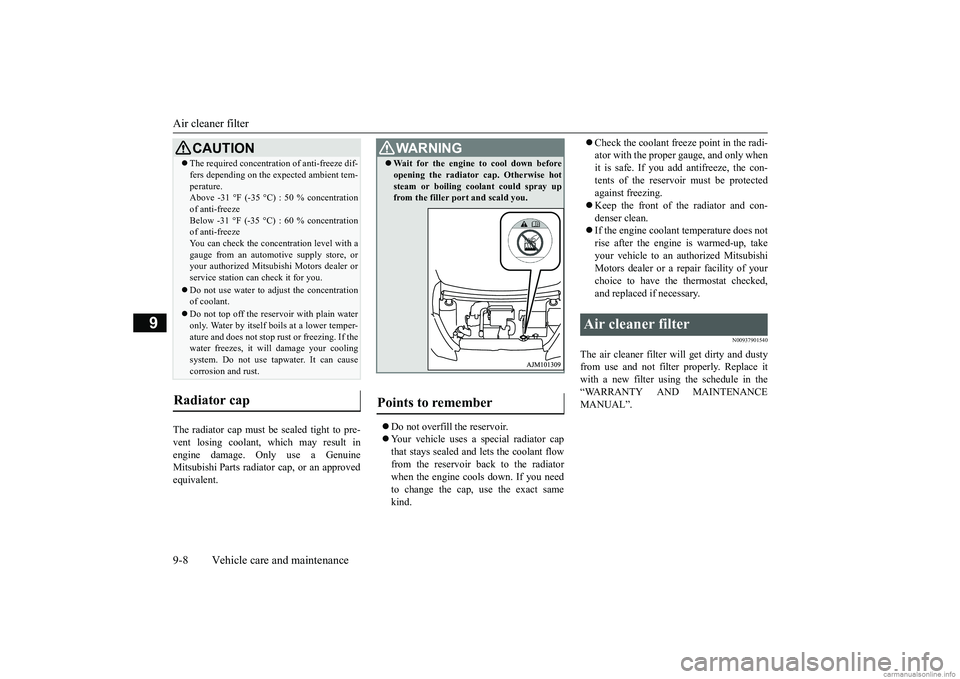

Air cleaner filter 9-8 Vehicle care and maintenance
9
The radiator cap must be
sealed tight to pre-
vent losing coolant, which may result in engine damage. Only use a Genuine Mitsubishi Parts radiator
cap, or an approved
equivalent.
 Do not overfill the reservoir.  Your vehicle uses a special radiator cap that stays sealed and lets the coolant flow from the reservoir back to the radiatorwhen the engine cools down. If you need to change the cap, use the exact same kind.
 Check the coolant freeze point in the radi- ator with the proper gauge, and only whenit is safe. If you add antifreeze, the con- tents of the reservoi
r must be protected
against freezing. Keep the front of the radiator and con- denser clean.  If the engine coolan
t temperature does not
rise after the engine
is warmed-up, take
your vehicle to an au
thorized Mitsubishi
Motors dealer or a repair facility of your choice to have the thermostat checked, and replaced if necessary.
N00937901540
The air cleaner filter
will get dirty and dusty
from use and not filter
properly. Replace it
with a new filter using the schedule in the “WARRANTY AND MAINTENANCE MANUAL”.
 The required concentrati
on of anti-freeze dif-
fers depending on the
expected ambient tem-
perature.Above -31 °F (-35 °C) : 50 % concentration of anti-freeze Below -31 °F (-35 °C) : 60 % concentrationof anti-freeze You can check the concentration level with a gauge from an automotive supply store, oryour authorized Mitsubi
shi Motors dealer or
service station can check it for you. Do not use water to adjust the concentration of coolant. Do not top off the reservoir with plain water only. Water by itself bo
ils at a lower temper-
ature and does not stop rust or freezing. If thewater freezes, it will
damage your cooling
system. Do not use tapwater. It can cause corrosion and rust.
Radiator cap
CAUTION
WA R N I N G Wait for the engine to cool down before opening the radiator
cap. Otherwise hot
steam or boiling c
oolant could spray up
from the filler po
rt and scald you.
Points to remember
Air cleaner filter
BK0267800US.book 8 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Cleaning the outside of your vehicle Vehicle care and maintenance 9-33
9
N00945300142
1. Lightly wipe these off with a soft cloth soaked in a 3% solution of gentle soapand water. 2. To rinse, dip the cloth in fresh water, wring it out well, and wipe off all thesoap.
N00945500128
1. To maintain the value of your new vehi- cle, maintain the upholstery carefully and keep the interior clean.
Use a vacuum cleaner
and brush to clean
the seats. If stained,
vinyl and synthetic
leather should be cleaned with an appro- priate cleaner. Cloth fabrics can be cleaned with either upholstery cleaner or a3% solution of gentle soap in lukewarm water. 2. Clean the carpeting with a vacuumcleaner and remove any stains with carpet cleaner. Oil and grea
se can be removed by
lightly dabbing with
a clean white cloth
and spot remover.
N00945600187
1. To clean, lightly wipe the leather with a soft cloth soaked in a 5% solution of gen- tle soap and water. 2. To rinse, dip the cloth in fresh water,wring it out well, a
nd wipe off all the
soap. 3. To preserve and protect, use a leather pro-tecting agent on the genuine leather sur- face.
N00945700058
To protect your vehicle’s finish, wash it often and thoroughly. If desired, you may wax your vehicle using a nonabra
sive automobile wax.
Plastic, vinyl leat
her, fabric and
flocked parts
NOTE
 Do not use cleaners, conditioners, and pro- tectants containing silicones or wax.Such products, when applied to the instru- ment panels or other pa
rts, may cause reflec-
tions on the windshield and obscure vision.Also, if such products
get on the switches of
the electrical accessories, it may lead to fail- ure of these accessories.
Upholstery
NOTE
 If fuzzing is difficult to remove from the seat upholstery, draw a suit
able defuzzing brush
over the surface in one direction.
Genuine leather
(if so equipped)
NOTE
 If genuine leather is we
t with water, wipe it
with a dry, soft cloth. If left damp, mildewmay grow.  The genuine leather su
rface can be damaged
if brushed with a nylon or synthetic fiberbrush.  Organic solvents such as benzine, kerosene, alcohol, gasoline, or acid
or alkaline solvents
can discolor the genuine
leather surface and
should not be used.  Genuine leather can
mildew if not kept
clean. Clean up any oil
stains immediately.
 The genuine leather su
rface may harden and
shrink if it is exposed to the direct sunlightfor long hours. When your vehicle is parked, place it in the shade as much as possible.  When the temperature of the vehicle interior rises in summer, vinyl
products left on the
genuine leather seat
may deteriorate and
stick to the seat.
Cleaning the outside of your vehicle
BK0267800US.book 33 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Alphabetical index 12-2
12
Dimensions
........................................
11-3
Dimmer (high/lo
w beam change)
.........
5-81
Disc brake pads
..................................
9-21
Dome light
Bulb capacity
.................................
9-28
Door-ajar warning buzzer
....................
5-78
Door-ajar warning light
.......................
5-78
Doors
Lock
..............................................
5-25
Power door locks
............................
5-26
Driving during cold weather
..................
6-4
Driving, alcohol and drugs
.....................
6-2
E
Electric power steering system (EPS)
...
5-51
Electric rear win
dow defogger switch
...
5-84
Electronic immobilizer (Anti-theft starting system)
.....................................
5-3
, 5-20
Emission-control sy
stem maintenance
..9-20
Engine
Compartment
...................................
9-5
Coolant
...................................
9-7
, 11-6
High coolant temperature warning light
....
5-78Hood
...............................................
9-4
Model
............................................
11-3
Oil and oil filter
.......................
9-5
, 11-6
Overheating
.....................................
8-4
Serial number
.................................
11-3
Specification
...................................
11-5
Engine hood
........................................
9-4
Engine switch
.....................................
5-13
Exhaust system
...................................
9-21
F
Floor mat
.............................................
6-2
Fluid
Brake fluid
.....................................
11-6
Continuously variable
transmission (CVT)
fluid
......................................
9-9
, 11-6
Engine coolant
.........................
9-7
, 11-6
Manual transaxle
.............................
11-6
Washer fluid
............................
9-9
, 11-6
Fluid capacities and lubricants
..............
11-6
Free-hand advanced security transmitter (F.A.S.T.-key)
...................................
5-9
Front fog lights
Bulb capacity
..................................
9-27
Indicators
.......................................
5-76
Replacement
...................................
9-30
Switch
............................................
5-82
Front seat adjustment
............................
4-2
Front side-marker lights
Bulb capacity
..................................
9-27
Replacement
...................................
9-29
Front turn signal lights
Bulb capacity
..................................
9-27
Replacement
..................................
9-29
Fuel
Filling the fuel tank
...........................
3-3
Fuel economy
...................................
6-2
Fuel hoses
......................................
9-20
Fuel remaining warning display
.......
5-70
Fuel selection
...................................
3-2
Tank capacity
.................................
11-6
Fuel Pump Shut-off System
.................
8-15
Fuel remaining display
........................
5-70
Fuses
.................................................
9-22
Fusible links
.......................................
9-22
G
General maintenance
Maintenance
...................................
9-21
General vehicle data
............................
11-3
Genuine Mitsubishi Motors parts
............
3-6
Glove compartment
.............................
5-94
H
Hazard warning flasher switch
.............
5-82
Hazard warning lights
.........................
5-76
Head restraints
......................................
4-5
Headlights
Bulb capacity
.................................
9-27
Dimmer
.........................................
5-81
Headlight flasher
............................
5-81
BK0267800US.book 2 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Alphabetical index
12-3
12
Replacement
..................................
9-29
Switch
...........................................
5-79
Heater without air conditioning function
.7-4
High beam indicator
............................
5-76
High coolant temperature warning light 5-78High-mounted stop light
Bulb capacity
.................................
9-27
Hill start assist
....................................
5-48
HomeLink® Wirele
ss Control System
..5-87
Hood lock release me
chanism and safety
catch
................................................
9-22
Hook
Convenience hook
..........................
5-95
Horn switch
........................................
5-85
I
If the vehicle breaks down
.....................
8-2
Ignition switch
....................................
5-37
Important facts to know in
case of an accident
10-4 Indicator and warning light package
.....
5-75
Indicators
...........................................
5-76
Information display
.............................
5-67
Inside emergency trunk lid release
........
5-29
Inside rearview mirror
.........................
5-34
Instrument panel light dimmer control
..5-68
Interior lights
......................................
5-92
J
Jack
Garage jack up position
.....................
9-3
Storage
............................................
8-5
Jump-starting the engine
.......................
8-2
K
Key slot
.............................................
5-19
Keyless entry system
....................
5-6
, 5-22
Keys
...................................................
5-2
L
Labeling
............................................
11-2
License plate lights
Bulb capacity
.................................
9-27
Replacement
..................................
9-32
Link System
.......................................
5-85
Loading information
.............................
6-6
Lubricants
.........................................
11-6
M
Malfunction indicator light
..................
5-77
Manual air conditioning
........................
7-7
Manual transaxle
................................
5-40
Oil
..........................................
9-9
, 11-6
Shift points
....................................
5-41
Manual window control
.......................
5-30
Modifications to and
racing of your vehicle
..
3-5 Multi-information display
...........
5-64
, 5-65
O
Octane number
.....................................
3-2
Oil
Engine oil
...............................
9-5
, 11-6
Manual transaxle oil
.................
9-9
, 11-6
Oil pressure warning light
....................
5-78
Operation mode
..................................
5-14
Operation under adverse driving conditions
..
8-13 Outside rearview mirrors
.....................
5-36
Overheating
..........................................
8-4
P
Parking
................................................
6-5
Parking brake lever stroke
...............
9-19
Parking brake
............................
5-33
, 9-19
Parking lights
Bulb capacity
.................................
9-27
Replacement
...................................
9-29
Polishing
............................................
9-35
Power brakes
......................................
5-47
Power outlet
.......................................
5-87
BK0267800US.book 3 ページ ２０１８年５月３０日　水曜日　午後４時２４分
