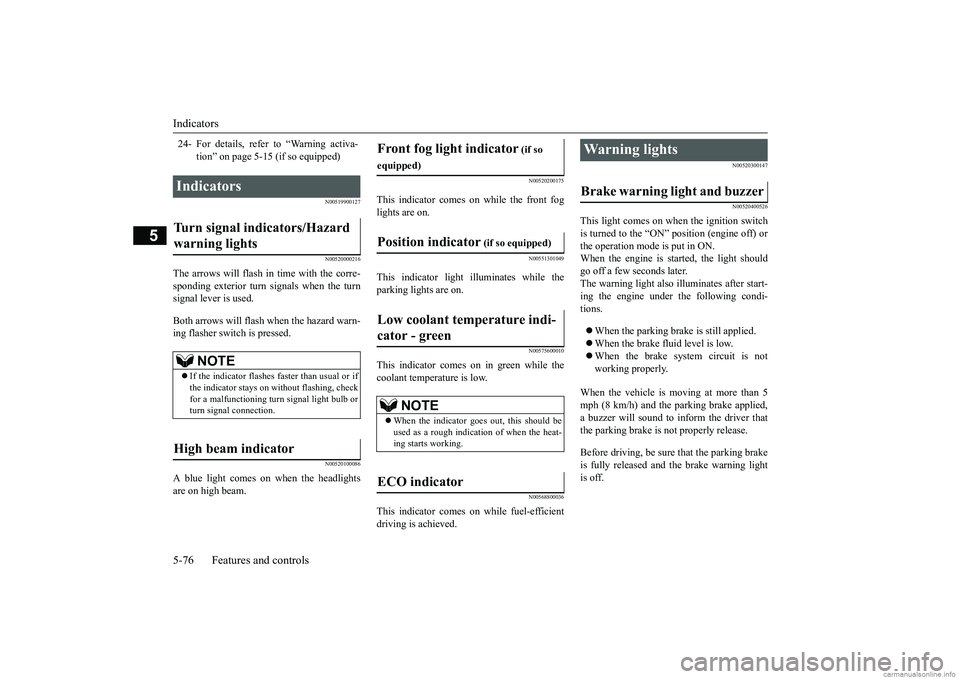

Indicators 5-76 Features and controls
5
N00519900127 N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turn signal lever is used. Both arrows will flash
when the hazard warn-
ing flasher swit
ch is pressed.
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front fog lights are on.
N00551301049
This indicator light illuminates while theparking lights are on.
N00575600010
This indicator comes on in green while thecoolant temperature is low.
N00568800036
This indicator comes on while fuel-efficientdriving is achieved.
N00520300147 N00520400526
This light comes on when the ignition switch is turned to the “ON” position (engine off) or the operation mode is put in ON.When the engine is st
arted, the light should
go off a few seconds later. The warning light also illuminates after start- ing the engine under the following condi- tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
When the vehicle is moving at more than 5 mph (8 km/h) and the parking brake applied, a buzzer will sound to in
form the driver that
the parking brake is not properly release. Before driving, be sure that the parking brake is fully released and the brake warning light is off.
24- For details, refer
to “Warning activa-
tion” on page 5-15 (if so equipped)
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on wi
thout flashing, check
for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator
Front fog light indicator
(if so
equipped)Position indicator
(if so equipped)
Low coolant temperature indi- cator - green
NOTE
 When the indicator goes out, this should be used as a rough indication of when the heat- ing starts working.
ECO indicator
Warning lights Brake warning light and buzzer
BK0267800US.book 76 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Turn signal lever
Features and controls 5-81
5
the light switch to the “OFF” position to stop the tone.
N00549900142

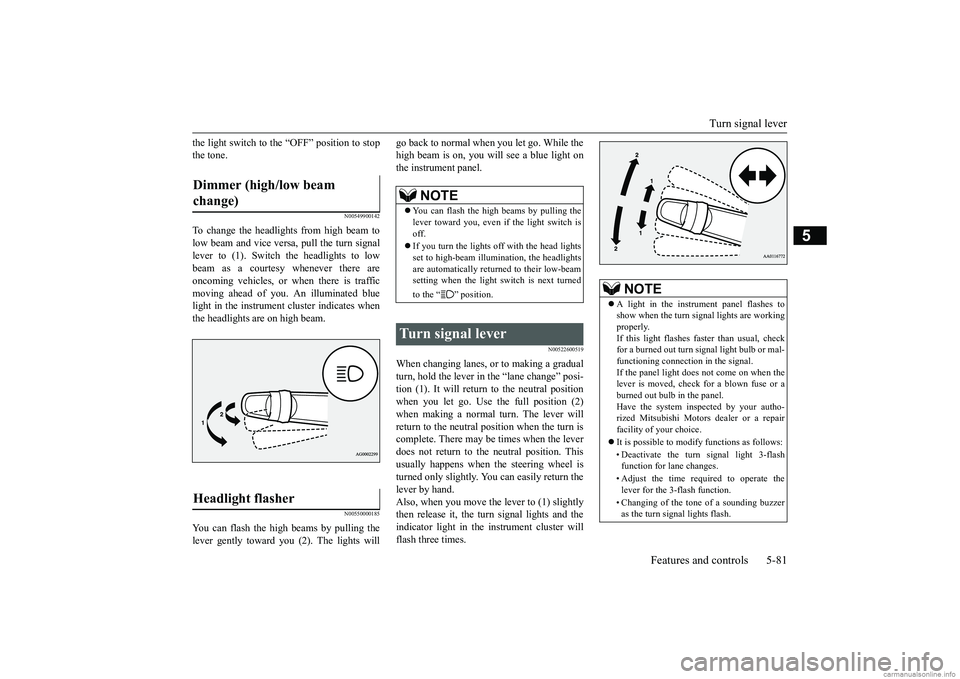

To change the headlights from high beam tolow beam and vice vers
a, pull the turn signal
lever to (1). Switch the headlights to low beam as a courtesy whenever there are oncoming vehicles, or when there is traffic moving ahead of you. An illuminated bluelight in the instrument
cluster i
ndicates when
the headlights are on high beam.
N00550000185
You can flash the high beams by pulling the lever gently toward you (2). The lights will
go back to normal when you let go. While the high beam is on, you will
see a blue light on
the instrument panel.
N00522600519
When changing lanes, or
to making a gradual
turn, hold the lever in the “lane change” posi- tion (1). It will return
to the neutral position
when you let go. Use the full position (2) when making a normal turn. The lever will return to the neutral position when the turn iscomplete. There may be times when the lever does not return to the neutral position. This usually happens when the steering wheel isturned only slightly. You
can easily return the
lever by hand. Also, when you move the lever to (1) slightlythen release it, the turn signal lights and the indicator light in the instrument cluster will flash three times.
Dimmer (high/low beam change) Headlight flasher
NOTE
 You can flash the high beams by pulling the lever toward you, even if the light switch isoff.  If you turn the lights off with the head lights set to high-beam illumin
ation, the headlights
are automatically returned to their low-beam setting when the light
switch is next turned
to the “ ” position.
Turn signal lever
NOTE
 A light in the instrument panel flashes to show when the turn signal lights are workingproperly. If this light flashes fa
ster than usual, check
for a burned out turn signal light bulb or mal-functioning connection in the signal. If the panel light does not come on when the lever is moved, check for a blown fuse or aburned out bulb in the panel. Have the system inspected by your autho- rized Mitsubishi Motors dealer or a repairfacility of your choice.  It is possible to modi
fy functions as follows:
• Deactivate the turn signal light 3-flash function for lane changes. • Adjust the time required to operate the lever for the 3-flash function. • Changing of the tone of a sounding buzzer as the turn signal lights flash.
BK0267800US.book 81 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Replacement of light bulbs
Vehicle care and maintenance 9-27
9
N00943001230
N00950302043
CAUTION Do not install commercially available LED- type bulbs. Commercially availa
ble LED-type bulbs
could adversely affect
the operation of the
vehicle, such as by preventing the lights and other vehicle equipm
ent from operating
properly.NOTE
 If you are unsure of how to carry out the work as required, it is recommended that these procedures be carried out by an autho- rized Mitsubishi Motors dealer or a repairfacility of your choice.  Be careful not to scratch the vehicle body when removing a light and lens.
 When it rains, or wh
en the vehicle has been
washed, the inside of the lens sometimesbecomes temporarily foggy. This is the samephenomenon as when window glass mists up on a humid day, and does not indicate a func- tional problem.When the light is switched on, the heat will remove the fog. However, if water gathers inside the light, please
have it checked by an
authorized Mitsubishi
Motors dealer or a
repair facility
of your choice.

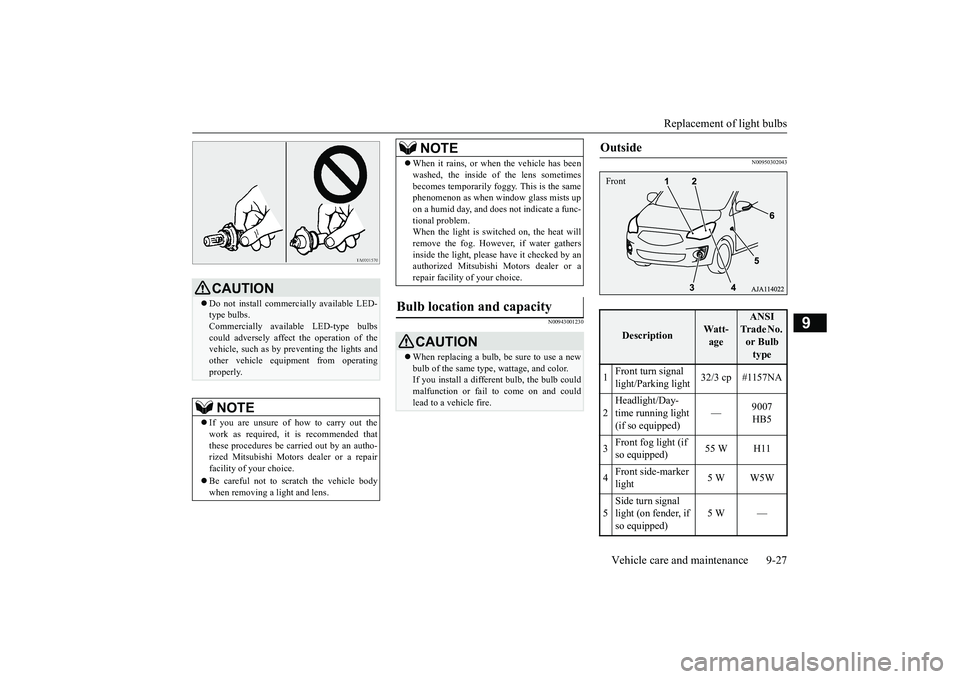

Bulb location and capacity
CAUTIONWhen replacing a bulb, be sure to use a new bulb of the same type, wattage, and color. If you install a different bulb, the bulb could malfunction or fail to
come on and could
lead to a vehicle fire.NOTE
Outside
Description
Watt- age
ANSI Tr a d e N o . or Bulb type
1
Front turn signal light/Parking light
32/3 cp #1157NA
2
Headlight/Day- time running light (if so equipped)
—
9007 HB5
3
Front fog light (if so equipped)
55 W H11
4
Front side-marker light
5 W W5W
5
Side turn signal light (on fender, if so equipped)
5 W —
Front
BK0267800US.book 27 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Replacement of light bulbs 9-28 Vehicle care and maintenance
9
N00950401715

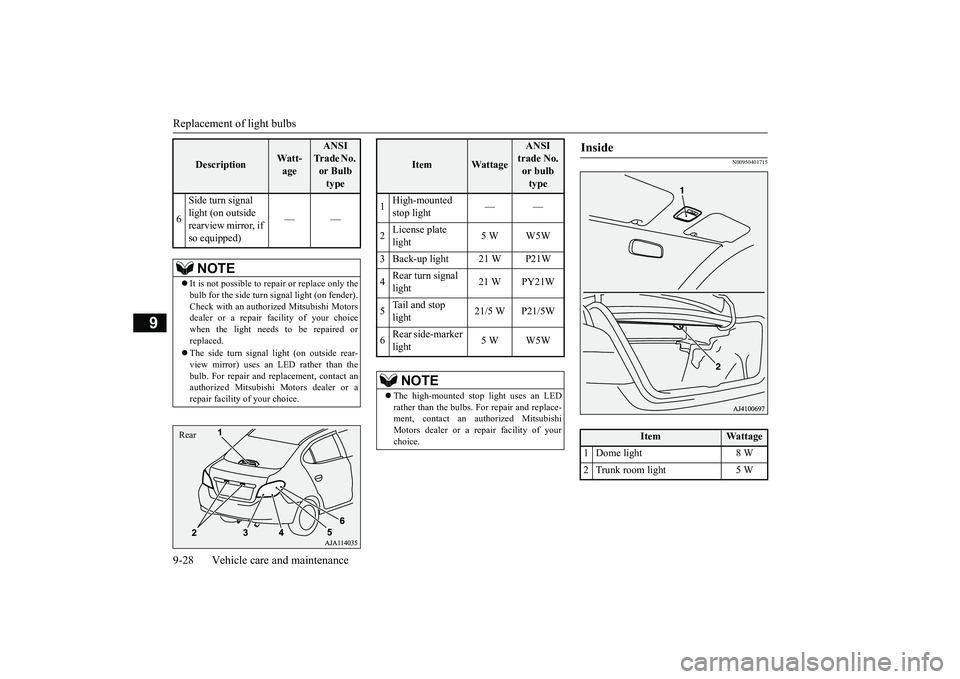

6
Side turn signal light (on outside rearview mirror, if so equipped)
——
NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light (on fender).Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.  The side turn signal light (on outside rear- view mirror) uses an LED rather than the bulb. For repair and re
placement, contact an
authorized Mitsubishi Motors dealer or arepair facility of your choice.Description
Wa t t- age
ANSI Tr a d e N o . or Bulb type
Rear
Item
Wattage
ANSI trade No. or bulb type
1
High-mounted stop light
——
2
License plate light
5 W W5W
3 Back-up light 21 W P21W4
Rear turn signal light
21 W PY21W
5
Tail and stop light
21/5 W P21/5W
6
Rear side-marker light
5 W W5W
NOTE
 The high-mounted stop light uses an LED rather than the bulbs.
For repair and replace-
ment, contact an au
thorized Mitsubishi
Motors dealer or a repair facility of your choice.
Inside
Item
Wattage
1 Dome light 8 W 2 Trunk room light 5 W
BK0267800US.book 28 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Replacement of light bulbs
Vehicle care and maintenance 9-29
9
N00901801203

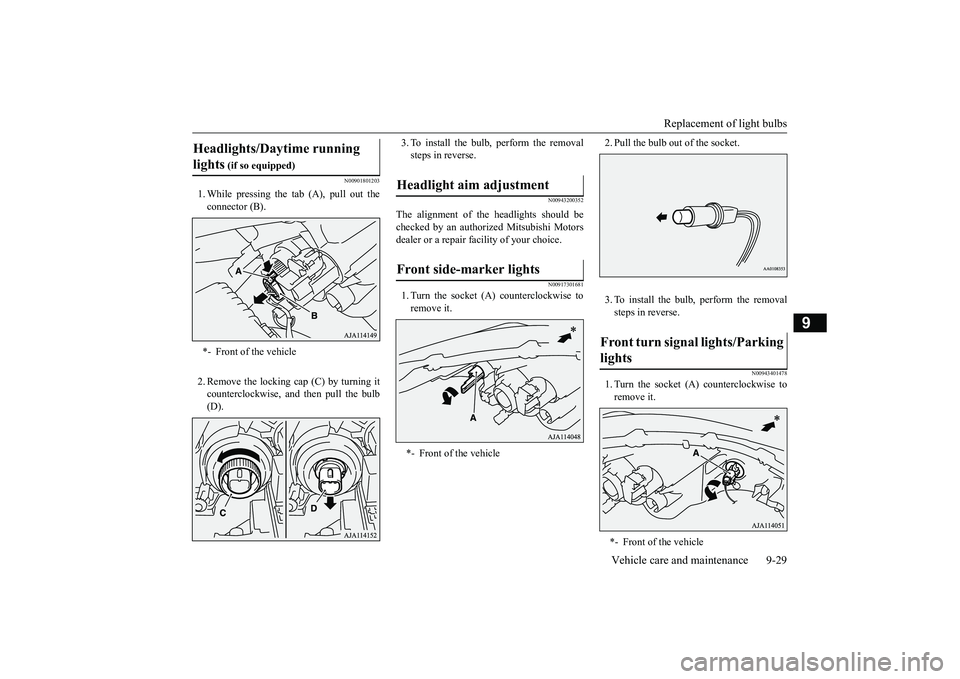

1. While pressing the tab (A), pull out the connector (B). 2. Remove the locking cap (C) by turning it counterclockwise, and then pull the bulb (D).
3. To install the bulb, perform the removal steps in reverse.
N00943200352
The alignment of th
e headlights should be
checked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917301681
1. Turn the socket (A) counterclockwise to remove it.
2. Pull the bulb out of the socket. 3. To install the bulb, perform the removal steps in reverse.
N00943401478
1. Turn the socket (A
) counterclockwise to
remove it.
Headlights/Daytime running lights
(if so equipped)
*- Front of the vehicle
Headlight aim adjustment Front side-marker lights *- Front of the vehicle
Front turn signal lights/Parking lights *- Front of the vehicle
BK0267800US.book 29 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
N00943701572

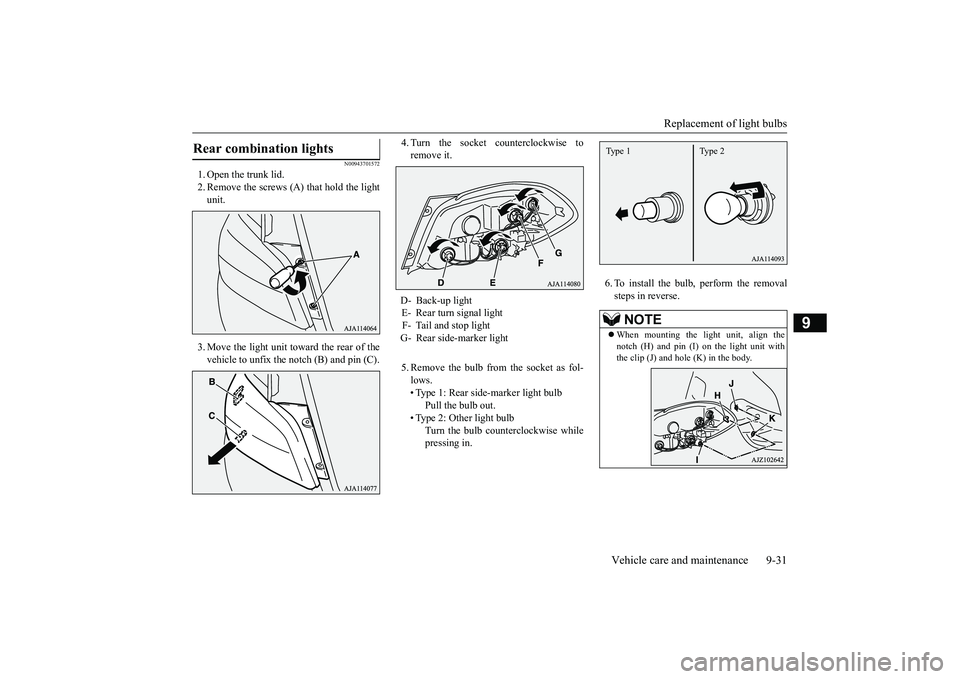

1. Open the trunk lid. 2. Remove the screws (A) that hold the light unit. 3. Move the light unit toward the rear of the vehicle to unfix the notch (B) and pin (C).
4. Turn the socket counterclockwise to remove it. 5. Remove the bulb from the socket as fol- lows. • Type 1: Rear side-marker light bulb
Pull the bulb out.
• Type 2: Other light bulb
Turn the bulb counterclockwise while pressing in.
6. To install the bulb, perform the removal steps in reverse.
Rear combination lights
D- Back-up lightE- Rear turn signal lightF- Tail and stop light G- Rear side-marker light
NOTE
 When mounting the light unit, align the notch (H) and pin (I) on the light unit withthe clip (J) and hole (K) in the body.Type 1 Type 2
BK0267800US.book 31 ページ ２０１８年５月３０日　水曜日　午後４時２４分
