MITSUBISHI MONTERO 1991 Service Manual

leaking) ............... A ............ Require replacement.
Sound quality
unsatisfactory ......... 2 .. Suggest replacement to address
customer need and/or request.
Split (exhaust leaking) . A ............ Require replacement.
Weak due to corrosion, but
no leaks present ....... 1 ............ Suggest replacement.









\









\









\









\









\









\









\

FR O NT S A FE TY B ELT B UCKLE R ELE A SE B UTTO N C AN B REA K
1991 M it s u bis h i M onte ro
NHTSA RECALL BULLETIN
Model(s): 1986 Mitsubishi Cordia
1986 Mitsubishi Galant
1986 Mitsubishi Mirage
1986 Mitsubishi Montero
1986 Mitsubishi Pickup
1986 Mitsubishi Starion
1987 Mitsubishi Cordia
1987 Mitsubishi Galant
1987 Mitsubishi Mirage
1987 Mitsubishi Montero
1987 Mitsubishi Pickup
1987 Mitsubishi Van/Wagon
1988 Mitsubishi Cordia
1988 Mitsubishi Galant
1988 Mitsubishi Mirage
1988 Mitsubishi Montero
1988 Mitsubishi Pickup
1988 Mitsubishi Van/Wagon
1989 Mitsubishi Galant
1989 Mitsubishi Mirage
1989 Mitsubishi Montero
1989 Mitsubishi Pickup
1989 Mitsubishi Sigma
1989 Mitsubishi Van/Wagon
1990 Mitsubishi Eclipse
1990 Mitsubishi Mirage
1990 Mitsubishi Montero
1990 Mitsubishi Pickup
1990 Mitsubishi Sigma
1990 Mitsubishi Van/Wagon
1991 Mitsubishi 3000GT
1991 Mitsubishi Eclipse
1991 Mitsubishi Mirage
1991 Mitsubishi Montero
1991 Mitsubishi Pickup
Campaign No: 95V103004
Number of Affected Vehicles: 658000
Beginning Date of Manufacture: 1985 APR
Ending Date of Manufacture: 1991 JUL
VEHICLE DESCRIPTION:
Passenger vehicles and light duty trucks and vans equipped with safety
belts made by Takata Corporation.
SYSTEM:
Seat belts; belt buckles.
FAULT:
Fastener, Thread failure.
DESCRIPTION OF DEFECT:
The front safety belt buckle release buttons can break. These red
plastic release buttons are marked "PRESS." If a button breaks,
pieces can fall into the buckle assembly causing the buckle to operate

improperly.
CONSEQUENCE OF DEFECT:
The safety belts would not provide adequate protection to an occupant
in a vehicle crash.
CORRECTIVE ACTION:
Owners should promptly check the condition and operation of both front
safety belt buckles and carefully inspect the red release button for
any breaks or cracks. They should ensure that both buckles are
operating properly by inserting each latch plate into its buckle,
tugging on the belt to make sure the latch is securely locked, and
then pressing the release button. The latch plate should pop out of
the buckle when the button is pressed. If either release button shows
a sign of breaking or cracking or if either buckle fails to operate
properly, owners should promptly contact their authorized dealer to
schedule an appointment to have the buckle replaced or repaired, free
of charge. The manufacturer is developing a remedy designed to prevent
failure of the buttons that are not currently broken.
NOTE:
If your vehicle is presented to an authorized dealer on an agreed upon
service date and the remedy is not provided free of charge within a
reasonable time, please contact Mitsubishi at 1-800-222-0037. Also
contact the National Highway Traffic Safety Administration's Auto
Safety Hotline at 1-800-424-9393.
ADDITIONAL INFORMATION:
The National Highway Traffic Safety Administration operates Monday
through Friday from 8:00 AM to 4:00 PM, Eastern Time. For more
information call (800) 424-9393 or (202) 366-0123. For the hearing
impaired, call (800) 424-9153.

\00398V 311000: F R O NT S EA T B ELTS

1991 M it s u bis h i M onte ro
NHTSA RECALL BULLETIN
Model(s): 1986-88 Mitsubishi Cordia
1986-91 Mitsubishi Galant
1986-91 Mitsubishi Mirage
1986-91 Mitsubishi Montero
1986-91 Mitsubishi Pickup
1986 Mitsubishi Starion
1990-91 Mitsubishi Eclipse
1990 Mitsubishi Sigma
1991 Mitsubishi 3000GT
Campaign No: 98V311000
Number of Affected Vehicles: 53162
VEHICLE DESCRIPTION:
Passenger vehicles sold in the Caribbean.
DESCRIPTION OF DEFECT:
In the front passenger seat of these vehicles, which are equipped with
Takata belt buckles, the seat belt release buttons, which are made of
ABS plastic material and marked "press," can break, allowing pieces to
fall into the buckle assembly.
CONSEQUENCE OF DEFECT:
If pieces fall into the buckle assembly, the buckle may not operate
properly, failing to properly restrain an occupant in the event of a
crash.
CORRECTIVE ACTION:
Dealers will repair the front seat belt buckles.
OWNER NOTIFICATION:
Owner notification is expected to begin during early January 1999.
Owners who take their vehicles to an authorized dealer on an agreed
upon service date and do not receive the free remedy within a
reasonable time should contact Mitsubishi Of Caribbean at 1-787-251-
8716. Also contact the National Highway Traffic Safety
Administration's Auto Safety Hotline at 1-888-dash-2-dot (1-888-327-
4236).
ADDITIONAL INFORMATION:
The National Highway Traffic Safety Administration operates Monday
through Friday from 8:00 AM to 4:00 PM, Eastern Time. For more
information call (800) 424-9393 or (202) 366-0123. For the hearing
impaired, call (800) 424-9153.

FU SES & C IR CUIT B REA K ER S

1991 M it s u bis h i M onte ro
Fuses & Circuit Breakers
1983-91 Mitsubishi
Montero
FUSES & CIRCUIT BREAKERS
FUSE PANEL LOCATION
The electrical system is protected against shorts by fuses
that are designed to fail, to prevent damage to the wire harness. The
fuse block is located under the instrument panel on the driver's side.
If a fuse is blown, locate the cause before replacing the fuse. Spare
fuses are contained in the fuse block.
FUSE PANEL IDENTIFICATION (1983-91)

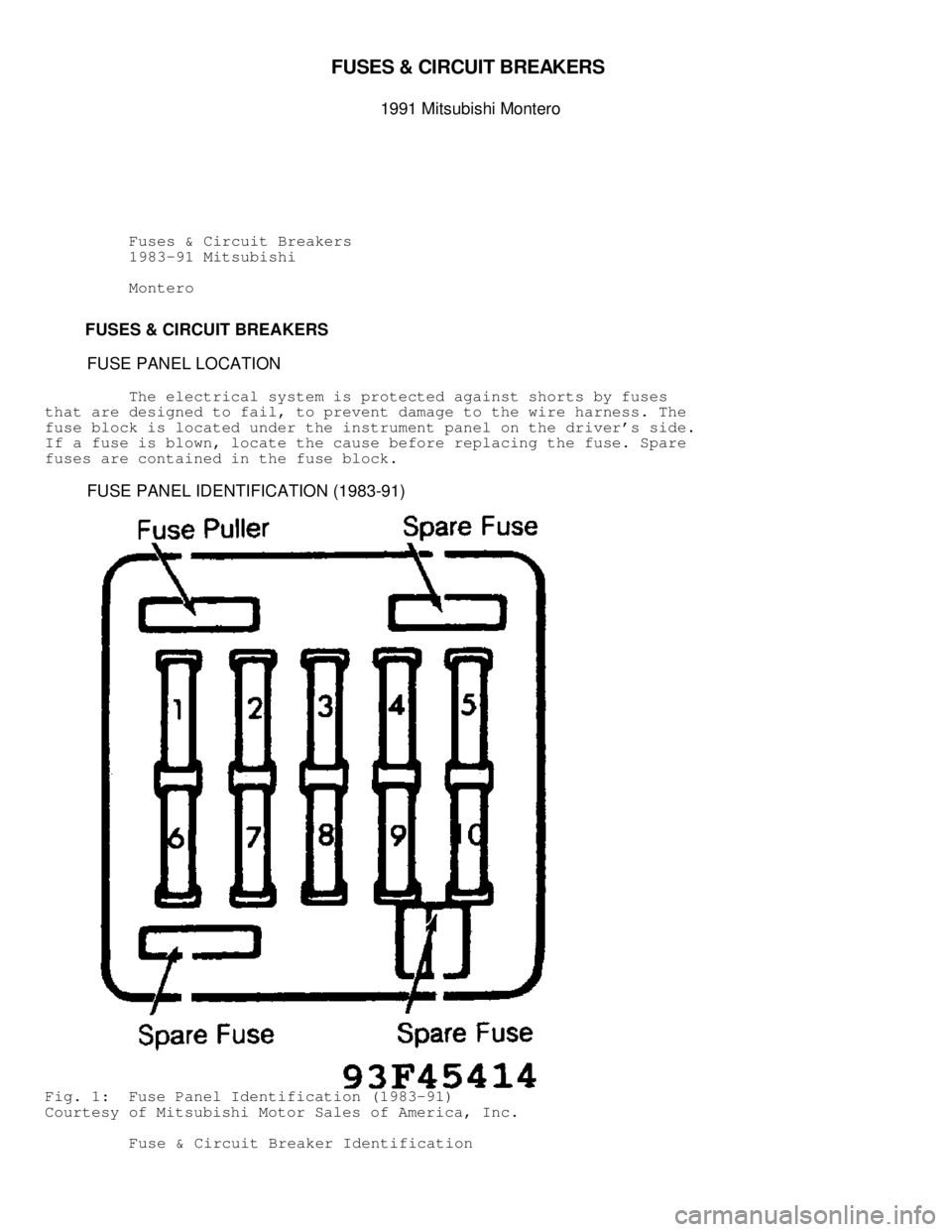

Fig. 1: Fuse Panel Identification (1983-91)
Courtesy of Mitsubishi Motor Sales of America, Inc.
Fuse & Circuit Breaker Identification

1 - 20 Amp (Yellow)
Hazard Light, Dome Light, Clock
2 - 10 Amp (Red)
Taillights
3 - 10 Amp (Red)
Turn Signal Lights
4 - 10 Amp (Red)
Back-Up Lights, Gauges
5 - 15 Amp (Light Blue)
Defogger
6 - 20 Amp (Yellow)
Heater
7 - 15 Amp (Light Blue)
Stoplights
8 - 15 Amp (Light Blue)
Horn, Wiper, Washer
9 - 10 Amp (Red)
Rear Wiper, Rear Washer
10 - 15 Amp (Light Blue)
Cigarette Lighter, Radio
CAUTIONS & WARNINGS
RADIATOR FAN & CAP
DO NOT loosen or remove radiator cap when cooling system is
hot. The system is under high pressure, and hot steam or boiling
liquid could gush out if cap is loosened or removed while system is
hot.
BRAKE FLUID
Be careful when handling brake fluid as it is harmful to eyes
and may damage painted surfaces.
REPLACING BLOWN FUSE
Before replacing a blown fuse, remove ignition key, turn off
all lights and accessories to avoid damaging the electrical system. Be
sure to use fuse with the correct indicated amperage rating. The use
of an incorrect amperage rating fuse may result in a dangerous
electrical system overload.

GEA R T O OTH C O NTA C T P A TTE R NS

1991 M it s u bis h i M onte ro
GENERAL INFORMATION
Gear Tooth Contact Patterns
* PLEASE READ THIS FIRST *
The following article is for GENERAL INFORMATION purposes
only. Information does not SPECIFICALLY apply to all years, makes and
models, but is to be used as a general reference guide.
INSPECTION
PRELIMINARY INSPECTION
Wipe lubricant from internal parts. Rotate gears and inspect
for wear or damage. Mount dial indicator to housing, and check
backlash at several points around ring gear. Backlash must be within
specifications at all points. If no defects are found, check gear
tooth contact pattern.
GEAR TOOTH CONTACT PATTERN
NOTE: Drive pattern should be well centered on ring gear teeth.
Coast pattern should be centered, but may be slightly toward
toe of ring gear teeth.
1) Paint ring gear teeth with marking compound. Wrap cloth or
rope around drive pinion flange to act as brake. Rotate ring gear
until clear tooth contact pattern is obtained.
2) Contact pattern will indicate whether correct pinion
bearing mounting shim has been installed and if drive gear backlash
has been set properly. Backlash between drive gear and pinion must be
maintained within specified limits, until correct tooth pattern is
obtained.

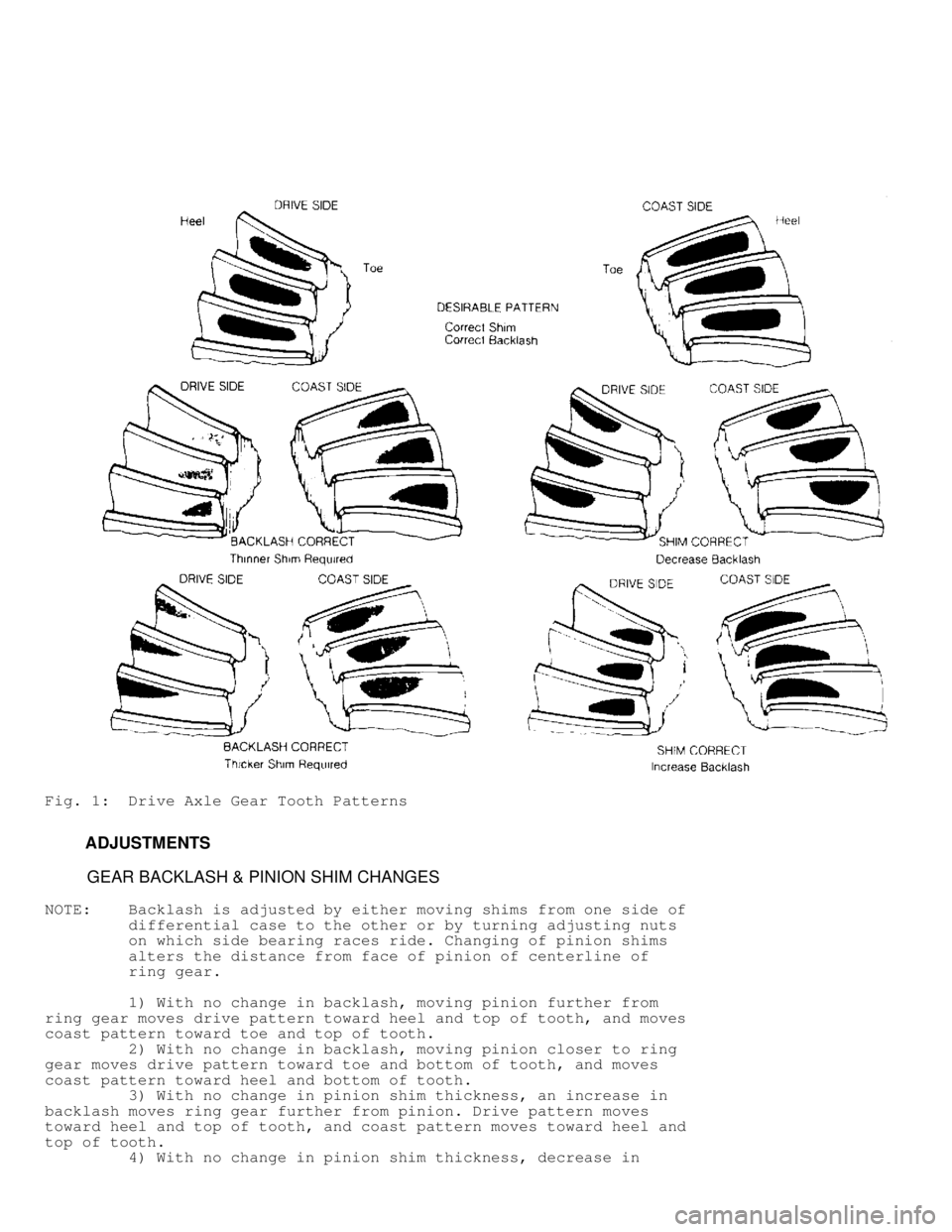

Fig. 1: Drive Axle Gear Tooth Patterns
ADJUSTMENTS
GEAR BACKLASH & PINION SHIM CHANGES
NOTE: Backlash is adjusted by either moving shims from one side of
differential case to the other or by turning adjusting nuts
on which side bearing races ride. Changing of pinion shims
alters the distance from face of pinion of centerline of
ring gear.
1) With no change in backlash, moving pinion further from
ring gear moves drive pattern toward heel and top of tooth, and moves
coast pattern toward toe and top of tooth.
2) With no change in backlash, moving pinion closer to ring
gear moves drive pattern toward toe and bottom of tooth, and moves
coast pattern toward heel and bottom of tooth.
3) With no change in pinion shim thickness, an increase in
backlash moves ring gear further from pinion. Drive pattern moves
toward heel and top of tooth, and coast pattern moves toward heel and
top of tooth.
4) With no change in pinion shim thickness, decrease in

backlash moves ring gear closer to pinion gear. Drive pattern moves
toward toe and bottom of tooth, and coast pattern moves toward toe and
bottom of tooth.

GEN ER AL C O OLIN G S YSTE M S ER VIC IN G

1991 M it s u bis h i M onte ro
GENERAL INFORMATION
General Cooling System Servicing
* PLEASE READ THIS FIRST *
The following article is for general information only.
Information may not apply to all years, makes and models. See specific
article in the ENGINE COOLING section.
DESCRIPTION
The basic liquid cooling system consists of a radiator, water
pump, thermostat, electric or belt-driven cooling fan, pressure cap,
heater, and various connecting hoses and cooling passages in the block
and cylinder head.
MAINTENANCE
DRAINING
Remove radiator cap and open heater control valve to maximum
heat position. Open drain cocks or remove plugs in bottom of radiator
and engine block. In-line engines usually have one plug or drain cock,
while "V" type engines will have 2, one in each bank of cylinders.
CLEANING
A good cleaning compound removes most rust and scale. Follow
manufacturer's instructions in the use of cleaner. If considerable
rust and scale has to be removed, cooling system should be flushed.
Clean radiator air passages with compressed air.
FLUSHING
CAUTION: Some manufacturers use an aluminum and plastic radiator.
Flushing solution must be compatible with aluminum.
Back Flushing
Back flushing is an effective means of removing cooling
system rust and scale. The radiator, engine and heater core should be
flushed separately.
Radiator
To flush radiator, connect flushing gun to water outlet of
radiator and disconnect water inlet hose. To prevent flooding engine,
use a hose connected to radiator inlet. Use air in short bursts to
prevent damage to radiator. Continue flushing until water runs clear.
Engine
To flush engine, remove thermostat and replace housing.
Connect flushing gun to water outlet of engine. Flush using short air
bursts until water runs clean.
Heater Core
Flush heater core as described for radiator. Ensure heater
control valve is set to maximum heat position before flushing heater.
