MITSUBISHI MONTERO 1991 Service Manual

4 * High
5 * Premium
7 - Body Type
1 * 5-Door Wagon
2 * 2-Door Canvas Top
3 * 2-Door Metal Top (1983-86)
3 * 3-Door Metal Top Or Van (1987 & Newer Models)
8 - Engine Type
E * 2.6L 4-Cylinder
H * 3.0L V6
M * 3.5L V6
S * 3.0L V6
7 * 2.6L 4-Cylinder (1983)
9 - VIN Check Digit
* 1 Through 9 Or X
10 - Vehicle Model Year
D * 1983
E * 1984
F * 1985
G * 1986
H * 1987
J * 1988
K * 1989
L * 1990
M * 1991
N * 1992
P * 1993
R * 1994
S * 1995
T * 1996
11 - Assembly Plant
Y * Ohye, Japan (1983)
Y * Nagoya, Japan (1984)
J * Nagoya, Japan (1985-96)
12 - Transmission Code (1983-85)
4 * 5-Speed M/T (1984-85 Federal Vehicles)
5 * 5-Speed M/T (1984-85 California Vehicles)
7 * 5-Speed M/T (1983 Federal Vehicles)
7 * A/T (1984-85 Federal Vehicles)
8 * A/T (1984-85 California Vehicles)
12-17 - Serial Number (1986-96)
* Sequential Production Number
13-17 - Serial Number (1983-85)
* Sequential Production Number
MAINTENANCE SERVICE INFORMATION
SEVERE & NORMAL SERVICE DEFINITIONS
NOTE: Use the Severe Service schedule if the vehicle to be serviced
is operated under ANY (one or more) of these conditions:
Service is recommended at mileage intervals based on vehicle
operation. Service schedules are based on the following primary

operating conditions.
Normal Service
* Driven More Than 10 Miles Daily
* No Operating Conditions From Severe Service Schedule
Severe Service (Unique Driving Conditions)
* Short Trips In Freezing Temperatures
* Towing Or Commercial Use
* Driving Off-Road Or In Salty Or Sandy Areas
* Severe Dust Conditions
* Hot Weather, Stop-And-Go Driving
* Extensive Idling
CAMSHAFT TIMING BELT
CAUTION: Failure to replace a faulty camshaft timing belt may result
in serious engine damage.
The condition of camshaft drive belts should always be
checked on vehicles which have more than 50,000 miles. Although some
manufacturers do not recommend belt replacement at a specified
mileage, others require it at 60,000-100,000 miles. A camshaft drive
belt failure may cause extensive damage to internal engine components
on most engines, although some designs do not allow piston-to-valve
contact. These designs are often called "Free Wheeling".
Many manufacturers changed their maintenance and warranty
schedules in the mid-1980's to reflect timing belt inspection and/or
replacement at 50,000-60,000 miles. Most service interval schedules in
this manual reflect these changes.
Belts or components should be inspected and replaced if any
of the following conditions exist:
* Cracks Or Tears In Belt Surface
* Missing, Damaged, Cracked Or Rounded Teeth
* Oil Contamination
* Damaged Or Faulty Tensioners
* Incorrect Tension Adjustment
Replace camshaft timing belt at 60,000 mile intervals.
SERVICE POINT LOCATIONS

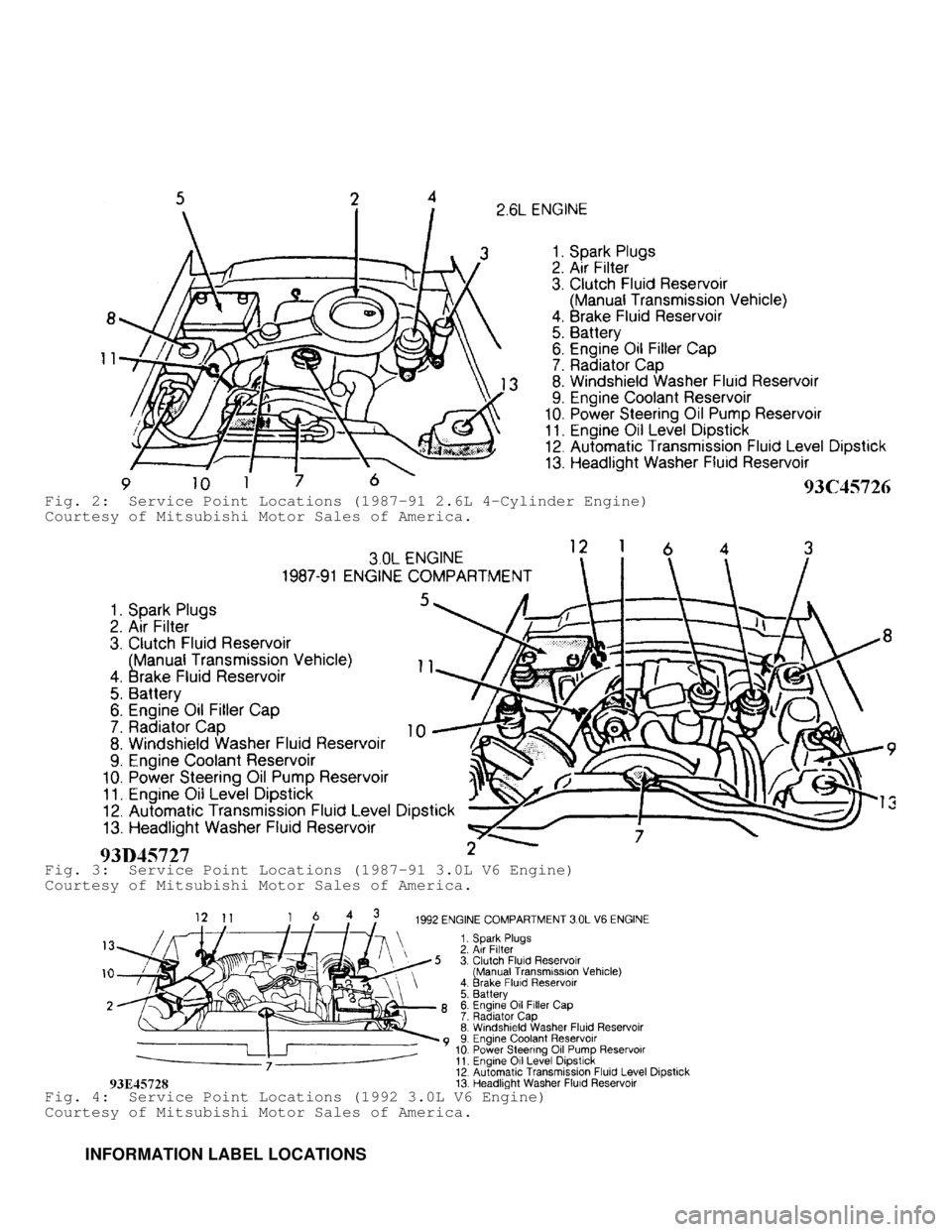

Fig. 1: Service Point Locations (1983-86 2.6L 4-Cylinder Engine)
Courtesy of Mitsubishi Motor Sales of America.

Fig. 2: Service Point Locations (1987-91 2.6L 4-Cylinder Engine)
Courtesy of Mitsubishi Motor Sales of America.
Fig. 3: Service Point Locations (1987-91 3.0L V6 Engine)
Courtesy of Mitsubishi Motor Sales of America.
Fig. 4: Service Point Locations (1992 3.0L V6 Engine)
Courtesy of Mitsubishi Motor Sales of America.
INFORMATION LABEL LOCATIONS

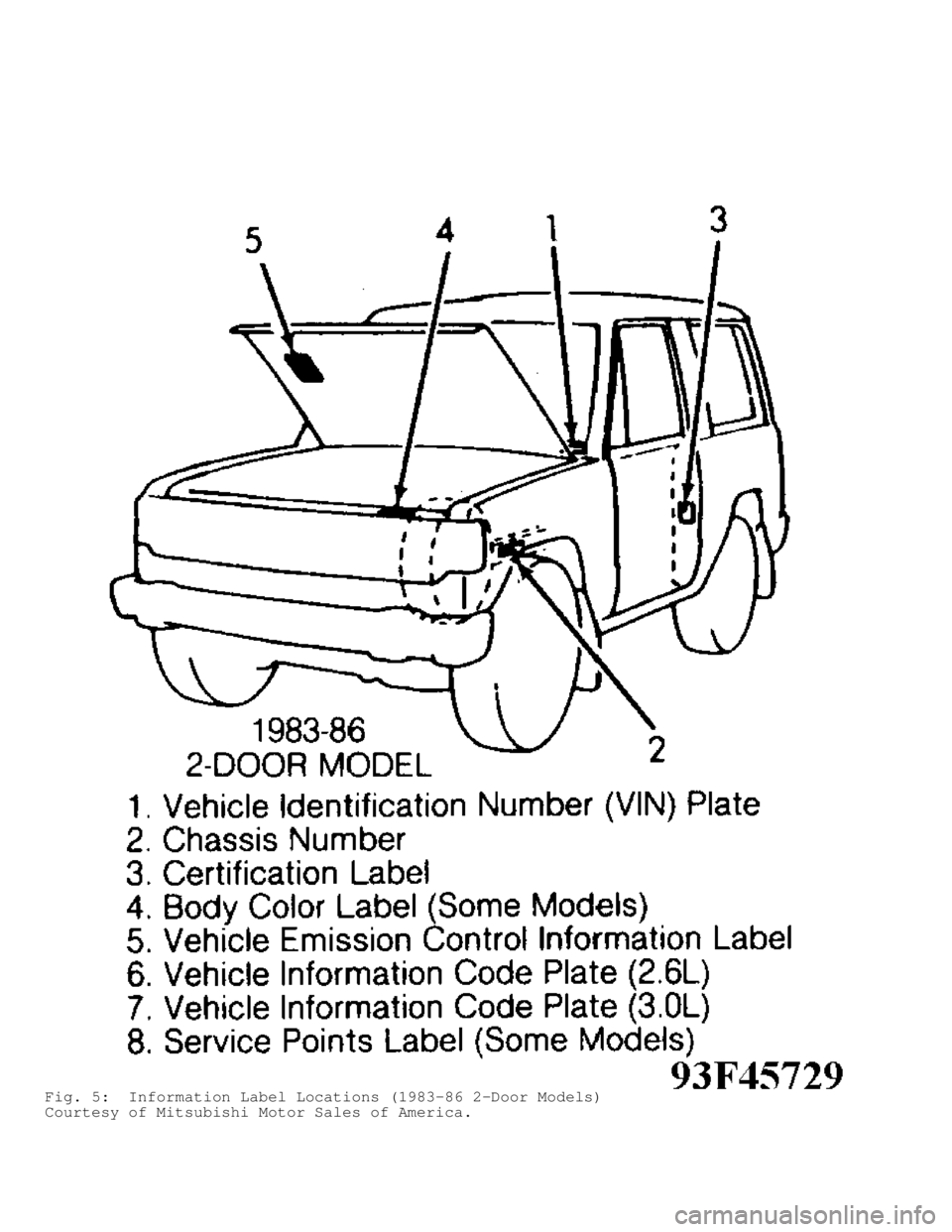

Fig. 5: Information Label Locations (1983-86 2-Door Models)
Courtesy of Mitsubishi Motor Sales of America.

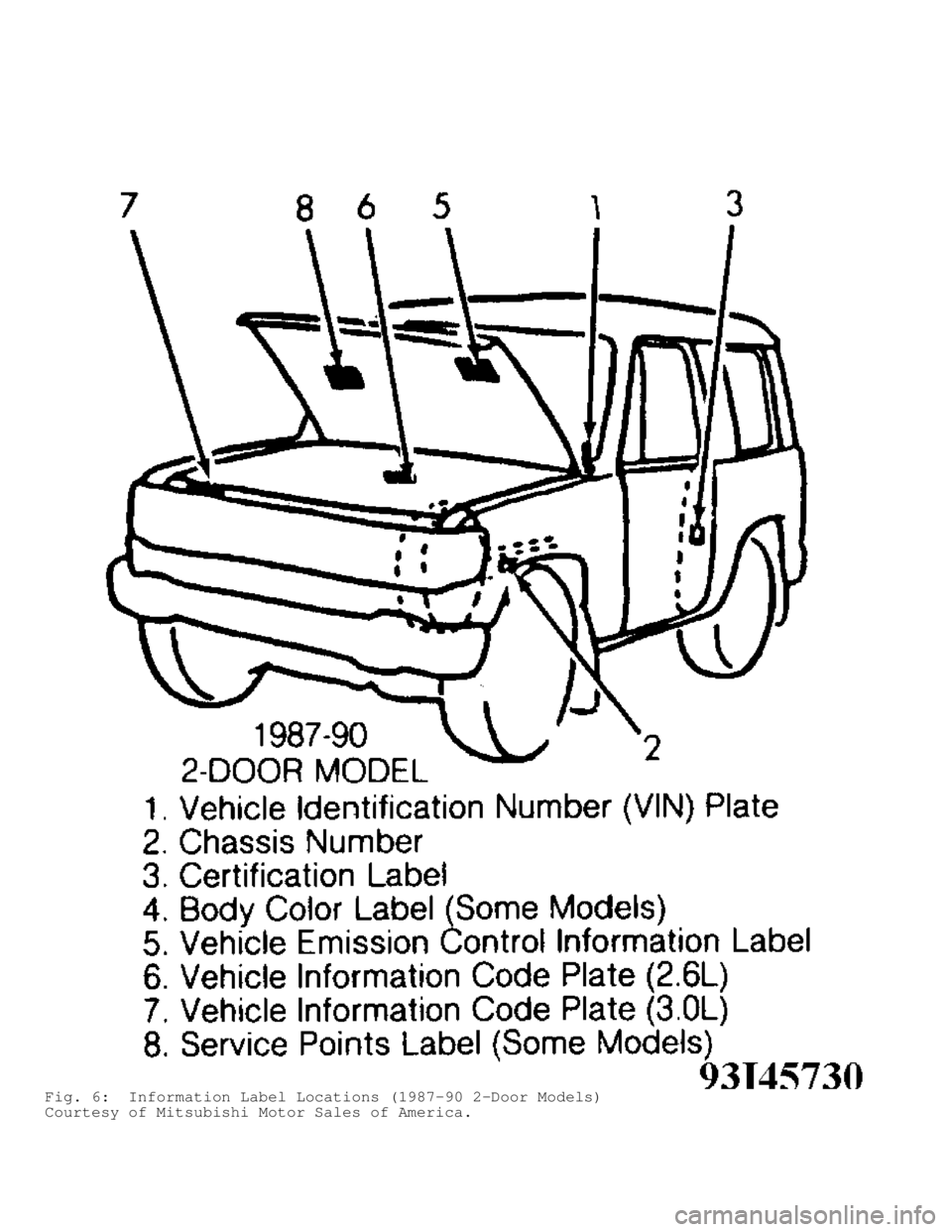

Fig. 6: Information Label Locations (1987-90 2-Door Models)
Courtesy of Mitsubishi Motor Sales of America.

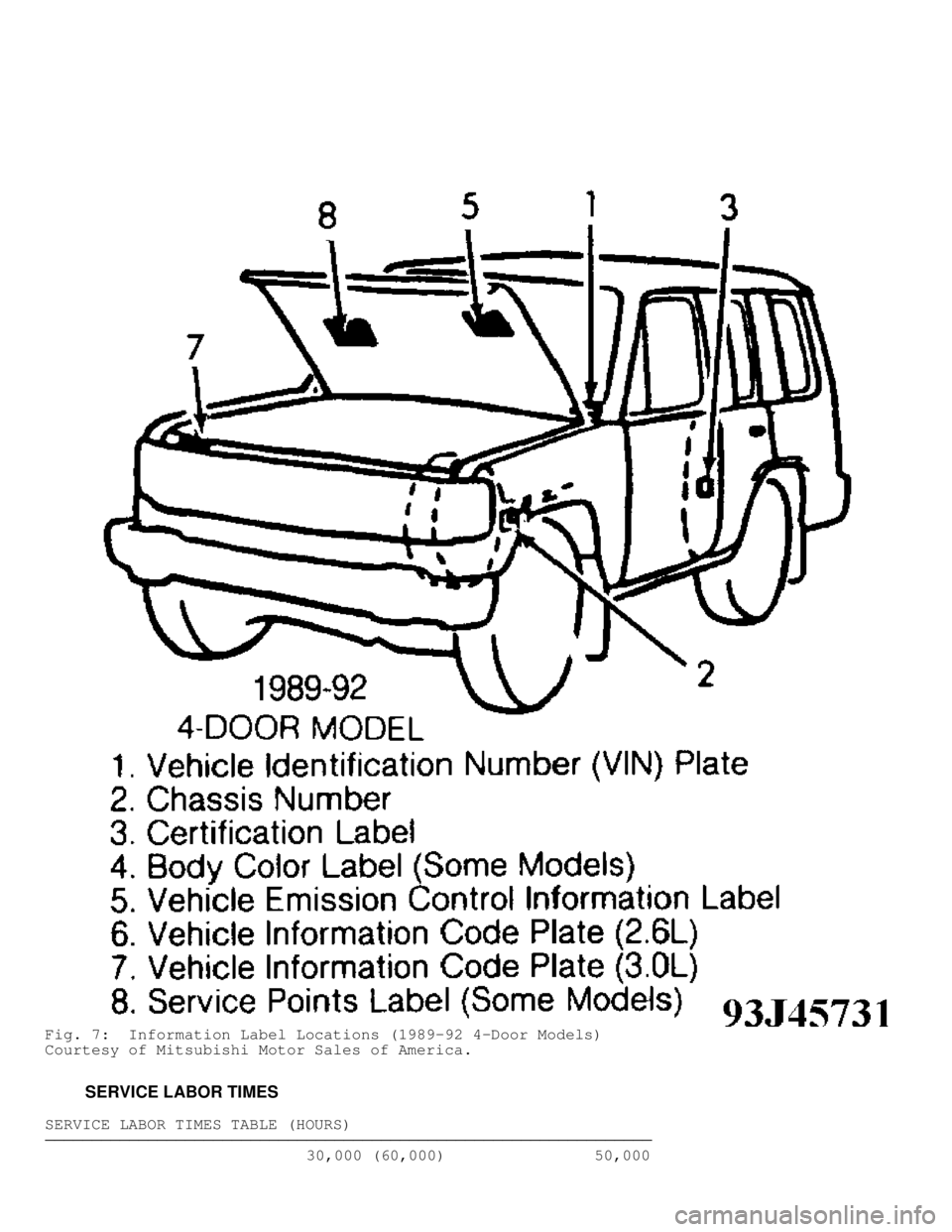

Fig. 7: Information Label Locations (1989-92 4-Door Models)
Courtesy of Mitsubishi Motor Sales of America.
SERVICE LABOR TIMES
SERVICE LABOR TIMES TABLE (HOURS)








\









\









\









\









\









\









\



30,000 (60,000) 50,000

Application Mile Service Mile Service
1983-86 2.6L 4-Cylinder
Automatic Transmission .... 7.9 (8.2) ................. 5.2
Manual Transmission ....... 6.9 (7.2) ................. 5.2
1987-90 2.6L 4-Cylinder
Automatic Transmission .... 7.9 (8.9) ................. 2.6
Manual Transmission ....... 6.9 (7.9) ................. 2.6
1989-96 3.0L V6
Automatic Transmission .... 6.1 (10.6) ................ 2.6
Manual Transmission ....... 5.1 (9.6) ................. 2.6









\









\









\









\









\









\









\



LUBRICATION SPECIFICATIONS
LUBRICATION SPECIFICATIONS TABLE








\









\









\









\









\









\









\



Application Fluid Specifications
Brake & Clutch Fluid ........................... DOT 3 Or DOT 4
Engine Coolant ............. Ethylene-Glycol Antifreeze Coolant
Engine Oil ( 1)
Minimum Temperature
Greater Than 32
\bF (0\bC) ..... SAE 20W-40 Or 20W-50 API SG/CD
Greater Than -10\bF (-23\bC) .. SAE 10W-30 Or 10W-40 API SG/CD
Maximum Temperature
Less Than 60
\bF (16\bC) ......... SAE 5W-30 Or 5W-40 API SG/CD
Front Axle & Conventional Rear Axle
Minimum Temperature
Greater Than -10
\bF (-23\bC) ..... SAE 85W-90, 80W-90 API GL-5
Maximum Temperature
Less Than -30
\bF (-34\bC) ................... SAE 75W API GL-5
Power Steering Fluid ........................... Dexron-IIE ATF
Rear Axle (With Limited
Slip Differential) ........... Hypoid Gear Oil (8149630EX) Or
Equivalent
Transmission
Automatic .................................... Dexron-IIE ATF
Manual Transaxle &
Transfer Case (4WD) ........... SAE 75W-85W, 75W-90 API GL-5
( 1) - Since temperature ranges for different oil grades overlap,
brief fluctuations in outside temperatures are no cause for
concern.









\









\









\









\









\









\









\



FLUID CAPACITIES
FLUID CAPACITIES TABLE








\









\









\









\









\









\









\



Application Quantity
A/C System R-12 Refrigerant
1983-87 .......................................... 24-26 Ozs.
1988-91 ............................................. 32 Ozs.
1992-93 ............................................. 28 Ozs.
A/C System R-134a Refrigerant ( 1)
1994-96 .......................................... 21-23 Ozs.
Automatic Transmission
1984-86 ................................. ( 2) 7.2 Qts. (6.8L)
1987-93 ..................................... 7.6 Qts. (7.2L)
1994-96 (3.0L SOHC) ......................... 7.6 Qts. (7.2L)

1994-96 (3.0L DOHC & 3.5L) .................. 9.0 Qts. (8.5L)
Cooling System
1983-88 ..................................... 8.5 Qts. (8.0L)
1989-96
2.6L ....................................... 9.7 Qts. (9.2L)
3.0L ...................................... 10.0 Qts. (9.5L)
3.5L ...................................... 10.0 Qts. (9.5L)
Differential
1983-88 ..................................... 1.9 Qts. (1.8L)
1989-93
2.6L ....................................... 1.9 Qts. (1.8L)
3.0L ....................................... 2.7 Qts. (2.6L)
1994-96
3.0L & 3.5L ................................ 2.7 Qts. (2.6L)
Engine Oil
1983-86 ..................................... 6.0 Qts. (5.8L)
1987 ........................................ 5.2 Qts. (5.0L)
1988 ........................................ 5.0 Qts. (4.8L)
1989-91 ..................................... 5.5 Qts. (5.3L)
1992-96 ..................................... 5.2 Qts. (4.9L)
Power Steering ................................ 1.1 Qts. (1.0L)
Fuel Tank
1983-88 .................................... 15.9 Gals. (60L)
1989-90
2.6L 2-Door ............................... 15.9 Gals. (60L)
3.0L 2-Door ............................... 19.9 Gals. (75L)
2.6L & 3.0L 4-Door .......................... 24 Gals. (92L)
1991-96 ...................................... 24 Gals. (92L)
Manual Transmission
1983-91 ..................................... 2.3 Qts. (2.2L)
1992 ........................................ 2.4 Qts. (2.3L)
1993-96 ..................................... 2.6 Qts. (2.5L)
Transfer Case
1983-91 ..................................... 2.3 Qts. (2.2L)
1992-96 ..................................... 2.4 Qts. (2.3L)
(1) - Use of R12 in a R134a system will result in SEVERE DAMAGE.
( 2) - 1983 model equipped with manual transmission only.









\









\









\









\









\









\









\



WHEEL & TIRE SPECIFICATIONS
Tire specifications are imprinted on the tire side wall. The
recommended cold tire inflation pressures are listed on a label
attached to the rear face of the driver's door. These pressures
provide the best combination of ride comfort, tire wear and stability
under normal conditions.
CAUTION: DO NOT mix tires of different design such as radial ply
with bias or bias-belted tires. Mixing tire types will
adversely affect road handling and may lead to loss of
vehicle control. When using snow tires, they must be used
in set of four for maneuverability and safety. DO NOT use
tire chains on front wheels.
TIRE & WHEEL SPECIFICATIONS TABLE









\









\









\









\









\









\







Wheel Size Tire Size
1983-86
15 x 6JJ (Steel) .............................. 215 SR15
1987-88

15 x 6JJ (Steel) ........................... P225/75 R15
1989-1996
15 x 6JJ (Steel) ........................... P225/75 R15
15 x 6JJ (Steel or Aluminum) ............... P235/75 R15
15 X 7JJ (Aluminum) ........................ 31-10.50R15









\









\









\









\









\









\







TIRE INFLATION SPECIFICATIONS TABLE








\









\









\









\









\









\







Application Pressure
psi (kg/cm )
1983-88
Front ( 1) ..................................... 26 (1.8)
Rear .......................................... 34 (2.3)
Rear ...................................... ( 2) 26 (1.8)
1989-91
Front ( 1) ..................................... 26 (1.8)
Rear .......................................... 35 (2.4)
Rear ...................................... ( 2) 26 (1.8)
1992-96
P235/75R15
Front ........................................ 26 (1.8)
Rear ......................................... 35 (2.4)
31-10.50R15
Front ........................................ 29 (2.1)
Rear ......................................... 40 (2.8)
( 1) - No chain clearance.
( 2) - Inflation pressure for better ride comfort when
driving with no cargo.









\









\









\









\









\









\







WHEEL TIGHTENING
WHEEL TIGHTENING SPECIFICATIONS TABLE








\









\









\









\









\









\







Application Ft. Lbs. (N.m.)
1983 ....................................... 50-57 (70-80)
1984-96 .................................. 72-87 (100-120)









\









\









\









\









\









\







BATTERY SPECIFICATIONS
CAUTION: When battery is disconnected, vehicles equipped with
computers may lose memory data. When battery power is
restored, driveability problems may exist on some vehicles.
These vehicles may require a relearn procedure. See
COMPUTER RELEARN PROCEDURES article in the GENERAL
INFORMATION Section.
Battery is maintenance-free and does not normally require
additional water. However, under severe conditions it is advisable to
check battery fluid periodically. Use only distilled water to fill
battery cell should it become necessary to add water. Charge condition
can be checked by a visual test indicator on top of battery.
BATTERY REPLACEMENT SPECIFICATIONS TABLE









\









\









\









\









\









\







Application BCI Group Number

2.6L Engine ........................................... 45
2.6L Optional ......................................... 45
3.0L V6 ........................................... (1) 24
3.5L V6 ........................................... ( 1) 24
( 1) - Check hood clearance on 1986 and newer models.









\









\









\









\









\









\







CAUTIONS & WARNINGS
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) AIR BAG SYSTEM
NOTE: See the AIR BAG RESTRAINT SYSTEM article in the
ACCESSORIES/SAFETY EQUIPMENT Section.
The SRS has no user-servicable parts. Always have servicing
done by an authorized dealer.
When performing maintenance on air bag equipped vehicles
always observe proper safety precautions.
WARNING: To avoid injury from accidental air bag deployment, read and
carefully follow all warnings and service precautions. See
appropriate AIR BAG RESTRAINT SYSTEM article in the
ACCESSORIES/SAFETY EQUIPMENT section.
CAUTION: Disconnect negative battery cable before servicing any air
bag system, steering column or passenger side dash
component. After any repair, turn ignition key to the ON
position from passenger's side of vehicle in case of
accidental air bag inflation
ANTI-LOCK BRAKE SYSTEM (ABS)
CAUTION: Never mix different diameter tires. On loose or uneven
surfaces, the ABS system may require longer stopping
distances than conventional brake systems. Exercise caution
when removing mud or snow from the wheels so as not to
damage the ABS wiring or speed sensors.
BATTERY WARNING
WARNING: When battery is disconnected, vehicles equipped with
computers may lose memory data. When battery power is
restored, driveability problems may exist on some vehicles.
These vehicles may require a relearn procedure. See
appropriate COMPUTER RELEARN PROCEDURES article in the
GENERAL INFORMATION section below.
REPLACING BLOWN FUSES
Before replacing a blown fuse, remove ignition key, turn off
all lights and accessories to avoid damaging the electrical system. Be
sure to use fuse with the correct indicated amperage rating. The use
of an incorrect amperage rating fuse may result in a dangerous
electrical system overload.
BRAKE PAD WEAR INDICATOR
Indicator will cause a squealing or scraping noise, warning
that brake pads need replacement.
