MITSUBISHI MONTERO 1991 Service Manual

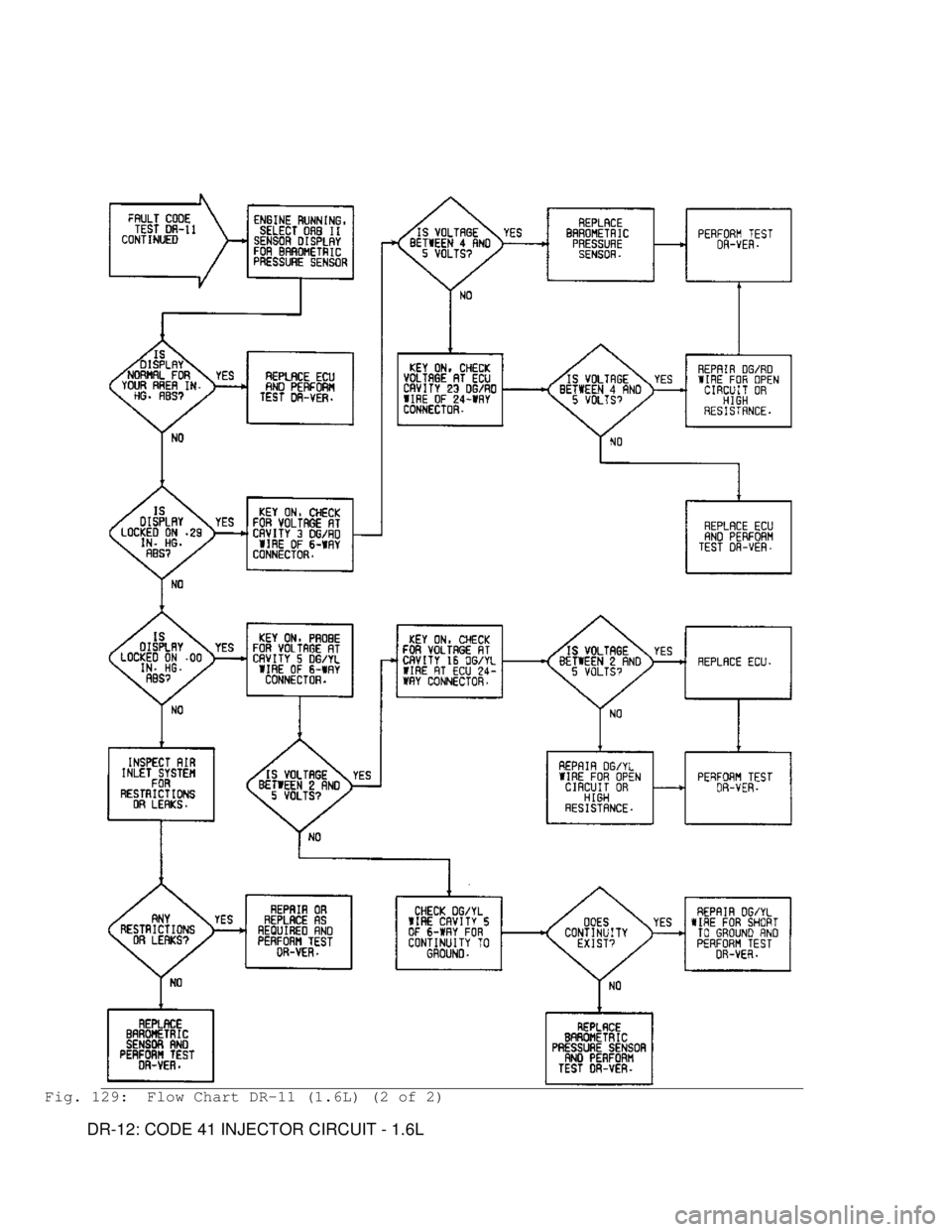

Fig. 129: Flow Chart DR-11 (1.6L) (2 of 2)
DR-12: CODE 41 INJECTOR CIRCUIT - 1.6L

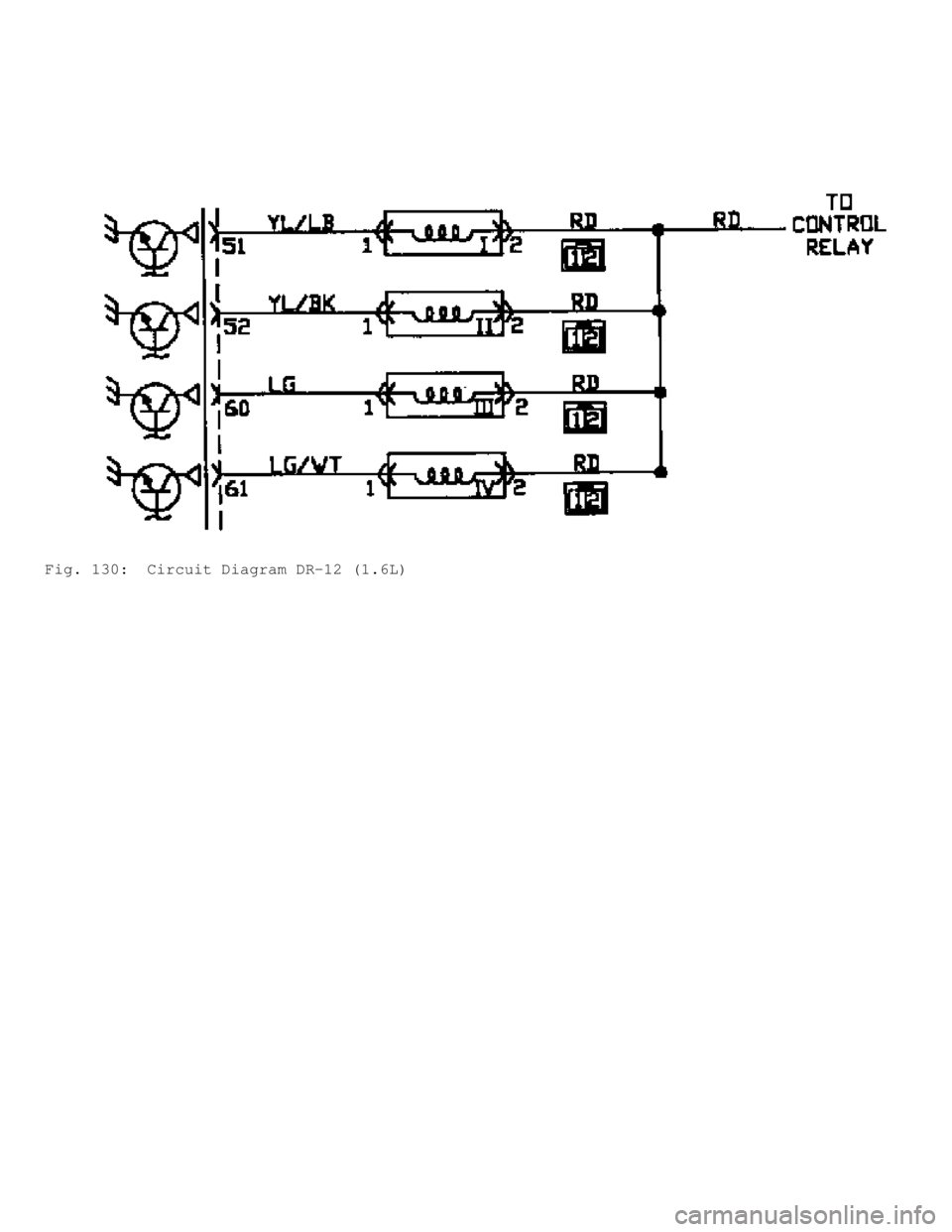

Fig. 130: Circuit Diagram DR-12 (1.6L)

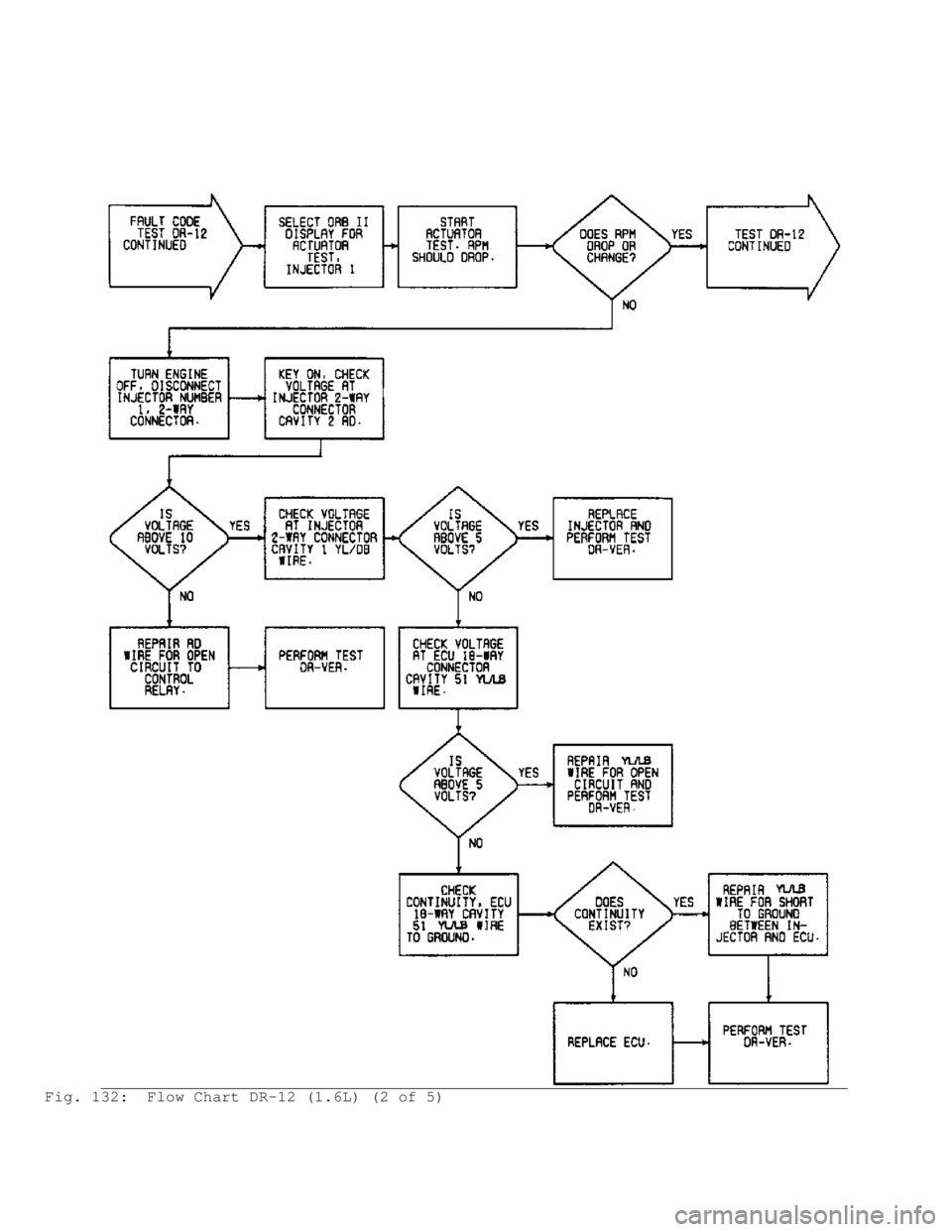

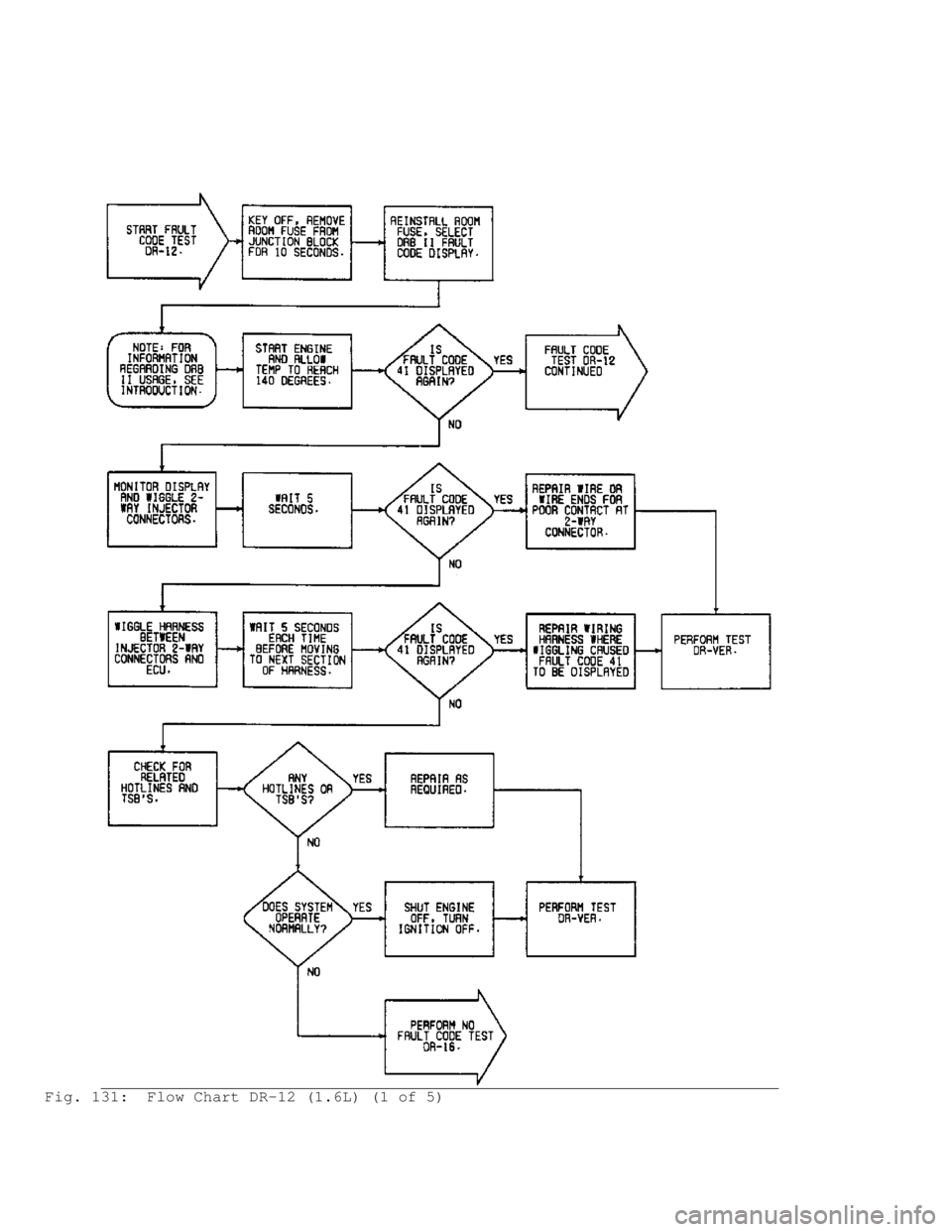

Fig. 131: Flow Chart DR-12 (1.6L) (1 of 5)

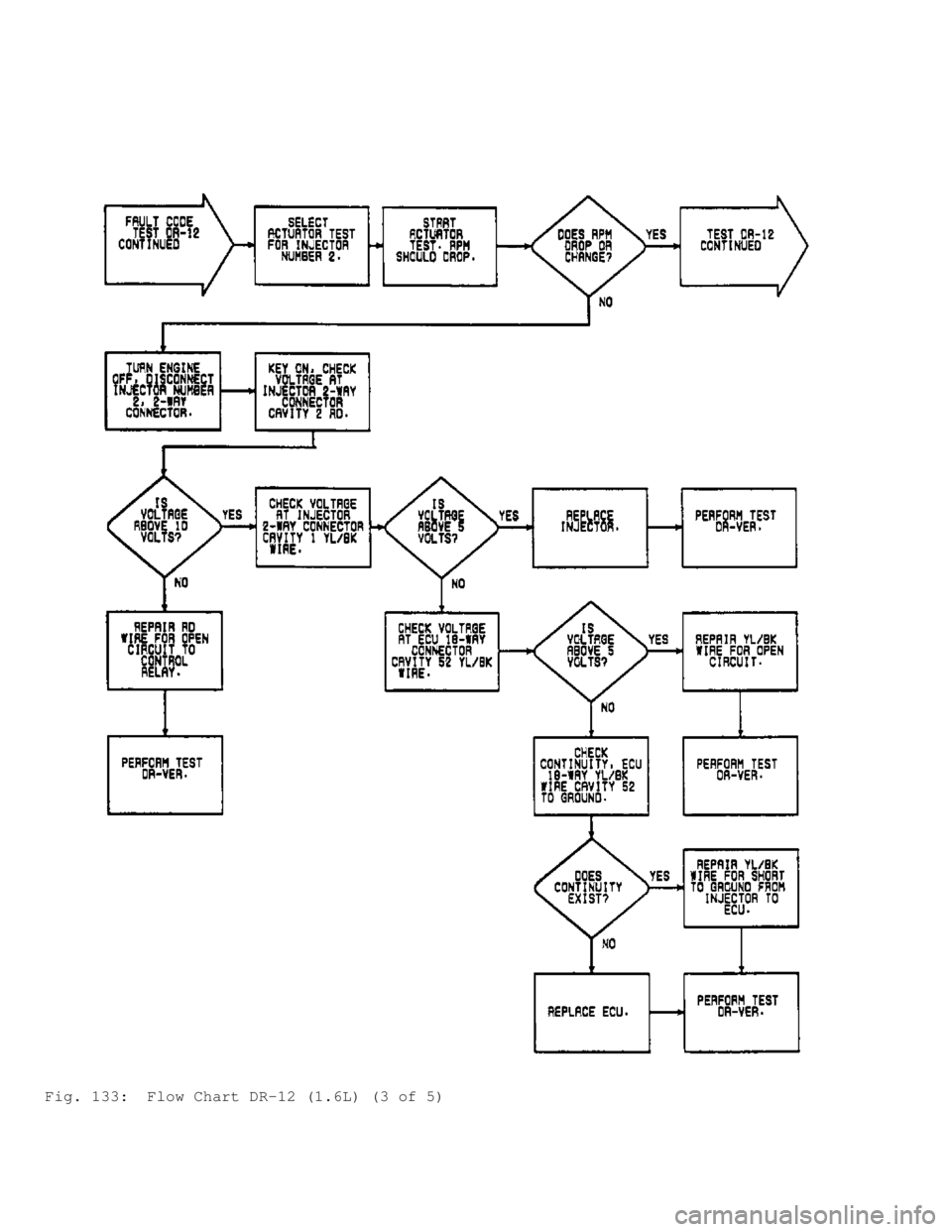

Fig. 132: Flow Chart DR-12 (1.6L) (2 of 5)

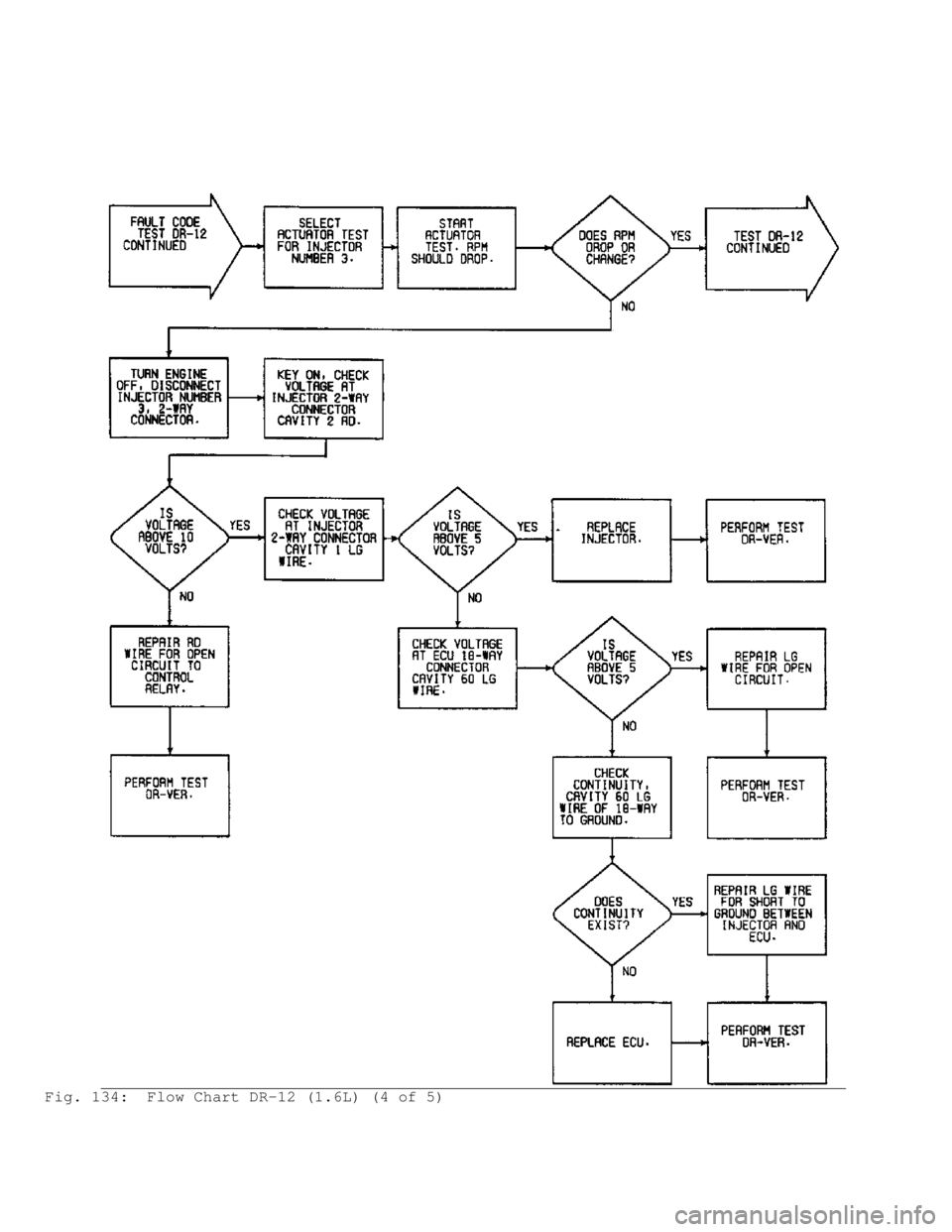

Fig. 133: Flow Chart DR-12 (1.6L) (3 of 5)

Fig. 134: Flow Chart DR-12 (1.6L) (4 of 5)

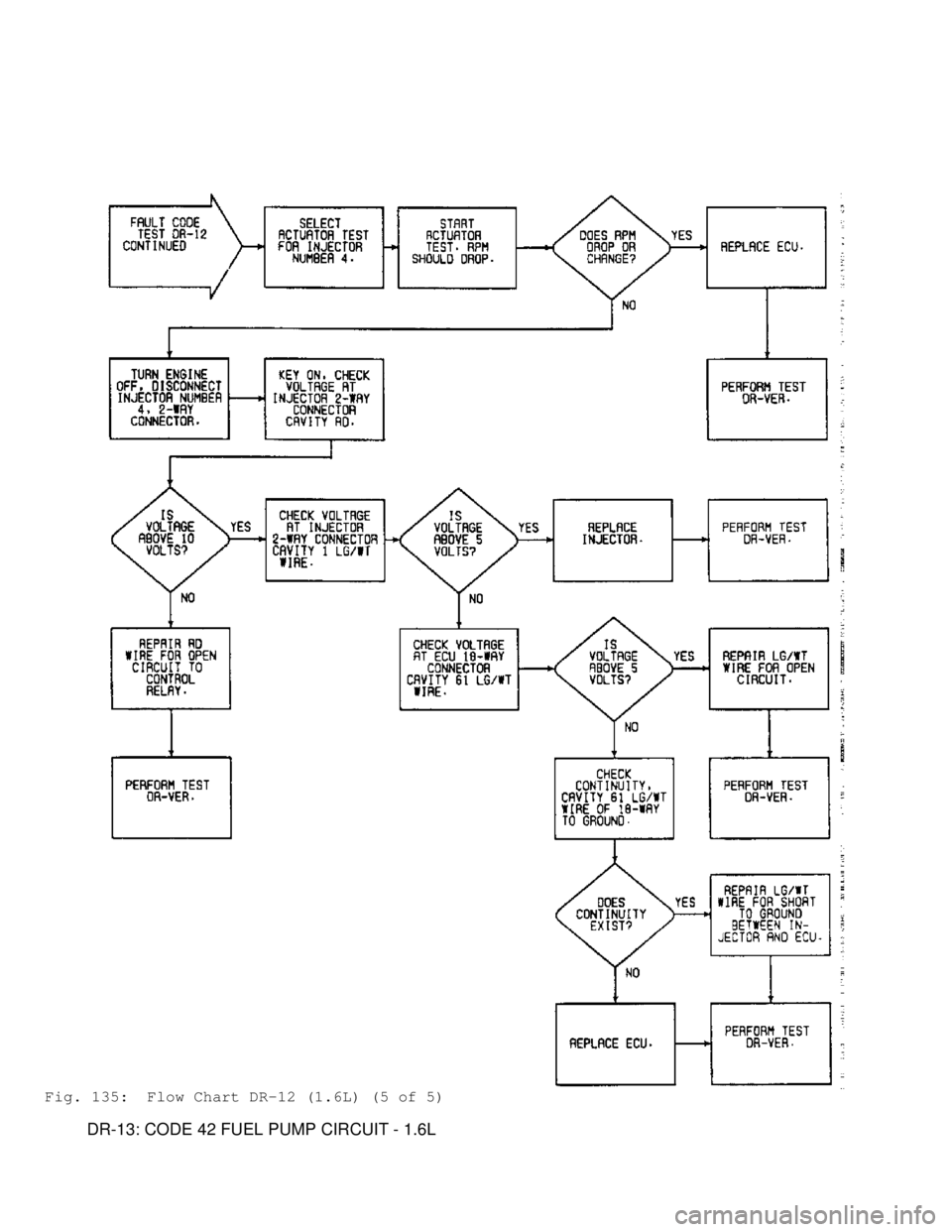

Fig. 135: Flow Chart DR-12 (1.6L) (5 of 5)
DR-13: CODE 42 FUEL PUMP CIRCUIT - 1.6L

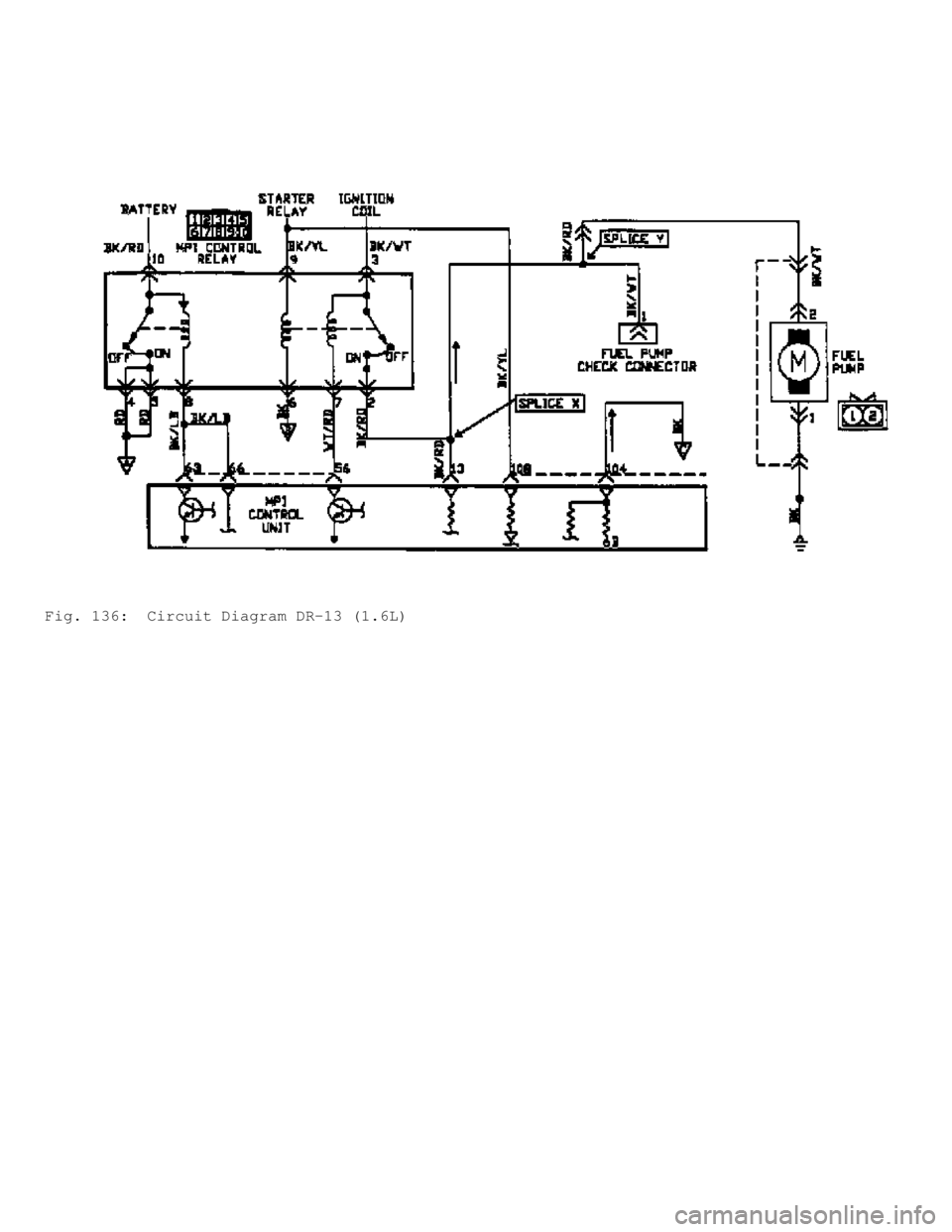

Fig. 136: Circuit Diagram DR-13 (1.6L)

Fig. 137: Flow Chart DR-13 (1.6L) (1 of 2)

Fig. 138: Flow Chart DR-13 (1.6L) (2 of 2)
DR-14: CODE 43 EGR TEMPERATURE SENSOR CIRCUIT - 1.6L
Fig. 139: Circuit Diagram DR-14 (1.6L)
