NOTE: For engine repair procedures not covered in this article,
see ENGINE OVERHAUL PROCEDURES - GENERAL INFORMATION article
in the GENERAL INFORMATION section.
ENGINE IDENTIFICATION
Engine may be identified by using Vehicle Identification
Number (VIN) stamped on a metal pad, located near lower left corner of\
windshield. The eighth character identifies the engine model.
Engine model number is stamped on front upper edge of
cylinder block (below cylinder head) or on vehicle information plate
on firewall. Engine serial number is stamped near the engine model
number.
ENGINE IDENTIFICATION CODES TABLE
\
\
\
\
\
\
Application Engine Model Engine Code
3.0L V6 SOHC
Montero ............... 6G72 .................... S
Pickup ................ 6G72 .................... S
3.0L V6 DOHC
3000GT
Non-Turbo ............ 6G72 .................... B
Turbo ................ 6G72 .................... C
\
\
\
\
\
\
ADJUSTMENTS
VALVE CLEARANCE ADJUSTMENT
NOTE: Hydraulic lash adjusters are set into rocker arms (SOHC) or
cylinder head (DOHC). No adjustment is required.
REMOVAL & INSTALLATION
NOTE: For reassembly reference, label all electrical connectors,
vacuum hoses and fuel lines before removal. Also place
mating marks on engine hood and other major assemblies
before removal.
FUEL PRESSURE RELEASE
Perform these steps to release fuel system pressure:
* Disconnect fuel pump harness connector at fuel tank.
* Start engine. After it stalls, turn ignition switch to OFF
position.
* Disconnect battery (-) terminal, and reconnect fuel pump
harness connector.
Page 2 of 1333
* Wrap shop towels around fuel return and high pressure hoses
to prevent fuel splashing on engine. Disconnect fuel return
hose and high pressure fuel hose to drain any residual fuel.
ENGINE
Removal (Montero & Pickup)
1) Remove hood. Drain cooling system, and remove radiator.
Remove skid plate and splash shields. Release fuel system pressure.
See FUEL PRESSURE RELEASE under REMOVAL & INSTALLATION. Disconnect
negative battery cable.
2) Remove air cleaner ducts. Remove accessory drive belts.
Remove and support A/C compressor and power steering pump. DO NOT
disconnect hoses from compressor or pump. Disconnect oil cooler hoses.
Cover fuel hose using shop towel, and disconnect high pressure fuel
hose and "O" ring. Remove fuel return hose.
3) Label and disconnect all vacuum hoses. Disconnect cooling
system hoses. Label and disconnect all electrical connections from
engine. Remove heat shield from motor mounts. Remove motor mount
bolts. Ensure all hoses and wires are disconnected and set aside.
4) Disconnect exhaust pipe from exhaust manifolds. Remove
starter. Attach engine hoist to engine. Support transmission.
Disconnect engine from transmission. See appropriate article in
CLUTCHES or TRANSMISSION SERVICING. Remove engine.
Installation (Montero & Pickup)
To install, reverse removal procedure. Install new "O" ring
on fuel line. Install new exhaust gaskets and nuts. See TORQUE
SPECIFICATIONS (MONTERO & PICKUP) table at end of article. Adjust
fluid levels.
Removal (3000GT)
1) Release fuel pressure. See FUEL PRESSURE RELEASE under
REMOVAL & INSTALLATION. Remove hood. Remove cruise control vacuum pump
and linkage. On turbo models, remove necessary turbo air intake hoses
and pipes. On all other models, remove air cleaner hoses.
2) On all models, drain cooling system. Drain engine oil and
transaxle oil. Remove heater hoses and radiator hoses. Remove
transaxle assembly. See appropriate article in CLUTCHES or
TRANSMISSION SERVICING.
3) Remove radiator. Label and disconnect all vacuum hoses.
Label and disconnect all electrical connections and harnesses from
engine. Remove accessory drive belts.
4) Remove and support A/C compressor and power steering pump.
DO NOT disconnect hoses from compressor or pump. Cover fuel hose using
shop towel, and disconnect high pressure fuel hose and "O" ring.
Remove fuel return hose.
5) On turbo models, disconnect oil cooler and vacuum hoses.
On all models, remove motor mount bolts and brackets. Ensure all hoses
and wires are disconnected and set aside. Attach engine hoist to
engine. Remove engine.
Installation
To install, reverse removal procedure. Install new "O" ring
on fuel line. Install new exhaust gaskets and nuts. See TORQUE
SPECIFICATIONS (3000GT) table at end of article. Adjust fluid levels.
UPPER INTAKE MANIFOLD
Removal (Montero & Pickup)
1) Remove air intake hose. See Fig. 1. Remove accelerator
cable adjusting bolts. On models equipped with automatic transmission,
remove throttle control cable. On all models, remove accelerator
Page 29 of 1333
.012" (.3 mm) Oversize ............ .311-.319 (7.9-8.1)
.024" (.6 mm) Oversize ............ .323-.331 (8.2-8.4)
Bore Diameter
.012" (.3 mm) Oversize .. 1.3110-1.3120 (33.300-33.325)
.024" (.6 mm) Oversize .. 1.3228-1.3238 (33.600-33.625)
\
\
\
\
\
\
VALVES
Disassemble cylinder head. Measure valve stem diameter, valve
margin and overall length. Replace valves if not within specification.
See appropriate VALVES & VALVE SPRINGS table under ENGINE
SPECIFICATIONS at end of article. Check valve for worn valve tip.
Measure valve margin after grinding valves.
LASH ADJUSTERS
Before installation, submerge lash adjuster in diesel fuel.
Using a small wire, hold down internal check valve. Pump plunger up
and down 4 or 5 times to bleed air from lash adjuster.
CYLINDER BLOCK ASSEMBLY OVERHAUL
CYLINDER BLOCK
1) Inspect cylinder block for cracks, warpage, cylinder bore
taper and out-of-round. Replace or repair cylinder block if it is not
within specification. See CYLINDER BLOCK table under ENGINE
SPECIFICATIONS at end of article.
2) Measure cylinder bore and piston skirt diameter. Piston
skirt diameter should be measured at 90-degree angle to piston pin.
Clearance between piston and cylinder bore must be within
specification. See appropriate PISTONS, PINS & RINGS table under
ENGINE SPECIFICATIONS at end of article.
PISTON & ROD ASSEMBLY
1) Remove cylinder heads, and remove oil pan. See CYLINDER
HEADS and OIL PAN under REMOVAL & INSTALLATION. Ensure cylinder ridge
is removed. Mark connecting rod and cap for cylinder identification.
2) Note front mark on piston and connecting rod. See Fig. 23.
Mark is positioned toward timing belt side of engine. Remove rod cap
and piston assembly.
3) Ensure piston ring end gap and side clearance are within
specification. See appropriate PISTONS, PINS & RINGS table under
ENGINE SPECIFICATIONS at end of article. Install rings on piston with
ring code identification marks toward top of piston. On DOHC, top ring
is marked "T" and No. 2 ring is marked "T2". On SOHC, top ring is
marked "T1" and No. 2 ring is marked "2R". Lubricate piston, rings and
cylinder bore with engine oil.
4) Properly space ring end gaps on piston. See Fig. 23.
Install piston and rod into cylinder bore. Ensure piston is installed
with front mark toward timing belt side of engine.
NOTE: Front mark "R" on piston indicates installation in
cylinders No. 1, 3 or 5 while front mark "L" indicates
installation in cylinders No. 2, 4 or 6. Ensure front mark
on piston and connecting rod are toward timing belt side of
engine. See Fig. 23.
5) Check bearing clearance using Plastigage method. Tighten
rod cap nuts to specification. See appropriate TORQUE SPECIFICATIONS
Page 35 of 1333
Rear Engine Support
Bracket-To-Engine Bolt .................... 13-18 (18-25)
Relief Valve Plug ................................ 33 (45)
Rocker Shaft ............................... 14-15 (19-20)
Roll Stopper Bracket Through Bolts ......... 36-43 (49-58)
Turbocharger-To-Exhaust Fitting ............ 40-47 (54-64)
Timing Belt Tensioner Bolt ....................... 31 (42)
Water Pump Bolt .................................. 17 (23)
INCH Lbs. (N.m)
Delivery Pipe Bolt .............................. 108 (12)
Oil Pan Bolt ................................. 48-60 (5-7)
Oil Pump Cover Bolt .............................. 96 (11)
Rear Seal Case Bolt .............................. 96 (11)
Rocker Cover Bolt
SOHC ....................................... 72-84 (8-9)
DOHC ............................................ 26 (3)
Throttle Body Bolt ......................... 84-108 (9-12)
Timing Belt Cover Bolt ..................... 84-108 (9-12)
Transmission Mounting Plate Bolt ........... 84-108 (9-12)
( 1) - Tighten in 2 steps using proper sequence.
See Fig. 4.
\
\
\
\
\
\
ENGINE SPECIFICATIONS
GENERAL ENGINE SPECIFICATIONS
GENERAL SPECIFICATIONS TABLE \
\
\
\
\
\
Application Specification
3.0L V6 DOHC Non-Turbo
Displacement ....................... 181.4 Cu. In. (3.0L)
Bore ................................... 3.587" (91.1 mm)
Stroke ................................. 2.992" (76.0 mm)
Compression Ratio ................................ 10.0:1
Fuel System ......................................... PFI
Horsepower @ RPM ............................. 222 @ 6000
Torque Ft. Lbs. @ RPM ........................ 201 @ 4500
3.0L V6 DOHC Turbo
Displacement ....................... 181.4 Cu. In. (3.0L)
Bore ................................... 3.587" (91.1 mm)
Stroke ................................. 2.992" (76.0 mm)
Compression Ratio ................................. 8.0:1
Fuel System ......................................... PFI
Horsepower @ RPM ............................. 300 @ 6000
Torque Ft. Lbs. @ RPM ........................ 307 @ 2500
3.0L V6 SOHC
Displacement ....................... 181.4 Cu. In. (3.0L)
Bore ................................... 3.587" (91.1 mm)
Stroke ................................. 2.992" (76.0 mm)
Compression Ratio ................................. 8.9:1
Fuel System ......................................... PFI
Horsepower @ RPM ............................. 143 @ 5000
Torque Ft. Lbs. @ RPM ........................ 168 @ 2500
\
\
\
\
\
\
Page 163 of 1333
2.0L (VIN R) DOHC ......................... 137 (9.6)
2.0L (VIN U) DOHC Turbo ................... 114 (8.0)
2.0L (VIN V) SOHC ......................... 119 (8.4)
2.4L (VIN W) SOHC ......................... 119 (8.4)
3.0L (VIN S) SOHC ......................... 119 (8.4)
3.0L (VIN B) DOHC ......................... 139 (9.8)
3.0L (VIN C) DOHC Turbo ................... 115 (8.1)
(1) - Maximum variation between cylinders 14 psi
(1.0 kg/cm
) \
\
\
\
\
\
Exhaust System Backpressure
Exhaust system can be checked with a vacuum or pressure
gauge. Remove O2 sensor or air injection check valve (if equipped).
Connect a 1-10 psi pressure gauge and run engine at 2500 RPM. If
exhaust system backpressure is greater than 1 3/4-2 psi, exhaust
system or catalytic converter is plugged. If a vacuum gauge is used,
connect vacuum gauge hose to intake manifold vacuum port and start
engine. Observe vacuum gauge. Open throttle part way and hold steady.
If vacuum gauge reading slowly drops after stabilizing, exhaust system
should be checked for a restriction.
FUEL PRESSURE
Basic diagnosis of fuel system should begin with determining
fuel system pressure.
FUEL INJECTED ENGINES
WARNING: ALWAYS relieve fuel pressure before disconnecting any fuel
injection-related component. DO NOT allow fuel to contact
engine or electrical components.
Fuel Pressure
1) On all models except Colt and Mirage, disconnect fuel pump
harness connector at fuel tank. On Colt and Mirage, remove rear seat
cushion to disconnect fuel pump harness connector.
2) On all models, start engine. Let engine run until it
stops. Turn ignition off. Disconnect negative battery terminal.
Connect fuel pump harness connector.
WARNING: Before disconnecting high pressure fuel hose at fuel delivery
pipe, cover fuel hose connection with a rag. Some residual
fuel pressure may still be in system.
3) On Galant 2.0L (DOHC), remove brace for access to high
pressure fuel delivery pipe. On all engines, disconnect high pressure
fuel hose at fuel delivery pipe.
4) Connect fuel pressure gauge with adapter between fuel
delivery pipe and high pressure hose. See Fig. 1. Connect negative
battery terminal. Connect battery voltage to fuel pump test terminal.
See FUEL PUMP TEST TERMINAL LOCATION table. Ensure no fuel leaks are
present. Disconnect battery voltage to fuel pump test terminal.
Page 164 of 1333

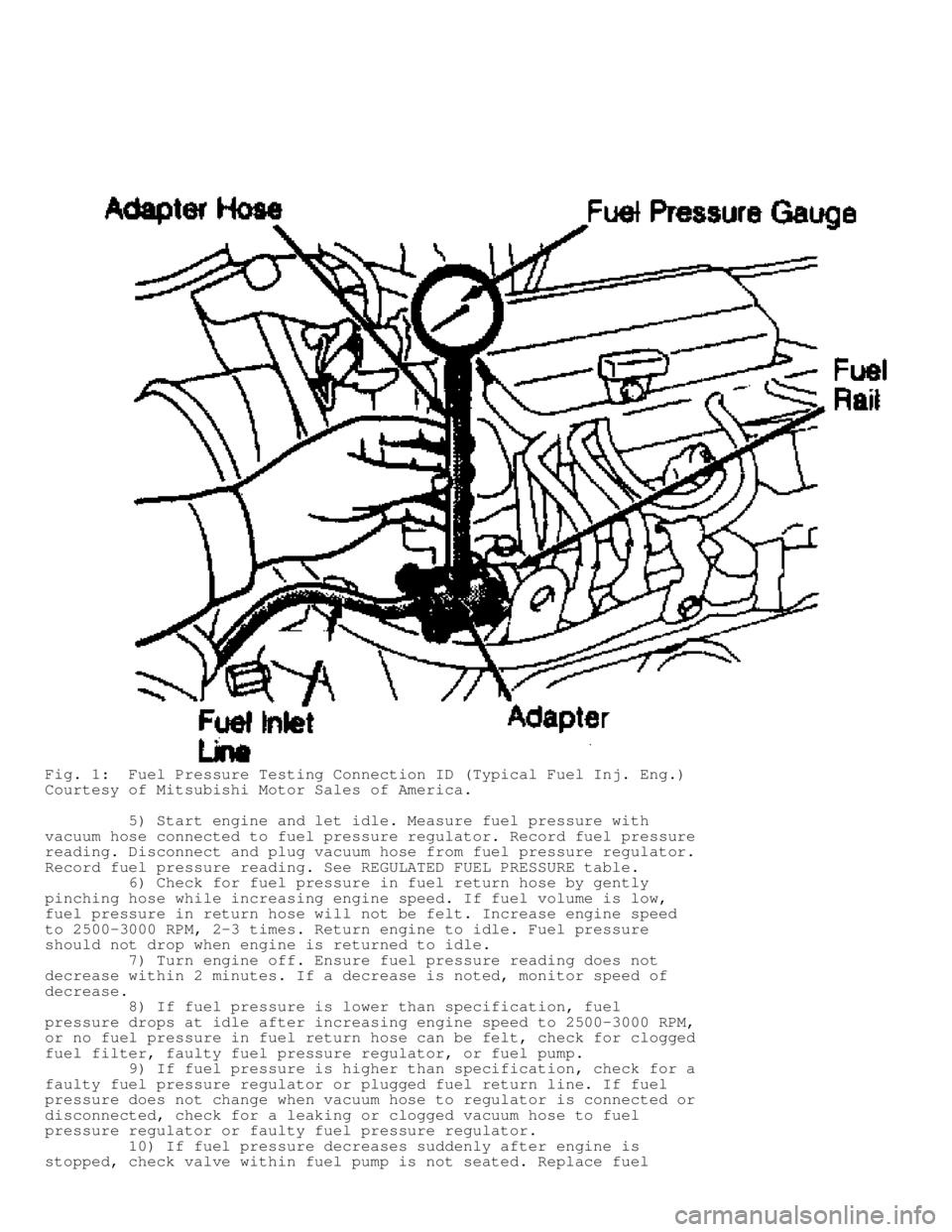

Fig. 1: Fuel Pressure Testing Connection ID (Typical Fuel Inj. Eng.)
Courtesy of Mitsubishi Motor Sales of America.
5) Start engine and let idle. Measure fuel pressure with
vacuum hose connected to fuel pressure regulator. Record fuel pressure
reading. Disconnect and plug vacuum hose from fuel pressure regulator.
Record fuel pressure reading. See REGULATED FUEL PRESSURE table.
6) Check for fuel pressure in fuel return hose by gently
pinching hose while increasing engine speed. If fuel volume is low,
fuel pressure in return hose will not be felt. Increase engine speed
to 2500-3000 RPM, 2-3 times. Return engine to idle. Fuel pressure
should not drop when engine is returned to idle.
7) Turn engine off. Ensure fuel pressure reading does not
decrease within 2 minutes. If a decrease is noted, monitor speed of
decrease.
8) If fuel pressure is lower than specification, fuel
pressure drops at idle after increasing engine speed to 2500-3000 RPM,
or no fuel pressure in fuel return hose can be felt, check for clogged
fuel filter, faulty fuel pressure regulator, or fuel pump.
9) If fuel pressure is higher than specification, check for a
faulty fuel pressure regulator or plugged fuel return line. If fuel
pressure does not change when vacuum hose to regulator is connected or
disconnected, check for a leaking or clogged vacuum hose to fuel
pressure regulator or faulty fuel pressure regulator.
10) If fuel pressure decreases suddenly after engine is
stopped, check valve within fuel pump is not seated. Replace fuel
Page 165 of 1333
pump. If fuel pressure drops slowly, fuel injector is leaking or fuel
pressure regulator valve seat is leaking. Check for faulty fuel
injector or fuel pressure regulator. Repair as required.
11) When fuel pressure test is complete, repeat fuel pressure
release procedure in steps 1) and 2) before disconnecting fuel
pressure gauge. Install new "O" ring at end of high pressure hose.
Check for fuel leaks.
FUEL PUMP TEST TERMINAL LOCATION TABLE
\
\
\
\
\
\
\
Application Wire Color Location
Colt, Colt 200 ......... BLK/WHT .............. Center Of Firewall
Colt Vista ............. BLK/WHT ........ Right Center Of Firewall
Eclipse ................ BLK/WHT .......... Rear Of Battery Compt.
Galant ................. YEL/GRN ........... Left Rear Eng. Compt.
Mirage 1.5L ............ BLK/WHT .............. Center Of Firewall
Mirage 1.6L ............ BLK/BLU .............. Center Of Firewall
Montero .................. WHT .......... Right Center Of Firewall
Pickup ................. BLK/BLU ....... Right Side Of Eng. Compt.
Precis ................... YEL ............. Left Rear Eng. Compt.
Summit ................. BLK/WHT .............. Center Of Firewall
Ram-50 ................. BLK/BLU ....... Right Side Of Eng. Compt.
Stealth, 3000GT ........ BLK/BLU .......... Rear Of Battery Compt.
\
\
\
\
\
\
\
REGULATED FUEL PRESSURE TABLE \
\
\
\
\
\
\
At Idle At Idle
w/Vacuum w/o Vacuum
Application psi (kg/cm
) psi (kg/cm)
Non-Turbo .................. 38 (2.7) ....... 47-50 (3.3-3.5)
Turbo
Except Eclipse A/T ....... 27 (1.9) ....... 36-38 (2.5-2.7)
Eclipse A/T .............. 33 (2.3) ....... 36-38 (2.9-3.2)
\
\
\
\
\
\
\
Control Relay
Multipurpose relay switches power to vehicle sensors and
actuators including airflow sensor, crank angle sensor, idle speed
control, injectors and fuel pump. When ignition switch is turned to ON
position, ECU energizes coils controlling injectors, airflow sensor
and idle speed control. When ignition switch is turned to START
position, ECU energizes coils (through inhibitor switch on A/T models)\
to supply power to fuel pump. Relay failure will cause a no-start
condition. For testing procedure, see SYSTEM & COMPONENT TESTING
article.
IGNITION CHECKS
SPARK
Check for spark at coil wire (if applicable) and at each
spark plug wire using a high output spark tester. Check spark plug
wire resistance on suspect wires. For wire resistance specification,
see C - SPECIFICATIONS article in the ENGINE PERFORMANCE Section.
CRANK ANGLE SENSOR
For crank angle sensor testing procedure on all models except
Ram-50, Stealth, Eclipse, Laser, Pickup and 3000GT, see TEST NS-5:
Page 186 of 1333
![MITSUBISHI MONTERO 1991 Service Manual same axle to eliminate uneven braking behavior. Always wash drums
after servicing or before installing.
DRUM INSPECTION
\
\
\
\](/img/19/57332/w960_57332-185.png "MITSUBISHI MONTERO 1991 Service Manual same axle to eliminate uneven braking behavior. Always wash drums
after servicing or before installing.
DRUM INSPECTION
\
\
\
\")
same axle to eliminate uneven braking behavior. Always wash drums
after servicing or before installing.
DRUM INSPECTION
\
\
\
\
\
\
\
Condition Code Procedure
Balance weight missing .. .. ........ No service suggested or
required.
Bell-mouthed, affecting
performance ............ A ....... Require reconditioning or
replacement.
Cooling fin broken ...... .. ........ No service suggested or
required.
Cracked ................. B ............ Require replacement.
Drum diameter is greater
than OEM "machine to"
specifications but less
than "discard at"
specifications, and the
drum does not require
reconditioning ......... 1 ........ (1) Suggest replacement.
Drum diameter will exceed
OEM "machine to"
specifications after
required
reconditioning ......... B ........ ( 2) Require replacement.
Hard-spotted ............ 2 ....... Suggest reconditioning or
replacement.
Measured diameter is
greater than OEM discard
specifications ......... B ............ Require replacement.
Out-of-round (runout),
affecting performance .. A ....... Require reconditioning or
replacement.
Out-of-round (runout),
exceeding manufacturer's
specifications ......... B ....... Require reconditioning or
replacement.
Scored .................. B ....... Require reconditioning or
replacement.
Surface threaded due to
improper machining ..... B ....... Require reconditioning or
replacement.
Tapered, affecting
performance ............ A ....... Require reconditioning or
replacement.
( 1) - Only applies to vehicles for which OEM "machine to"
specifications exist. If OEM does not supply "machine to"
specifications, the drum may be worn to discard
specifications.
( 2) - If OEM does not supply "machine to" specifications, you
may machine to discard specifications.
\
\
\
\
\
\
\
ELECTRICAL PUMPS AND MOTORS
Copied fuel pump conditions from engine UIGs & deleted
pulsator from leaking conditions.
ELECTRICAL PUMP AND MOTOR INSPECTION
\
\
\
\
\
\
\
Page 351 of 1333

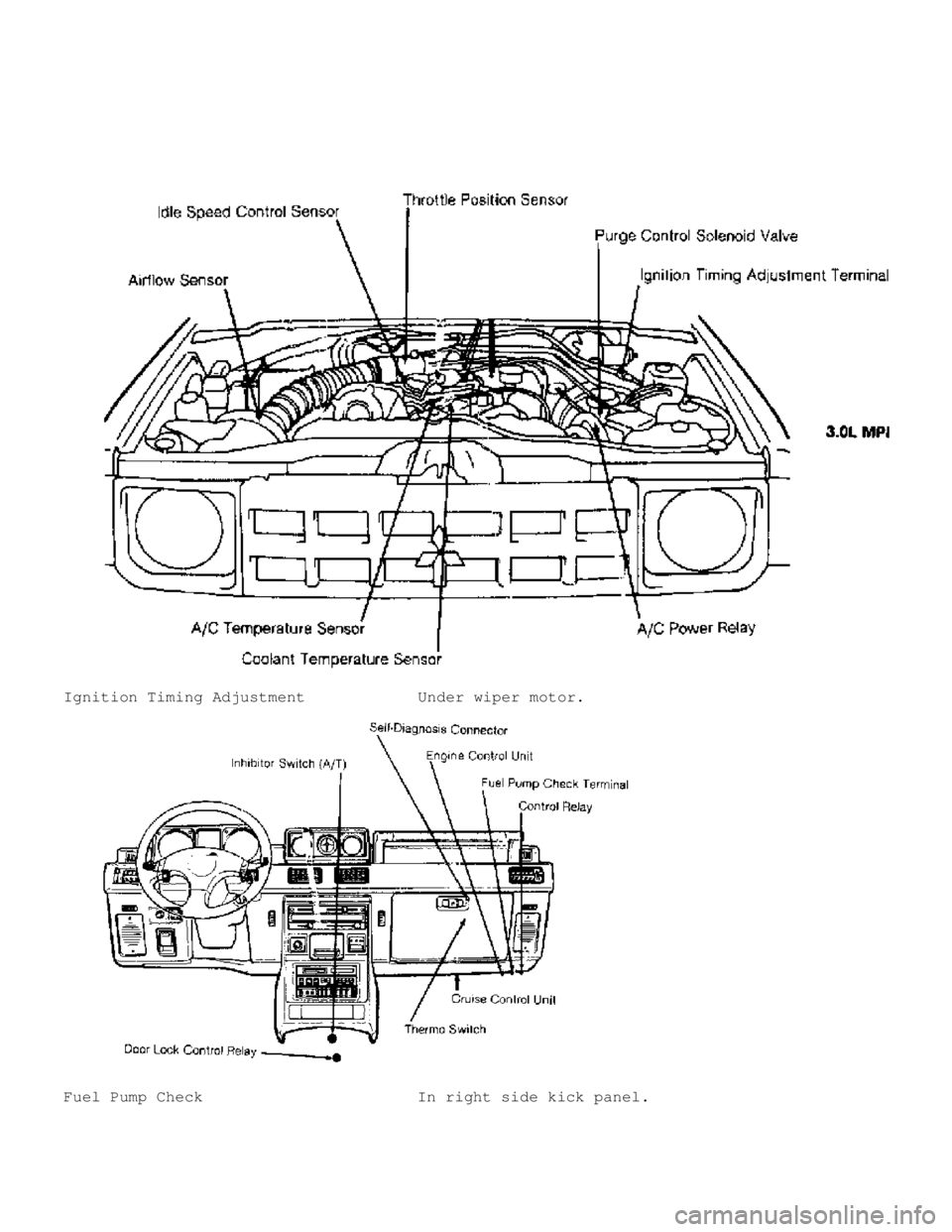

Ignition Timing Adjustment Under wiper motor.
Fuel Pump Check In right side kick panel.
Page 413 of 1333
converter with the exception of the catalyst. See Fig. 5. The TWC
converter uses rhodium, with or without platinum, as its catalyst.
Rhodium helps reduce NOx emissions, as well as HC and CO.
Visually check for presence of catalytic converter(s). Also
check for presence of any required air supply system for the oxidizing
section of the converter. Check for external damage such as severe
dents, removed or damaged heat shields, etc. Check for pellets or
pieces of converter in the tailpipe.
Three-Way Catalyst + Oxidation Catalyst (TWC + OC)
This system contains a TWC converter and an OC converter in a
common housing, separated by a small air space. See Fig. 6. The 2
catalysts are referred to as catalyst beds. Exhaust gases pass through
the TWC first. The TWC bed performs the same function as it would as a
separate device, reducing all 3 emissions. As exhaust gases leave the
bed, they pass through the air space and into the second (OC)
converter catalyst bed.
Visually check for presence of catalytic converter(s). Check
for external damage such as severe dents, removed or damaged heat
shields, etc. Check for pellets or pieces of converter in the
tailpipe.

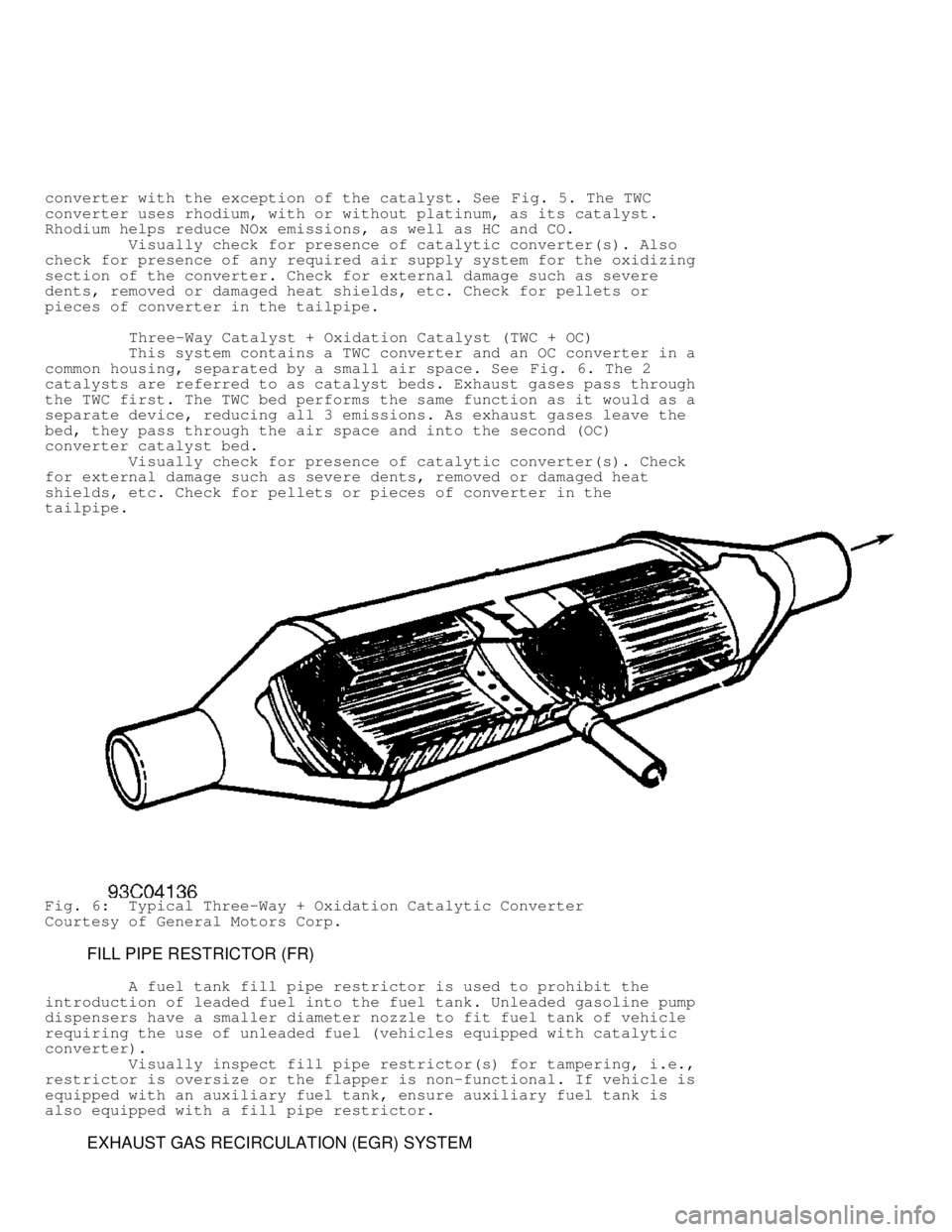

Fig. 6: Typical Three-Way + Oxidation Catalytic Converter
Courtesy of General Motors Corp.
FILL PIPE RESTRICTOR (FR)
A fuel tank fill pipe restrictor is used to prohibit the
introduction of leaded fuel into the fuel tank. Unleaded gasoline pump
dispensers have a smaller diameter nozzle to fit fuel tank of vehicle
requiring the use of unleaded fuel (vehicles equipped with catalytic
converter).
Visually inspect fill pipe restrictor(s) for tampering, i.e.,\
restrictor is oversize or the flapper is non-functional. If vehicle is
equipped with an auxiliary fuel tank, ensure auxiliary fuel tank is
also equipped with a fill pipe restrictor.
EXHAUST GAS RECIRCULATION (EGR) SYSTEM
