Fig. 2: Locating Power Window Relay (Montero)
Courtesy of Mitsubishi Motor Sales of America
Fig. 3: Locating Power Window Relay (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Page 1032 of 1501
Fig. 4: Locating Power Window Relay (3000GT)
Courtesy of Mitsubishi Motor Sales of America
Fig. 5: Identifying Power Window Relay Terminals (Mirage & 3000GT)
Courtesy of Mitsubishi Motor Sales of America
Page 1033 of 1501
Fig. 6: Identifying Power Window Relay Terminals (Montero & Montero
Sport)
Courtesy of Mitsubishi Motor Sales of America
POWER WINDOW MOTOR TEST
1) Remove appropriate door trim panel. Connect positive lead
of a 12-volt test battery to either motor terminal. Connect negative
lead of test battery to other motor terminal. Motor should operate,
unless motor is at maximum travel.
2) Reverse test battery leads. Motor should operate in
opposite direction. If motor does not operate as specified, inspect
wiring. If wiring is okay, replace motor. Reverse test battery leads
again to complete full function test of motor.
POWER WINDOW SWITCH TEST
Remove control switch from trim panel. Using ohmmeter, check
continuity of switch. See appropriate MASTER WINDOW SWITCH CONTINUITY
or SUB-SWITCH CONTINUITY table. See Fig. 7. Replace appropriate switch
as necessary if switch continuity is not as specified.
MASTER WINDOW SWITCH CONTINUITY TABLE (MIRAGE - 2-DOOR)
\
\
\
\
\
\
Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF ................................ 1, 5 & 9
Left Front UP ............................. 1 & 6; 5 & 9
Left Front DOWN ........................... 5 & 6; 1 & 9
Page 1034 of 1501
Right Front OFF ............................... 7, 8 & 9
Right Front UP ............................ 6 & 7; 8 & 9
Right Front DOWN .......................... 6 & 8; 7 & 9
Lock Position
Left Front OFF ................................ 1, 5 & 9
Left Front UP ............................. 1 & 6; 5 & 9
Left Front DOWN ........................... 5 & 6; 1 & 9
Right Front OFF .................................. 7 & 8
Right Front UP ................................... 6 & 7
Right Front DOWN ................................. 6 & 8
(1) - Left side of vehicle refers to driver's side.
\
\
\
\
\
\
MASTER WINDOW SWITCH CONTINUITY TABLE (MIRAGE - 4-DOOR) \
\
\
\
\
\
Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF ............................... 8, 9 & 12
Left Front UP ........................... 8 & 13; 9 & 12
Left Front DOWN ......................... 8 & 12; 9 & 13
Left Rear OFF ................................ 1, 2 & 12
Left Rear UP ............................ 1 & 13; 2 & 12
Left Rear DOWN .......................... 2 & 13; 1 & 12
Right Front OFF ............................. 3, 11 & 12
Right Front UP ......................... 3 & 13; 11 & 12
Right Front DOWN ....................... 3 & 12; 11 & 13
Right Rear OFF .............................. 6, 12 & 14
Right Rear UP .......................... 6 & 12; 13 & 14
Right Rear DOWN ........................ 6 & 13; 12 & 14
Lock Position
Left Front OFF ............................... 8, 9 & 12
Left Front UP ........................... 8 & 13; 9 & 12
Left Front DOWN ......................... 8 & 12; 9 & 13
Left Rear OFF .................................... 1 & 2
Left Rear UP .................................... 1 & 13
Left Rear DOWN .................................. 2 & 13
Right Front OFF ................................. 3 & 11
Right Front UP .................................. 3 & 13
Right Front DOWN ............................... 11 & 13
Right Rear OFF .................................. 6 & 14
Right Rear UP .................................. 13 & 14
Right Rear DOWN ................................. 6 & 13
( 1) - Left side of vehicle refers to driver's side.
\
\
\
\
\
\
SUB-SWITCH CONTINUITY TABLE (MIRAGE - ALL MODELS) \
\
\
\
\
\
Switch Position Check Continuity Between Pins No.
OFF ......................................... 4 & 7; 6 & 8
UP .......................................... 5 & 7; 6 & 8
DOWN ........................................ 4 & 7; 5 & 6
\
\
\
\
\
\
MASTER WINDOW SWITCH CONTINUITY TABLE (MONTERO & MONTERO SPORT) \
\
\
\
\
\
Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF ............................... 8, 9 & 12
Page 1035 of 1501
Left Front UP ........................... 8 & 13; 9 & 12
Left Front DOWN ......................... 8 & 12; 9 & 13
Left Rear OFF ................................ 1, 2 & 12
Left Rear UP ............................ 1 & 13; 2 & 12
Left Rear DOWN .......................... 1 & 12; 2 & 13
Right Front OFF ............................. 3, 11 & 12
Right Front UP ......................... 3 & 13; 11 & 12
Right Front DOWN ....................... 3 & 12; 11 & 13
Right Rear OFF .............................. 6, 12 & 14
Right Rear UP .......................... 6 & 12; 13 & 14
Right Rear DOWN ........................ 6 & 13; 12 & 14
Lock Position
Left Front OFF ............................... 8, 9 & 12
Left Front UP ........................... 8 & 13; 9 & 12
Left Front DOWN ......................... 8 & 12; 9 & 13
Left Rear OFF .................................... 1 & 2
Left Rear UP .................................... 1 & 13
Left Rear DOWN .................................. 2 & 13
Right Front OFF ................................. 3 & 11
Right Front UP .................................. 3 & 13
Right Front DOWN ............................... 11 & 13
Right Rear OFF .................................. 6 & 14
Right Rear UP .................................. 13 & 14
Right Rear DOWN ................................. 6 & 13
(1) - Left side of vehicle refers to driver's side.
\
\
\
\
\
\
SUB-SWITCH CONTINUITY TABLE (MONTERO & MONTERO SPORT) \
\
\
\
\
\
Switch Position Check Continuity Between Pins No.
OFF ......................................... 4 & 7; 6 & 8
UP .......................................... 5 & 7; 6 & 8
DOWN ........................................ 4 & 7; 5 & 6
\
\
\
\
\
\
MASTER WINDOW SWITCH CONTINUITY TABLE (3000GT) \
\
\
\
\
\
Switch Position (1) Check Continuity Between Pins No.
Normal Position
Left Front OFF ................................ 2, 6 & 9
Left Front UP ............................. 1 & 2; 6 & 9
Left Front DOWN ........................... 1 & 9; 2 & 6
Right Front OFF ............................... 3, 4 & 6
Right Front UP ............................ 1 & 4; 3 & 6
Right Front DOWN .......................... 1 & 3; 4 & 6
Lock Position
Left Front OFF ................................ 2, 6 & 9
Left Front UP ............................. 1 & 2; 6 & 9
Left Front DOWN ........................... 1 & 9; 2 & 6
Right Front OFF .................................. 3 & 4
Right Front UP ................................... 1 & 4
Right Front DOWN ................................. 1 & 3
( 1) - Left side of vehicle refers to driver's side.
\
\
\
\
\
\
PASSENGER-SIDE WINDOW SWITCH CONTINUITY TABLE (3000GT) \
\
\
\
\
\
Switch Position Check Continuity Between Pins No.
Page 1036 of 1501
OFF ......................................... 3 & 8; 5 & 7
UP .......................................... 3 & 8; 5 & 9
DOWN ........................................ 3 & 9; 5 & 7
\
\
\
\
\
\
Fig. 7: Identifying Power Window Connector Terminals (Mirage - Main
Switch)
Courtesy of Mitsubishi Motor Sales of America
Page 1037 of 1501

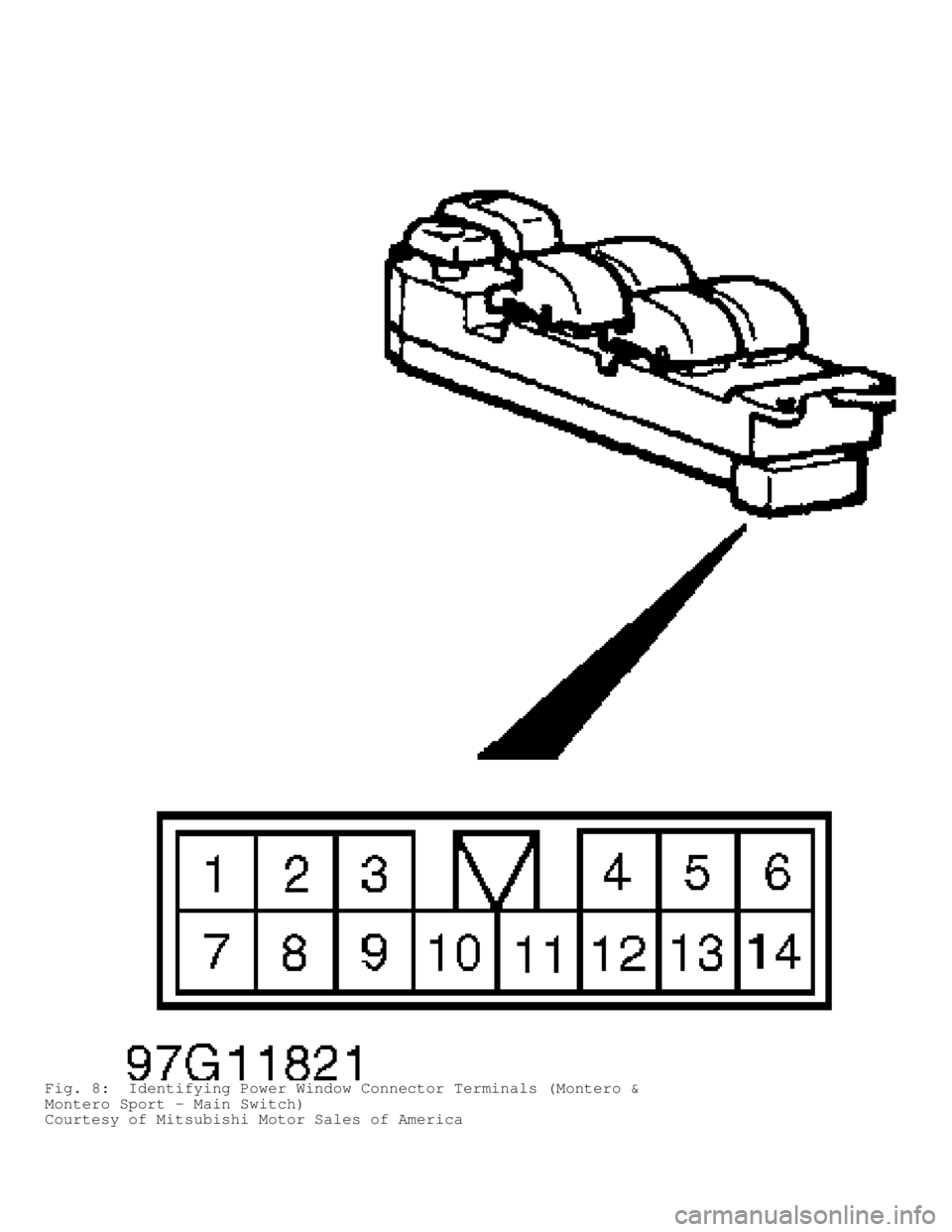

Fig. 8: Identifying Power Window Connector Terminals (Montero &
Montero Sport - Main Switch)
Courtesy of Mitsubishi Motor Sales of America
Page 1038 of 1501
Fig. 9: Identifying Power Window Connector Terminals (Mirage,
Montero & Montero Sport - Sub-Switch)
Courtesy of Mitsubishi Motor Sales of America
Fig. 10: Identifying Power Window Connector Terminals (3000GT - Main
Switch)
Courtesy of Mitsubishi Motor Sales of America
Page 1039 of 1501
Fig. 11: Identifying Power Window Connector Terminals (3000GT -
Sub-Switch)
Courtesy of Mitsubishi Motor Sales of America
REMOVAL & INSTALLATION
POWER WINDOW MOTOR
Removal & Installation
Remove door trim panel and waterproof shield. Remove glass
retaining screws and glass. See Fig. 12. Remove motor and slider
assembly retaining bolts. Remove motor and slider assembly from door.
To install, reverse removal procedure.
Fig. 12: Removing Power Window Motor & Slider Assembly (Typical)
Courtesy of Mitsubishi Motor Sales of America
WIRING DIAGRAMS
Page 1040 of 1501
Fig. 13: Power Window System Wiring Diagram (Mirage - 2-Door)
