![MITSUBISHI MONTERO 1998 Service Manual Fig. 18: Exploded View Of Master Cylinder (Typical)
Courtesy of Mitsubishi Motor Sales of America.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS (DIAMANTE) \](/img/19/57333/w960_57333-240.png "MITSUBISHI MONTERO 1998 Service Manual Fig. 18: Exploded View Of Master Cylinder (Typical)
Courtesy of Mitsubishi Motor Sales of America.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS (DIAMANTE) \")

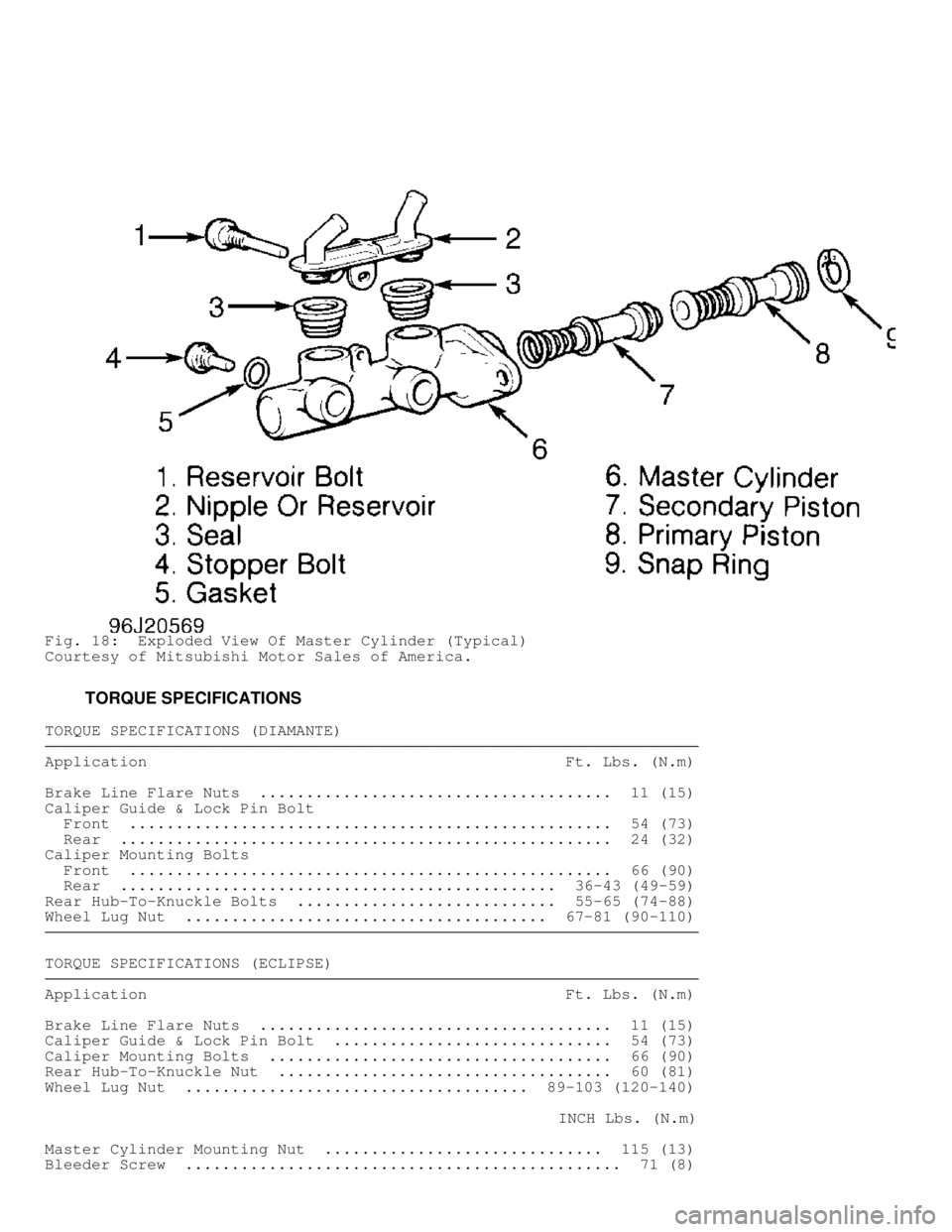

Fig. 18: Exploded View Of Master Cylinder (Typical)
Courtesy of Mitsubishi Motor Sales of America.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS (DIAMANTE) \
\
\
\
\
\
\
Application Ft. Lbs. (N.m)\
Brake Line Flare Nuts ...................................... 11 (15)\
Caliper Guide & Lock Pin Bolt
Front .................................................... 54 (73)\
Rear ..................................................... 24 (32)\
Caliper Mounting Bolts
Front .................................................... 66 (90)\
Rear ............................................... 36-43 (49-59)\
Rear Hub-To-Knuckle Bolts ............................ 55-65 (74-88)\
Wheel Lug Nut ....................................... 67-81 (90-110)\
\
\
\
\
\
\
\
TORQUE SPECIFICATIONS (ECLIPSE) \
\
\
\
\
\
\
Application Ft. Lbs. (N.m)\
Brake Line Flare Nuts ...................................... 11 (15)\
Caliper Guide & Lock Pin Bolt .............................. 54 (73)\
Caliper Mounting Bolts ..................................... 66 (90)\
Rear Hub-To-Knuckle Nut .................................... 60 (81)\
Wheel Lug Nut ..................................... 89-103 (120-140)\
INCH Lbs. (N.m)
Master Cylinder Mounting Nut .............................. 115 (13)\
Bleeder Screw ............................................... 71 (8)\
Page 242 of 1501
![MITSUBISHI MONTERO 1998 Service Manual Wheel Cylinder Bolt ........................................ 89 (10)\
\
\
\
\
\
\](/img/19/57333/w960_57333-241.png "MITSUBISHI MONTERO 1998 Service Manual Wheel Cylinder Bolt ........................................ 89 (10)\
\
\
\
\
\
\")
Wheel Cylinder Bolt ........................................ 89 (10)\
\
\
\
\
\
\
\
TORQUE SPECIFICATIONS (GALANT) \
\
\
\
\
\
\
Application Ft. Lbs. (N.m)\
Brake Line Flare Nuts ...................................... 11 (15)\
Caliper Guide & Lock Pin Bolt .............................. 54 (73)\
Caliper Mounting Bolts ..................................... 66 (90)\
Rear Hub-To-Knuckle Nut .................................... 60 (81)\
Wheel Lug Nut ....................................... 67-81 (90-110)\
INCH Lbs. (N.m)
Master Cylinder Mounting Booster Nut ...................... 115 (13)\
Bleeder Screw ............................................... 71 (8)\
Wheel Cylinder Bolt ........................................ 89 (10)\
\
\
\
\
\
\
\
TORQUE SPECIFICATIONS (MIRAGE) \
\
\
\
\
\
\
Application Ft. Lbs. (N.m)\
Brake Line Flare Nuts ...................................... 11 (15)\
Caliper Guide Pin Bolt ..................................... 36 (49)\
Caliper Lock Pin Bolt ................................ 61-69 (83-93)\
Caliper Mounting Bolts .............................. 66-81 (90-110)\
Rear Wheel Bearing Nut ................................... 127 (172)\
Wheel Lug Nut ....................................... 67-81 (90-110)\
INCH Lbs. (N.m)
Master Cylinder Mounting Booster Nut ...................... 115 (13)\
Bleeder Screw ............................................... 71 (8)\
Wheel Cylinder Bolt ........................................ 89 (10)\
\
\
\
\
\
\
\
TORQUE SPECIFICATIONS (MONTERO) \
\
\
\
\
\
\
Application Ft. Lbs. (N.m)\
Brake Line Flare Nuts ...................................... 11 (15)\
Caliper Guide & Lock Pin Bolt
Front .................................................... 54 (73)\
Rear ..................................................... 32 (44)\
Caliper Mounting Bolt ...................................... 65 (88)\
Wheel Lug Nut ....................................... 72-87 (98-118)\
Rear Axle Bearing Retainer Nut ................... 145-173 (196-235)\
INCH Lbs. (N.m)
Master Cylinder Mounting Nut .............................. 115 (13)\
Bleeder Screw ............................................... 71 (8)\
\
\
\
\
\
\
\
TORQUE SPECIFICATIONS (MONTERO SPORT) \
\
\
\
\
\
\
Application Ft. Lbs. (N.m)\
Brake Line Flare Nuts ...................................... 11 (15)\
Caliper Guide & Lock Pin Bolt (Front) ...................... 54 (73\
)
Caliper Mounting Bolt
Page 243 of 1501
![MITSUBISHI MONTERO 1998 Service Manual Front .................................................... 66 (90)\
Rear .................................................... 94 (127)\
Wheel Lug Nut
15x6" Wheel .........................](/img/19/57333/w960_57333-242.png "MITSUBISHI MONTERO 1998 Service Manual Front .................................................... 66 (90)\
Rear .................................................... 94 (127)\
Wheel Lug Nut
15x6\" Wheel .........................")
Front .................................................... 66 (90)\
Rear .................................................... 94 (127)\
Wheel Lug Nut
15x6" Wheel ..................................... 87-101 (118-137)\
15x7" Wheel ....................................... 72-86 (98-117)\
Rear Axle Bearing Retainer Nut ................... 145-173 (196-235)\
INCH Lbs. (N.m)
Master Cylinder Mounting Nut .............................. 115 (13)\
Bleeder Screw ............................................... 71 (8)\
Wheel Cylinder Nut ......................................... 89 (10)\
\
\
\
\
\
\
\
TORQUE SPECIFICATIONS (3000GT) \
\
\
\
\
\
\
Application Ft. Lbs. (N.m)\
Brake Line Flare Nuts ...................................... 11 (15)\
Caliper Guide & Lock Pin Bolt (FWD)
Front .................................................... 54 (73)\
Rear ..................................................... 20 (27)\
Caliper Mounting Bolts
Front .................................................... 66 (90)\
Rear ............................................... 36-43 (49-59)\
Front Axle Shaft Nut ..................................... 166 (230)\
Rear Wheel Bearing Nut
AWD ............................................ 192-221 (260-300)\
FWD .................................................... 170 (230)\
INCH Lbs. (N.m)
Master Cylinder Mounting Nut ............................... 84 (10)\
\
\
\
\
\
\
\
BRAKE SYSTEM BRAKE SPECIFICATIONS
BRAKE SPECIFICATIONS (DIAMANTE) \
\
\
\
\
\
\
Application In. (mm)\
Booster Pushrod Clearance ...................... .016-.024 (.40-.60)\
Disc Runout ............................................. .003 (.08)\
Disc Thickness (Minimum)
Front ................................................. .88 (22.4)\
Rear ................................................... .33 (8.4)\
Hub End Play ............................................ .002 (.05)\
Master Cylinder Inside Diameter ......................... 1.0 (25.4)\
Pad Lining Thickness (Minimum)
Front ................................................. 1.08 (2.0)\
Rear .................................................. 1.04 (1.0)\
\
\
\
\
\
\
\
BRAKE SPECIFICATIONS (ECLIPSE) \
\
\
\
\
\
\
Application In. (mm)\
Booster Pushrod Clearance ...................... .023-.033 (.65-.85)\
Disc Runout ............................................. .003 (.08)\
Disc Diameter
AWD .................................................... 9.0 (228)\
Except AWD ............................................. 8.0 (204)\
Page 244 of 1501
![MITSUBISHI MONTERO 1998 Service Manual Disc Thickness (Minimum)
Front ................................................. .88 (22.4)\
Rear ................................................... .33 (8.4)\
Drum Inside Diameter (Maximum](/img/19/57333/w960_57333-243.png "MITSUBISHI MONTERO 1998 Service Manual Disc Thickness (Minimum)
Front ................................................. .88 (22.4)\
Rear ................................................... .33 (8.4)\
Drum Inside Diameter (Maximum")
Disc Thickness (Minimum)
Front ................................................. .88 (22.4)\
Rear ................................................... .33 (8.4)\
Drum Inside Diameter (Maximum) ........................... 9.1 (231\
)
Hub End Play ............................................ .002 (.05)\
Master Cylinder Inside Diameter
With ABS .............................................. 1.0 (25.4)\
Without ABS ........................................... .93 (23.8)\
Pad Lining Thickness (Minimum) ........................... .08 (2.0\
)
Shoe Lining Thickness (Minimum) ......................... .039 (1.0\
)
Wheel Cylinder Inside Diameter ......................... .750 (19.1)\
\
\
\
\
\
\
\
BRAKE SPECIFICATIONS (GALANT) \
\
\
\
\
\
\
Application In. (mm)\
Booster Pushrod Clearance
Single Booster ............................... .024-.031 (.60-.80)\
Tandem Booster ............................... .016-.024 (.40-.60)\
Disc Runout ............................................. .003 (.08)\
Disc Thickness (Minimum) ................................ .88 (22.4\
)
Drum Inside Diameter (Maximum) ........................... 9.1 (231\
)
Hub End Play ............................................ .002 (.05)\
Master Cylinder Inside Diameter ......................... 1.0 (25.4)\
Pad Lining Thickness (Minimum) ........................... .08 (2.0\
)
Shoe Lining Thickness (Minimum) ......................... .039 (1.0\
)
Wheel Cylinder Inside Diameter ......................... .750 (19.1)\
\
\
\
\
\
\
\
BRAKE SPECIFICATIONS (MIRAGE) \
\
\
\
\
\
\
Application In. (mm)\
Booster Pushrod Clearance ...................... .026-.033 (.65-.85)\
Disc Runout ........................................... .006 (.0024)\
Disc Thickness (Minimum) ................................ .65 (16.4\
)
Drum Inside Diameter (Maximum) ........................... 8.1 (206\
)
Hub End Play ............................................ .002 (.05)\
Master Cylinder Inside Diameter ........................ .87 (22.22)\
Pad Lining Thickness (Minimum) ........................... .08 (2.0\
)
Shoe Lining Thickness (Minimum) ......................... .039 (1.0\
)
Wheel Cylinder Inside Diameter ......................... .750 (19.1)\
\
\
\
\
\
\
\
BRAKE SPECIFICATIONS (MONTERO) \
\
\
\
\
\
\
Application In. (mm)\
Booster Pushrod Clearance ...................... .026-.035 (.65-.90)\
Disc Runout
Front ................................................. .004 (.10)\
Rear .................................................. .003 (.08)\
Disc Thickness (Minimum)
Front ................................................. 1.0 (25.4)\
Rear .................................................. .65 (16.4)\
Hub End Play ........................................... .0098 (.25)\
Master Cylinder Inside Diameter ........................ .937 (23.8)\
Pad Lining Thickness (Minimum)
Front ................................................. 1.08 (2.0)\
Rear ........................................................ (1)
Parking Brake Drum Diameter (Maximum) .................. 7.795 (198\
)
Page 245 of 1501
![MITSUBISHI MONTERO 1998 Service Manual (1) - Information not available from manufacturer. \
\
\
\
\
\
\](/img/19/57333/w960_57333-244.png "MITSUBISHI MONTERO 1998 Service Manual (1) - Information not available from manufacturer. \
\
\
\
\
\
\")
(1) - Information not available from manufacturer. \
\
\
\
\
\
\
BRAKE SPECIFICATIONS (MONTERO SPORT) \
\
\
\
\
\
\
Application In. (mm)\
Disc Runout
Front ................................................. .002 (.06)\
Rear .................................................. .003 (.08)\
Disc Thickness (Minimum)
Front ................................................. .88 (22.4)\
Rear .................................................. .65 (16.4)\
Drum Diameter (Maximum) .............................. 10.71 (272.0\
)
Hub End Play (Maximum) .................................. .002 (.05\
)
Master Cylinder Inside Diameter ........................ .937 (23.8)\
Pad Lining Thickness (Minimum) .......................... 1.08 (2.0\
)
Shoe Lining Thickness (Minimum) ......................... .039 (1.0\
)
Wheel Cylinder Inside Diameter .......................... .90 (22.8)\
\
\
\
\
\
\
\
BRAKE SPECIFICATIONS (3000GT) \
\
\
\
\
\
\
Application In. (mm)\
Booster Pushrod Clearance ...................... .026-.030 (.65-.75)\
Disc Runout
Front
AWD ................................................. .004 (.10)\
FWD ................................................. .003 (.07)\
Rear ................................................ .003 (.08)\
Disc Thickness (Minimum)
Front
AWD ................................................ 1.12 (28.4)\
FWD ................................................. .88 (22.4)\
Rear
AWD ............................................... .72 (18.4)\
FWD ............................................... .65 (16.4)\
Hub End Play ............................................ .002 (.05)\
Master Cylinder Inside Diameter ......................... 1.0 (25.4)\
Pad Lining Thickness (Minimum) .......................... 1.08 (2.0\
)
Parking Brake Drum Diameter (Maximum) ................... 6.65 (169\
)
\
\
\
\
\
\
\
Page 246 of 1501
C - SPECIFICATIONS
1998 Mitsubishi Montero
1998 ENGINE PERFORMANCE
Mitsubishi - Service & Adjustment Specifications
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
INTRODUCTION
Use this article to quickly find specifications related to
servicing and on-vehicle adjustments. This is a quick reference
article to use when you are familiar with an adjustment procedure and
only need a specification.
CAPACITIES
BATTERY SPECIFICATIONS TABLE \
\
\
\
\
\
Application Group Size CCA Rating
Diamante ................ 57NAS .................... 520
Eclipse .................. 86 ........... 430 Or ( 1) 525
Galant ................... D26 ..................... 490
Mirage ................. 55B24L .................... 433
Montero ............... 75D26R-MF .................. 490
Montero Sport .......... 75D23R .................... 520
3000GT ................ 75D23R-MF .................. 520
( 1) - Used on 2.0L non-turbo with A/T.
\
\
\
\
\
\
NOTE: Refill capacities are approximate. Correct fluid level
should be determined by mark on dipstick, if applicable.
FLUID CAPACITIES TABLE
\
\
\
\
\
\
Application Quantity
Automatic Transaxle
(Mitsubishi Plus/Mopar Plus/Dexron-II)
Diamante .............................. 9.0 Qts. (8.5L)
Eclipse
2.0L
Non-Turbo ......................... 9.1 Qts. (8.6L)
Turbo ............................. 7.1 Qts. (6.7L)
2.4L ................................ 6.4 Qts. (6.1L)
Galant ................................ 6.3 Qts. (6.0L)
Mirage ................................ 8.2 Qts. (7.8L)
3000GT ................................ 7.9 Qts. (7.5L)
Automatic Transmission
(Mitsubishi Plus/Mopar Plus/Dexron II)
Montero .............................. 10.0 Qts. (9.8L)
Montero Sport ........................ 10.4 Qts. (9.8L)
Cooling System
(Includes Heater & Reserve Tank)
Diamante ............................... 10 Qts. (9.5L)
Eclipse & Galant ...................... 7.4 Qts. (7.0L)
Mirage
1.5L ................................ 5.3 Qts. (5.0L)
1.8L ................................ 6.3 Qts. (6.0L)
Page 247 of 1501
Montero .............................. 10.0 Qts. (9.5L)
Montero Sport
2.4L
With Rear Heater .................. 9.5 Qts. (9.0L)
Without Rear Heater ............... 8.5 Qts. (8.0L)
3.0L
With Rear Heater ................ 10.6 Qts. (10.0L)
Without Rear Heater ............... 9.5 Qts. (9.0L)
3000GT ................................ 8.5 Qts. (8.0L)
Crankcase (Includes Filter)
Diamante ............................... 4.5 Qts. (4.3L)
Eclipse
Non-Turbo ............................ 4.5 Qts. (4.3L)
2.0L Turbo ........................... 4.6 Qts. (4.4L)
Galant ................................. 4.5 Qts. (4.3L)
Mirage
1.5L ................................. 3.5 Qts. (3.3L)
1.8L ................................. 4.0 Qts. (3.8L)
Montero ............................ (1) 5.0 Qts. (4.8L)
Montero Sport
2.4L ................................. 4.5 Qts. (4.3L)
3.0L ................................. 5.2 Qts. (4.9L)
3000GT
Non-Turbo ............................ 4.5 Qts. (4.3L)
Turbo ................................ 5.0 Qts. (4.6L)
Differential (SAE 80W-90/API GL-5)
Eclipse ................................... .9 Qt. (.8L)
Montero
Front ................................ 1.3 Qts. (1.2L)
Rear ................................. 3.3 Qts. (3.2L)
Montero Sport
Front ................................ 1.2 Qts. (1.1L)
Rear
2.4L ............................... 1.6 Qts. (1.5L)
3.0L ............................... 2.7 Qts. (2.6L)
3000GT ................................. 1.2 Qts. (1.1L)
Manual Transaxle (SAE 75W-85/API GL-4)
Eclipse
Non-Turbo ( 2) ........................ 2.1 Qts. (2.0L)
Turbo
AWD ................................ 2.4 Qts. (2.3L)
FWD ................................ 2.1 Qts. (2.0L)
Galant ................................. 2.3 Qts. (2.2L)
Mirage
1.5L ................................. 2.2 Qts. (2.1L)
1.8L ................................. 2.3 Qts. (2.2L)
3000GT
AWD .................................. 2.5 Qts. (2.4L)
FWD .................................. 2.4 Qts. (2.3L)
Manual Transmission (SAE 75W-85/API GL-4)
Montero ................................ 3.3 Qts. (3.2L)
Montero Sport .......................... 2.4 Qts. (2.3L)
Power Steering (Dexron-II)
3000GT W/4-Wheel Steering .............. 3.2 Pts. (1.5L)
Montero ................................ 2.2 Pts. (1.1L)
All Others .............................. 1.9 Pts. (.9L)
Transfer Case (SAE 75W-85/API GL-4)
Eclipse (AWD) ........................... 1.1 Pts. (.5L)
Montero ................................ 5.0 Pts. (2.5L)
Montero Sport .......................... 4.6 Pts. (2.3L)
3000GT .................................... .7 Pt. (.3L)
( 1) - Add .5 qt. (.3L) if oil cooler is drained.
Page 248 of 1501
![MITSUBISHI MONTERO 1998 Service Manual (2) - Use Texaco MTX FM fluid. \
\
\
\
\
\
QUICK-SERVICE
SERV](/img/19/57333/w960_57333-247.png "MITSUBISHI MONTERO 1998 Service Manual (2) - Use Texaco MTX FM fluid. \
\
\
\
\
\
QUICK-SERVICE
SERV")
(2) - Use Texaco MTX FM fluid. \
\
\
\
\
\
QUICK-SERVICE
SERVICE INTERVALS & SPECIFICATIONS
REPLACEMENT INTERVALS TABLE (DIAMANTE) \
\
\
\
\
\
Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant ........................................... 30,000
Oil ................................................. 7500
Oil Filter .................................... ( 2) 15,000
Spark Plugs ....................................... 60,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
\
\
\
\
\
\
REPLACEMENT INTERVALS TABLE (ECLIPSE) \
\
\
\
\
\
Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant ........................................... 30,000
Oil
Non-Turbo ......................................... 7500
Turbo ............................................. 5000
Oil Filter
Non-Turbo ................................... ( 2) 15,000
Turbo ....................................... ( 2) 10,000
Spark Plugs ....................................... 30,000
Spark Plug Wires .................................. 60,000
Transfer Case Fluid .................................. ( 3)
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
( 3) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
\
\
\
\
\
\
REPLACEMENT INTERVALS TABLE (GALANT) \
\
\
\
\
\
Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant .............................................. ( 2)
Page 249 of 1501
Oil ................................................. 7500
Oil Filter .................................... (3) 15,000
Spark Plugs ....................................... 30,000
Spark Plug Wires .................................. 60,000
Timing & Balance Shaft Belts ...................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
\
\
\
\
\
\
REPLACEMENT INTERVALS TABLE (MIRAGE) \
\
\
\
\
\
Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant .............................................. ( 2)
Oil ................................................. 7500
Oil Filter .................................... ( 3) 15,000
Spark Plugs ....................................... 30,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
\
\
\
\
\
\
REPLACEMENT INTERVALS TABLE (MONTERO) \
\
\
\
\
\
Component Miles
Air Filter ........................................ 30,000
Automatic Transmission Fluid ......................... ( 1)
Coolant ........................................... 30,000
Front & Rear Axle Fluid ( 2) ....................... 30,000
Oil ................................................. 7500
Oil Filter .................................... ( 3) 15,000
Manual Transmission .................................. ( 4)
Spark Plugs ( 5) ................................... 60,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Limited-slip differential.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
( 4) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
Page 250 of 1501
![MITSUBISHI MONTERO 1998 Service Manual (5) - Use Platinum spark plugs only. \
\
\
\
\
\
REPLACEMENT INTERVALS TABLE (MON](/img/19/57333/w960_57333-249.png "MITSUBISHI MONTERO 1998 Service Manual (5) - Use Platinum spark plugs only. \
\
\
\
\
\
REPLACEMENT INTERVALS TABLE (MON")
(5) - Use Platinum spark plugs only. \
\
\
\
\
\
REPLACEMENT INTERVALS TABLE (MONTERO SPORT) \
\
\
\
\
\
Component Miles
Air Filter ........................................ 30,000
Automatic Transmission
Except 4WD ......................................... ( 1)
4WD ............................................. 30,000
Axle Fluid ( 2) .................................... 30,000
Coolant ........................................... 30,000
Oil ................................................. 7500
Oil Filter .................................... ( 3) 15,000
Spark Plugs ( 4) ................................... 60,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Limited-slip differential.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
( 4) - Use Platinum spark plugs only.
\
\
\
\
\
\
REPLACEMENT INTERVALS TABLE (3000GT) \
\
\
\
\
\
Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant ........................................... 30,000
Oil
Non-Turbo ......................................... 7500
Turbo ............................................. 5000
Oil Filter
Non-Turbo ....................................... 15,000
Turbo ........................................... 10,000
Spark Plugs
Except Platinum ................................. 30,000
Platinum ........................................ 60,000
Spark Plug Wires ( 2) .............................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Except vehicles equipped with Federal Emissions.
\
\
\
\
\
\
BELT ADJUSTMENT TABLE \
\
\
\
\
\
\
( 1) Deflection ( 1) Deflection
Application New Belt - In. (mm) Used Belt - In. (mm\
)
Diamante
Generator & A/C .... .24-.28 (6.0-7.2) ....... .32-.37 (8.2-9.3\
)
P/S ................ .33-.37 (8.4-9.3) ..... .46-.52 (11.7-13.4\
)
Eclipse
2.0L Non-Turbo
