Page 645 of 1501
Condition Code Procedure
Application incorrect ... B ........... Require replacement.
Fails to maintain proper
pressure ............... A ........... Require replacement.
Gaskets missing ......... C ........... Require replacement.
Leaking ................. A ........... Require replacement.
Missing ................. C ........... Require replacement.
Plugged (vacuum and
pressure relief) ....... A ........... Require replacement.
Seals missing ........... C ........... Require replacement.
\
\
\
\
\
\
\
GASKETS
GASKET INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Leaking ................. A ........... ( 1) Require repair or
replacement.
( 1) - Require inspection of mating and sealing surface and
repair or replace as necessary.
\
\
\
\
\
\
\
GROMMETS (VALVE COVER)
GROMMET (VALVE COVER) INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Leaking ................. 2 ........... ( 1) Suggest repair or
replacement.
( 1) - Require inspection of mating and sealing surface and
repair or replace as necessary.
\
\
\
\
\
\
\
HARMONIC DAMPERS
HARMONIC DAMPER INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Application incorrect ... B ........... Require replacement.
Attaching hardware
broken ................. A .. Require repair or replacement
of hardware.
Attaching hardware
missing ................ C ......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A .. Require repair or replacement
of hardware.
Cracked ................. A ........... Require replacement.
Dented (fluid
type only) ............. A ........... Require replacement.
Keyway distorted ........ A . Require repair or replacement.
Leaking (Fluid damper
only) .................. A ........... Require replacement.
Loose ................... A ........... Require replacement.
Noisy ................... A ........... Require replacement.
Page 682 of 1501
Threads stripped (threads
missing) ............... A ............ Require replacement.
Wire lead conductors
exposed ................ B .. Require repair or replacement.
Wire lead corroded ...... A .. Require repair or replacement.
Wire lead open .......... A .. Require repair or replacement.
Wire lead shorted ....... A .. Require repair or replacement.
(1) - Determine cause and correct prior to repair or
replacement of part.
( 2) - Inoperative includes intermittent operation or out of
OEM specification. Some components may be serviceable;
check for accepted cleaning procedure.
\
\
\
\
\
\
\
TIMING BELT SPROCKETS
TIMING BELT SPROCKET INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Alignment incorrect ..... B ................. Require repair.
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Bent .................... A ............ Require replacement.
Cracked ................. A ............ Require replacement.
Key damaged ............. A ............ Require replacement.
Loose ................... A .. Require repair or replacement.
Missing ................. C ............ Require replacement.
Pulley damaged, affecting
belt life .............. A ............ Require replacement.
Sprocket damaged,
affecting belt life .... A .. Require repair or replacement.
Sprocket loose .......... B .. Require repair or replacement.
Sprocket-to-shaft
alignment incorrect ..... B .. Require repair or replacement.
\
\
\
\
\
\
\
TIMING BELTS
TIMING BELT INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Adjustment incorrect .... 2 ......... ( 1) Suggest adjustment.
Alignment incorrect ..... B ........... ( 2) Further inspection
required.
Broken .................. A ............ Require replacement.
Cam timing out of
specification .......... B ................. Require repair.
Cracked ................. 1 ............ Suggest replacement.
Fluid-soaked ............ 1 ... Suggest replacement. Further
inspection required.
Frayed .................. 1 ............ Suggest replacement.
Maintenance intervals ... 3 ... Suggest replacement to comply
with vehicle OEM recommended
Page 813 of 1501
![MITSUBISHI MONTERO 1998 Owners Manual Brake On/Off (BOO) Switch ................... Cruise Control Systems\
Engine Performance
Shift Int](/img/19/57333/w960_57333-812.png "MITSUBISHI MONTERO 1998 Owners Manual Brake On/Off (BOO) Switch ................... Cruise Control Systems\
Engine Performance
Shift Int")
Brake On/Off (BOO) Switch ................... Cruise Control Systems\
Engine Performance
Shift Interlock Systems
Buzzer Module ...................................... Warning Systems
Camshaft Position (CMP) Sensor .................. Engine Performance\
Central Control Module ........................... Anti-Theft System
Clockspring ............................... Air Bag Restraint System
Cruise Control Systems
Steering Column Switches
Clutch Pedal Position Switch .............................. Starters
Clutch Start Switch ....................................... Starters
Combination Meter ......................... Analog Instrument Panels
Constant Control Relay Module (CCRM) ............ Engine Performance\
Electric Cooling Fans
Convenience Center .............................. Power Distribution
Illumination/Interior Lights
Convertible Top Motor ........................ Power Convertible Top
Convertible Top Switch ....................... Power Convertible Top
Crankshaft Position (CKP) Sensor ................ Engine Performance\
Cruise Control Module ....................... Cruise Control Systems
Cruise Control Switch ....................... Cruise Control Systems
Condenser Fan Relay(s) ....................... Electric Cooling Fans\
Data Link Connector (DLC) ....................... Engine Performance\
Daytime Running Lights Module ............... Daytime Running Lights
Exterior Lights
Defogger Relay ................................ Rear Window Defogger
Diagnostic Energy Reserve Module (DERM) ... Air Bag Restraint System\
Discriminating Sensor (Air Bag) ........... Air Bag Restraint System\
Distributor ..................................... Engine Performance
Door Lock Actuators ............................... Power Door Locks
Remote Keyless Entry
Door Lock Relay(s) ................................ Power Door Locks\
Electrochromic Mirror ................................ Power Mirrors
Electronic Level Control (ELC)
Height Sensor .............................. Electronic Suspension
Electronic Level Control (ELC) Module ........ Electronic Suspension\
Engine Coolant Temperature (ECT)
Sending Unit ............................ Analog Instrument Panels
Engine Coolant Temperature (ECT) Sensor ......... Engine Performance\
Engine Control Module ........................... Engine Performance
Generators & Regulators
Starters
ETACS ECU .......................................... Warning Systems
Power Windows
Remote Keyless Entry
Evaporative (EVAP) Emissions Canister ........... Engine Performance\
EVAP Canister Purge Solenoid .................... Engine Performance
EVAP Canister Vent Solenoid ..................... Engine Performance
Exhaust Gas Recirculation (EGR) Valve ........... Engine Performance\
Fuel Tank Vacuum Sensor ......................... Engine Performance
Fog Lights ....................................... Headlight Systems
Daytime Running Lights
Fog Light Relay .................................. Headlight Systems
Daytime Running Lights
Fuel Door Release Solenoid ................. Power Fuel Door Release
Fuel Gauge Sending Unit ................... Analog Instrument Panels
Fuel Injectors .................................. Engine Performance
Fuel Pump ....................................... Engine Performance
Fuel Pump Relay ................................. Engine Performance
Power Distribution
Fuse/Relay Block ................................ Power Distribution
Fusible Links ................................... Power Distribution
Generators & Regulators
Page 814 of 1501
Starters
Generator .................................. Generators & Regulators
Engine Performance
Power Distribution
Generic Electronic Module (GEM) ............... Body Control Modules\
Electronic Suspension
Glow Plug Relay ................................. Engine Performance
Glow Plugs ...................................... Engine Performance
Grounds ........................................ Ground Distribution
Headlight Door Module .............................. Headlight Doors
Headlight Relay .................................. Headlight Systems
Daytime Running Lights
Headlights ....................................... Headlight Systems
Daytime Running Lights
Heated Oxygen Sensor(s) (HO2S) .................. Engine Performan\
ce
Heated Windshield Control Module ................ Heated Windshields
Height Sensor ................................ Electronic Suspension
Horns ..................................... Steering Column Switches
Horn Relay ................................ Steering Column Switches
Idle Air Control (IAC) Motor/Valve .............. Engine Performance\
Ignition Coil(s) ................................ Engine Performance\
Ignition Key Lock Cylinder ....................... Anti-Theft System
Ignition Module ................................. Engine Performance

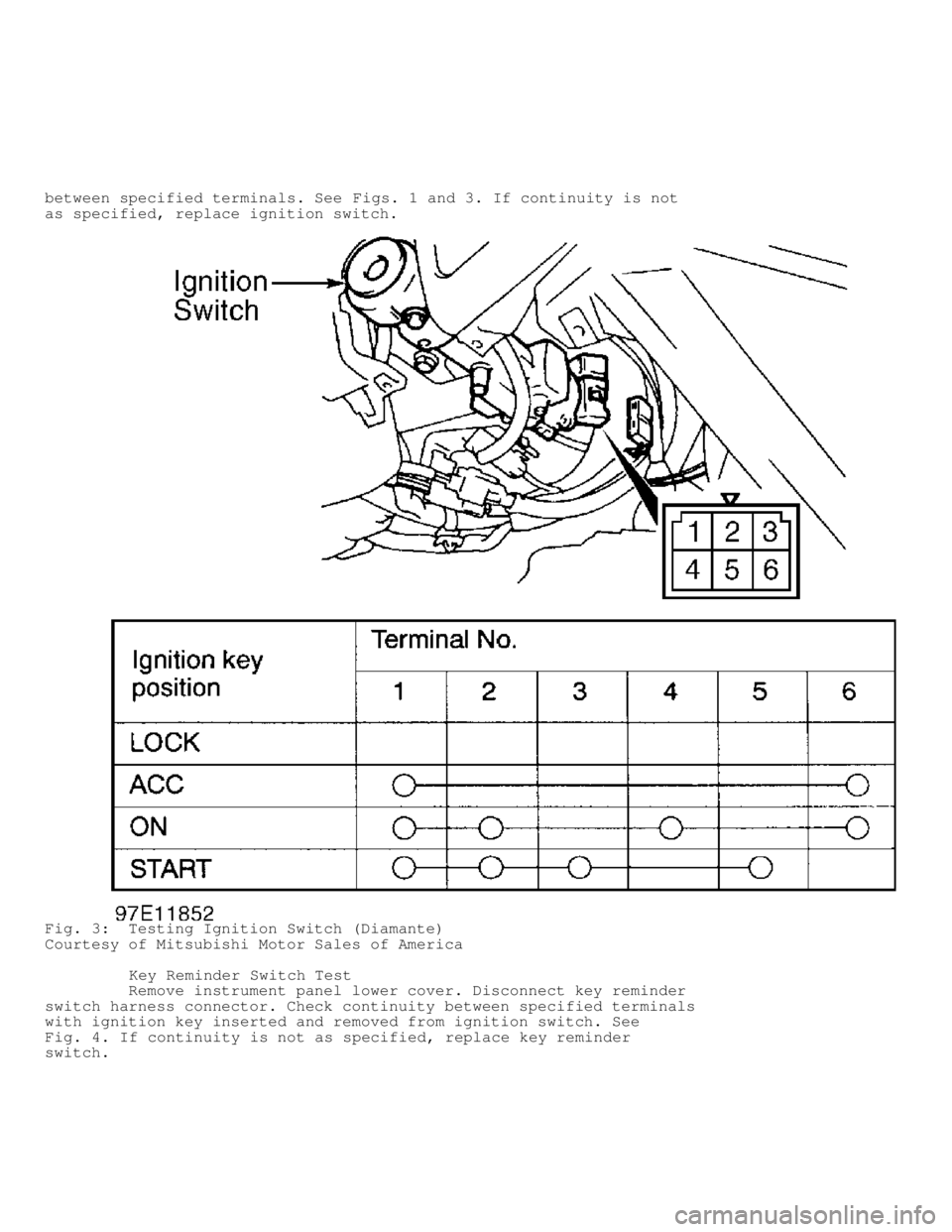

Ignition Switch ................................. Power Distribution
Engine Performance
Generators & Regulators
Starters
Illuminated Entry Module .............. Illumination/Interior Lights
Illumination Lights ................... Illumination/Interior Lights
Impact Sensor ............................. Air Bag Restraint System
Inertia Fuel Shutoff Switch ..................... Engine Performance
Inhibit Relay ............................................. Starters
Instrument Cluster ........................ Analog Instrument Panels
Intake Air Temperature (IAT) Sensor ............. Engine Performance\
Interior Lights ....................... Illumination/Interior Lights
Interlock Switch .......................................... Starters
Junction Block .................................. Power Distribution
Keyless Entry Receiver ........................ Remote Keyless Entry
Key Reminder Switch ....................................... Starters
Knock Sensor .................................... Engine Performance
Lamp Control Module ................................ Exterior Lights
License Plate Lamp ................................. Exterior Lights
Lighting Control Module ................... Lighting Control Modules
Anti-Theft System
Daytime Running Lights
Headlight Systems
Lower Relay .................................. Power Convertible Top
Malfunction Indicator Light (MIL) ............... Engine Performance\
Instrument Panels
Manifold Absolute Pressure (MAP) Sensor ......... Engine Performance\
Mass Airflow (MAF) Sensor ....................... Engine Performance\
Mega Fuse .................................. Generators & Regulators
Memory Seat/Mirror Module ........................... Memory Systems
Mirror Defogger ............................... Rear Window Defogger
Moon Roof Motor .................................... Power Moon Roof
Moon Roof Relay .................................... Power Moon Roof
Multi-Function Control Module ...................... Warning Systems
Neutral Safety Switch ..................................... Starters
Oil Level Switch ................................ Engine Performance
Oil Pressure Switch/Sending Unit .......... Analog Instrument Panels
Engine Performance
Overhead Console .................................. Overhead Console
Oxygen Sensor(s) (O2S) .......................... Engine Performan\
ce
Page 966 of 1501
Tighten wheel lug nuts to 72-87 ft. lbs. (100-120 N.m).
BATTERY SPECIFICATIONS
CAUTION: When battery is disconnected, vehicles equipped with
computers may lose memory data. When battery power is
restored, driveability problems may exist on some vehicles.
These vehicles may require a relearn procedure. See
COMPUTER RELEARN PROCEDURES article in the GENERAL
INFORMATION Section.
Battery is maintenance-free and does not normally require
additional water. However, under severe conditions it is advisable to
check battery fluid periodically. Use only distilled water to fill
battery cell should it become necessary to add water. Charge condition
can be checked by a visual test indicator on top of battery.
CAUTIONS & WARNINGS
SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG)
NOTE: See the AIR BAGS article in the ACCESSORIES/SAFETY EQUIPMENT
Section.
Modifications or improper maintenance, including incorrect
removal and installation of the Supplemental Restraint System (SRS),
can adversely affect system performance. DO NOT cover, obstruct or
change the steering wheel horn pad in any way, as such action could
cause improper function of the system. Use only plain water when
cleaning the horn pad. Solvents or cleaners could adversely affect the
air bag cover and cause improper deployment of the system.
WARNING: Service on or around Air Bag System Components or Wiring must
be preformed only by an authorized Suzuki dealer. Please
observe all WARNINGS and SERVICE PRECAUTIONS.
WARNING: Technical service work must be started at least 90 seconds
after the ignition switch is turned to the LOCK position and
the cable is disconnected from the battery.
WARNING: Never attempt to disassemble or repair the passenger air
bag (inflator) module. If any abnormality is found, be sure
to replace it with new one as an assembly.
WARNING: To avoid injury from accidental air bag deployment, read and
carefully follow all warnings and service precautions. See
appropriate AIR BAG RESTRAINT SYSTEM article in the
ACCESSORIES/SAFETY EQUIPMENT section.
CAUTION: Disconnect negative battery cable before servicing any air
bag system, steering column or passenger side dash
component. After any repair, turn ignition key to the ON
position from passenger's side of vehicle in case of
accidental air bag inflation
AIR CONDITIONING SERVICING
WARNING: Avoid breathing R-134a refrigerant and PAG lubricant vapors,
exposure may irritate eyes, nose and throat. To remove
R-134a from system use R-134a recycling equipment that meets
Page 968 of 1501
allowing metal objects to contact the battery posts and the
vehicle at the same time.
CAUTION: Never disconnect the battery while the engine is running;
doing so could damage the car's electrical components.
REPLACING BLOWN FUSES
Before replacing a blown fuse, remove ignition key, turn off
all lights and accessories to avoid damaging the electrical system. Be
sure to use fuse with the correct indicated amperage rating. The use
of an incorrect amperage rating fuse may result in a dangerous
electrical system overload.
BRAKE PAD WEAR INDICATOR
Indicator will cause a squealing or scraping noise, warning
that brake pads need replacement.
BRAKE FLUID
WARNING: DO NOT use reclaimed fluid or fluid that has been stored
in old or open containers. It is essential that foreign
particles and other liquids are kept out of the brake fluid
reservoir.
CATALYTIC CONVERTER
Continued operation of vehicle with a severe malfunction
could cause converter to overheat, resulting in possible damage to
converter and vehicle.
ENGINE COOLANT SERVICE
WARNING: To avoid the danger of being scalded never change the coolant
when the engine is hot.
WARNING: Never remove the radiator cap when the engine is hot Serious
burns could be caused by high pressure fluid escaping from
the radiator.
CAUTION: When adding or replacing engine coolant, use a high quality
ethylene glycol antifreeze diluted with 50% distilled water.
When putting the cap on the reserve tank, line up the arrow
on the cap and the arrow on the tank, or coolant can leak out
ENGINE DRIVE BELT SERVICE
WARNING: Be sure the ignition key is OFF. The engine could rotate
unexpectedly.
ENGINE OIL
WARNING: The engine oil may be high enough to burn your fingers
when the drain plug is loosened. Wait until the drain plug
is cool enough to touch with you bare hands.
WARNING: Continuous contact with used engine oil has been found to
cause skin cancer in laboratory animals. Brief contact with
used engine oil may irritate skin. To minimize your exposure
to used oil, wear a long sleeve shirt and moisture-proof
gloves when changing oil. If oil contacts your skin, wash
Page 969 of 1501
thoroughly with soap and water.
CAUTION: Never use non-detergent or straight mineral oil.
FUEL SYSTEM SERVICE
WARNING: Relieve fuel system pressure prior to servicing any fuel
system component (fuel injection models).
HALOGEN BULBS
Halogen bulbs contain pressurized gas which may explode if
overheated. DO NOT touch glass portion of bulb with bare hands. Eye
protection should be worn when handling or working around halogen
bulbs.
RADIATOR CAP
CAUTION: Always disconnect the fan motor when working near the
radiator fan. The fan is temperature controlled and could
start at any time even when the ignition key is in the OFF
position. DO NOT loosen or remove radiator cap when cooling
system is hot.
RADIATOR FAN
WARNING: Keep hands away from radiator fan. Fan is controlled by a
thermostatic switch which may come on or run for up to 15 minutes even
after engine is turned off.
WARRANTY INFORMATION
CAUTION: Due to the different warranties offered in various regions
and the variety of after-market extended warranties
available, please refer to the warranty package that came
with the vehicle to verify all warranty options.
FUSES & CIRCUIT BREAKERS
FUSE PANEL LOCATION
The electrical system is protected against shorts by fuses
that are designed to fail, to prevent damage to the wire harness. The
fuse block is located under the instrument panel on the driver's side.
If a fuse is blown, locate the cause before replacing the fuse. Spare
fuses are contained in the fuse block.
FUSE PANEL IDENTIFICATION
Fuse & Circuit Breaker Identification
PASSENGER COMPARTMENT
Page 1001 of 1501
PARASITIC LOAD EXPLANATION & TEST PROCEDURES
1998 Mitsubishi Montero
GENERAL INFORMATION
Parasitic Load Explanation & Test Procedures
* PLEASE READ THIS FIRST *
This article is provided for general information only. Not
all procedures apply to all makes and models.
GENERAL INFORMATION
The term Parasitic Load refers to electrical devices that
continue to use or draw current after the ignition switch is turned to
OFF position. This small amount of continuous battery draw is
expressed in milliamps (mA). On Ford Motor Co. and General Motors
vehicles produced after 1980, a typical Parasitic Load should be no
more than 50 milliamps (0.050 amps).
Vehicles produced since 1980 have memory devices that draw
current with ignition off for as long as 20 minutes before shutting
down the Parasitic Drain. When Parasitic Load exceeds normal
specifications, the vehicle may exhibit dead battery and no-start
condition.
Follow test procedure for checking Parasitic Loads to
completion. A brief overview of a suggested test procedure is included
along with some typical Parasitic Load specifications. Refer to the
GENERAL MOTORS PARASITIC LOAD TABLE chart.
TESTING FOR PARASITIC LOAD
INTRODUCTION
CAUTION: Always turn ignition off when connecting or disconnecting
battery cables, battery chargers or jumper cables. DO NOT
turn test switch to OFF position (which causes current to run
through ammeter or vehicle electrical system).
NOTE: Memory functions of various accessories must be reset after
the battery is reconnected.
The battery circuit must be opened to connect test switch
(shunt) and ammeter into the circuit. When a battery cable is removed,\
timer circuits within the vehicle computer are interrupted and
immediately begin to discharge. If in doubt about the condition of the
ammeter fuse, test it with an ohmmeter prior to beginning test. An
open fuse will show the same reading (00.00) as no parasitic drain.
Begin test sequence with the meter installed and on the 10-amp scale.
Select lower scale to read parasitic draw.
TEST PROCEDURE USING TEST SWITCH
1) Turn ignition off. Remove negative battery terminal cable.
Install Disconnect Tool (J-38758) test switch male end to negative
battery cable. Turn test switch knob to OFF position (current through
meter). Install negative battery cable to the female end of test
switch.
2) Turn test switch knob to ON position (current through
switch). Road test vehicle with vehicle accessories on (radio, air
conditioner, etc.). After road test, turn ignition switch to LOCKED
position and remove key. Connect ammeter terminals to test switch
Page 1003 of 1501
Normal Maximum Time-Out
Component Draw Draw (Minutes)
Anti-Theft System ................ 0.4 .... 1.0 ....... ...
Auto Door Lock ................... 1.0 .... 1.0 ....... ...
Body Control Module .............. 3.6 ... 12.4 ........ 20
Central Processing System ........ 1.6 .... 2.7 ........ 20
Electronic Control Module ........ 5.6 ... 10.0 ....... ...
Electronic Level Control ......... 2.0 .... 3.3 ........ 20
Heated Windshield Module ......... 0.3 .... 0.4 ....... ...
HVAC Power Module ................ 1.0 .... 1.0 ....... ...
Illuminated Entry ................ 1.0 .... 1.0 ......... 1
Light Control Module ............. 0.5 .... 1.0 ....... ...
Oil Level Module ................. 0.1 .... 0.1 ....... ...
Multi-Function Chime ............. 1.0 .... 1.0 ....... ...
Pass Key Decoder Module ......... 0.75 .... 1.0 ....... ...
Power Control Module ............. 5.0 .... 7.0 ....... ...
Retained Accessory Power ......... 3.8 .... 3.8 ....... ...
Radio ............................ 7.0 .... 8.0 ........ 15
Twilight Sentinel Module ......... 1.0 .... 1.0 ....... ...
Voltage Regulator ................ 1.4 .... 2.0 ....... ...
\
\
\
\
\
\
\
INTERMITTENT PARASITIC LOAD PROBLEMS
Intermittent parasitic lad can occur because of a memory
device that does not power down with ignition off. With an
intermittent parasitic load, battery draw can be greater than 1.0 amp.
To find and intermittent problem requires that an ammeter and
Disconnect Tool (J-38758) test switch be connected and left in the
circuit. See Fig. 1. Road test vehicle. After road test, turn ignition
off and remove key.
Monitor the milliamps scale for 15-20 minutes after ignition
is turned off. This allows monitoring memory devices to determine if
they time out and stop drawing memory current. The test switch is
needed to protect ammeter when the vehicles is started.
DIODE CHECK & SOLENOID TEST (GENERAL MOTORS)
Page 1108 of 1501
between specified terminals. See Figs. 1 and 3. If continuity is not
as specified, replace ignition switch.
Fig. 3: Testing Ignition Switch (Diamante)
Courtesy of Mitsubishi Motor Sales of America
Key Reminder Switch Test
Remove instrument panel lower cover. Disconnect key reminder
switch harness connector. Check continuity between specified terminals
with ignition key inserted and removed from ignition switch. See
Fig. 4 . If continuity is not as specified, replace key reminder
switch.
