Page 1133 of 1501
Check continuity between specified terminals. See Figs. 25 and 28. If
continuity is not as specified, replace steering column combination
switch.
Fig. 28: Front Wiper/Washer Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Key Reminder Switch Test
Disconnect key reminder switch connectors. Check continuity
between specified terminals. See Figs. 25 and 29. If continuity is not
as specified, replace key reminder switch.
Page 1134 of 1501
Rear Wiper/Washer Switch Test
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Fig. 30. If
continuity is not as specified, replace steering column combination
switch.
Fig. 29: Testing Key Reminder Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Page 1137 of 1501
Fig. 32: Testing Lighting, Turn Signal & Dimmer/Passing Switches
(3000GT)
Courtesy of Mitsubishi Motor Sales of America
Ignition Switch & Key Reminder Switch Tests
Page 1138 of 1501
Disconnect ignition switch and key reminder switch
connectors. Check continuity between specified terminals. See Figs. 31
and 34. If continuity is not as specified, replace ignition switch or
key reminder switch.
Fig. 33: Testing Front Wiper/Washer Switch (3000GT)
Courtesy of Mitsubishi Motor Sales of America
Page 1139 of 1501
Fig. 34: Testing Ignition Switch & Key Reminder Switch (3000GT)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Test (Front)
Disconnect steering column combination switch connector.
Page 1140 of 1501
Check continuity between specified terminals. See Figs. 31 and 33. If
continuity is not as specified, replace steering column combination
switch.
REMOVAL & INSTALLATION
* PLEASE READ THIS FIRST *
WARNING: Deactivate air bag system before performing any service
operation. See AIR BAG RESTRAINT SYSTEMS article. DO NOT
apply electrical power to any component on steering column
without first deactivating air bag system. Air bag may
deploy.
IGNITION SWITCH
Removal & Installation (Diamante)
Remove instrument panel lower cover. Remove upper and lower
steering column covers. See Fig. 1. Remove ignition switch. To
install, reverse removal procedure.
Removal & Installation (Eclipse)
1) Remove knee protector mount screw plugs. Remove knee
protector. Remove hood lock release handle. Remove upper and lower
steering column covers. See Fig. 6. Remove ignition key illumination
light.
2) Remove steering lock cylinder. Remove A/C-heater system
lap cooler and shower ducts. On A/T models, remove key interlock cable
and slide lever. On all models, remove ignition switch. To install,
reverse removal procedure.
Removal & Installation (Galant)
Remove knee protector. Remove upper and lower column covers.
See Fig. 11 . Remove ignition switch. To install, reverse removal
procedure.
Removal & Installation (Mirage)
Remove knee protector. Remove steering column cover. See
Fig. 15 . Remove clip and cover. On A/T models, remove key interlock
cable, spring and slide lever. On all models, remove ignition switch.
To install, reverse removal procedure.
Removal & Installation (Montero & Montero Sport)
Remove lower instrument panel cover. Remove upper and lower
column covers. See Fig. 19 or 25. Remove ignition switch. To install,
reverse removal procedure.
Removal & Installation (3000GT)
Remove knee protector. Remove upper and lower steering column
covers. See Fig. 31. Remove A/C-heater system lap cooler duct and foot
duct. Remove key reminder switch. Remove ignition switch. To install,
reverse removal procedure.
STEERING COLUMN SWITCH
CAUTION: DO NOT hammer on steering shaft. Collapsible steering column
mechanism may be damaged.
Removal & Installation (Diamante)
Remove air bag module. See AIR BAG RESTRAINT SYSTEMS article.
Remove steering wheel. Remove instrument panel lower cover. Remove
upper and lower steering column covers. See Fig. 1. Remove steering
Page 1337 of 1501
Power Door Lock Circuit, W/ Keyless Entry
Page 1338 of 1501

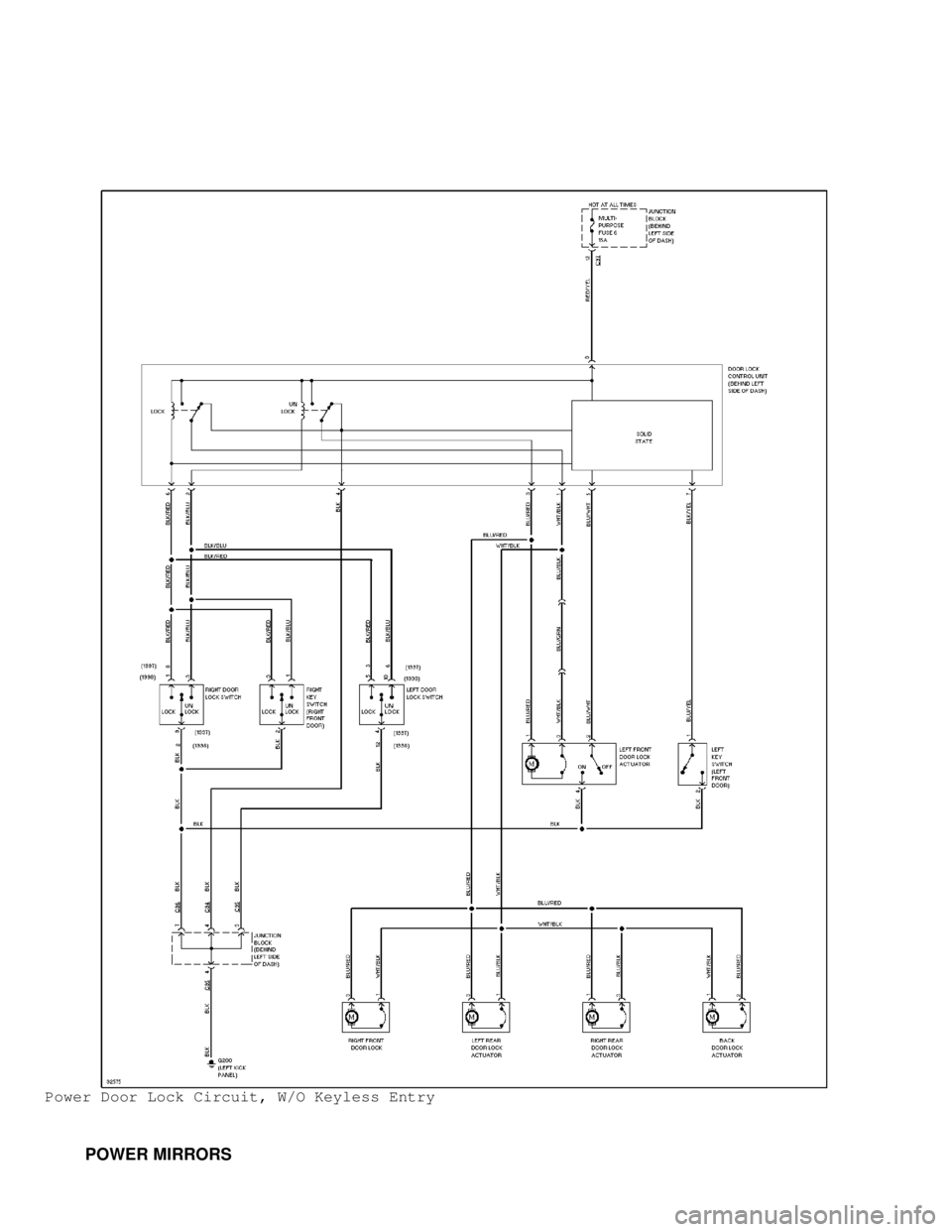

Power Door Lock Circuit, W/O Keyless Entry
POWER MIRRORS
Page 1374 of 1501
![MITSUBISHI MONTERO 1998 Workshop Manual Fires With Key Flywheel runout contributes
released. Engine to the intermittent nature
Fires and Cranks
Normally
\
\
\
\](/img/19/57333/w960_57333-1373.png "MITSUBISHI MONTERO 1998 Workshop Manual Fires With Key Flywheel runout contributes
released. Engine to the intermittent nature
Fires and Cranks
Normally
\
\
\
\")
Fires With Key Flywheel runout contributes
released. Engine to the intermittent nature
Fires and Cranks
Normally
\
\
\
\
\
\
\
AIR CONDITIONING & HEAT
AIR CONDITIONING TROUBLE SHOOTING
WARNING: This is GENERAL information. This article is not intended
to be specific to any unique situation or individual vehicle
configuration. The purpose of this Trouble Shooting
information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting,
refer to SUBJECT, DIAGNOSTIC, or TESTING articles available
in the section(s) you are accessing.
BASIC AIR CONDITIONING TROUBLE SHOOTING CHART
\
\
\
\
\
\
\
CONDITION POSSIBLE CAUSE \
\
\
\
\
\
\
Compressor Not Working
Compressor clutch circuit open.
Compressor clutch coil inoperative.
Poor clutch ground connection.
Fan belts loose.
Thermostatic switch inoperative.
Thermostatic switch not adjusted.
Ambient temperature switch open.
Superheat fuse blown. \
\
\
\
\
\
\
Excessive Noise or Vibration
Missing or loose mounting bolts.
Bad idler pulley bearings.
Fan belts not tightened correctly.
Compressor clutch contacting body.
Excessive system pressure.
Compressor oil level low.
Damaged clutch bearings.
Damaged reed valves.
Damaged compressor. \
\
\
\
\
\
\
Insufficient or No Cooling;
Compressor Working
Expansion valve inoperative.
Heater control valve stuck open.
Low system pressure.
Blocked condenser fins.
Blocked evaporator fins.
Vacuum system leak.
Vacuum motors inoperative.
Control cables improperly adjusted.
Restricted air inlet.
Mode doors binding.
Blower motor inoperative.
Temperature above system capacity. \
\
\
\
\
\
\
HEATER SYSTEM TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended
to be specific to any unique situation or individual vehicle
configuration. The purpose of this Trouble Shooting
information is to provide a list of common causes to
Page 1398 of 1501
![MITSUBISHI MONTERO 1998 Workshop Manual \
\
\
\
\
\
\
High Pitched Whine Distance too great](/img/19/57333/w960_57333-1397.png "MITSUBISHI MONTERO 1998 Workshop Manual \
\
\
\
\
\
\
High Pitched Whine Distance too great")
\
\
\
\
\
\
\
High Pitched Whine Distance too great Align starter or check
During Cranking between starter that correct starter
Before Engine pinion and flywheel and flywheel are being
Fires but Engine used
Fires and Cranks
Normally
\
\
\
\
\
\
\
High Pitched Distance too small between
Whine After Engine starter pinion and flywheel
Fires With Key Flywheel runout contributes
released. Engine to the intermittent nature
Fires and Cranks
Normally
\
\
\
\
\
\
\
TUNE-UP TROUBLE SHOOTING - GAS ENGINE VEHICLES
NOTE: This is GENERAL information. This article is not intended
to be specific to any unique situation or individual vehicle
configuration. The purpose of this Trouble Shooting
information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting,
refer to SUBJECT, DIAGNOSTIC, or TESTING articles available
in the section(s) you are accessing.
BASIC SPARK PLUG TROUBLE SHOOTING CHARTS
\
\
\
\
\
\
\
CONDITION POSSIBLE CAUSE CORRECTION \
\
\
\
\
\
\
Normal Spark Light Tan or Gray deposits No Action
Plug Condition
Electrode not burned or No Action
fouled
Gap tolerance not changed No Action
\
\
\
\
\
\
\
Cold Fouling or Overrich air/fuel mixture Adjust air/fuel
Carbon Deposits mixture, see ENGINE
PERFORMANCE section
Faulty choke Replace choke
assembly, see ENGINE
PERFORMANCE section
Clogged air filter Clean and/or replace
air filter
Incorrect idle speed or Reset idle speed and/
dirty carburetor or clean carburetor
Faulty ignition wires Replace ignition
wiring
Prolonged operation Shut engine off
at idle during long idle
Sticking valves or worn Check valve train
valve guide seals
\
\
\
\
\
\
\
Wet Fouling Worn rings and pistons Install new rings and
or Oil Deposits pistons
