(62-73 kPa) of vacuum applied to the brake booster.
PARKING/EMERGENCY BRAKE
NOTE: Adjust service brakes before adjusting parking brake.
Start engine, and apply brake pedal. Pull parking brake lever
with a force of 44-45 lbs. (196-200 N). Parking brake lever should
move up 3-5 notches on Diamante, Stealth and 3000GT, 4-6 notches on
Montero, and 5-7 notches on all other models. If adjustment is
necessary, turn adjusting nut located under console or at end of cable
rod. See Fig. 6.
Fig. 6: Adjusting Parking/Emergency Brake (Typical)
Courtesy of Mitsubishi Motor Sales of America.
REAR BRAKE SHOES
Fully release parking brake and depress brake pedal several
times to center shoes and adjust brake shoe clearance. Adjust shoes so
brake shoes lightly contact brake drum. Adjust parking brake, and
check pedal travel. Rotate brake drum to verify free movement.
STOPLIGHT SWITCH
Loosen lock nut, and adjust switch-to-pedal arm clearance to
0.02-0.04" (0.5-1.0 mm). Tighten lock nut. DO NOT depress master
cylinder push rod during stoplight switch adjustment.
TESTING

POWER BRAKE BOOSTER
System Check
1) Run engine for 1-2 minutes. Shut engine off, and depress
brake pedal several times with normal pressure. If pedal height
gradually becomes higher with successive applications, power brake
booster is okay. If pedal height remains steady, power brake booster
is not operating properly, go to next step.
2) With engine stopped, depress brake pedal repeatedly until
pedal height no longer falls. Hold brake pedal down, and start engine.
If pedal moves downward slightly, power brake booster is okay. If
pedal height does not change, power brake booster is not operating
properly, go to next step.
3) With engine running, press and hold brake pedal. Shut off
engine. Hold brake pedal for 30 seconds. Brake pedal height should not
change. If pedal rises, power brake booster is not operating properly,
go to next step.
4) If brake booster operation is not as specified in each
step, disconnect vacuum hose at brake booster and check for sufficient
vacuum with engine running. Also check brake booster check valve
operation. Repair or replace as necessary.
Check Valve Inspection
Remove vacuum hose from power brake booster. Do not remove
check valve from hose. Check valve should hold vacuum in one direction
and allow air to pass in other direction.
LOAD-SENSING PROPORTIONING VALVE (LSPV)
Montero
1) Before diagnosing Load-Sensing Proportioning Valve (LSPV)\
,
ensure all other brake components are operating properly. When all
other brake system components are determined to be okay, ensure LSPV
spring length is within specification. See Fig. 1. See LOAD-SENSING
PROPORTIONING VALVE (LSPV) under ADJUSTMENTS.
2) After spring length is determined to be within
specification, connect pressure gauges to input and output ports of
LSPV. See Fig. 7. Bleed brake system. See BLEEDING BRAKE SYSTEM.
Fig. 7: Connecting Pressure Gauges To LSPV (Montero)
Courtesy of Mitsubishi Motor Sales of America.
3) With vehicle unloaded at correct ride height and LSPV
spring correctly adjusted to 8.9" (227 mm), slowly depress brake pedal\

and remove drum. Remove shoe return springs and shoe hold-down
springs. See Fig. 11.
2) Disconnect parking brake cable from lever. Remove brake
shoes and adjuster assembly. Remove parking brake lever snap ring, and
disengage lever from brake shoe.

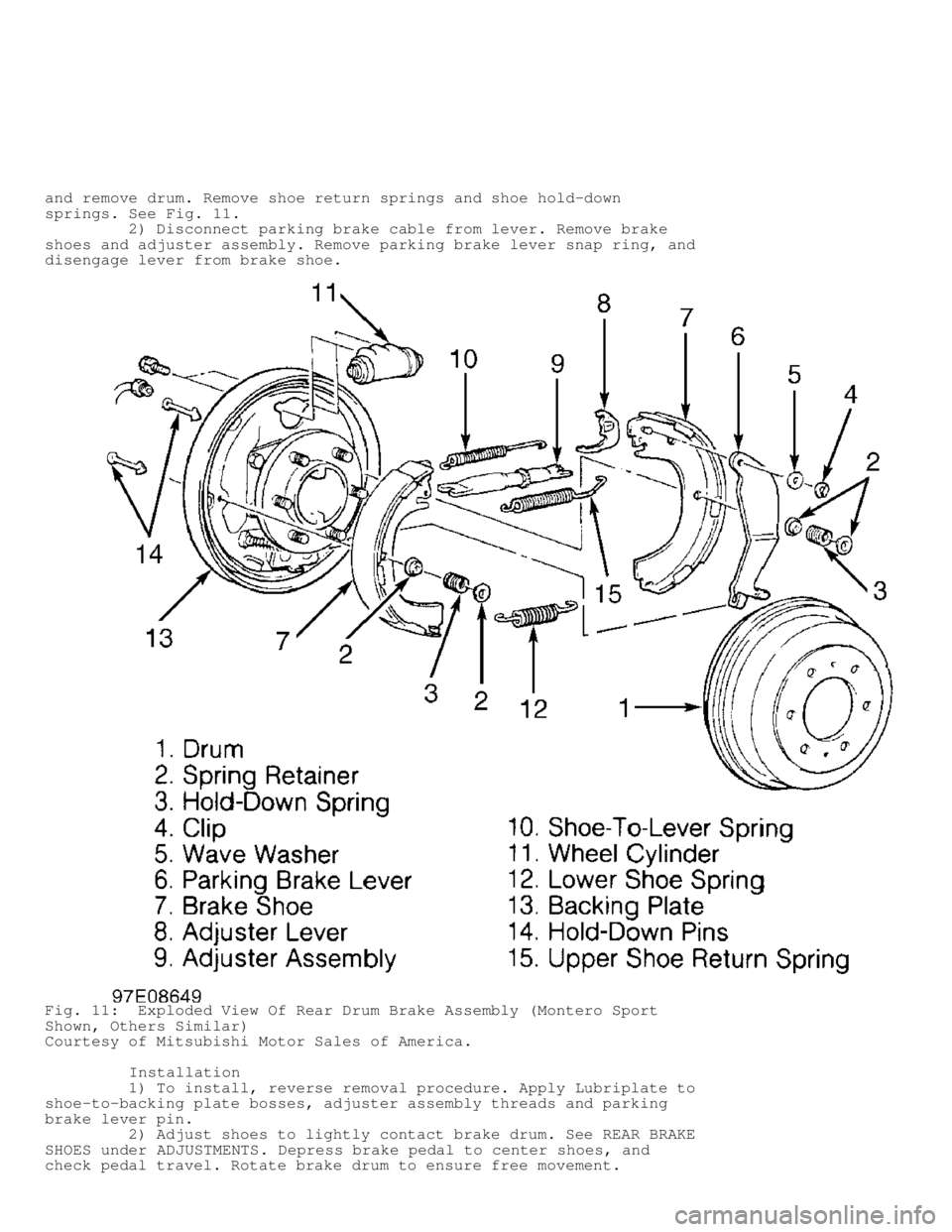

Fig. 11: Exploded View Of Rear Drum Brake Assembly (Montero Sport
Shown, Others Similar)
Courtesy of Mitsubishi Motor Sales of America.
Installation
1) To install, reverse removal procedure. Apply Lubriplate to
shoe-to-backing plate bosses, adjuster assembly threads and parking
brake lever pin.
2) Adjust shoes to lightly contact brake drum. See REAR BRAKE
SHOES under ADJUSTMENTS. Depress brake pedal to center shoes, and
check pedal travel. Rotate brake drum to ensure free movement.

specified, bleed system and inspect hydraulic and clutch components.
See CLUTCH PEDAL SPECIFICATIONS table.
CLUTCH PEDAL INTERLOCK SWITCH
1) Place transmission in Neutral and apply parking brake.
Turn ignition switch to START position with clutch pedal not
depressed. Engine should not crank. If engine cranks, adjust or
replace interlock switch.
2) Disconnect interlock switch connector. Interlock switch
connector is located at clutch pedal. Depress and release interlock
switch. Using ohmmeter, check continuity between interlock switch
terminals. If continuity exists with interlock switch depressed and
does not exist with switch released, switch is okay. Adjust or replace
as necessary.
REMOVAL & INSTALLATION
CLUTCH ASSEMBLY
Removal (2WD Models)
1) Disconnect negative battery cable. Remove shift knob, dust
cover retaining plate, gaskets, stopper plate and control lever
assembly. Raise and support vehicle.
2) Remove front exhaust pipe. Drain transmission fluid. Index
mark drive shaft flange and remove drive shaft.
3) Disconnect back-up light switch connector, speedometer
cable connection and exhaust pipe mounting bracket. Remove lower
bellhousing cover. Disconnect clutch cable from clutch lever.
4) Support transmission with jack. Remove rear engine mount
nuts and bolts from transmission. Remove crossmember with rear engine
mount. Remove remaining bellhousing bolts, move transmission toward
rear and lower from vehicle.
5) If reusing pressure plate, index mark pressure plate to
flywheel for installation reference. Install a clutch alignment tool
to prevent pressure plate and clutch disc from dropping. Loosen
pressure plate bolts gradually in a crisscross pattern to avoid
warping pressure plate flange during removal. Remove pressure plate
and clutch disc. See Fig. 3.
Inspection
1) Check release bearing and release fork for damage or wear.
DO NOT clean release bearing assembly in solvent.
2) Inspect pressure plate surface for wear, cracks, and/or
discoloration. Measure diaphragm spring ends for wear and uneven
height. Replace assembly if height difference between fingers exceeds
.02" (.5 mm).
3) Check facing of clutch disc for loose rivets, uneven
contact, deterioration, seizure or oil saturation. Measure distance
from clutch disc surface to head of rivet. Replace clutch disc if
distance is less than .012" (.30 mm). Replace worn or defective
components as necessary. See Fig. 4.
CAUTION: Install clutch disc with manufacturer's stamp mark (located
near hub of clutch disc) toward pressure plate.
Installation
1) Using a clutch alignment tool, install pressure plate and
clutch disc. If reusing pressure plate, ensure index marks are
aligned. Tighten bolts evenly in a crisscross pattern to
specification. See TORQUE SPECIFICATIONS . See Fig. 3.
2) Clean release bearing sliding surface. DO NOT clean

release bearing with solvent. Apply a light coat of multipurpose
grease to release bearing sliding surface. Apply a very light coating
of grease to input shaft splines. DO NOT allow grease or dirt on
clutch disc or pressure plate surfaces.
3) To install remaining components, reverse removal
procedure. Refill all fluids to proper levels. Adjust all control
cables, clutch pedal height and free play. See CLUTCH PEDAL HEIGHT and
CLUTCH PEDAL FREE PLAY under ADJUSTMENTS. See Fig. 1.
Removal (4WD Models)
1) Remove switch panel from rear console. Remove suspension
control switch or hole cover. Disconnect rear console harness
connector. Remove side panel. Remove rear console assembly. Remove
shift lever knob(s). Remove floor console harness connector. Remove
front console assembly.
2) Move transmission lever to Neutral position and transfer
lever to 4H (4WD high range) position. Remove control lever boot
retainer and boot. Remove transmission and transfer control lever
assemblies. Remove control lever bushing (transmission), gaskets and
stopper plates.
3) Raise and support vehicle. Remove skid plate and front
exhaust pipe. Drain transmission and transfer case fluid. Index mark
front and rear drive shaft flanges. Remove front and rear drive
shafts.
4) Remove drive shaft dust seals. Disconnect HI/LO and
2WD/4WD detection switch connectors. Disconnect back-up light switch
connector. Disconnect center differential lock detection switch
connector. Disconnect center differential lock operation switch
connector. Disconnect 4WD operation detection switch.
5) Disconnect speedometer cable. Remove clutch slave cylinder
heat shield. Remove clutch slave cylinder (without disconnecting
hydraulic line) and wire aside. Remove starter and starter cover.
Remove heat shield, both transmission stays and bellhousing lower
cover.
6) Support transmission with transmission jack. Remove
transfer case roll stopper and bracket. Remove crossmember and engine
mounting rear insulator. Remove transfer case protector bracket and
mass damper. Remove remaining bellhousing bolts. Pull toward rear of
vehicle to free transmission input shaft from clutch. Lower
transmission/transfer assembly from vehicle.
7) If reusing pressure plate, mark pressure plate to flywheel
for installation reference. Insert a clutch alignment tool to prevent
pressure plate and clutch disc from dropping. Loosen pressure plate
bolts gradually in a crisscross pattern to avoid warping pressure
plate flange during removal. Remove pressure plate and clutch disc.
See Fig. 3 .
Fig. 3: Removing & Installing Clutch On Flywheel (Typical)
Courtesy of Mitsubishi Motor Sales of America.
Inspection
1) Check release bearing and release fork for damage or wear.

DO NOT clean release bearing assembly in solvent. Inspect hydraulic
system components for fluid leakage. Inspect cylinder dust boot for
cracks or deterioration.
2) Inspect pressure plate surface for wear, cracks, and/or
discoloration. Measure diaphragm spring ends for wear and uneven
height. Replace assembly if height difference between fingers exceeds
.02" (.5 mm).
3) Check facing of clutch disc for loose rivets, uneven
contact, deterioration, seizure or oil saturation. Measure depth from
clutch disc surface to head of rivet. Replace clutch disc if
measurement is less than .012" (.30 mm). See Fig. 4. Replace worn or
defective components as necessary.
Fig. 4: Measuring Clutch Disc (Typical)
Courtesy of Mitsubishi Motor Sales of America.
CAUTION: Install clutch disc with manufacturer's stamp mark (located
near hub of clutch disc) toward pressure plate.
Installation
1) Using a clutch alignment tool, install pressure plate and
clutch disc. Tighten bolts evenly in a crisscross pattern to
specification. See TORQUE SPECIFICATIONS .
2) Clean release bearing sliding surface. Apply a light
coating of multipurpose grease to release bearing sliding surface.

Apply a very light coating of grease to input shaft splines. DO NOT
allow grease or dirt on clutch disc or pressure plate surfaces.
3) To install remaining components, reverse removal
procedure. Refill all fluids to proper levels. Adjust all control
cables, clutch pedal height and free play. See CLUTCH PEDAL HEIGHT and
CLUTCH PEDAL FREE PLAY under ADJUSTMENTS. See Fig. 1.
CLUTCH RELEASE BEARING & RELEASE FORK
Removal (2WD Models)
1) Remove transmission. See CLUTCH ASSEMBLY. Remove return
clips, release bearing and carrier. Use a punch to remove shift arm
spring pin and release lever assembly. Remove shift arm, felt packing
and 2 return springs. See Fig. 5.
2) Ensure release bearing turns freely and smoothly under
light load. Replace bearing if noise, roughness or dryness is present.
DO NOT clean bearing in solvent. Use shop towel or compressed air
only.
Installation
1) Insert lever and shaft into left side of transmission
case. Place shift arm, felt packing and return springs on shaft
assembly. Apply grease to inside of bushing and oil seal lips. Apply
oil to felt packing.
2) Align shift arm pin and control shaft pin holes. Drive
spring pins into position, with slit area upward. Reverse removal
procedure to complete installation. Check pedal height and free play.
Adjust if necessary. See CLUTCH PEDAL HEIGHT and
CLUTCH PEDAL FREE PLAY under ADJUSTMENTS.
Removal (4WD Models)
1) Remove transmission. See CLUTCH ASSEMBLY. Remove return
spring or clips, and remove release bearing.
2) Slide release fork toward outside of transmission and
disengage from fulcrum ball. DO NOT slide release fork toward inside
of case, or damage to fulcrum ball clip will result. Remove release
fork boot.
Installation
To install, reverse removal procedure. Apply grease to
fulcrum ball contact area of release fork before installing. Fill
groove of release bearing inside diameter with grease before
installing. See Fig. 5.

COMPUTER RELEARN PROCEDURES
1998 Mitsubishi Montero
GENERAL INFORMATION
Computer Relearn Procedures
All Models
* PLEASE READ THIS FIRST *
The following general procedures are to be used if
driveability problems are encountered after power loss or battery has
been disconnected. These procedures may provide an aid in eliminating
these problems.
To reduce the possibility of complaints, after any service
which requires battery power to be disconnected, vehicle should be
road tested.
COMPUTER RELEARN PROCEDURES
Vehicles equipped with engine or transmission computers may
require a relearn procedure after vehicle battery is disconnected.
Many vehicle computers memorize and store vehicle operation patterns
for optimum driveability and performance. When vehicle battery is
disconnected, this memory is lost. The computer will use default data
until new data from each key start is stored. As computer memorizes
vehicle operation for each new key start, driveability is restored.
Vehicle computers may memorize vehicles operation patterns for 40 of
more key starts.
Customers often complain of driveability problems during
relearn stage because vehicle acts differently then before being
serviced. Depending on type and make of vehicle and how it is
equipped, the following complaints (driveability problems) may exist:
* Harsh Or Poor Shift Quality
* Rough Or Unstable Idle
* Hesitation Or Stumble
* Rich Or Lean Running
* Poor Fuel Mileage
These symptoms and complaints should disappear after a number
of drive cycles have been memorized. To reduce the possibility of
complaints, after any service which requires battery power to be
disconnected, vehicle should be road tested. If a specific relearn
procedure is not available, the following procedure may be used:
Automatic Transmission
* Set parking brake, start engine in "P" or "N" position.
Warm-up vehicle to normal operating temperature or until
cooling fan cycles.
* Allow vehicle to idle for one minute in "N" position. Select
"D" and allow engine to idle for one minute.
* Accelerate at normal throttle position (20-50%) until vehicle
shifts into top gear.
* Cruise at light to medium throttle.
* Decelerate to a stop, allowing vehicle to downshift, and use
brakes normally.
* Process may be repeated as necessary.
Manual Transmission

Fig. 9: Testing Electric Cooling Fan Relay (Montero, Montero
Sport & 3000GT)
Courtesy of Mitsubishi Motor Sales of America.
SYSTEM TESTING
NOTE: For appropriate wiring diagram, see WIRING DIAGRAMS.
NOTE: Radiator fan on Montero and Montero Sport is mounted to a
hydraulic fan clutch which is mounted to the water pump.
Replace fan clutch if leaks are detected at case joints and
seals, fan can be rotated with very light resistance or the
bimetallic strip is damaged.
NOTE: Operation of radiator and condenser fans is controlled by
vehicle Powertrain Control Module (PCM). Based on vehicle

CRUISE CONTROL SYSTEM
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Cruise Control Systems
Montero
DESCRIPTION & OPERATION
WARNING: Deactivate air bag system before performing any service
operation. See AIR BAG RESTRAINT SYSTEMS article. Do not
apply electrical power to any component on steering column
without first deactivating air bag system. Air bag may
deploy.
Cruise control system is electronically and vacuum
controlled. System components include a control unit, actuator, vacuum
pump, cruise control switch, clutch pedal position switch (M/T),
cruise indicator light, diode, Park/Neutral (P/N) switch (A/T),
stoplight switch, vehicle speed sensor and A/T control unit (if
equipped).
System has self-diagnostic capability. When self-diagnostic
mode is activated, each switch and sensor is checked for defects. When
cruise control system has been canceled without using a normal cancel
method, a trouble code will be set and stored in control unit. Trouble
codes can be retrieved to help determine which circuit is
malfunctioning.
COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE








\









\









\









\









\









\






Component Location
Cruise Control ECU .............. Behind Dash, On Steering
Column Bracket
Data Link Connector (DLC) ....... Under Left Side Of Dash,
Near Steering Column
Vehicle Speed Sensor ........... On Speedometer Assembly &
On Transmission
Throttle Position Sensor ........ Mounted On Throttle Body









\









\









\









\









\









\






ADJUSTMENTS
CRUISE CONTROL CABLE
Remove link protector. Loosen lock nut. Hold link "A" so that
it touches link "B". Adjust free play by turning adjusting nut until
free play is.04-.08" (1-2 mm). Tighten lock nut. See Fig. 1 or 2.
