Fig. 6: Testing 4-Terminal Relay
Courtesy of Mitsubishi Motor Sales of America.
REMOVAL & INSTALLATION
* PLEASE READ THIS FIRST *
WARNING: To avoid injury from accidental air bag deployment, read and
carefully follow all SERVICE PRECAUTIONS and DISABLING &
ACTIVATING AIR BAG SYSTEM procedures in AIR BAG RESTRAINT
SYSTEM article.
NOTE: For removal and installation procedures not covered in this
article, see HEATER SYSTEM article.
A/C CONTROL UNIT (ACCU)
Removal & Installation
Lower glove box. Remove 2 clips on top of evaporator, and
remove ACCU. Disconnect wiring harness from ACCU. To install, reverse
removal procedure. See Fig. 7.
Fig. 7: Locating A/C Control Unit (ACCU)
Courtesy of Mitsubishi Motor Sales of America.
Page 93 of 1501
A/C SWITCH
Removal & Installation
Lower glove box. Remove instrument cover. Remove lap cooler
and foot shower ducts. Remove center panel and A/C-heater control
panel. Remove bezel and knob. Disconnect A/C switch connector, and
remove A/C switch. To install, reverse removal procedure.
A/C ENGINE COOLANT TEMPERATURE SWITCH
Removal & Installation
Drain coolant below level of thermostat housing. See Fig. 8.
Remove A/C engine coolant temperature switch wiring harness connector,
and unscrew A/C engine coolant temperature switch from thermostat
housing. To install, reverse removal procedure. Tighten A/C engine
coolant temperature switch to specification. See TORQUE SPECIFICATIONS
. Add coolant and check for leaks.
Fig. 8: Locating A/C Engine Coolant Temperature Switch
Courtesy of Mitsubishi Motor Sales of America.
BLOWER MOTOR & RESISTOR
Removal & Installation
Remove right side foot shower duct. Disconnect blower and/or
resistor. Remove blower motor and/or resistor. See Fig. 9. To install,
reverse removal procedure.
Page 97 of 1501
Removal & Installation
1) Discharge A/C system, using approved refrigerant
recovery/recycling equipment. Remove glove box with lower frame
attached. Loosen duct joint bolt to free duct joint. Disconnect A/C
switch harness. Disconnect evaporator drain hose.
2) Disconnect refrigerant lines at firewall side of engine
compartment. Remove evaporator top bolts in passenger compartment.
Remove evaporator assembly. To install, reverse removal procedure. See
Figs. 12 and 13. If replacing evaporator, add 1.4 ounces of
refrigerant oil to new evaporator.
Fig. 12: Removing Evaporator Assembly
Courtesy of Mitsubishi Motor Sales of America.
Page 114 of 1501
clockspring, the steering wheel may not turn completely, or
flat cable inside clockspring may be severed, disabling SRS
system and possibly causing serious injury to driver.
Installation
1) Ensure front wheels are in straight-ahead position. Align
mating marks on clockspring. See CLOCKSPRING CENTERING under
ADJUSTMENTS. Install clockspring. To install remaining components,
reverse removal procedure. Before installing air bag module, ensure
horn switch wiring is positioned so that it will not be pinched.
2) Tighten fasteners to spec. See TORQUE SPECIFICATIONS.
Activate SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check AIR BAG
warning light for proper system function. SYSTEM OPERATION CHECK.
PASSENGER-SIDE AIR BAG MODULE
Removal & Installation
1) Before proceeding, see SERVICE PRECAUTIONS. Deactivate
SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM .
2) Remove right-side foot shower duct and two stoppers on
either side. Remove and lower glove box. Disconnect air bag module
connector. Remove retaining bolts and passenger-side air bag module.
See Fig. 5 .
3) To install, reverse removal procedure. Tighten bolts to
specification. See TORQUE SPECIFICATIONS . Activate SRS. See procedures
under DISABLING & ACTIVATING AIR BAG SYSTEM . Check AIR BAG warning
light for proper system function. SYSTEM OPERATION CHECK.
Fig. 5: Removing Passenger-Side Air Bag Module
Courtesy of Mitsubishi Motor Sales of America.
SRS AIR BAG CONTROL UNIT (ECU)
Page 456 of 1501
![MITSUBISHI MONTERO 1998 Service Manual Mirage &
Montero Sport ... Behind Right Side Of Instrument Panel (Glove Box)\
Montero ..................................... Right Front Kick Panel
All Others ...................................](/img/19/57333/w960_57333-455.png "MITSUBISHI MONTERO 1998 Service Manual Mirage &
Montero Sport ... Behind Right Side Of Instrument Panel (Glove Box)\
Montero ..................................... Right Front Kick Panel
All Others ...................................")
Mirage &
Montero Sport ... Behind Right Side Of Instrument Panel (Glove Box)\
Montero ..................................... Right Front Kick Panel
All Others ................................... Behind Center Console
\
\
\
\
\
\
\
NOTE: Components are grouped into 2 categories. The first category
covers INPUT DEVICES, which control or produce voltage
signals monitored by Powertrain Control Module (PCM). The
second category covers OUTPUT SIGNALS, which are components
controlled by PCM.
INPUT DEVICES
Vehicles are equipped with different combinations of input
devices. Not all input devices are used on all models. To determine
input device usage on specific models, see appropriate wiring diagram
in L - WIRING DIAGRAMS article. The following are available input
devices.
Air Conditioning Switch
When A/C is turned on, signal is sent to PCM. With engine at
idle, PCM increases idle speed through Idle Air Control (IAC) motor.
Airflow Sensor Assembly
Assembly is mounted inside air cleaner, and incorporates
barometric pressure sensor, intake air temperature sensor and volume
airflow sensor.
Barometric (BARO) Pressure Sensor
Sensor is incorporated into airflow sensor assembly. Sensor
converts barometric pressure to electrical signal, which is sent to
PCM. PCM adjusts air/fuel ratio and ignition timing according to
altitude.
Camshaft Position (CMP) Sensor
On SOHC engines equipped with a distributor, CMP sensor is
located in distributor. On Eclipse (Turbo) and DOHC V6 engines, sensor\
is located beside camshaft, in front of engine. On all other engines,
CMP sensor is a separate unit mounted in place of distributor. PCM
determines TDC based on pulse signals received from sensor, and then
controls MFI timing.
Closed Throttle Position (CTP) Switch
CTP switch is located in the Throttle Position (TP) sensor.
PCM senses whether accelerator pedal is depressed or not. High voltage
(open) or low voltage (closed) signal is input to PCM, which then
controls Idle Air Control (IAC) motor based on input signal.
Crankshaft Position (CKP) Sensor
CKP sensor is located in distributor on SOHC engines, except
1.5L 4-cylinder with California emissions. On DOHC 4-cylinder, DOHC V6
and 1.5L 4-cylinder engines with California emissions, CKP sensor is
located beside crankshaft, in front of engine. PCM determines
crankshaft position on pulse signals received from sensor, and then
controls MFI timing and ignition timing.
Engine Coolant Temperature (ECT) Sensor
ECT sensor converts coolant temperature to electrical signal
for use by PCM. PCM uses coolant temperature information to control
fuel enrichment when engine is cold.
Heated Oxygen Sensor (HO2S)
Page 806 of 1501
* PLEASE READ THIS FIRST *
WARNING: To avoid injury from accidental air bag deployment, read and
carefully follow all SERVICE PRECAUTIONS and DISABLING &
ACTIVATING AIR BAG SYSTEM procedures in AIR BAG RESTRAINT
SYSTEM article.
CAUTION: When removing or installing floor console, DO NOT allow any
impact or shock to Supplemental Restraint System Electronic
Control Unit (SRS-ECU).
FRONT HEATER UNIT & HEATER CORE
Removal
1) Deactivate air bag system. See AIR BAG RESTRAINT SYSTEM
article. Remove front and rear floor consoles. Remove hood release
handle. Remove fuel door release handle. Remove knee protector and
support brackets. Remove speaker covers.
NOTE: On A/T models, when removing front floor console, set A/T
selector lever in "L" position.
2) Remove glove box door stop, glove box and glove box frame.
Remove passenger-side air bag module. Remove heater control panel
cover. Remove heater control panel and radio. Remove plug from
instrument cluster cover. Remove instrument cluster cover and
instrument cluster.
3) Remove steering column cover. Remove clock or plug. Remove
side defroster covers. Remove side mirror control switch. Remove front
speakers.
4) Remove rheostat, rear wiper/washer switch, and door lock
switch. Disconnect ventilation control cable and harness connector.
See Fig. 9. Remove instrument panel. See INSTRUMENT PANEL. Drain
coolant and disconnect heater hoses from heater unit.
5) Remove shower ducts, lap duct, joint duct and center duct.
See Fig. 1 . Remove center reinforcement. Remove heater unit. Remove
distribution duct. Remove heater core.
Installation
Install heater core, distribution duct, heater unit and
center reinforcement. Install remaining ducts in reverse order of
removal. Install instrument panel. Tighten steering column bolts to 16
ft. lbs. (22 N.m). Install and adjust ventilation control cable. See
ADJUSTMENTS . To complete installation, reverse removal procedure. Add
coolant and check for leaks.
INSTRUMENT PANEL
Removal & Installation
Remove instrument panel components and then instrument panel,
in order listed on appropriate illustration. See Fig. 9. To install,
reverse removal procedures.
Page 807 of 1501

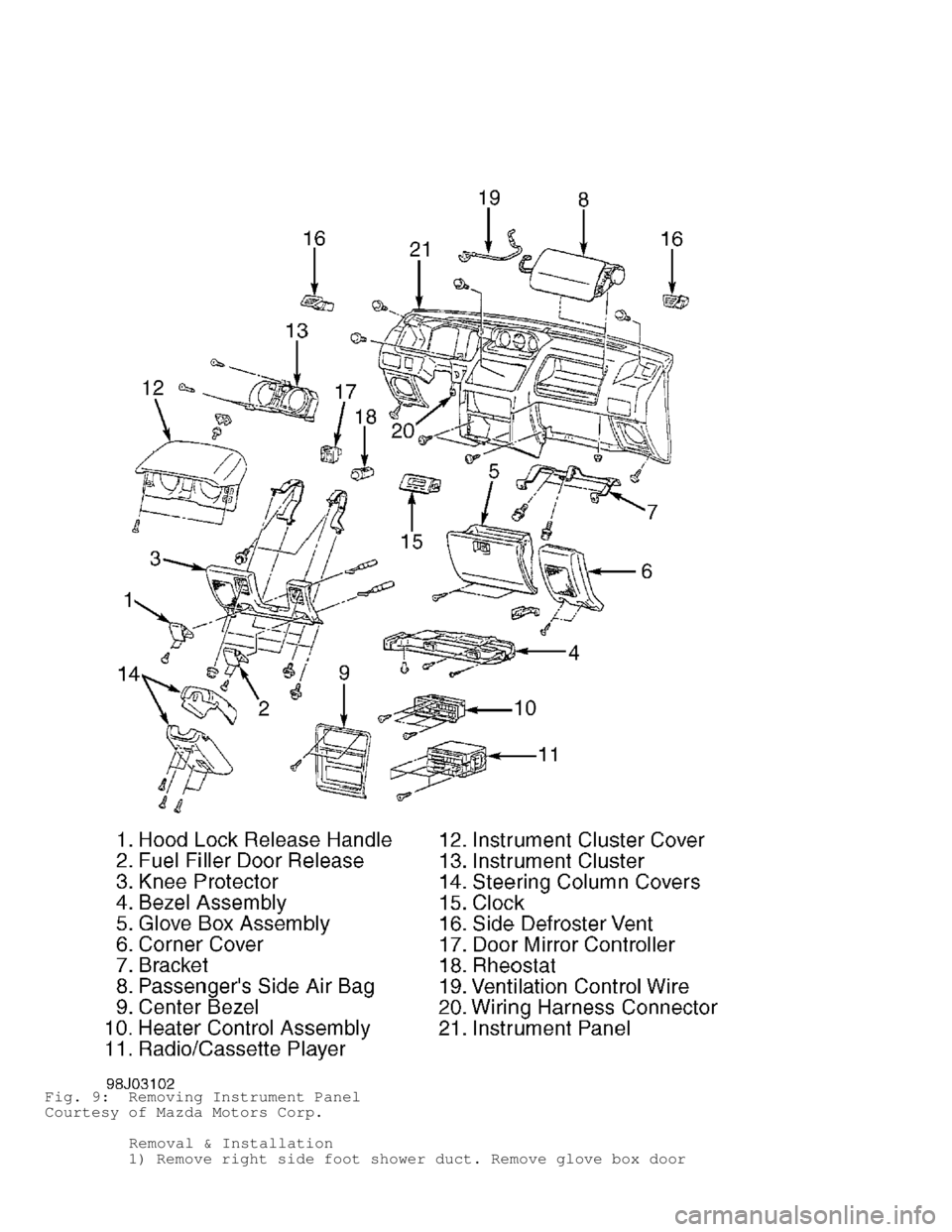

Fig. 9: Removing Instrument Panel
Courtesy of Mazda Motors Corp.
Removal & Installation
1) Remove right side foot shower duct. Remove glove box door
Page 808 of 1501
stops. Disconnect fresh/recirculated air selector cable and
temperature control cable. Remove knee protector. Remove lap duct and
left shower duct. See Fig. 1. Disconnect mode selector cable.
2) Remove heater control panel cover and panel. Remove heater
control panel bezel and knobs. Remove blower switch. Using a
screwdriver, remove wire clips. Remove heater control cables from
heater control panel. To install, reverse removal procedure. Adjust
heater control cables. See ADJUSTMENTS.
BLOWER ASSEMBLY
Removal & Installation
Remove glove box, speaker cover and speaker or corner cover.
See Fig. 1 . Remove glove box frame. Disconnect right shower duct.
Remove engine control relay and bracket. Disconnect fresh/recirculated
air selector cable and joint duct. Remove blower assembly. To install,
reverse removal procedure. Adjust air selector cable. See ADJUSTMENTS.
WIRING DIAGRAMS
Page 818 of 1501
For testing procedures, see DTCs P1103 and P1104 in G - TESTS W/CODES
article.
COMPUTERIZED ENGINE CONTROLS
CONTROL UNIT
NOTE: For Powertrain Control Module (PCM) location, see
POWERTRAIN CONTROL MODULE (PCM) LOCATION table. To identify
PCM power and ground terminals, see appropriate pin voltage
chart in J - PIN VOLTAGE CHARTS article. To identify PCM
power and ground circuits, see appropriate wiring diagram in
L - WIRING DIAGRAMS article.
Ground Circuits
1) Turn ignition off. Using an ohmmeter, check continuity
between chassis ground and PCM ground terminal(s). See Figs. 1-5.
Ohmmeter should indicate zero ohms. If reading is not as specified,
check and repair open circuit between PCM connector and chassis
ground. If reading is as specified, go to next step.
2) Connect voltmeter negative lead to chassis ground. Connect
positive lead to PCM ground terminal(s). With engine running,
voltmeter should indicate less than one volt. If reading is more than
one volt, check for open, corrosion or loose connection in ground
circuit.
Power Circuits
Turn ignition on. Check for battery voltage on both PCM power
terminals. See Figs. 1-5. If battery voltage is not present, check
operation of MFI relay. See RELAYS under MOTORS, RELAYS & SOLENOIDS.
POWERTRAIN CONTROL MODULE (PCM) LOCATION TABLE
\
\
\
\
\
\
Application Location
Eclipse 2.0L Non-Turbo .................. In Front Of Left
Front Strut Tower
Mirage & Montero Sport .............. Behind Right Side Of
Instrument Panel (Glove Box)
Montero ........................... Right Front Kick Panel
All Other Models ................... Behind Center Console
\
\
\
\
\
\
Fig. 1: Identifying PCM Terminals (Diamante)
Courtesy of Mitsubishi Motor Sales of America
Fig. 2: Identifying PCM Terminals (Eclipse 2.0L Non-Turbo)
Courtesy of Mitsubishi Motor Sales of America
Page 874 of 1501
J - PIN VOLTAGE CHARTS
1998 Mitsubishi Montero
1998 ENGINE PERFORMANCE
Mitsubishi - Pin Voltage Charts
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
INTRODUCTION
NOTE: Unless stated otherwise in testing procedures, perform all
voltage tests using a Digital Volt-Ohmmeter (DVOM) with a
minimum 10-megohm input impedance. Voltage readings may vary
slightly due to battery condition or charging rate.
Pin voltage charts are supplied to reduce diagnostic time.
Checking pin voltages at the PCM connector determines whether it is
receiving and transmitting proper voltage signals. Diagnostic charts
may also help determine if PCM harness is shorted or open.
TEST PROCEDURE
CAUTION: Shorting positive DVOM lead between connector terminal and
ground could damage vehicle wiring, sensor and PCM.
1) If necessary, remove Powertrain Control Module (PCM) to
access harness connector. For PCM location, see PCM LOCATION table.
Leave PCM connectors connected.
2) Using DVOM, backprobe terminals. Connect positive DVOM
lead to appropriate PCM terminal. Connect negative DVOM lead to PCM
ground terminal. For PCM terminal identification, see appropriate
chart. See Figs. 1-24.
3) All measurements are applicable to vehicle at normal
operating temperature at sea level. Unless otherwise noted, engine is
idling when specification requires engine running. Ensure transmission
shift selector is in Neutral or Park (as applicable). If DVOM displays\
measurement that is not within specification, see G - TESTS W/CODES
article.
PCM LOCATION TABLE
\
\
\
\
\
\
Application Location
Eclipse 2.0L Non-Turbo ............ In Front of Left Front
Strut Tower
Mirage & Montero Sport .............. Behind Right Side Of
Instrument Panel (Glove Box)
Montero ........................... Right Front Kick Panel
All Others ......................... Behind Center Console
\
\
\
\
\
\
Fig. 1: Identifying PCM Terminals (Diamante)
Courtesy of Mitsubishi Motor Sales of America
