Page 960 of 1501
MAINTENANCE INFORMATION
1998 Mitsubishi Montero
1997-98 MAINTENANCE
Mitsubishi Maintenance Information
Montero Sport
* PLEASE READ THIS FIRST *
NOTE: For scheduled maintenance intervals and the related fluid
capacities, fluid specifications and labor times for major
service intervals, see SCHEDULED SERVICES article below:
* SCHEDULED SERVICES
Warranty information and specifications for fluid
capacities, lubrication specifications, wheel and tire size,
and battery type are covered in this article.
MODEL IDENTIFICATION
VIN LOCATION
The Vehicle Identification Number (VIN) is located on the
left side of the dash panel at the base of the windshield. The VIN
chart explains the code characters.
VIN CODE ID EXPLANATION
Numbers preceding the explanations in the legend below refer
to the sequence of characters as listed on VIN identification label.
See VIN example below.
\
\
\
\
\
\
(VIN) J A 4 F J 4 3 E 1 H J 0 0 0 0 0 1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
\
\
\
\
\
\
1 - Manufacturing Country
J
* Japan
2 - Manufacturer
A * Mitsubishi Motor Corp.
3 - Vehicle Type
4 * Multi-Purpose Vehicle
4 - GVW & Brake Type
M * 5001-6000 Lbs., Hydraulic Brakes
5 - Vehicle Line
R * Montero
6 - Vehicle Series
4 * High
5 * Premium
7 - Body Type
1 * 5-Door Wagon
Page 961 of 1501
8 - Engine Type
M * 3.5L V6
9 - VIN Check Digit
* 1 Through 9 Or X
10 - Vehicle Model Year
V * 1997
W * 1998
11 - Assembly Plant
J * Nagoya, Japan
12-17 - Serial Number
* Sequential Production Number
MAINTENANCE SERVICE INFORMATION
SEVERE & NORMAL SERVICE DEFINITIONS
Service is recommended at mileage intervals based on vehicle
operation. Service schedules are based on the following primary
operating conditions.
Normal Service
* Driven More Than 10 Miles Daily
* No Operating Conditions From Severe Service Schedule
Severe Service (Unique Driving Conditions)
NOTE: Use the Severe Service schedule if the vehicle to be serviced
is operated under ANY (one or more) of these conditions:
* Driving In Dusty Conditions
* Towing A Trailer, Police, Taxi, Or Commercial Type Operation
* Extensive Idling, Driving In Stop And Go Traffic
* Short-Trip Operation At Freezing Temperatures
(Engine Not Thoroughly Warmed Up)
* Driving In Sandy Areas
* Driving In Salty Areas
* More Than 50% Operation In Heavy City Traffic Or At Sustained
High Speeds During Hot Weather Above 90
\bF (32\bC)
* Driving On Off-Road
CAMSHAFT TIMING BELT
Replace the camshaft timing belt every 60,000 miles. It is
recommended that the timing belt be inspected every 30,000 miles after
replacement.
CAUTION: Failure to replace a faulty camshaft timing belt may result
in serious engine damage.
The condition of camshaft drive belts should always be
checked on vehicles which have more than 50,000 miles. Although some
manufacturers do not recommend belt replacement at a specified
mileage, others require it at 60,000-100,000 miles. A camshaft drive
belt failure may cause extensive damage to internal engine components
on most engines, although some designs do not allow piston-to-valve
contact. These designs are often called "Free Wheeling".
Many manufacturers changed their maintenance and warranty
Page 962 of 1501
schedules in the mid-1980's to reflect timing belt inspection and/or
replacement at 50,000-60,000 miles. Most service interval schedules in
this manual reflect these changes.
Belts or components should be inspected and replaced if any
of the following conditions exist:
* Cracks Or Tears In Belt Surface
* Missing, Damaged, Cracked Or Rounded Teeth
* Oil Contamination
* Damaged Or Faulty Tensioners
* Incorrect Tension Adjustment
SERVICE POINT LOCATIONS

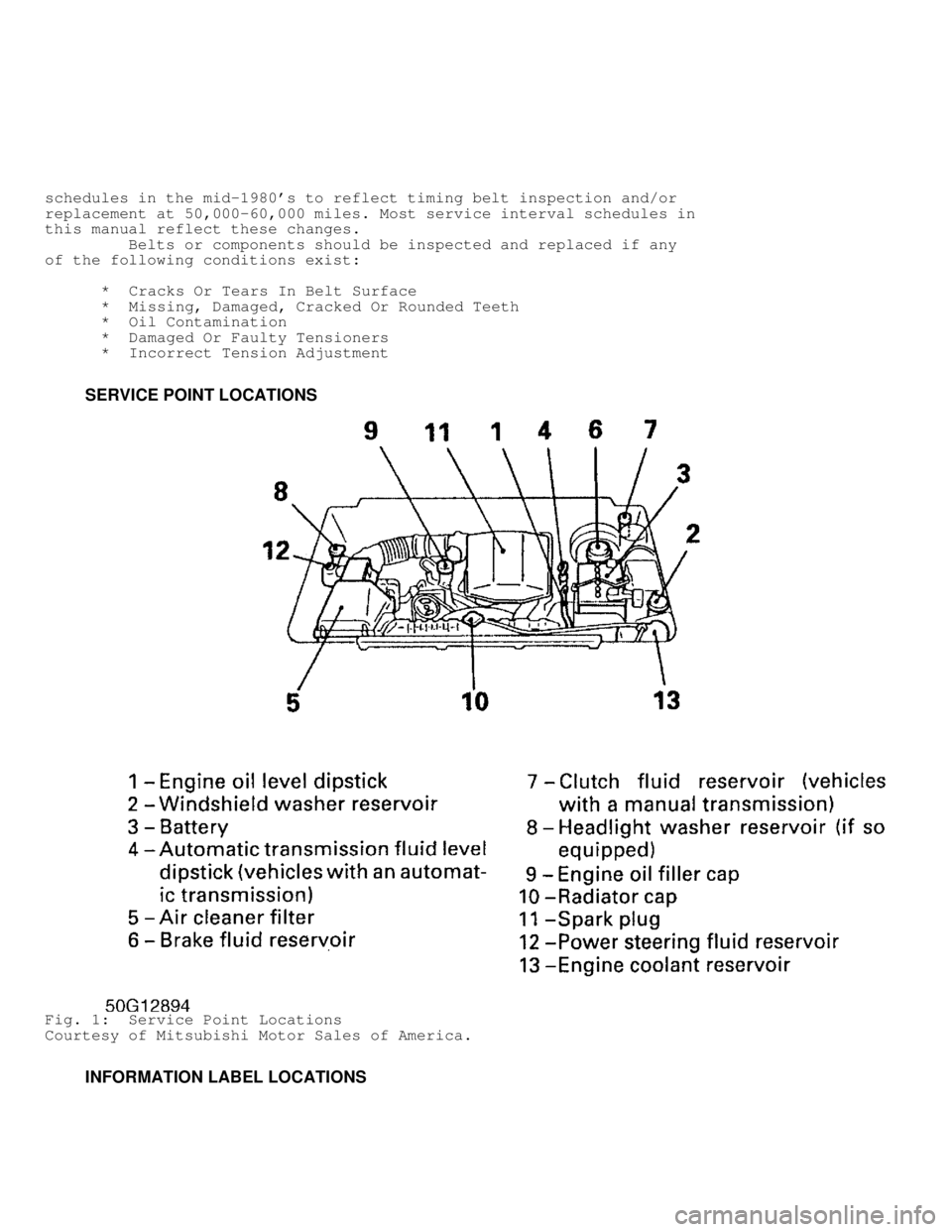

Fig. 1: Service Point Locations
Courtesy of Mitsubishi Motor Sales of America.
INFORMATION LABEL LOCATIONS
Page 1045 of 1501
SCHEDULED SERVICES
1998 Mitsubishi Montero
1997-98 MAINTENANCE
Mitsubishi Maintenance & Service Intervals
Mitsubishi: Montero
* READ THIS FIRST *
Before preforming maintenance on vehicle, ensure that all
cautions and warnings have been observed to prevent vehicle damage or
personal injury. See CAUTIONS & WARNINGS in MAINTENANCE INFORMATION
article in this section.
Introduction
The frequency of scheduled inspection and maintenance
services in this article are based on "normal" vehicle usage. They DO
NOT take into account the following "severe" conditions:
* Driving In Dusty Conditions
* Trailer Towing, Police, Taxi, commercial Type Operation
* Extensive Idling, Driving In Stop-And-Go Traffic
* Short Trip Operation At Freezing Temperatures (Engine Not
Thoroughly Warmed Up)
* Driving In Sandy Areas
* Driving In Salty Areas
* More Than 50% Operation In Heavy City Traffic Or At Sustained
High Speeds During Hot Weather Above 90
F (32 C)
* Driving On Off-Road
If any of these severe conditions exist, the "normal" service
schedule frequency for some service items is inadequate and must be
supplemented. See the following section for specific details,
SEVERE SERVICE CONDITIONS/ACTIONS .
SEVERE SERVICE CONDITIONS/ACTIONS
The following table identifies eight "severe" conditions that
cause faster-than-normal wear. Each condition lists affected service
item(s) and their revised (more frequent) service interval.
If any severe condition(s) is applicable, its revised service\
interval(s) supersede those found in the "normal" schedules. Depending\
on the specific mileage/time, the revised interval(s) may overlap a
normal schedule (in which case they can be done together). If not, it
must be performed outside of the normal schedule.
SEVERE SERVICE CONDITIONS/ACTIONS TABLE
\
\
\
\
\
\
\
Condition Action Item Perform Every (1)
\b
\
\
\
\
\
\
\
Driving In Dusty Replace Engine Oil 3,000 Mile (4800 KM)
Conditions Or 3 Months
\b
\
\
\
\
\
Replace Oil Filter 6,000 Mile (9600 KM)
Or 6 Months
\b
\
\
\
\
\
Replace Air Cleaner 15,000 Mile (24,000 KM)
Filter
\b
\
\
\
\
\
Inspect Disk Brake 6,000 Mile (9,600 KM)
Pads Or 6 Months
